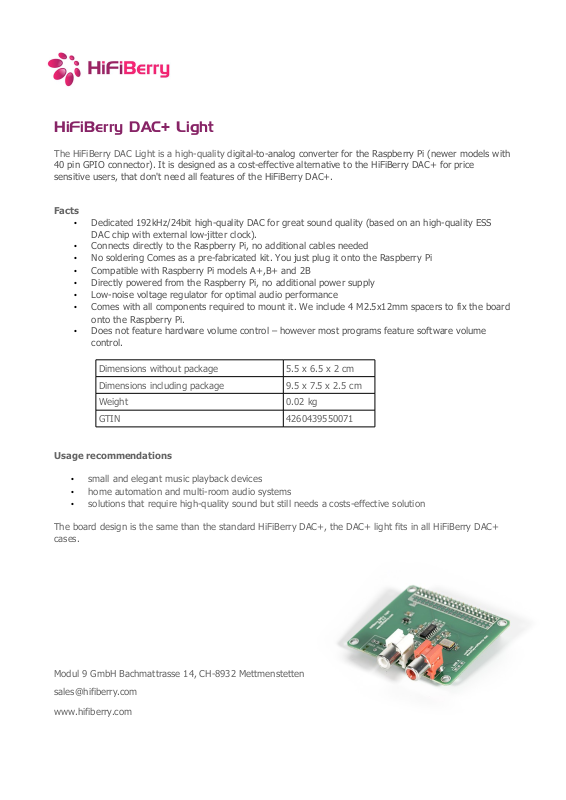

HiFiBerry DAC+ Light User Manual

HiFiBerry DAC+ Light

The HiFiBerry DAC Light is a high-quality digital-to-analog converter for the Raspberry Pi (newer models with

40 pin GPIO connector). It is designed as a cost-effective alternative to the HiFiBerry DAC+ for price
sensitive users, that don't need all features of the HiFiBerry DAC+.

Facts

• Dedicated 192kHz/24bit high-quality DAC for great sound quality (based on an high-quality ESS

DAC chip with external low-jitter clock).

• Connects directly to the Raspberry Pi, no additional cables needed

• No soldering Comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi

• Compatible with Raspberry Pi models A+,B+ and 2B

• Directly powered from the Raspberry Pi, no additional power supply

• Low-noise voltage regulator for optimal audio performance

• Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board

onto the Raspberry Pi.

• Does not feature hardware volume control – however most programs feature software volume

control.

Dimensions without package 5.5 x 6.5 x 2 cm

Dimensions including package 9.5 x 7.5 x 2.5 cm

Weight 0.02 kg

GTIN 4260439550071

Usage recommendations

• small and elegant music playback devices

• home automation and multi-room audio systems

• solutions that require high-quality sound but still needs a costs-effective solution

The board design is the same than the standard HiFiBerry DAC+, the DAC+ light fits in all HiFiBerry DAC+
cases.
