Installation Guide

iCLASS Reader Models bio500, RWKL550 & RWKLB575

PARTS INCLUDED SPECIFICATIONS

• 1 - iCLASS LCD Keypad Reader with optional Bio • Reader Input Voltage:

• 1 - Installation Manual • Current Range:

• 2 - #6-32 x .25” x Phillips machine screws

• 3 - #6-32 x .375” Phillips self-tapping machine screws

• 2 - #6 x 1.5” Phillips sheet metal screws

• 2 - #6-32 x .375” Spanner security screws

• 1 - 10 Position Phoenix Plug

• 1 - 8 Position Phoenix Plug • Op. Temperature:

• 1- Foam Gasket • Open collector output:

Recommended:

• Up to 10 wire splices

• Security Tool (for security screw) HID 04-0001-03

• Cable, 9 conductor, 22 AWG, shielded (Wiegand)

• Linear 12 VDC, 1 A Power Supply

• Cable , 6 conductor, 22 AWG, shielded (Serial)

• Metal or plastic junction box

• Magnetic Tamper switch - Ademco 945T, Sentrol

1038T, GRI 100T or 110T or Aleph DC-2531

• Cable distance to Host:

16 Gauge Wire 500 ft (152 m) max – Wiegand
20 Gauge Wire 200 ft (60 m) max – Wiegand

Standards:

• Read/Write capability in ISO 15693 mode with HID iCLASS
credentials.

• Read/Write capability in ISO 14443B mode with HID iCLASS
16KS.

• Read capability of CSN/UID in ISO 14443A mode with HID
Mifare and other 3

rd

Description

9-12 VDC
350 mA standby / 520 mA peak.
50 ft (15 m) max – RS-232.

4000 ft (1216 m) max – RS-485

32 °F - +113 °F (0 °C – +45 °C)
Sink – 40 mA, source – 1 mA.

party Mifare credentials.

RWKLB575 RWKL550 bio500

The bioCLASS range is intended for indoor use only and should never be mounted on an exterior wall.

INSTALLATION

1- Install Tamper Switch

An internal magnet provides tamper indication when used with a magnetic reed switch connected to an external alarm system.
Locate Switch behind the left side of the mounting plate, centered between the mounting holes.

Electrical Back Box

An ASSA ABLOY Group company ASSA ABLOY

_____________________________________________________________________________________________________

HID Corporation 9292 Jeronimo Road Irvine, CA 92618-1905 USA TEL [phone] [phone] FAX [phone]
Web page - www.hidcorp.com e-mail – [e-mail]
iCLASS Biometric/LCD keypad Reader Install Manual 6096-901 Rev A.2 Page 1 of 4

Wall Surface

Installation Guide

iCLASS Reader Models bio500, RWKL550 & RWKLB575

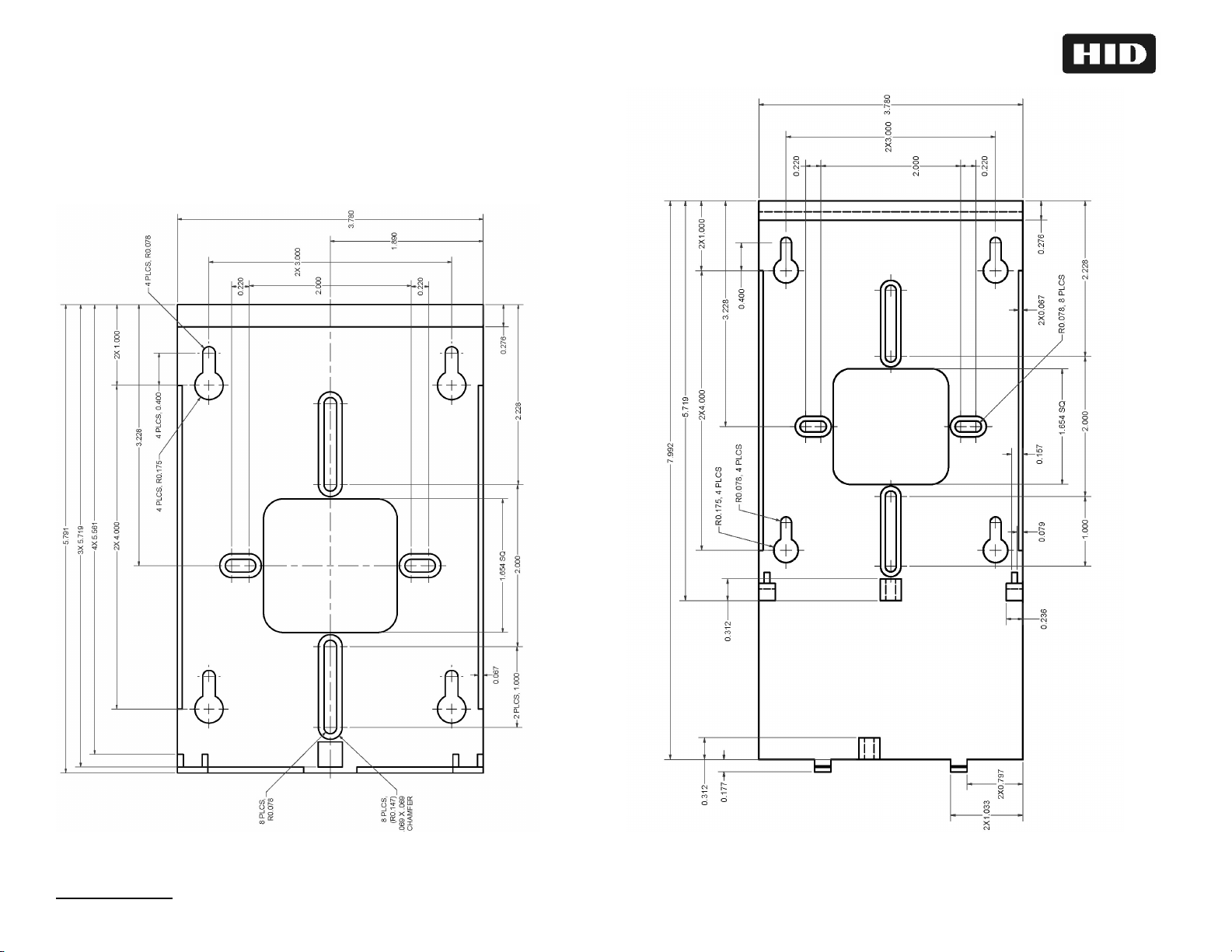

2 - Install Mounting Plate

Attach the mounting plate to the wall or electrical back box,
using the long or short backplate as appropriate.

Long – biometric
Short - keypad

3 – Biometric Reader Mounting

1. Connect the ribbon cable from the bio500 to connector J8 on the RWKL550. Ensure that pin1 of the ribbon
cable is aligned with pin1 of the connector.

2. Slide the reader onto the long backplate, ensuring that the tongue of the backplate is located in the slot at
the top of the reader and retain with a screw.

3. Align the biomodule with the RWKL550 body and insert a second screw.

RWKL550

Ribbon cable

bio500
