Hideki Electronics TS15 C User Manual

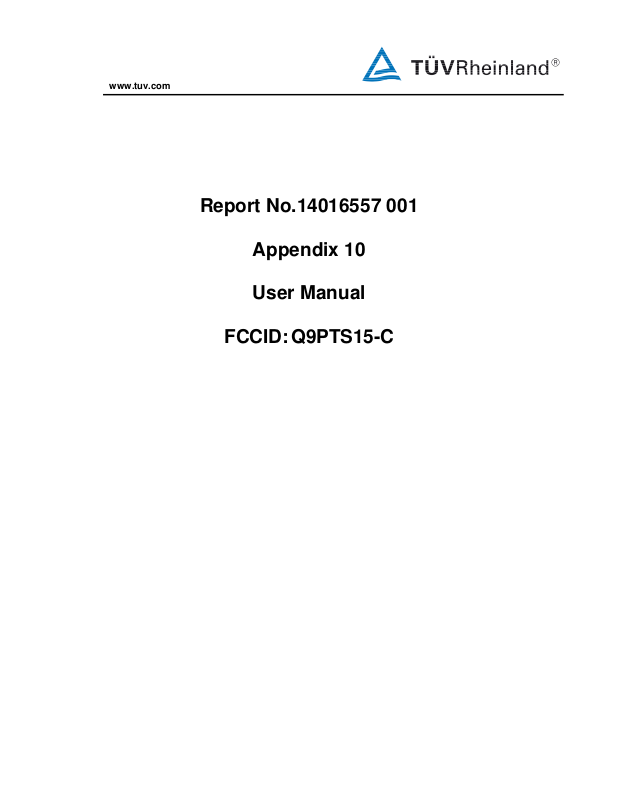

www.tuv.com

Report No.14016557 001

Appendix 10

User Manual

FCCID: Q9PTS15-C

Thermo Sensor

(TS15C)

USER MANUAL

1

REMOTE SENSOR

FEATURES

• Double-tool design

• Remote temperature transmission to the main unit via 433 MHz frequency

• Case can be wall mounted using built-in hanger

• Selection of the temperature display in Celsius or Fahrenheit

• Three channel selection

• LCD displays temperature, and channel

E

A

A. LED INDICATOR

• Flashes once when the remote sensor transmits a reading to the main unit.

• Flashes twice when battery power is low.

B. BATTERY COMPARTMENT

• Holds two AAA-size batteries

C. RESET

• Resets all previous settings

D. CHANNEL SWITCH

• Selects the desired channel -1, 2 or 3

E. WALL-MOUNT RECESSED OPENING

• Keeps the remote sensor on the wall

F. °C/ °F SWITCH

C

F

B

D

• Selects the temperature display in Celsius or Fahrenheit

•

BEFORE YOU BEGIN

• We recommend using alkaline batteries for the remote sensor and main unit when temperatures are
above 0°C (32°F). We recommend using lithium batteries for the remote sensor when temperatures are
below 0°C (32°F).

• Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power

2
