HID Miniprox Installation Manual

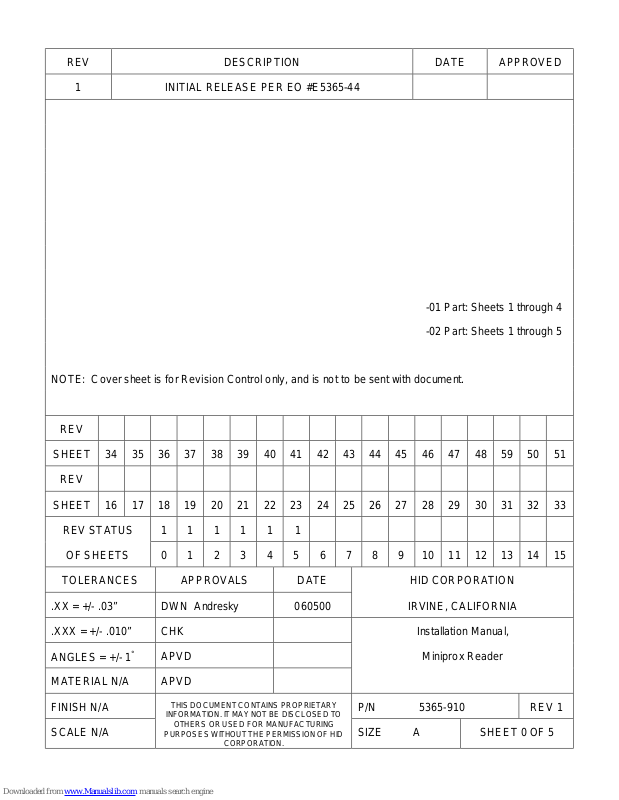

REV DESCRIPTION DATE APPROVED

1 INITIAL RELEASE PER EO #E5365-44

-01 Part: Sheets 1 th rough 4

-02 Part: Sheets 1 th rough 5

NOTE: Cover sheet is for Revision Control only, and is not to be sent with document.

REV

SHEET 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 59 50 51

REV

SHEET 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

REV STATUS 11111 1

OF SHEETS 0123456789101112131415

TOLERANC ES APPROVALS DATE HID CORPORATION
.XX = +/- .03” DWN Andresky 060500 IRVINE, CALIFORNIA
.XXX = +/- .010” CHK Installation Manual,

°

ANGLES = +/- 1

APVD Min iprox Reader
MATERIAL N/A APVD
FINISH N/A P/N 5365-910 REV 1
SCALE N/ A

THIS DOCUMENT CONTAINS PROPRIETARY

I NFO RMATION. IT MAY NOT BE DISCLO SED TO

OTHERS OR USED FOR MANUFACTURING

PUR POSES WITHOUT T HE PERMISSION OF HID

SIZE A SHEET 0 OF 5

CORPORATION.

Install Manual – 5365-910 Rev 1
MiniproxTM Installation Manual

_____________________________________________________________________________________________________

HID Corporation 9292 Jeronimo Road Irvine, CA 92618-1905 USA TEL [phone] [phone] FAX [phone]
Web page, E-mail - www.hidcorp.com - Miniprox Installation Manual 5365-910 Rev 1

1

PARTS LIST ( Included)
Quantity

- MiniproxTM Reader with snap-on cover and 18” cable
(For t er minal block versions no cable is supplied)

1

- #6-32 x 1” self- t apping panhead screw

2

Connecting the Reader to the Host

Connect the reader to t he host according to the wiring
table below and the host installation guide.

Wiegand

Clock & Da ta

Wir e Co lo r

Terminal Number

- Installation manual

1

- Junction box (Hazardous installation version only)

1

PARTS LIST ( Not - Included)
Quantity

- Wire splice

9

- DC Power supply 5.0 VDC or 12 VDC

2

Mounting Instructions

Determine an appropriate mounting location. The

•

reader may be mounted to any surface, including
metal.

Drill t wo (2 ) 3/3 2-inch (2.5 mm) holes approximately

•

1 inch deep for mounting the reader.

Drill a 5 /8- inch (16 mm) hole for the cable .

•

Remove the snap-on cover from the reader and

•

secure the reader to t he mounting surface.

Route the cable from the reader and/or power

•

supply to the host. A linear type power supply is
recommended. Check all electrical codes for proper
cable installation.

For best operation, the drain wire should be

•

disconnected at t he power supply end of the cables.

For the cable connection to the Panel - Use Alpha

•

#1299C or equivalent.

Test the operation of the reader. Aft er completion of

•

the test, r eplace t he snap-on cover.

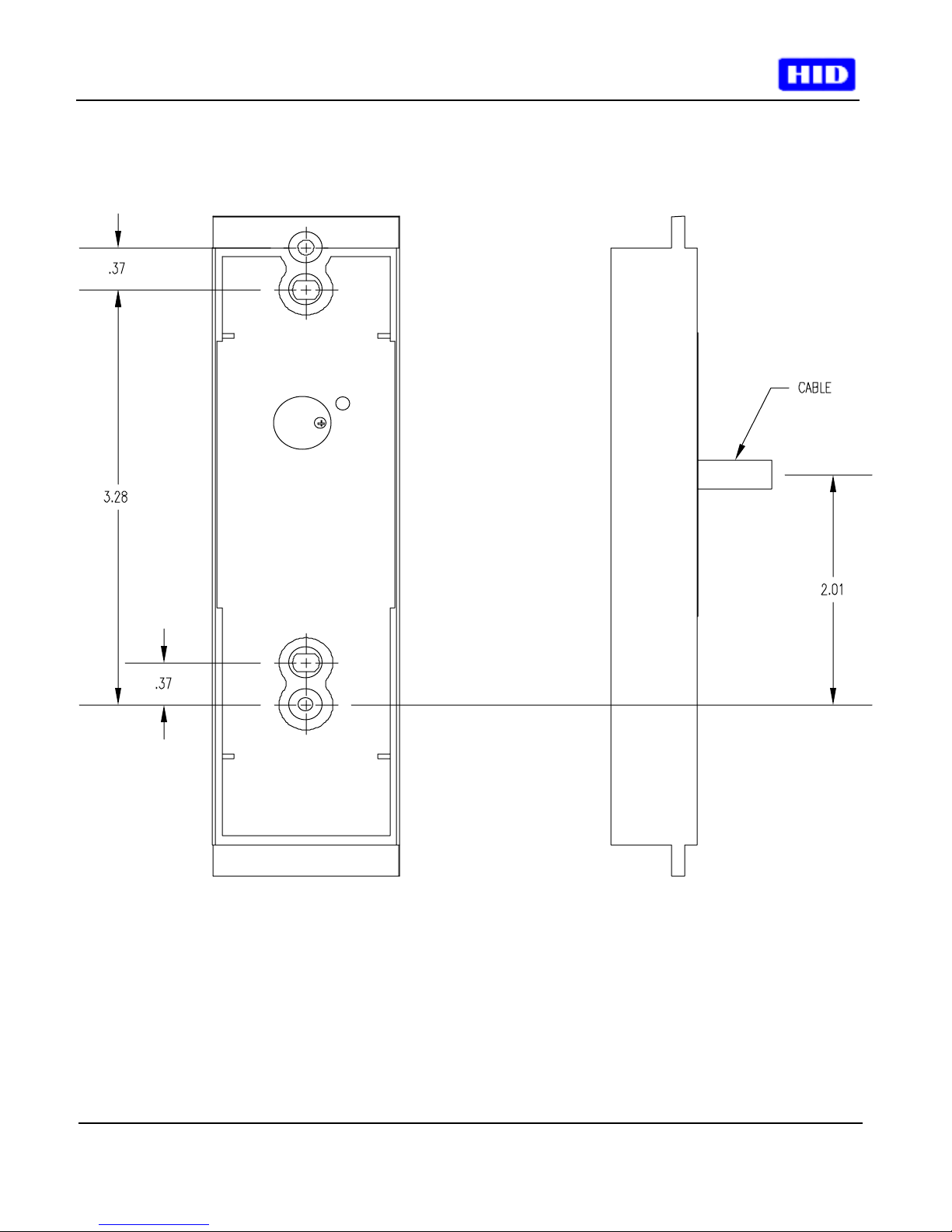

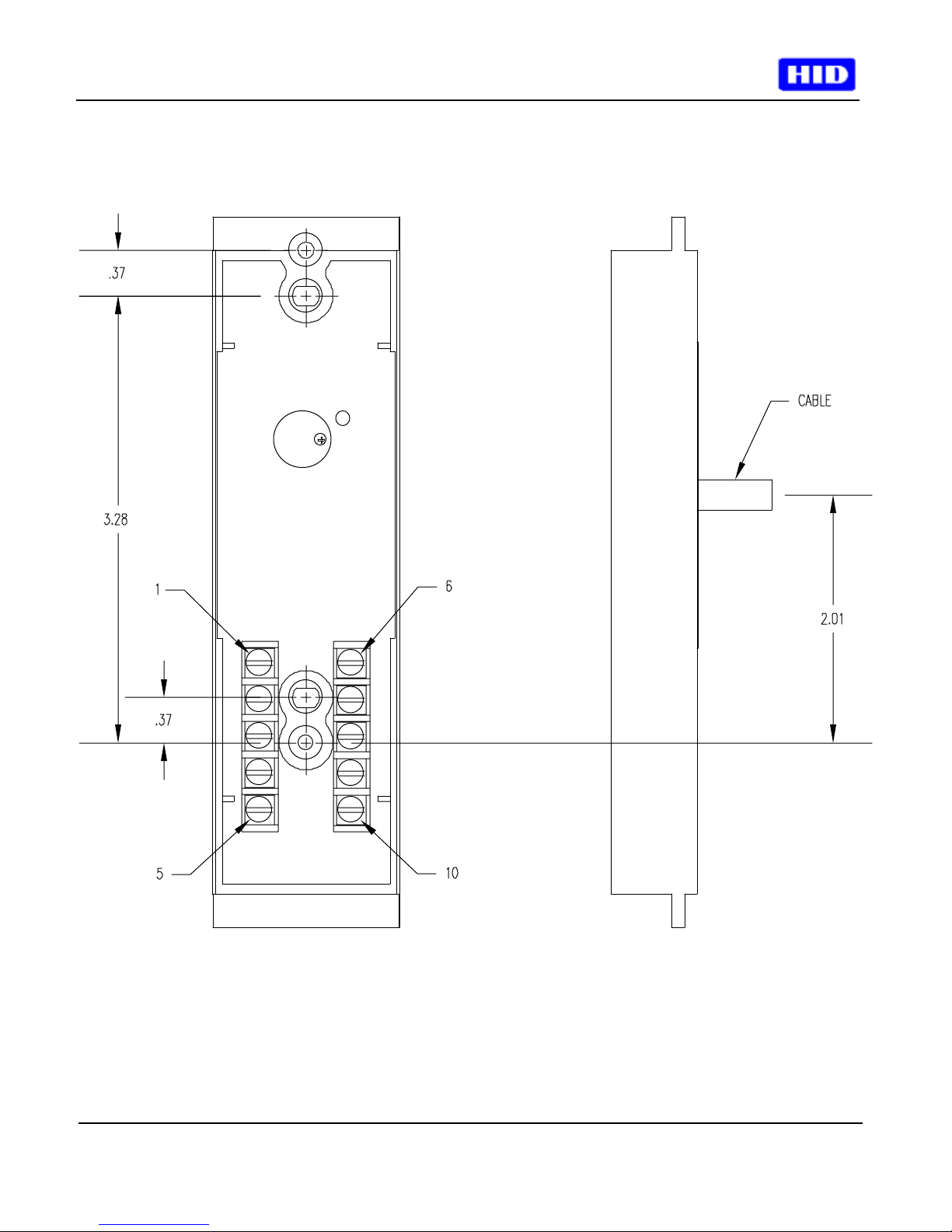

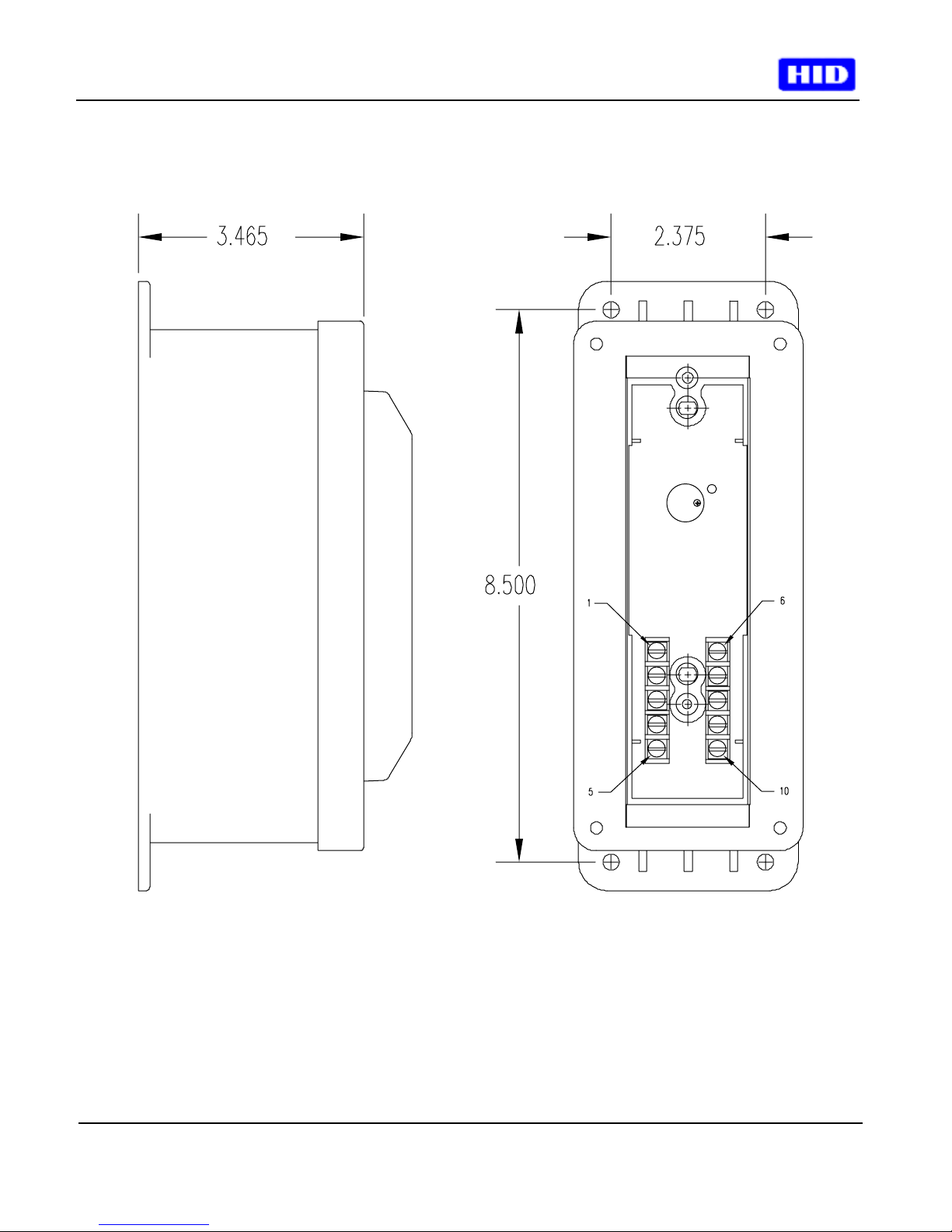

See sheet 3 of this manual for the appropriate

•

dimensioned draw ings.

+DC
+DC

Red

TB1-1

Ground
Ground

Black

TB1-2
Data0

Data
Green
TB1-3

Data1

Clock
White

TB1-4

Shield Gr o und
Shield Gr o und

Drain

TB1-5

Green LED
Green LED

Orange

TB1-6

Red LED
Red LED

Brown
TB1-7

Beeper
Beeper

Yellow

TB1-8
