1.0 Introduction

The Juniper® Networks SA Series SSL VPN Applian ces enable remote and mobile employees, customers, and partners to gain secure access to corporate Virtual P r i v ate Network resources and applications. Providing secure access via a VPN over existing Internet connections requires strong, two-factor authentication to protect resources. The HID Global Identity Assurance™ soluti ons t hat work with Juniper Networks appliances incorporate SSL VPN solutions with versatile, strong authentication that is flexible, scalable, and simple to manage. There are two solutions:

• 4TRESS AAA Server for Remote Access—Addresses the sec urity risks associated with a mobile workforce remotely accessing systems and data.

• 4TRESS Authentication Server (AS)—Offers support f or mul t i ple aut hentication methods that are useful for diverse audiences across a variety of service channels (including SAML), including user name and password, mobile and PC soft tokens, one-time passwords, and transparent Web soft tokens.

1.1 Scope of Document

This document explains how to configure 4TRESS Authenticat ion Serv er (FT2011) and Juniper Secure Access (SA) using Security Assertion Markup Language (SAML). SA ML 2.0 enables Web-based authentication and authorization and can be used by Juniper SA to delegate user authentication to the 4TRESS Authentication Server.

The integration of 4TRESS Authentication Server capabilities with Juniper SSL-protected Virtual Private Networks enables multiple user authentication choices. User s can authenticate to the 4TRESS authentication portal using whichever authentication mechanism is appropriate for the environment and company policies. Authentication methods working out of the box include one-time passwords (OTP), Web soft token OTPs, an d P ubl ic K ey Infrastructure (PKI) methods.

1.2 Prerequisites

• 4TRESS Authentication Server (FT2011 or greater) installed and configured.

• Juniper SA with SAML 2.0 capabilities installed and configured (at a minimum, Juniper Networks

Secure Access IVE Platform Version 7.1R5).

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

2.0 Juniper Secure Access Configuration

This chapter describes how to manage Juniper Secure A c ce ss. When a user signs into a Juniper SA Series appliance, the user specifies an authentication r ealm , which is associated with a specific authentication server. The Juniper SA Series appliance forwards the user’s credentials to this authentication server to verify the user’s identity. The first procedure is to create a new SAML server to validate authenticat ion requests.

2.1 Procedure 1: Create SAML Authentication Server

Getting Started

1. In the Admin console, expand the Authentication menu, and then click Auth. Servers.

2. From the New drop-down list, select SAML Server, and then click New Server.

The following dialog is displayed.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

All data should be populated already, as illustrated above.

3. Proof the Settings tab page to be sure the following opt ions a nd attributes are correct.

• SAML Version—Select 2.0.

• SA Entity Id—This should be auto-populated. If not, then click Configure host name (not

illustrated).

• Single Logout Service URL—make sure it is correct.

• The other settings are default settings. Accept them.

• Configuration Mode—The Metadata option should be selected. Metadata is used to

configure the 4TRESS Identity Provider (IDP). If there are issues, then you will have to retrieve the 4TRESS Metadata, which are available via the

4TRESS Management Console. See the illustration on the f oll owing page.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

4. Log in to the 4TRESS Management Console, navigate t o Configuration -> SAML -> 4TRESS Identity

Provider -> Export Metadata), and then set Metadata Validity. Save your changes, and then click Download Metatdata to export t he f i le.

2.2 Procedure 2: Define Juniper User Role(s)

A user role is an entity that defines user session param et ers, personalization settings, and enabled access features.

1. From the Admin console, expand the Users menu, p oi nt to User Roles, and then click New User Role.

2. Configure the new user role according to your requir ements.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

2.3 Procedure 3: Define Juniper Authentication Realm

An authentication realm specifies the conditi ons that users must meet in order to sign into the SA Series appliance. A realm consists of a grouping of authenti ca tion resources.

1. From the Admin console, expand the Users menu, p oi nt t o User Realms, and then click New User Realm.

2. On the General tab, enter the following attributes.

• Name—Enter a name to label this realm.

• Description—Enter a meaningful description.

• In the Servers section:

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

• Select the SAML option from the Authentication drop-down list to specify an authentication server to use for authenticating u se rs who sign i n t o this realm (for example, the “4TRESS AS SAML”).

• Directory/Attribute—Accept the default (None).

• Accounting—Accept the default (None).

3. Click Save Changes.

2.4 Procedure 4: Configure Juniper Sign-In Page

1. From the Admin console, expand the Authentication menu, point to Signing In, and then cl i ck Sign-in Pages.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

2. Accept all defaults as illustrated above.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

2.5 Procedure 5: Juniper Sign-In Policies

User sign-in policies determine the realm(s) that users can access.

1. To create or configure user sign-in policies, in the Admin console, expand the Authentication menu, point to Signing In, and then click Sign-in Policies.

2. To create a new sign-in policy, click New URL.

3. In the Sign-in URL field, enter the URL that you want to associate with the policy. Use the format <host>/<path>, where <host> is the host name of the Secure Access device and <path> is any string you want users to enter.

4. For Sign-in Page, select the sign-in page that you want to associate with the policy.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

Important: You will use the 4TRESS Management Console and the 4TRESS Configurer to perform

5. For Authentication realm, specify which realm(s) map to the policy and how users should pick from amongst realms.

6. Click Save Changes.

3.0 4TRESS Configuration

these procedures. This chapter only provides a summary of steps. For complete details, please have the following technical documents on hand for ea sy ref erence:

• 4TRESS AS Identity Provider Solution Guide

• 4TRESS AS Administrator Guide: Management C onsole

• 4TRESS AS Administrator Guide: Configurer Port al

3.1 Procedure 1: Create SAML Channel

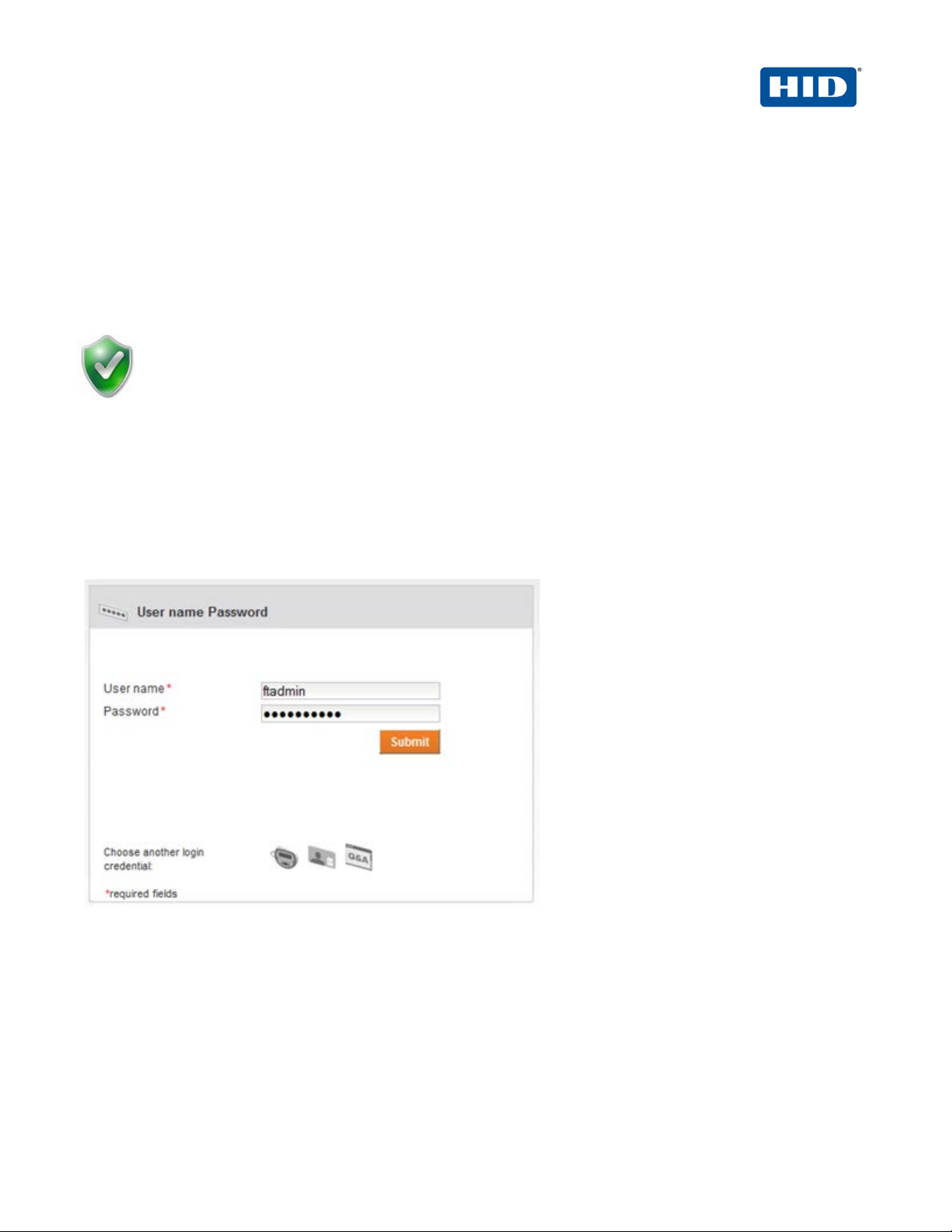

1. Launch the 4TRESS Management Console.

2. When prompted, enter your User name and Password, and then click Submit.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

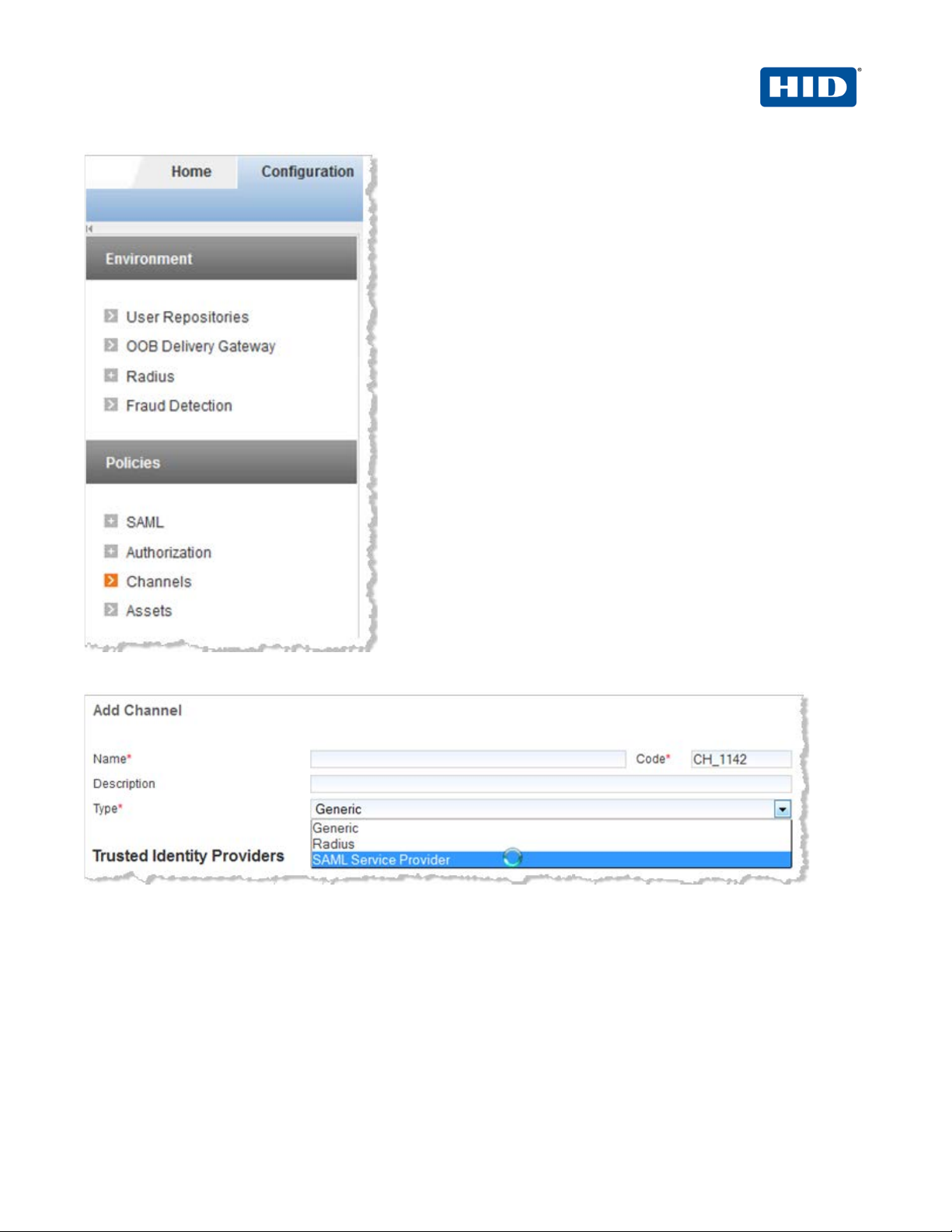

3. In the pane to the left under Policies, click Channels, and then in the page displ ayed to the right, click Add.

4. Specify a meaningful Name and Description, and then from the Type drop-down list, select SAML Service Provider.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

3.2 Procedure 2: Import Juniper Metadata

1. Navigate to the Juniper SAML Details page.

2. Click File import.

3.3 Procedure 3: Authorize the SAML Channel (Authentication Policies)

1. Connect to the 4TRESS AS Configurer.

2. When prompted, enter your Password, and then click Log in.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

3. In the Available Channels box,select and move Juniper SAML to the Selected Channels box, and then click Update.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

3.4 Procedure 4: Configure the Identity Provider

1. Log in to the 4TRESS Management Console.

2. In the pane to the left under Policies, expand SAML, and then click 4TRESS Identity Provider.

3. Select the corresponding authentication polici es and GUI template ID. urn:oasis:names:tc:SAML:2.0:ac:classes:Password urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedPassword

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

4.0 SAML Channel Authentication: An Overview

4.1 Prerequisite: Activate Web Soft Token

For a person to use a Web token in the SAML context, the laptop must be enrolled first.

1. From the Main menu, from the Service drop-down list, select Activate Soft Token.

2. From the Soft Token Type drop-down menu, select Web Soft Tok en, and then click Submit.

3. Enter your User Name and Password, and then click Login.

4. Click Activate. If soft token configuration has been configured to use a Web soft token with a PIN, then you will be prompted to enter a PIN, also.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook

When the proper login credentials have been accepted, t he following message is displayed.

Now, the Web token can be used to access Juniper realms.

FIGURE 1: Illustration of User Authentication with a Web Soft Token Launched in the Sign-In Page

The user opens a browser and enters the URL the administ rator has defined in the Juniper Sign-in policy. The user is redirected to the 4TRESS AS authentication portal, and t hen authenticates as a 4TRESS user. When authenticated, the user is redirected to the Junipe r pa ges.

FT2011 and Juniper Secure Access | SAML 2.0 Channel Integration Handbook
