Universal Laptop Battery
User’s Manual
www.Hi-Capacity.com
Universal Laptop Battery - User’s Manual
1
Table of Contents
1. Introduction
. . . . . . . . . . . . . . . . . . . . . 2
2. Safety Precautions . . . . . . . . . . . . . . . 3
3. Usage Instructions . . . . . . . . . . . . . . . 4
Before Use . . . . . . . . . . . . . . . . . 4
Charging the Battery . . . . . . . . . . 5
Reading the Fuel Gauge . . . . . . . 8
4. Specifications . . . . . . . . . . . . . . . . . . . 10
5. Manufacturer's Warranty . . . . . . . . . . 10
Universal Laptop Battery - User’s Manual
2
1. Introduction
Congratulations on your purchase of the Hi-Capacity™
Universal Laptop Battery. This battery has been designed for
mobile laptop users who need maximum work time from their
computers. Advanced Lithium Ion technology provides a long
lasting power source when you have no access to an AC/DC
power outlet. The battery is constructed using the highest
quality components and utilizes all of the proper logic boards,
thermal protectors and circuit breakers to ensure safety and
reliability. For optimal performance and safety please read
the following instructions carefully before using the Universal
Laptop Battery.
Box contents include:
1. Universal Laptop Battery Pack
2. User's Manual
3. Compatibility Guide
4. AC Adapter
5. AC Adapter Cord
6. Output Cable
7. Smart Tip(s)
If any of these items are missing please contact the retail
dealer from which you purchased the Universal Laptop
Battery.
Universal Laptop Battery - User’s Manual
3
2. Safety Precautions
When used under normal conditions the Universal Laptop
Battery is a safe alternative energy source to AC/DC power.
However, misuse of the battery can lead to leakage of toxic
fumes or in extreme cases, explosion or fire. Before use,
please read the user's manual in its entirety. It is very important to follow the instructions carefully to avoid potentially
hazardous situations.
Use only with laptop computers specified in the Universal
Laptop Battery compatibility guide.
Use the compatibility guide to identify the correct Smart Tip
for your laptop. Do not use a tip different than the one specified. If you have any questions or need assistance please
contact the retail store from which you purchased the
Universal Laptop Battery.
Only use the Smart Tip, AC adapter and output cable that
accompanied the battery when originally purchased.
Do not attempt to disassemble, puncture, throw, drop, crush,
bend, modify or incinerate the battery.
Avoid contact between the battery and metal objects.
Contact with metal objects may cause the battery to short-circuit.
Do not insert foreign objects into the battery's charging or
output ports.
Do not expose the Universal Laptop Battery to heat above
140°F (60°C).
Do not expose the Universal Laptop Battery to water or any
other liquids.
Do not charge the battery while on an airplane.
Universal Laptop Battery - User’s Manual
4
Store the Universal Laptop Battery in a cool dry area.
Do not discard the Universal Laptop Battery in the trash.
Follow all local environmental regulations for recycling.
Keep the battery away from children.
In Case of Emergency
In case the contents of the battery come into contact with the
eyes, flush eyes with water and immediately seek medical
attention.
In case the contents of the battery come into contact with any
exposed skin, flush with soap and water and immediately
seek medical attention.
In case of inhalation of fumes resulting from a leakage in the
battery, leave the area immediately and seek medical attention.
In case the battery's contents are ingested, drink water to
dilute the battery material and seek immediate medical attention. DO NOT induce vomiting.
3. Usage Instructions
Before Use
Check the remaining capacity of the Universal Battery by
pushing the fuel gauge indicator button located on the lower
right portion of the battery. The LEDs on the fuel gauge indicate the remaining capacity of the Universal Battery. Once
the button is pushed and the capacity is indicated, the LEDs
Universal Laptop Battery - User’s Manual
5
will turn off after 5 seconds. If the LEDs do not light up the
battery is completely depleted and needs to be charged
using the AC adapter. The Universal Laptop Battery is
shipped with a minimal charge and will need to be fully
charged before use.
Charging the Battery
WARNING: Use only the AC adapter provided with the
Universal Laptop Battery.
S
tep 1:
Connect the AC adapter's cord into the AC adapter
and the plug-end of the cord into an AC wall outlet.
S
tep 2:
Insert the AC adapter plug into the charging port of
the Universal Battery (it is recommended to have
the output cable detached from the battery during
charging).
S
tep 3:
Let the Universal Laptop Battery charge for approximately three hours until fully charged. When normal charging is in progress the LEDs on the fuel
gauge will display a green blinking signal. When all
Universal Laptop Battery - User’s Manual
6
of the LED's display a constant green signal the battery is
fully charged (refer to "Reading the Fuel Gauge" section for
more information on fuel gauge operation). The battery will
not charge when the output cable is connected to the
laptop.
WARNING: If the fuel gauge panel displays a blinking red
signal during charging immediately disconnect the AC
adapter plug from the Universal Laptop Battery to stop the
charging process. After a few seconds reconnect the AC
adapter plug to the battery and attempt to charge. If the problem persists discontinue use of the battery and contact your
dealer for further assistance.
Choosing the correct Smart Tip for your laptop
computer
The Universal Laptop Battery includes a variety of Smart Tips
to ensure compatibility with most laptop brands and models.
Use the included Compatibility Guide to select the correct
Smart Tip for your laptop model. If your model is not listed
contact your local dealer to verify whether the battery works
with your laptop.
Note: Some models on the Universal Battery include only
one Smart Tip plug to be used with the specific laptop for
which the battery was purchased. Additional Smart Tips can
be purchased from your local dealer.
WARNING: Do not use the battery if your laptop model is not
Universal Laptop Battery - User’s Manual
7
listed in the compatibility guide. Use of the incorrect Smart
Tip may damage your laptop computer or cause it to malfunction!
For the most current Smart Tip compatibility guide, go to
www
.Hi-Capacity.com/compguide

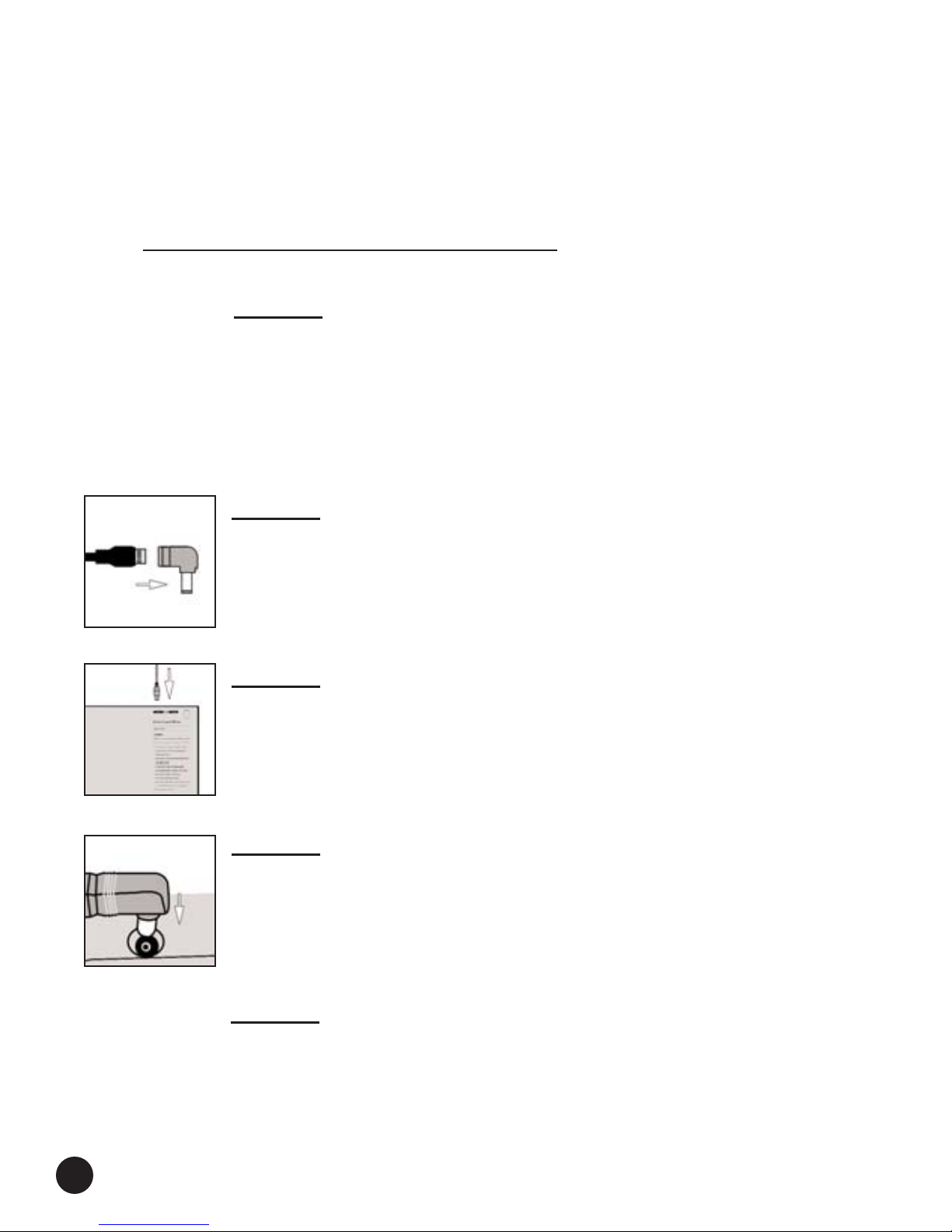

Step 1:
Use the Compatibility Guide to select the correct
Smart Tip for your laptop computer. Each Smart Tip is
clearly numbered. Select the correct Smart Tip based
on the Smart Tip specified in the compatibility guide.
S
tep 2:
Connect the selected Smart Tip to the end of the output cable. The arrows on the two pieces should meet.
S
tep 3:
Insert the other end of the output cable into the output
port of the battery.
S
tep 4:
Insert the Smart Tip into the AC adapter port of your
laptop computer where the AC adapter would normally connect.
Step 5:
Turn on the laptop and begin working.
Universal Laptop Battery - User’s Manual
8
Reading the Fuel Gauge
The Universal Battery has a five step fuel gauge panel to
indicate charging status and remaining capacity. The fuel
gauge is located in the lower right corner of the Universal
Battery and consists of 5 LEDs. Push the “check” button to
determine the batteries remaining capacity.
General Operating Instructions
T
emperature
WARNING: Only use the Universal Laptop Battery in ambient temperatures that do not exceed 130°F (54.4°C). It is
normal for the battery to become warm during use. For
precautionary measures the battery may shut down temporarily if it reaches a temperature of 140°F (60°C). The
battery will resume normal operation once it has cooled off
sufficiently. Avoid placing the battery in direct sunlight, next to
heat sensitive materials or in automobiles that may reach
extreme temperatures. Do not charge or use the Universal
Battery in temperatures in excess of 130°F (54.4°C). When
the battery is hot do not charge it until it cools.
Universal Laptop Battery - User’s Manual
9
If the Universal Laptop Battery becomes hot and the LEDs
display blinking red lights, disconnect the output cable from
the laptop immediately. Wait until the battery cools before
re-attaching the output cable and resuming use. If the
Universal Laptop Battery is not hot and the LEDs display red
blinking lights during use, power the battery with the AC
adapter for 1 minute. If the red lights continue to be displayed
contact your local dealer for further assistance.
Low Battery W
arning
Prior to exhausting the battery's power supply a warning
beep will sound notifying you to shut down the laptop or find
an alternative power supply. If the laptop’s original internal
battery is inserted the laptop will automatically switch to that
battery without interruption.
Run-T
ime
The Universal Laptop Battery provides power in a manner
similar to that of an AC adapter. If there is an internal battery
in the laptop during use, the Universal Battery will simultaneously power the laptop and charge the internal battery. This
additional power drain will lower the actual run-time of the
Universal Laptop Battery. However, your laptop will now have
additional run-time available from the fully charged internal
battery pack.
To exclusively use the Universal Battery to power the laptop
and receive maximum run-time, remove the internal battery
(if your laptop will continue to run without an internal battery)
Universal Laptop Battery - User’s Manual
10
or make sure the internal battery is completely charged
before use. A defective internal battery may deplete the
Universal Laptop Battery without retaining the transferred
power in its cells.
4. Specifications
5. Manufacturer's Warranty
The Universal Laptop Battery is warranted to be free from defects in material
and workmanship for a period of six months from the date of purchase. This
guarantee excludes defects or damage due to misuse or neglect. Batteries
which are deemed defective and are within the warranty period will be repaired
or replaced at the manufacturer's discretion. If you have any questions regarding the manufacturer's warranty or if you wish to return a defective battery
please contact the dealer from which the battery was purchased.
Limit
ation of Liability - Under no circumstances will the manufacturer be
responsible for incidental or consequential damages, loss of software, data,
records or damage to the laptop computer itself. All damages are limited to the
value of the purchase price of Universal Laptop Battery.
Max Capacity
Output Voltages
Fuel Gauge
Run Time
Charging Time
Dimensions
Weight
Adapter
95Wh
16V,20V
5 step LED
up to 7 hours
approx. 3 hours
11.25” x 8.5” x 0.5”
(290 x 220 x 12mm)
2.65lbs. (1.1kg)
19V, 60W AC/DC
140Wh
16V, 20V
5 step LED
up to 10 hours
approx. 4.5 hours
11.25” x 8.5” x 0.5”
(290 x 220 x 12mm)
3.5lbs (1.6kg)
19V, 60W AC/DC
B-5755 B-5760
