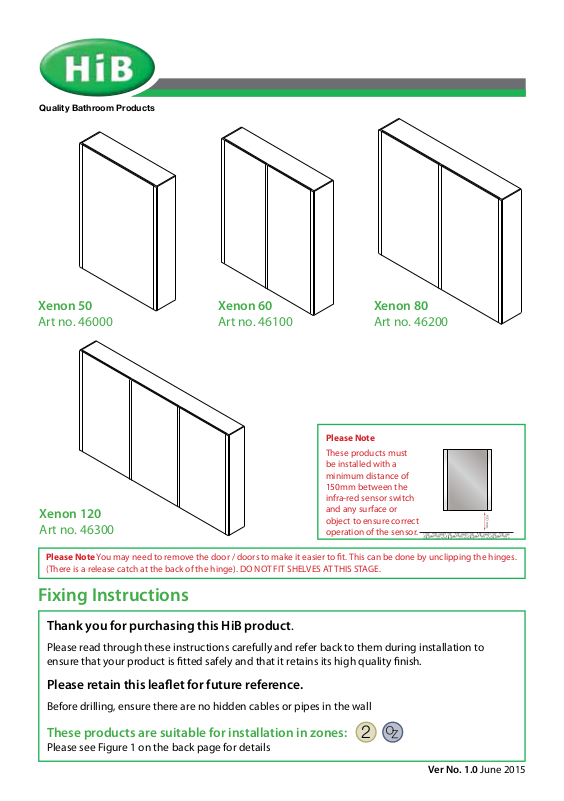

Page 1
Quality Bathroom Products
2

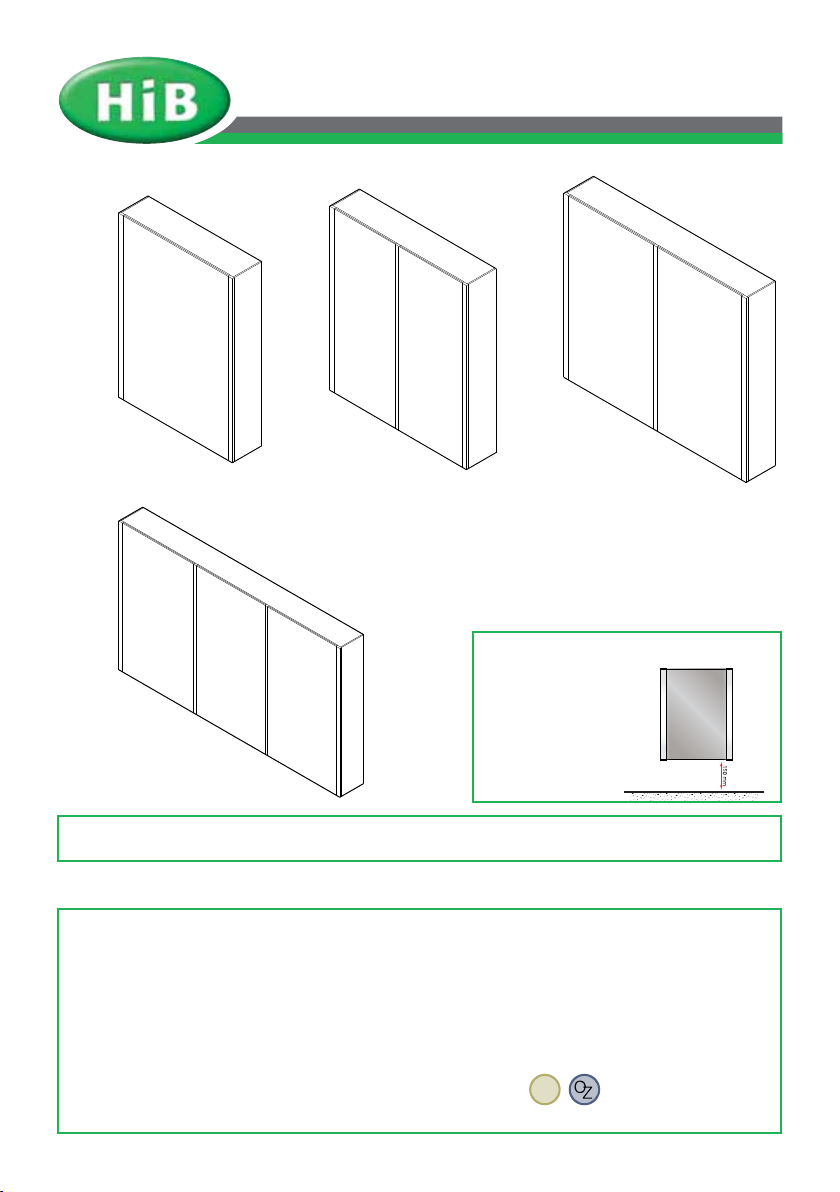

Xenon 50
Art no. 46000
Xenon 120
Art no. 46300
Please Note You may need to remove the door / doors to make it easier to t. This can be done by unclipping the hinges.
(There is a release catch at the back of the hinge). DO NOT FIT SHELVES AT THIS STAGE.
Xenon 60
Art no. 46100
Please Note
These products must
be installed with a
minimum distance of
150mm between the
infra-red sensor switch
and any surface or
object to ensure correct
operation of the sensor.
Xenon 80
Art no. 46200
Fixing Instructions
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them during installation to
ensure that your product is tted safely and that it retains its high quality nish.
Please retain this leaet for future reference.
Before drilling, ensure there are no hidden cables or pipes in the wall
These products are suitable for installation in zones:
Please see Figure 1 on the back page for details
Ver No. 1.0 June 2015
Page 2
Quality Bathroom Products
Angle AdjustmentAngle Adjustment
REAR VIEW
Mounting Points
Suggested location
of internal fixing hole
Claw In/Out
Claw In/Out
Adjustment
Adjustment

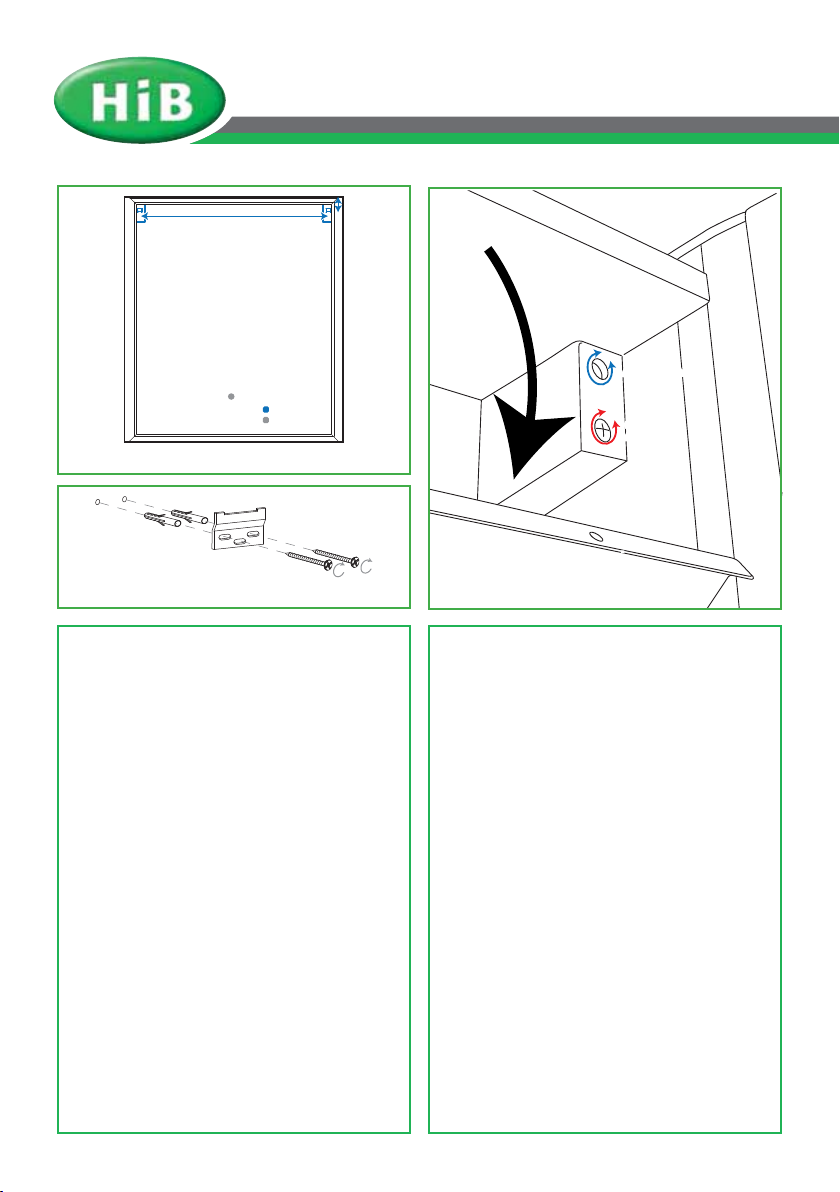

Fixing Preparation (Fig A)
Fixing Brackets (Fig B) Hanger Adjustments (Fig C)
Wall Hung Installation
1. Position the cabinet in a suitable location
(according to the zonal diagram on the back
page) ensuring that the mains supply cable
is within reach of the cable connection point
of the cabinet. Carefully mark the desired
position of the cabinet using a soft pencil,
ensuring it is level.
2. Remove the cabinet from the wall and using
a spirit level, mark a horizontal line below the
original pencil mark, taking into account the
location of the mounting points (Fig. A). Place
brackets on the new line paying attention
to the distance the hangers on the cabinet.
Carefully mark the position of the holes using a
soft pencil. (Fig. B)
3. Before drilling, ensure there are no hidden
cables of pipes behind the mounting point.
Using a suitable drill bit, drill holes in the
marked positions to a suitable depth.
4. Insert wall plugs level with the surface of the
wall. If tting to a tiled surface, wall plugs
should be inserted below the tile surface to
avoid cracking. NB. For plasterboard walls,
2
specialist xings should be purchased from any
DIY or hardware store.
5. Fix the brackets to the wall using the screws
provided.
6. Carefully remove the small screws along the
top front edge of the cabinet to gain access to
the internal panel(s). (Fig. C) Keep screws in a
safe place
7. Temporarily hang the cabinet ensuring the
claws on the hangers are securely located on
the wall brackets. Using a spirit level adjust the
cabinet via the screws on the hangers. (Fig. C)
8. Mark the position of the internal xing hole
and remove the cabinet. Using a suitable drill
bit, drill a hole and insert a wall plug as per
stage 4 above.
9. Connect the prewired cable at the rear of
the cabinet to the mains supply cable using
a suitable terminal block (not supplied)
according to the wiring diagram on the back
page.
10. Re - hang the cabinet in position, tighten the
screws on the hangers (Fig.C) and secure the
Page 3

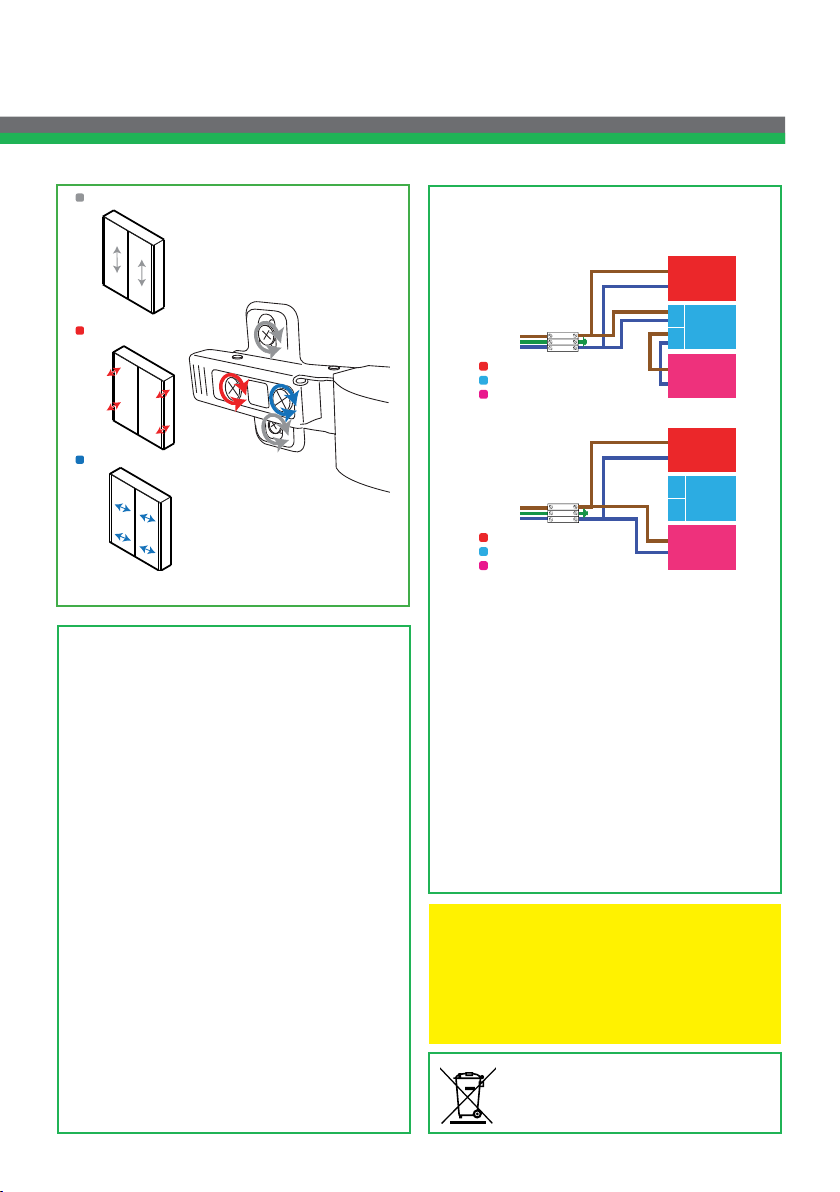

Move door(s) up/down
How to Isolate the sensor so you can switch
ON & OFF with a mains switch!
How the cabinet is wired.
Move door away/towards
the cabinet
Move door(s) left/right
Door Adjustment (Fig D)
base of the cabinet with the supplied screw
and screw cap.
11. Once fully secure, close the internal panel(s)
using the screws removed at stage 6.
12. Fit shelves in desired positions using metal
shelf supports.
13. Re-attach the door / doors ensuring the hinges
fully locate and click back into position.
14. If necessary, the hinges can be adjusted in
order to re-position the door / doors (Fig.D)
15. Switch the mains supply back on.
Operating Instructions
To turn illumination on or o, operate the sensor
switch located at the bottom of the cabinet. Shaver
socket is suitable for recharging toothbrushes.
NB. On rst use of the shaver socket, inserting the
shaver plug may prove to be sti. Reasonable force
may be required to fully insert the plug. Make sure
that the cabinet is held rmly so that it is not pushed
o the wall. After a few uses, stiness will ease and
the socket will function as normal.
live
earth
neutral
Shaver socket/transformer
Sensor switch controller
LED driver
How to isolate the sensor.
live
earth
neutral
Shaver socket/transformer
Sensor switch controller
LED driver
INOUT
INOUT
Re-wire the cabinet as shown in the diagram
above. HiB recommends that all electrical
bathroom products should only be tted by a
suitably qualied, Part P registered electrician.
For further assistance on isolating the sensor
please contact us.
Tel: 020 8441 0352 Email: [email protected]
Caution
We recommend that you place this cabinet on a
soft at surface to ensure no breakages.
We also recommend that you leave corner
protectors on until nal tting.
WEEE compliance
Must not be mixed with general
household waste
3
Page 4
60cm
2
Wiring Diagram
75cm
zone
2
60cm
75cm
outside
zone
60cm
75cm
zone
2
60cm
75cm
225cm
zone
2
zone
1
zone
2
60cm
zone
radius
2
zone
1
zone
2
225cm

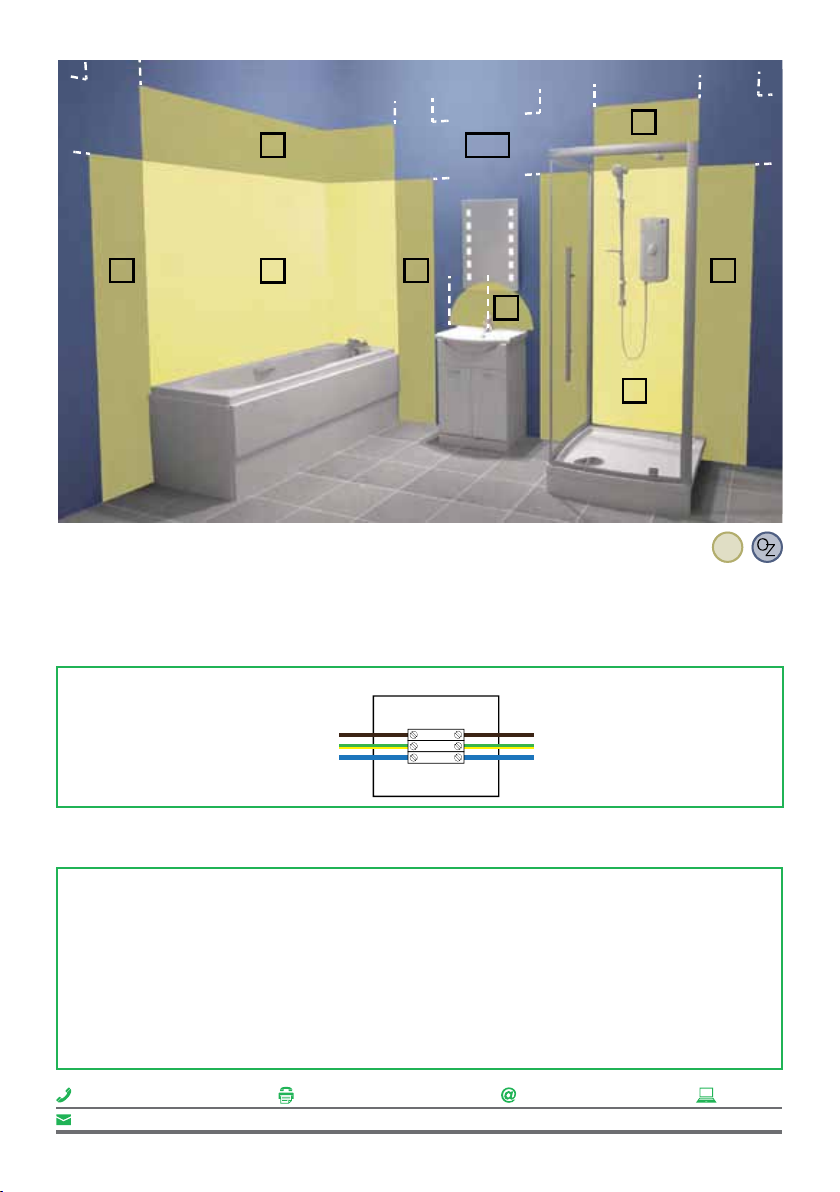

This product is suitable for installation in zones:
All installations must comply with guidelines which are based on a zonal concept. The diagram above illustrates this concept
and must be followed to ensure the safe installation of electrical appliances in the bathroom. These regulations apply to
domestic installations only. Installations must be made in accordance with the current IEE wiring regulations and relevant
building regulations. HiB recommends that all electrical bathroom products should only be tted by a suitably qualied,
Part P registered electrician.
Wiring Diagram
Live is Brown
Earth is Green and Yellow
Neutral is Blue
earth
neutral
live
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
MAINS SUPPLYLUMINAIRE
Electrical Safety Information
HiB recommends that all electrical bathroom products should only be tted by a suitably qualied, Part P registered
electrician in accordance with current IEE reguations. Ensure mains power supply is switched o before starting installation.
Care Instructions
Do not use abrasives or solvents when cleaning this product.
Wipe o all water spillages as soon as possible using a soft, damp cloth.
Aftercare Service
In the unlikely event that this product should fail please contact HiB customer services, contact detail shown below.
HiB Ltd. Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they
are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specications as necessary. E & OE.
