Page 1

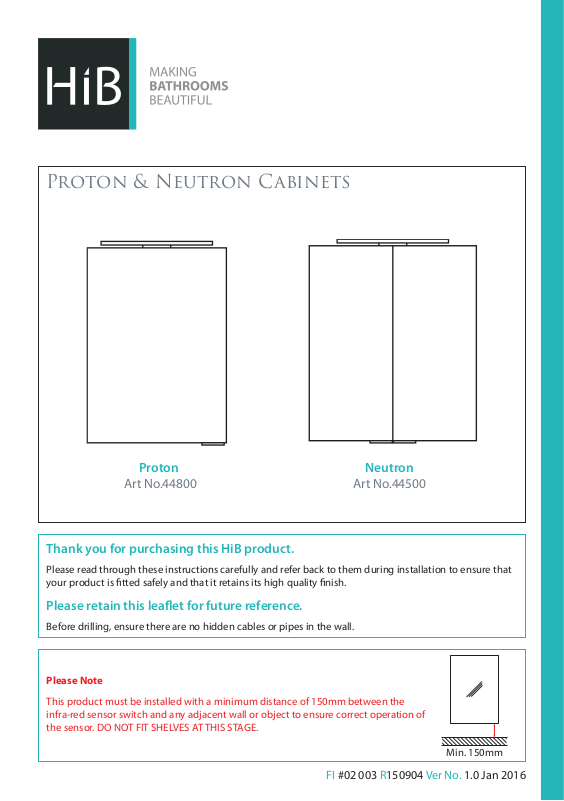

Proton & Neutron Cabinets
Proton
Art No.44800
Neutron
Art No.44500
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them during installation to ensure that
your product is tted safely and that it retains its high quality nish.
Please retain this leaet for future reference.
Before drilling, ensure there are no hidden cables or pipes in the wall.
Please Note
This product must be installed with a minimum distance of 150mm between the
infra-red sensor switch and any adjacent wall or object to ensure correct operation of
the sensor. DO NOT FIT SHELVES AT THIS STAGE.
Min. 150mm
FI #02 003 R150904 Ver No. 1.0 Jan 2016
Page 2

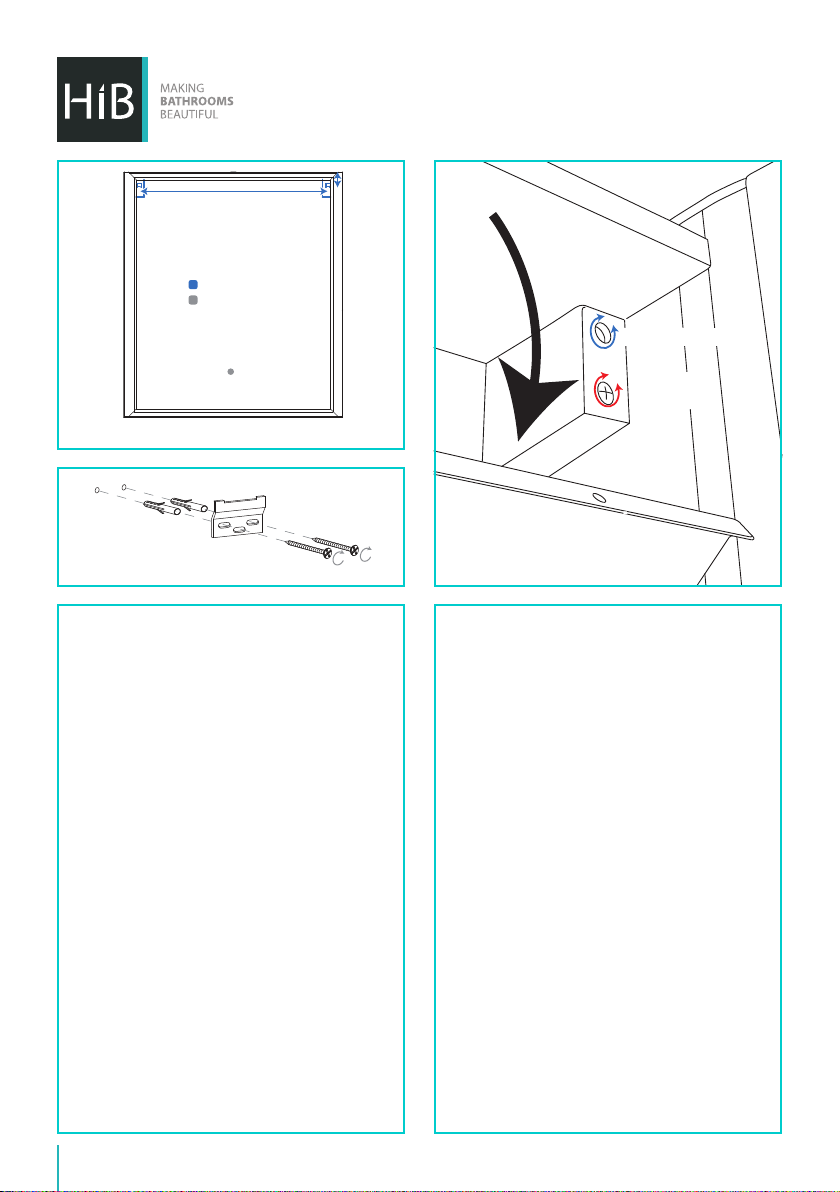

REAR VIEW
Mounting Points
location of internal
fixing hole
Fixing Preparation (Fig A)
Angle Adjustment
Claw In/Out
Claw In/Out
Adjustment
Adjustment
Fixing Brackets (Fig B)
Wall Hung Installation
1. Position the cabinet in a suitable location
(according to the zonal diagram (Fig. 1) on
the back page) ensuring that the mains
supply cable is within reach of the cable
connection point of the cabinet. Carefully
mark the desired position of the cabinet
using a soft pencil, ensuring it is level.
2. Remove the cabinet from the wall and
using a spirit level, mark a horizontal line
below the pencil mark, taking into account
the location of the mounting points (Fig.
A). Place brackets on the pencil line paying
attention to the distance netween the
hangers on the cabinet. Carefully mark the
position of the holes using a soft pencil.
(Fig. B).
3. Before drilling, ensure there are no hidden
cables or pipes behind the mounting
points. Using a suitable drill bit, drill holes
in the marked positions to a suitable depth.
4. Insert wall plugs level with the surface
of the wall. If tting to a tiled surface,
wall plugs should be inserted below the
tile surface to avoid cracking. NB. For
Hanger Adjustment (Fig C)
plasterboard walls, specialist xings should
be purchased from any DIY or hardware store.
5. Fix the brackets to the wall using the screws
provided.
6. Carefully remove the small screws along
the top front edge of the cabinet to gain
access to the internal panel(s). (Fig. C) Keep
screws in a safe place.
7. Temporarily hang the cabinet ensuring the
claws on the hangers are securely located
on the wall brackets. Using a spirit level
adjust the cabinet via the screws on the
hangers. (Fig. C).
8. Mark the position of the internal xing hole
and remove the cabinet. Using a suitable
drill bit, drill a hole and insert a wall plug as
per stage 4.
9. Connect the cable at the rear of the cabinet
to the mains supply cable using a suitable
terminal block (not supplied) according
to the wiring diagram (Fig. 2) on the back
page.
10. Rehang the cabinet in position, tighten the
screws on the hangers (Fig. C) and secure
2
Page 3
the base of the cabinet with the supplied
screw and screw cap.
11. Once fully secure, close the internal
panel(s) using the screws removed at stage
6.
12. Fit shelves in desired positions using metal
shelf supports.
13. If necessary, the hinges can be adjusted in
order to reposition the door(s) (Fig. D).
14. Attach the LED light tting on the top of
the cabinet using the pre-drilled holes and
screws provided. Push the male and female
electrical connector together until they
‘click’. (Fig. E).
15. Switch the mains supply back on.

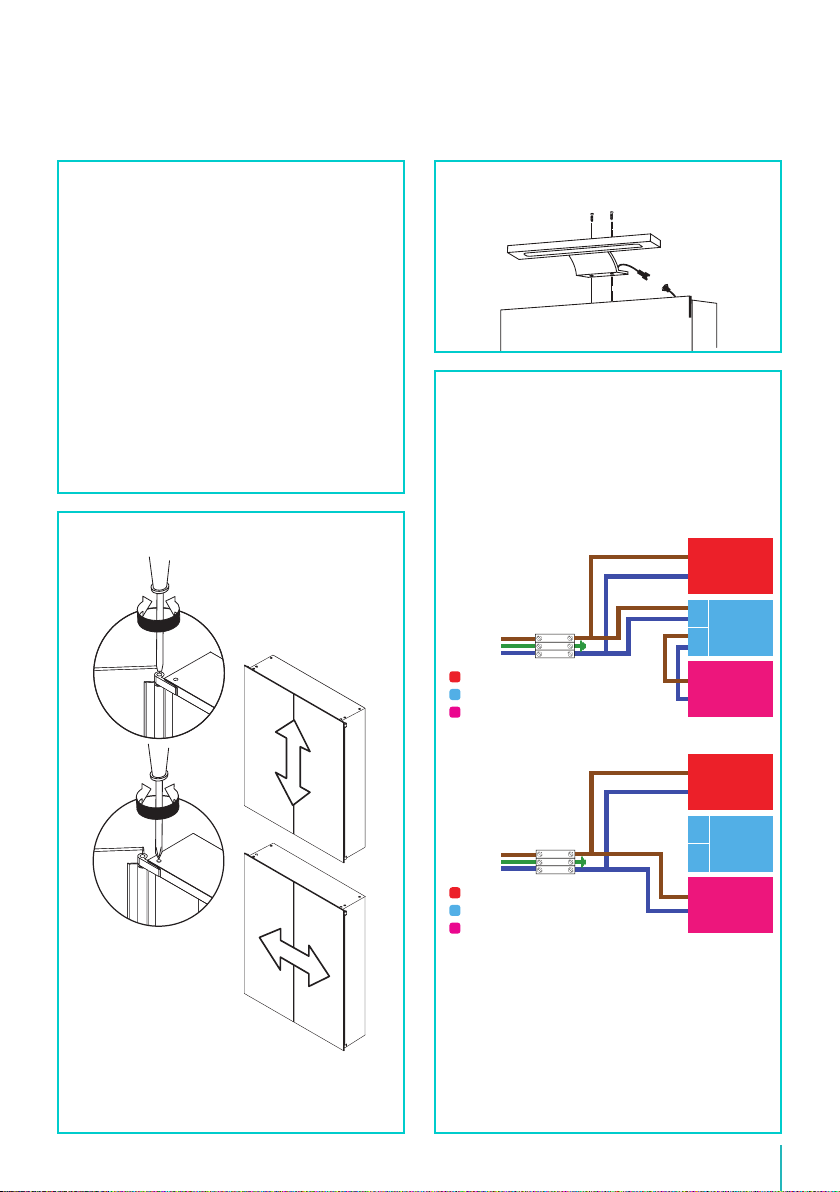

Attachment Light Fitting (Fig E)
Operating Instructions
To turn illumination on or o, wave hand under
the sensor switch located underneath the
cabinet.
How to Isolate the sensor so you can
switch ON & OFF with a mains switch.
How the cabinet is wired.
INOUT
live
earth
neutral
Shaver socket/transformer
Sensor switch controller
LED driver
How to isolate the sensor.
Door Adjustment (Fig D)
INOUT
live
earth
neutral
Shaver socket/transformer
Sensor switch controller
LED driver
Rewire the cabinet as shown in the diagram
above. HiB recommends that all electrical
bathroom products should only be tted by a
suitably qualied, Part P registered electrician.
For further assistance on isolating the sensor
please contact us.
Tel: 020 8441 0352 Email: [email protected]
hib.co.uk
3
Page 4

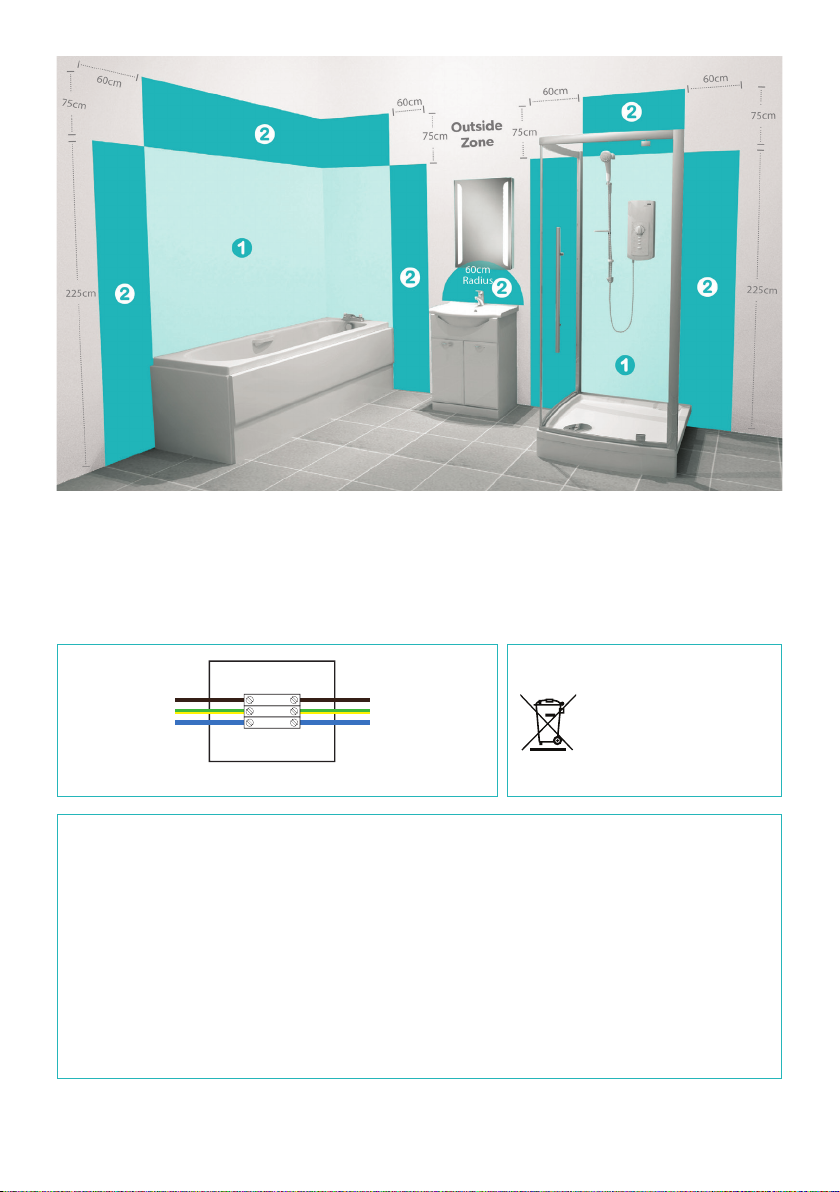

This product is suitable for installation in zones:
2 & Outside Zone
(Fig 1)
All installations must comply with guidelines which are based on a zonal concept. The diagram above
illustrates this concept and must be followed to ensure the safe installation of electrical appliances in the
bathroom. These regulations apply to domestic installations only. Installations must be made in accordance
with the current IEE wiring regulations and relevant building regulations. HiB recommends that all electrical
bathroom products should only be tted by a suitably qualied, Part P registered electrician.
Live is Brown
Earth is Green and Yellow
Neutral is Blue
earth
neutral
live
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
MAINS SUPPLYLUMINAIRE
WEEE compliance
Must not be mixed with
general household waste
Wiring Diagram (Fig 2)
Electrical Safety Information
HiB recommends that all electrical bathroom products should only be tted by a suitably qualied, Part P
registered electrician in accordance with current IEE regulations. Ensure mains power supply is switched
o before starting installation. Before drilling, ensure there are no hidden cables or pipes in the wall.
Care Instructions
Do not use abrasives or solvents when cleaning this product.
Wipe o all water spillages as soon as possible using a soft, damp cloth.
Aftercare Service
In the unlikely event that this product should fail please contact HiB customer services, contact details
shown below.
T: +44 (0)20 8441 0352 F: +44 (0)20 8441 0219 E: [email protected] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
