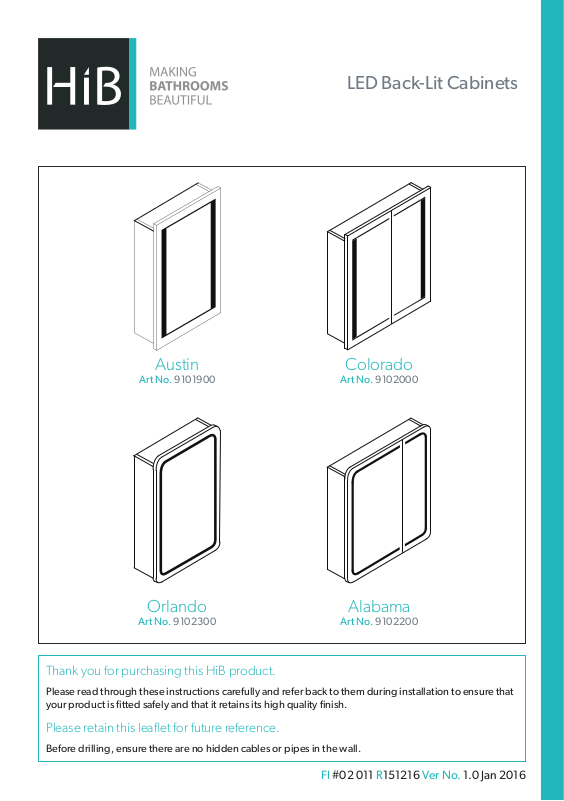

HiB Austin, Colorado, Orlando, Alabama, Minnesota Quick Start Manual

LED Back-Lit Cabinets

Austin

Art No. 9101900

Orlando

Art No. 9102300

Thank you for purchasing this HiB product.

Please read through these instructions carefully and refer back to them during installation to ensure that
your product is fitted safely and that it retains its high quality finish.

Please retain this leaflet for future reference.

Before drilling, ensure there are no hidden cables or pipes in the wall.

Colorado

Art No. 9102000

Alabama

Art No. 9102200

FI #02 011 R151216 Ver No. 1.0 Jan 2016

Please Note You may need to remove the door(s) to aid installation. This can be done by
unclipping the hinges (There is a release catch at the back of the hinge).
DO NOT FIT SHELVES AT THIS STAGE.

Fitting Instructions

1. Position the cabinet in a suitable location,
(according to Figure 1 on the back page),
ensuring that the domestic electrical mains
supply is within reach of the electrical
connection point of the cabinet. Carefully
mark the position of the top of the cabinet
using a so pencil.

2. Remove the cabinet from the wall and
using a spirit level, mark the position of the
two mounting points (Fig. 1).

3. Before drilling, ensure there are no
hidden cables or pipes behind the
mounting points. Drill the required holes

in the marked positions. If drilling through
tile, use a ceramic drill bit. Insert the wall
plugs level with the surface of the wall. If
fitting to a tiled surface, wall plugs should
be inserted below the tile surface to avoid
cracking. NB. For plasterboard walls,

specialist fixings should be purchased,
available from any DIY or hardware store.

4. Insert the hook screws into the wall plugs.

5. This cabinet is provided with an electrical
supply cable already fitted. This cable
should be connected to the household
electrical circuit, and connections should
be made in accordance with the latest IEE
regulations. This is a Class II product and
does not require an earth connection.

Ensure the domestic electrical mains
supply to which the product is being
connected is turned off. Connect the

domestic mains supply (See Fig. 6 on the
back page).

6. Hang the cabinet on the wall ensuring that
it is firmly located on both hook screws.
Adjust the bottom screw (Fig. 3 - 1) to level
the cabinet. Fix the cabinet to the wall firmly
by tightening the front screw (Fig. 3 - 2).

7. The hinge can be adjusted in order to
reposition the door correctly. See Fig. 4 - A,
B and C for further information.

Operating Instructions

To turn illumination on or off, use the rocker
switch located at the bottom of the cabinet.

Care Instructions

To preserve the high quality finish of your
HiB product, please ensure you regard the
following care and cleaning recommendations:

1. Wipe off all water spillages as soon as
possible

2. Mirrors and glass can be cleaned with a
proprietary cleaner using a so cloth, taking
care not to get excessive cleaner behind the
mirror

3. All other surfaces should be cleaned with
diluted detergent, i.e. washing up liquid,
and a so cloth. Scourers and scouring
agents should not be used, as these may
cause damage to the surface of the product

WEEE compliance

Must not be mixed with general
household waste

2

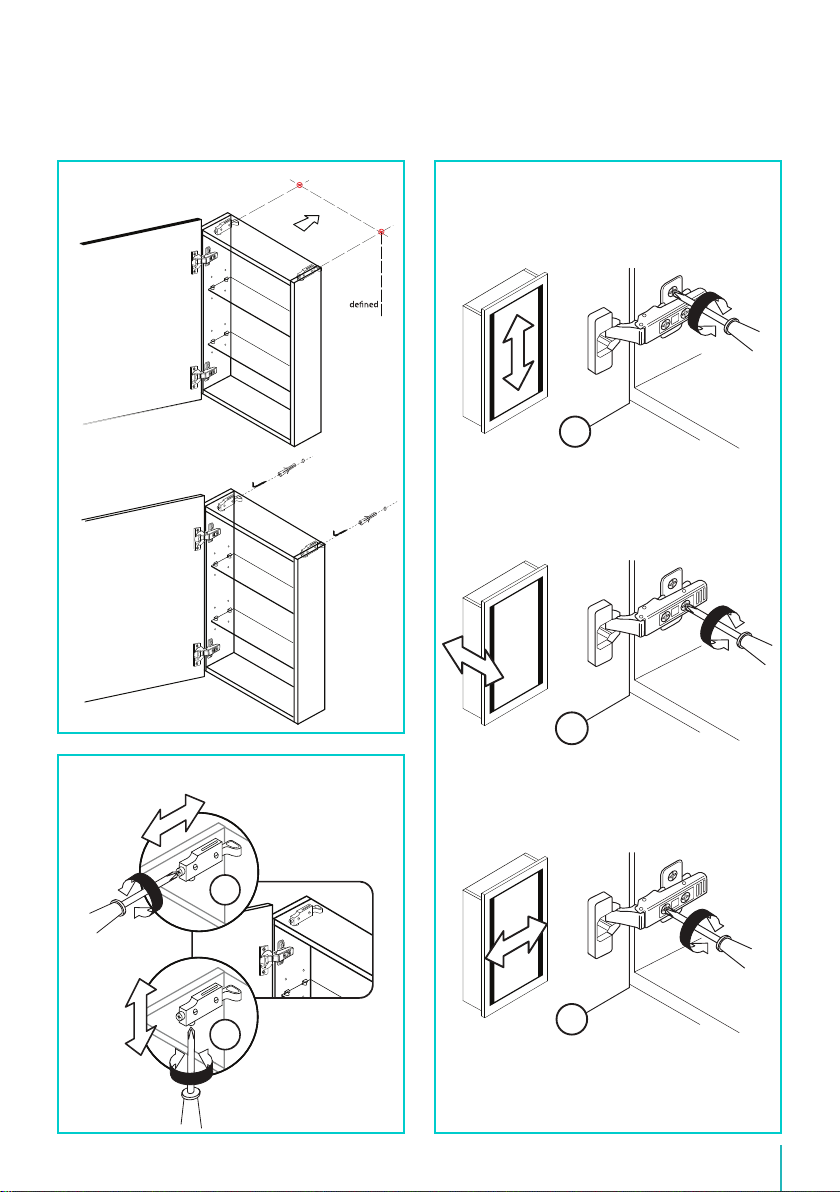

Fixing Preparation (Fig. 1)

Wall Mounting (Fig. 2)

Door Adjustment (Fig. 4)

user

height

A

B

Securing to Wall (Fig. 3)

2

1

C

hib.co.uk

3

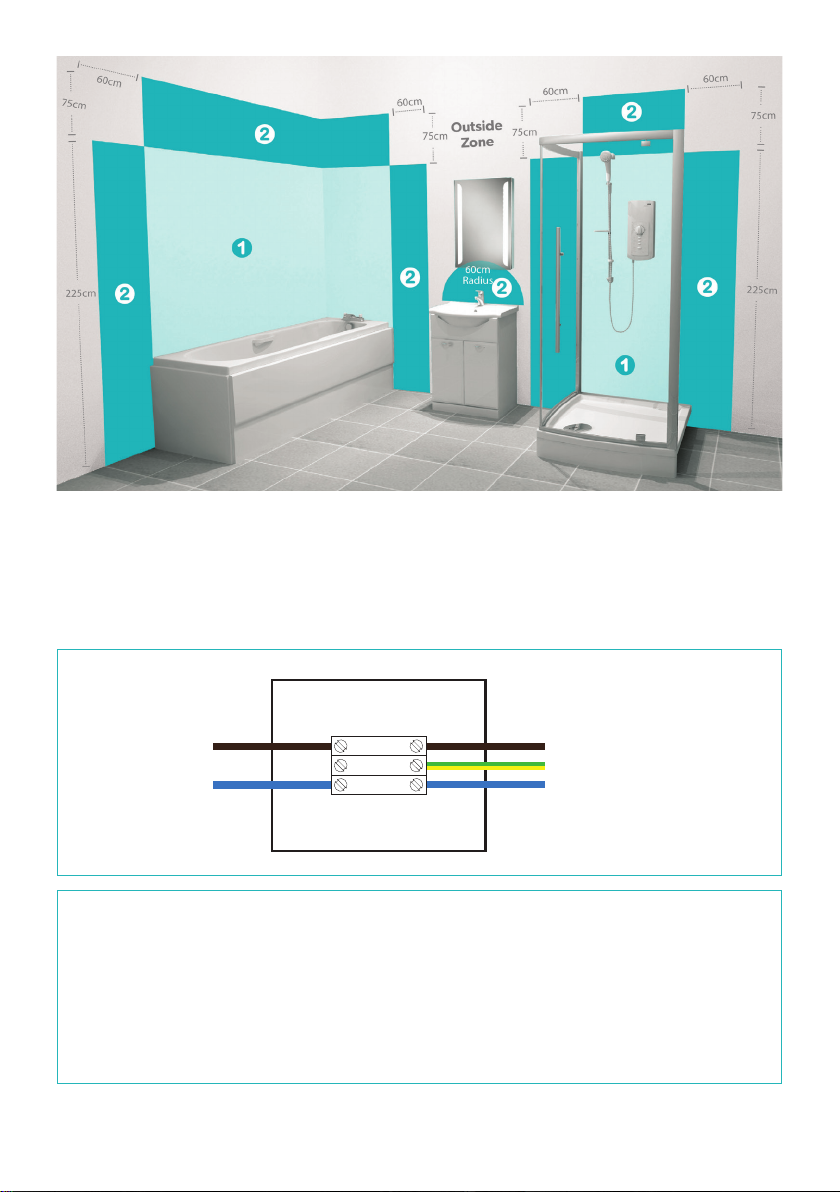

This product is IP21 - suitable for installation in zones:

2 & Outside Zone

(Fig 5)

All installations must comply with guidelines which are based on a zonal concept. The diagram above
illustrates this concept and must be followed to ensure the safe installation of electrical appliances in the
bathroom. These regulations apply to domestic installations only. Installations must be made in accordance
with the current IEE wiring regulations and relevant building regulations. HiB recommends that all electrical

bathroom products should only be fitted by a suitably qualified, Part P registered electrician.

Wiring Diagram (Fig. 6)

Live supply is Brown

Neutral supply is Blue

live

earth

neutral

Live supply can be Red or Brown

Earth supply is Green and Yellow

Neutral supply can be Blue or Black

MAINS SUPPLYLUMINAIRE

Electrical Safety Information

HiB recommends that all electrical bathroom products should only be fitted by a suitably
qualified, Part P registered electrician in accordance with current IEE regulations. Ensure mains
power supply is switched off before starting installation. Before drilling, ensure there are no
hidden cables or pipes in the wall.

Aercare Service

In the unlikely event that this product should fail please contact HiB customer services, contact details
shown below.

T: [phone] F: [phone] E: [email protected] hib.co.uk

Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
