CS-684 Pneumatic Flat Press Machine
Operation Manual
is powered by
H&H Asia Group Limited
Page 2
CS-684 operation manual
issue 1 16.08.02 P.1 of 13
Table of Contents
> Precautions with regard to Safety ........................................................................................ 2
> Name Plate .................................................................................................................................. 4
> Introduction ................................................................................................................................ 5
> Specifications ............................................................................................................................. 6
> Machine Components .............................................................................................................. 7
> Control Console ......................................................................................................................... 8
> Preparation Before Main Power Connected ....................................................................... 9
> Operation Mode ......................................................................................................................... 9
> Machine Operation .................................................................................................................. 10
> Machine Setting ....................................................................................................................... 1 1
>> Control Panel ................................................................................................................. 11
>> Control Panel General Display .................................................................................. 1 1
>> Temperature Setting Adjustment .............................................................................. 12
>> Press Timer Adjustment .............................................................................................. 12
>> Press Pressure Adjustment ....................................................................................... 12
> Trouble Shooting ..................................................................................................................... 13
Page 3
CS-684 operation manual
issue 1 16.08.02 P.2 of 13
> Precautions with regard to Safety
Please observe these safety tips for safe, efficient, an injury-free operation of your equipment. By
strictly following all instruction contained in this manual you will certainly obtain an excellent
performance from the use of this equipment for years.
Page 4
CS-684 operation manual
issue 1 16.08.02 P.3 of 13
> Precautions with regard to Safety (cont.)
Page 5
CS-684 operation manual
issue 1 16.08.02 P.4 of 13
> Name Plate
Page 6
CS-684 operation manual
issue 1 16.08.02 P.5 of 13
> Introduction
Thank you for your choosing of CS-684 which is manufactured by H&H.
The pneumatic flat press machine described in this manual is one of the sophisticated machines for
processing the flat press products in the market today. Built on digital control platform and designed for
the professional users. Operators are recommended to have basic knowledge and skill in heat press
operation before using this machine.
This manual is aimed for the operators to understand the machine and avoid damage to the machine
or personnel. Please read this manual carefully and keep it well for daily reference usage.
Page 7
CS-684 operation manual
issue 1 16.08.02 P.6 of 13
> Specifications
Model : CS-684
Voltage : 220 V, single phase
Frequency : 50/60 Hz
Power Consumption : 400 W
Compressed Air : >0.4 Mpa
Heat Temperature Range : Room Temperature~260℃
Press Duration : 1~999 second, minute or hour
Heat Press Size : 110mm x 110mm
Lower Platform Size : φ100
Overall Dimensions : 300mm (L) x 470mm (W) x 480mm (H)
Overall Weight : 20 kg
Note : due to continuous improvement, specifications are subjected to change without prior notification
Page 8
CS-684 operation manual
issue 1 16.08.02 P.7 of 13

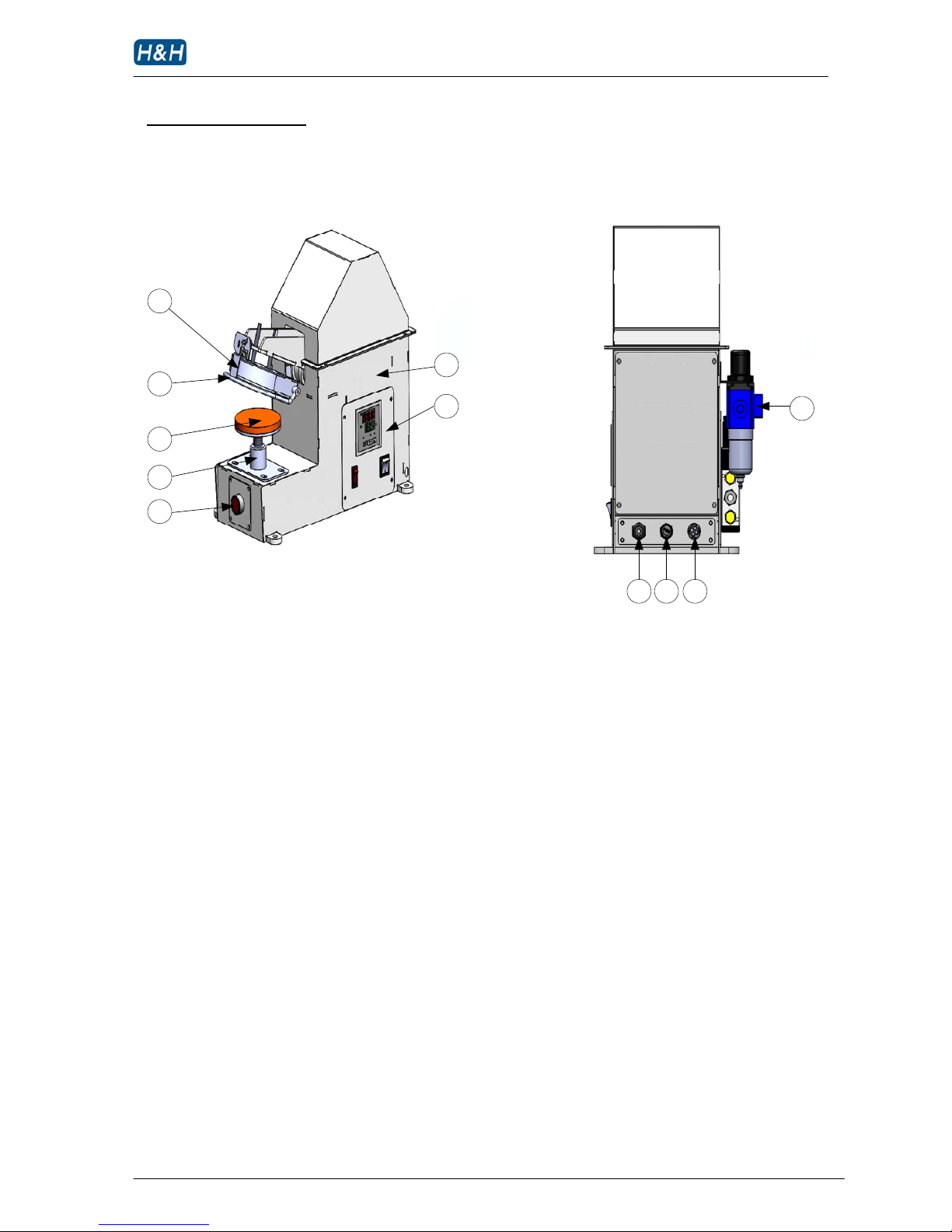

> Machine Components
2
1
3
4
7
5
8
91011
6
1. heating plate & pressing head
2. safety protective bar
3. lower platform
4. machine pedestal
5. stop/cancel button
6. control console
7. frame
8.
compress air filter & regulator
9. power cable inlet
10. fuse
11. foot pedal connecting socket
Page 9
CS-684 operation manual
issue 1 16.08.02 P.8 of 13

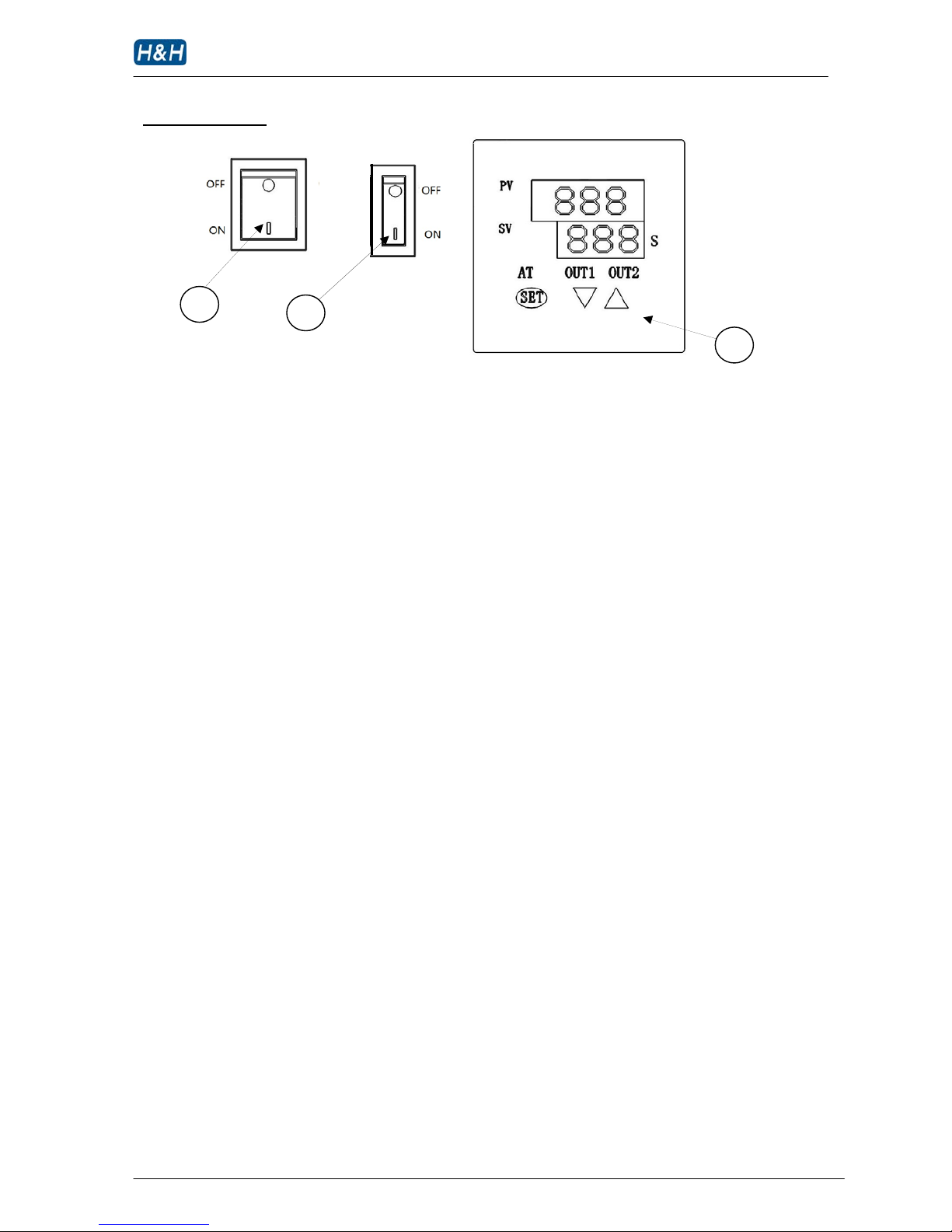

> Control Console
1. Power Switich — On / Off the Power
2. Heater Switch — On / Off the Heater
3. Control Panel — Set the heat temperature setting & press time
2
3
1
Page 10
CS-684 operation manual
issue 1 16.08.02 P.9 of 13
> Preparation Before Main Power Connected
1. Compress air connection
Since the heating plate will go up after compress air connected, the cable ties on the heating
plate and the working table should be removed first.
2. Main power connection
The main power cable with plug is located at the back of the machine, plug into the main power
supply socket.
3. Foot switch connection
The foot switch socket is located at the back of the machine, plug in the foot switch connector
and tighten the screws.
> Operation Mode

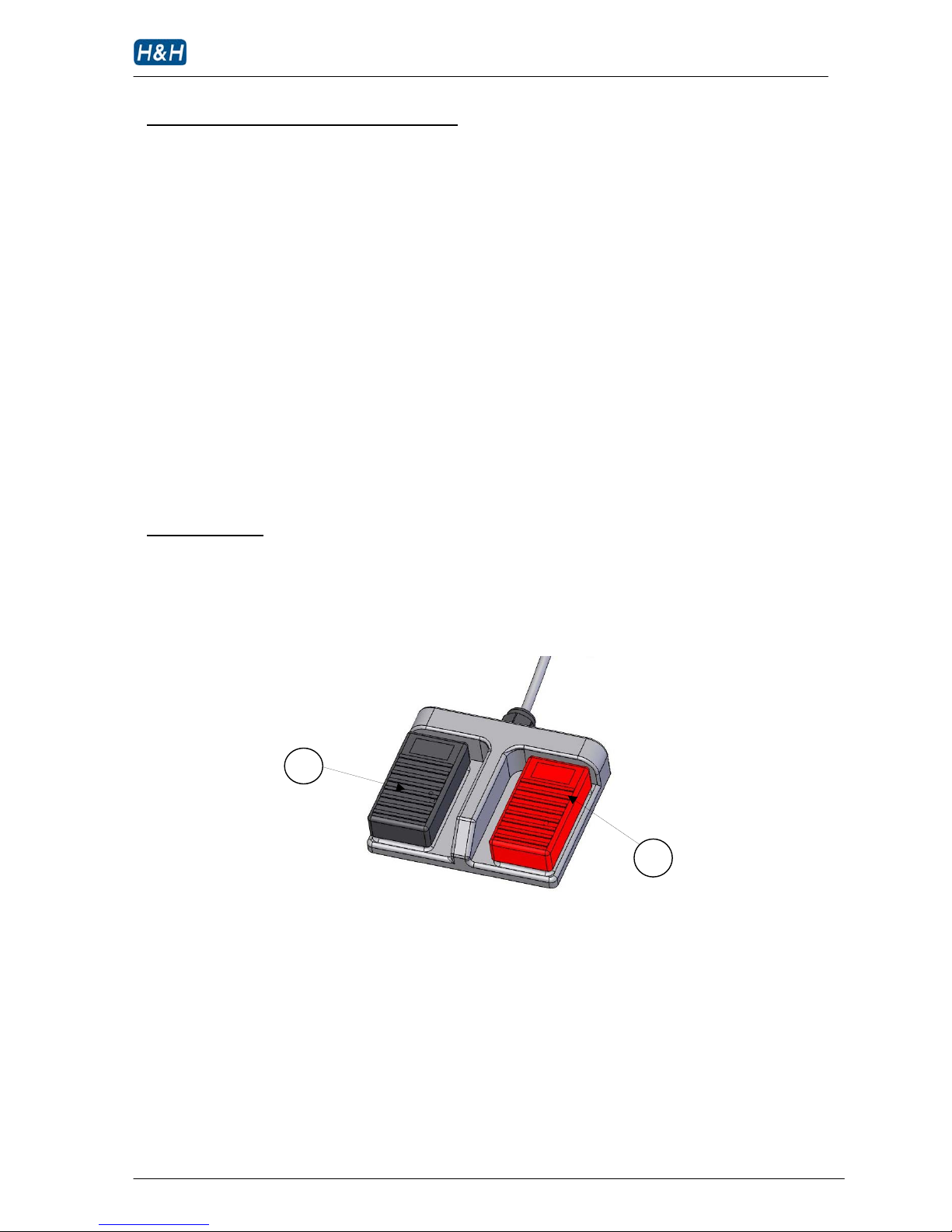

Pedal Control Mode – Step on the left foot switch, the heating plate goes down, after move
away the foot, the timer starts to countdown. When the countdown is completed or you step into the
right pedal, the heating plate will goes up.
1. left foot switch
2. right foot switch
1
2
Page 11
CS-684 operation manual
issue 1 16.08.02 P.10 of 13
> Machine Operation
1. After connected the main power supply, adjust the heating temperature and time, press
pressure, and planning the machine operation method (pedal control). Then turn on the heater
power, the temperature of the heating plate will go up gradually.
2. Wait until the heating plate reaches the preset temperature. Place the cloth on the working
table and step on the left foot switch once, the heating plate will goes down. The timer will be
triggered simultaneously. After the countdown finished, the heating plate will go up. The press
cycle is completed.
3. If you step on the right foot switch once in the duration of countdown, the timer will stop
immediately and the heating plate will go up, the press cycle will be terminated.
4. While the machine is working, the heating plate will go up automatically once the safety bar is
triggered.
5. Switch off the main power after all the works are finished.
Page 12
CS-684 operation manual
issue 1 16.08.02 P.11 of 13
> Machine Setting
>> Control Panel
1. PV : Field processing temperature
2. SV : Set target temperature
3. SET : Select different settings
4. OUT1 : decrease the set point
5. OUT2 : increase the set point
.
>> Control Panel General Display

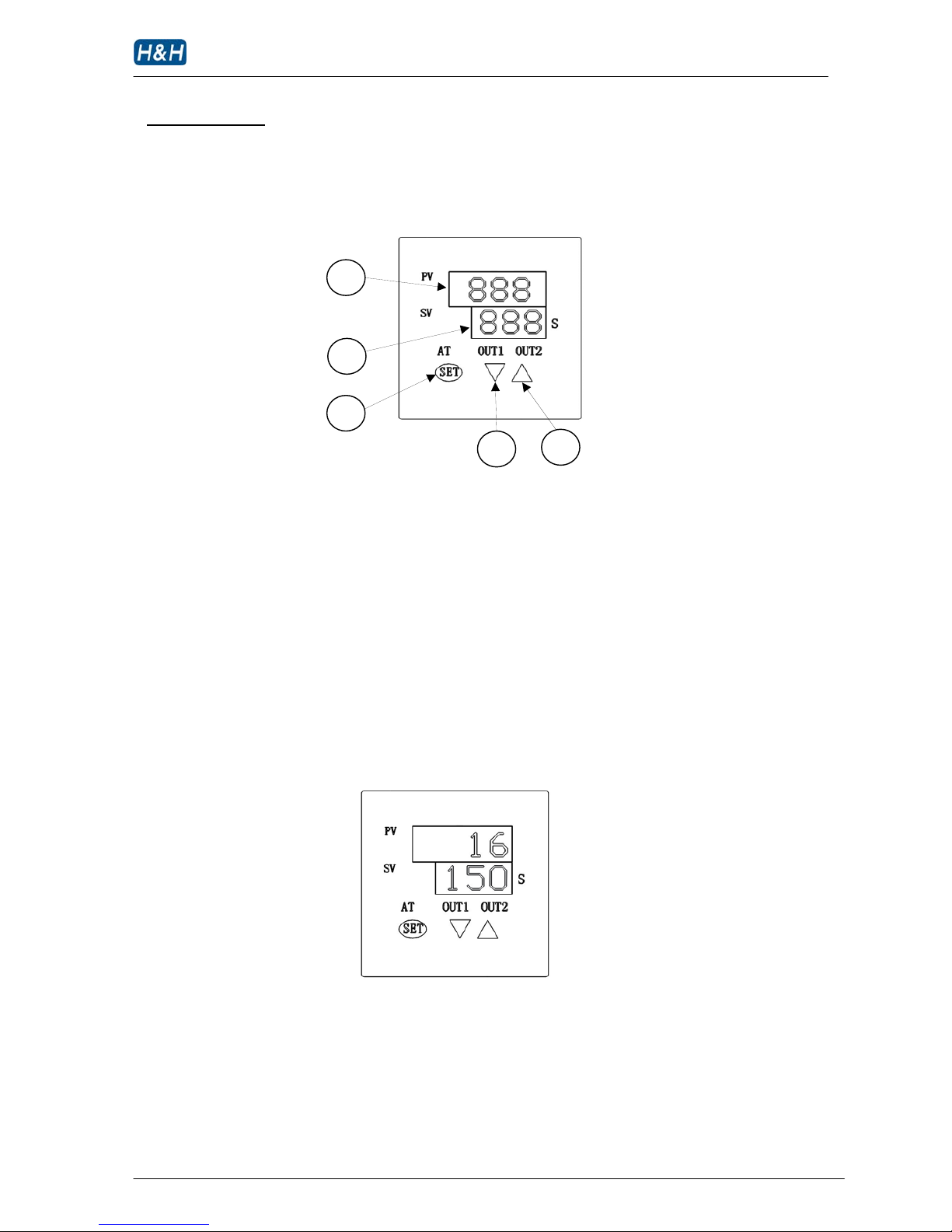

General appearance of the control panel is as the following diagram.
1
2
3
5
4
Page 13
CS-684 operation manual
issue 1 16.08.02 P.12 of 13
> Machine Setting (Cont.)

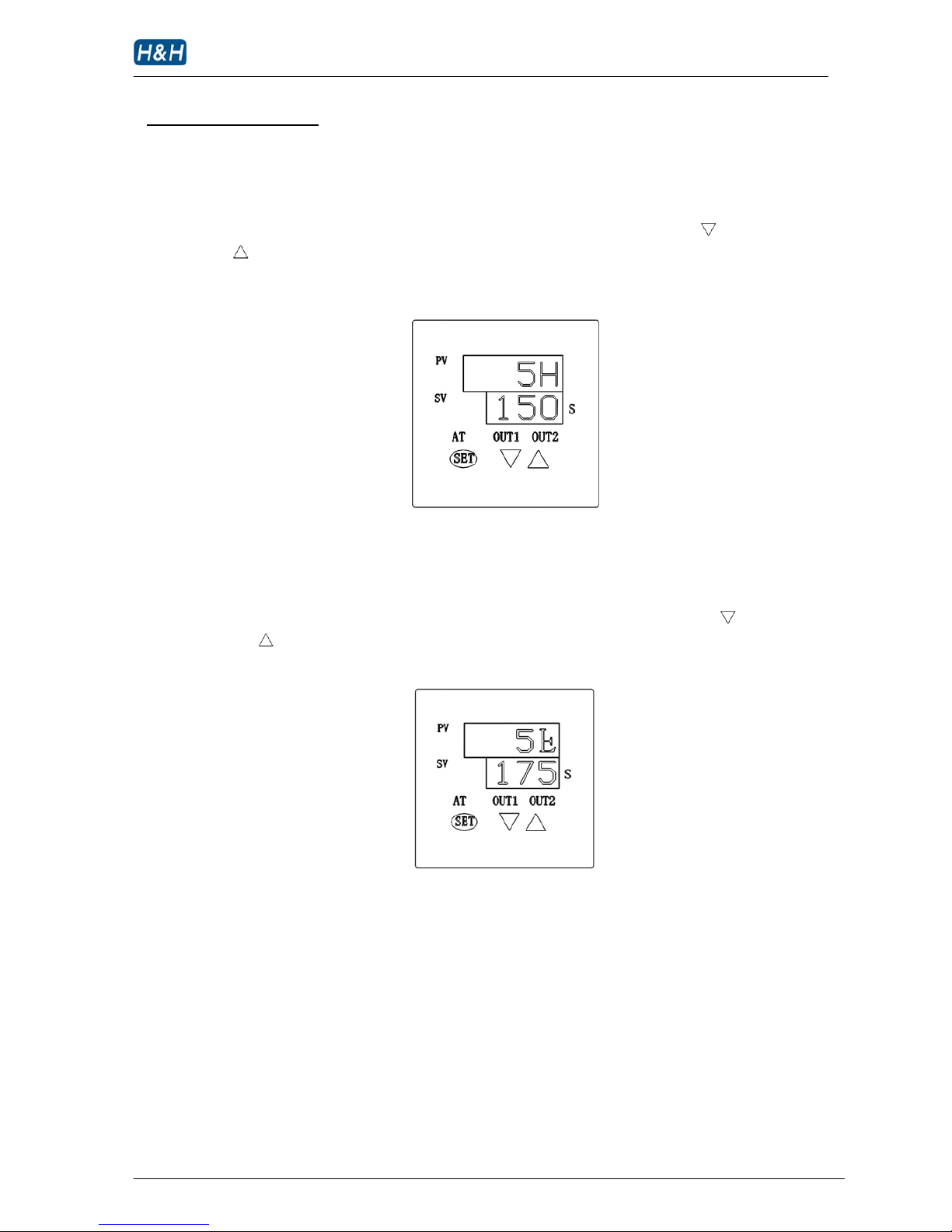

>> Temperature Setting Adjustment
Press the “SET” button once, the display will alike the below diagram. PV will show with “SH”
and SV will show the preset temperature setting. You can press the OUT1 ” “ to decrease or
OUT2 “ “ to increase the temperature setting. The maximum setting is 400℃ (we recommend
the temperature setting below 260℃ as a higher temperature will decrease the life span of the
machine).
>> Press Timer Adjustment
Press the “SET” button once again, the display will alike the below diagram. PV will show with
“St” and SV will show the preset press time setting. You can press the OUT1 ” “ to decrease
or OUT2 “ “ to increase the time setting. This machine is using second as the counting unit,
the maximum setting is 999 seconds.
Press the “SET” button again, it will back to normal display mode.
>> Press Pressure Adjustment
A. Turning the knob on the compress air filter regulator to adjust the press pressure.
Page 14
CS-684 operation manual
issue 1 16.08.02 P.13 of 13
> Trouble Shooting
Problem Cause solution
No power to
individual parts
Fault with power cord or plug Check the power connection
Circuit breaker tripped
Reset the breaker and investigate the
system
Main power supply not switch on Switch on the main power supply
Bad contact
Check the circuit if there is any loosen
part
Transformer fault Check the voltage of power supply
Temperature monitor
unsteady
Thermocouple fault Replace the temperature sensor
Thermocouple connection is loosen Check and tighten the connection
Temperature controller malfunction
Replace the circuit board in the control
box
Thermocouple extension cable short
circuit
Check the break point and repair
Thermocouple installed in wrong
position
Check the end point of the sensor and
relocate the position of it
Temperature monitor
showing the ambient
temperature
Heater not started up Press the heat button
Thermocouple fault Replace the thermocouple
Power supply voltage unsteady Install voltage stabilizer
Heater temperature
cannot raises up
Solid state relay (SSR) malfunction Replace the SSR
Compressed air pressure too low and
interlocked
Increase the compressed air pressure
