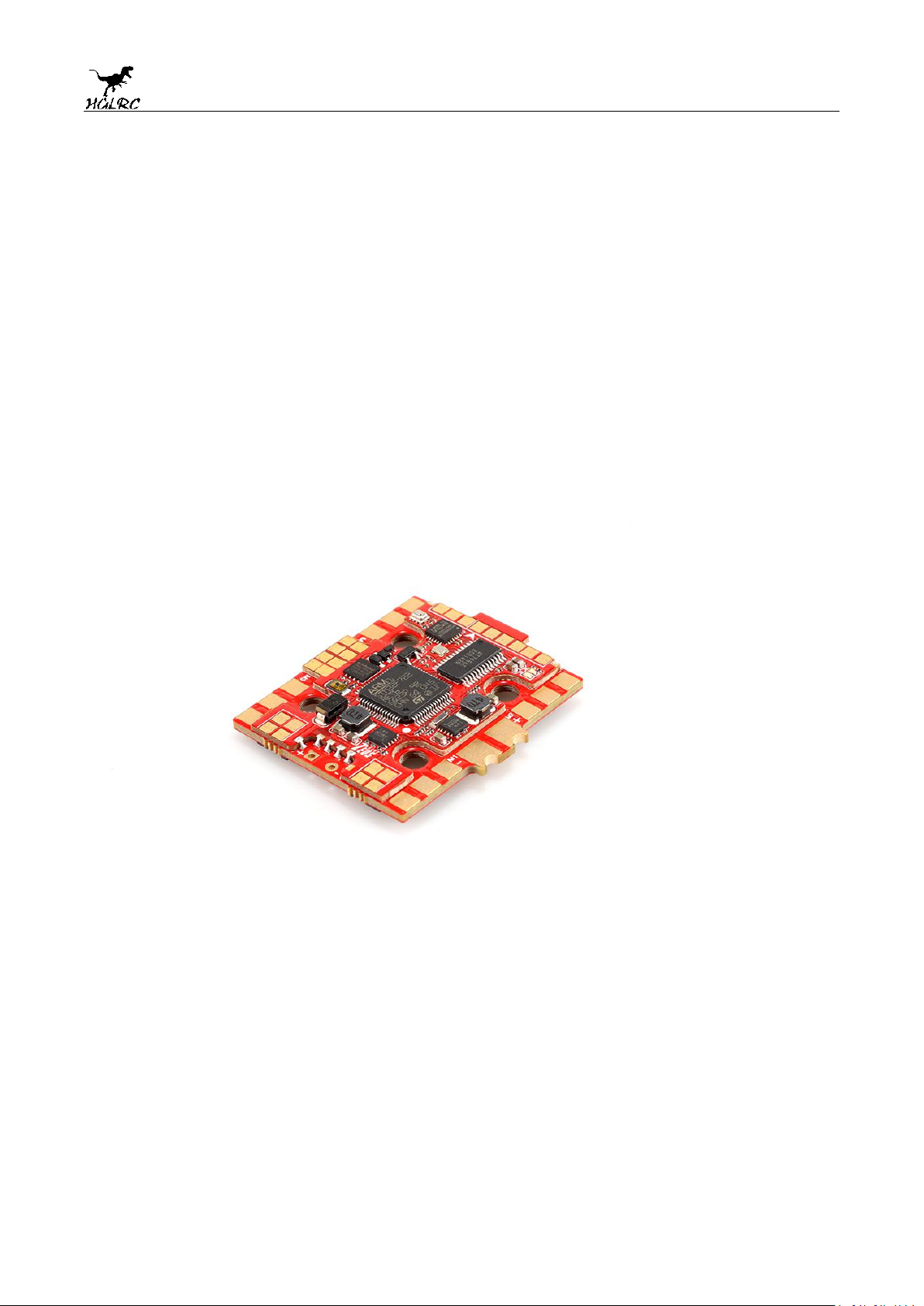

Zeus35 Pro AIO
Flight Controller
Manual
1
www.hglrc.com
Page 2
Product Specifications.............................................................................................................................1
Zeus35 Pro AIO*1
Accessory Bag*1
Interface Description...............................................................................................................................2
Check the flight control drive................................................................................................................3
Calibration accelerometer......................................................................................................................4
UART serial port use.................................................................................................................................5
Select aircraft model.................................................................................................................................6
Choose ESC protocol..................................................................................................................................7
Voltage and current parameters setting.............................................................................................8
Setting up the receiver..............................................................................................................................9
VTX serial port use. VTX uses OSD smart audio..............................................................................10
GPS parameters setting...........................................................................................................................11
Check receiver signal................................................................................................................................12
Select flight mode startup mode...........................................................................................................13
OSD settings.................................................................................................................................................14
LED settings.................................................................................................................................................15
Troubleshooting.........................................................................................................................................16
.......................................................................................
Package IncIuded
2
www.hglrc.com
Page 3
1.Product Specifications
Product parameters
Model
Zeus35 Pro AIO
Weight
13.8g
Input Voltage
3-6S
Usage
for 100mm-450mm Frame Kit
Installing Hole
20x20mm/M3
Dimensioms
40.0x34.0mm
FC Firmware
BF ZEUSF722_AIO(HGLR)
CPU
STM32F722
MPU
MPU6000
BEC
9V/1A
5/2A
BlackBox
8M
UARTS
5
ESC Firmware
BL_S
Current Sensor
not support
Constant Current
35A
Peak Current
40A（5s）
3
www.hglrc.com
Page 4
2.Interface Description
3.Check the flight control drive
1. Long Press BOOT buttons.connect USB.The system automatically
install the driver
4
www.hglrc.com
Page 5

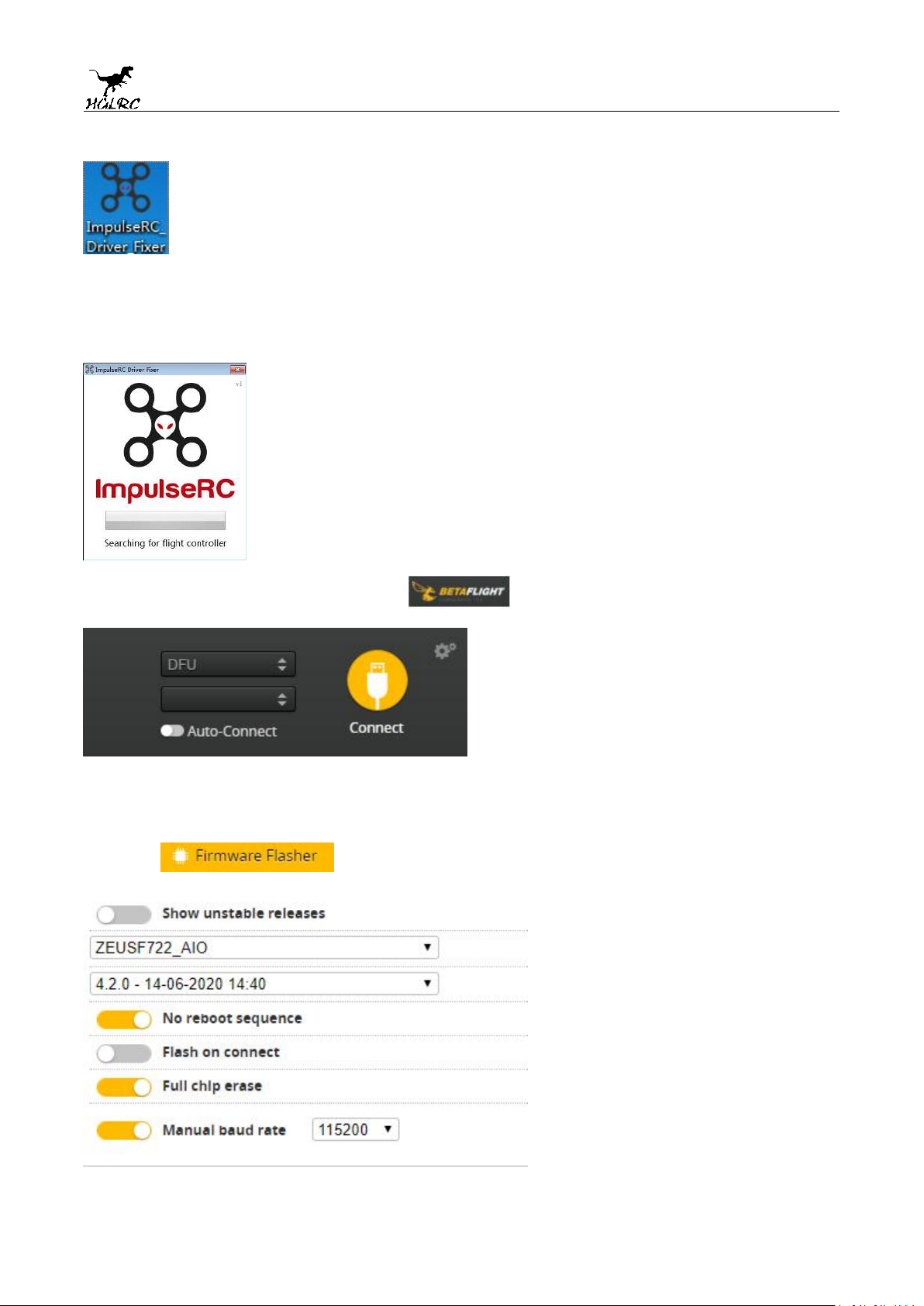

2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer
3.Double-click on the run(Plug in the flight controller to automatically
install the driver)
4.open betaflight configurator ，enter DFU mode
5.Click Select firmware version
5
www.hglrc.com
Page 6

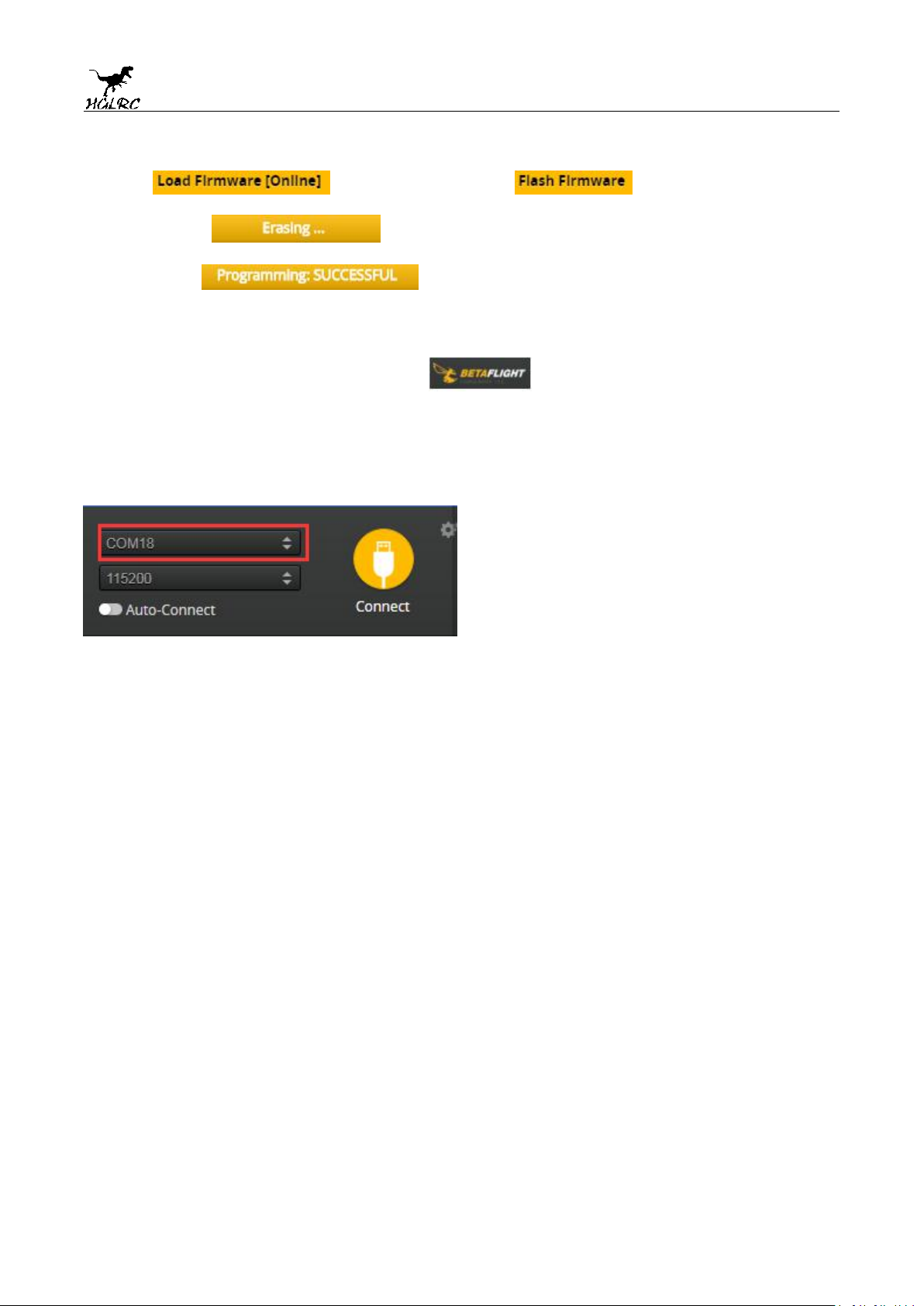

6.Click Load firmware. Waiting for
completion
It will be prompted upon
completion.
7.open betaflight configurator .Controller plugged into the
computer.
setup interface
Betaflight Automatically assigned port，click “Connect” Enter
（
Different computer COM
）
6
www.hglrc.com
Page 7

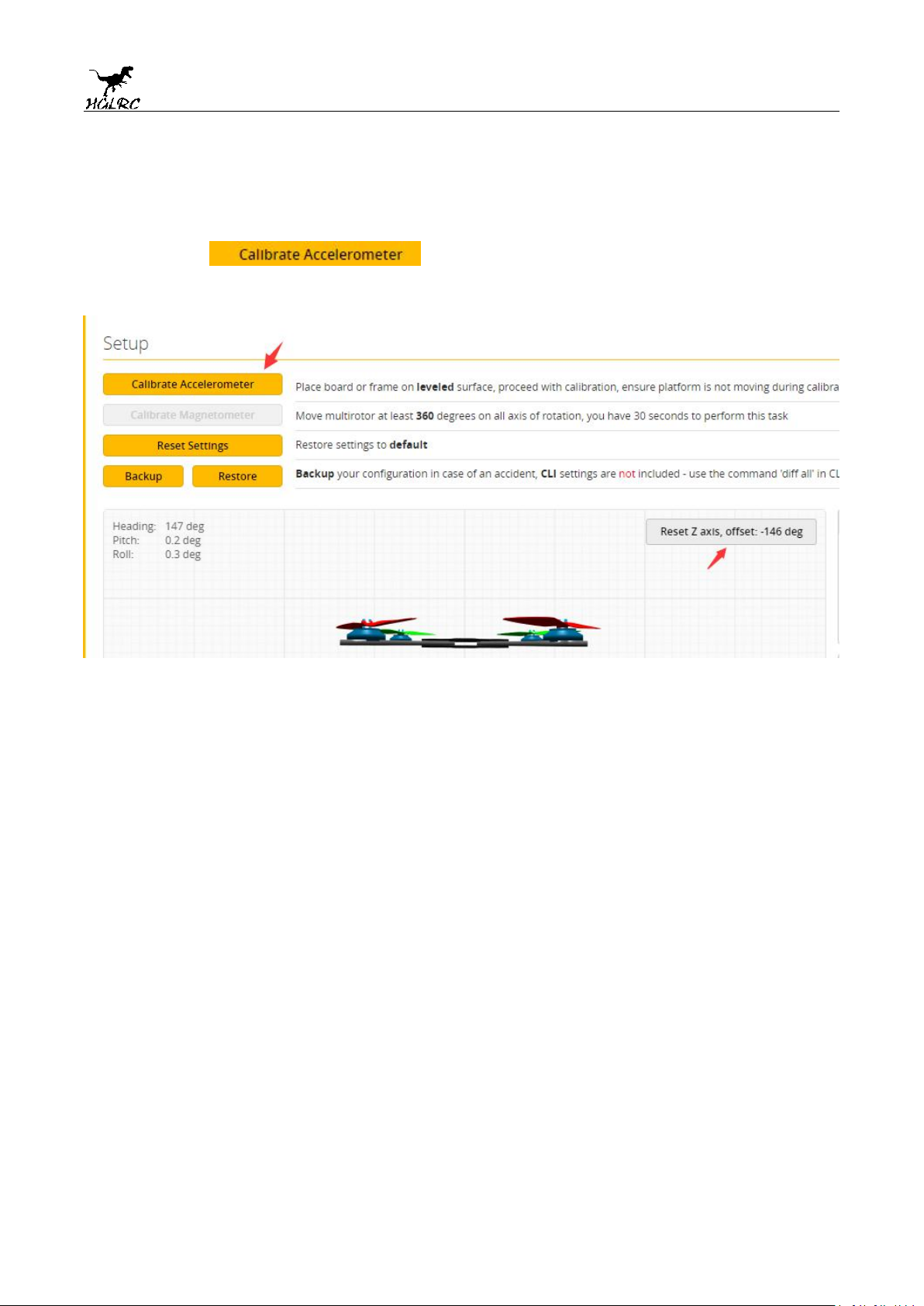

4.Calibration accelerometer
1. Put the aircraft horizontal and click“
Click again
Reset Z axis”
5.UART serial port use
1.UART1 uses the receiver
2.UART2 uses VTX/DJI
3.UART3
4.UART4 uses GPS
5.UART6
7
www.hglrc.com
Page 8

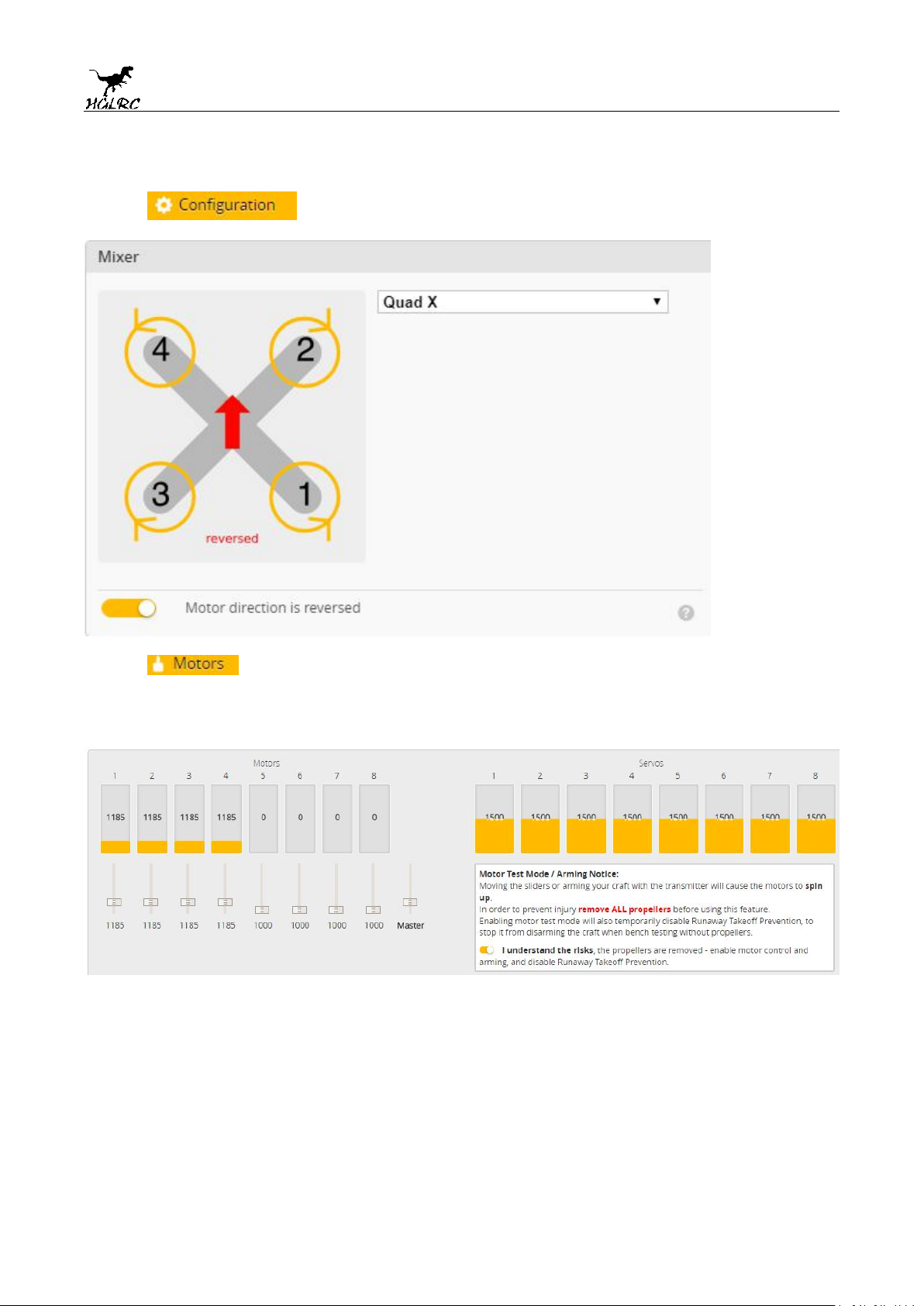

6.Select aircraft model
1.Click
Select model
Click
2.
steering
“
Master
Click “I understand the risks”
”
Steering can be changed at
BLHeliSuite32
Push Master to check motor
8
www.hglrc.com
Page 9
7.Choose ESC protocol

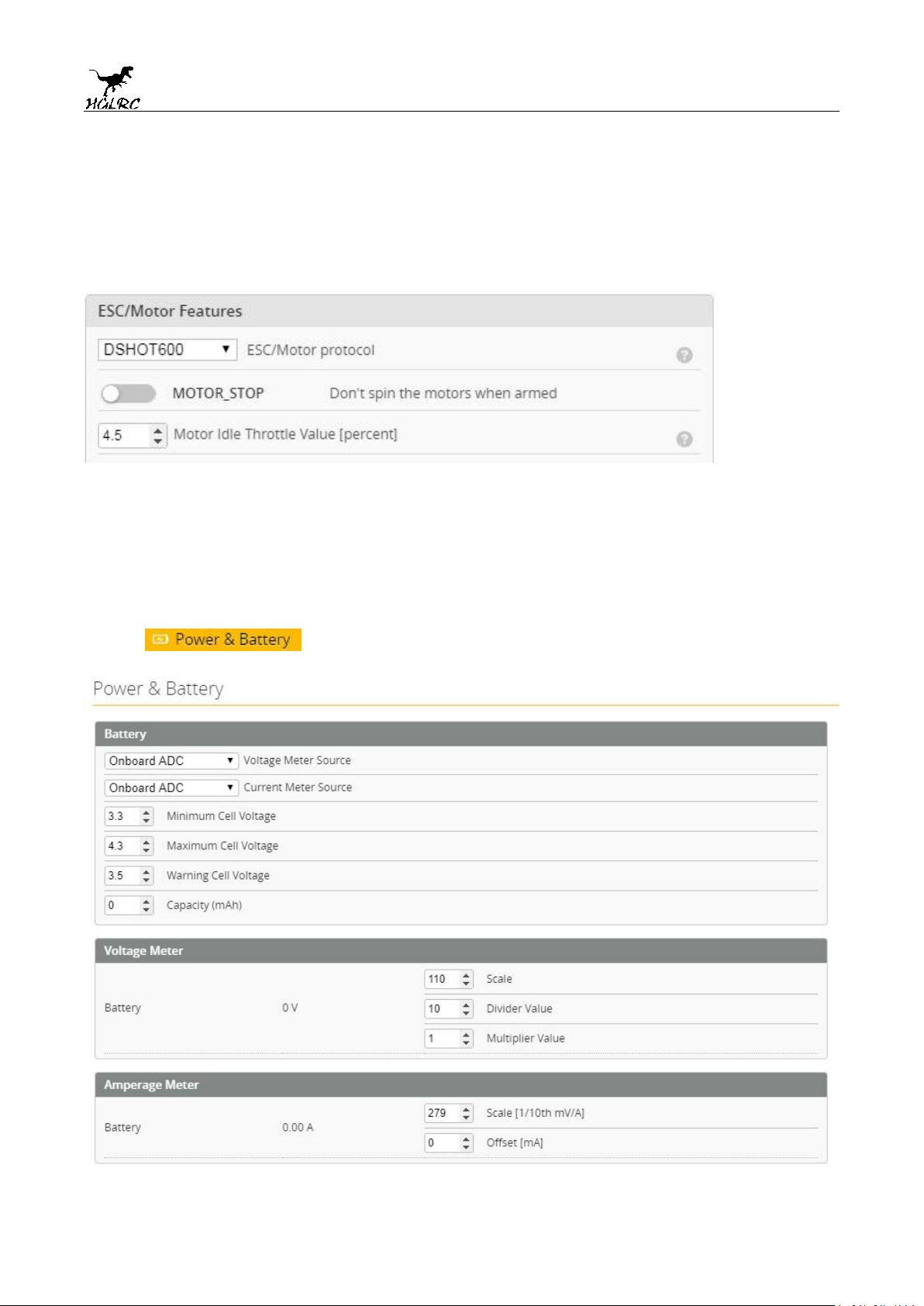

1.Choose the right ESC protocol, the optional universal protocol
DSHOT600.
8.Voltage and current
parameters setting
1.Click
Setting parameters
9
www.hglrc.com
Page 10
9.Setting up the receiver

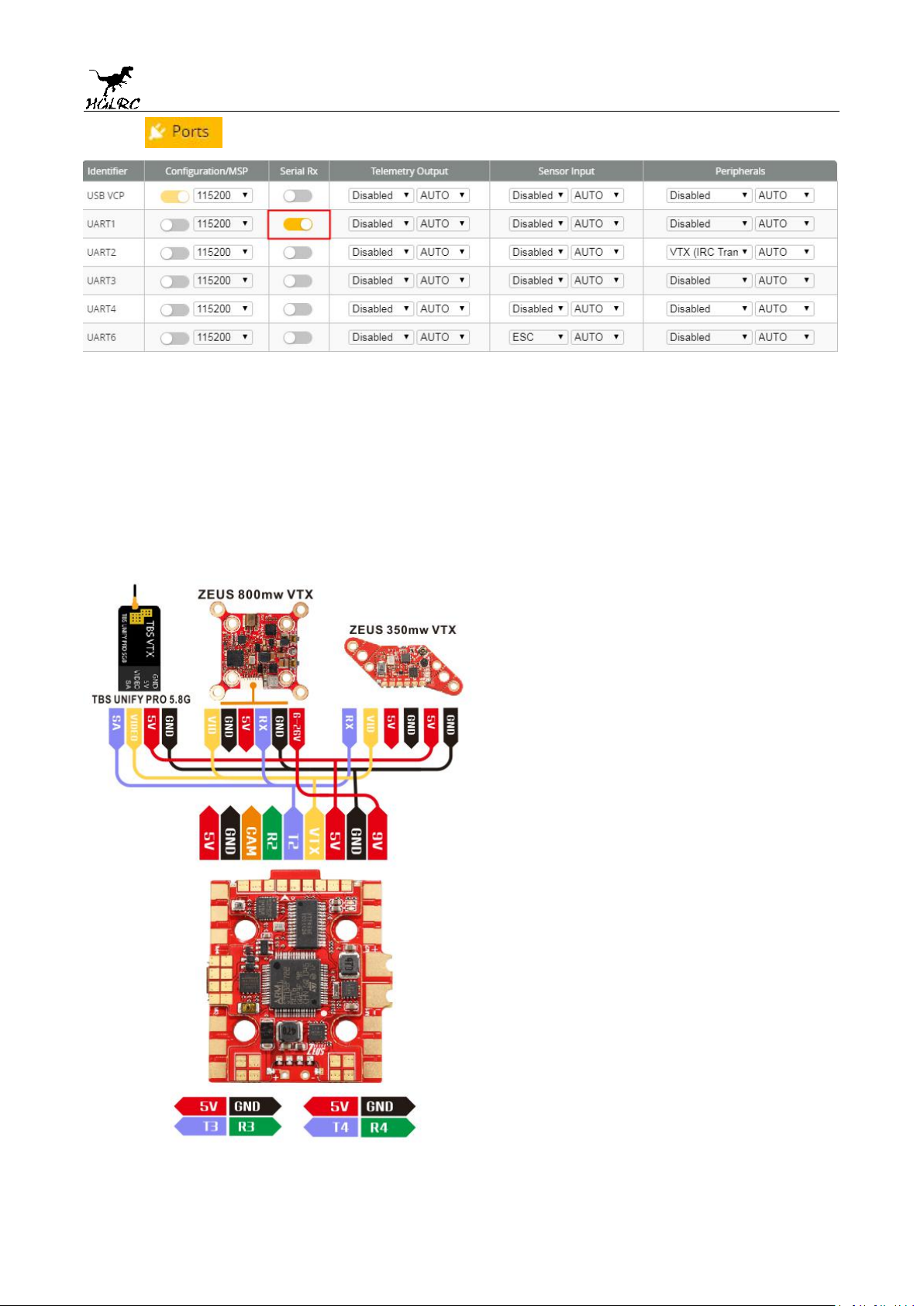

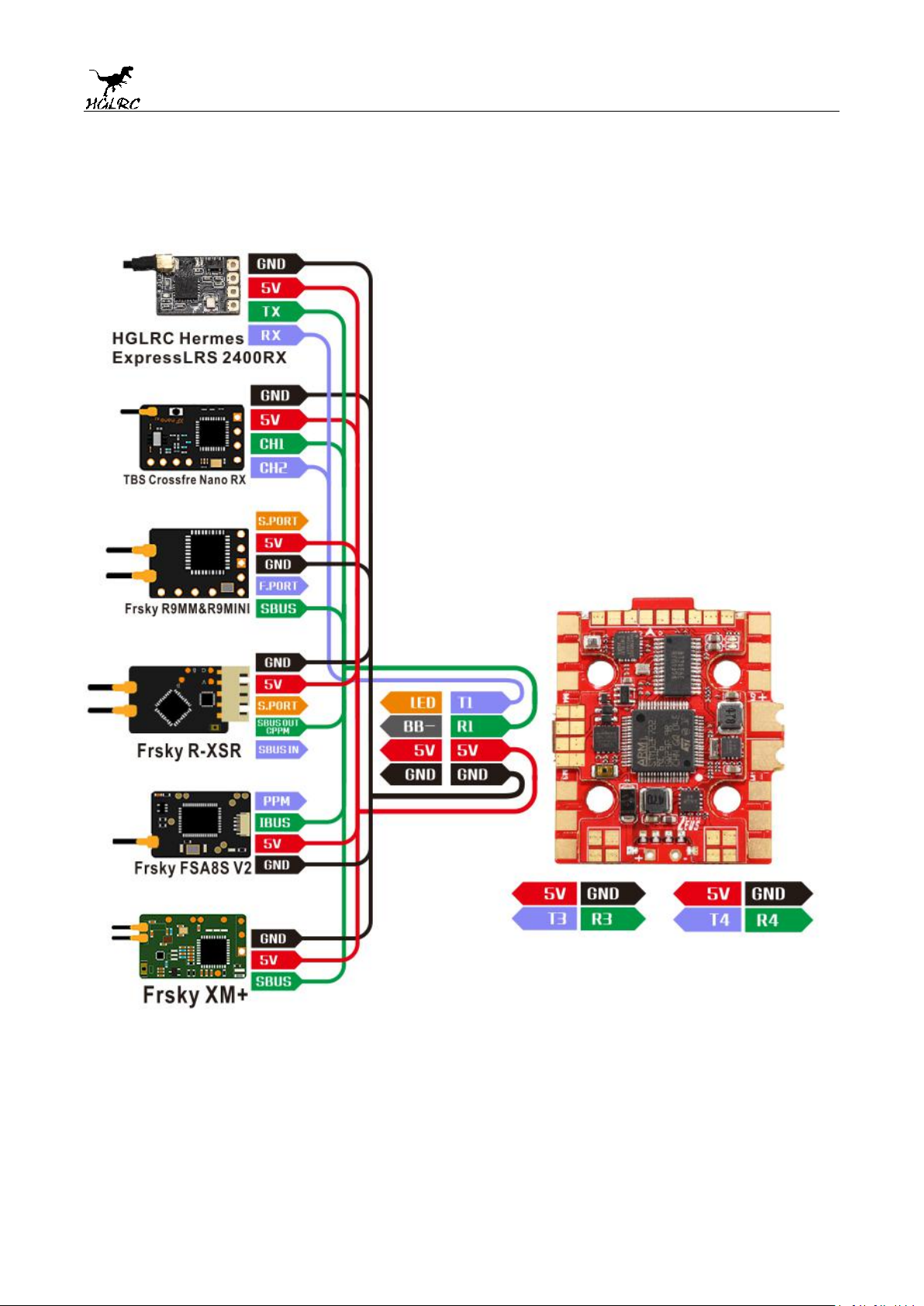

1.Receiver connection diagram
10
www.hglrc.com
Page 11
2.Click
.have found
“
UART1
”
Open the receiver serial port
10.VTX serial port use. VTX uses
OSD smart audio

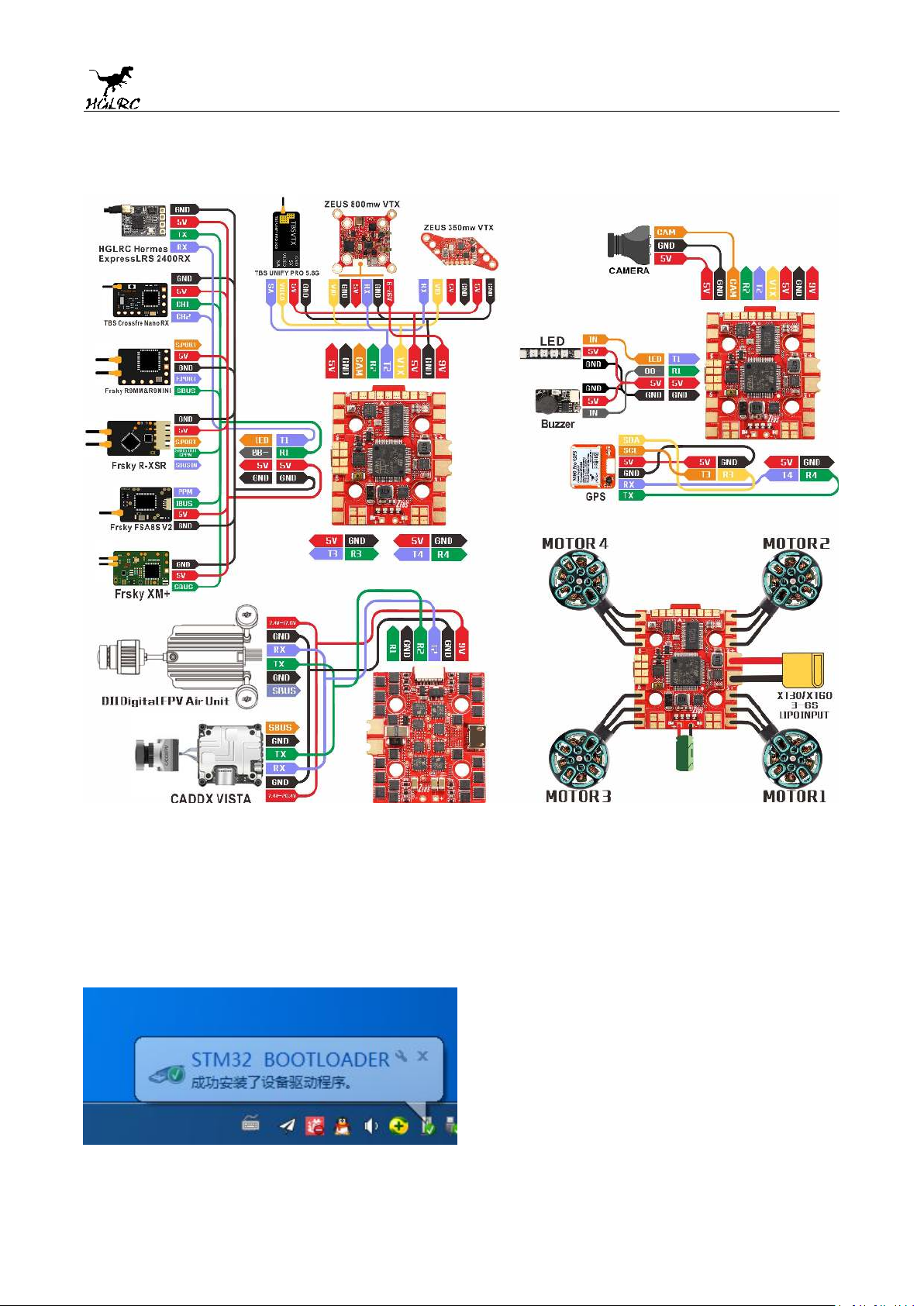

1.VTX connection diagram
11
www.hglrc.com
Page 12

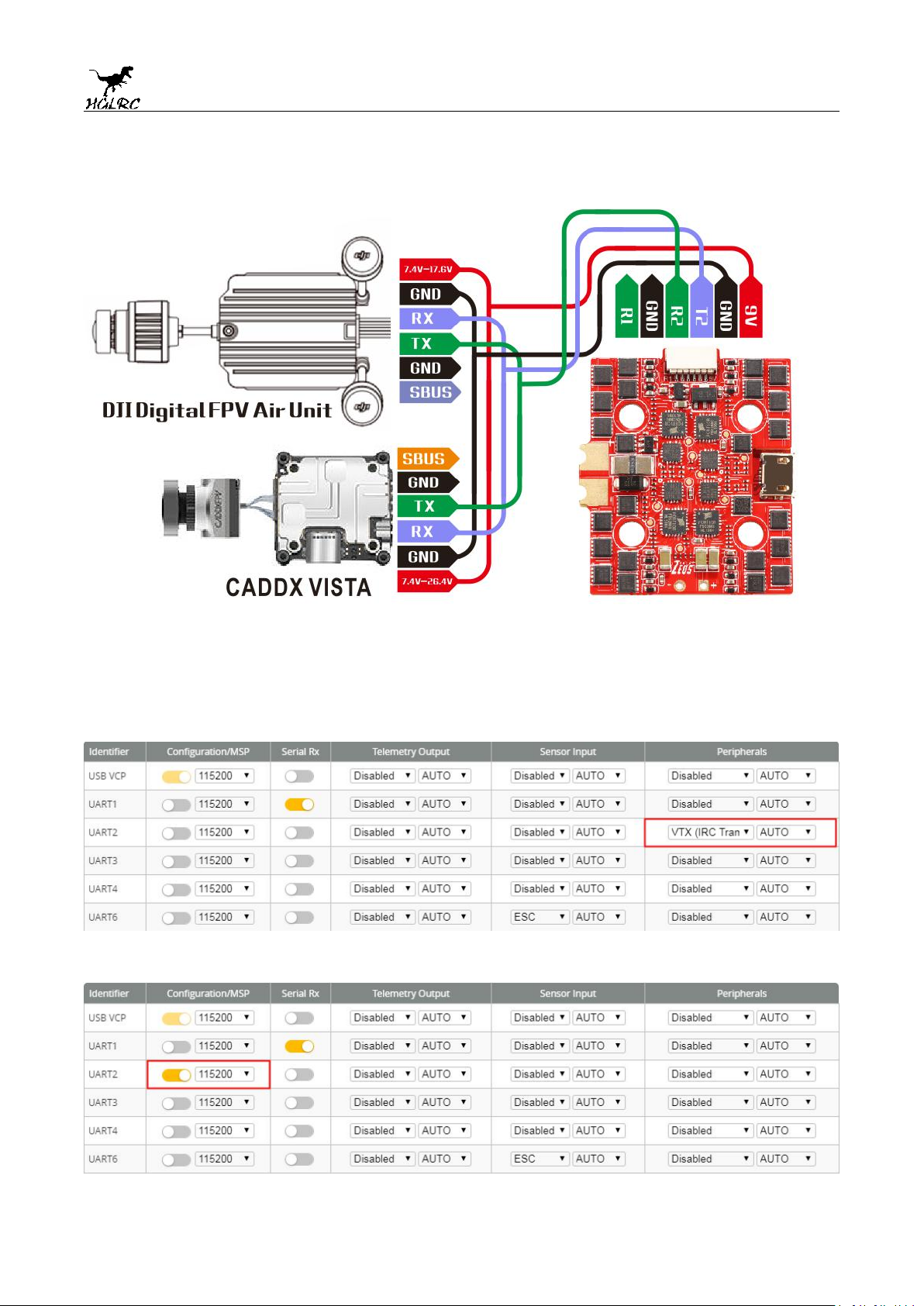

2. DJI FPV Air Unit wiring
3.VTX serial port opens. The protocol is selected according to its own VTX
protocol.
4. DJI serial port opens
12
www.hglrc.com
Page 13

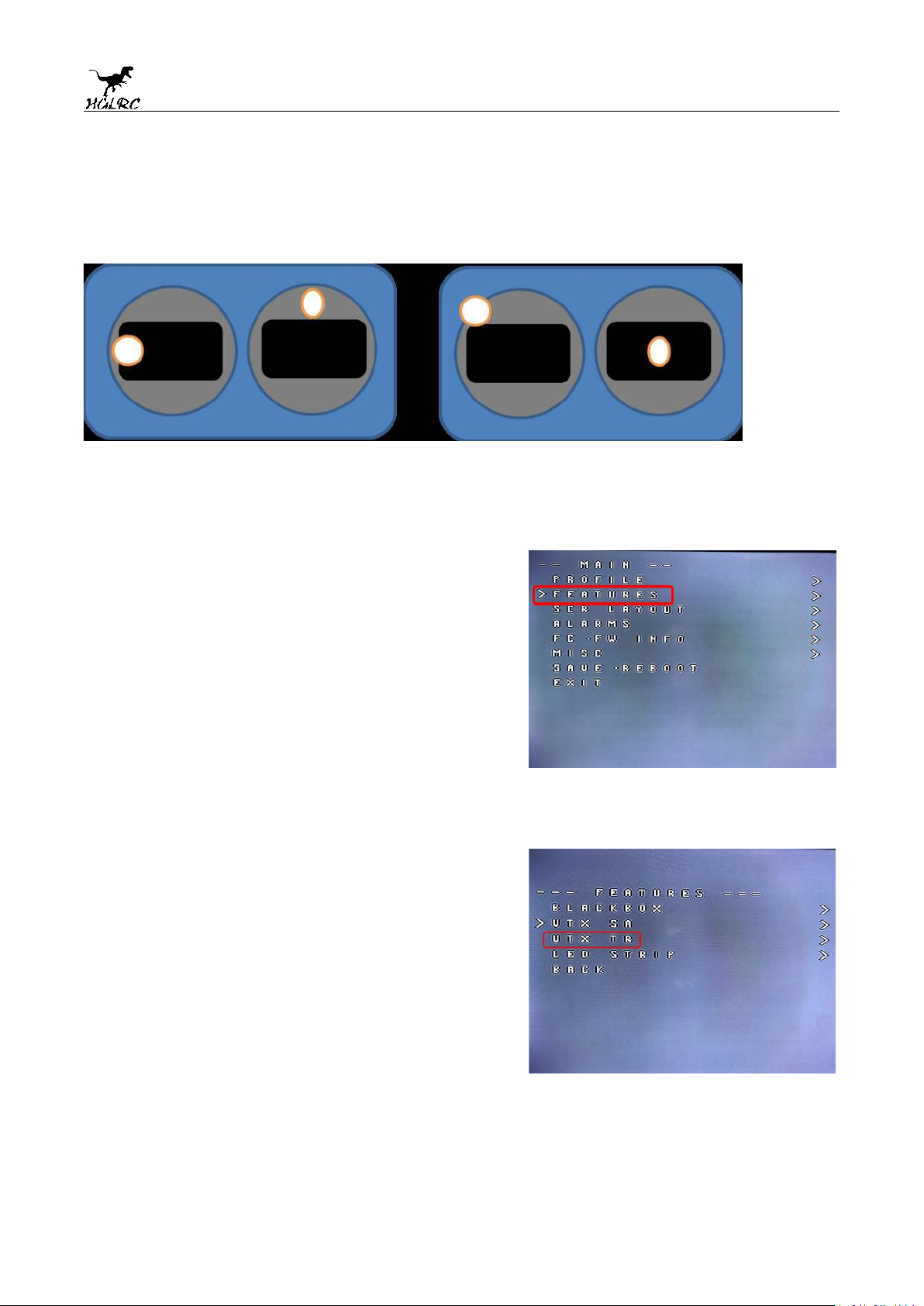

5.Use OSD to adjust VTX
which displays information like battery voltage and mAh consumed while you fly. In addition, the
Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more
convenient.
MODE2 MODE1
The graphics above show the stick command to bring up the OSD menu. The stick command is: throttle
centered, yaw left, pitch forward. The exact stick command therefore depends on which mode your
transmitter sticks are in.
In the OSD menu, use pitch up/down to move the cursor
between menu items. When a menu option has a > symbol
to the right of it, this indicates that it contains a sub-menu.
Roll-right will enter the sub-menu. For example, in the
screen to the right, moving the cursor to “Features” and
then moving the roll stick to the right will enter the
“Features” sub-menu.
If you are using a video transmitter that supports remote
configuration, enter the “Features” menu to configure the
vTX. From there, enter either “VTX SA” if you are using
SmartAudio (TBS Unify) or “VTX TR” if you are using IRC
Tramp Telemetry.
To adjust PIDs, rates, and other tuning-related parameters,
enter the “Profile” sub-menu.
In the “Scr Layout” sub-menu, you can move the OSD
elements (like battery voltage, mAh, and so forth) around on
the screen.
The “Alarms” sub-menu lets you control when the OSD will
try to alert you that battery voltage is too low or mAh
consumed is too high.
13
www.hglrc.com
Page 14
When a parameter can be modified, the parameter’s current
value will be shown on the right-hand side of the screen. In
this case, roll left/right will adjust the parameter up and
down.
The screen to the right shows the current vTX settings. From
here, you can change the frequency band, channel, and
power level of the video transmitter. After making the
changes, move the cursor to “Set” and press roll-right to
confirm the settings.
11. GPS parameters setting

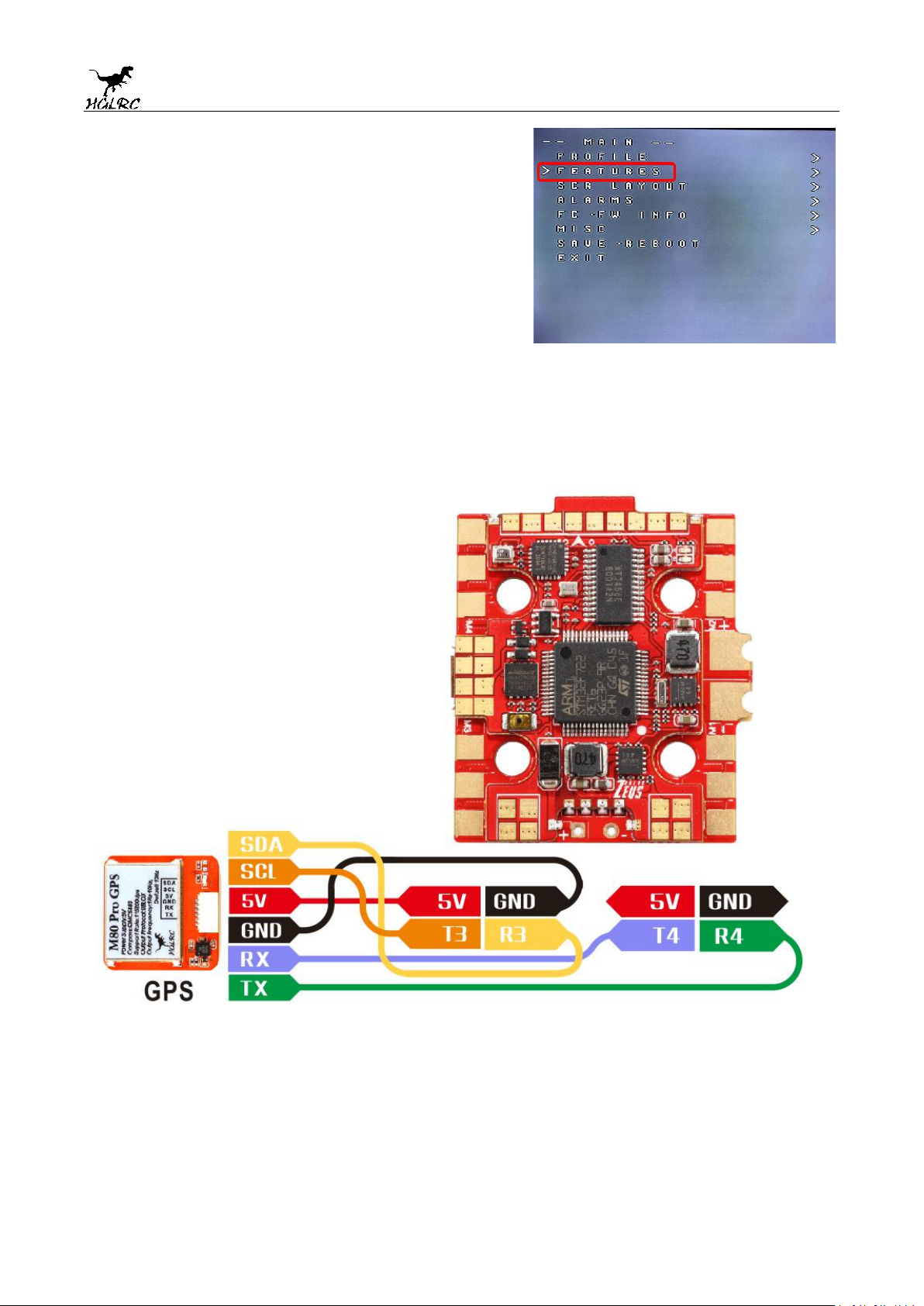

1.GPS connection diagram
14
www.hglrc.com
Page 15

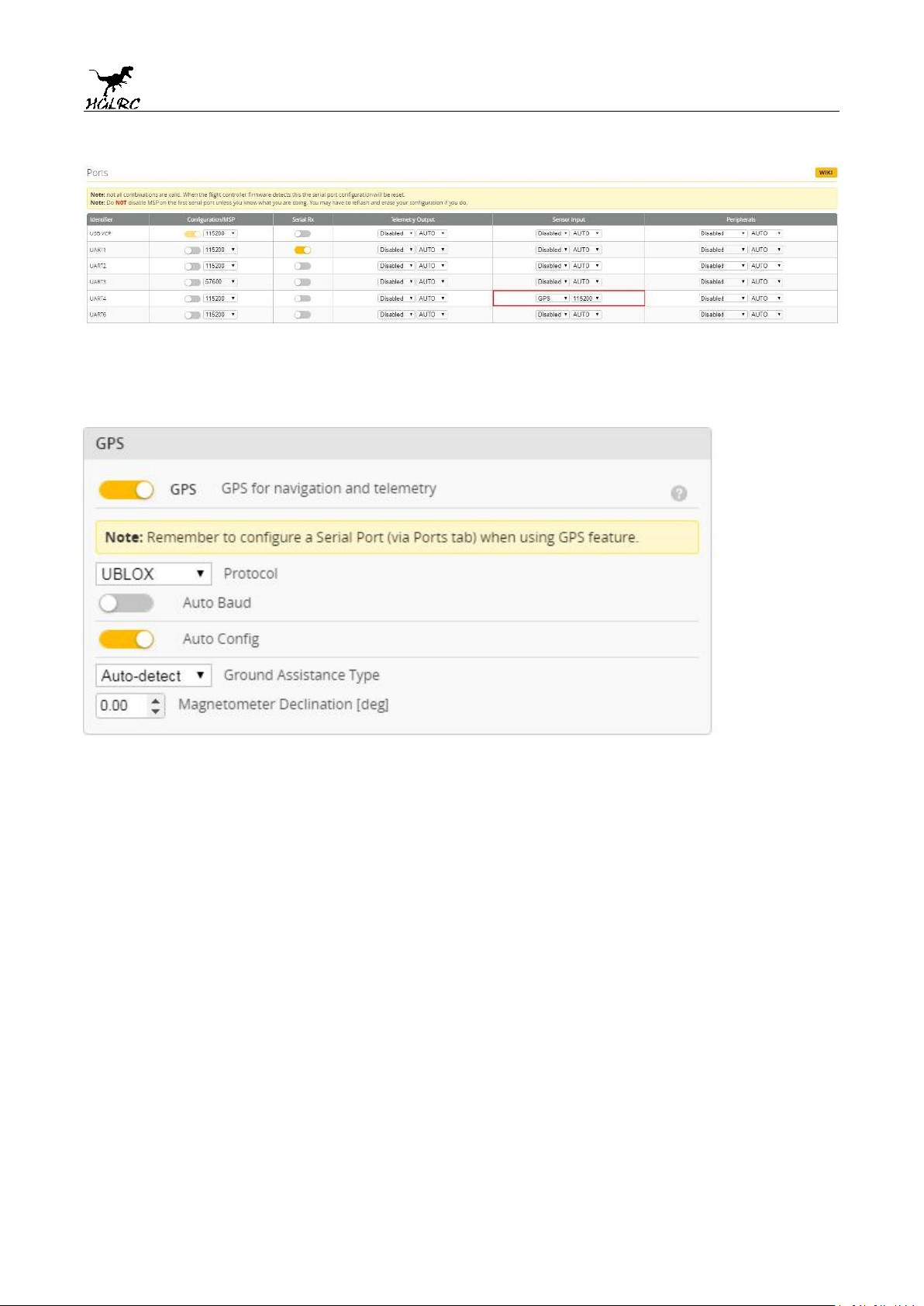

2.Open the GPS serial port
3.When using the GPS function, remember to configure the serial port
(via the Ports tab).
15
www.hglrc.com
Page 16

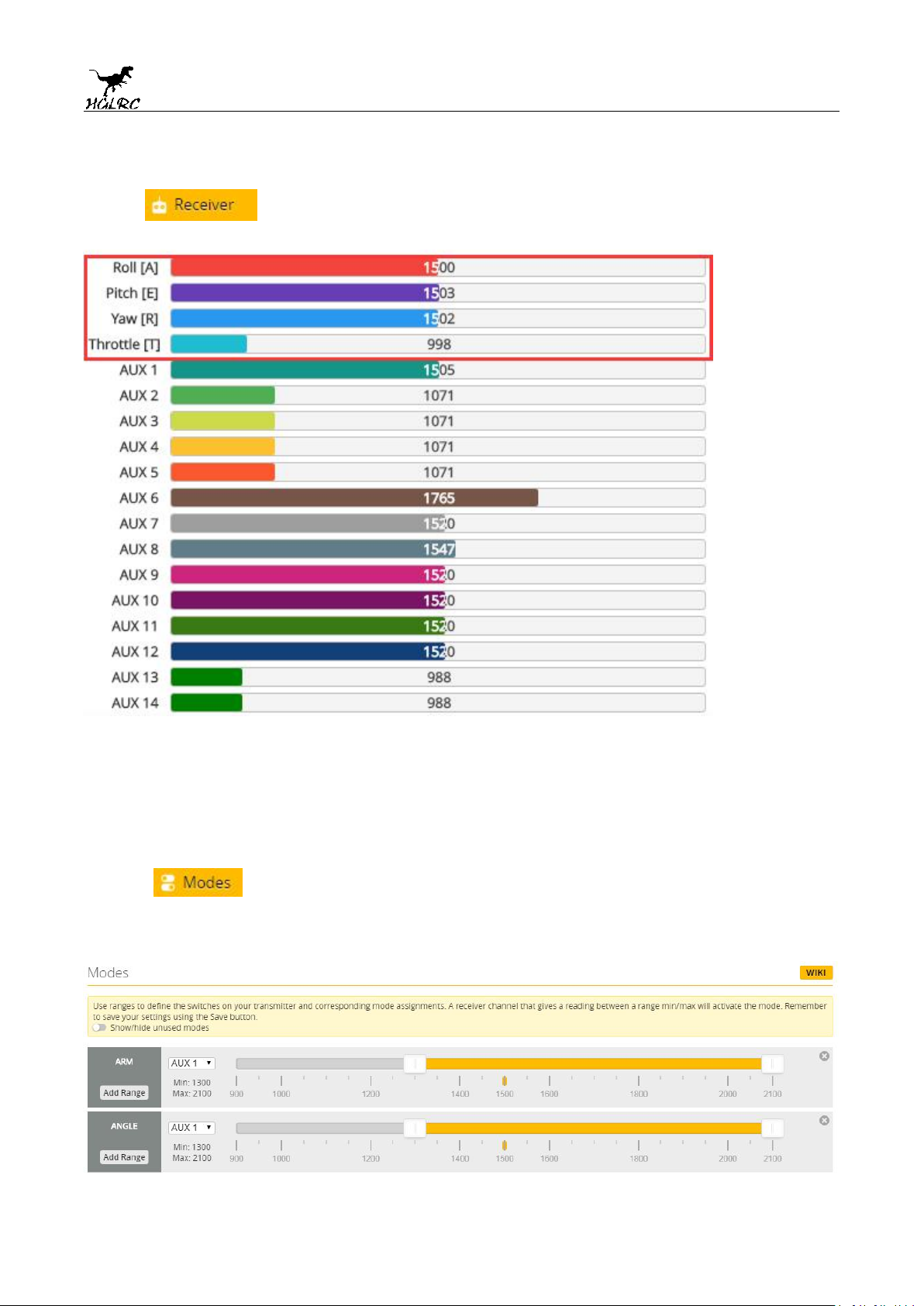

12.Check receiver signal
1.Click
Check the remote control output signal
13.Select flight mode startup
mode
1.Click
channel (below are for reference only)
set up the function of remote control switch across the
16
www.hglrc.com
Page 17

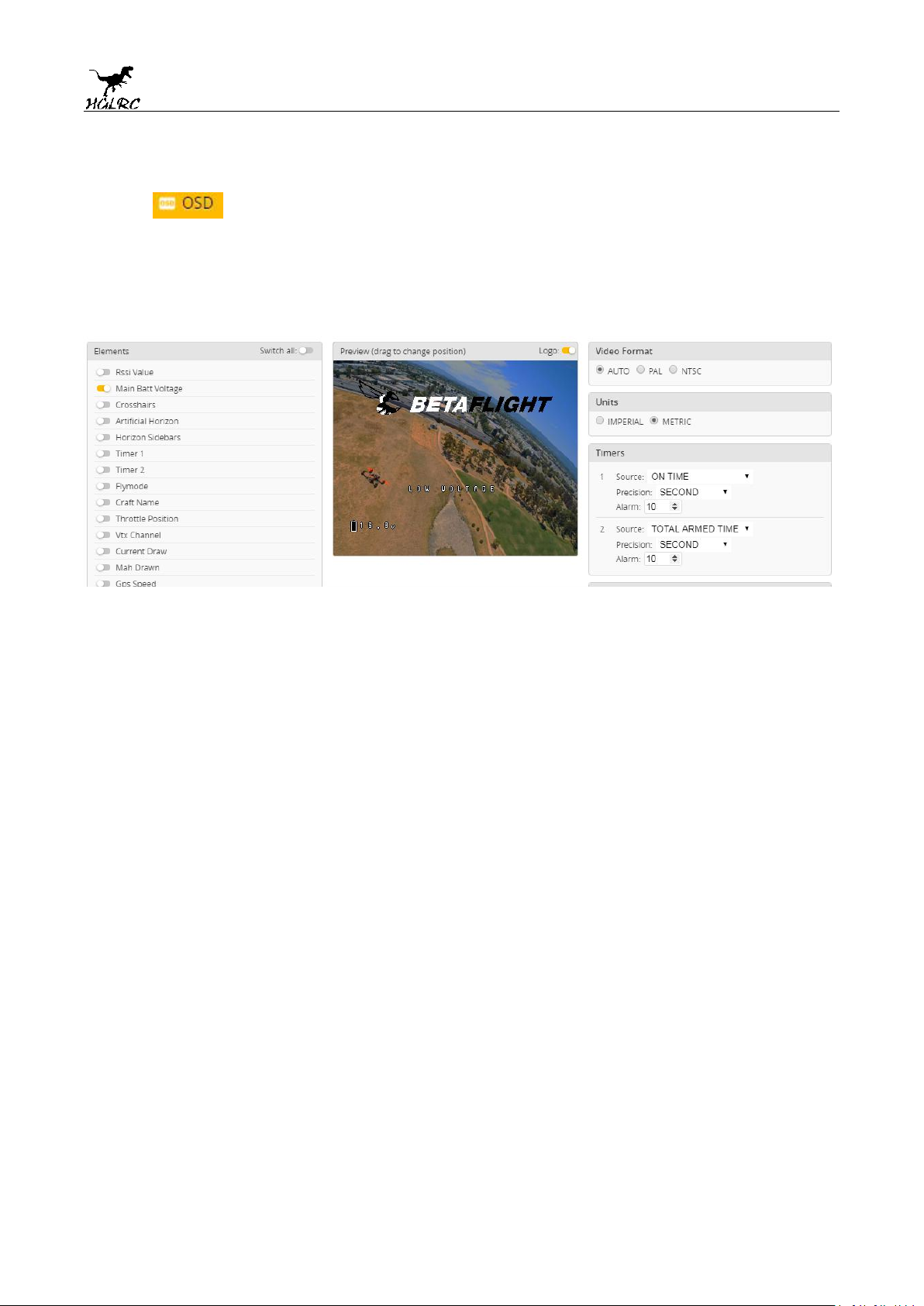

14.OSD settings
1. Click
the OSD schematic diagram of the parameters can be adjusted.
the OSD Settings, according to the need to choose, drag
17
www.hglrc.com
Page 18

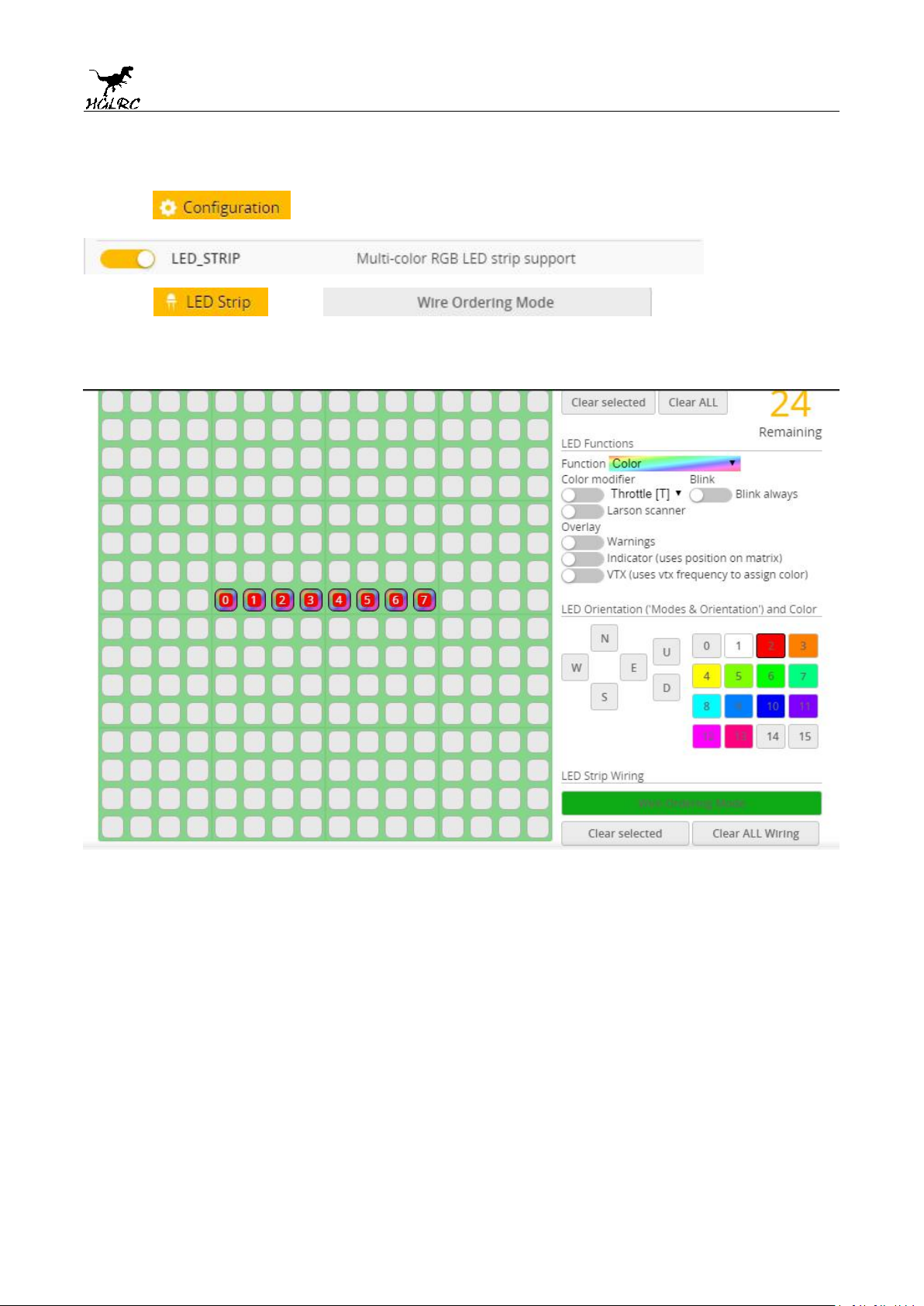

15.LED settings
1. Click
2.Click .Click set according to
need
Turn on LED support
18
www.hglrc.com
Page 19
16.Troubleshooting
Warning:
Please read the cautions as follows, otherwise stability of your flight
controller cannot be ensured, your flight controller will even get damaged.
● Keep focus on the polarity. Check carefully before power supply.
● Cut off the power when you connect, plug and pull anything.
● The refresh rate of PID and Gyroscope is up to 8K/8K.
19
www.hglrc.com
Page 20
after sales question:
1. After receiving the goods, it is found that the product can not be used
normally. If the return to the factory is a quality problem, the repair
service will be provided free of charge.
2. If the product is damaged due to improper operation, the repair service
may be provided under the condition that the inspection can be repaired.
3. For domestic customers, please contact the after-sales service personnel.
For overseas customers, please contact the official website for after-sales
service.
Product daily problems
1.OSD garbled:
If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager”
clicks on “
Upload Font” to update
1. When plugged in the battery, the aircraft does not pass the self-test
without "BBB" sound. There is only one sound.
Please check if the ESC agreement is correct
3.The spin of the aircraft keeps spinning
1. Please check if the propeller is correct
2. Please check if the motor direction is correct
20
www.hglrc.com
