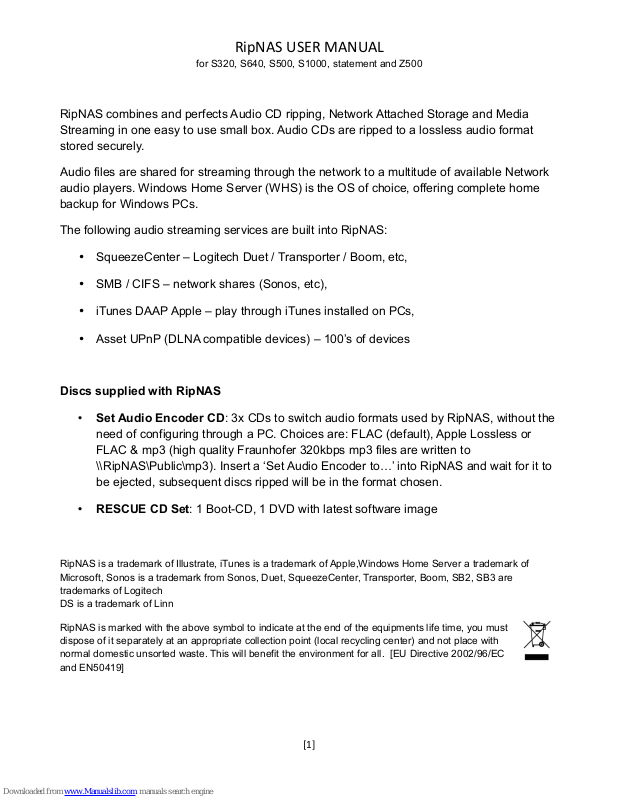

RipNAS USER MANUAL
for S320, S640, S500, S1000, statement and Z500
RipNAS combines and perfects Audio CD ripping, Network Attached Storage and Media
Streaming in one easy to use small box. Audio CDs are ripped to a lossless audio format
stored securely.
Audio files are shared for streaming through the network to a multitude of available Network
audio players. Windows Home Server (WHS) is the OS of choice, offering complete home
backup for Windows PCs.
The following audio streaming services are built into RipNAS:
• SqueezeCenter – Logitech Duet / Transporter / Boom, etc,
• SMB / CIFS – network shares (Sonos, etc),
• iTunes DAAP Apple – play through iTunes installed on PCs,
• Asset UPnP (DLNA compatible devices) – 100’s of devices
Discs supplied with RipNAS
• Set Audio Encoder CD: 3x CDs to switch audio formats used by RipNAS, without the
need of configuring through a PC. Choices are: FLAC (default), Apple Lossless or
FLAC & mp3 (high quality Fraunhofer 320kbps mp3 files are written to
\\RipNAS\Public\mp3). Insert a ‘Set Audio Encoder to…’ into RipNAS and wait for it to
be ejected, subsequent discs ripped will be in the format chosen.
• RESCUE CD Set: 1 Boot-CD, 1 DVD with latest software image
RipNAS is a trademark of Illustrate, iTunes is a trademark of Apple,Windows Home Server a trademark of
Microsoft, Sonos is a trademark from Sonos, Duet, SqueezeCenter, Transporter, Boom, SB2, SB3 are
trademarks of Logitech
DS is a trademark of Linn
RipNAS is marked with the above symbol to indicate at the end of the equipments life time, you must
dispose of it separately at an appropriate collection point (local recycling center) and not place with
normal domestic unsorted waste. This will benefit the environment for all. [EU Directive 2002/96/EC
and EN50419]
[1]
Page 2
Table of Contents
1.RipNAS: Ten Minute Setup Guide......................................................................................................................3
2.Ripping Audio CDs.............................................................................................................................................4
2.1.Ejecting a CD .............................................................................................................................................4
2.2.Secure Ripping...........................................................................................................................................4
3.Doing more with RipNAS...................................................................................................................................5
3.1.Remote-Access to the RipNAS...................................................................................................................5
3.2.web browser access...................................................................................................................................5
3.3.Daily USB backup.......................................................................................................................................6
3.4.Editing Metadata.......................................................................................................................................6

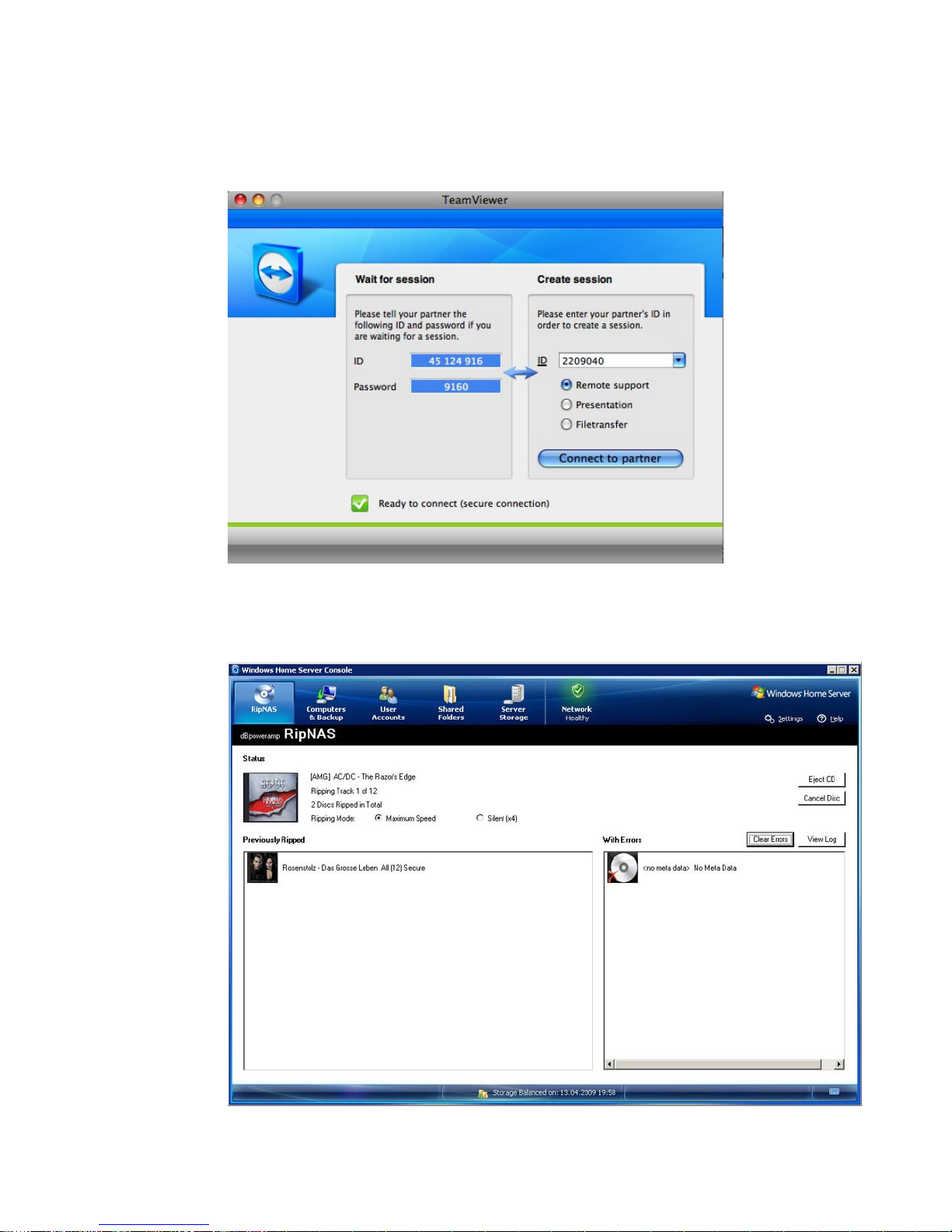

3.5.Remote help and support..........................................................................................................................7
3.6.Progress control, silent mode and audio file formats................................................................................7

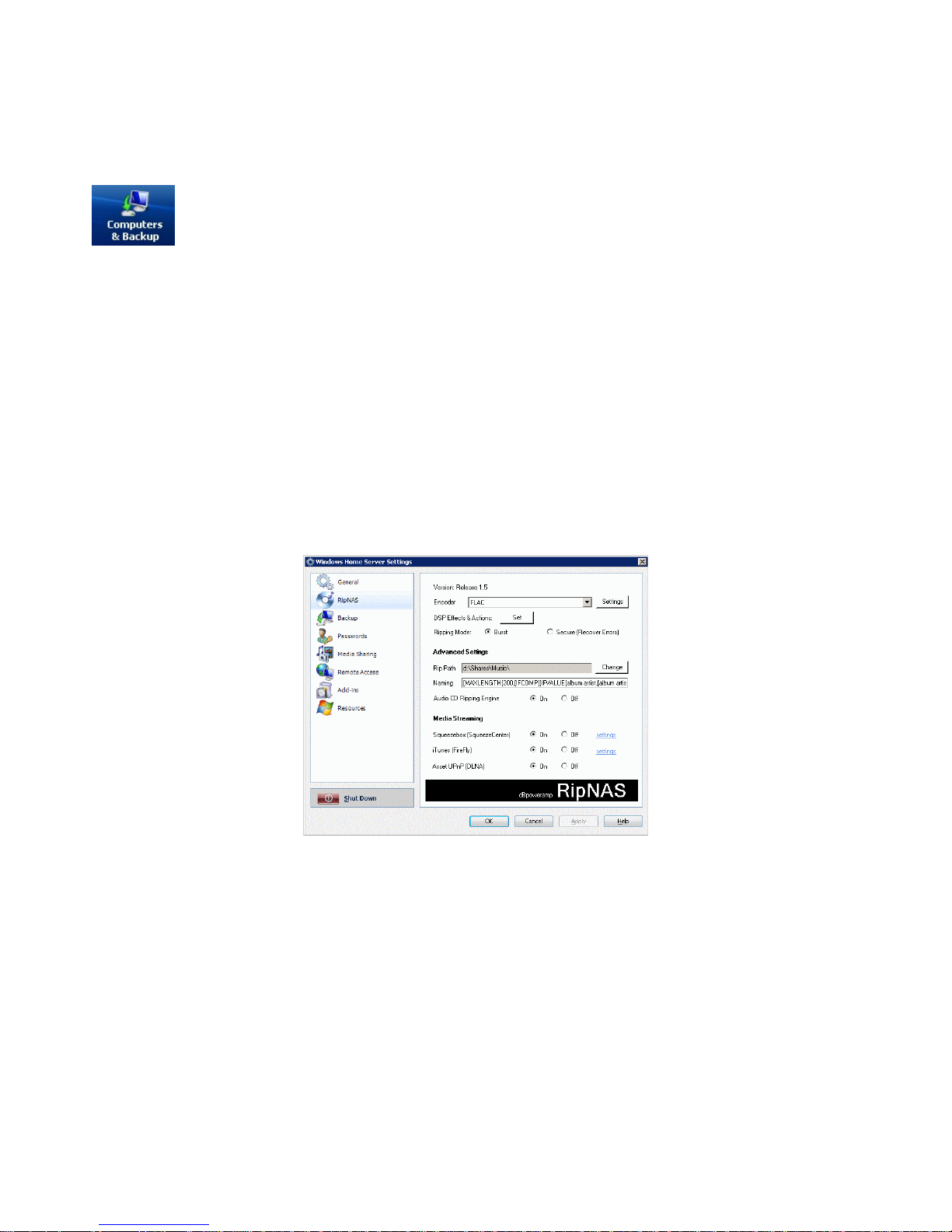

4.Changing settings with Windows Home Server (WHS).....................................................................................8
4.1.WHS Preconfigured Accounts....................................................................................................................8
4.2.WHS Connector.........................................................................................................................................8
4.3.Restoring Individual Files.........................................................................................................................10
4.4.Restoring a Complete PC.........................................................................................................................10
4.5.Network...................................................................................................................................................11
4.6.Settings (button)......................................................................................................................................11
5.Restoring RipNAS.............................................................................................................................................12
6.RipNAS & Squeezeboxes’ (Logitech Duet, Transporter, Boom, SB3, SB2, etc.).................................................13

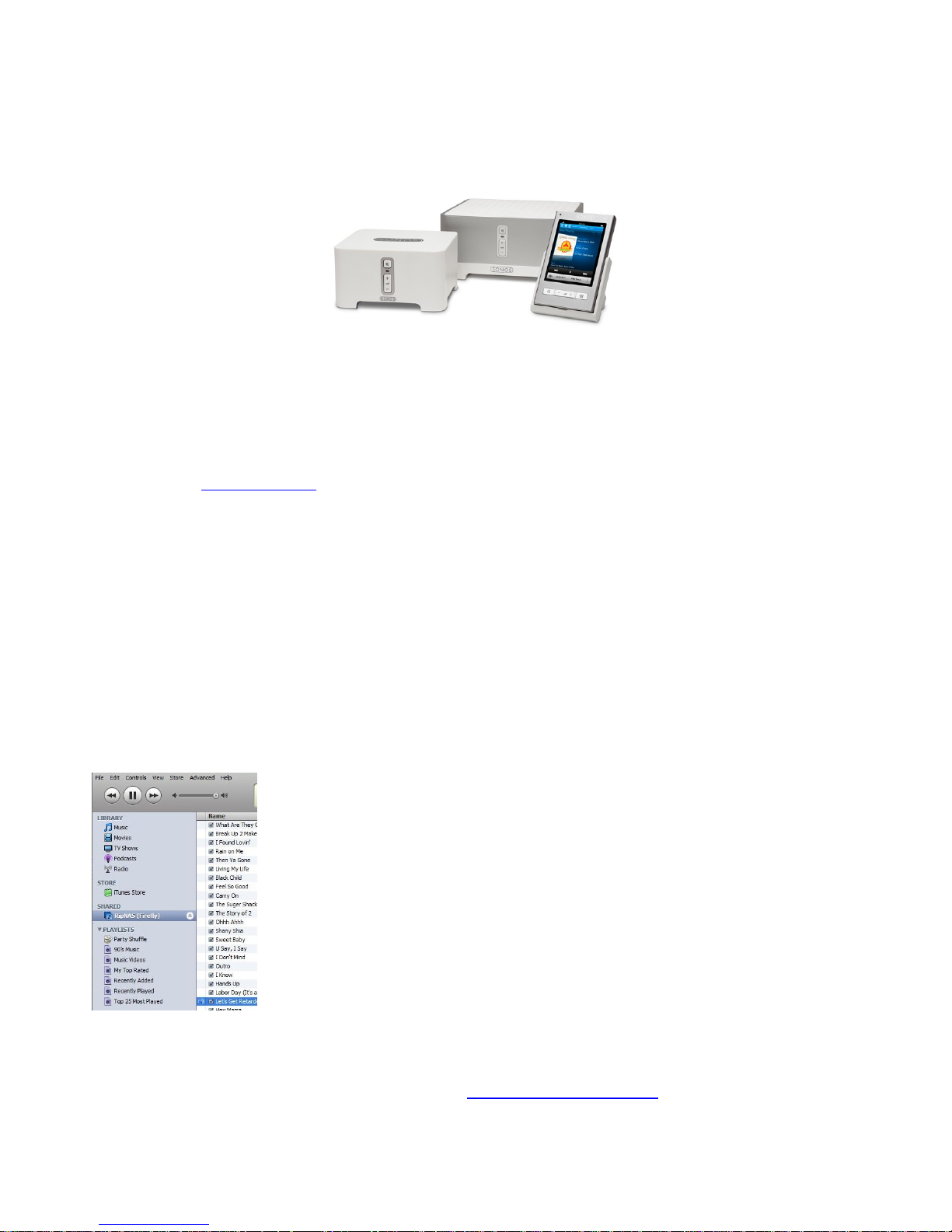

7.RipNAS & Sonos...............................................................................................................................................14
8.RipNAS & iTunes..............................................................................................................................................14

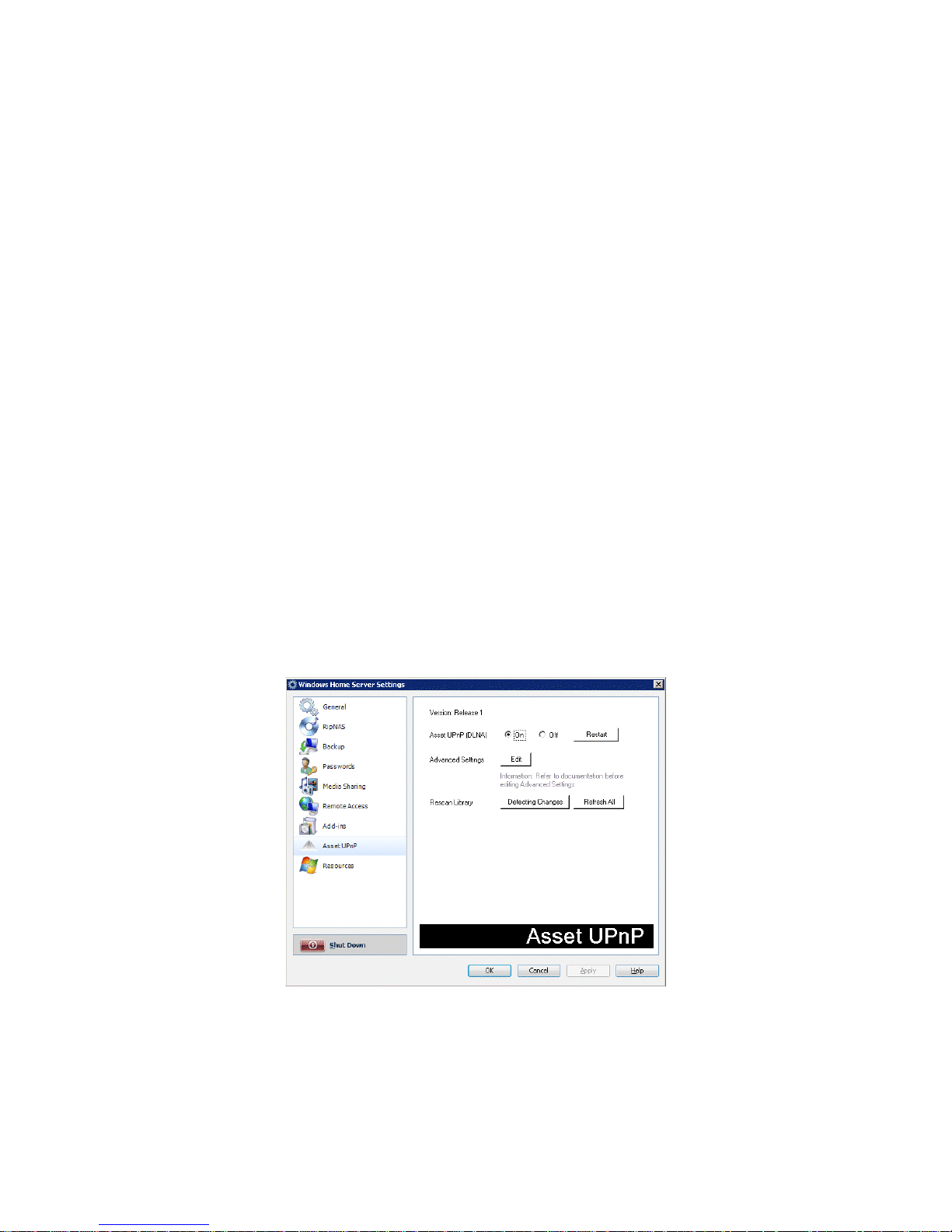

9.Asset UPnP (DLNA compatible devices)...........................................................................................................15
[2]
Page 3
1. RipNAS: Ten Minute Setup Guide
RipNAS is configured ready to rip right out of the box:
• Unpack RipNAS: consider where RipNAS will be placed. Being a passive cooled
system (no fans) ideally do not place RipNAS in an enclosed cabinet, in direct sunlight
and never near sources of water. Ensure the vents on the top are left
uncovered, it is normal for the sides of RipNAS to get warm to the touch when
RipNAS is working hard,
• Connecting RipNAS to your Network: RipNAS requires a wired connection to your

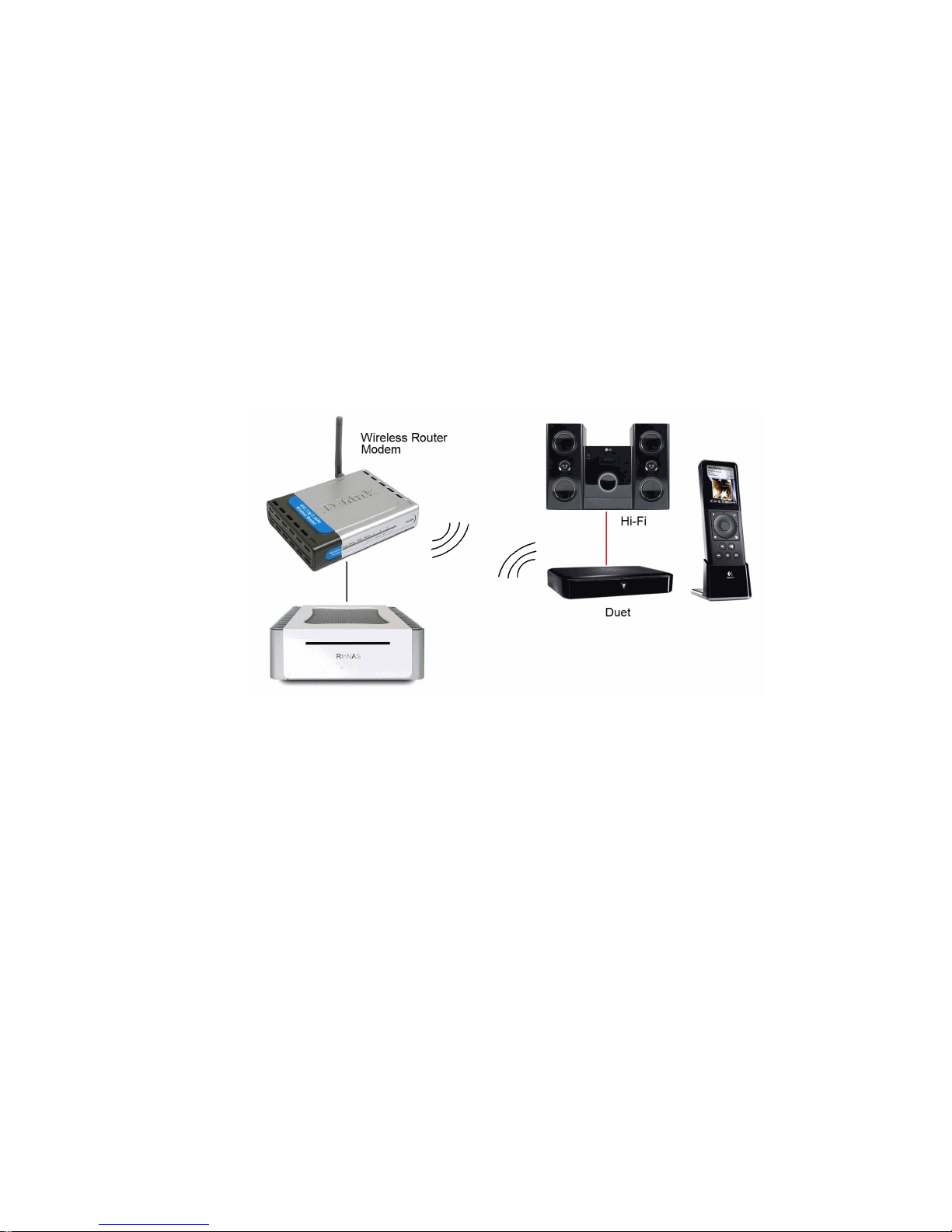

wireless or broadband router, A Typical setup might be:
• Plug RipNAS into the mains: connect the mains power ‘brick’ to RipNAS before
switching on at the mains. RipNAS only requires a mains & network connection, no
keyboard, mouse or screen required. Tap the RipNAS On / Off switch at the back to
power on,
• Check RipNAS is operating: after switching on the blue power light should illuminate
on the front, occasionally the yellow hard drive activity light will flash, also the network
lights on the back (yellow) should illuminate to show a good Ethernet connection.
RipNAS takes approximately 60 seconds to startup.
Should you wish to switch off RipNAS, tap the On / Off button on the back and wait for the
power lights to extinguish. RipNAS is designed as a server for 24 / 7 operation with low
power usage (approximately 20 Watts when idle for the base model).
[3]
Page 4
2. Ripping Audio CDs
RipNAS is preconfigured ripping to FLAC, a popular lossless format. FLAC is the format of
choice for Sonos and Logitech devices. UPnP devices: view the RipNAS & UPnP (DLNA)
section later on.
Ripping is as simple as inserting an audio CD (silver side facing down) and waiting
approximately 3-4 minutes for ripping to complete, once complete the CD is ejected.
Metadata is retrieved from 4 internet databases: AMG, GD3, MusicBrainz and freedb, using a
system called PerfectMeta™ where errors from single providers are corrected. Should no
metadata be available for a CD (perhaps is obscure, or new), RipNAS will reject the CD
without ripping (can take up to 30 seconds), if the CD is re-inserted a 2nd time it would be
ripped and tracks titled as ‘Unknown Artist #1 – Track 1’ etc.
Ripped audio tracks are automatically saved to the Music share to be streamed by devices
on the network.
2.1.Ejecting a CD
i) Click on the CD EJECT icon on the RipNAS desktop
ii) From WHS Console, click the Eject CD button,
iii) Shut down RipNAS (tap On / Off button) and when restarts RipNAS will auto-eject CD
on startup.
iv) Some models like Z500 have a hole in the front, where you can put a pin into it to eject
the CD
2.2.Secure Ripping
Secure ripping is available on ‘Secure RipNAS Models’ and is enabled by default. When
secure ripping is active tracks with unrecoverable errors are separated into a different folder
(Music\_InSecure) and the disc will appear in the With Errors section (of the Windows Home
Server Console, covered later). If the disc is present in AccurateRip's database, ripping can
proceed in a single pass (burst). Discs not in the database will take twice as long to rip as the
2nd rip verifies the track.
Should a disc have errors, we recommend:
• Give the disc a light clean,
• The disc can be re-ripped in RipNAS after a different CD is first ripped (otherwise it is
rejected as a duplicate),
• If the errors can now be corrected (from cleaning), the tracks with errors will be
removed from the _InSecure folder and stored in the correct [artist]\ folder.
[4]
Page 5
3. Doing more with RipNAS
3.1.Remote-Access to the RipNAS
You have 3 different methods to access the RipNAS from another PC:
1. with WHS Console: the WHS console needs to be installed on your PC.
2. Access with remote desktop: this works only with VISTA, WIN7 or XP Professional
PCs
3. Accessing Audio Files / Folders on RipNAS
4. Access via Webbrowser: this is the quickest method to access to the RipNAS. All
devices (Windows PC, Apple, iPhone) who have network access and an internet
explorer can do that.
To access the RipNAS with Webbrowser or Remote Desktop should be done only by
professional users, because you can easily destroy WHS and then you need to reload
manufactory settings.
To access the RipNAS with WHS console is recommended, since you can see only settings,
which you are allowed to change. WHS console also takes over the backup of your PC.
3.2. Connecting through WHS Connector
Windows based PCs connect to RipNAS through Connector to:

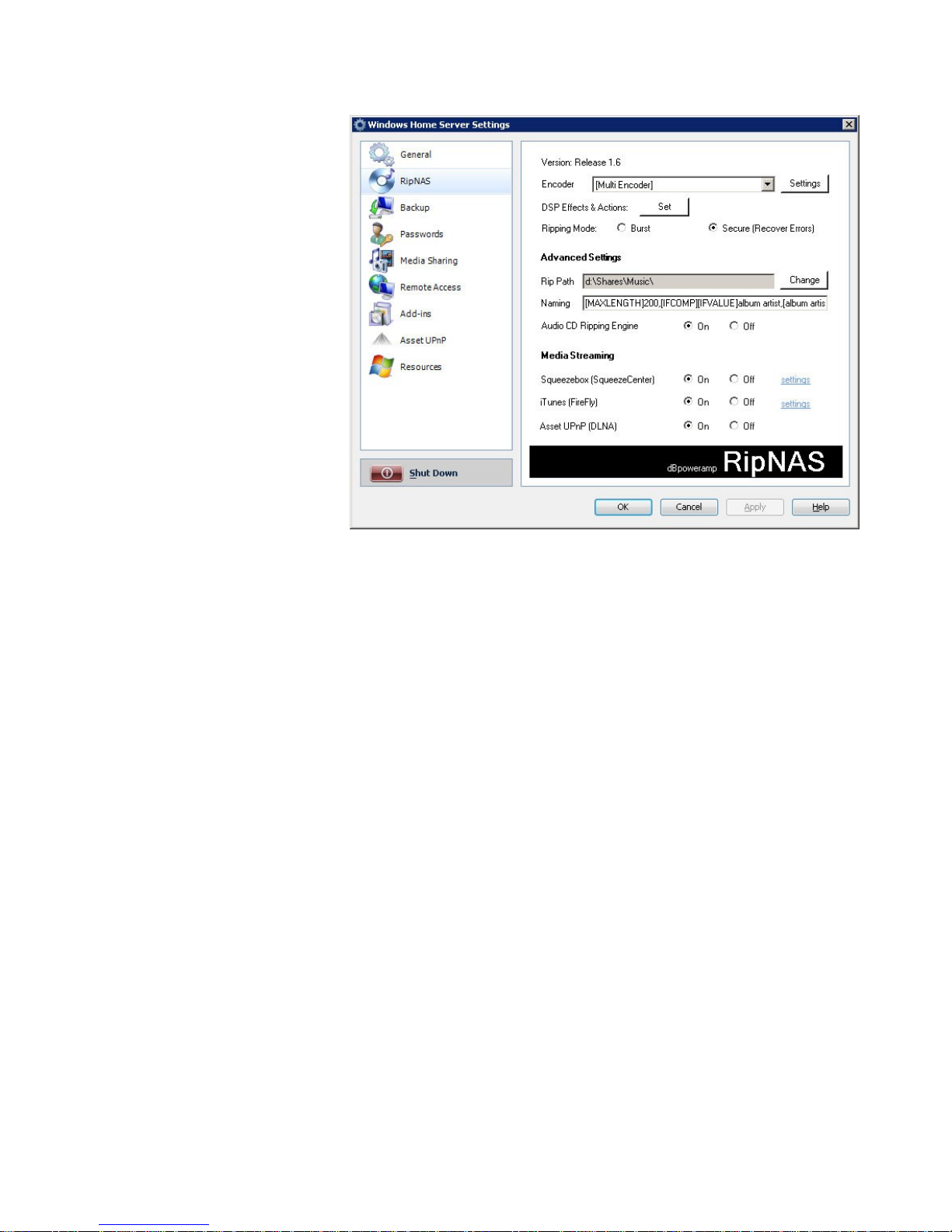

• View ripping status & configure ripping parameters (such as encoder),
• Windows PC backups nightly to RipNAS,
• Report any issues facing the RipNAS system (such as a failing hard disk drive),

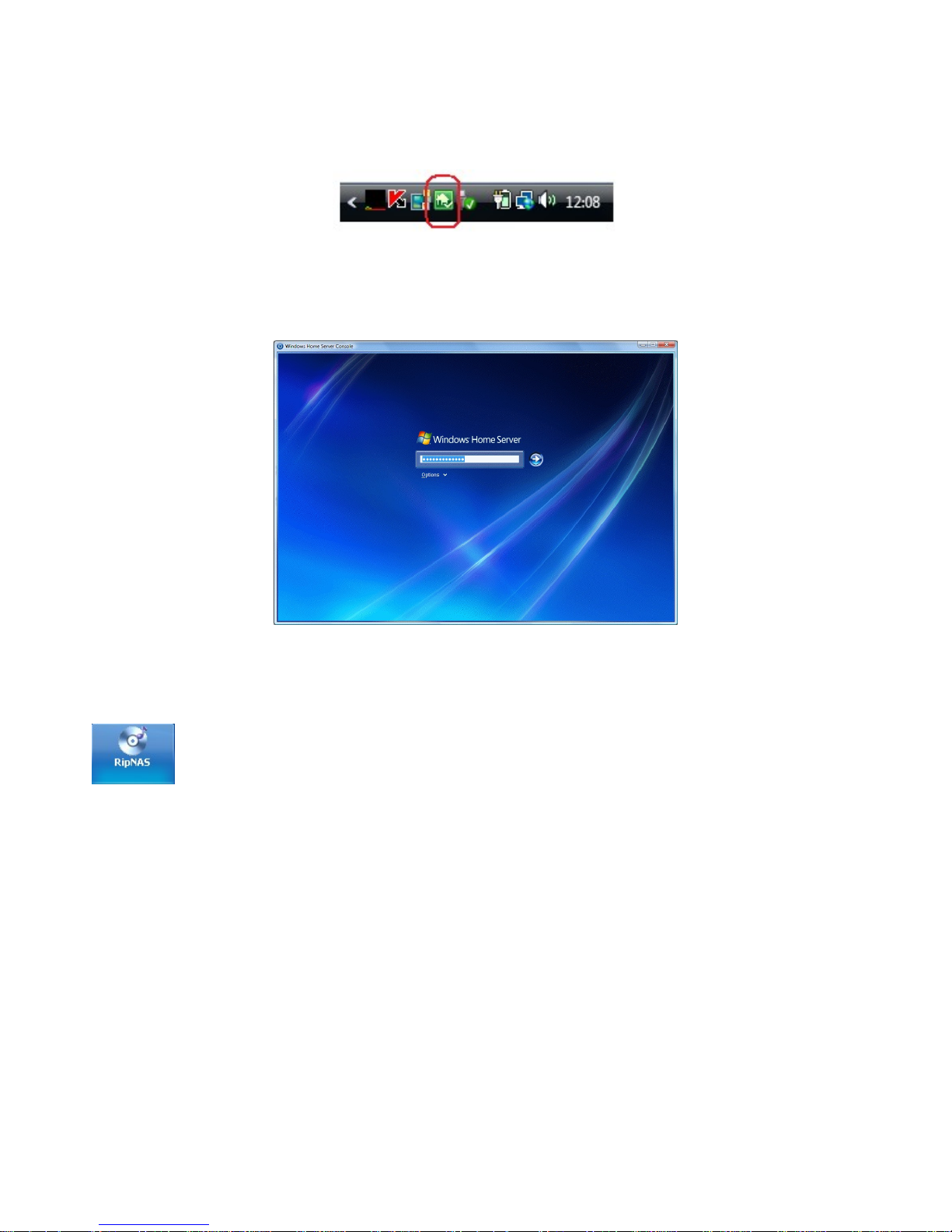

WHS Connector is installed on a PC by inserting the RipNAS
Connector disc (Apple users see Remote Desktop section) and follow the onscreen instructions. After

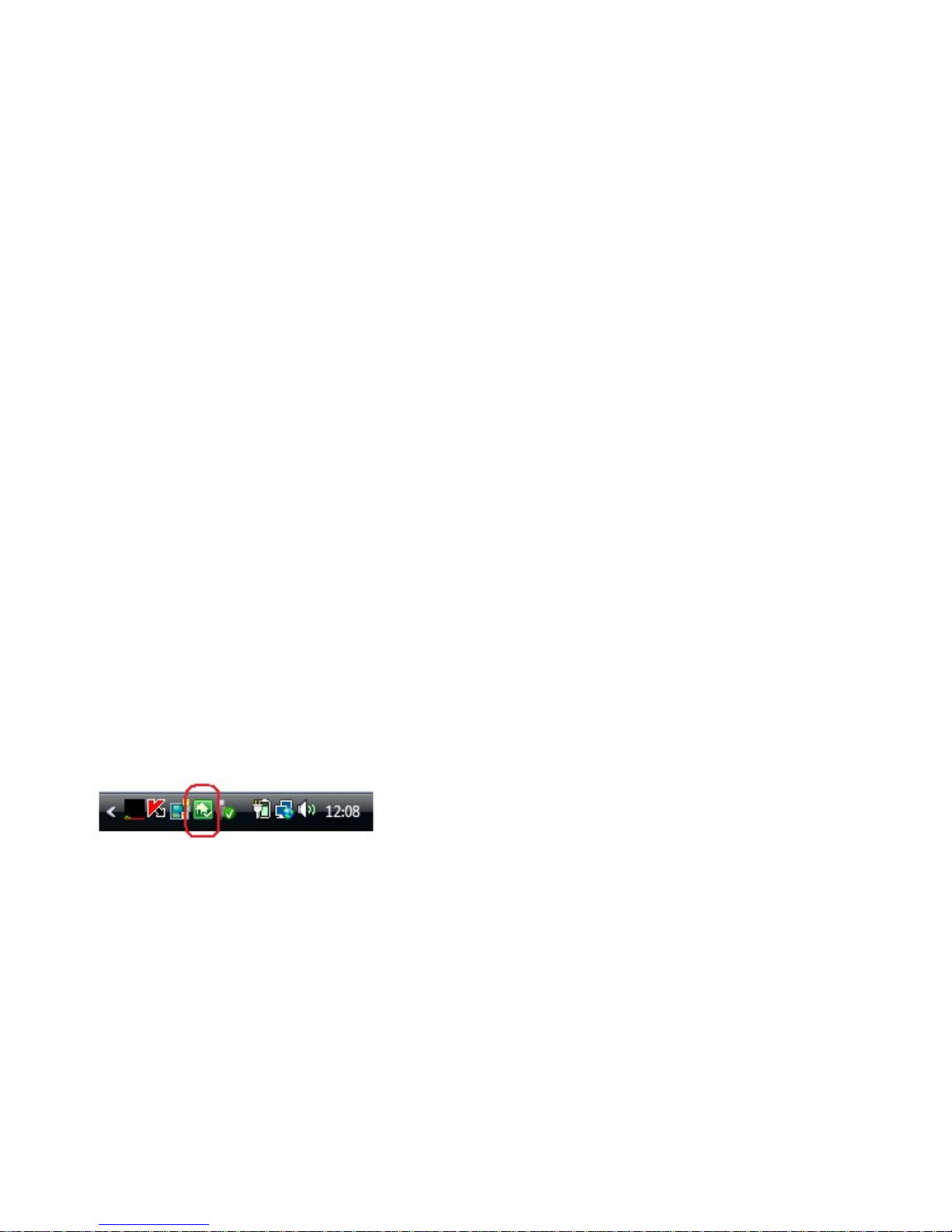

installing WHS onto a PC an icon is placed in the tray area of Windows:
Right clicking on this icon allows access to the connector.
On connection specify password as: ripnas=[serial] (ie ripnas=123456)
[5]
Page 6

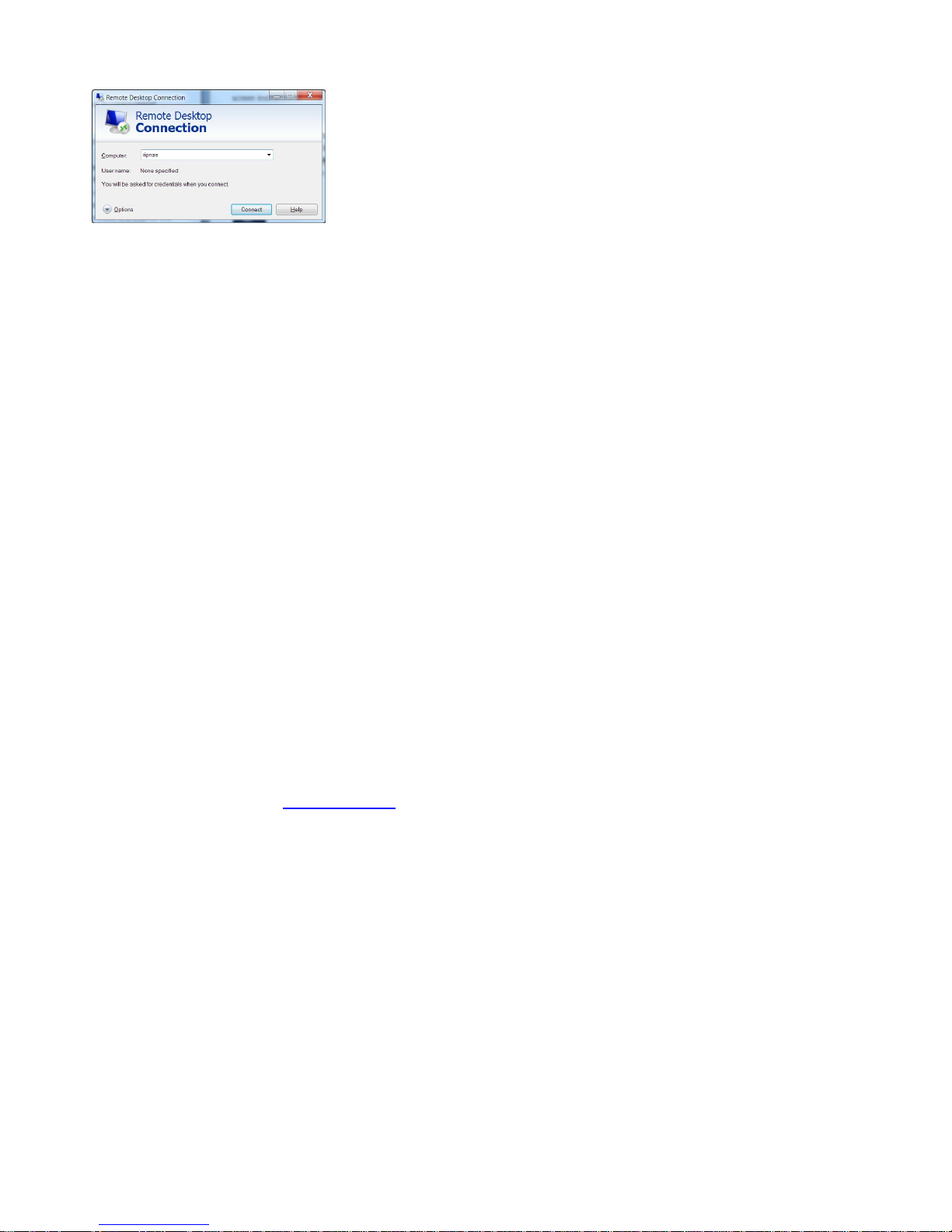

3.3. Connecting by Remote Desktop
Remote desktop is preinstalled on most Windows PCs (start >> Programs >> Accessories >> Remote
Desktop Connection), Apple users install remote desktop using the Connector Disc (detailed later).
Type the computer name as ripnas (mac users: ripnas.local or ripnas.localdomain), if presented with
a domain entry box type: ripnas
On connection specify the username: Administrator pass: ripnas=[serial] (ie ripnas=123456),
Once connected the RipNAS desktop is shown, open Windows Home Server Console (blue icon) to
access settings and view RipNAS status.
Installing Apple Remote Desktop Connector
1. Insert RipNAS RESCUE#2 Disc, open CD drive and Double-click the RDC200_ALL1.dmg file to mount the Remote
Desktop Connection volume.
2. On the Desktop, open the Remote Desktop Connection volume.
3. Copy the Remote Desktop Connection folder from the Remote Desktop Connection volume to your hard disk.
4. If the Remote Desktop Connection folder was copied to your hard disk successfully, you can move the Remote
Desktop Connection volume, the .dmg file, and the original file you downloaded (if present) to the Trash.
5. To complete the installation, run the program by opening the Remote Desktop Connection folder that you copied
to your hard disk, and then double-click Remote Desktop Connection.
3.4. Accessing Audio Files / Folders on RipNAS
RipNAS shares the folder \\ripnas\music it is possible to access audio tracks on RipNAS directly
through this folder, delete, edit ID Tags or copying downloaded tracks from your PC to RipNAS. It is
recommended that occasionally a complete backup of all audio on RipNAS is taken, connect a USB
drive to your PC and copy the audio across the network. This folder is password protected, it can be
accessed through user: sonos password: sonos
[6]
Page 7

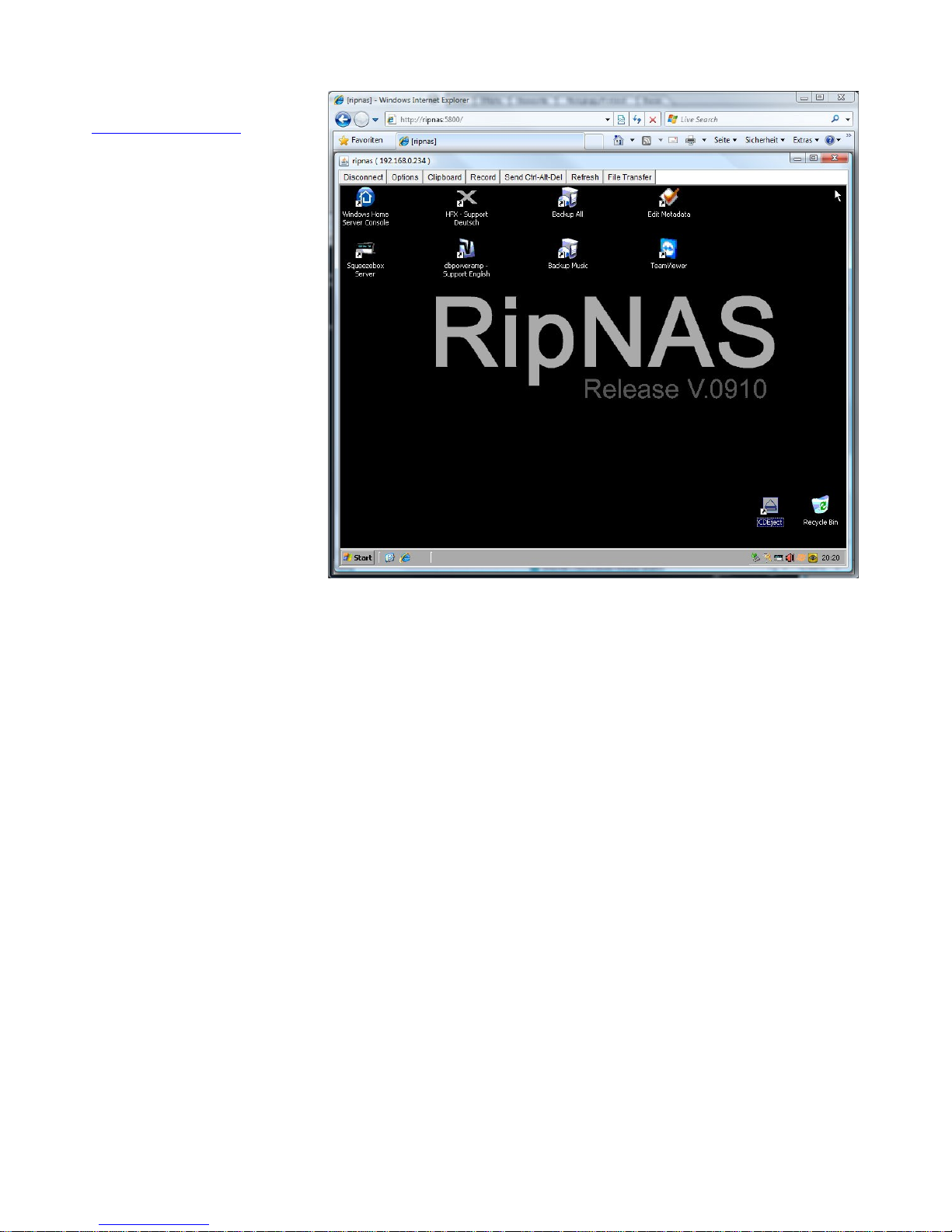

3.5. Web Browser access
Type into the web browser:
http://ripnas:5800/ note that
your firewall must have port
5800 allowed for the web
browser and Java script be
enabled. On connection
type the password as
ripnas and click the Send
Ctl+Alt+Del button to log
into RipNAS as username:
Administrator pw: ripnas,
once connected the RipNAS
desktop is shown, open
Windows Home Server
Console to access settings
and view RipNAS status.
[7]
Page 8

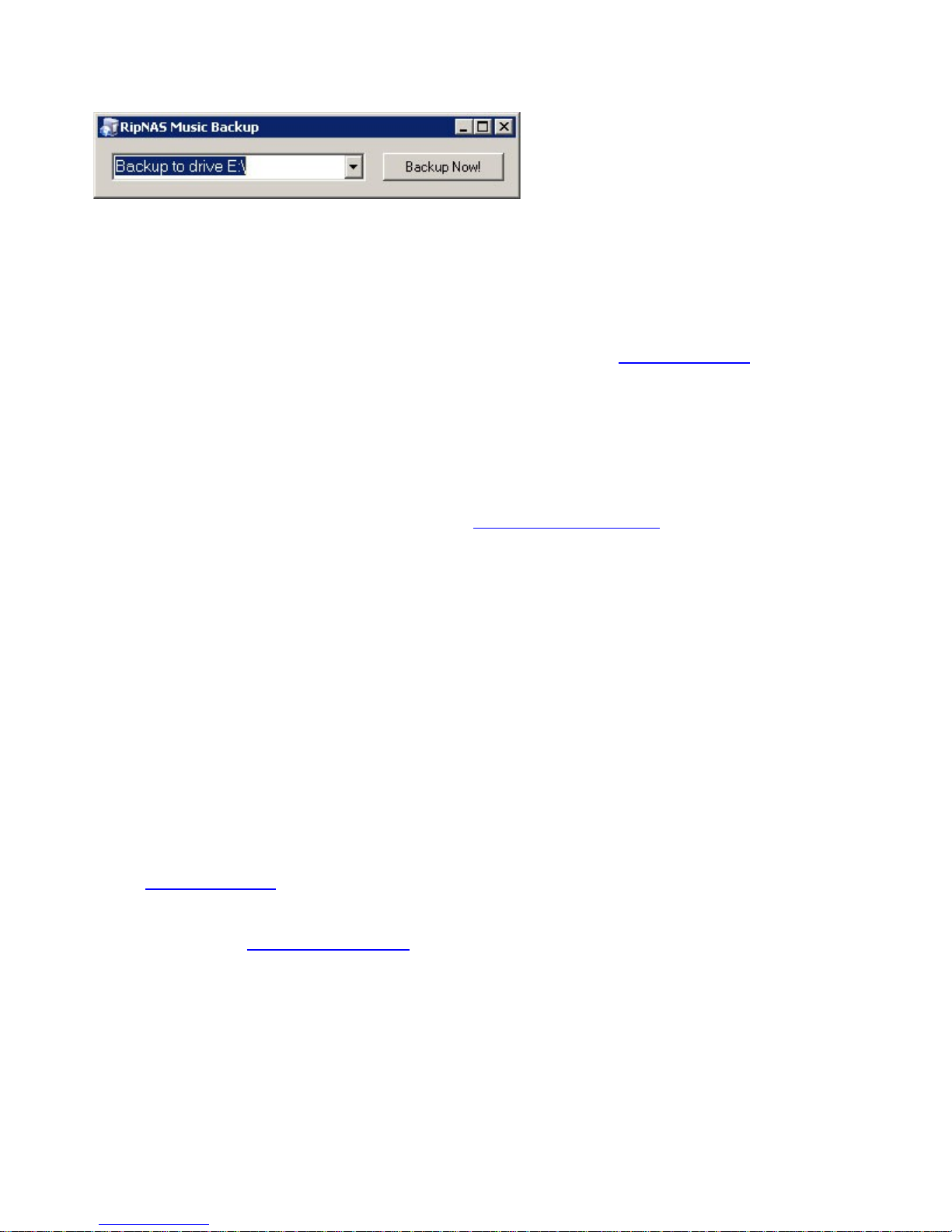

3.6.Daily USB backup
The USB backup software detects automatically, if a USB drive is connected and copies the
latest music files on a daily basis. This way the external drive is updated every day.
Alternatively:
A simple way to backup RipNAS is to connect a USB HDD of equal or larger size to the
RipNAS to a PC on the network, and access RipNAS through \\ripnas\music (see
above). Select all the audio folders (press Control + A), copy (Control + C), then browse
to the USB HDD and paste the audio folders (Control + V). Once copying has taken
place, remove the USB HDD to a safe location.
It is also possible to connect a USB HDD to RipNAS (self powered only) and
backup through the WHS Console, see http://bit.ly/5RVqRu for more details.
3.7.Editing Metadata
Whilst ripping it is possible for tracks to be miss-labelled, or be labelled as Unknown
Artist – Unknown Track on occasion, manual tagging is required to correct the tags.
There are different ways of editing ID Tags, from RipNAS its self (through Remote
Desktop), or by using a PC on the network. To correct from the RipNAS, open a Remote
Desktop Connection (covered later in manual), when presented with the RipNAS
desktop double click the Music Share icon, locate the offending track(s), right click on
one and select Edit ID-Tag and correct the tag.
It is also possible to correct tags using a computer on the network, open the network
share \\ripnas\music (when asked for a user name and password type user: sonos
password: sonos ). The audio tracks can be accessed by your preferred ID Tag editor
(such as mp3tag (http://mp3tag.de/) or dBpoweramp)

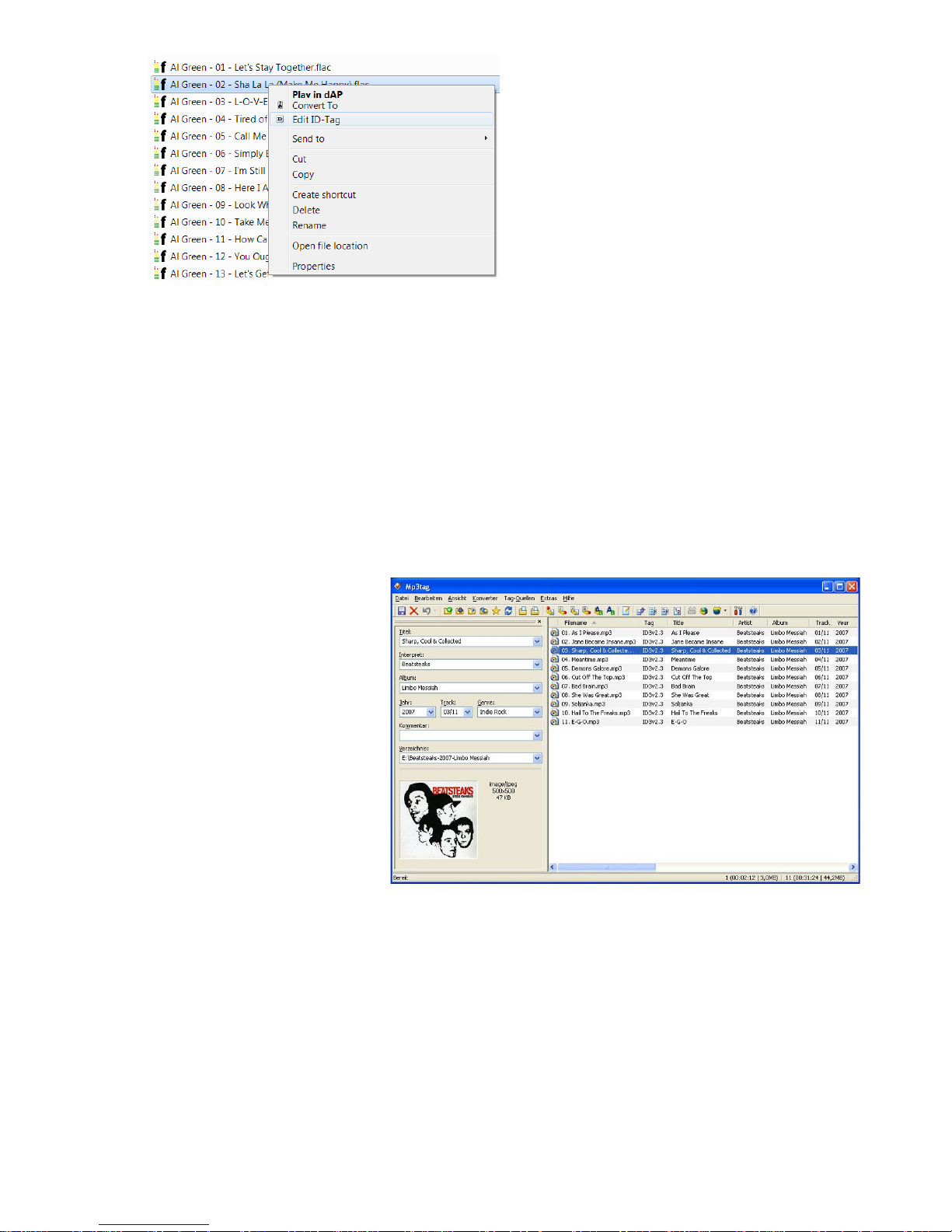

You have different methods of editing the metadata:
1. remote access to RipNAS with Web-Browser or Remote Desktop
→ open explorer,
→ go to shared folders/music
→ click on your music files with the right mouse button
→ edit metadata
[8]
Page 9
2. connect the music folder of the RipNAS to your PC:
→ search in your network neibourhood for the RipNAS, click on RipNAS
→ connect with RipNAS (login: sonos / password: sonos)
→ mount the music folder to your PC
→ install a metadata editor like MP3 tag
→ edit the metadata and covers from your local PC
3. remote access to RipNAS with Web-Browser or Remote Desktop
→ double click on the desktop item “edit metadata”
→ install the freeware M3 tag
→ now you can edit metadata and covers
With the provided link to mp3 tag
you can install it and edit metadata
and covers after ripping.
[9]
Page 10
3.8. Remote help and support
With Team Viewer you can ask any friend to logon over the internet into the RipNAS and help
you to configure.
3.9. Progress control, silent mode and audio file formats
With the WHS
console you
can change
audio file
formats, switch
to silent mode
or just watch
the progress
during ripping.
[10]
Page 11
4. Changing settings with Windows Home Server (WHS)
RipNAS runs Windows Home
Server, which includes
additional benefits:
• Backup home PCs (XP
& Vista) automatically
daily to RipNAS,
• Control RipNAS through
Windows Home Server
Connector using PCs on
the Network,
• Server strength OS,
secure & automatically
updated
4.1.WHS Preconfigured Accounts
RipNAS is supplied with the account preconfigured:
User: Administrator Pass: ripnas=[serial] (example ripnas=123456)
Where [serial] is replaced with the serial number of your machine. The full password is
shown on a label underneath the RipNAS below the WHS COA sticker. The username and
password are required when performing various actions with WHS (such as installing
Connector onto a PC, etc).
4.2.WHS Connector
Windows Home Server connector allows ordinary PCs on the network (running Vista & XP)
to connect to RipNAS and perform:
• Complete system backup nightly to RipNAS,
• View ripping status & configure ripping parameters (such as encoder used),
• Configure WHS settings,
• WHS will report any issues facing the RipNAS system (such as a failing hard disk
drive),
[11]
Page 12
WHS Connector is installed on a PC by inserting the RipNAS Connector disc and following
the onscreen instructions, by default the PC is configured to back up overnight, waking the
PC as required from Sleep or Hibernate to backup. After installing WHS onto a PC an icon is
placed in the tray area of Windows:
Right clicking on this icon allows access to the connector, such as opening the Windows
Home Server console:
Specify the Administrators password to access the Connector and the WHS Console will
display:
The ripping status is shown at the top (CD drive ripping speed is shown in [ ] brackets i.e.
x22). Ripping Mode allows for silent ripping at x4 speed which renders the drive in-audible,
but takes longer to rip.
When secure mode is active (model permitting), each disc has an accuracy report appended
after the album name, such as:
• All (xx) Accurate: all tracks were verified as 100% without error using AccurateRip,
• All (xx) Secure: the disc was not present in AccurateRip, instead the drives c2
pointers and re-rip are used to check the track was error free,
• xx Accurate, xx Insecure: some tracks had unrecoverable errors, see the shared
folder Music\_InSecure for tracks with errors, if the disc is cleaned and re-ripped (a
[12]
Page 13
different CD would have to be ripped in-between) then there is a chance the errors
can be recovered on a 2nd rip and the tracks would move from _InSecure to the
correct [artist]\ folder.
Clicking View Log can be useful to see a detailed ripping report and help diagnose issues.
This tab shows which computers backup to RipNAS, manual backups can be triggered, and
individual files from a backup can be restored.
4.3.Network
Shows as green if everything is running without issues, amber when there is something
which needs attention and red to indicate an urgent review is required.
4.4.Settings (button)
Settings allow access to all configuration options of WHS and RipNAS. RipNAS has the
following settings:
Encoder (audio format) can be chosen, clicking Settings allows for fine control within the
selected encoder. RipNAS comes preinstalled with the following encoders: FLAC, Wave,
mp3, WMA (Lossless), Apple Lossless. In addition any supported dBpoweramp encoder can
be installed. Also present is [Multi-Encoder] which allows two audio-formats to be encoded at
the same time (for example a FLAC lossless archive along with an mp3 collection for use in a
portable mp3 player).
DSP Effects & Actions each time audio is taken from a CD it is run through DSP effects, by
default these effects are used:
[13]
Page 14
ReplayGain - calculates a volume loudness which supported players (such as
Logitech Duet) can use to level the volume.
Move Destination File on Error [secure models only] - detects a rip is not secure and
moves the affected file to \_Insecure
RipNAS - Update (Squeezecenter...) - informs SqueezeCenter that there are newly
ripped audio files for instant indexing. It is safe to use this effect even if
SqueezeCenter is not installed.
One DSP effect of interest is the HDCD effect which will decode the HDCD information found
on HDCD discs from 16 bit to 24 bit (20 bits used). Be aware though that Sonos currently
cannot play 24 bit files.
Rip Path should be left as default so the files are shared onto the network. Naming allows
customization of the final naming and folder creation within the Music Folder, the default
naming save audio tracks to: \[artist]\[album]\[artist] - [track] - [title]
or for compilation CDs: Various Artists\[album]\[track] [artist] - [title]
Ripping Mode switches between Burst and Secure ripping modes, where secure allows the
detection and possible recovery of errors [Secure RipNAS models only].
Audio CD Ripping Engine allows the automatic ripping of audio CDs to be temporally
disabled, perhaps the RipNAS is used for other disc type purposes (where if RipNAS Ripping
engine is enabled any disc inserted which is not an audio CD is ejected).
Squeezebox & iTunes (Firefly), or Asset UPnP can be configured and disabled if required. If
either of these services are not required (ie have a Sonos) then it is prudent to disable the
unused services.
5. Restoring RipNAS
It is possible to restore RipNAS, should the need arise (HDD is replaced, or RipNAS stops
functioning. There are 2 types of restore: system restore (where any ripped audio or files in
all shared folders are left untouched), or a factory reset where all drives are cleared (noting
that the drives are quick formatted – it would be possible to recover the files using correct
tools). More on www.hfx.at/ripnas/rescue
To perform a restore (both System and factory):
• Shut down RipNAS,
• Put the RESCUE Disk#1 into the drive, after menue will show up, where you can
choose whether you want a system or factory reset.
• Put in the RESCUE Disk#1 with the latest software image.
• After loading the latest image, you need to activate Windows again.
[14]
Page 15

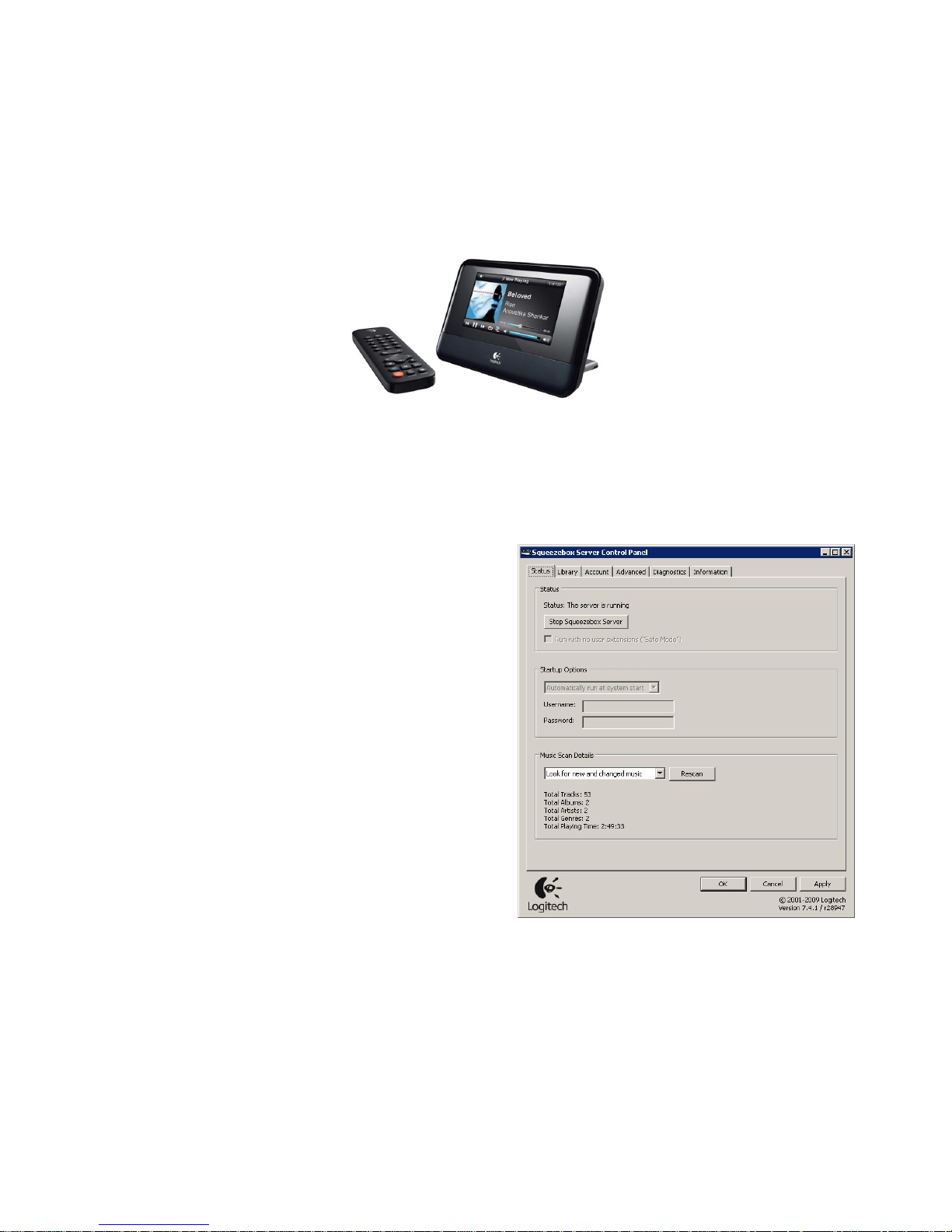

6. RipNAS & Squeezeboxes’
(Logitech Duet, Transporter, Boom, SB3, SB2, etc.)
RipNAS comes pre-configured with SqueezeCenter (media streamer for Logitech devices)
running. These type-of devices work best with the default FLAC lossless encoder.
The following guide details setting up a Duet with RipNAS. Connect RipNAS to your Wireless
home router and switch RipNAS on & your Duet:
From the duet controller (after first switch on or factory reset):
Choose Language >> Select Wireless Region >> Choose Your Wireless Router (entering any
passwords to access wireless router).
If RipNAS is also connected to your wireless router
it will appear under Choose Player as
Squeezebox. Your Duet is now ready to play audio
from the RipNAS.
Trouble shooting: From the Duet Controller look
under Settings >> Music Source, if the RipNAS is
recognized then it will appear in the Music Source
List.
You can also make changes within Logitech
squeezecenter control.
[15]
Page 16
7. RipNAS & Sonos
Sonos is fully compatible with the default RipNAS FLAC lossless codec, and connects to
media streamers through network shares. Sonos & RipNAS connections:
To add RipNAS as a music source from the Sonos Controller:
Music Menu >> System Settings >> Music Library Management >> Music Library Setup >>
Add New >> Enter New, select each field and select type:
Path: \\ripnas\music
User Name: sonos
Password: sonos
Press round Ok button once the password is entered. Sonos should display it is going to
index music, click Ok, then select Music >> Music Library.
8. RipNAS & iTunes
RipNAS is able to stream audio to iTunes installed onto PCs & Apple MACs on your
home network, from within iTunes select RipNAS (Firefly). Firefly will allow iTunes to
play the FLAC audio tracks on a RipNAS.
If using an iPod, set RipNAS to create FLAC and mp3 (with the audio format command
disc), then copy the mp3 music over from \\RipNAS\Public\mp3 to your PC and add to
[16]
Page 17
iTunes, which will then synchronize the mp3s to the iPod. Use these account details to
access the folder: User: Administrator Pass: ripnas=[serial] (ex. Ripnas=123456)
9. Asset UPnP (DLNA compatible devices)
RipNAS includes Asset UPnP, UPnP (DLNA) is a connection protocol for sharing audio
between otherwise unrelated devices. Asset features:
• Album Art support,
• Customizable browse tree with advanced search facilities (Album by Release,
Style, Composer, Conductor...),
• Configurable Wave / LPCM decoding (often called transcoding) for devices which
cannot play specific audio types,
• ReplayGain can be applied to decoded Wave / LPCM stream, matching volume
levels across tracks,
• Internet Radio.
Asset is accessed through Control Point software (such as Kinsky Desktop on the PC, or
Konductor/PlugPlayer/Songbook on the iPod), or is accessed directly from the device
(such as XBox, PS3). Asset will appear with the name Asset UPnP: RipNAS, after
selection the device will either read all the tracks automatically from Asset (such as
Windows Media Player), or present Asset UPnP's browse menu where artists, albums
& tracks can be searched. At the top of many listings are [A to Z], selecting this allows
the quick listing of an item based on its first letter. [Album] is also presented when
browsing Artists; this switches the view to Album rather than listing all the individual
tracks from an artist.
Asset features Internet Radio and dynamic playlists (such as newest tracks, most
played Albums or a random selection).

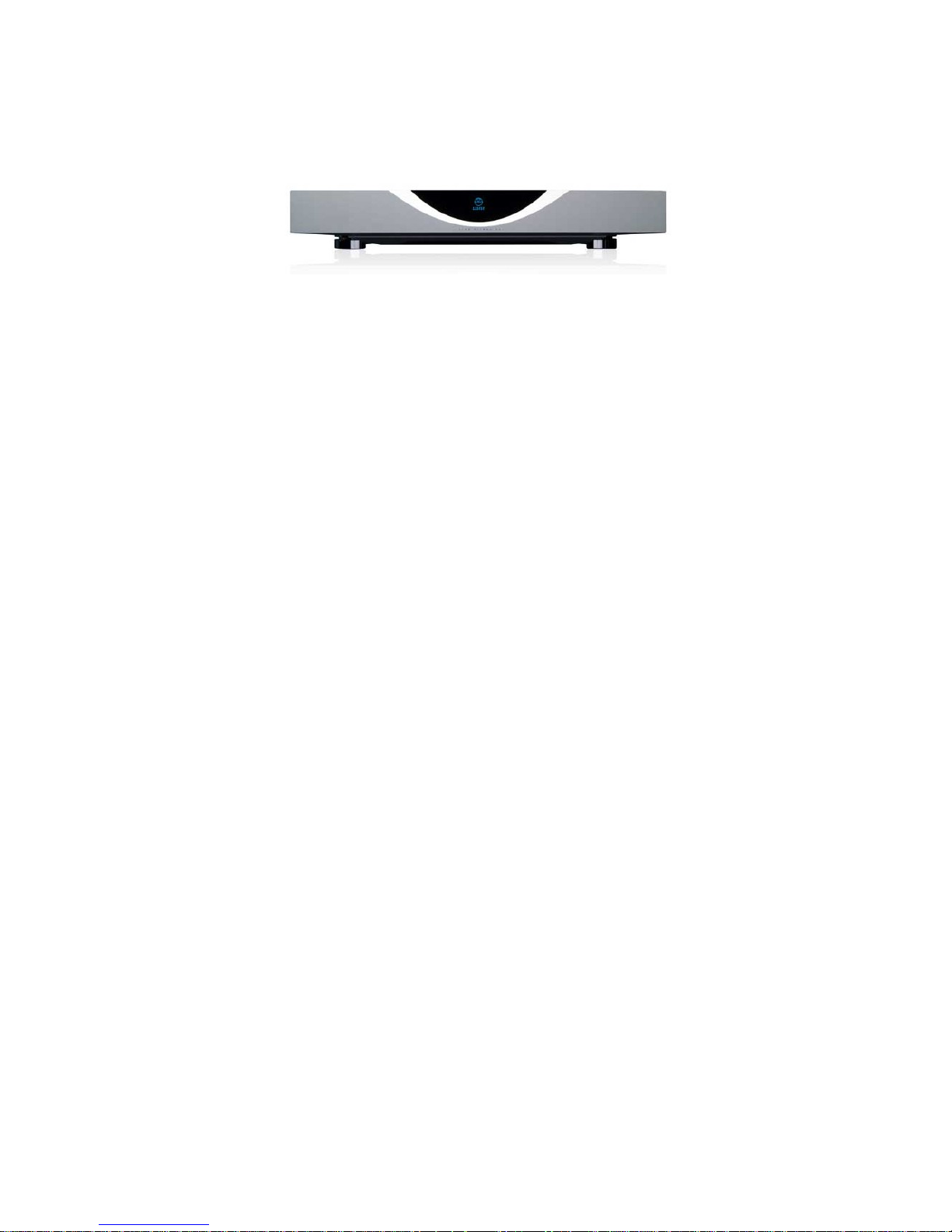

For many devices (such as Linn DS) FLAC is the audio codec of choice, others such as the PS3 cannot
play FLAC, it is possible to set Asset to stream in a format (such as LPCM for the PS3) on demand, see
the section configuring Asset.
[17]
Page 18
RipNAS comes complete with its own UPnP server – Asset UPnP. UPnP simply put is a
connection protocol for sharing audio (and Video, etc) between otherwise unrelated devices.
Asset features:
• Album Art support,
• Customizable browse tree with advanced search facilities (Album by Release, Style,
Composer, Conductor...),
• Configurable Wave / LPCM decoding (often called transcoding) for devices which
cannot play specific audio types,
• ReplayGain can be applied to decoded Wave / LPCM stream, volume matching
across tracks for devices which have no support,
Browsing with Asset
Asset is accessed directly from the device (such as XBox, PS3) or through Control Point
software running on a PC or even hand-held Controllers, Asset will appear with the name
Asset UPnP: [Computer Name]. After selection the device will either read all the tracks
automatically from Asset (such as Windows Media Player), or present Asset UPnP's browse
menu where artists / albums / tracks can be searched. At the top of many listings are [A to
Z], selecting this allows the quick listing of an item based on its first letter. [Album] is also
presented when browsing Artists; this switches the view to Album rather than listing all the
individual tracks from an artist.
From Windows Home Server Asset can be configured:
Asset can be switched On, Off or Restarted. Asset watches the Music share for changes
and updates automatically, it is also possible to force a rescan of the library with Rescan
Library (Refresh All rescans the whole library from scratch).
[18]
Loading...
