Owners Manual
Online
Rev 1.2 (08/02)
SCADA System
Table of Contents
1.0 System Set Up ..............................................................................................1
1.1 Minimum Hardware Requirements for Lookout ............................1
1.2 Testing TCP/IP.................................................................................1
2.0 Software Installation ...................................................................................2
2.1 Installing National Instruments Lookout ........................................2
2.2 Installing the Online SCADA Files .................................................3
2.3 Setup Lookout for Online SCADA ...............................................3
2.3.1 System Options ...................................................................3
2.3.2 Startup .................................................................................4
2.3.3 Serial Port ...........................................................................6
2.3.4 Security Set Up and User Accounts (optional) ...................7
2.4 Setting Up ODBC ..........................................................................9
2.5 Lookout Registration and Licensing ............................................14
3.0 Data Acquisition .......................................................................................15
3.1 Overview .......................................................................................15
3.2 Summary Panel .............................................................................15
3.3 Faceplate Panel .............................................................................17
3.4 HyperTrend ...................................................................................18
3.5 Edit Device Dialog Box ................................................................19
3.6 System Panel .................................................................................21
4.0 Report Generation .....................................................................................23
4.1 Overview .......................................................................................23
4.2 Report Configuration Panel ..........................................................23
4.3 Printouts ........................................................................................24
4.3.1 Time Range and Interval ...................................................24
4.3.2 Database Source ................................................................25
4.3.3 Execute Query ...................................................................25
4.3.4 Page 1 Panel ......................................................................26
4.3.5 Page 2 Panel ......................................................................26
4.4 Database/Spreadsheet ...................................................................27
4.4.1 CSV File Logging .............................................................27
4.4.2 Converting CSV Files to ACCESS Database Files ..........28
5.0 Appendix ...................................................................................................29
(8/02)
Rev 1.2 ii
1.0 System Set Up
The data acquisition system is based on the Lookout HMI/SCADA (Human
Machine Interface / Supervisory Control And Data Acquisition) system
manufactured by National Instruments, Austin, Texas. Lookout is a PC based
software that operates on Windows 9x / NT/2000/Me/XP operating systems.
1.1 Minimum Hardware Requirements for Lookout
The following are the minimum computer requirements
Pentium Class PC running at 90 MHz.
• 32 MB RAM (recommend 64 MB)
• 200 MB free hard disk space.
• Windows 98/95, Windows 2000, Widows XP or Windows NT version 4.0
with the latest service pack.
• Network card and TCP/IP networking installed on PCs to be connected (this is required only if the Online SCADA system is to operate on a multi-node network of PCs).
Note: The above are the minimum requirements of Lookout. It is always better to
have as fast a computer and as large a hard drive and RAM capacity as possible.
Because the Online SCADA application is to run 24 hours a day, the computers
should have some form of AC power surge protection. A suitably sized
uninterruptible power supply (UPS) provides the ultimate protection.
1.2 Testing TCP/IP
The Lookout application for the turbidity data acquisition has been developed
such that it can be installed and operated on a multi-node network. It can,
however, be installed and operated from a single PC node. The TCP/IP set up is
required only for networked operation.
The network must be properly set up with the TCP/IP protocols installed. It must
be possible to ping any computer on the network. Please note that Lookout
currently does not support Novell networking.
Please disregard this section if the data acquisition operation is to be done only
from a single computer.
(8/02)
Rev 1.2 1
2.0 Software Installation
There are four steps to installing Online SCADA system. These steps are:
• Installing National Instruments Lookout
• Installing the SCADA Files
• Setup Lookout for the SCADA system
• Setup Windows ODBC Data Source Administrator
2.1 Installing National Instruments Lookout
Before installing, make sure that all other applications that may be currently using
ODBC are shut down. Such applications include spreadsheets, word processors
and database programs.
Prior to installation of the software, it would be helpful if you have already
registered the license for Lookout software. Refer to section 1, Registering
Lookout, in the Lookout Operators Manual. This registration can be done by
mail, fax or over the Internet. If you are not registered, the software can be
installed and will run for 30 days without the Keycode. The Keycode will be
requested each time the software is started and as such can be entered at any time.
Insert the Lookout CD into the CD drive. Select Install Lookout.
The Lookout CD-ROM has autorun capability. If for some reason the autorun
fails to start the CD installation routine, click on the Start icon in the taskbar and
select Run. Enter N:\ Lookout\Setup.exe where N represents the CD ROM drive
letter. Then select OK.
Install Lookout following the screen prompts. If there is enough free room on
your hard drive (100MB), do a complete installation.
If the SCADA system is being installed on a Windows NT platform, select the
option to install the NT keyboard driver.
Follow the remaining instructions to complete the Lookout installation. It will be
necessary to re-boot the computer after the installation is complete.
Repeat all of the above steps for all PC’s on which Lookout is to be installed (this
step is valid only for networked operation).
(8/02)
Rev 1.2 2
2.2 Installing the Online SCADA Files
This is the actual program that runs on the Lookout platform. These files are
included on a separate CD labeled Online SCADA Software.
Create a new folder named SCADA under the National Instruments directory.
Copy the 12 files from the CD under the folder SCADA to this new folder.
Highlight all the files in the SCADA folder and right click. Go to Properties.
Uncheck the box for Read Only.
It is helpful, but not required to create a short cut from C:\Program Files\National
Instruments\Lookout on the desktop make it easier to launch the program. If this
is done, it should be named Online SCADA
2.3 Setup Lookout for the Online SCADA System
It is now necessary to setup the Lookout platform to operate the Online SCADA
system correctly. Launch Lookout from the Start>>Program Files… or the
desktop shortcut.
2.3.1 System Options
From the pull down menus select Options >> System from the menu bar. In the
System Options dialog box that appears enter the following information:
In the security levels box, enter 2 in the seven right hand boxes. Refer to Fig. 2-1.
Uncheck (if checked) the Left Mouse Click, Right Mouse Click and the Show
panel navigation arrows in status bar options.
The Computer Name field and the Citadel Database information are automatically
filled in by Lookout it is recommended that these names not be modified.
.
(8/02)
Rev 1.2 3
Fig. 2-1
2.3.2 Startup
From the pull down menus, select Options>> Startup… Refer to Fig. 2-2 and
2-3
Fig. 2-2
(8/02)
Rev 1.2 4
Highlight the file in the Startup Process Files box and then click on the Remove
button. Now click the Add button. Navigate to the SCADA folder. Three files
will appear in an Open File dialog box. The files are
server.l4p
client.l4p
report.l4p
Highlight these files and click on the Open button. Click on the OK button to exit
out of Startup.
Fig. 2-3
The above procedure will automatically load the three process files that the
turbidity data acquisition application comprises, every time Lookout is launched..
Please note that the above procedure is true for a single node operation (only one
PC is used). For multi-node client / server operations, the client nodes must only
be loaded with the client.l4p and report.l4p process files. The server.l4p must
not be loaded into the client machines. Also, the client.l4p and report.l4p process
files that are loaded into the client nodes have to be modified in order to ‘point’
the processes to the appropriate server node. Please contact your vendor for
details
.
(8/02)
Rev 1.2 5
2.3.3 Serial Port
Note: skip this step for runtime versions of Lookout. The system will default
to COM 1. If another COM port is needed, contact your vendor.
The lookout Online SCADA system will be communicating with the network of
turbidimeters through one of the available RS232 COM ports. The COM port
being used (user needs to determine which port is to be used. The Online SCADA
system process files are configured to use COM1. Please contact you vendor if the
COM port to be used is other than COM1) needs to be configured as follows
(Refer to Fig. 2-4):
From the pull down menus, select Options>> Serial Ports. Make sure that the
Serial port: is set to COM 1 and that Serial connection is set to Hardwired.
Change the Receive gap: to 50. Hit the Accept button and then the Quit button.
Fig 2-4
(8/02)
Rev 1.2 6
2.3.4 Security Set Up and User Accounts (optional)
The Online SCADA system is capable of up to ten levels of security. The
turbidity data SCADA system is typically configured with the following security
levels:
Security Level Description
0 No access.
1 Browse and print reports only.
2 Level 1 plus alarm acknowledge, change scale on bar chart and trends,
change SQL report start/end times and sample intervals.
3 Level 2 plus change individual instrument parameters, all SQL report
parameters and System parameters.
10 Level 3 plus full application edit for tuning and changing application
(Administrator)
It is necessary to set up user accounts for all personnel who will access the
SCADA system. Each user is assigned a security level based on the level of
functionality that he/she needs to access. The user accounts are set up as follows
(refer to Fig. 2-5):
With Lookout launched, select Options >> User Manager. In the dialog box
select User >> New User. In the New Lookout User dialog box enter the
following information:
Username: Name that the user will log in with.
Full Name: Full name of the user.
Description: A description of the account.
Password: An Alphanumeric password (at least 5 elements long).
Security Level: Security level for the user per the above table
Click OK
.
Repeat above steps for each new user account that needs to be created.
Please note that Lookout security is capable of creating and using user groups.
Please refer to Chapter 6, Security of the Lookout Developer’s Manual.
To log into the system the user needs to click on login box located on the left side
of the task bar next to the date and time box. This box will display the user name
of the currently logged in user. If no user is logged in, the box will read
“nobody”. In the login dialog box, the user has the option of entering an Idle
time value which would be the time in minutes after which Lookout would log
the user out if there is no mouse or keyboard activity. The default value of zero
means that the automatic log off feature is disabled (refer Fig. 2-6).
(8/02)
Rev 1.2 7
Fig. 2-5
Fig. 2-6
Important: Exit Lookout. From the Windows taskbar click on Start>>Shut Down…
Select the Restart radio button, and then press OK. The system will now
restart and the changes made, will be effective.
(8/02)
Rev 1.2 8
2.4 Setting Up ODBC (Open Database Connectivity)
Lookout uses a historical database called Citadel for logging all the turbidity
process data. The Citadel database includes an ODBC driver, which enables other
applications to directly retrieve data from Citadel using SQL (Structured Query
Language) queries. It is necessary to set up ODBC in the server node PC (please
refer to the next section for an explanation of server and client node PCs). The set
up is done as follows:
Shut down all ODBC applications such as databases, spreadsheets, and word
processors before setting up ODBC.
From the Windows taskbar click on Start >> Settings >> Control Panel >>
ODBC Data Sources or ODBC (depending on the version of Windows that you
are running). Please refer to Fig2-7 for an example of the pop up dialog box that
would appear. Please note that the dialog box would vary depending on the
version of Windows that you are using.
Fig. 2-7
Select the User DSN tab or the System DSN tab, depending on the type of data
source that you want to create. The User DSNs are visible only to the user who
created them on the current machine. System DSNs are available to all users on
the current machine.
(8/02)
Rev 1.2 9
Click on the Add button. The following dialog box appears (Fig. 2-8).
Fig. 2-8
Select National Instruments Citadel 4 Database from the list and click on the
Finish button.
In the resulting pop up dialog box (refer to Fig. 2-9), fill in the Data Source
Name, Description and Database Path fields:
Data Source Name: Lookout4
The Data Source Name must be different from any other ODBC Data Source
Names. Description: Lookout Citadel Database.
Database path: Z:\Program Files\National Instruments\Lookout\database
(where Z is the drive under which Lookout has been installed). The Database Path
gives the location of the folder where the data for this source is stored. The path
shown above is the default location. It is possible to configure multiple Citadel
databases.
(8/02)
Rev 1.2 10
Fig. 2-9
Click OK in the Setup dialog box.
In the ODBC Data Source Administrator dialog box (Refer to Fig.2-7), select
the File DSN tab.
In the resulting pop up dialog box (see Fig. 2-10) click on the Add button.
Fig 2-10
(8/02)
Rev 1.2 11
In the Create New Data Source pop up window select the National Instruments
Citadel 4 Database (refer to Fig. 2-8) and click on the Next button.
Enter the Data Source Name as Lookout4.dsn and click on the Next button (refer
to Fig. 2-11).
Fig. 2-11
In the resulting dialog box, (refer to Fig. 2-12) click on the Finish Button.
Fig. 2-12
(8/02)
Rev 1.2 12
In the dialog pop up (refer to Fig. 2-13) enter the Database Path as Z:\ Program
Files\National Instruments\Lookout\database where Z represents the drive in
which Lookout is installed. Also check the Convert special characters option
and then click on the OK button on the Setup box followed by the OK button in
the ODBC Data Source Administrator dialog box.
Fig. 2-13
(8/02)
Rev 1.2 13
2.5 Lookout Registration and Licensing
The PC that is to be connected to the turbidimeter network through one of it’s
COM ports is called the SERVER node, while all other PC’s on a network which
will be operating on the Online SCADA system are called CLIENT nodes. In the
case of a single PC operation, the PC will act as both the server as well as the
client node.
Licensing in Lookout is done using Keycodes that are supplied by National
Instruments. It is necessary to enter the appropriate registration information and
key codes in each node in order for the system to work properly. As an
unregistered package, Lookout is limited to 50 I/O points and one client
connection for 30 days after which it lapses into a demo mode.
For a first time installation of Lookout in a computer, Lookout will prompt you
for the registration information. The registration information is provided with
lookout as a separate document. Lookout must be registered with National
Instruments to receive the Keycode or License code necessary to run Lookout.
Please note that the Lookout license provided is a run time only license. What this
means is that the process configuration files cannot be modified. Any changes to
the process, if so required, have to be done by your vendor and the modified files
have to be copied into the site computer/s. There will be an additional fee required
to make any changes to the coding.
Please refer to Chapter 1, Lookout Operator’s Manual for details regarding
entering registration and license code (Keycode) information.
(8/02)
Rev 1.2 14
3.0 Data Acquisition
3.1 Overview
The turbidity data acquisition system is designed to sequentially collect data from
turbidimeters. The data acquisition system can be configured to monitor up to 32
turbidimeters on the RS485/232 network.
3.2 Summary Panel
The summary panel is the main user interface to the Online SCADA system.
From this panel the user can configure, monitor and access the report generation
utility. The summary panel (refer to Fig. 3-1) displays up to 32 turbidimeters. The
display for each turbidimeter shows the following information:
The user defined name of the device (e.g. Filter 1, East Filter 2).
The turbidity value in the format 0.000 NTU. The value is shown as 0.000 NTU
in the event of a COMM failure and blank if the device is not active.
Fig 3-1
(8/02)
Rev 1.2 15
The current status of the unit (Auto, Set-Up, Calibrate or OOS). OOS refers to
Out Of Service.
In addition to the above information, the summary panel provides the following
functionality. Please note that the availability of the listed functions to a given
user depends on his/her security level (if used). The minimum-security level in
order to access the function is indicated.
View Device push button (Security level greater than or equal to 1): This push
button activates the Faceplate Panel pop up window (refer to Fig.3-2), which
displays additional operating parameters of each device. The user can navigate to
any specific device using the NEXT and PREVIOUS push buttons that appear on
the pop up window. Alternatively, the user can click on the display of any specific
device to view the detail display. Please refer to the Faceplate Panel section later
in this chapter for more information.
Edit Device push button (Security level greater than or equal to 9): This push
button activates a pop up dialog box (refer to Fig 3-3) through which the user can
configure each device. Please refer to the Edit Device Dialog Box section later in
this chapter for more information.
View Alarms push button (Security level greater than or equal to 1): This push
button activates the alarm windows. The alarm window shows all active
(unacknowledged in red, acknowledged in black) and inactive (unacknowledged
in blue) alarms.
ACK Alarms push button (Security level greater than or equal to 2): This push
button is used for acknowledging Lookout alarms.
Reports push button (Security level greater than or equal to 1): This push button
activates the report generation utility. Please refer to Chapter 3, Report
Generation of this manual for more information.
System push button (Security level greater than or equal to 9): This push button
activates the System Panel (refer to Fig 3-4), which runs in the server process.
The System Panel is to be used for trouble shooting and diagnostic purposes
only. Most of the device configuration capabilities available on the System Panel
are available in the Edit Device dialog box, which is available on the Summary
Panel. The features of the System panel are discussed in more detail in the
System Panel section of this chapter. It should be noted that the System Panel is
available only on the server PC in a networked operation.
(8/02)
Rev 1.2 16
3.3 Faceplate Panel
Fig. 3-2
The Faceplate Panel is accessed using the View Device push button on the
Summary panel or by clicking on any of the individual device summary displays
on the Summary panel. This panel provides the following information for each
device:
Device Mode: The modes indicated are as follows:
Mode Description
Unknown Computer has not yet talked to device to determine the mode.
Calibrate Device mode is “Calibrate”.
Set-Up Device mode is “Set-Up”.
Auto Device mode is “Auto”.
Comm Status: The Comm Status field will display one of the following values:
Comm Status Description
Comm Fail Computer cannot talk to device.
Normal Computer is talking to device.
(8/02)
Rev 1.2 17
Alarm Status: The Alarm Status field will display one of the following values:
Alarm Status Description
Hi Alarm Device value is greater than the computer based Hi Alarm limit.
HiHi Alarm Device value is greater than the computer based HiHi Alarm limit.
Alarm 1 Device Alarm Status is “Alarm 1”.
Alarm 2 Device Alarm Status is “Alarm 2”.
Normal Turbidity value is within normal range.
Disabled Limit alarming is not selected.
Warning Status: This field will display one of the following values:
Warning
Description
Status
Low-Flow Device Warning Status is “Low Flow”.
Normal No Low Flow warnings exist.
Bar Chart: A bar chart is provided to display the turbidity value. The scale value
is user defined and is based on the upper and lower limits of the device. Please
refer to the Edit Device Dialog Box section later in this chapter. The following
color scheme is used for the bar:
Bar Color Description
Blue Normal
Cyan Device is in “Set-Up” or “Calibrate” mode.
Yellow Communication failure.
Red Alarm condition.
3.4 HyperTrend
The HyperTrend displays the turbidity value of the device in a chart form. The
user can scroll backward and forward using the scroll keys provided. When the
indicator located on the upper right corner is green, the right end of the chart
displays the current value and the chart is ‘on’. When the indicator is red, the
HyperTrend is ‘stopped’ (Note: Lookout continues to log the data to the historical
database). With the HyperTrend in the ‘stopped’ position, the chart displays a date
and time value. Clicking on the date/time values on the upper end of the numbers
advances the values while clicking on the lower end of the numbers decreases the
values. For example, clicking on the lower end of the month value reduces it by
one. The chart would therefore be displaying the turbidity values for the same
time in the previous month. This very powerful feature allows the user to search
and view specific data almost instantly. The HyperTrend also features a cursor,
which can be used to view specific values as well as for statistical functions such
as Break/Min/ Max. The scale of the trend is user defined as in the case of the bar
chart and is dependent on the upper and lower limits of the device. Please refer to
the Edit Device Dialog Box section later in this chapter. The user can also define
the trend span by clicking on the Trend Span push button.
(8/02)
Rev 1.2 18
3.5 Edit Device Dialog Box
Fig. 3-3
The Edit Device panel is used for configuring each device. The panel is accessed
from the Summary panel using the Edit Device push button (Note that the Edit
Device push button has a security level of 9). The panel has the following
features:
Choose Device Number: This is a text entry box in which the user enters the
address of the device that is to be configured. The valid range of values is 1 - 32.
In the text entry box the user can type in the value or use the available virtual
keypad.
Out of Service: The user uses this check box to specify that the device is out of
service. With the device ‘Out of Service’ Lookout will indicate the turbidity
values as –9.999.
Device Description: This text entry box is used to specify a name for the device.
The name specified here is used in the Summary Panel and Faceplate Panel.
The name used should not be more than 8 characters long including any spaces.
(8/02)
Rev 1.2 19
Decimal Places: This text entry box is used to specify the number of decimal
places in which the turbidimeter has been configured to report the turbidity value.
Note: This value must agree with the number of decimal place on the
turbidimeter and vice versa.
Engineering Units: This text entry box is used to specify the engineering units
that will appear with the turbidity value readings on the Summary panel and the
Faceplate panel.
High Scale Limit: This text entry box is used to specify the upper scale limit of
the instrument. The value specified here is used in the bar chart and the
HyperTrend chart on the Faceplate panel. Please note that the value entered here
has to correspond to the upper limit value set on the actual device.
Low Scale Limit: This text entry box is used to specify the lower scale limit of
the instrument. The value specified here is used in the bar chart and the
HyperTrend chart on the Faceplate panel. Please note that the value entered here
has to correspond to the lower limit value set on the actual device.
Alarm Reporting: These radio buttons are used to specify how the limit alarming
is to be handled:
Alarm
Description
Reporting
Device The limit alarms reported are based on the alarm status of the device.
Computer The alarms reported are based on the parameters as defined in Lookout for
Hi and HiHi alarms
None No limit alarms reported.
(8/02)
Rev 1.2 20
3.6 System Panel
The System Panel (refer to Fig 3-4) is associated with the server process (one
that is communicating with the turbidimeters). This panel is a master panel and
should be used only for diagnostic and trouble shooting purposes. The SCADA
system user has access to most of the information and device configuration
parameters from the Summary/Faceplate/Edit Device panels and hence these
features will not be discussed in this section. The following are the features that
are unique to the System panel. The user (Security level at or above 9) needs to
access the System panel if any of these features are to be monitored or edited:
Number of Devices: This text entry box defines the total number of devices in the
RS485/232 loop. The valid range of values is 1-32. The number entered specifies
the number of devices that Lookout will sequentially poll in every polling cycle.
Fig. 3-4
Poll Rate: This text entry box is used to specify the frequency at which Lookout
will poll the devices. The value needs to be specified in the format HH:MM:SS.
For example 00:00:02 would specify that the polling will occur at 2 second
intervals. A white arrow on the left side of the display table visually indicates the
sequencer operation. The arrow points to the device that is currently being polled.
(8/02)
Rev 1.2 21
Auto Poll Enable: This check box is used to enable the automatic polling of the
devices. If unchecked, Lookout will not poll any devices and hence the turbidity
values will not be updated.
Single Poll: This feature is to be used for testing or trouble shooting a specific
device. To use this feature, the user would disable (uncheck) the Auto Poll
Enable check box, enter the device number to be tested/diagnosed in the Address
text entry box and then click on the Poll Now push button. Lookout will poll the
specified device once. The Poll Now push button needs to be operated for each
additional poll of the device.
Alarm Limits: entering the appropriate values in the respective text entry boxes
specifies The Hi and HiHi alarm limits. These alarm limit values are valid only if
the Computer mode is selected for alarming.
Import / Export File Name: Once all the devices are configured (Device Name,
Decimal places etc.), it is possible to export all the configuration data into an
Excel spreadsheet. This spreadsheet can be used as a backup or even to modify
the configuration data. The user can specify the path and name of the data file in
the Import / Export File Name text entry box. For example, if the file were to be
called Database.xls to be saved under d:\Turbidity Files then the text entry would
be d:\Turbidity Files\Database.
Note: The default setting for this path is c:\windows\desktop\database. This will store a
file on the desktop for windows 98. This path should be changed as required; it
must be a valid path for this feature to operate correctly.
Export Database push button: With the configuration data file name and path
specified as indicated above, clicking on the Export Database push button would
export the file to the location specified. If the file is exported for the first time,
Lookout creates a new file. If the file already exists, then the existing file is overwritten with the new data. It is recommended that a backup copy of this file be
maintained on a floppy disk.
Import Database push button: Once the data file is created it is possible to
import the data into Lookout using this Import Database push button. The
database may need to be imported for several reasons. For example, in the event
of a computer system failure which requires software re-installation. The user can
also modify the configuration information for the devices in the Excel file and
then import the data into Lookout.
ASCII Panel: The ASCII panel is provided for testing and diagnostic purposes
only. The panel displays the raw data that is received from the devices during the
polling process. The panel also displays the “parsed” values, which are the
various sections of the raw data (e.g. Device Address, Turbidity Value, Mode,
Status etc) that are then displayed and logged.
(8/02)
Rev 1.2 22
4.0 Report Generation
4.1 Overview
The SCADA system allows the user to generate query-based reports from the
historical data that is collected by the Citadel database. The system can also be set
up to log data in .csv (comma separated values) format files which can be opened
directly in any spreadsheet programs such as Excel. The .csv files can also be
converted into Access database files. The report generation is done using the
report generation process, which can be accessed from the Summary panel using
the Report push button.
4.2 Report Configuration Panel
This panel (refer to Fig. 4-1) allows the user to configure the query-based reports
that are generated from data logged to the Citadel historical database. This panel
also provides the user with the option to log turbidity data in .csv format at a user
specified interval, path and file name. The Report Configuration panel has the
following features:
Tags: This is an array of text entry boxes with which the user can specify:
Column Subtitles: These are the column subtitles as they should appear on the
report. The subtitle should not be more than 8 characters long. It should be noted
that the SQL query based report is configured as a 32 column and a 31 row report.
The basis for the 32 columns is the 32 devices that the Online SCADA system can
handle. Hence the column subtitles would be essentially the device names (Filter
1, Filter 2 etc.).
Object Names: The Object Name specifies the name of the tag in the Citadel
database that the user would like to create the report for. The reports are set up for
the turbidity values and the Object Name is Server\DeviceTable\DeviceXNTU
where X denotes the device address. For example, the Object Name for the
turbidity value for Device 1 would be Server\DeviceTables\Device1NTU. The
Online SCADA system is configured to log only the turbidity value to the
database. The object names are already entered in the table and should not require
any editing by the user.
Note: Editing these object names may result in improper operation of the report
generation function.
(8/02)
Rev 1.2 23
Fig. 4-1
4.3 Printouts
To perform a printout, the following information needs to be filled out. Make sure
that all the information in Time Range and Interval and Database Source has
been completed.
4.3.1 Time Range and Interval
The Start Time, Stop Time and Sample Interval constitute the criteria for the
SQL query based on which the report is generated. This information will have to
be completed prior to each new query.
Start Time: The date and time FROM which the report should start. The value
entered should be in the format of MM/DD/YY HH:MM:SS.
Stop Time: The date and time TO which the report should retrieve data. Here
again the value should be entered in the format MM/DD/YY HH:MM:SS.
Sample Interval: The Citadel database saves the historical data as a continuous
(8/02)
Rev 1.2 24
‘trace’. The Sample Interval specifies the time interval at which the report should
extract the data starting from the Start Time specified. The value should be
entered in the format HH:MM:SS. One important issue that needs to be noted here
is that as indicated earlier, the report has only 31 rows. Hence if the number of
records based on the start and stop times and the sample interval is greater than
31, all records after the 31st would not be shown on the report. For example if:
Start Time = 10/25/02 12:00:00
Stop Time I = 10/25/02 14:00:00 and
Sample Interval = 00:02:00 (2 minutes)
the number of records would be 60. However, since only 31 records can be
displayed, the report would only show data from 12:00:00 through 13:02:00. It is
therefore important to to pick a combination of start / stop time and sample
interval in such a way as to have no more than 31 records.
4.3.2 Database Source
This parameter has two fields, which are required for the execution of the SQL
query. These fields usually only have to be completed only once.
Computer Name: Name of the PC node where the Citadel database resides. For a
single PC operation, an easy way to find the computer name is to go to Options
>> System. The name in the Computer Name field (refer to Fig. 2-1 in Section 2,
Software Installation of this manual), which Lookout has filled in automatically,
is to be used.
Data Source Name: This is the ODBC data source name for the Citadel database
that will be used by SQL to execute the query. Use Lookout4 as the name if the
procedure for ODBC set up indicated in Section 2, Software Installation has
been followed.
4.3.3 Execute Query
This push button is used to execute the SQL query, which upon successful
completion will create the required report. The user needs to fill all the criteria
values as mentioned in previously, before attempting to execute the query.
Page 1 push button: Activation of this push button accesses the Page 1 panel of
the two-page report (refer to Fig. 4-2). Please refer to the Page 1 section later in
this chapter.
Page 2 push button: Activation of this push button accesses the Page 2 panel of
the two-page report (refer to Fig. 4-3). Please refer to the Page 2 section later in
this chapter.
Print push button: This push button is used the print the two pages of the report
that has been generated.
(8/02)
Rev 1.2 25
4.3.4 Page 1 Panel
The Page 1 panel (refer to Fig. 4-2) is the template of the first page for the report.
When the SQL query is executed, the rows and columns of the table are populated
with the records retrieved by the SQL query. The column headers are the userdefined subtitles as discussed earlier in this chapter. This panel displays the first
16 columns and all 31 rows of the report. The user can customize the report by
entering the fields located at the top of the page (Report For, Public Water
Supply ID etc). Each field is provided with a text entry box for this purpose.
Fig. 4-2

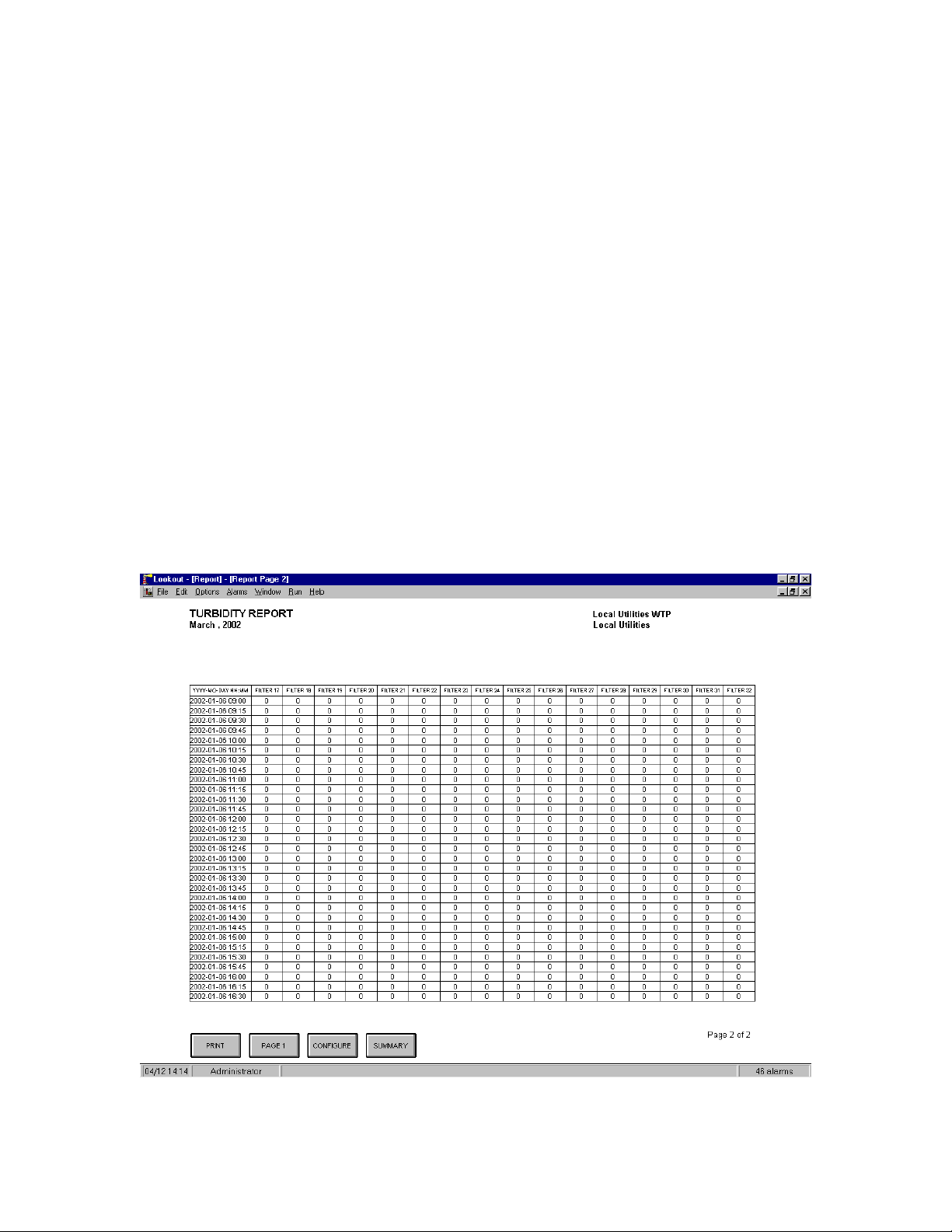

4.3.5 Page 2 Panel
This panel (refer to Fig 4-3) is the extension the Page 1 panel and displays
columns 17 through 32.
(8/02)
Rev 1.2 26
4.4 Database/Spreadsheet
In addition to the Citadel historical database it is also possible to log data
separately in a .csv format file (also called spreadsheet logging), which can be
opened directly using any spreadsheet program, such as Excel. The user has the
option of enabling/disabling this logging function as well as a choice of
where the data will be logged. The user can also specify the logging interval.
4.4.1 CSV File Logging
To use the facility of data logging, complete the following information inside
CSV File Logging.
Logging Enable: This check box is used to enable or disable the spreadsheet
logging.
Logging Interval: Interval of time at which Lookout saves the specified field as a
new row in the spreadsheet file. Please note that unlike the Citadel database where
the data is saved as a continuous trace, the spreadsheet data is a snapshot of the
data at the specified time intervals. The value needs to be entered in the format
HH:MM.
Log to Full-Path Name / Log to Monthly Subdirectory in Lookout: It is
possible to save the spreadsheet file either in the default Lookout directory or
using a fully specified path name. The major difference is that if the data is saved
in the Lookout directory, Lookout automatically creates a directory tree, which
makes it easy for retrieving and maintaining the data. For example Lookout would
automatically create a folder under the Lookout directory for the year 2002. In the
2002 folder it would create a folder for the current month. The spreadsheet file
would then be located in the month folder (d:\Program Files\National
Instruments\Lookout\2002\nov\turbidity.csv). At the start of a new month or year.
Lookout would create the appropriate folder/s. If the full path name option is
selected, the user needs to enter the desired path name where the file is to be
saved. In this case Lookout will NOT create the year/month folders automatically.
In order to address this problem, the process has been configured to automatically
concatenate a unique number at the end of the file name for each month. For
example if the file is to be saved under d:\Turbidity Files\Turbidity, Lookout will
add a unique number to the end of the file name, which will make the file name
look something like Turbidity_36812.csv. If the full path name option is selected
the user needs to click on the Update File Name Now pushbutton for the settings
to take effect. The spreadsheet object has been configured to log only the turbidity
values for each device.
It must be noted that if the spreadsheet file is opened while Lookout is running,
Lookout cannot write new data to the file. Lookout will automatically create a
memory buffer where it will store this data until the .csv file is available again.
(8/02)
Rev 1.2 27
However, the buffer is not unlimited in size and if the spreadsheet file is left open
indefinitely, the buffer could overflow causing loss of data. It is therefore good
practice to close the spreadsheet file immediately after use.
Another item to keep in mind regarding the spreadsheet files is that these files will
open directly in Excel. However while closing the file, Excel will put up a dialog
box stating that the open file was created in an earlier version of Excel and ask if
the user wishes to update it to the latest version of Excel. Always pick NO. This is
because the spreadsheet object in Lookout is not capable of writing to a file later
than Excel 4. If the user needs to use the file in a later version of Excel, it is
recommended that a copy of .csv file be made for use in the newer version,
leaving the original for Lookout to log data.
4.4.2 Converting CSV Files to ACCESS Database Files
It is easy to convert the .csv data files to a Microsoft® Access database file. To do
so create a new database in Access. Then create a new table to import data from
external files. Navigate to the location of the .csv file and click on Import. Follow
the instructions to complete the Access table created from the .csv file.
Fig. 4-3
(8/02)
Rev 1.2 28
5.0 Appendix
Lookout File Types
A Lookout process comprises of four files: Process (.l4p), State (.lst), Source
Code (.lks) and Security (.lka). These files are created automatically in the
application development cycle. All of the above files have the same user defined
file name (e.g. server) but with file extension as indicated above. A brief
description of each file type and its function:
Process File: A process file is a compiled file that contains the Lookout process
that we want to run. Process files cannot be directly edited or modified. Rather,
Lookout compiles the .l4p on an object-by-object basis. The compilation occurs
whenever the application is saved. With this approach it is possible to create new
objects or modify existing ones without having to shut down the process, one of
the most powerful features of the Online SCADA system. Please note that in
order to be able to edit or modify a Lookout process it is necessary to have the
Keycode for the development version of Lookout loaded on the computer.
Source Code File: In the application development process, Lookout automatically
creates and updates a corresponding source code file when the File>>Save
command is invoked. The source code file is a standard ASCII text file that can be
viewed and printed with any word processor or text editor. The source code
information can be used for debugging and documentation.
State File: The state file contains the actual values of object data members.
Lookout uses the state file to store the position of switches, potentiometers, trend
lines etc. When Lookout first loads an application, it reads the state file to
determine what state the pots, switches, trend lines etc. should be upon startup.
The state file updates any time the application is saved or closed. It is also
updated on a periodic basis at user-defined intervals.
Security File: Every Lookout process has an attached security file identified by
the .lka extension. All the security information for a Lookout process is kept in
the .lka file.
(8/02)
Rev 1.2 29
Loading...
