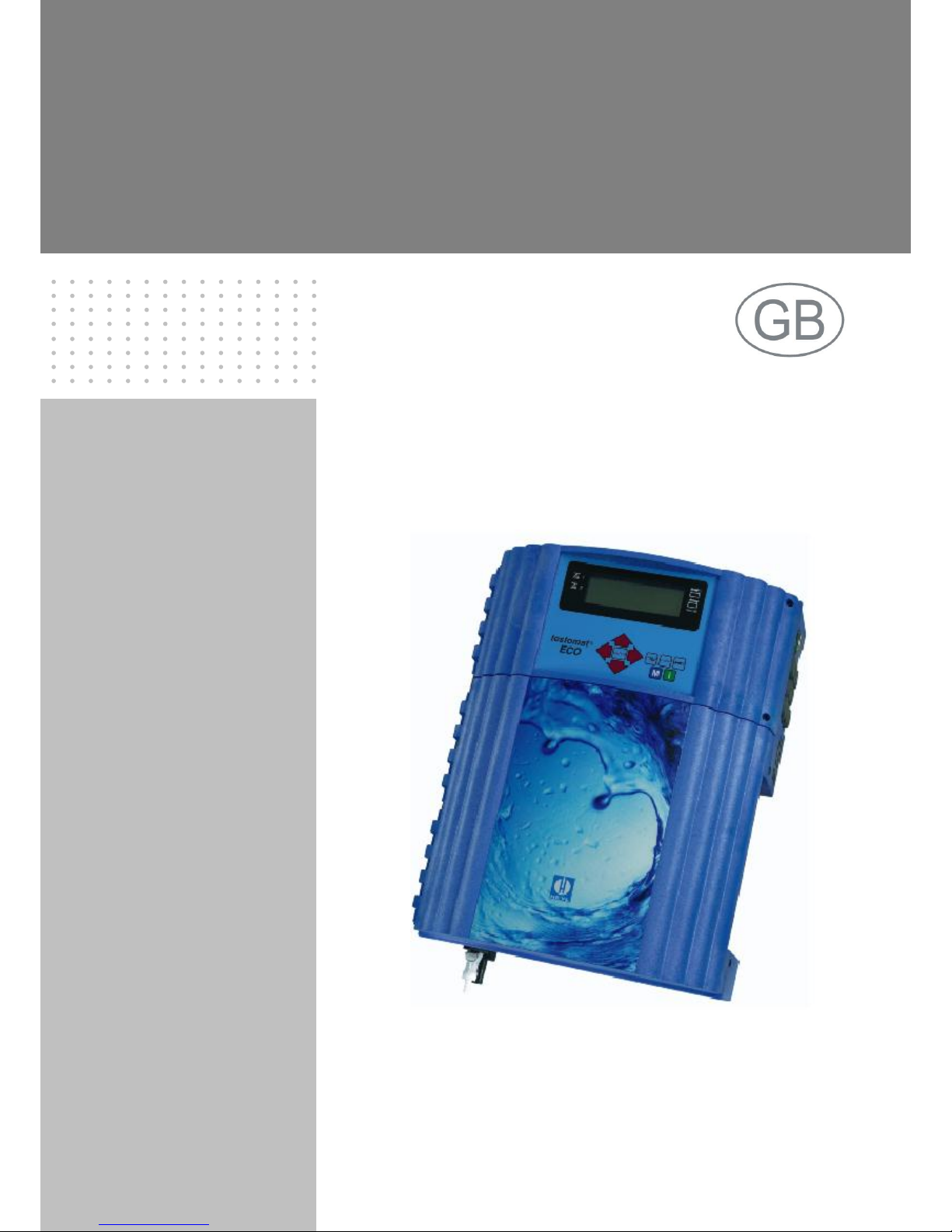

Testomat ECO®
Online analysis instrument
for residual total hardness
(water hardness)
Operating Instructions
Page 2
Contents
2
Contents
Contents ............................................................................................... 2
Important safety information ............................................................. 4
Intended use ......................................................................................... 4
Qualification of the staff ........................................................................ 4
Warning notices in dthese instructions ................................................. 5
Further documents ................................................................................ 5
Pay particular attention to .................................................................. 5
General instructions .............................................................................. 5
Properties of the measured water ......................................................... 5
Installation ............................................................................................. 6
Operation .............................................................................................. 6
After switch-off and longer downtime .................................................... 6
Cleaning ................................................................................................ 6
De-installation ....................................................................................... 6
Disposal ................................................................................................ 7
Scope of delivery ................................................................................ 7
Performance specifications ............................................................... 7
Indicators for Testomat ECO® instruments ........................................... 8
Application instructions ......................................................................... 9
Installation ......................................................................................... 10
Operating Testomat ECO® in the pressure range 0.3 to 1 bar ........... 10
Installing Testomat ECO® ................................................................... 10
Connecting the water inlet and outlet ................................................. 11
Water inlet ........................................................................................... 11
Water outlet ......................................................................................... 11
Connecting the power supply and devices ......................................... 12
Block diagram Testomat ECO® ........................................................... 12
Internal design Testomat ECO® .......................................................... 13
Connecting the mains voltage............................................................. 14
Connecting the plant components ...................................................... 15

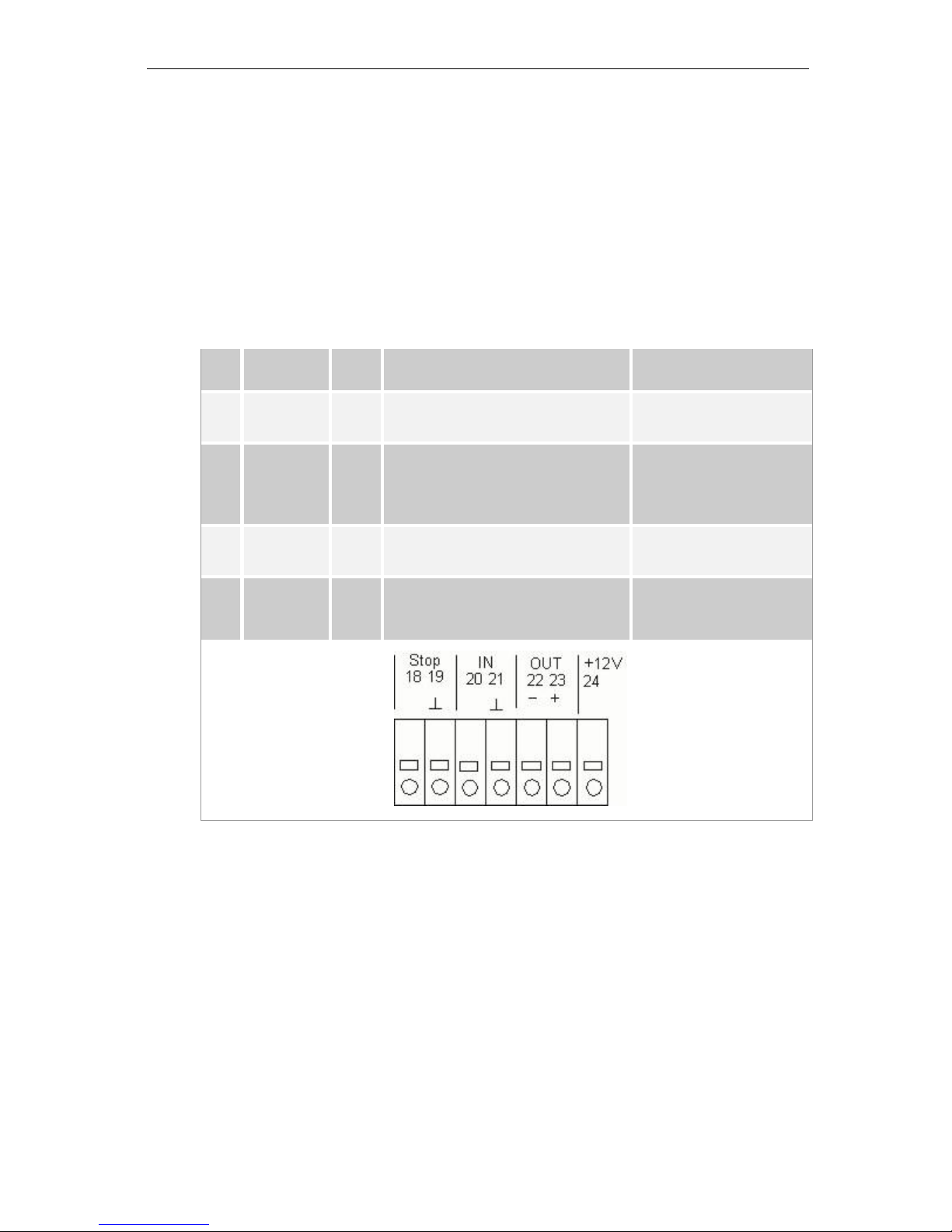

Connecting the inputs and outputs ..................................................... 16
Commissioning ................................................................................. 17
Inserting the indicator bottle ................................................................ 17
Extracting the indicator ....................................................................... 17
Opening the water inlet ....................................................................... 17
Instrument settings and data input ...................................................... 18
Functions of the operating and display elements ......................... 18
Switching Testomat ECO® on/off ........................................................ 18
Display functions ................................................................................. 18
Operating elements and function keys ............................................... 20
Operating system ................................................................................ 21
Entering basic program data ........................................................... 22
Selecting the indicator and the bottle size .......................................... 22
Selecting the operating mode ............................................................. 22
Selecting the time control .................................................................... 22
Setting the analysis interval (interval pause) ...................................... 23
Selecting the quantity control .............................................................. 23
Selecting the type of water meter ....................................................... 23
Selecting the quantity control/time priority .......................................... 24
Page 3
Contents
3
Selecting the display unit .................................................................... 24
Entering the flushing time ................................................................... 24
Limit value monitoring ......................................................................... 25
Hysteresis ........................................................................................... 25
Switch functions of the limit value outputs LV1 and LV2 .................... 26
Switch function 0, duration .................................................................. 26
Switch function 1, impulse .................................................................. 26
Switch function 2, interval ................................................................... 26
Switch function 3, two-point ................................................................ 26
BOB operation (operation without permanent supervision) ................ 27
Description of the signal inputs/outputs ........................................ 28
Stop input ............................................................................................ 28

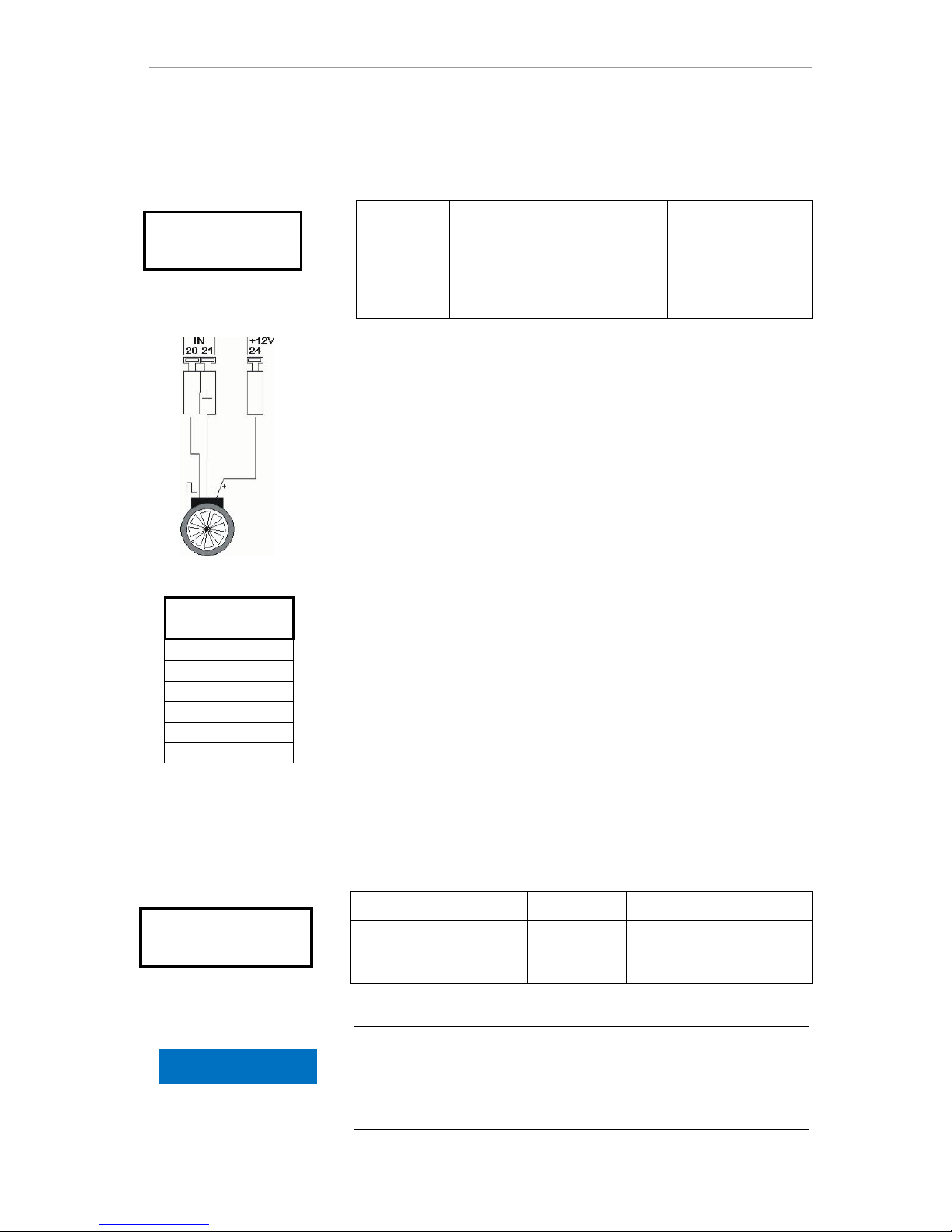

Water meter input ............................................................................... 29
Current interface 0/4 - 20 mA.............................................................. 29
Calculating the output currents ........................................................... 31
Description of the relay outputs ...................................................... 32
LV1 and LV2 limit value outputs ......................................................... 32
Alarm/Message (fault message output) .............................................. 33
Information menu "i" ........................................................................ 34
Program menu "M" ........................................................................... 35
Structure of the basic program............................................................ 37
Error messages/Troubleshooting ................................................... 38
Further information .............................................................................. 39
Maintenance ...................................................................................... 39
Description of maintenance work ........................................................ 40
Service instructions ............................................................................. 41
Testomat ECO® spare parts and accessories ................................ 42
Accessories ......................................................................................... 44
Check List Testomat ECO® ................................................................. 45
Technical data ................................................................................... 47
Conformity Declaration ....................................................................... 48
Product overview Testomat 2000®-Instruments ............................ 48
Page 4
Important safety information
4
Important safety information
Please read these operating instructions carefully and completely
prior to working with the instrument.
Ensure that these operating instructions are always available for all
users.
These operating instructions must always be passed on to the new
owner should Testomat ECO® change hands.
Always adhere to hazard warnings and safety tips when using
reagents, chemicals and cleaning agents. Please adhere to the respective safety data sheet! Download the safety data sheets for
the supplied reagents at http://www.heyl.de.
Intended use
Testomat ECO® is used for the automatic determination and monitoring of residual total hardness (water hardness) in water with a pH
level above 4. The required measuring range is determined by the
indicator selection and the respective user programming.
Always adhere to the performance limits stated in the section enti-
tled “Technical data“.
Always observe the application areas/application limits of the indi-
cators and the requirements of the medium being measured.
To ensure correct and intended usage, always read and understand
these instructions, especially the section entitled “Important safety
information”, prior to use.
The instrument is not used as intended if
it is used in areas not specified in these instructions
it is used in areas which do not correspond to the ones described
in these instructions.
Qualification of the staff
Assembly and commissioning require fundamental electrical and
process engineering knowledge as well as knowledge of the respective technical terms. Assembly and commissioning should therefore
only be carried out by a specialist or by an authorised individual supervised by a specialist.
A specialist is someone who due to his/her technical training, knowhow and experience as well as knowledge of relevant regulations can
assess assigned tasks, recognise potential hazards and ensure appropriate safety measures. A specialist should always adhere to the
relevant technical regulations.
Page 5
Pay particular attention to
5
Warning notices in dthese instructions
The warning notices in these instructions warn the user about potential dangers to individuals and property resulting from incorrect handling of the instrument. The warning notices are structured as follows:
Description of the type or source of error
Description of the consequences resulting from non-obervance
Preventive measures. Always adhere to these preventive
measures.
“DANGER” indicates an immediate hazardous situation which, if not
avoided, will result in death or serious injury.
“WARNING” indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION” indicates a potentially hazardous situation which, if not
avoided, could result in minor or moderate injuries or property damage.
“NOTE” indicates important information. If this information is not observed, it may result in an undesirable result or state.
Further documents
Testomat ECO® is a plant component. Therefore, always observe the
maintenance manual of Testomat 2000®/ECO® and the documentation of the plant manufacturer.
Pay particular attention to
General instructions
Adhere to national and local regulations during installation and
commissioning.
Adhere to national health and safety regulations as well as envi-
ronmental protection regulations in the country of use and at the
installation site.
Do not carry out any changes or actions at the instrument which
are not described in these instructions; failure to adhere to these
instructions will negatively affect any warranty claims that you
make thereafter.
Trouble-free operation of Testomat ECO® is only guaranteed when
using Heyl Testomat 2000® indicators in the pH-range 4 – 10.5!
Properties of the measured water
With Testomat® instruments for water hardness monitoring, larger
quantities of heavy metal ions in the softened water might influence the colour reaction, especially iron above 0.5 mg/I, copper
SIGNAL WORD!
DANGER
!
WARNING
!
CAUTION
!
WARNING
!
NOTE
Page 6
Pay particular attention to
6
above 0.1 mg/I and aluminium above 0.1 mg/l (brownish-red colour
display).
If the measuring water contains more than 20 mg/I CO2 (carbonic
acid), erroneous evaluations cannot be excluded (if necessary, use
aerator type R) (See note in the Performance Specifications).
The concentration of influencing contents can be determined by
using our colourimetric TESTOVAL® test kit.
Installation
Always completely disconnect the relevant plant part before in-
stalling the instrument or connecting/disconnecting it to/from the
power supply. Secure the plant against reconnection.
Only connect the instrument to the mains voltage specified on the
rating plate.
Always observe technical data and ambient parameters.
Testomat ECO® requires an interference free and stable power
supply. If necessary, use a mains filter to protect Testomat ECO
®
against interference voltages caused, e.g., by solenoid valves or
large motors. Never lay connecting cables parallel to power cables.
Operation
Ensure that the maximum electrical load capacity of the relay out-
puts is never exceeded.
Immediately switch off Testomat ECO® and contact service staff if
malfunctioning occurs. The warranty will be void if you tamper with
or attempt to repair Testomat ECO®. Repairs must be carried out
by authorised service staff.
After switch-off and longer downtime

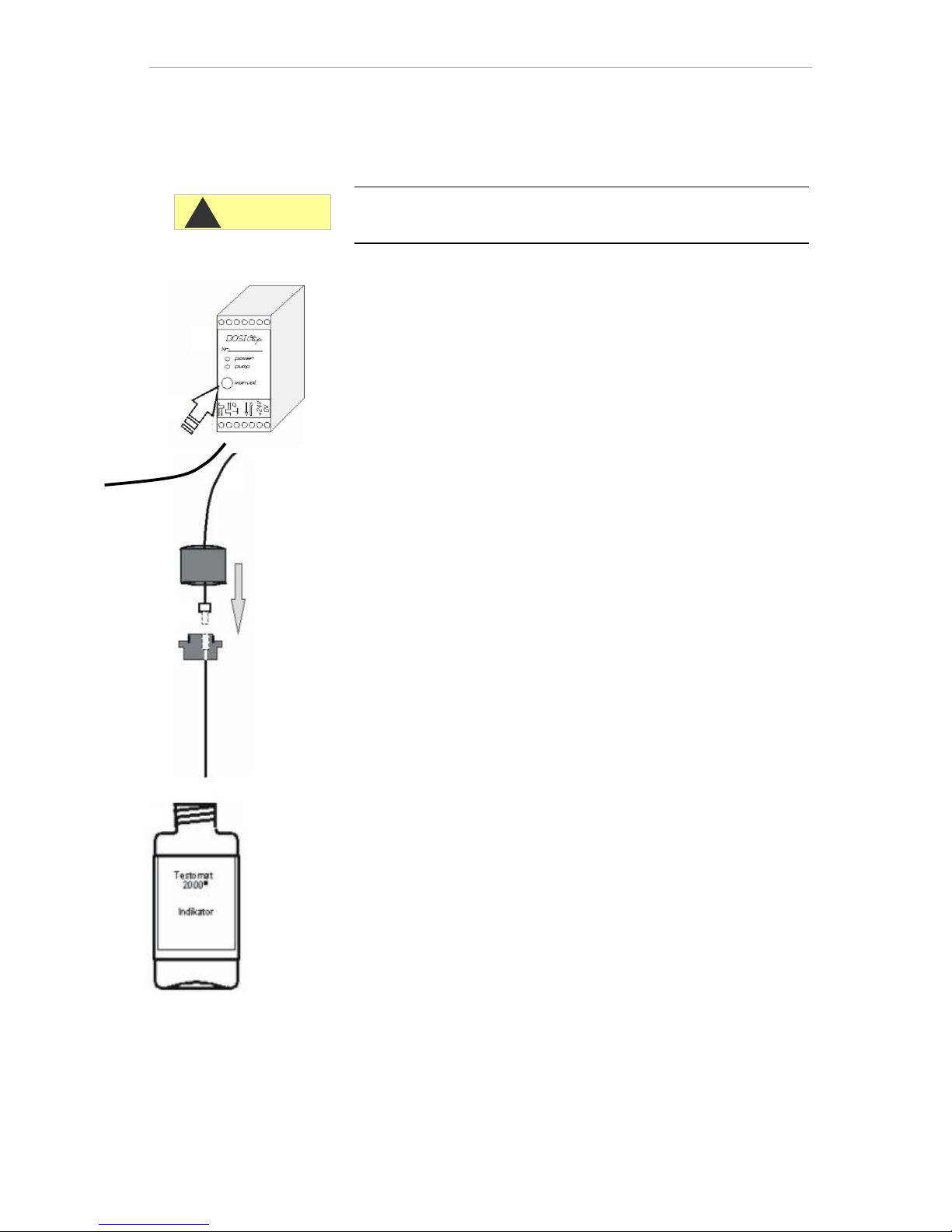

Ventilate the indicator leads as described in the start-up, because
longer downtimes (more than 6 hours) can cause the indicator in
the leads to retract.
Do not switch off the appliance for longer periods (e.g. over the
weekend) via the start/stop output. The indicator can retract from
the leads. This results in measurement errors after the appliance is
switched on.
Cleaning
Only use a dry, lint-free cloth for cleaning.
De-installation
Prior to de-installing a defective instrument, always write down a
description of the error (failure effect). It is only possible to repair a
defective instrument (irrespective of the warranty period) if it has
been de-installed and returned to us with a description of the error.
WARNING
!
NOTE
Page 7
Scope of delivery
7
Disposal
Dispose of the instrument in accordance with national regulations.
Scope of delivery
1 Testomat ECO
®
1 plasic bag with screw cap with a hole and an insert for the
screw cap of the indicator bottle
1 operating instructions
Performance specifications
Testomat ECO® is used for the automatic determination and monitoring of residual total hardness (water hardness) in water with a pH
level above 4. The required measuring range is determined by the
indicator selection and according to the user programming.
Simple, menu-driven operating and programming via a plain
text display
Determinable measuring of total hardness (water hardness)
Freely selectable hardness unit in °dH, °f, ppm CaCO3 or
mmol/
High measuring accuracy provided by a precise piston-
dosing pump
Extended operating periods due to 500 ml indicator storage
bottle
Analysis initiation:
- Automatic interval operation
(interval pause can be set from 0-99 minutes)
- Quantity dependent via impulse water meter/turbine
- External analysis stop
Two independent limit values with hysteresis (1, 2 or 3 bad
analyses) and settable switch functions
(two neutral change-over contacts)
Fault message output (neutral change-over contact)
Current output 0/4 - 20 mA
Deposits and corrosion in water with a pH level < 4.0
In water with a pH level < 4, deposits or corrosion can occur on the
magnetic valve in the valve block located on the measured chamber.
In this case, you can order the Testomat ECO® with a different valve
block (Art. No. 40018). This magnetic valve is not affected by media,
and improves the service life.
NOTE
Page 8
Performance specifications
8
Indicators for Testomat ECO® instruments
Parameter/Indicator type
Water hardness
TH 2005
TH 2025
TH 2100
TH 2250
Unit
°dH
(resolution)
0.05 - 0.50
(0.01)
0.25 – 2.50
(0.05)
1.0 – 10.0
(0.2)
2.5 – 25.0
(0.5)
°f
(resolution)
0.09 – 0.89
(0.02)
0.45 – 4.48
(0.1)
1.8 – 17.9
(0.4)
4.5 – 44.8
(1.0)
ppm
CaCO
3
(resolution)
0.89 – 8.93
(0.2)
4.5 – 44.8
(0.9)
18 - 179
(3.8)
45 - 448
(10)
mmol/l
(resolution)
0.01 – 0.09
(0.002)
0.04 – 0.45
(0.01)
0.18 – 1.79
(0.04)
0.45 – 4.48
(0.1)
Page 9
Performance specifications
9
Application instructions
Switching on/off
Wait at least 5 seconds before switching the instrument on and
then off again at the main switch.
Ambient conditions/Installation site
Always protect the instrument against moisture and humidity. It
should never come into contact with condensation or splash water.
Malfunctioning/Repairing a defective instrument
The repair of a defective instrument – irrespective of the warranty
period - is only possible after the instrument has been dismantled
and returned to us with a description of the error. Furthermore,
please inform us of the indicator type being used and the measured medium. Do not carry out any actions at the instrument
which are not described in these instructions; failure to adhere to
these instructions will negatively affect any warranty claims that
you make thereafter. Before you return the instrument for repair,
write down a description of the error (failure effect). Repair work
repair work, remove the bottle and ensure that the measuring
chamber has been flushed out and is empty. Prior to dismantling,
always (irrespective of the warranty period) is only possible when
the instrument is dismantled and returned to us with a description
of the error.
After a protective circuit (fuse) has been tripped, attempt to elimi-
nate the cause of malfunctioning (e.g. replace a defective valve)
before reactivating the protective circuit. Frequent tripping is always due to an error which, in certain circumstances, may also
cause damage to the instrument.
Operating safety instructions
Careful handling of the instrument increases both its operational
reliability and service life! Therefore, carry out a visual inspection
at regular intervals as described below:
- Are the hose connections of the dosing pump free of leaks?
- Is there any air inside the dosing hoses?
- Are all the water connections free of leaks?
- Are the doors of the instrument closed properly?
- Is the instrument heavily soiled?
Maintenance and servicing instructions
(For more information, please refer to the section entitled
“Maintenance” and the "Maintenance manual of Testomat 2000® /
Testomat ECO®)
Page 10
Installation
10
Installation
Risks resulting from incorrect installation!
Install Testomat ECO® at a location where it is protected against
dripping or splash water, dust and aggressive substances – e. g. in
a switch cabinet or on a suitable wall.
Information for trouble-free operation
Install Testomat ECO® vertically and without mechanical stress.
Install Testomat ECO® at a vibration-free site.
Operating Testomat ECO® in the pressure
range 0.3 to 1 bar
Prior to installation, please check whether lower operating pressure is
required. The instrument is factory set for the operating range 1 to 8
bar. Remove the flow controller valve body to operate the instrument in the operating range 0.3 to 1 bar (e.g. when using an aerator
type R). This involves removing the retaining pin from the controller / filter receiver . Subsequently use the metal bracket to remove
the controller plug from the borehole. Subsequently remove the
flow controller valve body and reinsert the controller plug and the
retaining pin.
Installing Testomat ECO®
Select an installation site where the water inlet hose can be kept as
short as possible (max. 5 m)
Please leave sufficient space on the left-hand side of the instru-
ment to open the door

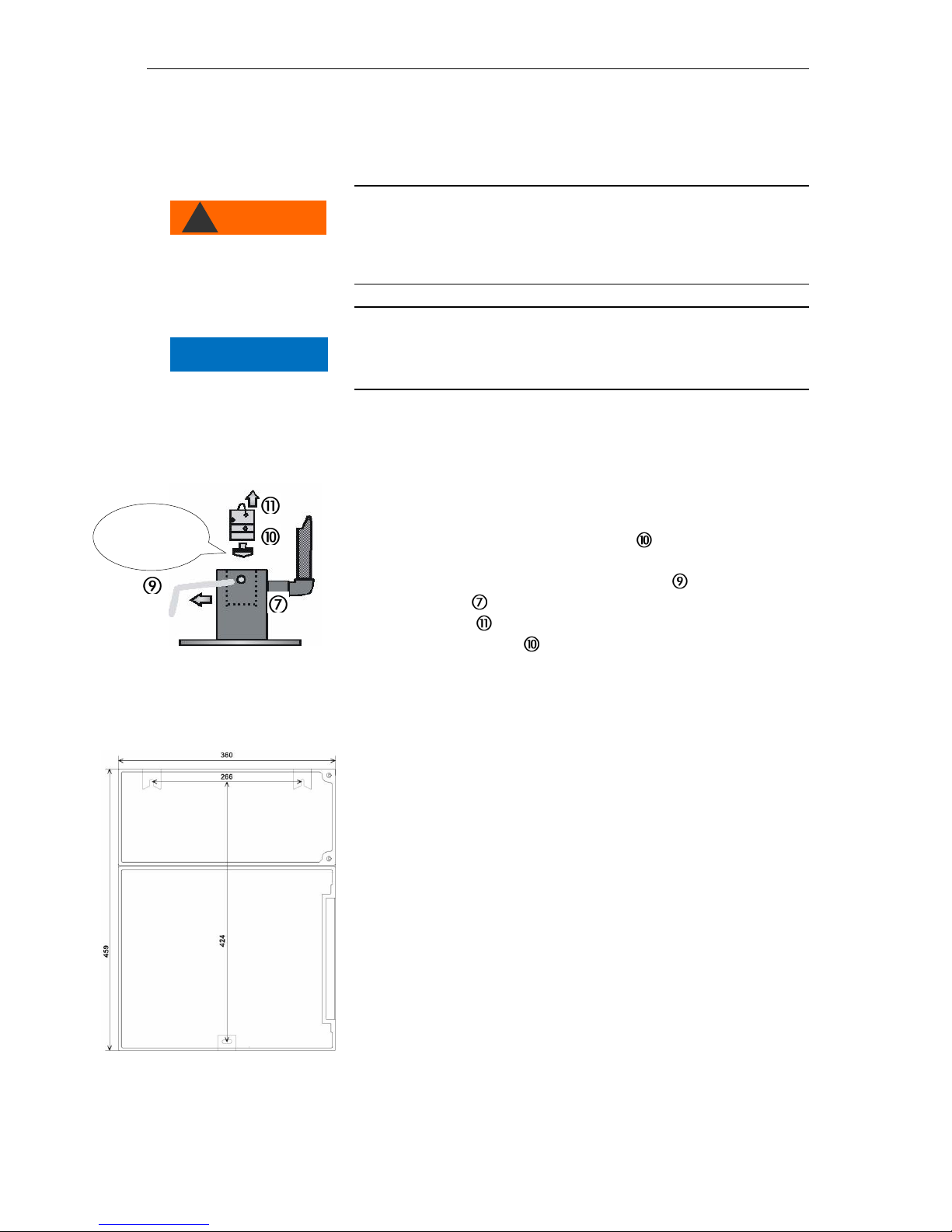

Drill the mounting holes as shown in the drawing on the left.
Use three screws to attach the instrument at a suitable position in
the switch cabinet or on a wall.
Remove for
pressure
range 0.3 to 1
WARNING
!
NOTE
Page 11
Installation
11
Connecting the water inlet and outlet
Information for trouble-free operation
The water pressure must be between 0.3 bar and 8 bar
Avoid strong pressure fluctuations
The measuring water temperature must be between 10 °C and 40
°C
For temperatures above 40°C, the KCN type cooler should be in-
stalled in the branch line of Testomat ECO®.
Water inlet
The measuring water is taken from the main water line of the water
treatment plant and fed to the inlet connection of Testomat ECO®.
The instrument is equipped with a plug connector for plastic hoses
6/4 x 1 (external diameter 6 mm/ internal diameter 4 mm, wall thickness 1 mm) as standard.
Install the connection for the branch line of Testomat ECO® direct-
ly at the main water line directly after the water treatment plant
It is important that the branch line connection is laid vertically up-
wards in order to prevent dirt particles from entering the instrument
from the main water line
Install a manually operated shut-off valve in the branch to Tes-
tomat ECO®.
Use an opaque plastic hose 6/4 x 1 (max. length 5 m) for the water
inlet
Flush the inlet to remove any dirt particles
When using a cooler
The hot water can cause burns and damage wetted parts of
Testomat ECO®.
Water outlet
The feed water flows through the measuring chamber to the drain via
the outlet hose.
Connect the outlet connection of Testomat ECO® to an outlet hose
(internal diameter 12 mm)

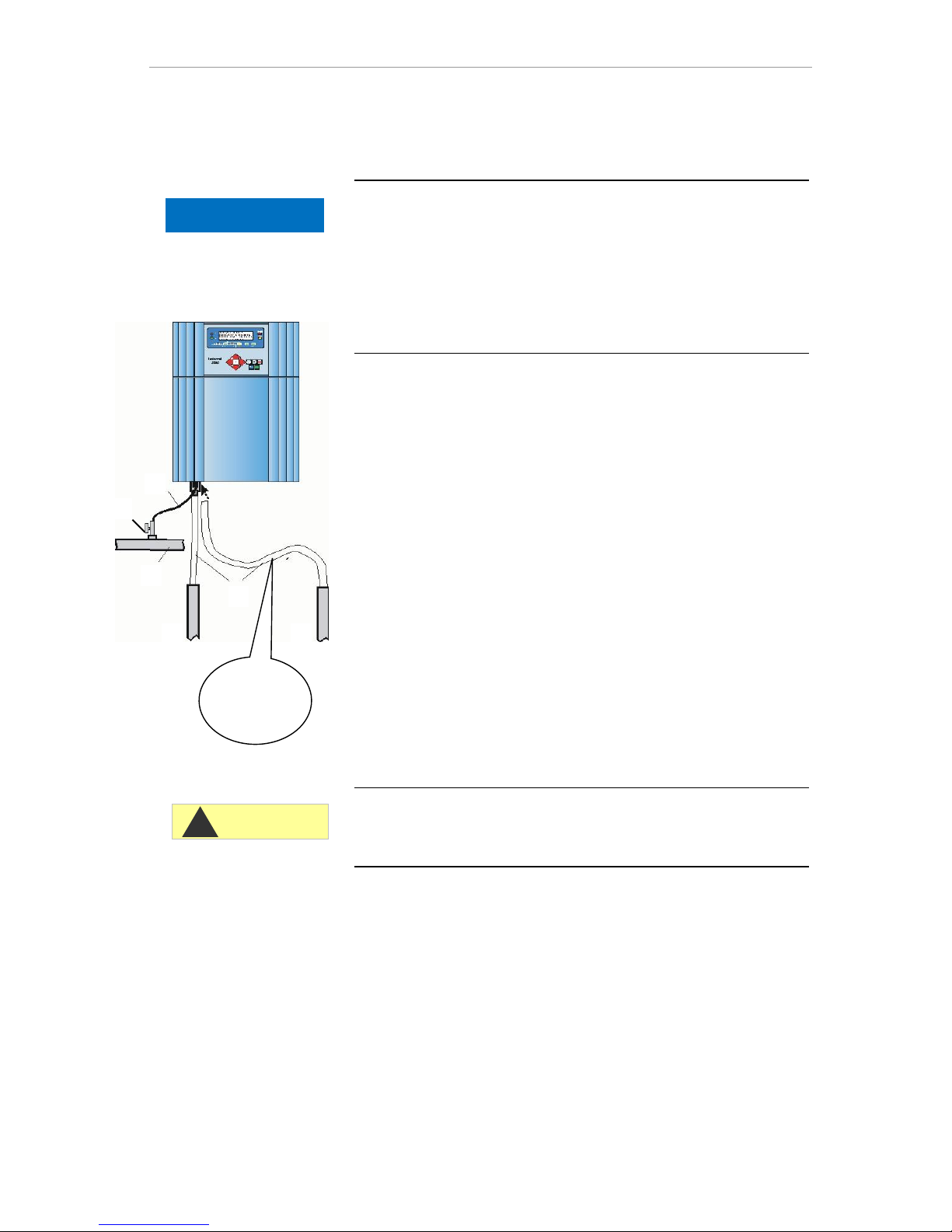

Lay this hose without backwater development and any syphoning
effect, e.g. via an open funnel, to the drain.
NO !!
"Sagging"
causes back-
water!
CAUTION
!
NOTE
Page 12
Installation
12
Connecting the power supply and devices
Risk of electric shocks during installation!
If the power supply is not disconnected prior to installation, it may
result in personal injuries, destruction of the product or damage to
plant parts.
Always disconnect the relevant plant parts before installing Tes-
tomat ECO®.
Only use tested cables with sufficient cross-sections for the con-
nections.
Risk of damages caused by electromagnetic fields!
If Testomat ECO® or the connecting cables are installed parallel to
power cables or in close proximity to electromagnetic fields, the instrument may be damaged or measurements incorrect.
Ensure that connecting cables are as short as possible.
Always install connecting cables and power cables separately.
Connect the instrument to the protective earth conductor (for
230/115 VAC).
Protect Testomat ECO® against interference voltages – e.g. via a
mains filter.
Shield the instrument against strong electromagnetic fields.

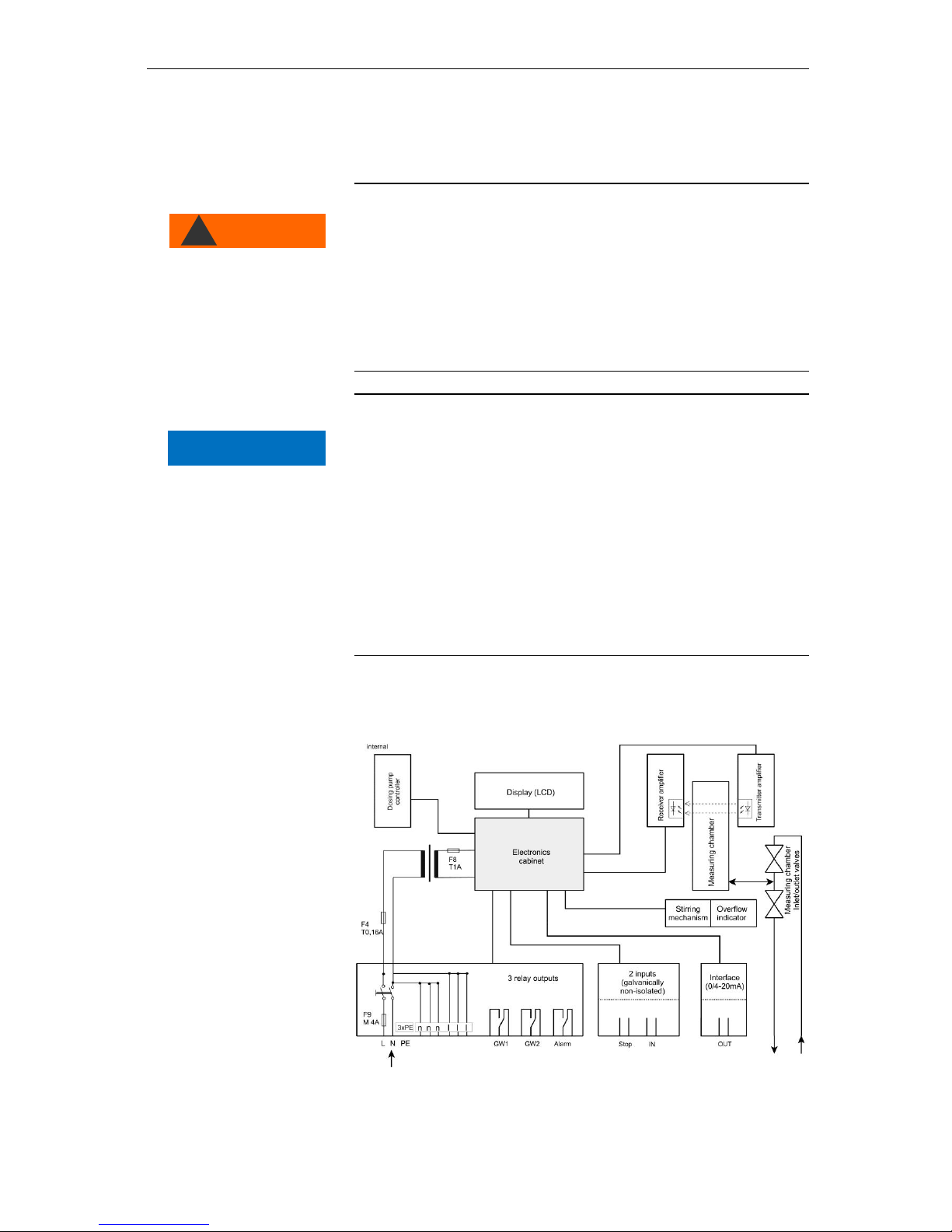

Block diagram Testomat ECO
®
Drawn relay positions: Instrument de-energised, mains: 230/115 V
WARNING
!
NOTE
Page 13
Installation
13

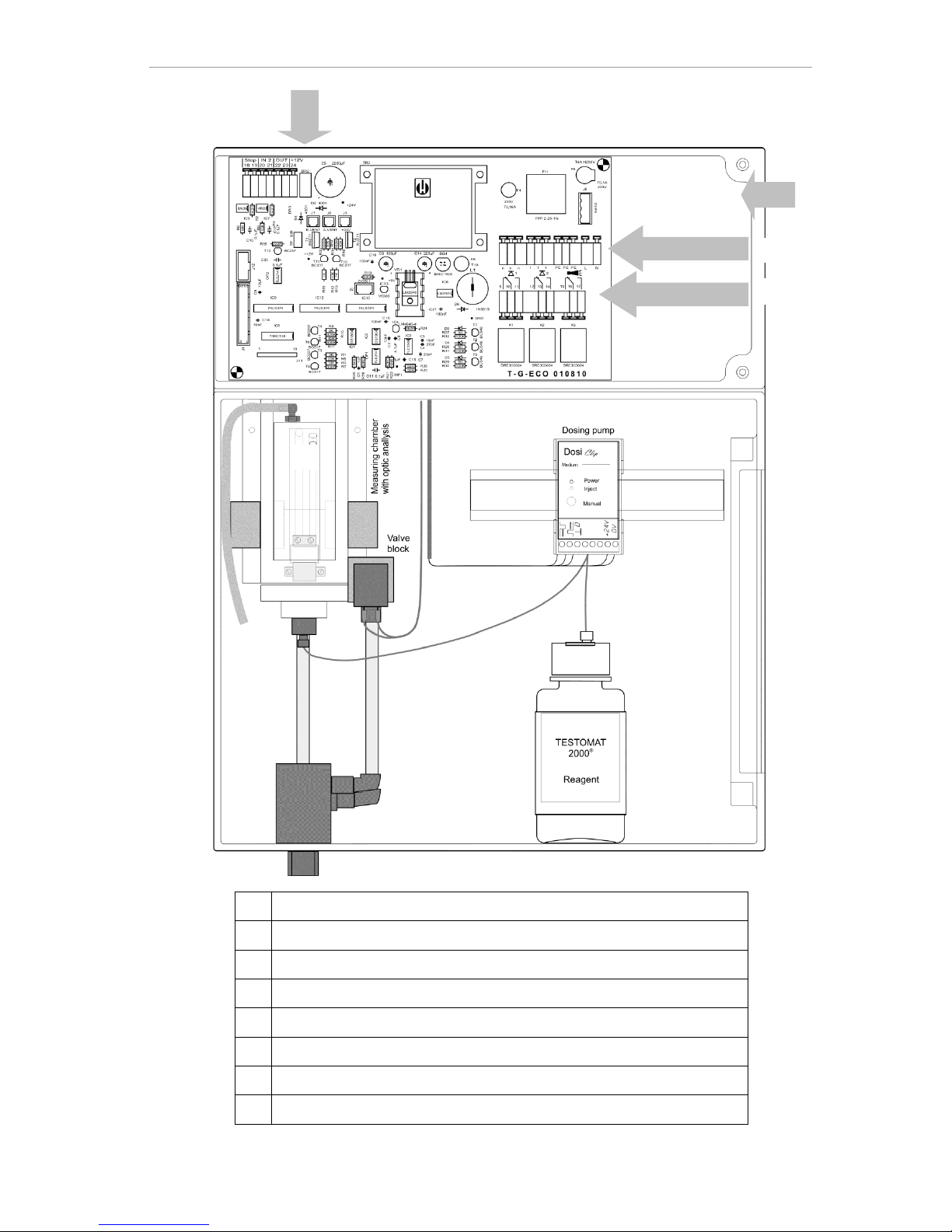

Internal design Testomat ECO®
Terminal strip for inputs Stop, IN2, output OUT, +12 V for turbine
Mains switch
Terminal strip for power input and power output
Terminal strip for relay outputs
Dosing pump
Water connections, inlet and outlet
Controller / filter receiver
Measuring chamber
Page 14
Installation
14
Connecting the mains voltage
Only connect the instrument to the specified mains voltage. Refer to
the rating plate for the appropriate mains voltage. Connect the cables
as follows:

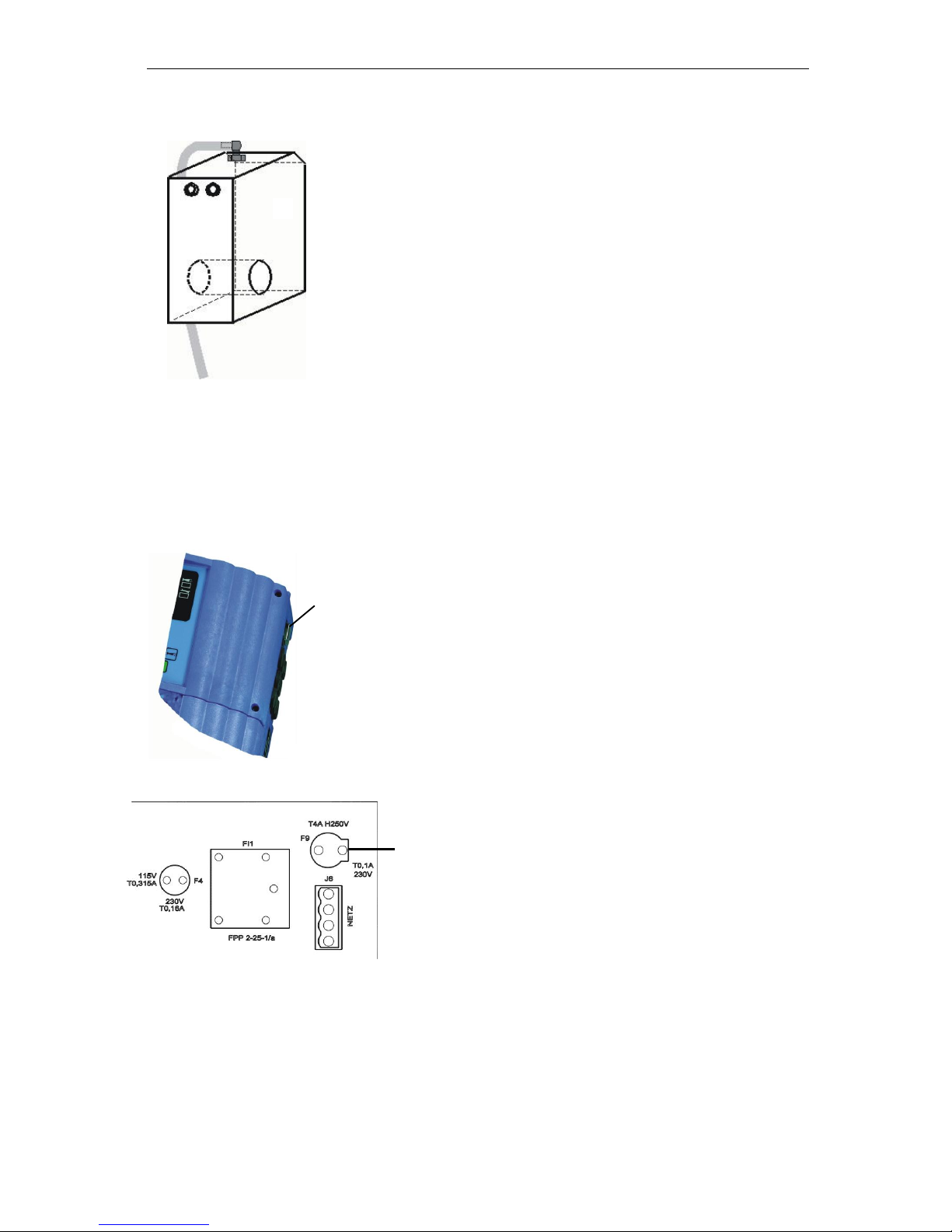

Loosen both fastening screws and open the upper door. The
terminal box is now accessible.
Pierce the required rubber cable glands with a screwdriver and
insert the cable through the bush into the terminal box (1)
Subsequently pull back the cable until the bush has been turned
over (2)
Connect the power supply to terminals PE,N,L or for 24 V instru-
ments to terminals U,V.
Ensure that the leads are held securely in the terminals.

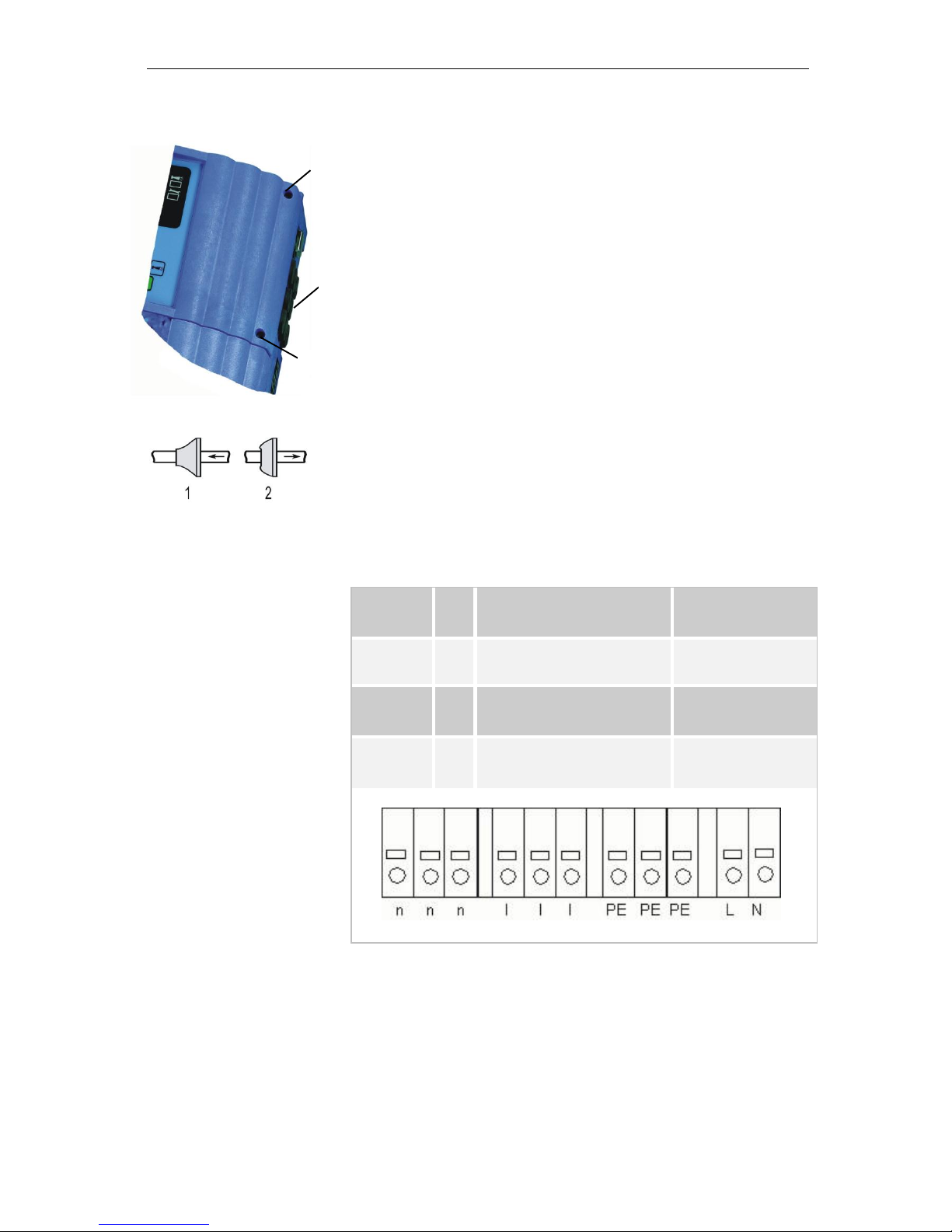

Terminal
description
Typ
et
Function
Comment
PE
IN
Mains – protective earth (3x)
Only with mains
115/230 V !
N (U)
L (V)
IN
Mains, N=neutral (U=24 V)
Mains, L=live (V=24 V)
Mains input
24 V / 115 V / 230 V
n
l
OUT
Neutral, switched (3x)
Live, switched (3x)
Mains for consumers, max. 4 A
Page 15
Installation
15

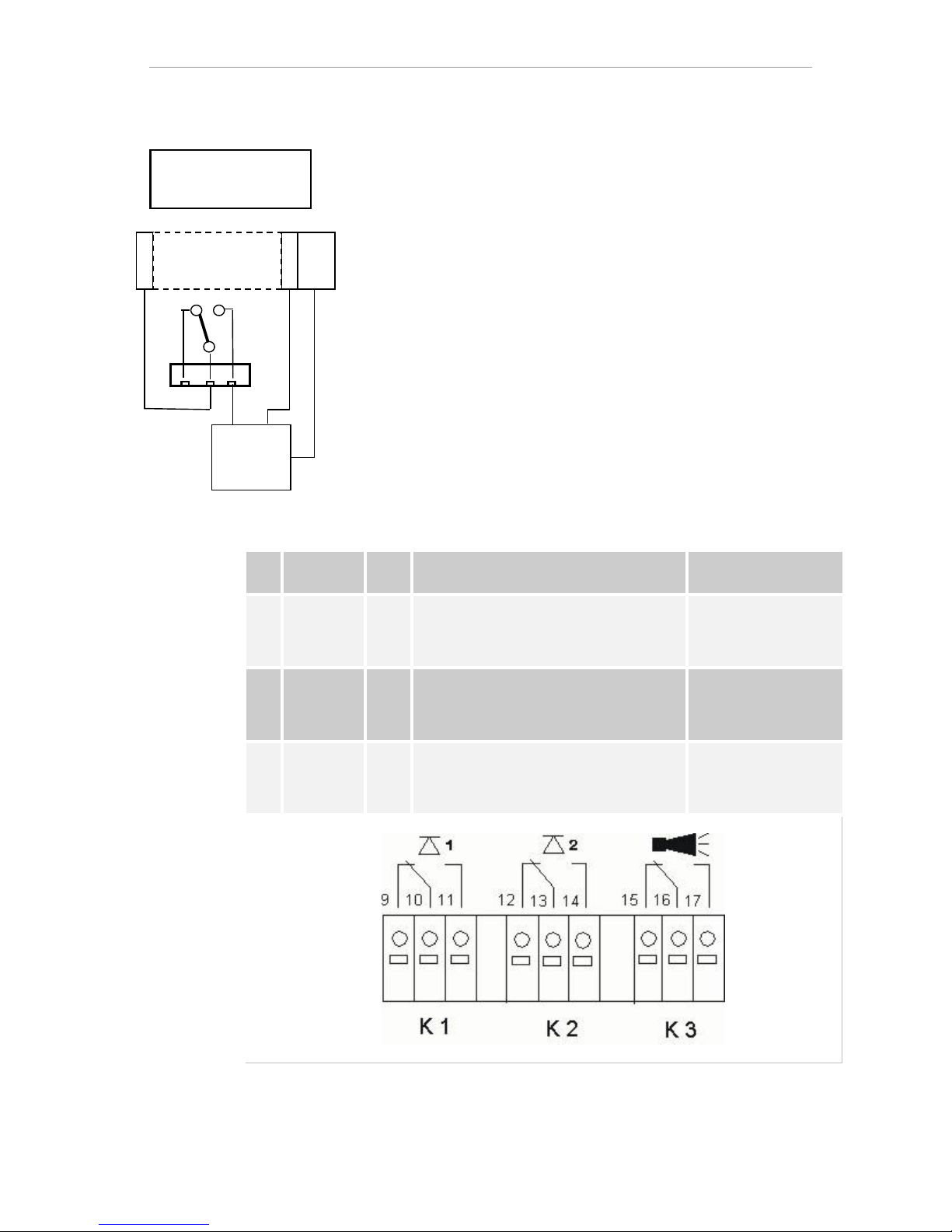

Connecting the plant components
Connect the plant components to the output terminals of relays 9
to 17 (e.g. valves).
If the plant components require mains voltage, connect the
switched mains voltage (l) to the common contact of the re-
spective relay (see the connection example for 230 VAC on the
left).
Connect the neutral conductor of the plant component to one of the
terminals (n)
For components with a protective earth conductor connection,
connect it to the PE connection.
Ensure that the leads are held securely in the terminals.
(Drawn relay positions: Instrument de-energised, mains: 230/115 V)
No.
Terminal
description
Type
Function
Comment
9
10
11
LV1
OUT
Limit value output 1 – Normally closed
Limit value output 1 – Common
Limit value output 1 – Normally open
Isolated relay output,
max. 240 VAC, 4 A
12
13
14
LV2
OUT
Limit value output 2 – Normally closed
Limit value output 2 – Common
Limit value output 2 – Normally open
Isolated relay output,
max. 240 VAC, 4 A
15
16
17
Alarm
OUT
Fault message output – Normally closed
Fault message output – Common
Fault message output – Normally open
Isolated relay output,
max. 240 VAC, 4 A
Connection example:
Limit value contact LV 1
switches mains voltage
11
l n
e.g.
solenoid
valve
PE
Page 16
Installation
16
Connecting the inputs and outputs
Testomat ECO® has the following connections for control and monitoring functions.
Do not connect external voltage to these connections!
Ensure that the leads are held securely in the terminals
Use the two fastening screws to close the upper door once installa-
tion has been completed.
* From serial number 227474
For more information, please refer to the section entitled "Description
of the signal inputs/outputs".
No.
Terminal
description
Type
Function
Comment
18
19
Stop
IN
External analysis stop
Common earth for inputs
Only for isolated normally
closed/normally open!
20
21
IN
IN
Water meter input
Common earth for inputs
Only for isolated normally
closed/normally open; or
observe the technical data
of the turbine!
22
23
OUT -
OUT +
OUT
Current interface 0/4 - 20 mA
Galvanically separated *
24 + OUT
+12 V for Hall sensor (turbine)
Observe the technical
data of the turbine! Max.
output current 20 mA!
Page 17
Commissioning
17
Commissioning
Trouble-free operation of Testomat ECO® is only guaranteed
when using Heyl Testomat® indicators!
Inserting the indicator bottle
Open the lower housing door by pulling on the right-hand side.
Remove the cap from the indicator bottle.
Remove the plastic bag from inside the lower housing door. The
plastic bag contains the screw cap with hole and the insert
for the screw cap.
Connect the parts as shown on the left.
Screw the hose connector of the intake hose hand-tight into
the insert .
Place the insert with the screwed-in intake hose into the indicator
bottle.
Now screw the screw cap with hole hand-tight onto the indica-
tor bottle.
Extracting the indicator
Switch the instrument on and press the "STANDBY" key
During operation, the pump (DOSIClip) automatically extracts
the indicator
To ensure that indicator is available for the initial analyses, the
intake hose and the transport hose must be filled with indi-
cator from the pump up to the measuring chamber.
Press the "manual" key several times until the intake hose
and the transport hose are filled with indicator up to the measuring chamber.
If necessary, manually tighten the hose connectors of the intake
and transport hose slightly in case of bubble formation.
Opening the water inlet
Open the lower housing cover.

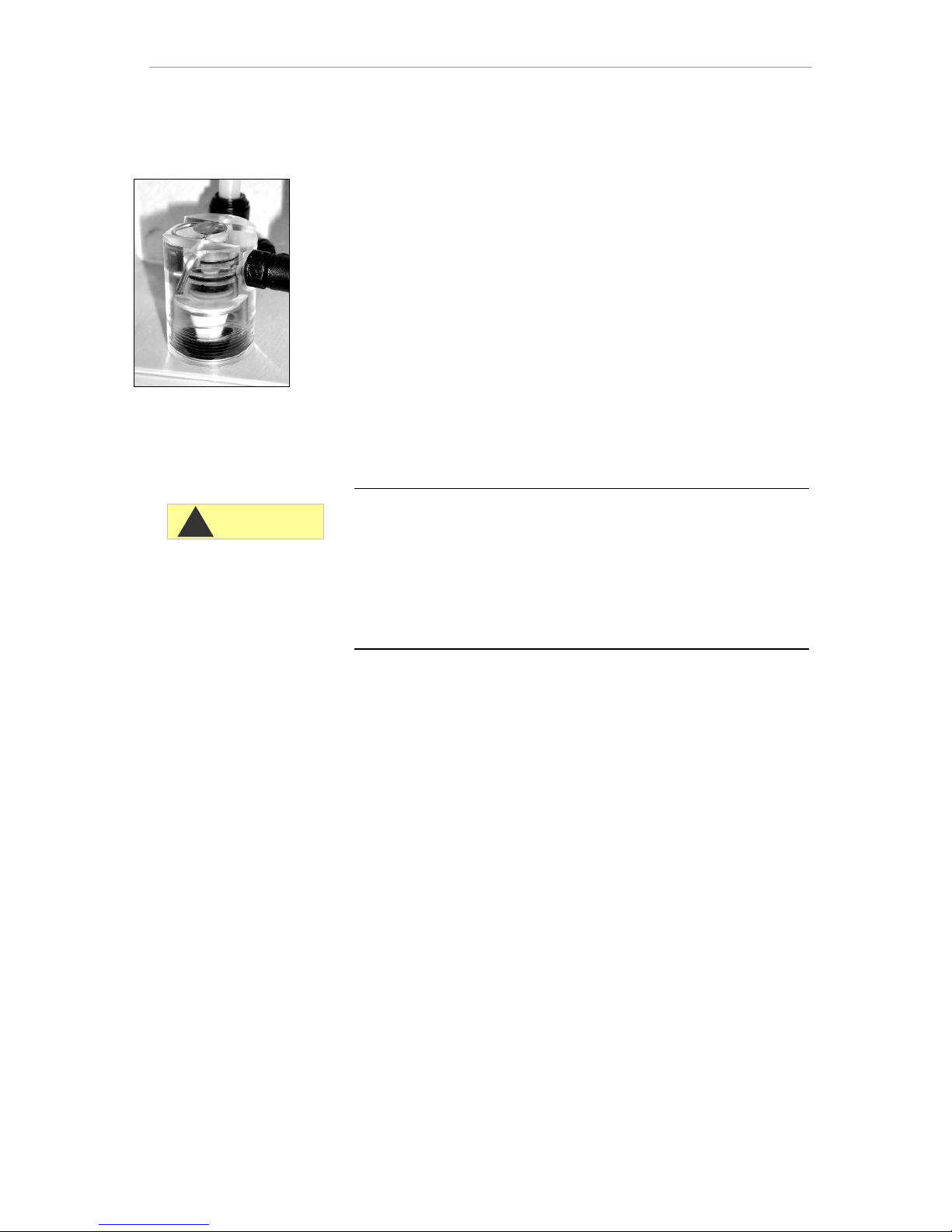

Slowly open the manually operated shut-off valve to prevent the
measuring chamber overflowing. The flow regulator requires a few
seconds to function correctly.
Make sure that the water conducting parts are not leaky.
CAUTION
!
Page 18
Functions of the operating and display elements
18
If water sprays from the tube of the measuring chamber ,
reduce the amount of inlet water via the manually operated shut-off
valve. It should take 2 to 6 seconds to fill the measuring chamber!
Instrument settings and data input
Please read the following information before carrying out settings
and entering data for operating the instrument.
Functions of the operating and dis-
play elements
The Testomat ECO® display shows operating statuses and measured
values. The input keys for programming (cursor block) and the function keys are located underneath the display.
Switching Testomat ECO® on/off
(1) Mains switch
Use this switch to switch the instrument on or off.
(2) Instrument fuse (inside the instrument)
This fuse protects Testomat ECO® and the outputs against
overloads and short circuits.
(1)
(2)
Page 19
Functions of the operating and display elements
19
1
2 3 4
2a
2b
5

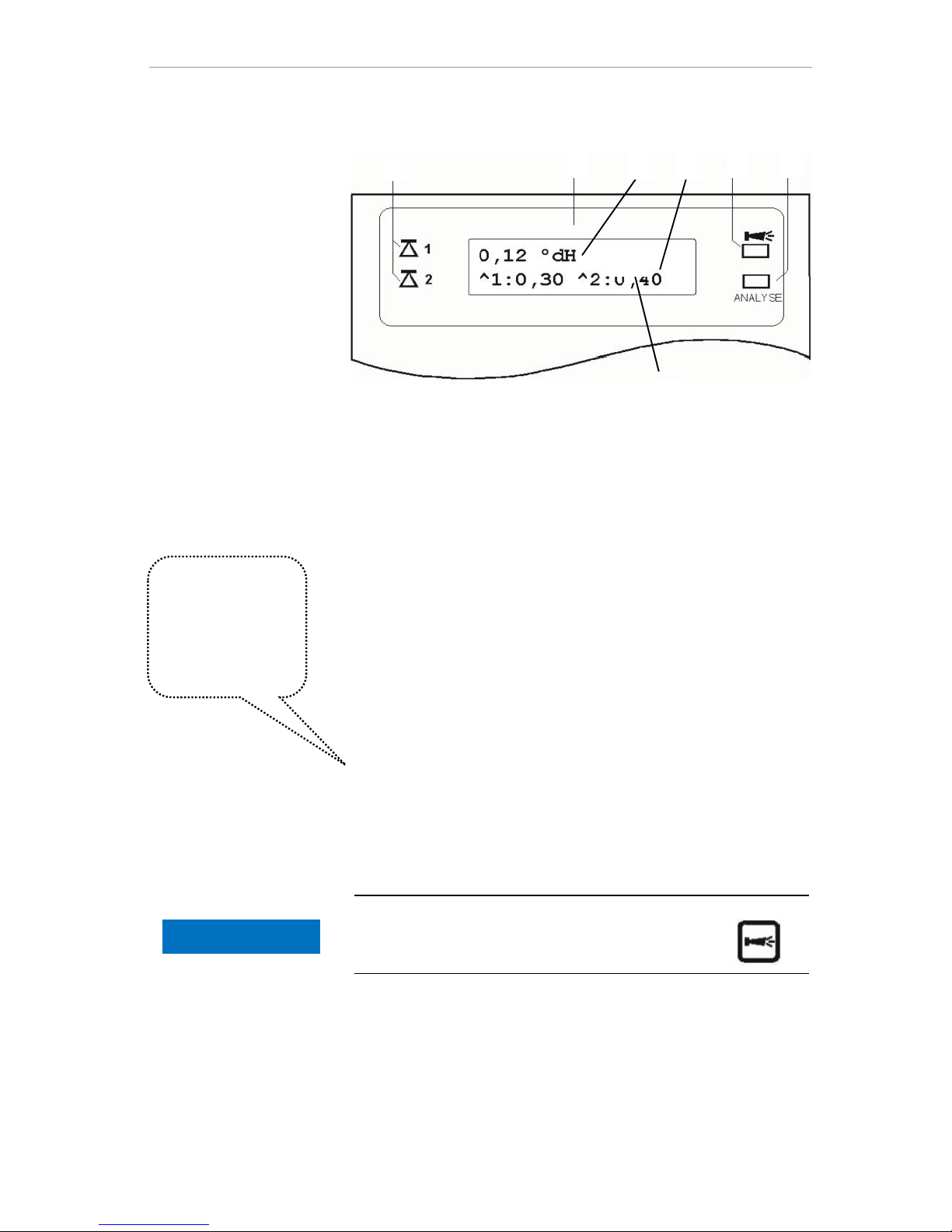

Display functions
1 Limit value status displays (red/green)
The display 1 illuminates red if limit value 1 has been reached or
exceeded. The display 1 illuminates green if the value falls below
the limit value. The same principle applies to limit value 2 and display 2.
2 Text display (2 lines)
Displays the current analysis result as well as all important statuses and programming data.
2a = The current measured value is displayed in line 1
Value falls below the measuring range = "<" e.g.: < 0.05 °dH
Value exceeds the measuring range = ">" e.g.: > 10.0 °dH
If the current analysis interval (analysis stop) is interrupted,
"STANDBY" is displayed alternately with the measured value.
2b = The set limit values LV1 and LV2 are displayed in line 2.
3 Alarm (red)
Indicates malfunctioning/error message or warning message.
4 Analysis message (yellow)
The yellow LED indicates a current analysis.
5 "BOB operation"
The symbol "╘╛" is displayed.
Cancelling error messages/warning messages
Eliminate the fault and acknowledge the message via
the "Horn" key.
All error and
warning
messages are
alternately shown
in line 1 of the
standard display!
╘╛
NOTE
Page 20
Functions of the operating and display elements
20

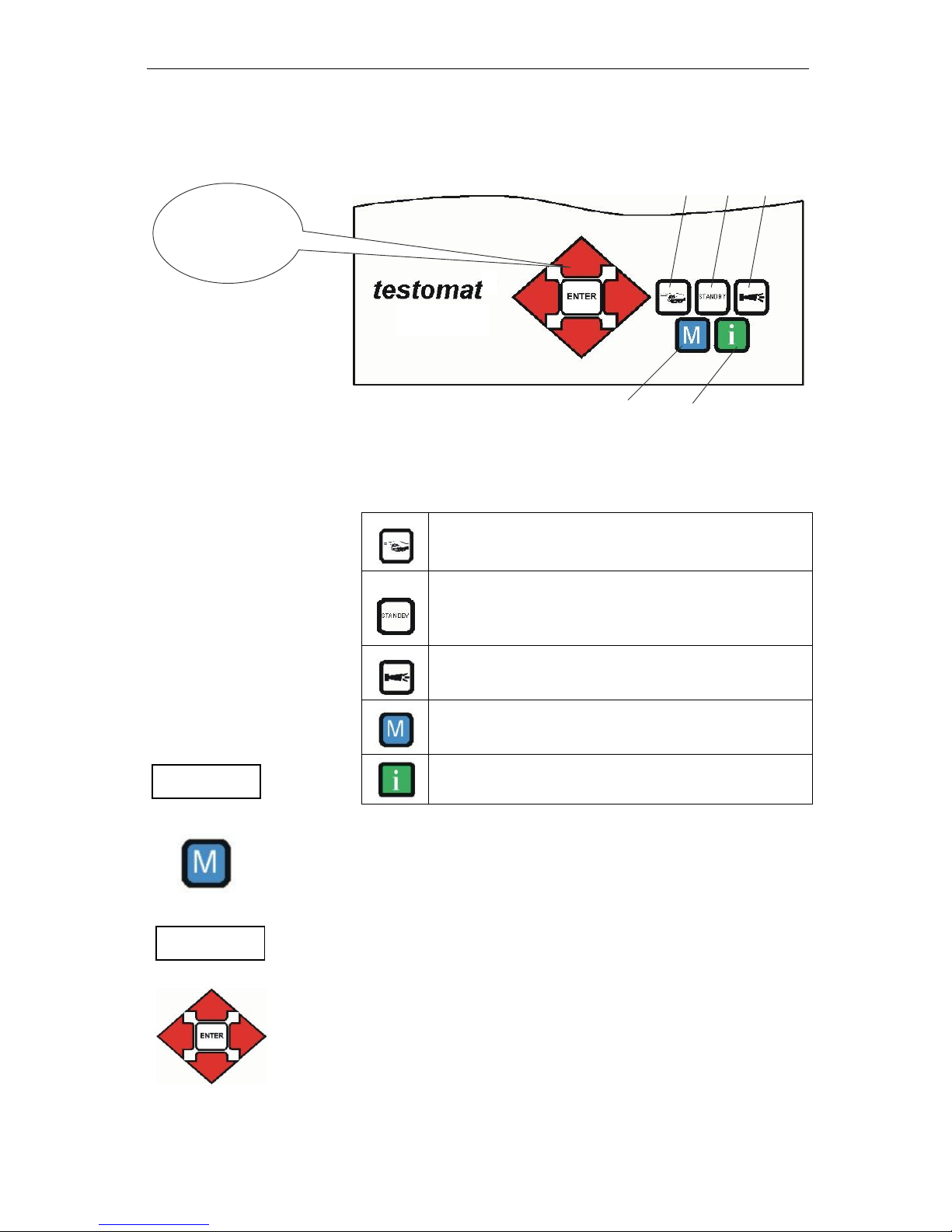

Operating elements and function keys
If you wish to carry out settings or enter data, or if alterations are
necessary, press the "M" key to open the programming mode. Use
this key when in the menu to go to the higher order menu items or to
exit the programming mode.
Programming keys (cursor block)
Use the programming keys (cursor block) to navigate in the menu, to
select the desired functions and to enter necessary instrument and
plant specific data. Press the "ENTER" key to select the submenu
item and to confirm and accept the selection or data input. The selected menu items are displayed in capital letters.
Function keys
Manually start an analysis via the "Manual" key
Set the instrument to standby mode via the "STANDBY"
key (automatic analyses are not carried out: analysis
stop)
Acknowledge error and warning messages via the
"Horn" key
Open the program menu for user-specific and instrument-
specific settings via the "M" key
Retrieve all instrument information and settings via the
"i" key
Cursor block
(M)enu key
Program-
ming keys
(cursor
ECO®
Page 21
Functions of the operating and display elements
21
Operating system

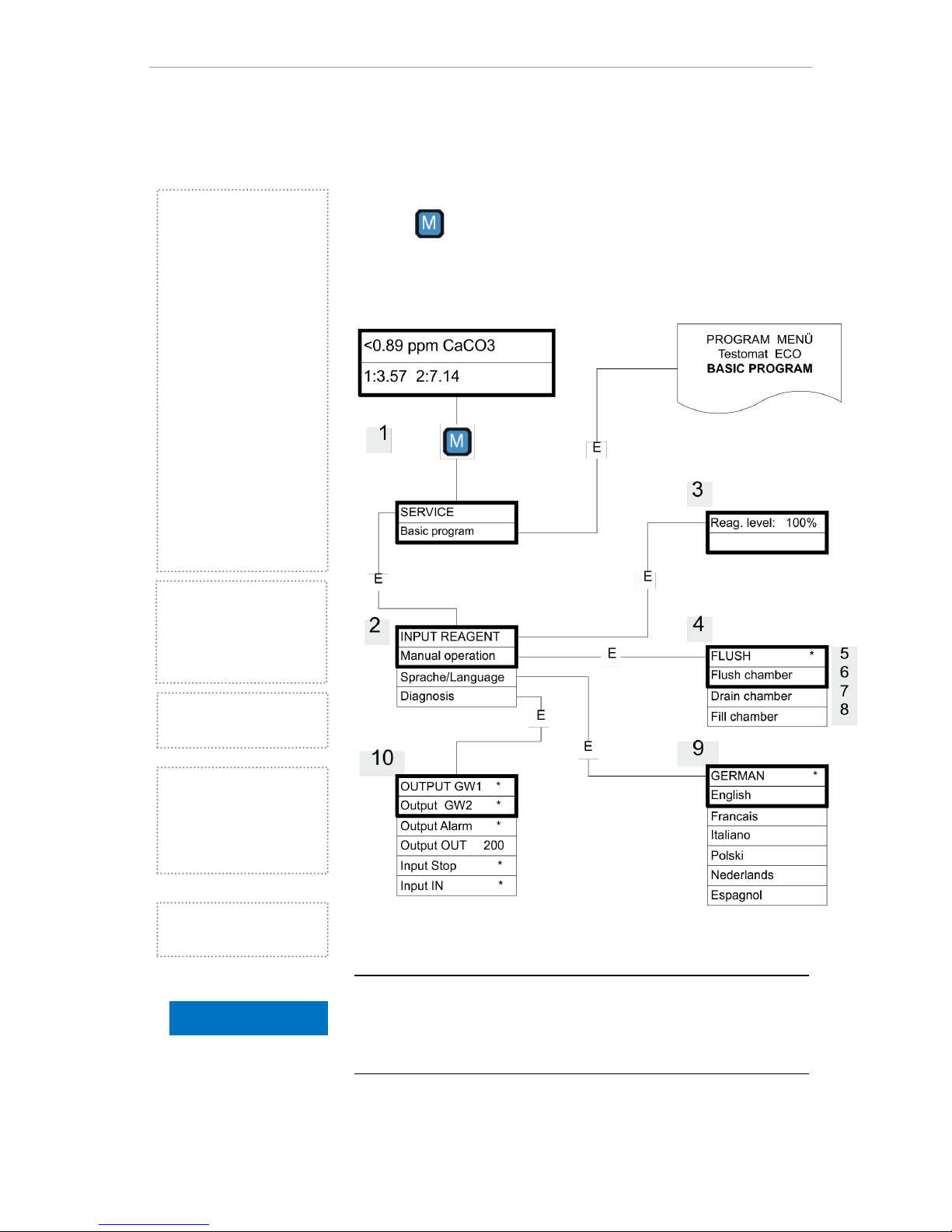

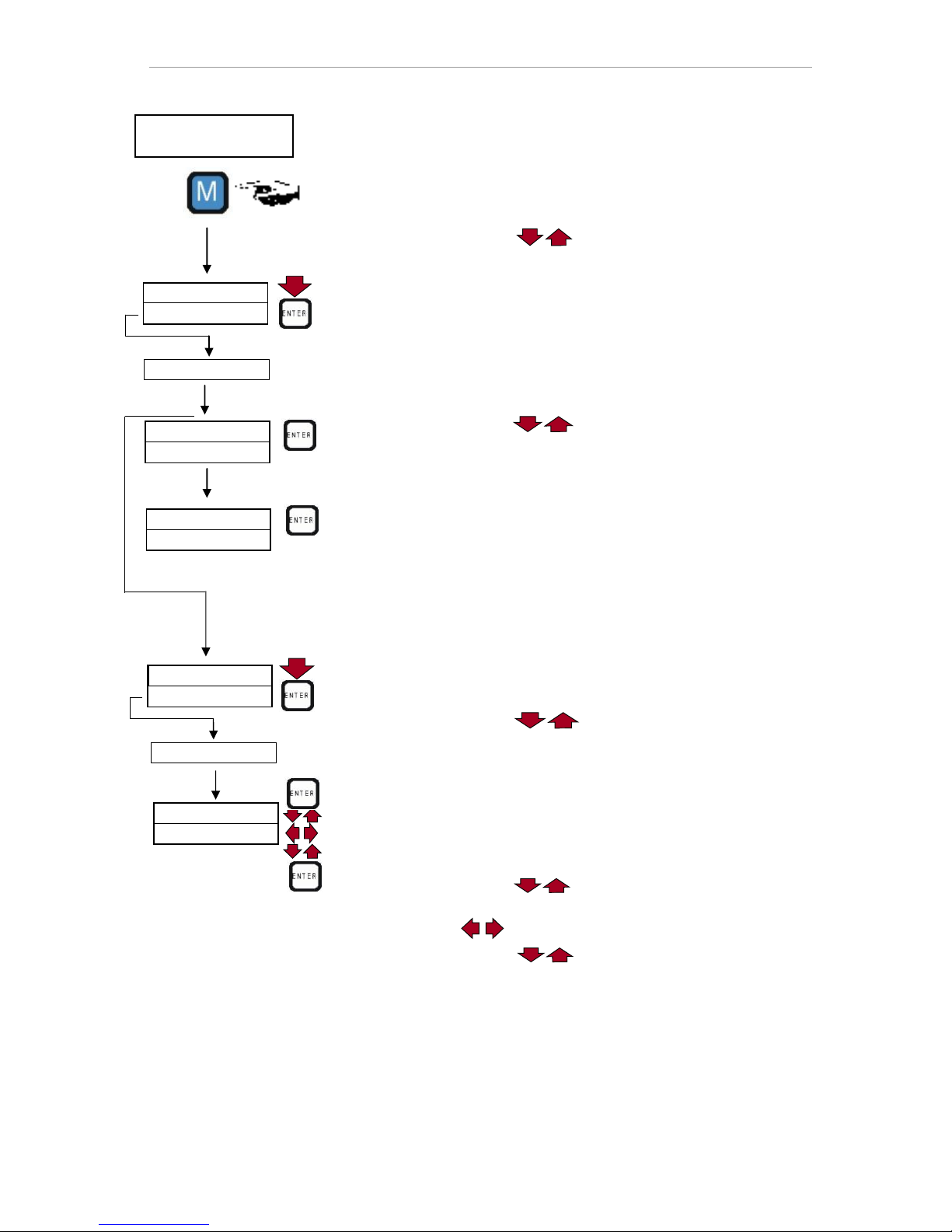

SELECTING FUNCTIONS (example: "select operating mode")
Press the "M" key
"SERVICE" or "Basic program" is displayed
Use the cursor block to select the desired menu item
"Basic program"
The selection appears in CAPITAL LETTERS.
Press "ENTER" to confirm your selection
"MODE OF OPERAT." or "Interval" is displayed
The menu item "OPERATING MODE" has already been selected
(capital letters)
Press "ENTER" to confirm the menu item "MODE OF OPERAT."
"TIME CONTROLLED" or "Interval" is displayed
Use the cursor keys to select the desired function
Press "ENTER" to activate/deactivate the function
(An asterisk " * " is displayed when the function has been activat-
ed)
The selected function has been activated/deactivated.
Note: You can select both functions here.
ENTERING DATA (example: interval pause/quantity interval)
Program the interval pause between two analyses in the menu item
"Interval".
After confirming the menu item "BASIC PROGRAM" via "ENTER",
proceed as follows to set the interval pause:
Use the cursor block to select the menu item "Inter-
val"
Press "ENTER" to confirm your selection
"TIME" or "Volume" is displayed
Press "ENTER" to confirm the menu item "TIME"
The cursor flashes at the first position of the time: "■2"
(it is possible to enter values from 0 to 99 minutes)
Use the cursor keys to select the
desired digit for the first position
Use the keys to move the cursor to the second input field
Use the cursor keys to select the
desired digit for the second position
Press "ENTER" to confirm the entry
The time interval has now been entered.
Enter the quantity interval in the same way after selecting the menu
item "VOLUME". Select the four digits and confirm via "ENTER". It is
possible to enter values between 1- 9999 litres.
Testomat instrument
(display) in display mode
SERVICE
Basic programm
MODE OF OPERAT.
Interval
BASIC PROGRAMM
TIME-CONTROLLED*
Interval
INTERVAL
MODE OF OPERAT.
Interval
TIME ■2m
Page 22
Entering basic program data
22
Entering basic program data

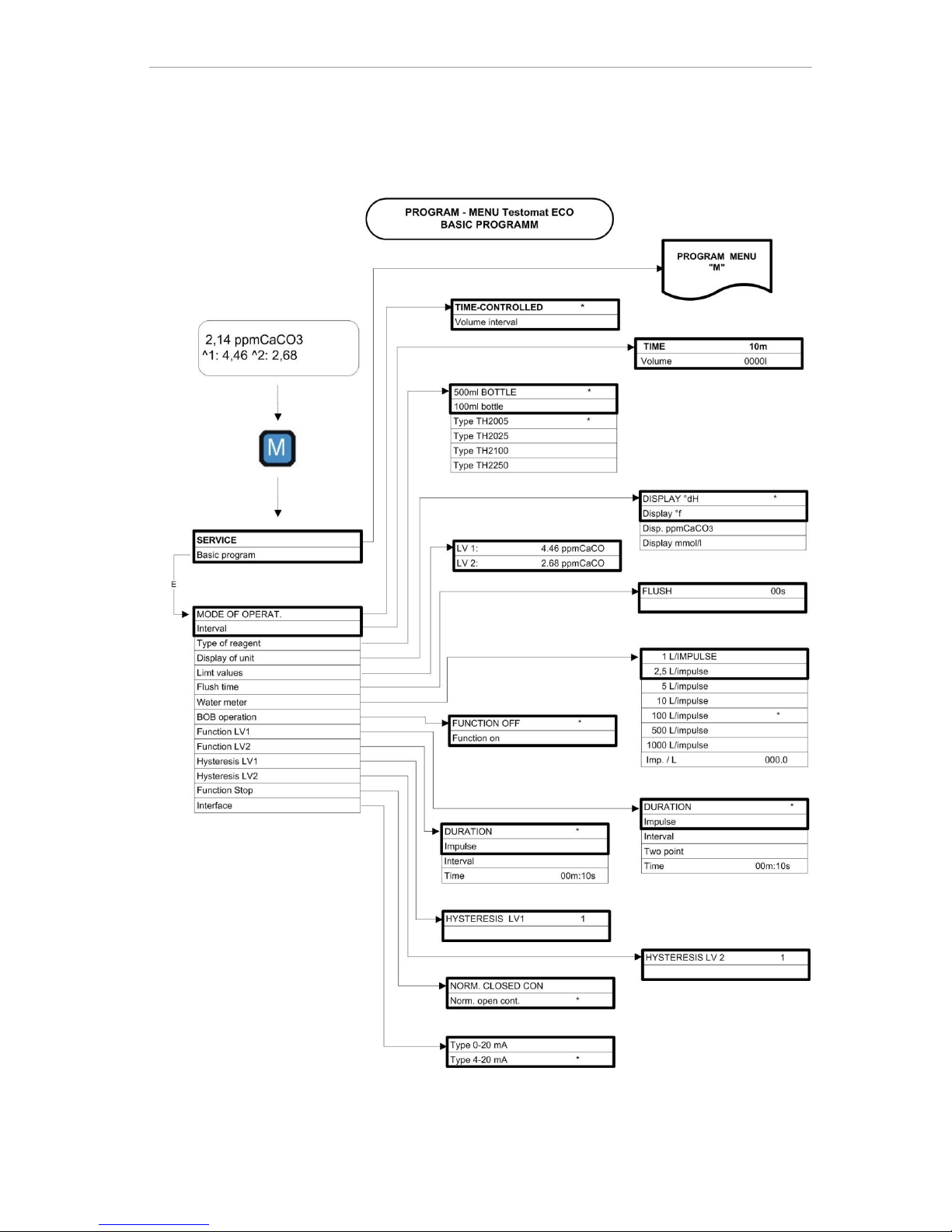

Selecting the indicator and the bottle size
In the menu, select => BASIC PROGRAM => MODE OF OPERAT. =>
TYPE OF REAGENT
Press "ENTER" to confirm the menu item "TYPE OF REAGENT "
The selection shown on the left is displayed.
Select the size of the indicator bottle
(A 500 ml bottle " * " is factory set)
Press "ENTER" to confirm the selection
(An asterisk " * " appears at the end of the line)
Select the indicator type
(The indicator type TH2005 " * " is factory set)
Press "ENTER" to confirm the selection
(An asterisk " * " appears at the end of the line)
The asterisk " * " displays the active menu item.
The indicator has now been selected.
Selecting the operating mode
Under the menu item "OPERATING MODE" it is possible to select the
type of analysis controller. Time control or quantity control via water
meter, or a combination of both, is possible with Testomat ECO®.
Shortest interval = 0 minutes between analyses. Largest interval = 99
minutes.
The analysis interval (interval between two analyses) is determined
by the set flush time, the programmed interval and the analysis duration. The analysis duration depends directly on the measured value.
Selecting the time control
In the menu, select => BASIC PROGRAM, => MODE OF OPERAT.
=> TIME CONTROLLED
Press "ENTER" to confirm the selection
(An asterisk " * " appears at the end of the line)
("TIME CONTROLLED" " * " is preset)
Type TH2005 *
100ml bottle
Type TH2025
Type TH2100
Type TH2250
500ml bottle *
Time control
Internal start via timer.
Volume interval
TIME-CONTROLLED *
Page 23
Entering basic program data
23
Setting the analysis interval (interval pause)
If the analysis is triggered via a timer, the interval between two analyses is determined by the interval pause (plus flushing time). The
shortest interval pause can be 0 minutes. In this case, analyses are
carried out continuously. The longest interval is 99 minutes.
In the menu, select => BASIC PROGRAM => INTERVAL => TIME
Use the cursor keys to select the interval in minutes
(10 minutes are preset)
Press "ENTER" to complete all the entries

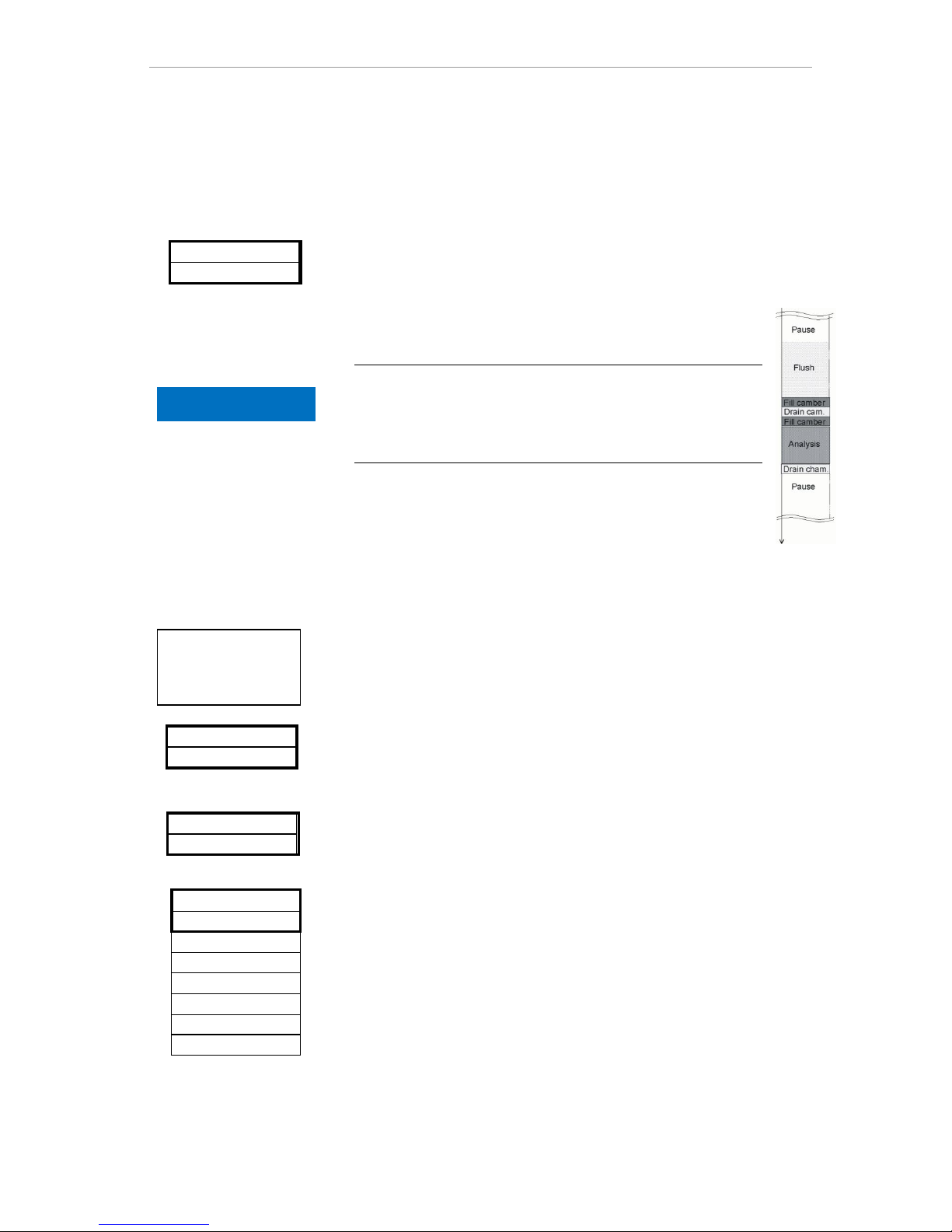

Duration of the analysis interval
The analysis interval is the addition of the "analysis inter-
val", the "flushing time" and the measuring value-dependent
analysis duration (see diagram on the left)
Selecting the quantity control
Minimum interval = 1 litre, maximum interval = 9999 litres. The analysis is carried out once the programmed water quantity has been
measured. The line and the measuring chamber are flushed prior to
the analysis (observe the programmed flush times).
In the menu, select => BASIC PROGRAM => INTERVAL =>
VOLUME
Press "ENTER" to confirm the selection
Enter the respective flow rate in litres
Press "ENTER" to confirm the entry
Selecting the type of water meter
It is necessary to connect a water meter to input IN for quantitydependent analysis triggering.
Select the menu => BASIC PROGRAM => WATER METER
Select the water meter constant (litre/impulse)
(100 litres/impulse " * " is factory set)
Or enter the reciprocal value in Imp/l in the last field
when using a turbine with a high impulse number
Press "ENTER" to confirm the selection/entry
Quantity control
Start via water meter
500 L/impulse
5 L/impulse
2,5 L/impulse
10 L/impulse
100 L/impulse *
1000 L/impuls
1 L/IMPULSE
Imp/L 000.0
Volume 0000l
TIME 10m
VOLUME 0350l
Time 10m
VOLUME INTERVAL *
Time-controlled
NOTE
Page 24
Entering basic program data
24
Selecting the quantity control/time priority
The analysis is carried out once the programmed water quantity has
been measured. An analysis is always triggered with higher priority
when the programmed interval time has been reached.
Selecting the function
The process is the same as for "Selecting the time control"
The process is the same as for "Selecting the quantity control"
Press "ENTER" to confirm all the entries
Selecting the display unit
It is possible to program the unit of the displayed value. The units dH,
°f, ppm CaCO3 and mmol/l can be selected. All the following inputs
and displays will then be displayed in the programmed unit.
In the menu, select =>BASIC PROGRAM=> DISPLAY OF UNIT
Select the desired unit
(°dH is factory set)
Press "ENTER" to confirm the selection
Entering the flushing time
To ensure that the analysed sample represents the current value, the
sampling line must be sufficiently flushed. If the plant has been out of
operation for a longer period or in case of long analysis intervals, we
recommend you to select a flushing time greater than 60 seconds.
Flushing starts by simultaneously opening the inlet and the outlet
valve of Testomat ECO®.
Duration of the analysis interval
The analysis interval depends directly on the programmed flushing
time. If, e.g., a flushing time of 90 seconds has been set, the actual
analysis interval cannot be less than 90 seconds.
Entering the flushing time
In the menu, select => BASIC PROGRAM=> FLUSH TIME =>
FLUSH
Enter the time in seconds (s) in the menu item "FLUSH"
(00 seconds (s) is preset)
Press "ENTER" to complete all the entries
Quantity control /
Time priority
VOLUME INTERVALL *
TIME-CONTROLLED *
VOLUME 0350l
TIME 10m
Disp. ppmCaCO
Display °f
Display mmol/l
DISPLAY °dH *
FLUSH 00s
NOTE
Page 25
Entering basic program data
25
Limit value monitoring
It is possible to program the limit values on a continuous scale. The
limit value range depends on the used indicator type and the programmed unit. It is possible to monitor two limit values. One limit
value output is available for each limit value. The functions of the
allocated relay outputs can be programmed independently of each
other.
The limit value outputs are strictly allocated to the limit values!
1 LV1 = Limit value 1 2 LV2 = Limit value 2
If the limit value LV1 has been exceeded, the limit value control display 1 lights up RED and the relay output LV1 reacts as programmed in the switch function. If the limit value has not been exceeded, the display lights up GREEN. The same applies for the limit
value LV2.
Entering the limit values
In the menu, select =>BASIC PROGRAM=> LIMIT VALUES
Enter the values for "LV 1" or "LV 2"
Press "ENTER" to confirm the entry
Hysteresis
The respective limit value output only switches after the first, second
or third bad analysis (suppression of the first or the second measured
value). This increases the reliability of the analysis evaluation, e.g. if
the sampling line has not been flushed sufficiently. The hystereses of
the two outputs LV1 and LV2 can be set independently of each other.
With a hysteresis of "2", the next analysis is immediately carried out
when the limit value of this analysis has been exceeded for the first
time. The respective output is only switched after the limit value of
this analysis has been exceeded for a second time. With a hysteresis
of "3", the respective output only switches when the limit value of this
analysis has been exceeded for a third time. This setting is only reactivated once the value has fallen below the limit value!
(The basic setting for LV1 and LV2 is 1)
In the menu, select => BASIC MENU
=> HYSTERESIS LV1 or HYSTERESIS LV2
Enter the number of analyses
Press "ENTER" to confirm the entry
Monitoring of two
limit values
LV 2: 0,15 °dH
LV 1: 0,25 °dH
HYSTERESIS LV1 1
Suppression of
bad analyses
HYSTERESIS LV2 1
Page 26
Entering basic program data
26

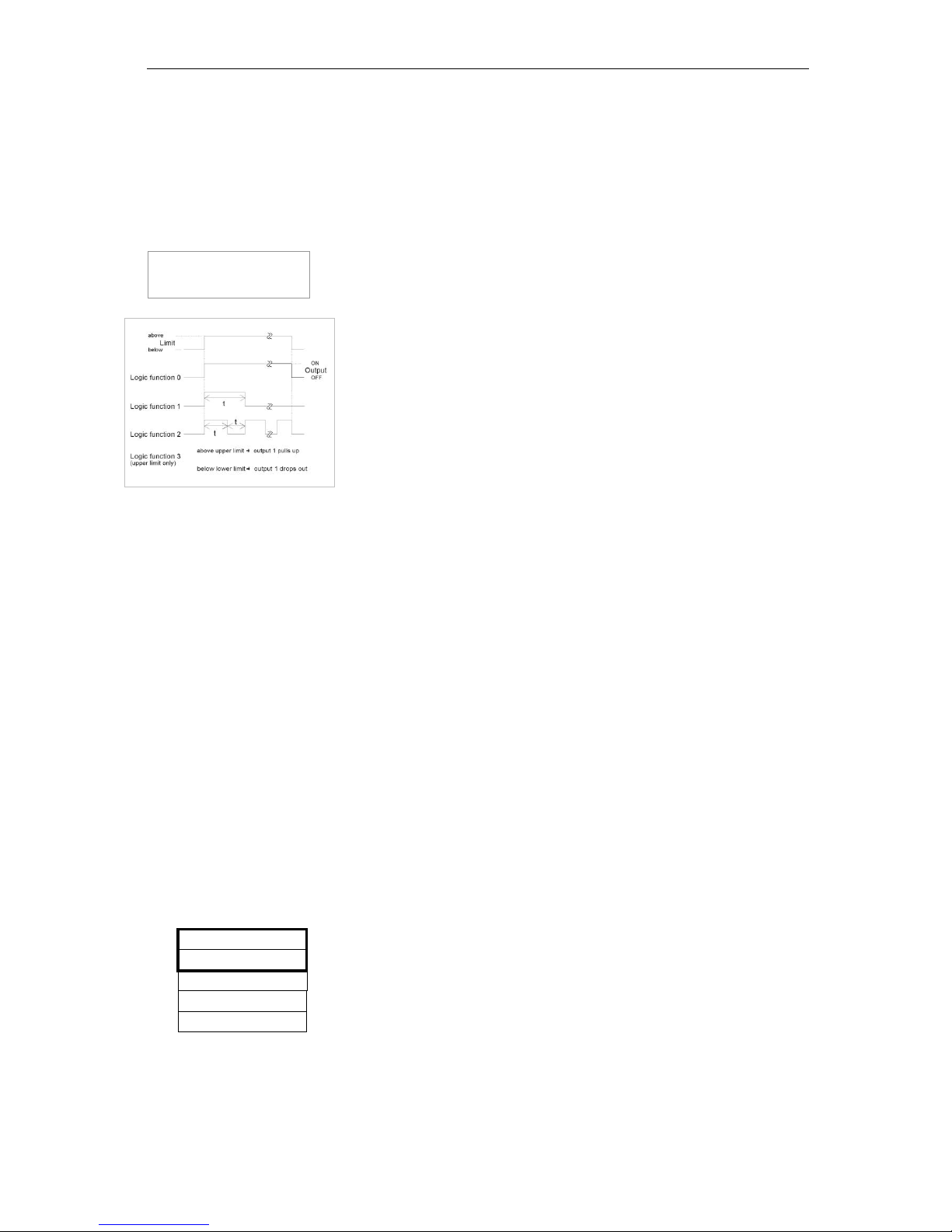

Switch functions of the limit value outputs
LV1 and LV2
Switch function 0, duration
If the limit value LV1 or LV2 has been exceeded, the output relay LV1
or LV2 switches. If the measured value falls below the limit value
LV1 or LV2, the relevant relay drops out again.
Switch function 1, impulse
If the measured value exceeds the limit value LV1 or LV2, the relevant output switches for a settable time (t).
The respective output always remains switched for the set time, irrespective of how long the limit value has been exceeded. A new impulse is only possible once the value has fallen below the limit value!
Switch function 2, interval
If the limit value has been exceeded, the respective output switches
at intervals with the settable time (t) = impulse or interval as long as
the limit value is exceeded. The switching on time and the interval are
the same.
Switch function 3, two-point
If the upper limit value LV1 has been exceeded, the output relay LV1
switches. If the value falls below the lower limit value LV2, the output
relay LV1 drops out again. The output relay LV2 switches according
to the programmed switch function.
The function 3 is only possible if different values are used for the limit
values LV1 and LV2. For example, for LV1 = 0.2 °dH and for LV2 =
0.1 °dH.
Selecting the functions
In the menu, select => BASIC PROGRAM => FUNCTION LV1 or
FUNCTION LV2
Select the duration, impulse, interval or two-point (only for LV1)
(An asterisk " * " appears at the end of the line)
Enter the time (only for switch function 1 and 2)
(it is possible to enter values from 00:00 to 99 min. and 99 sec.)
Press "ENTER" to confirm the entry
Impulse
Interval
Two point
Time 00m:10s
DURATION *
Switch functions
diagram
Page 27
Entering basic program data
27
BOB operation (operation without permanent
supervision)
Operation without permanent supervision is a safety relevant feature
when using the instrument as a water hardness monitoring unit for
monitoring steam boiler plants in accordance with TRD 604.
If the BOB function has been programmed, the instrument continuously checks the available amount of indicator. A measuring value of
0.083 °dH (= 0.015 mmol/l alkaline earth ions) is decisive for the calculation of indicator consumption per analysis. If the residual amount
is insufficient for the BOB period of 72 hours, an alarm message is
output.
Selecting BOB operation
In the menu, select => BASIC PROGRAM => BOB OPERATION
Select "FUNCTION ON"
Press "ENTER" to confirm the entry
BOB on: Continuous monitoring of the residual amount of indicator.
ALARM message "low indicator level" when the amount of indicator
falls below the minimum quantity for the BOB time period: BOB flashes, the ALARM output is switched.
BOB off: No BOB function. Monitoring of the residual amount of
indicator only to minimum quantity (filling level 10%)
Example:
BOB time period = 72 hours Number of analyses per hour = 10
Required amount of indicator for 72 h = 72 h x 10 analyses/h x (3 x
30) μl/analysis = 64.8 ml.
(This corresponds to a filling height of approx. 13 % for a 500 ml bot-
tle)
Using BOB operation
BOB operation is not possible with the operating mode "volume
control"!
Only select the operating mode "time-controlled"!
FUNCTION ON *
Function off
NOTE
Page 28
Description of the signal inputs/outputs
28
Description of the signal in-
puts/outputs
Connecting the signal inputs
Only connect the signal inputs "Stop" and "IN" with volt-free con-
tacts!
The connection of external voltages would damage the instrument!
Stop input
Function
Contact type
Test
time
Action
Stop
External analysis
stop (e.g. via flow
controller or process controller)
Programmable:
Normally
closed or
normally open
None
As long as the contact at the input is
'open' or 'closed', no
analyses are carried
out
An active Stop input prevents an analysis start, e.g. via a current
interval. This can be necessary if the plant does not supply water. A
current analysis is stopped when the input valve is opened (while the
measuring chamber is being flushed or filled). The water which has
already entered the measuring chamber remains there. If the measuring chamber is already full, the analysis is executed. Manual start
has priority over the Stop input, i.e. if the Stop input is active, an
analysis can be started manually or a manually started analysis can-
not be stopped by the stop signal. In the operating mode “timecontrolled”, the interval time continues when the Stop input has been
activated.
As long as the Stop signal is present, "STANDBY" is displayed alternatively to the measured value.
Programming the switch function "Stop input"
In the menu, select => BASIC PROGRAM => FUNCTION STOP
Select the type of contact
Press "ENTER" to confirm the selection
Norm. open cont. *
NORM. CLOSED CON
Stop
Terminals 18,19
CAUTION
!
Page 29
Description of the signal inputs/outputs
29
Water meter input
Function
Contact type
Test
time
Action
IN
Water meter
input
normally
open/normally closed
or turbine
(isolated!)
None
Quantity recording
for starting an analysis
Connecting a turbine
Besides the connections 20 and 21, an additional power supply is
required for connecting a turbine. Connect this power supply (+ 12 V)
to terminal 24.
The connection configuration is shown in the diagram on the left.
Programming the water meter input
WIn the menu, select => BASIC PROGRAM=> WATER METER
Select the meter constant of the water meter
Press "ENTER" to confirm the selection
Or when using a turbine
Select "Imp/L"
Enter the rating of the turbine
(ranges from 1 to 999.9 impulses/litre)
Press "ENTER" to confirm the entry
Current interface 0/4 - 20 mA
Function
Connection
Action
OUT
Current interface
0/4 - 20 mA
max. load
500 Ohms
programmable:
0 - 20 mA or
4 - 20 mA
Current interface load
The maximum load of 500 Ohms should not be exceeded!
In case of possible faults and when using very long cables (approx.
20 m), a screened cable should be used, if possible.
IN
Terminals 20,21
500 L/impulse
5 L/impulse
2,5 L/impulse
10 L/impulse
100 L/impulse *
1000 L/impulse
1 L/IMPULSE
Imp/L 000.0
OUT
Terminals 22,23
NOTE
Page 30
Description of the signal inputs/outputs
30
Page 31
Description of the signal inputs/outputs
31
Monitoring the measuring point
A printer can be connected to record the analysis results. The instrument is equipped with a programmable current output for this purpose (optional 0-20 mA or 4-20 mA).
The example on the left displays the current profile in the 0-20 mA
range.
In the menu, select => BASIC PROGRAM => INTERFACE
Select the desired current range
Press "ENTER" to confirm the selection

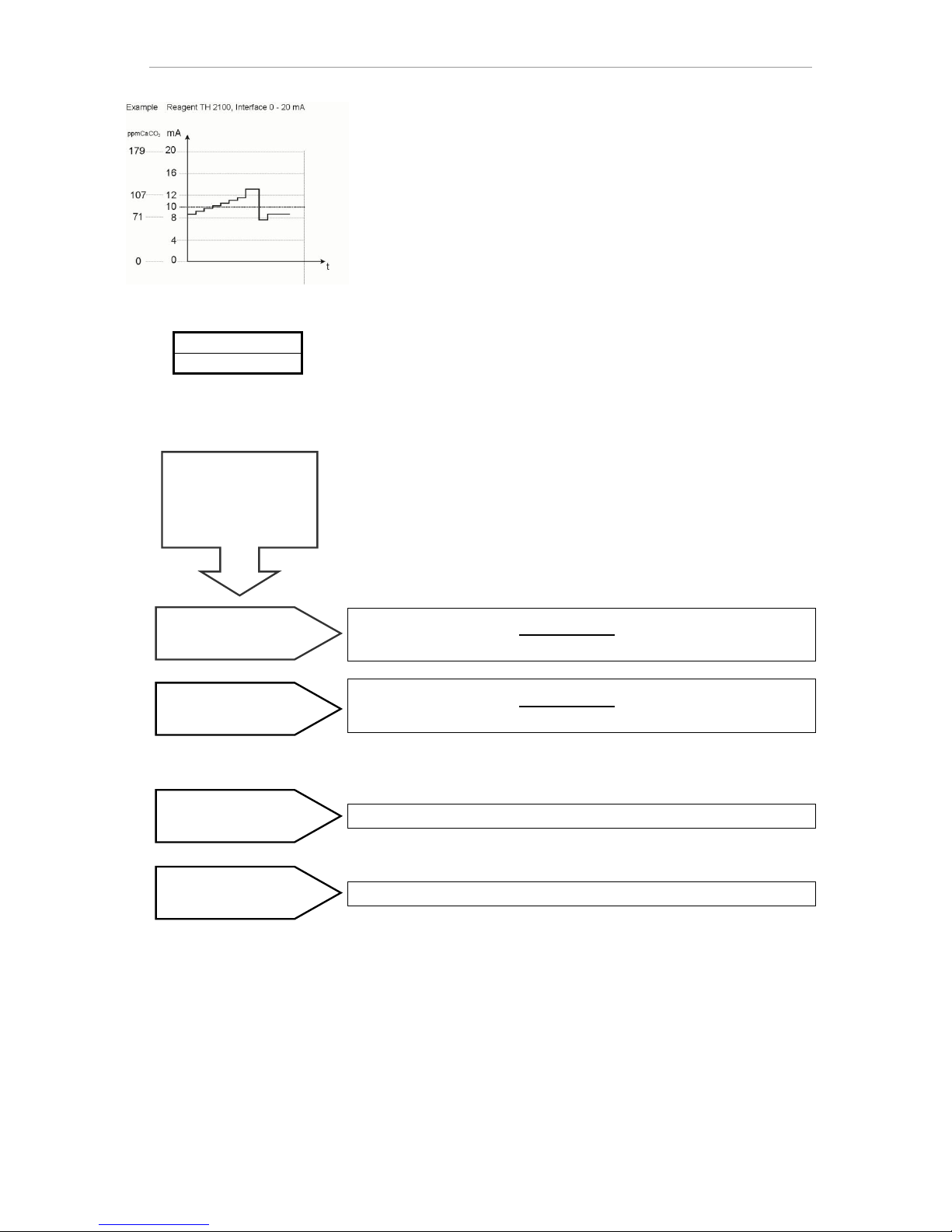

Calculating the output currents
Depending on the selected function, either the current range 0 – 20
mA or 4 – 20 mA is available. The resulting currents for the different
measured values are displayed via the formulas below.
Measured value
Current = x 20 mA
Maximum value
Measured value
Current = x 16 mA + 4 mA
Maximum value
The current is set to 0 or 4 mA.
The current is set to 20 mA.
Measured value = Value displayed in the selected hardness unit
Maximum value = Final value of the used indicator
(e.g. indicator type 2005 = 0.5 °dH)
Function
0 - 20 mA
Function
4 - 20 mA
Measuring range not
reached (e.g. <0.05 °dH)
Measuring range exceeded (e.g. >0.5 °dH)
How is the current
calculated for a cer-
tain measured value?
Type 4 - 20 mA *
Type 0 - 20 mA
Page 32
Description of the relay outputs
32
Description of the relay outputs
All relay outputs are neutral contacts. This ensures that all connection
options are available. The switching of mains voltage and external
voltage, and the direct switching of inputs, e.g. a process controller,
can be realised.
LV1 and LV2 limit value outputs
Two volt-free relay contacts are available to signal that a limit value
has been exceeded. The limit values, the hysteresis and the switch
function can be freely programmed for both contacts:
Function
Contact
Action
LV1
Relay switches if limit value
1 is exceeded
Volt-free
changeover
contact
programmable:
- Continuous contact
- Impulse (1-99 seconds/minutes)
- Interval (1-99 seconds/minutes)
- Two-step controller
- Hysteresis (1, 2 or 3 limit values
exceeded
Function
Contact
Action
LV2
Relay switches if limit value
2 is exceeded
Volt-free
changeover
contact
programmable:
- Continuous contact
- Impulse (1-99 seconds/minutes)
- Interval (1-99 seconds/minutes)
- Hysteresis (1, 2 or 3 limit values
exceeded
For a detailed description and programming refer to the section entitled "Switch functions of the limit value outputs LV1 and LV2"!
Limit value 1
Terminals 9,10,11
Limit value 2
Terminals 12,13,14
Page 33
Description of the relay outputs
33
Alarm/Message (fault message output)
The instrument is equipped with an ALARM relay output for signalling
faults. The fault message is displayed via the fault LED and on the
display.
Error messages
The error message can only be deleted once the error has been
eliminated!
The "Alarm" output is a volt-free change-over relay contact. During
trouble-free operation the contact between the terminals 16 – 17 is
closed and the one between terminals 15 -16 is open. In case of a
voltage breakdown, the contact between the terminals 15 – 16 is
closed and the one between terminals 16 – 17 is open.
The instrument is equipped with a range of monitoring functions with
the following functions/behaviour of the "Alarm" output:
- With a continuous contact, the "Alarm" output remains activated
(terminals 15 – 16 closed) as long as the fault persists.
- The red LED "Alarm" and the text on the display indicate a fault.
- The fault message signal at the "Alarm" output is deleted by con-
firming the fault via the "Horn" key.
- The error message can only be deleted if the fault has been elim-
inated.
- Exception: "Low indicator level", this message is confirmed in the
M menu under Service by entering the new indicator filling level.
- There is no additional alarm via the fault message output when
the limit value is exceeded!
The error messages are described under "Error messages / Troubleshooting"
A description of the possible causes of malfunctioning can be found
in the section entitled “Error messages / Troubleshooting".
Alarm
Terminals 15,16,17
Low water pressure
Function fault optics
Measuring fault analysis
Function fault dosing
pump
Function fault drain outlet
Low indicator level
Function fault soiling
Measuring fault turbid
Measuring range exceeded
The following faults
activate the "Alarm"
output and are
displayed:
NOTE
Page 34
Information menu "i"
34
Information menu "i"
Request current settings and statuses of the instrument in the Information menu.
Call (1)
Use the key to open the information menu "i".
Request options: Operating values, program values
Please refer to the section entitled "Entering basic program data" for
further programming and setting details of the individual menu items".
Operating values (3)
Display of the current values:
- Indicator filling level
- Software version
Program values (4)
Use the arrow keys to open the
menu item "Program values".
Press the "ENTER" key to open
the list of the set values. Press
the "ENTER" key to request the
current setting of a parameter
=> (4a)
An asterisk indicates the selected functions. (There are no
active lines.)
Selection of the program
value (4a)
Display of the programmed
indicator type and its hardness
range.
Call (1)
Opening the information menu
for checking or requesting
settings and operating values.
Selection (2)
- Operating values or
- Program values
Page 35
Program menu "M"
35
Program menu "M"
Call (1)
Use the key to open the program menu "M".
Programming of: Indicator, manual operation, flush, flush chamber,
drain chamber, fill chamber, language, diagnosis
Availability of functions
All manual functions can only be selected during an analysis
pause. Analyses are not carried out during manual operation. All
signal inputs and outputs are locked.
Service (2)
Input indicator (3)
Enter the new filling levels after
each refill or indicator bottle
change. Once you have selected the menu item for entering
the filling level "Indicator filling
(0 - 100%)" via the "ENTER"
key, the value is preset to
100%. If you have connected a
full bottle, press "ENTER" to
confirm the value.
If the filling level of the bottle
differs, enter the corresponding
value.
Manual operation (4)
After confirming the information
message (4) via the "ENTER"
key, it is possible to select and
activate the desired function by
using the arrow keys and
pressing the "ENTER" key.
These functions are used for
checking the functions and for
commissioning.
Fill chamber (8)
Press the "ENTER" key to fill
the measuring chamber.
Flush (5)
Press the "ENTER" key to start
the flushing of the sampling line
via the internal valves. Press
the "ENTER" key again to
cancel this function.
Flush chamber (6)
Press the "ENTER" key to flush
the measuring chamber once.
Drain chamber (7)
Press the "ENTER" key to open
the outlet valve in order to drain
the water from the measuring
chamber. Press the "ENTER"
key again to cancel this function.
NOTE
Page 36
Program menu "M"
36
Language (9)
Select the desired language for the display.
Diagnosis (10)
It is possible to request a list of current statuses of the signal inputs
and outputs. Active statuses are marked with an *. (See "Structure of
the basic program").
The current interface can be checked under "OUT output". Press the
"Enter" key to toggle between minimum and maximum current.
Changeover occurs between 000 and 200 at 0-20 mA!
Basic program
Access this menu item by pressing the "M" key (menu). Here you can
carry out basic programming of the instrument and select various
service functions.
In the basic program, the following abbreviations are used in the respective menu items:
s = seconds; m = minutes; h = hours; T = days; l = litres
Francais
English *
Italiano
Polski
Nederlands
GERMAN
Espanol
Page 37
Program menu "M"
37
Structure of the basic program
Call the basic factory program by simultaneously pressing and holding down the "M" and "i" keys
while switching on the instrument. CAUTION, the most recent programming will be lost!
Page 38
Error messages/Troubleshooting
38
Error messages/Troubleshooting
Displayed message (flashes at
selected display)
Instrument result functions
Possible causes
Remedies
Ff. DOSING PUMP
CANCEL WITH HORN KEY
- Continuous alarm
- Standby
- Dosing pump is defective
- No dosing message from
the dosing pump
Replace dosing pump
Check cable to the dosing
pump for correct connection
MSt. TURBID
CANCEL WITH HORN KEY
- Continuous alarm
- Continue measurements
- The water is turbid / soiled
MEASURING RANGE EXCEEDED
CANCEL WITH HORN KEY
- Continuous alarm
- Continue measurements
- The measuring range has
been exceeded
Select another type of
indicator (basic program)
LOW WATER PRESSURE
CANCEL WITH HORN KEY
- Continuous alarm
- Standby
- no water input although
LED "IN" lights up
- Inlet pressure too low
- Overflow detection does not
react
Check water inlet
Connector at the inlet
valve oxidised
Clean filter strainer
Replace valve block
Extract pressure controller
valve body
Ff. OUTLET TO DRAIN
CANCEL WITH HORN KEY
- Continuous alarm
- Standby
- Water remains in the measuring chamber although
LED "OUT" illuminates
Check water outlet
Connector at the outlet
valve oxidised
Replace valve block
LOW INDICATOR LEVEL
CANCEL WITH HORN KEY
- Continuous alarm
- Continue measurements
- Minimum indicator quantity
not reached
Without BOB: 50 ml (10 %),
With BOB: According to
calculation
Check indicator level and,
if necessary, refill
(enter the filling quantity!)
Mf. SOILING
CANCEL WITH HORN KEY
- Continuous alarm
- Continue measurements
- Sight-glass windows are
soiled
Clean sight-glass windows
Ff. OPTICS
CANCEL WITH HORN KEY
- Continuous alarm
- Standby
- Error at the optical component (transmitter or receiver
defective)
Replace the measuring
chamber holder
Mf. ANALYSIS
CANCEL WITH HORN KEY
- Continuous alarm
- Standby
Incorrect analysis, e.g.:
- Air inside the dosing hoses?
- Insufficient mixing
- Indicator shelf life exceeded
- Third-party indicator in the
instrument
Retighten the connections
of the dosing pump
Replace suction insert in
the bottle
Replace stirring bar
Replace indicator, only
use HEYL Testomat
2000® indicator
Abbreviations: Ff.: = Function fault, Mf.: = Measuring fault
Page 39
Maintenance
39
Further information
Error
Possible causes
Remedies
Current interface functions incorrectly
- Incorrect measured value at the output or
no power supplied
Load too high
Unit is not functioning, even though it
is switched on
No display
- Fuse F9, F5 or F2 (240
V: F1) defective
- Power switch defective
- Ribbon cable at display circuit board or
base circuit board is loose
- Error at display circuit board or base
circuit board
Replace fuses
Replace power switch
Reconnect ribbon cable
Replace display or base circuit board
Maintenance
Required maintenance measures
Regular maintenance is necessary to ensure trouble-free opera-
tion of the instrument!
Please regularly carry out the maintenance work described in the
following section when
the instrument displays the following error messages:
"Mf. soiling" or "Low indicator level"
the last maintenance was carried out max. 6 months ago
NOTE
Page 40
Maintenance
40
Description of maintenance work
The maintenance manual contains a detailed description of maintenance work. The measures described here provide a brief overview.
Please refer to the Testomat 2000®/Testomat ECO® maintenance
manual for all further maintenance details.
Cleaning measures
Never use organic solvents to clean the measuring chamber or
other plastic parts!
Please observe the safety regulations when handling cleaning
agents!
If the measuring range of the instrument is exceeded over a longer
period of time, a coloured film may form on the sight-glass windows. Use alcohol to remove this sticky film.
Cleaning the measuring chamber and sight-glass windows
Switch off the instrument or press the "STANDBY" key (measuring
chamber completely drained?).
Close the manually-operated valve of the branch line to Testomat
ECO®.
Unhook the toggle type fastener, tip the measuring chamber up-
wards and remove it.
Release both sight-glass window holders, remove and clean the
sight-glass windows.
Use alcohol to remove the film on the sight-glass windows.
Clean the measuring chamber with 10 % hydrochloric acid and
then rinse well.
After cleaning, re-insert the sight-glass windows and secure them
with the sight-glass window holders
(Do not forget the O-ring seals and ensure correct fitting in the
groove).
Insert the measuring chamber by tilting it backwards and secure it
using the toggle type fastener.
CAUTION
!
Page 41
Maintenance
41
Cleaning the filter housing
Close the manually-operated valve of the branch line to Testomat
ECO®.
Depressurise the lines of Testomat ECO® via the “Flush” function
in MANUAL MODE.
Switch of the instrument and loosen the hose connections at the
filter housing.
Unscrew the inlet connection and remove and clean the seal, the
spring and the filter.
Extract the retaining pin and withdraw the flow controller and finally
remove the flow controller valve body.
Clean the filter housing with water or alcohol and reassemble the
unit.
Insert the filter strainer with the cone facing downwards!
Reattach the hose connections at the filter housing.
Important maintenance information
Water leakage at sealed points can damage parts of the instrument!
Please check the instrument for leaks prior to the first analysis:
Switch the instrument to STANDBY
Manually fill the measuring chamber
Manually dose the indicator ("Manual" key")
Check the connections and seals for leaks
Service instructions
The surface of the instrument has not been treated. Therefore, soiling
caused by indicators, oil or grease should be avoided. However, if the
housing becomes soiled, please clean the surface with isopropanol
(never use other solvents).
CAUTION
!
Page 42
Testomat ECO® spare parts and accessories
42
Testomat ECO® spare parts and ac-
cessories
Art. No.
Pressure controller
40125
Controller / filter receiver, complete
40120
Controller / filter receiver
40129
Controller plug T2000, complete
11225
Flow controller valve body, complete
11230
Retaining pin 3x38 90°
11217
Inlet filter 19.5dx25
11218
Spring for inlet filter
40121
Inlet connector
40153
Plug in connector G 1/4" -6
40157
Angled plug-in connector G 1/8"
Measuring chamber
40173
Sight-glass window with seal, T2000
40170
Sight-glass window 30x3
40176
Sight-glass holder, countersunk and
thread
33253
Screw M3x40, A2, DIN 965
40032
Latch fastener TL-17-201-52
11210
Plug for measuring chamber
T2000/Eco
40022
Measuring chamber T2000, complete
Measuring chamber holder
40029
Measuring chamber holder, complete
ET
40050
Magnetic stirrer, processed
40157
Srew in connector 3/8" -10, processed
40056
Solenoid valve, 2/2-way
40181
Rear guide bar for measuring chamber
5 x 60
Dosing pump DosiClip®
40001
Dosing pump DosiClip ET
40011
Suction hose, complete
40016
Pressure hose, complete
37232
Base circuit board TI (3)
40040
Valve set
32046
Plastic cover CNH 45 N
Bottle connection / Suction device
40131
Screw cap with bottle insert T2000
40130
Screw cap GL32 - hole
40135
Bottle insert for screw cap with push-fit
suction tube
Art. No.
Instrument spare parts list
31582
Fuse GS-M 5x20E 4A
37245
Basic circuit board T-ECO complete
230 V
40192
Control circuit board T-ECO complete
40091
Plug in circuit board driver/receiver SET2000 (6)
40190
Cable sleeve 5-7, grey
40191
Cable sleeve 7-10, grey
31713
Ribbon cable 10 pole with EMI filter
clamp
40096
Ribbon cable 26 pole with EMI filter
clamp
40060
Cable loom 2V for T2000
40062
Cable loom 2P for T2000
40200
Cable loom complete with power switch
and cover
31622
Fuse, soldered T0.16A
31592
Fuse, soldered T1.016A
Spare parts requirement for 2 - 3 years of
operation
40173
Sight-glass window with seal, T2000
11217
Inlet filter 19.5dx25
40124
Gasket set T2000
31622
Fuse, soldered T0.16A
31592
Fuse, soldered T1.016A
Page 43
Testomat ECO® spare parts and accessories
43
Page 44
Testomat ECO® spare parts and accessories
44
Accessories
Indicator type
Range
Art. no.:
TH2005
Water hardness 0.05 – 0.5 °dH
152005
TH2025
Water hardness 0.25 – 2.5 °dH
152025
TH2100
Water hardness 1.0 – 10.0 °dH
152100
TH2250
Water hardness 2.5 – 25.0 °dH
152250
Please refer to our delivery programme for an up-to-date overview of
available accessories.
*) retrofit kit for water inlet, Art. no. 040123
If fabric-reinforced pressure hoses (e.g. for existing installations) are
used, please replace the plug connector at the controller and filter
housing with a plug for the quick-release coupling (not included).
Art. no.
Description
040123
Retrofit kit for water inlet T2000 *)
270335
Maintenance lab T2000 Heyl
Page 45
Check List Testomat ECO®
Dear customers and service technicians,
This check list cannot replace your expertise or extensive experience in fault resolution. It is intended to support fast and systematic error diagnosis
and error documentation. This list does not claim to be complete. We are therefore always grateful for any advice and information you may be able
to provide. General user instructions can be found on the rear of this check list.
The Instrument Manufacturer
Block 1 / Plant and instrument data
Testomat 2000®
Testomat® ECO
Plant type
Instrument type
Instrument no.
Indicator type
Software status
Pump no.
Block 2 / Error message and error history Please mark appropriately (X)
What does your instrument’s error history display?
(“i” and “Enter” key => operating instructions)
( Error history text )
Does an error message appear on the display?
For example, “Mf. analysis”, “Low water press.”, etc.
(See operating instructions: “Error messages / Troubleshooting”)
Yes No
( Error message text )
Block 3 / Visual inspection and functional test Please mark appropriately (X) If applicable, values / comments
Is the instrument connected to the mains voltage specified on the rating plate?
Yes No
Does a message appear on the display?
Yes No
Does the instrument display a plausible measured value?
(possible manual measurement ___________ value)
Yes No
Measured value:
Are the measuring chamber and sight-glass windows clean?
Yes No
Are the measuring chamber and the water-carrying hoses free of leaks?
Yes No
Is the indicator’s expiry date still valid?
(See expiry date printed on the indicator bottle)
Yes No
Expiry date:
Has the correct indicator type been programmed?
(TH 2025 => 0.25 to 2.5 °dH = factory setting)
Yes No
Type:
Is the water pressure within the specified range (400 ml/min)?
(See the type plate on the instrument)
Yes No
Plant pressure:
Does the drain hose prevent the risk of backwater?
(No “syphoning effect”!!)
Yes No
Is the drain hose free of blockages?
(Microorganisms caused by contamination, etc.)
Yes No
Does the set flushing time/quantity of flush water ensure that only freshwater
is measured?
Yes No
Flushing time:
Are the hoses at the dosing pump free from air bubbles?
(Operate the pump manually / Carry out a manual analysis)
Yes No
CARRYING OUT A (MANUAL) ANALYSIS
Does the water column rise evenly up to the overflow borehole when filling the
measuring chamber (5 mm below the upper edge of the measuring chamber)?
(If not: check the water pressure, water throughput/flow controller)
Yes No
Does the indicator pump dose correctly when starting an analysis?
(LED at the pump illuminates!)
Yes No
No. of dosing strokes:
Have the indicator and water been mixed properly in the measuring chamber after the dosing process?
Check the magnetic stirring bar! =>see maintenance manual “Adjust mode”
Yes No
PROGRAMMING DATA / OPERATING CONDITIONS
Have the limit values been set correctly? (Within the measuring
range/according to the performance limit of the plant?)
Yes No
Limit values:
Is the Testomat instrument always supplied with mains voltage – except
during maintenance work/emergency situations?
(Temporary shutdown only via the “Standby” key or the “Stop” input!)
Yes No
See the “General instructions for operating Testomat 2000® and Testomat®
ECO”
Please refer to “Error messages / Troubleshooting” in the operating instructions for further information on error messages and possible causes
of faults.
Further functional tests (e.g. overflow detection and amplification setting => “Special function Adjust mode”) and service instructions can be found
in the maintenance manual.
After completing these checks, experience shows that it can be assumed that the checked functions (Block 3) are in effective working order if you
have answered all the questions with “Yes”. We recommend you to carry out these checks during each inspection or if faults occur.
Page 46
Instrument settings
Caution!
Your settings may be deleted if repairs are carried out. Therefore, note down your instrument settings in the table below before
sending the instrument to our service team for repairs. Please enclose a copy of the table with the instrument. If you have noted
down the settings, they can be easily re-entered by your service staff once any repairs have been completed.
Menu
Setting
MODE OF OPERATION
Time-controlled
Volume interval
DISPLAY UNIT
Display in °dH
Display in °f
Display in ppm CaCO3
Display in mmol/l
TYPE OF REAGENT
500ml-bottle
100ml-bottle
TH2005 Water hard.
TH2025 Water hard.
TH2100 Water hard.
TH2250 Water hard.
LIMIT VALUES
Limit val. 1:
Limit val. 2:
FLUSH TIMES
Flush
TYPE OF WATER METER
1 Litre/Impulse
2,5 Litres/Impulse
5 Litres/Impulse
10 Litres/Impulse
100 Litres/Impulse
500 Litres/Impulse
1000 Litres/Impulse
BOB-OPERATION
Function off
Function on
FUNCTION LV1
Duration
Impulse
Interval
Two point
Time:
FUNCTION LV2
Duration
Impulse
Interval
Time:
HYSTERESIS LV1
Analysis (1,2,3)
HYSTERESIS LV2
Analysis (1,2,3)
FUNCTION STOP
Normally open contact
Normally closed contact
INTERFACES
Type 0-20 mA
Type 4-20 mA
Type RS232
SPRACHE/LANGUAGE
DEUTSCH
English
Français
Italiano
Polski
Nederlands
Espanol
Page 47
Technical data
47
Technical data
Power supply:
230 VAC, 115 VAC or 24 VAC ± 10%,
50 - 60 Hz
Fuse 230 V: T0.16 A
Fuse 115 V: T0.315 A
Fuse 24 V: T1.0 A
Power consumption:
max. 25 VA, without external load
Protection class:
I
Degree of protection:
IP 65
Conformity:
EN 61000-6-2, EN 61000-6-4,
EN 61010-1
Ambient temperature:
10 – 45°C
Measuring range:
See section "Performance specifications"
Current interface:
0/4 - 20 mA, max. load 500 Ohm
Dimensions:
W x H x D = 380 x 480 x 280 mm
Weight:
Approx. 9.0 kg
Others:
The unit is non volatile
Mains water supply
Operating pressure:
1 to 8 bar / 1x105 to 8x105 Pa
or
0.3* to 1 bar / 0.3x105 to 1x105 Pa
(after removing the valve body)
Water inlet:
Opaque pressure hose with an external
diameter of 6/4x1 mm
Water outlet:
Hose with an internal diameter of 12 mm
Water temperature:
10 – 40 °C
Properties
Analysis water**
pH level > 4
CO2 level < 20 mg/l
* When using Testomat ECO® at a pre-pressure of 0.3 bar, it must
be ensured that the flow rate through the measuring chamber is at
least 400 ml/min.
** See also the notes on pages 5, 6, 7
We reserve the right to make technical changes without notice in
the interest of constantly improving our products!
Our manuals are updated regularly. If you have an older version
(see version at the back of the manual) you will find the current
manual on our website www.heyl.de on the download page.
Page 48
Technical data
48
Conformity Declaration
Page 49

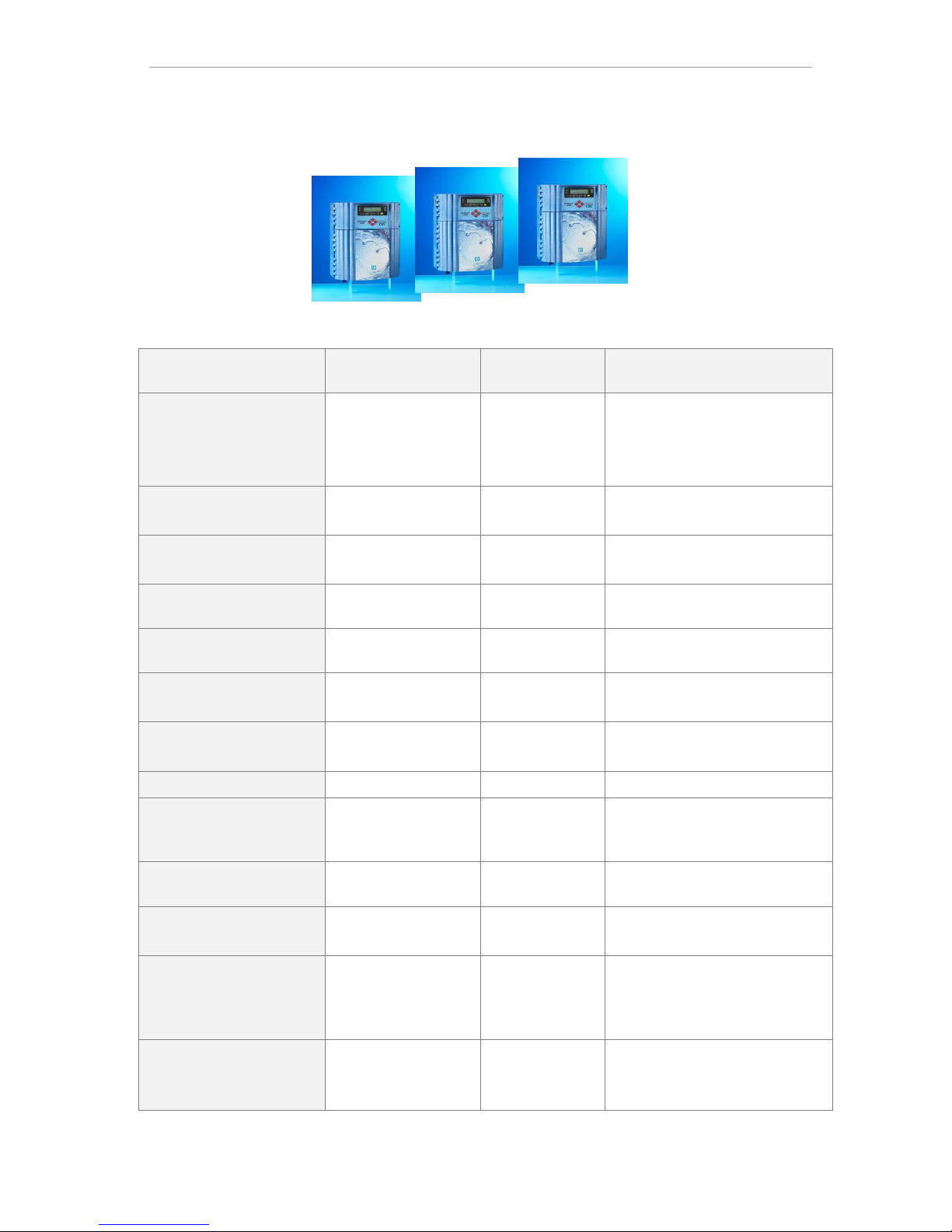

Product overview Testomat 2000®-Instruments
49
Product overview Testomat 2000
®
-Instruments
Model/Type
Measuring Parameter
Measuring
Range
Applications/Functions
Testomat 2000®
• Water hardness
• Carbonate hardness
• p-value
• minus-m-value
0.05-25 °dH
0,5-20 °dH
1-15 mmol/l
0.05-0.5 mmol/l
• Universal for water treatment
plants
• allowed for boiler houses
Testomat 2000® Antox
as
Testomat 2000®
as
Testomat 2000®
• dosing a reducing agent
Testomat 2000® CAL
as
Testomat 2000®
as
Testomat 2000®
• Automatic calibration function
Testomat 2000® CLF
• Free Chlorine
0-2.5 mg/l
• DPD-method for swimming pool
and drinking water control
Testomat 2000® CLT
• Total Chlorine
0-2.5 mg/l
• DPD-method for swimming pool
and drinking water control
Testomat 2000® CrVI
• Chromate
• Chrome-VI
0-2.0 mg/l
0-1.0 mg/l
• process control of waste water in
galvanic industry
Testomat 2000® Duo
as
Testomat 2000®
as
Testomat 2000®
• Controlling of two measuring
points
Testomat 2000
®
Fe
• Iron-II and Iron-III
0-1.0 mg/l
• De-Ironing plants
Testomat 2000
®
Polymer
• Polyacrylate
0-50 mg/l
• Monitoring of conditioning
agents in the cooling and
heating cycles
Testomat 2000
®
SO3
• Sulphite
0-20 mg/l
• Control of the Oxygen-binding by
Sulphite in boiler feed water
Testomat 2000
®
self clean
as
Testomat 2000®
as
Testomat 2000®
• Automatic cleaning of the measuring chamber
Testomat 2000 THCL®
• Total Chlorine
• Water hardness
0-2.5 mg/l
0.25-2.5 °dH
• DPD-method for swimming pool
and drinking water control
• combination system for hardness
and chlorine
Testomat 2000
®
V
• Water hardness
• Carbonate
hardness
1.0-25.0 °dH
1.0-20.0 °dH
• blending water
Page 50
Gebrüder Heyl
Analysentechnik GmbH & Co. KG
Orleansstraße 75b
D 31135 Hildesheim
www.heyl.de
Testomat_ECO_GB_170508.docx
Scan the code and
visit us on our website!
Loading...
