Hexin Technology HXSP-1001 User Manual

HXSP-1001

RS-232/485/422

serial device server

user manual

【Summarize】

HXSP-1001 is a serial device server which can connect with network fast. it provides one RS­232/485/422 (RS-232: DB9M; RS-484/422: 4 bits terminal block) and 1 10Base-T Ethernet port, it
can manage the disperse serial device or host computer by network, easily and convenience. setting or
software upgrade by serial program group in apply, support TCP, UDP, ARP, ICM and DHCP
protocol, support Windows Native COM and auto-connect function once the network intermit.

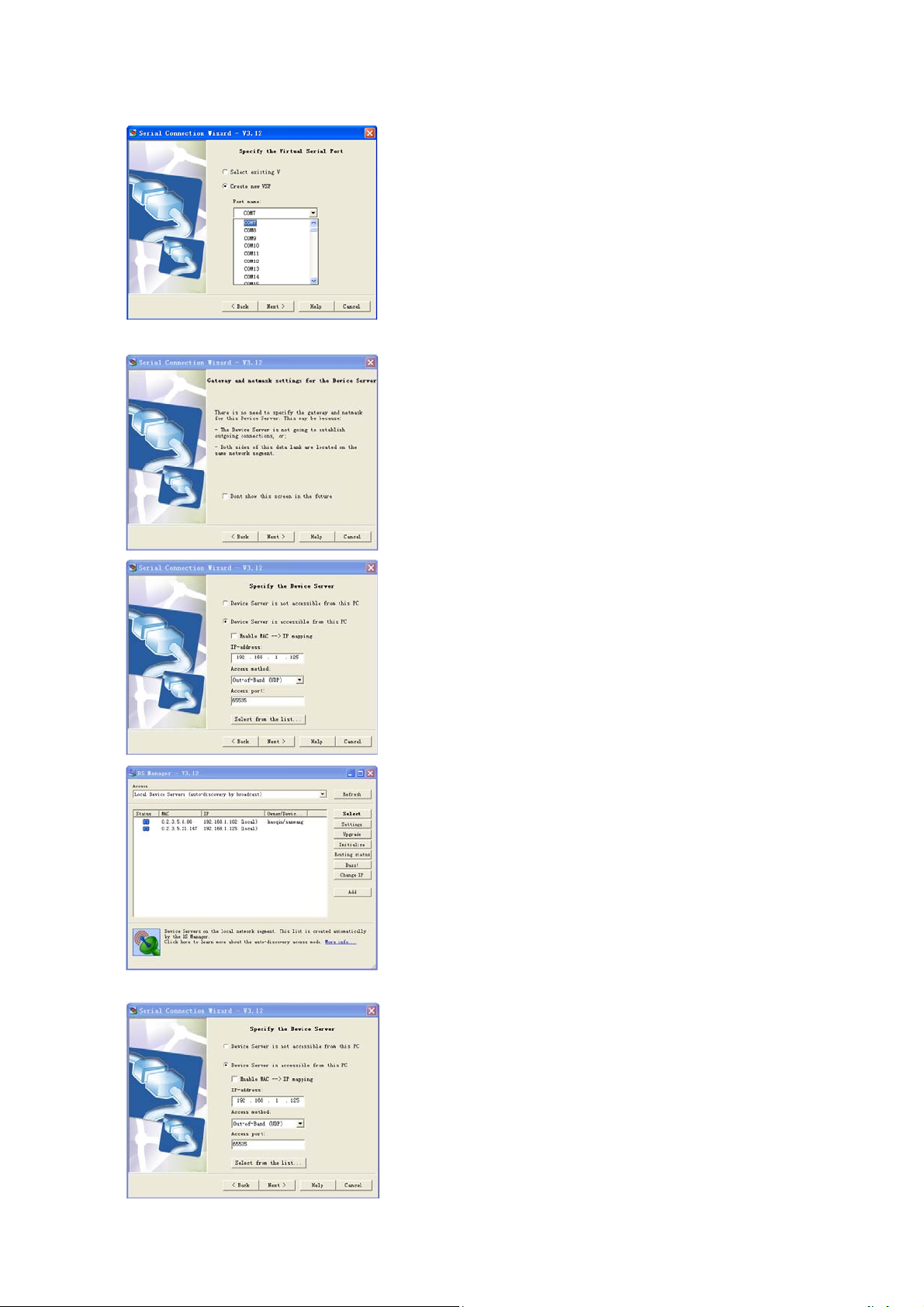

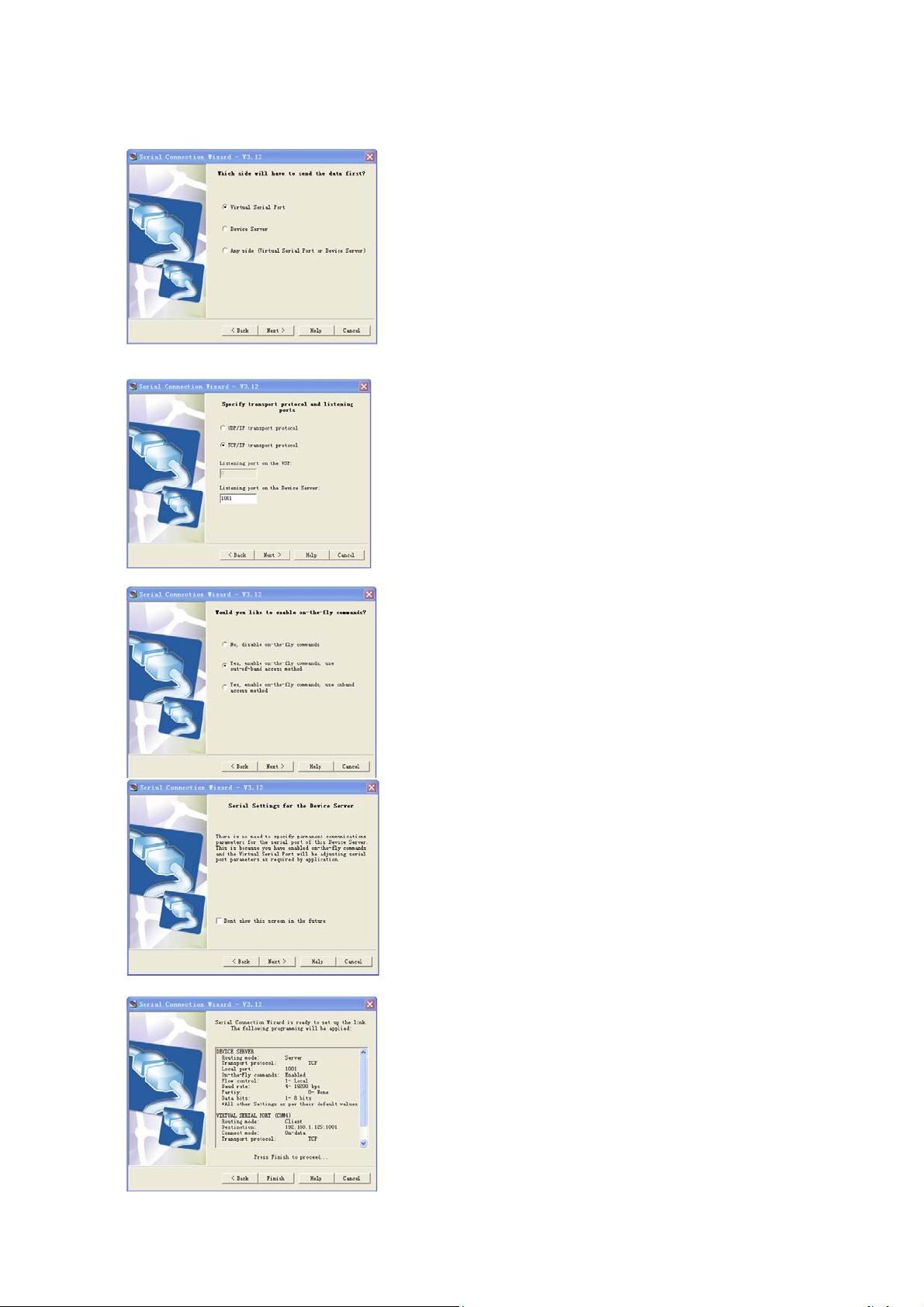

In addition, HXSP-1001 provide the management collocate tools that based Windows flat roof. it can
lead the user manage and configure facility step by step, all of the setting can be done by network or
serial. Support pass gateway and router, easily for user to set IP address, Server and Client mode, size
of data and so on, Can realize the serial device connect with network by simply setting.

Its outside design support DIN-Rail and Wall mounting. apply to project easily .

【Feature】

Support RS-232/RS-485/RS-422

Support Socket application.

Support Sever and Client mode.

Support Windows/Linux COM serial driver mode.

Support TCP, UDP, ARP, ICMP and DHCP protocol

Support all of Windows Native COM and auto-contact function once

the network blackout .

Support pass gateway and router.

Easy–to–use windows utilty for mass installation

All of the setting can be done by network and serial

Proper Serial auto-connection (On-the-fly)

【Capability index】

Ethernet

Standard: 10Base-T
Protocol; support TCP、UDP、APR、ICMP and DHCP protocol

Signal: Rx+, Rx-, Tx+, Tx-

Speed: 10Mbps

Working: full or half of duplex

Work mode: support Server and Client mode

Port memory: 512 byte

Transmit distance: 100m

Interface protection: 1.5KV ESD

Interface type: RJ-45

Serial

NO.of ports: RS-232,RS-422/485 4 bits terminal block

RS-232 signal: TxD, RXD, RTS, CTS, DTR, DSR, DCD, GND

RS-422 signal: Tx+, Tx-, Rx+, Rx-,GND

RS-485 signal: Data+, Data-,GND

Parity: None, Even, Odd, Space, Mark

Data bit: 7bit,8bit

Stop bit: 1, 1.5, 2
Transmission speed: 1200bps ～ 115200bps

Flow control: support RTS/CTS flow control or not flow control.

RS485 data direction: ADDC (Auto data direction Control).

Loading: RS-485/422 side support 32 nodes (optional 128 nodes)

Transfer distance: RS-485/422 side: 1200m, RS-232 side: less than 15m

Port protect: 1500W surge protect,15KV ESD Protect
Port type: RS-232 DB-9 male，RS-485/422 4bit terminal

Power supply

Power supply input: 9VDC

Consumption: 300mA

Environmental
Operating temperature: -20℃～60℃, 5～95% RH
Storage temperature: -25℃～85℃, 5～95% RH

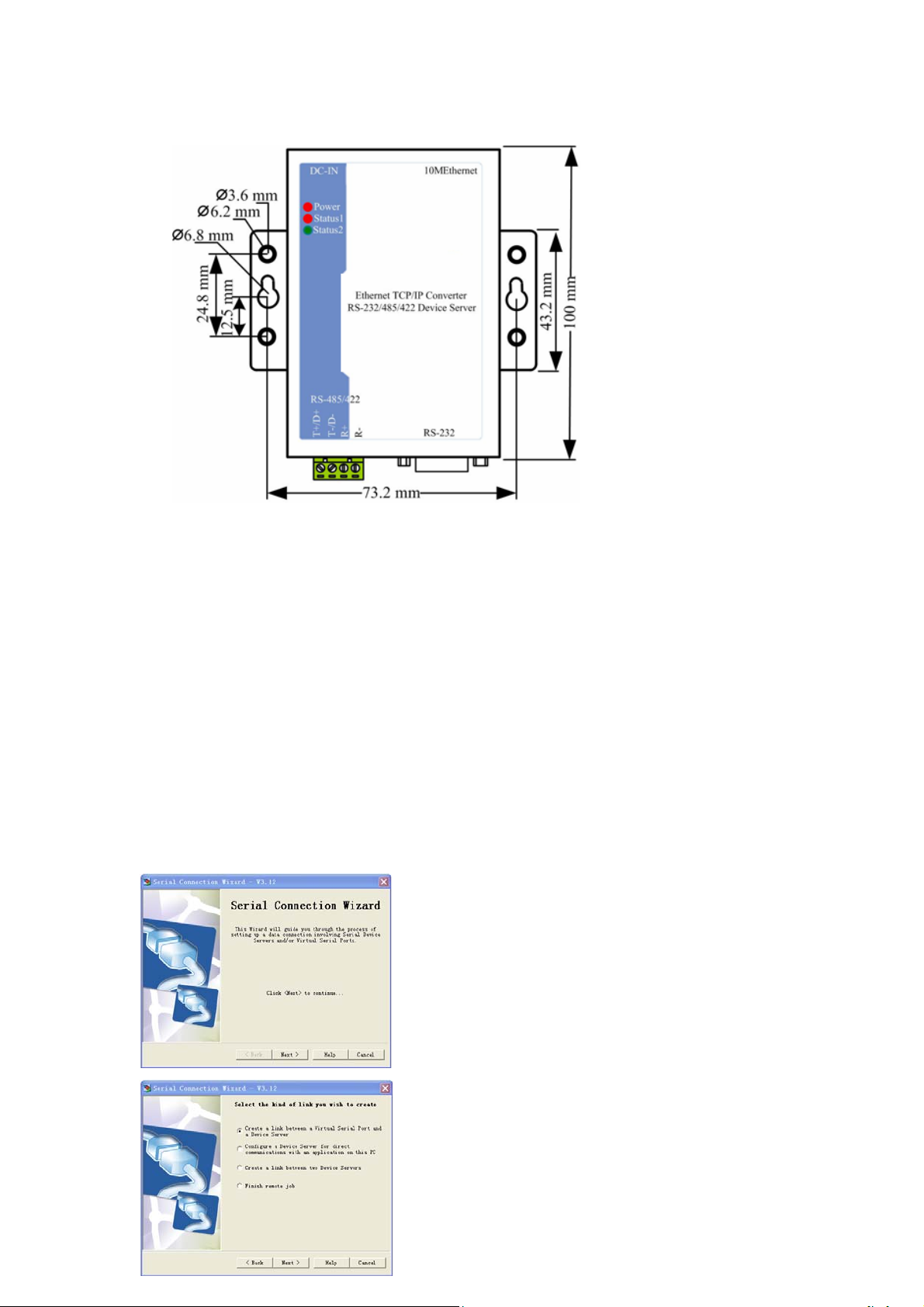

Appearance

Color: blue and white

L×W×H: 100mm×69mm×22mm

Material: Iron

Weight: 230g

【Interface and LED】

10Base-T Ethernet port

Device connected to Ethernet: Red LED flash

Ethernet port has data transfer: Green LED flash

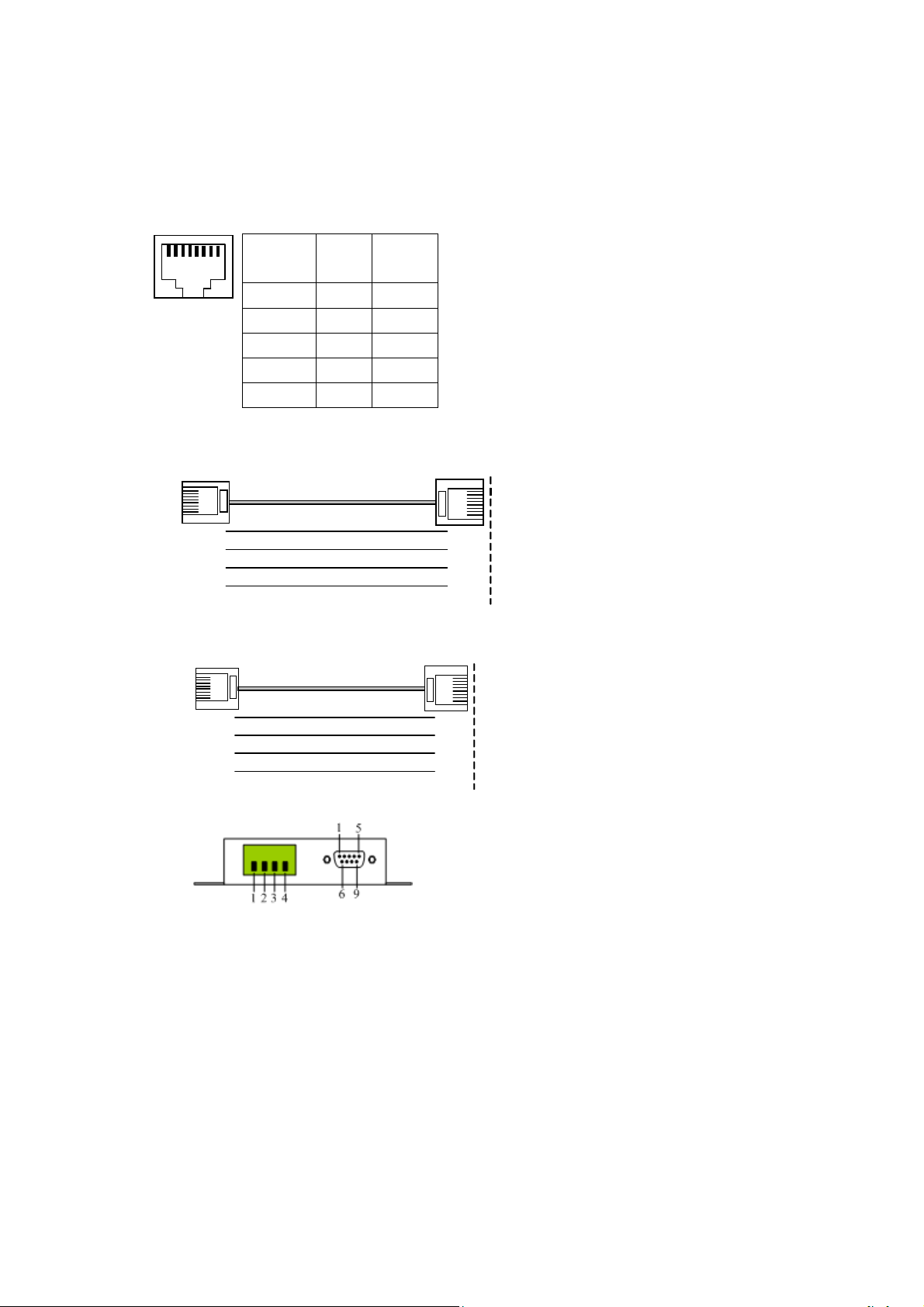

The 10/100BaseT(X) ports located on HXSP-1001 front panel. The pin of RJ45 port

display as below. Connect by UTP or STP. The connect distance is no more than 100m. 100Mbps

is used

100Ωof UTP , 10Mbps is used 100Ωof UTP 3,4,5
