Wireless 11n ADSL Firewall Router

User Guide

WL-603

3CRWDR300A-73 3CRWDR300B-73

http://www.3Com.com/

Part No. 10015880 Rev. AA

Published June 2008

3Com Corporation 350 Campus Drive, Marlborough, MA USA 01752-3064

Copyright © 2004, 2005, 2006, 2007, 2008, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change.

3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND

If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.

3Com, and the 3Com logo are registered trademarks of 3Com Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows

NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd.

Netscape Navigator is a registered trademark of Netscape Communications.

JavaScript is a trademark of Sun Microsystems Wi-Fi and the Wi-Fi logo are registered trademarks of the WI-Fi Alliance. IEEE and 802 are trademarks of the Institute of Electrical and Electronics Engineers, Inc.

All other company and product names may be trademarks of the respective companies with which they are associated.

ENVIRONMENTAL STATEMENT

It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to:

Establishing environmental performance standards that comply with national legislation and regulations.

Conserving energy, materials and natural resources in all operations.

Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products.

Ensuring that all products can be recycled, reused and disposed of safely.

Ensuring that all products are labelled according to recognized environmental standards.

Improving our environmental record on a continual basis.

End of Life Statement

3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components.

Regulated Materials Statement

3Com products do not contain any hazardous or ozone-depleting material.

Environmental Statement about the Documentation

The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content.

CONTENTS

ABOUT THIS GUIDE

Naming Convention 7 Conventions 8 Feedback About This User Guide 9 Related Documentation 9

INTRODUCING THE ROUTER

Wireless 11n Cable/DSL Firewall Router 11 Router Advantages 13 Package Contents 13 Minimum System and Component Requirements 14 Physical Features 14

INSTALLING THE ROUTER

Introduction 19

Safety Information 19

Positioning the Router 19

Using the Rubber Feet 20 Wall Mounting 20 Powering Up the Router 21 Connecting the Router 21

SETTING UP YOUR COMPUTERS

Obtaining an IP Address Automatically 25

Windows 2000 25

Windows Vista 27

Windows XP 28

Macintosh 28

Disabling PPPoE and PPTP Client Software 29 Disabling Web Proxy 29

RUNNING THE SETUP WIZARD

Accessing the Setup Wizard 31

Wizard Change Password 34

Wizard Time and Time Zone 34

Wizard Connection Type 35

Setup Wizard - LAN Settings 42 Wizard - Wireless Setting 43 Wizard - Configuration Summary 44

CONFIGURING THE ROUTER

Navigating Through the Router Configuration screens 45

Main Menu 45

Welcome Screen 45

Status 45

LAN Settings 46

LAN Settings 46 DHCP Clients List 47

Wireless Settings 49

Configuration 50 Encryption 51 WPS 56 Connection Control 57 Client List 58 WMM 59 WDS 60 Advanced 61

Internet Settings 62

WAN 62 DNS 69 Clone MAC address 70

Firewall 71

SPI 71

Special Applications 75

Virtual Servers 76

DMZ 77

PC Privileges 78

Schedule Rule 80

URL Filter 81 Advanced 82

Security 82

VLAN 85

Static Routes 85

RIP 87

DDNS 89

SNMP 90

Syslog 91

Proxy ARP 92

QoS Settings 93 VPN 94 System Tools 98

Restart Router 98

Configuration 98

Upgrade 99

Time Zone 100

Ping 101

Traceroute 102

DNS Lookup 103 Status and Logs 104

Status 104

Routing Table 104

Logs 105

Traffic Statistics 105 Support/Feedback 106

Support 106

Feedback 106

TROUBLESHOOTING

Basic Connection Checks 107 Browsing to the Router Configuration Screens 107 Connecting to the Internet 108 Forgotten Password and Reset to Factory Defaults 108 Wireless Networking 109 Recovering from Corrupted Software 111 Frequently Asked Questions 112

IP ADDRESSING

The Internet Protocol Suite 113 Managing the Router over the Network 113

IP Addresses and Subnet Masks 113

How does a Device Obtain an IP Address and Subnet Mask? 115

DHCP Addressing 115 Static Addressing 115 Auto-IP Addressing 115

TECHNICAL SPECIFICATIONS

3Com Wireless 11n Cable/DSL Firewall Router 117

Standards 118

SAFETY INFORMATION

END USER SOFTWARE LICENSE AGREEMENT

OBTAINING SUPPORT FOR YOUR PRODUCT

GLOSSARY

REGULATORY NOTICES

INDEX

ABOUT THIS GUIDE

This guide describes how to install and configure the 3Com Wireless 11n ADSL Firewall Router (3CRWDR300A-73, 3CRWDR300B-73).

This guide is intended for use by those responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks) and Internet Routers.

If a release note is shipped with the 3Com Wireless 11n ADSL Firewall Router and contains information that differs from the information in this guide, follow the information in the release note.

Most user guides and release notes are available in Adobe Acrobat Reader Portable Document Format (PDF) on the 3Com World Wide Web site:

http://www.3Com.com

Naming Convention Throughout this guide, the 3Com Wireless 11n ADSL Firewall Router is

referred to as the “Router”.

Category 3 and Category 5 Twisted Pair Cables are referred to as Twisted Pair Cables throughout this guide.

8 ABOUT THIS GUIDE

Conventions Ta bl e 1 and Tab l e 2 list conventions that are used throughout this guide.

Tab le 1 Notice Icons

Icon Notice Type Description

Information note Information that describes important features or

instructions.

Caution Information that alerts you to potential loss of data or

potential damage to an application, system, or device.

Warning Information that alerts you to potential personal

injury.

Tab le 2 Text Conventions

Convention Description

The words “enter” and “type”

When you see the word “enter” in this guide, you must type something, and then press Return or Enter. Do not press Return or Enter when an instruction simply says “type.”

Keyboard key names If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+). Example:

Press Ctrl+Alt+Del

Words in italics Italics are used to:

■ Emphasize a point.

■ Denote a new term at the place where it is defined in the

text.

■ Identify menu names, menu commands, and software

button names. Examples:

From the Help menu, select Contents.

Click OK.

Feedback About This User Guide 9

Feedback About This User Guide

INTRODUCING THE ROUTER

Welcome to the world of networking with 3Com®. In the modern business environment, communication and sharing information is crucial. Computer networks have proved to be one of the fastest modes of communication but, until recently, only large businesses could afford the networking advantage.

Wireless 11n ADSL Firewall Router

The 3Com Wireless 11n ADSL Firewall Router is designed to provide a cost-effective means of sharing a single broadband Internet connection amongst several wired and wireless computers. The Router also provides protection in the form of an electronic “firewall” preventing anyone outside of your network from seeing your files or damaging your computers. The Router can also prevent your users from accessing Web sites which you find unsuitable.

Figure 1 shows an example network without a Router. In this network,

only one computer is connected to the Internet. This computer must always be powered on for the other computers on the network to access the Internet.

12 CHAPTER 1: INTRODUCING THE ROUTER

Figure 1 Example Network Without a Router

When you use the Router in your network (Figure 2), it becomes your connection to the Internet. Connections can be made directly to the Router, or to an OfficeConnect Switch or Hub, expanding the number of computers you can have in your network.

Figure 2 Example Network Using a Firewall Router

Router Advantages The advantages of the Router include:

■ Shared Internet connection for both wired and wireless computers

■ High speed 802.11n wireless networking

■ No need for a dedicated, “always on” computer serving as your

Internet connection

■ Cross-platform operation for compatibility with Windows, Unix and

Macintosh computers

■ Easy-to-use, Web-based setup and configuration

■ Provides centralization of all network address settings (DHCP)

■ Acts as a Virtual server to enable remote access to Web, FTP, and other

services on your network

■ Security — Firewall protection against Internet hacker attacks and

encryption to protect wireless network traffic

Package Contents The Router kit includes the following items:

Router Advantages 13

■ One 3Com Wireless 11n ADSL Firewall Router

■ One power adapter for use with the Router

■ Four rubber feet

■ One Ethernet cable

■ One CD-ROM containing this User Guide, copies of the quick install

guide in various languages and the 3Com Detect application.

■ Installation guide

■ Support and Safety sheet

■ Warranty sheet

If any of these items are missing or damaged, please contact your retailer.

14 CHAPTER 1: INTRODUCING THE ROUTER

Minimum System and Component Requirements

Your Router requires that the computer(s) and components in your network be configured with at least the following:

■ A computer with an operating system that supports TCP/IP

networking protocols (for example Windows 2000/XP,/Vista, Unix, Mac OS 8.5 or higher).

■ An Ethernet 10 Mbps or 10/100 Mbps or 10/100/1000 Mbps NIC for

each computer to be connected to the four-port switch on your Router.

■ An 802.11b, 802.11g or 802.11n draft2.0 compliant wireless NIC.

■ An active ADSL subscription and connection.

■ A Web browser that supports JavaScript, such as Netscape 4.7 or

higher, Internet Explorer 6.0 or higher, or Mozilla 1.2.1 or higher, or Apple’s Safari.

Physical Features The front panel of the Router contains a series of indicator lights (LEDs)

that help describe the state of various networking and connection operations.

Figure 3 Router - Front Panel

Physical Features 15

1 Power LED (Illuminated Logo)

White

The 3Com logo serves as power OK indicator. This LED will light if the router is receiving power from the power adapter. If it is not lit check the power adapter connections. Refer to Chapter 6 Troubleshooting

2 Alert LED

Amber

Fast flash during self test. If self test fails the LED will remain on. Fast flash during software upgrade. Fast flash for software reset to the factory defaults. Fast flash for hardware reset to the factory defaults. The LED is on for 2 seconds when the firewall detects a hacker attack.

3DSL

Blue

LED on indicates the Internet connection is on. Fast flash means WAN port traffic activity.

4 Wireless LAN (WLAN) Status LED

Blue

If the LED is on it indicates that wireless networking is enabled. If the LED is flashing, the link is OK and data is being transmitted or received. If the LED is off, the Wireless LAN has been disabled in the Router, or there is a problem. Refer to Chapter 6 Troubleshooting

5 LAN Status LEDs (4 indicators)

Blue

If the LED is on, the link between the port and the next piece of network equipment is OK. If the LED is flashing, the link is OK and data is being transmitted or received. If the LED is off, nothing is connected, or the connected device is switched off, or there is a problem with the connection (refer to Chapter 6 Troubleshooting

). The port will

automatically adjust to the correct speed and duplex.

6 WPS LED

LED on indicates the WPS function is active.

16 CHAPTER 1: INTRODUCING THE ROUTER

The rear panel (Figure 4) of the Router contains one ADSL port, four LAN ports, one WiFi on/off button, a reset button, one power adapter socket, and one WPS button.

Figure 4 Router - Rear Panel

1 Wireless Antennae

The antennaes should be placed in a ‘V’ position when initially installed.

CAUTION: Do not force the antennae beyond their mechanical stops. Rotating the antennae further may cause damage.

2ADSL Port

RJ-11 port, connect this port with the telephone socket.

3 Ethernet Ports (4 ports)

Using suitable RJ-45 cables, you can connect your Router to a computer, or to any other piece of equipment that has an Ethernet connection (for example, a hub or a switch). These ports have an automatic MDI/MDIX feature, which means either straight-through or a crossover cable can be used.

4 WiFi On/Off button

Use this button to turn on/turn off the wireless function. Press the button for 3 seconds.

Physical Features 17

5 Reset Button

If you want to reset your Router to factory default settings, or cannot access the web management interface (for example, due to a lost password), then you may use this button. Refer to Forgotten Password

and Reset to Factory Defaults on page 108 for further details.

6 Power Adapter Socket

Only use the power adapter that is supplied with this Router. Do not use any other adapter.

7 WPS button

Press this button for 3 seconds when making WPS setup. Pushing the WPS button will automatically enable WPS. Then initiate the WPS procedure on the wireless NIC within two minutes. Refer to your wireless NIC's documentation on this procedure. The wireless NIC will then be securely added to your wireless network.

18 CHAPTER 1: INTRODUCING THE ROUTER

INSTALLING THE ROUTER

Introduction This chapter will guide you through a basic installation of the Router,

including:

■ Connecting the Router to the Internet.

■ Connecting the Router to your network.

■ Setting up your computers for networking with the Router.

Safety Information Please note the following:

Positioning the Router

WARNING: Please read the Safety Information before you start.

VORSICHT: Bitte lesen Sie den Abschnitt Wichtige Sicherheitshinweise sorgfältig durch, bevor Sie das Gerät einschalten.

AVERTISSEMENT: Veuillez lire attentivement la section Consignes

importantes de sécurité avant de mettre en route.

You should place the Router in a location that:

■ is conveniently located for connection to the telephone socket.

■ is centrally located to the wireless computers that will connect to the

Router. A suitable location might be on top of a high shelf or similar

furniture to optimize wireless connections to computers in both

horizontal and vertical directions, allowing wider coverage.

■ allows convenient connection to the computers that will be connected

to the four LAN ports on the rear panel, if desired.

■ allows easy viewing of the LED indicator lights, and access to the rear

panel connectors, if necessary.

section in Appendix C

20 CHAPTER 2: INSTALLING THE ROUTER

When positioning your Router, ensure:

■ It is out of direct sunlight and away from sources of heat.

■ Cabling is away from power lines, fluorescent lighting fixtures, and

sources of electrical noise such as radios, transmitters and broadband amplifiers.

■ Water or moisture cannot enter the case of the unit.

■ Air flow around the unit and through the vents in the side of the case

is not restricted. 3Com recommends you provide a minimum of 25 mm (1 in.) clearance.

Using the Rubber

Feet

Use the four self-adhesive rubber feet to prevent your Router from moving around on your desk or when stacking with flat top units. Only stick the feet to the marked areas at each corner of the underside of your Router.

Please be careful when you put WL-603 on top of another unit, if the unit underneath is hot, this may impact the reliability of WL-603.

Wall Mounting There are two slots on the underside of the Router that can be used for

wall mounting. The Router must be mounted with the LEDs facing upwards.

When wall mounting the unit, ensure it is within reach of the power outlet. When wall mounting the unit, ensure that the rubber feet are not fixed.

Mounting

Instructions for

Cement Walls

To wall mount the unit:

1 Make two holes 100 mm (3.9 in.) apart and insert two nylon or similar

screw anchors that are suitable for the wall construction.

2 Fix two suitable screws into the anchors, leaving their heads 3 mm (0.12

in.) clear of the wall surface. The screws should be at least 30 mm (1.2 in.) long.

3 Remove any connections in the Router and locate it over the screw heads.

When in line, gently push the Router on to the wall and move it downwards to secure.

Powering Up the Router 21

Mounting

Instructions for

Wood Walls

Powering Up the Router

To wall mount the unit:

1 Make two holes 100 mm (3.9 in.) apart. 2 Fix two suitable screws directly into the wall, leaving their heads 3 mm

(0.12 in.) clear of the wall surface. The screws should be at least 20 mm (0.75 in.) long.

3 Remove any connections in the Router and locate it over the screw heads.

When in line, gently push the Router on to the wall and move it downwards to secure.

CAUTION: When making connections, be careful not to push the unit up and off the wall.

To power up the Router:

1 Plug the power adapter into the power adapter socket located on the

back panel of the Router.

2 Plug the power adapter into a standard electrical wall socket.

Connecting the Router

The first step for installing your Router is to physically connect it to the telephone socket and then connect it to a computer in order to be able to access the Internet. See Figure 5:

22 CHAPTER 2: INSTALLING THE ROUTER

Figure 5 Connecting the Router

1 Run the provided telephone cable from the wall jack providing ADSL

service to the ADSL port on your Router. When inserting an ADSL RJ-11 plug, be sure the tab on the plug clicks into position to ensure that it is properly seated. If you are using splitterless ADSL service, add low-pass filters between the ADSL wall jack and your telephones. (These filters pass voice signals through but filter data signals out.)

2 Then:

■ If you are using a full-rate (G.dmt) connection, your service provider

will attach the outside ADSL line to a data/voice splitter. In this case you can connect your phones and computer directly to the splitter as shown below (Figure 6):

■ If you are using a splitterless (G.lite) connection, then your service

provider will attach the outside ADSL line directly to your phone system. In this case you can connect your phones and computer directly to the incoming ADSL line, but you will have to add low-pass filters to your phones as shown below (Figure 7)

Figure 6 Installing with a splitter

Voice

Data

Residential Connection Point (NID)

Plain Old Telephone System (POTS)

Ethernet

hub or switch

Splitter

Router

Connecting the Router 23

24 CHAPTER 2: INSTALLING THE ROUTER

Plain Old Telephone System (POTS)

Filter

Ethernet

hub or switch

Voice

& Data

Voice

& Data

Data

Voice

Residential Connection Point [Network Interface Device (NID)]

Router

Figure 7 Installing without a splitter

You have now completed the hardware installation of your Router. Next you need to set up your computers so that they can make use of the Router to communicate with the Internet.

3Com recommends that you perform the initial Router configuration from a computer that is directly connected to one of the LAN ports.

If you configure the Router from a wireless computer, note that you may lose contact with the Router if you change the wireless configuration.

To communicate wirelessly with your Router, your wireless NIC should be set as follows:

■ Encryption — none

■ SSID — 3Com

■ Channel — 11

Obtaining an IP Address Automatically

Windows 2000 If you are using a Windows 2000-based computer, use the following

SETTING UP YOUR COMPUTERS

The Router has the ability to dynamically allocate network addresses to the computers on your network, using DHCP. However, your computers need to be configured correctly for this to take place. To change the configuration of your computers to allow this, follow the instructions in this chapter.

procedure to change your TCP/IP settings:

1 From the Windows Start Menu, select Settings > Control Panel. 2 Double click on Network and Dial-Up Connections. 3 Double click on Local Area Connection. 4 Click on Properties. 5 A screen similar to Figure 8 should be displayed. Select Internet Protocol

TCP/IP and click on Properties.

26 CHAPTER 3: SETTING UP YOUR COMPUTERS

Figure 8 Local Area Properties Screen

6 Ensure that the options Obtain an IP address automatically, and Obtain

DNS server address automatically are both selected as shown in Figure 9. Click OK.

Figure 9 Internet Protocol (TCP/IP) Properties Screen

7 Restart your computer.

Windows Vista

Obtaining an IP Address Automatically 27

1 From the Windows Start Menu, select Settings > Network. 2 Click on Organize. Select Properties. 3 Click on Manage network > Connections. 4 Double click Local Area Connection. Select Properties and click continue. 5 A screen similar to (Figure 10) should appear. Select Internet Protocol

Version 6,Version 4 (TCP/IPv6,v4) and click on Properties.

Figure 10 Local Area Connection Properties Screen

6 Ensure that the options Obtain an IPv6,v4 address automatically, and

Obtain DNS servers address automatically are both selected as shown in (Figure 11). Click OK.

Figure 11 Internet Protocol Version 6 (TCP/IPv6) Properties Screen

28 CHAPTER 3: SETTING UP YOUR COMPUTERS

Windows XP

1 From the Windows Start Menu, select Control Panel. 2 Click on Network and Internet Connections. 3 Click on the Network Connections icon. 4 Double click on LAN or High Speed Connection icon. A screen titled Local

Area Connection Status will appear.

5 Select Internet Protocol TCP/IP and click on Properties. 6 Ensure that the options Obtain an IP address automatically, and Obtain

DNS servers automatically are both selected. Click OK.

7 Restart your computer.

Macintosh If you are using a Macintosh computer, use the following procedure to

change your TCP/IP settings:

1 From the desktop, select Apple Menu, Control Panels, and TCP/IP. 2 In the TCP/IP control panel, set Connect Via: to Ethernet. 3 In the TCP/IP control panel, set Configure: to Using DHCP Server. 4 Close the TCP/IP dialog box, and save your changes. 5 Restart your computer.

Disabling PPPoE and PPTP Client Software 29

Disabling PPPoE and PPTP Client Software

If you have PPPoE client software installed on your computer, you will need to disable it. To do this:

1 From the Windows Start Menu, select Settings > Control Panel. 2 Double click on Internet Options. 3 Select the Connections Tab. A screen similar to Figure 12 should be

displayed.

4 Select the Never dial a connection option.

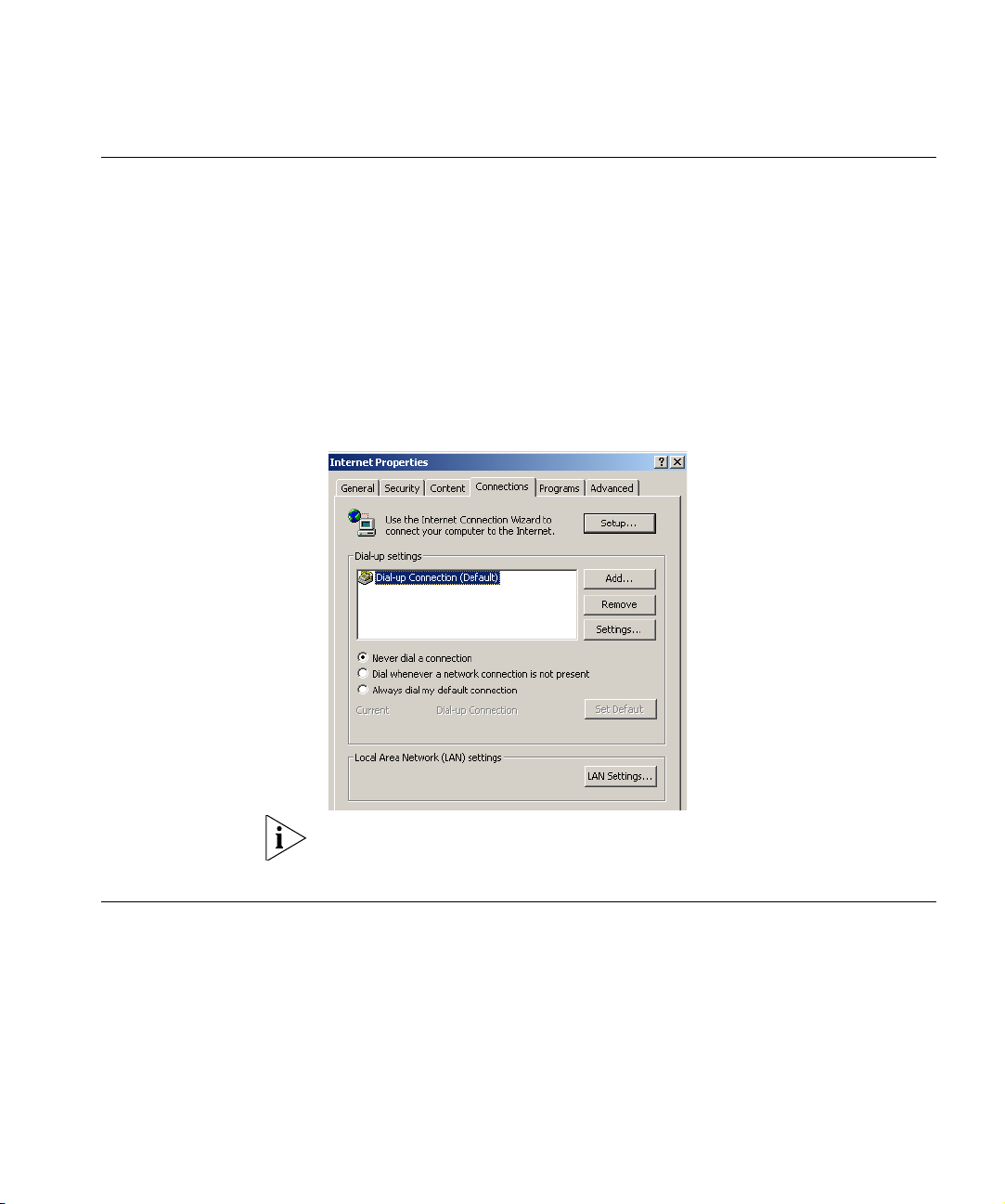

Figure 12 Internet Properties Screen

Disabling Web Proxy

You may want to remove the PPPoE client software from your computer to free resources, as it is not required for use with the Router.

Ensure that you do not have a web proxy enabled on your computer.

Go to the Control Panel and click on Internet Options. Select the Connections tab and click LAN Settings at the bottom. Make sure that the Use Proxy Server option is unchecked.

30 CHAPTER 3: SETTING UP YOUR COMPUTERS

RUNNING THE SETUP WIZARD

Accessing the Router using the 3Com Detect Application

Running the 3Com Detect Application

The 3Com Detect application works by automatically locating your Router, establishing what IP address it is using and then launching your default web browser to connect directly to it.

The application will only locate your Router if it is on the same subnet as the PC on which the application is running. It will not be able to locate your Router if there is another router between your PC and the Router. The application is only designed to run on Windows operating systems.

The CD-ROM that comes with this Router contains, in addition to the documentation, the 3Com Detect Application.

To use 3Com Detect to connect to the Web interface of your Router, do the following:

On the computer that is connected to your Router (either directly or on a network that is on the same subnet), insert the CD-ROM into its CD drive. If you have autorun enabled, you will be presented with a menu showing the contents of the CD-ROM. Select the 3Com Detect Application link to install the utility. Follow the onscreen instructions.

If the auto-run program does not start, you should browse to your CD-ROM drive, go to the /switch detect directory and double click on setup.exe. Follow the prompts that will take you through the installation process.

Once installed, the 3Com Detect Application can be accessed from the Windows Start/Programs list.

When the 3Com Detect application starts, you will see the Welcome Screen, see Figure 11.

32 CHAPTER 4: RUNNING THE SETUP WIZARD

Figure 13 3Com Detect Application

If the computer has multiple network adapters, select the adapter that connects the computer to the network or the Router, click Next.

You will then be offered the choice of searching the same subnet that your PC is on for a connected Router (default), or specifying an IP range. Note that specifying a large range may take some time for the search to complete (see Figure 14 and Figure 15).

Figure 14 Discovery Screen - search the same subnet

Figure 15 Discovery Screen - search IP range

Once your Router has been located, you will see the list (see Figure 16). Select the Router to which you want to connect and click Open. Your default Web browser will launch and connect to the home page of the Router, (seeFigure 18 ).

Figure 16 Router List Screen

Accessing the Setup Wizard 33

Accessing the Setup Wizard

The Router setup program is Web-based, which means that it is accessed through your Web browser (Netscape Navigator 4.7 or higher, Internet Explorer 6.0 or higher, or Mozilla 1.2.1 or higher, or Apple’s Safari).

To use the Setup Wizard:

1 Ensure that you have at least one computer connected to the Router.

Refer to Chapter 2 for details on how to do this.

2 Launch your Web browser on the computer. 3 Enter the following URL in the location or address field of your browser:

http://192.168.1.1 (Figure 17). The Login screen displays.

Figure 17 Web Browser Location Field (Factory Default)

34 CHAPTER 4: RUNNING THE SETUP WIZARD

4 To log in as an administrator, enter the password (the default password is

admin) in the System Password field and click Log in (see Figure 18).

Figure 18 Router Login Screen

5 When you have logged in,

■ if you are logging in for the first time, the Country Selection screen

will appear (see Figure 19). Please select the country form the drop-down menu, and click Apply.

1. Note to US model owner: To comply with US FCC regulation, the country selection function has been completely removed from all US models. The above function is for non-US models only.

Figure 19 Country Selection Screen

The Wizard will then launch automatically (refer to Figure 22). You will be guided step by step through a basic setup procedure.

■ if the Router has been configured previously, the Welcome screen will

appear (Figure 20). There are three tabs: Notice Board, Password and Wizard.

Accessing the Setup Wizard 35

Figure 20 Welcome Screen

■ Go to the Notice Board tab to see the current software information. To

view the Web help, click the Help button.

■ Go to the Password tab to change the password (Figure 21).

■ Go to the Wizard tab to do a quick setup of the Router (Figure 22).

The password screen allows you to change the current password and set the login time limit to the Router’s management interface.

Figure 21 Password Screen

1 To change the current password, enter the password in the Current

Password field.

2 Enter the new password in the New Password field, and enter it again in

the Confirm New Password field.

36 CHAPTER 4: RUNNING THE SETUP WIZARD

3 Enter the time period in Login Timeout to set a maximum period of time

for which the login session is maintained during inactivity (Default: 10 minutes).

Wizard -

Change Password

Wizard -

Time and Time Zone

To ensure the security of your Router, it is recommended that you choose a new password - this should be a mix of letters and numbers, and not easily guessed by others. To leave the current password unchanged, leave the fields blank and click Next.

Figure 22 Change Password Screen

The Time and Time Zone screen allows you to set up the time for the Router.

Figure 23 Time and Time Zone Screen

Accessing the Setup Wizard 37

1 Select the correct base date and time. 2 If you want to automatically synchronize the Router with a public time

server, check the Enable box in the Using Time Server (NTP) field.

3 Select the time zone in the Set Time Zone drop-down menu. 4 Enter the time in the Synchronization Interval field. 5 Select the desired servers from the Time Server drop-down menu. 6 Check the Enable box in the Daylight Savings field, if daylight savings

applies to your area.

7 Click Next.

Wizard -

Connection Type

The Connection Type screen allows you to set up the Router for the type of Internet connection you have. Before setting up your connection type, have your account information from your ISP ready.

Figure 24 Connection Type Screen

Select a mode from the following:

■ PPPoE — PPP over Ethernet, providing routing for multiple PCs,

see page 39

■ PPPoA — PPP over ATM, providing routing for multiple PCs,

see page 40

■ Bridge Mode (for a single PC) — RFC1483 Bridged Mode, see page 41

■ Routing Mode over ATM — RFC1483 Routed Mode, for multiple PCs,

see page 42

38 CHAPTER 4: RUNNING THE SETUP WIZARD

■ Dynamic/Fixed IP in 1483 Bridge Mode (For Multiple PCs) — see

page 43

and click Next.

For further information on selecting a mode see Internet Settings on

page 62.

Accessing the Setup Wizard 39

PPPoE

PPPoE is often used for DSL connection. To set up the Router for use with a PPPoE (PPP over Ethernet) connection, use the following procedure:

Figure 25 PPPoE Screen

1 Enter your user name in the Username field. 2 Enter your password in the Password field. 3 Re-type your password in the Retype Password field. 4 Enter your VPI and VCI information in the VPI/VCI fields. 5 Select the encapsulation type (LLC or VC MUX) in the Encapsulation

drop-down menu. This information should be provided to you by your ISP.

Check all of your settings, and then click Next. The LAN Settings screen will then be displayed (refer to Figure 30).

40 CHAPTER 4: RUNNING THE SETUP WIZARD

PPPoA

To set up the Router for use with a PPP over ATM (PPPoA) connection, use the following procedure:

Figure 26 PPPoA Screen

drop-down menu. This information should be provided to you by your ISP.

Check all of your settings, and then click Next. The LAN Settings screen will then be displayed (refer to Figure 30).

Accessing the Setup Wizard 41

Bridge Mode (for a single PC)

To set up the Router for use with an RFC1483 bridged connection, use the following procedure:

Figure 27 Bridged Mode Screen

1 Enter your VPI and VCI information in the VPI/VCI fields. 2 Select the encapsulation type (LLC or VC MUX) in the Encapsulation

drop-down menu. This information should be provided to you by your ISP.

Check all of your settings, and then click Next. The LAN Settings screen will then be displayed (refer to Figure 30).

42 CHAPTER 4: RUNNING THE SETUP WIZARD

Routing Mode over ATM

To set up the Router for use with an RFC1483 routed connection, use the following procedure:

Figure 28 Routing mode over ATM Screen

1 Enter your Internet IP address in the WAN IP field. 2 Enter the subnet mask in the Subnet Mask field. 3 Enter the default gateway IP address in the Default Gateway field. 4 Enter the DNS address in the DNS field. 5 Enter your VPI and VCI information in the VPI/VCI fields. 6 Select the encapsulation type (LLC or VC MUX) in the Encapsulation

drop-down menu. This information should be provided to you by your ISP.

Check all of your settings, and then click Next. The LAN Settings screen will then be displayed (refer to Figure 30).

Accessing the Setup Wizard 43

Dynamic/Fixed IP in 1483 Bridge Mode (For Multiple PCs)

For bridge mode to work, you need to assign an IP address to the Router. You can either configure the Router to obtain an IP address automatically from a DHCP server or assign a fixed or static IP address to it.

Figure 29 Dynamic/Fixed IP for Bridge Mode Screen

■ To obtain an IP address automatically from a DHCP server: check the

Get WAN IP By DCHP checkbox, and then click Next.

■ To assign a fixed IP address:

1 Enter your IP address in the WAN IP field. 2 Enter the subnet mask in the Subnet Mask field. 3 Enter the default gateway IP address in the Default Gateway field. 4 Enter the DNS address in the DNS field. 5 Enter your VPI and VCI information in the VPI/VCI fields. 6 Select the encapsulation type (LLC or VC MUX) in the Encapsulation

drop-down menu. This information should be provided to you by your ISP.

Check all of your settings, and then click Next. The LAN Settings screen will then be displayed (refer to Figure 30).

44 CHAPTER 4: RUNNING THE SETUP WIZARD

Setup Wizard - LAN

Settings

The LAN Settings screen allows you to set the default IP address and DHCP client IP range for the Router.

Figure 30 The LAN Settings Screen

1 To change the Router’s default IP address, enter the new IP address in the

IP Address field, and then enter the subnet mask in the Subnet Mask field.

2 Check the Enable DHCP Server box to enable the DHCP function. 3 Enter the client IP address range in the IP Pool Start Address and IP Pool

End Address fields. You can also click Auto IP Range to automatically set the starting and ending IP address: 192.168.1.2 ~ 192.168.1.254.

4 Click Next. The Wireless Settings screen will appear (refer to Figure 31).

Accessing the Setup Wizard 45

Wizard - Wireless

Setting

The Wireless Settings screen allows you to set up the SSID and radio channel used for the wireless connection.

Figure 31 Wireless Setting Screen

1 Select the channel you want to use from the Channel drop-down menu. 2 Specify the SSID to be used by your wireless network in the SSID field. If

there are other wireless networks in your area, you should give your wireless network an unique name.

3 Select the Security Mode from the drop-down menu. Five options

available:

■ Disabled: in this mode, wireless transmissions will not be

encrypted, and will be visible to everyone. However, when setting up or debugging wireless networks, it is often useful to use this security mode.

■ 64-bit WEP, see page 46

■ 128-bit WEP, see page 47

■ WPA-PSK (no server), this mode includes WPA and WPA2,

see page 48

■ WPA (with Radius Server), this mode includes WPA and WPA2,

see page 49

46 CHAPTER 4: RUNNING THE SETUP WIZARD

64-bit WEP

WEP is the basic mechanism to transmit your data securely over the wireless network. Matching encryption keys must be setup on your Router and wireless client devices to use WEP.

Figure 32 64-bit WEP Screen

Security Mode is 64-bit WEP. You can enter the 64-bit WEP key manually:

■ enter the WEP key as 5 pairs of hex digits (0-9, A-F).

Or you can generate the 64-bit WEP key automatically:

■ enter a memorable passphrase in the Passphrase box, and then click

Generate to generate the hex keys from the passphrase.

For 64-bit WEP, you can enter up to four keys, in the fields Key 1 to Key 4. The radio button on the left hand side selects the key that is used in transmitting data.

Note that all four WEP keys on each device of the same wireless network must be identical.

Click Next.

Accessing the Setup Wizard 47

128-bit WEP

WEP is the basic mechanism to transmit your data securely over the wireless network. Matching encryption keys must be set up on your Router and wireless client devices to use WEP.

Figure 33 128-bit WEP

Security Mode is 128-bit WEP. You can enter the 128-bit WEP key manually:

■ enter your WEP key as 13 pairs of hex digits (0-9, A-F).

Or you can generate the 128-bit WEP key automatically:

■ enter a memorable passphrase in the Passphrase box, and then click

Generate to generate the hex keys from the passphrase.

Note that the WEP keys on each device of the same wireless network must be identical. And In 128-bit WEP mode, only one WEP key can be specified.

Click Next.

48 CHAPTER 4: RUNNING THE SETUP WIZARD

WPA-PSK (no server)

WPA (Wi-Fi Protected Access) provides dynamic key changes and constitutes the best security solution. If your network does not have a RADIUS server. Select the no server option. Note that in home and very small office deployments, PSK is typically used.

Figure 34 WPA-PSK no server Screen

1 Select WPA-PSK (no server) from the WPA drop-down menu. 2 Select WPA mode from the drop-down menu, three modes are

supported: WPA, WPA2, and Mixed mode.

3 Select Encryption technique from the drop-down menu, four options are

available: TKIP, AES, Auto for WPA AES for WPA2, and AES for both WPA and WPA2.

4 Enter the pre-shared key in the Pre-shared Key (PSK) field. The pre-shared

key is a password, in the form of a word, phrase or series of letters and numbers. The key must be between 8 and 63 characters long and can include spaces and symbols. Each client that connects to the network must use the same key.

5 If you want the key that you enter to be shown on the screen as a series

of asterisks (*), then check the Hide PSK checkbox.

6 Click Next.

Accessing the Setup Wizard 49

WPA with Radius Server

WPA (Wi-Fi Protected Access) provides dynamic key changes and constitutes the best security solution. This function requires that a RADIUS server is running on the network.

Figure 35 WPA with Radius Server Screen

1 Select WPA with RADIUS server from the Security Mode drop-down

menu.

2 Select WPA mode from the drop-down menu, three modes are

supported: WPA, WPA2, and Mixed mode.

3 Select Encryption technique from the drop-down menu, four options are

available: TKIP, AES, Auto for WPA AES for WPA2, and AES for both WPA and WPA2.

4 Enter the IP address of the RADIUS server on your network into the

RADIUS Server field.

5 Enter the Radius Port number that the RADIUS server is operating on. 6 Enter the key for the RADIUS server in the Radius Key field. 7 By default, the WPA keys are changed every hour, but if you want to

change this setting, you can do so by specifying the rotation time in the Re-key Interval field.

8 Click Next.

50 CHAPTER 4: RUNNING THE SETUP WIZARD

Wizard -

Configuration

Summary

When you have completed the Setup Wizard, a configuration summary will appear. Verify the configuration information of the Router and then click Apply to save your settings. 3Com recommends that you print out this page for your records.

Figure 36 Configuration Summary Screen

Your Router is now configured and ready for use.

See Chapter 5 for a further detailed description of the Router configuration.

CONFIGURING THE ROUTER

Navigating Through the Router Configuration screens

Main Menu The main menu is located on the left side, as shown in Figure 30. When

Welcome Screen The Welcome screen shows the current software information.

Status

This chapter describes all the screens available through the Router configuration screens, and is provided as a reference. To get to the configuration screens, enter the Router’s default IP in the location bar of your browser. The default IP is http://192.168.1.1.

However, if you changed the Router LAN IP address during initial configuration, use the new IP address instead. Enter your password to login to the management interface. (The default password is admin).

you click on an item from the main menu, the corresponding screen will then appear in the center.

Figure 30 Welcome Screen

46 CHAPTER 5: CONFIGURING THE ROUTER

LAN Settings Your Router is equipped with a DHCP server that will automatically assign

IP addresses to each computer on your network. The factory default settings for the DHCP server will work with most applications. If you need to make changes to the settings, you can do so.

The LAN settings screen allows you to:

■ Change the default IP address of the Router. The default IP is

192.168.1.1

■ Change the Subnet Mask. The default setting is 255.255.255.0

■ Enable/Disable the DHCP Server Function. The default is “Enable”.

■ Specify the Starting and Ending IP Pool address. The default is

Starting: 2 / Ending: 254.

■ Specify the IP address Lease Time. The default is One day.

■ Specify a local Domain Name. This field is optional.

■ Specify the IP address of 3Com NBX call processor.

The Router will also provide a list of all client computers connected to the Router.

LAN Settings The LAN Settings screen is used to specify the LAN IP address of your

Router, and to configure the DHCP server.

Figure 31 LAN Settings Screen

LAN Settings 47

1 Enter the Router’s IP Address and Subnet Mask in the appropriate fields.

The default IP address is 192.168.1.1.

2 If you want to use the Router as a DHCP Server, check Enable in the DHCP

Server field.

3 Enter the IP address range in the IP Pool Start Address and IP Pool End

Address fields.

4 Specify the DHCP Lease time by selecting the required value from the

Lease Time drop-down menu. The lease time is the length of time the DHCP server will reserve the IP address for each computer.

5 Specify the Local Domain Name for your network (this step is optional). 6 Enter the IP address of the NBX Call Processor in the 3Com NBX Call

Processor field (this step is optional).

7 Check all of your settings, and then click Apply.

DHCP Clients List The DHCP Clients List provides details on the devices that have received IP

addresses from the Router. The list is only created when the Router is set up as a DHCP server. A maximum of 253 clients can be connected to the Router.

Figure 32 DHCP Clients List Screen

For each device that is connected to the LAN, the following information is displayed:

■ IP address — The Internet Protocol (IP) address issued to the client

machine.

48 CHAPTER 5: CONFIGURING THE ROUTER

■ Host Name — The client machine’s host name, if configured.

■ MAC Address — The Media Access Control (MAC) address of the

client’s network card.

■ Client Type — Whether the client is connected to the Router by wired

or wireless connection.

■ Check the Fix checkbox to permanently fix the IP address.

■ Click Release to release the displayed IP address.

■ Click Add to allocate an IP address to a MAC address. Enter the

required details and click Apply to save your settings.

The DHCP server will give out addresses to both wired and wireless clients.

Wireless Settings 49

Wireless Settings The Wireless Settings screens allow you to configure the settings for the

wireless connections.

You can enable or disable the wireless connection for your LAN. When disabled, no wireless PCs can gain access to either the Internet or other PCs on your wired or wireless LAN through this Router.

Figure 33 Wireless Settings Screen

There are 8 tabs available:

■ Configuration

■ Encryption

■ WPS

■ Connection Control

■ Client List

■ WMM

■ WDS

■ Advanced

50 CHAPTER 5: CONFIGURING THE ROUTER

Configuration The Wireless Configuration Screen allows you to turn on/ turn off the

wireless function, and set up basic wireless settings.

Figure 34 Wireless Configuration Screen

To enable the wireless function:

1 Check Enable Wireless Networking checkbox. 2 Select the wireless channel you want to use from the Channel drop-down

menu.

3 Select the Extension Channel. 4 Specify the SSID to be used by your wireless network in the SSID field. If

there are other wireless networks in your area, you should give your wireless network an unique name.

5 Enable or disable SSID Broadcast.

A feature of many wireless network adapters is that a computer's SSID can be set to ANY, which means it looks randomly for any existing wireless network. The available networks are then displayed in a site survey, and your computer can select a network. If you disable this SSID broadcast function, you can block this random search, and set the computer's SSID to a specific network (for example, WLAN). This increases network security. If you decide to enable SSID Broadcast, ensure that you know the name of your network first.

6 Select whether your Router will operate in 11b mode only, 11g mode

only, 11n mode only, or mixed mode from the Wireless Mode drop-down menu.

7 Bandwidth: select the bandwidth to use.

Wireless Settings 51

8 Select to turn on/off the Protected Mode function. 9 Click Apply.

Encryption This feature prevents any non-authorized party from reading or changing

your data over the wireless network.

Figure 35 Encryption Screen

Select the wireless security mode that you want to use from the drop-down menu, and click Apply. There are five selections:

■ Disabled

■ 64-bit WEP (see page 52)

■ 128-bit WEP (see page 53)

■ WPA-PSK (no server) (see page 54)

■ WPA (with RADIUS Server) (see page 55)

Disabled

In this mode, wireless transmissions will not be encrypted, and will be visible to everyone. However, when setting up or debugging wireless networks, it is often useful to use this security mode.

52 CHAPTER 5: CONFIGURING THE ROUTER

64-bit WEP

WEP is the basic mechanism to transmit your data securely over the wireless network. Matching encryption keys must be setup on your Router and wireless client devices to use WEP.

Figure 36 64-bit WEP Screen

To setup 64-bit WEP:

1 You can enter the 64-bit WEP key manually:

■ enter the WEP key as 5 pairs of hex digits (0-9, A-F).

Or you can generate the 64-bit WEP key automatically:

■ enter a memorable passphrase in the Passphrase field, and then

click Generate to generate the hex keys from the passphrase.

For 64-bit WEP, you can enter up to four keys, in the fields Key 1 to Key 4. The radio button on the left hand side selects the key that is used in transmitting data.

Note that all four WEP keys on each device in the wireless network must be identical.

2 Click Apply.

Wireless Settings 53

128-bit WEP

WEP is the basic mechanism to transmit your data securely over the wireless network. Matching encryption keys must be set up on your Router and wireless client devices to use WEP.

Figure 37 128-bit WEP Screen

To setup 128-bit WEP:

1 You can enter the 128-bit WEP key manually:

■ enter your WEP key as 13 pairs of hex digits (0-9, A-F).

Or you can generate the 128-bit WEP key automatically:

■ enter a memorable passphrase in the Passphrase field, and then

click Generate to generate the hex keys from the passphrase.

The WEP keys on each device on the wireless network must be identical. In 128-bit WEP mode, only one WEP key can be specified.

2 Click Apply.

54 CHAPTER 5: CONFIGURING THE ROUTER

WPA-PSK (no server)

WPA (Wi-Fi Protected Access) provides dynamic key changes and constitutes the best security solution. If your network does not have a RADIUS server. Select the no server option.

Figure 38 WPA-PSK (no server) Screen

1 Select WPA-PSK (no server) from the WPA drop-down menu. 2 Select WPA mode from the drop-down menu, three modes are

supported: WPA, WPA2, and Mixed mode.

3 Select Encryption technique from the drop-down menu, four options are

available: TKIP, AES, Auto for WPA AES for WPA2, and AES for both WPA and WPA2.

4 Enter the pre-shared key in the Pre-shared Key (PSK) field. The pre-shared

5 If you want the key that you enter to be shown on the screen as a series

of asterisks (*), then check the Hide PSK checkbox.

6 Click Apply.

Wireless Settings 55

WPA (with RADIUS Server)

WPA (Wi-Fi Protected Access) provides dynamic key changes and constitutes the best security solution. This function requires that a RADIUS server is running on the network.

Figure 39 WPA (with RADIUS Server) Screen

1 Select WPA with RADIUS server from the Security Mode drop-down

menu.

2 Select WPA mode from the drop-down menu, three modes are

supported: WPA, WPA2, and Mixed mode.

3 Select Encryption technique from the drop-down menu, four options are

available: TKIP, AES, Auto for WPA AES for WPA2, and AES for both WPA and WPA2.

4 Enter the IP address of the RADIUS server on your network into the

RADIUS Server field.

5 Enter the port number that the RADIUS server is operating on in the

RADIUS Port field.

6 Enter the key for the RADIUS server in the RADIUS Key field. 7 By default, the WPA keys are changed every hour, but if you want to

change this setting, you can do so by specifying the required time in the Re-key Interval field.

8 Click Apply.

56 CHAPTER 5: CONFIGURING THE ROUTER

WPS Wireless Provisioning Services (WPS) is a standard for easy and secure

establishment of a wireless home network, created by the Wi-Fi Alliance.

3Com Wireless 11n Cable/DSL firewall Router supports the PIN method.

Check the Enable WPS Function box. The WPS-PIN field will appear.

Figure 40 WPS Screen

Enter the PIN code in the WPS-PIN field. And then click Apply.

Wireless Settings 57

Connection Control This feature is used to filter the clients based on their MAC addresses.

Check the Enable MAC Address Filtering checkbox, the Connection Control screen will appear.

Figure 41 Connection Control Screen

There are two options available in the Access rule for registered MAC address field:

■ if you click Allow, this means only the MAC addresses registered here

in the list will be allowed to access the Router via wireless link.

■ if you click Deny, this means the registered MAC addresses will not be

able to access the Router via wireless link.

Use the MAC Address Filtering List to quickly copy the MAC addresses of the current wireless clients into the list table. You can define up to 32 MAC addresses to the list.

You can click Clear to delete the current entry in the list.

58 CHAPTER 5: CONFIGURING THE ROUTER

Client List You can view the list of all wireless clients that are connected to the

Router.

Figure 42 Client List Screen

Click Refresh to update the list.

Wireless Settings 59

WMM Wireless Multimedia (WMM) mode, which supports devices that meet the

802.11E QBSS standard. WMM uses traffic priority based on the four ACs; Voice, Video, Best Effort, and Background. The higher the AC priority, the higher the probability that data is transmitted.

Check the Enable WMM Function box, the WMM parameters table will appear.

Figure 43 WMM Screen

The following table explains the four access categories:

Access Category WMM

Designation

AC_BE (AC0) Best Effort Normal priority, medium

AC_BK (AC1) Background Lowest priority. Data with no

AC_VI (AC2) Video High priority, minimum

AC_VO (AC3) Voice Highest priority, minimum

Description

delay and throughput. Data only affected by long delays. Data from applications or devices that lack QoS capabilities.

delay or throughput requirements, such as bulk data transfers.

delay. Time-sensitive data such as streaming video.

delay. Time-sensitive data such as VoIP (Voice over IP) calls.

802.1D Tags

0, 3

2, 1

5, 4

7, 6

60 CHAPTER 5: CONFIGURING THE ROUTER

WDS The Router supports WDS (Wireless Distribution System). WDS enables

one or more Access Points to rebroadcast received signals to extend range and reach, though this can affect the overall throughput of data.

Figure 44 Wireless WDS Settings Screen

1 Check the Enable WDS Function checkbox. 2 To refresh the list of available access points, click Rescan Wireless

Networking.

3 Click Add to add the MAC address of the AP to the list, the add WDS

screen will appear (refer to Figure 45).

Figure 45 Add WDS screen

Enter the MAC address(es) of one or more access points in the AP MAC

Address table, and click Apply.

Wireless Settings 61

Advanced The Advanced screen allows you to configure detailed settings for your

wireless connection.

Figure 46 Wireless Advanced Setting Screen

There are six parameters that you can configure:

■ Beacon Interval: this represents the amount of time between beacon

transmissions.

■ DTIM Interval: A DTIM (Delivery Traffic Indication Message) is a

countdown mechanism used to inform your wireless clients of the next window for listening to broadcast and multicast messages.

■ Fragmentation Threshold: this is the maximum size for directed data

packets transmitted. The use of fragmentation can increase the reliability of frame transmissions. Because of sending smaller frames, collisions are much less likely to occur.

■ RTS Threshold: RTS stands for Request to Send, this parameter

controls what size data packet the low level RF protocol issues to an RTS packet.

■ CTS Protection Mode: CTS stands for Clear to Send. CTS Protection

Mode boosts the Router’s ability to intercept 802.11b/ 802.11g transmissions. Conversely, CTS Protection Mode decreases performance. Leave this feature disabled unless you encounter severe communication difficulties between the Router and your wireless clients.

■ AP Isolation Mode: AP Isolation is a function to prevent wireless clients

connected with the device from communicating with one another.

62 CHAPTER 5: CONFIGURING THE ROUTER

Internet Settings You can configure the settings for your WAN port connection.

WAN This feature is used to configure the parameters for your Internet

connection. The information necessary to complete these screens should be obtained from your ISP. Check with your ISP first to find out what type of connection you should choose.

Figure 47 WAN Screen

You should see the first entry already contains information that’s been configured using the Wizard in the initial setup. If you want to change that information or set up other connection, click Edit.

There are seven options available for the connection mode:

■ Disable — To disable the Internet connection function (see page 63)

■ Bridge Mode — RFC1483 Bridged Mode, (see page 63)

■ Dynamic IP — Using DHCP for WAN connection (see page 64)

■ Static IP — Using fixed IP for WAN connection (see page 65)

■ PPPoE — PPP over Ethernet, providing routing for multiple PCs (see

page 66)

■ PPTP — Point-to-Point Tunneling Protocol (see page 67)

■ L2TP — Layer 2 Tunneling Protocol (see page 68)

Internet Settings 63

Disable

Selecting this option means that you do not want your Router to connect to the Internet.

Figure 48 Disable Internet Connection Screen

Bridge Mode

If your ISP limits access to the Internet to specific computers, this means that traffic to/from these computers only will be forwarded. In this case, Bridge Mode is used to connect to the ISP. The ISP will generally give one Internet account and limit only one computer to access the Internet. Check with your ISP to determine if this mode is used for your Internet connection.

Figure 49 Bridge Mode Screen

Enter the IP address and Subnet mask information.

64 CHAPTER 5: CONFIGURING THE ROUTER

Dynamic IP

You can configure the Router to obtain an IP address automatically from a DHCP server.

Figure 50 Dynamic IP Screen

1 Select Dynamic IP from the Internet sharing protocol drop-down menu. 2 If the ISP requires you to input a Host Name, type it in the Host Name

field.

3 Click Apply.

Internet Settings 65

Static IP

If your Service Provider has assigned a fixed IP address, enter the assigned IP address information on the screen.

Figure 51 Static IP Screen

1 Select Static IP from the Internet sharing protocol drop-down menu. 2 Enter your IP address in the IP address assigned by your service provider

field.

3 Enter the subnet mask in the Subnet Mask field. 4 Enter the default gateway IP address in the Service Provider Gateway

Address field.

5 Enter DNS IP address. 6 If there is a secondary DNS, enter the IP address. 7 Click Apply.

66 CHAPTER 5: CONFIGURING THE ROUTER

PPPoE

PPP over Ethernet, provides routing for multiple PCs. To configure this function correctly, you should obtain the information from your ISP.

Figure 52 PPPoE Settings Screen

1 Select PPPoE from the Internet sharing protocol drop-down menu. 2 Enter the user name assigned to you by your ISP in the Username field.

And enter the password assigned to you by your ISP in the Password field. Re-enter your password in the Retype Password field.

3 The Service Name field is optional. 4 Enter the MTU value in the MTU field. Do not make changes to this

setting, unless your ISP specifically requires a different setting other than

1492.

5 If you want your Router to automatically disconnect from the Internet

after a period of inactivity, specify a time in the Idle Timeout field. (Enter a value of 0 to disable this timeout). Check the Auto Reconnect After Timeout box to automatically re-establish the connection as soon as you attempt to access the Internet again.

6 Click Apply.

Internet Settings 67

PPTP

If your ISP uses PPTP as the Internet connection protocol, setup the details on this screen.

Figure 53 PPTP Screen

1 Select PPTP from the Internet sharing protocol drop-down menu. 2 Enter the PPTP Server information. 3 Enter the user ID in the User ID field. And enter the password assigned to

you by your ISP in the Password field. Re-enter your password in the Retype Password field.

4 If you want your Router to automatically disconnect from the Internet

after a period of inactivity, specify a time in the Idle Timeout field. (Enter a value of 0 to disable this timeout).

5 If you receive the IP address from your ISP via DHCP function, check the

Get IP By DHCP box.

6 If no DHCP function is used, then enter the IP Address, Subnet Mask, and

Default Gateway information.

7 Click Apply.

68 CHAPTER 5: CONFIGURING THE ROUTER

L2TP

If your ISP uses L2TP as the Internet connection protocol, setup the details on this screen.

Figure 54 L2TP Connection Screen

1 Select L2TP from the Internet sharing protocol drop-down menu. 2 Enter the L2TP Server information. 3 Enter the User ID and Password required by your ISP. 4 Retype the password. 5 Enter the maximum Idle Timeout for the Internet connection. After this

time has been exceeded the connection will be terminated.

6 Check the Get IP By DHCP box to receive IP address from your ISP’s DHCP

function. If this box is not checked, enter the IP address, Subnet mask, and Default Gateway information.

7 Click Apply.

Internet Settings 69

DNS Domain Name Service (or Server) is an Internet service that translates

domain names into IP addresses. Because domain names are alphabetic, they're easier to remember. The Internet however, is really based on IP addresses. Every time you use a domain name, a DNS service must translate the name into the corresponding IP address. For example, the domain name www.example.com might translate to 198.105.232.4.

Check with your ISP for information on this screen.

Figure 55 DNS Screen

If the DNS information is automatically provided by your ISP every time you connect to it, check the Automatic from ISP checkbox.

If your ISP provided you with specific DNS addresses to use, enter them into the appropriate fields on this screen and click Apply.

Many ISPs do not require you to enter this information into the Router. If you are using a Static IP connection type, you may need to enter a specific DNS address and secondary DNS address for your connection to work properly. If your connection type is Dynamic or PPPoE, it is likely that you do not have to enter a DNS address.

70 CHAPTER 5: CONFIGURING THE ROUTER

Clone MAC address To configure the Hostname and Clone MAC Address information for your

Router, select Internet Settings, then go to the Clone MAC address tab. The Hostname and MAC Address screen displays.

Figure 56 Hostname and Clone MAC Address Screen

1 Some ISPs require a host name. If your ISP has this requirement, enter the

host name in the Host Name field.

2 Three different ways to configure the WAN MAC Address:

■ If your ISP requires an assigned MAC address, enter the values in the

WAN MAC address field.

■ If the computer that you are using is the one that was previously

connected directly to the cable modem, click Clone.

■ To reset the MAC Address to the default, click Reset MAC.

3 Click Apply to save the settings.

Firewall 71

Firewall This section is for configuration settings of the Router’s firewall function.

Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including Ping of Death (PoD) and Denial of Service (DoS) attacks. You can turn the firewall function off if needed. Turning off the firewall protection will not leave your network completely vulnerable to hacker attacks, but 3Com recommends that you leave the firewall enabled whenever possible.

SPI Stateful Packet Inspection (SPI) - The Intrusion Detection Feature of the

Router limits access for incoming traffic at the WAN port.

This feature is called a "stateful" packet inspection, because it examines the contents of the packet to determine the state of the communications; i.e., it ensures that the stated destination computer has previously requested the current communication. This is a way of ensuring that all communications are initiated by the recipient computer and are taking place only with sources that are known and trusted from previous interactions. In addition to being more rigorous in their inspection of packets, stateful inspection firewalls also close off ports until connection to the specific port is requested.

Figure 57 Firewall Screen

72 CHAPTER 5: CONFIGURING THE ROUTER

To enable the firewall function:

1 Select the level of protection (High, Medium, or Low) that you desire from

the Firewall level drop-down menu.

2 Click Apply.

■ For low and medium levels of firewall protection, refer to Figure 58.

■ For high level of firewall protection, refer to Figure 59.

Figure 58 Low and Medium Level Firewall Protection Screen

When abnormal network activity occurs, an alerting email will be sent out to you. Enter the following information to receive the email:

■ Your E-mail Address

■ SMTP Server Address

■ User name

■ Password

Firewall 73

Figure 59 High Level Firewall Protection Screen

If you select high level of protection, you will need to configure additional parameters for the firewall.

■ Fragmentation half-open wait - Configures the number of seconds

that a packet state structure remains active. When the timeout value expires, the Router drops the un-assembled packet, freeing that structure for use by another packet.

■ TCP SYN wait - Defines how long the software will wait for a TCP

session to synchronize before dropping the session.

■ TCP FIN wait - Specifies how long a TCP session will be maintained

after the firewall detects a FIN packet.

■ TCP connection idle timeout - The length of time for which a TCP

session will be managed if there is no activity.

■ UDP session idle timeout - The length of time for which a UDP session

will be managed if there is no activity.

■ H.323 data channel idle timeout - The length of time for which an

H.323 session will be managed if there is no activity.

74 CHAPTER 5: CONFIGURING THE ROUTER

■ Total incomplete TCP/UDP sessions HIGH - Defines the rate of new

unestablished sessions that will cause the software to start deleting half-open sessions.

■ Total incomplete TCP/UDP sessions LOW - Defines the rate of new

unestablished sessions that will cause the software to stop deleting half-open sessions.

■ Incomplete TCP/UDP sessions (per min) HIGH - Maximum number of

allowed incomplete TCP/UDP sessions per minute.

■ Incomplete TCP/UDP sessions (per min) LOW - Minimum number of

allowed incomplete TCP/UDP sessions per minute.

■ Maximum incomplete TCP/UDP sessions number from same host -

Maximum number of incomplete TCP/UDP sessions from the same host.

■ Incomplete TCP/UDP sessions detect sensitive time period - Length of

time before an incomplete TCP/UDP session is detected as incomplete.

■ Maximum half-open fragmentation packet number from same host -

Maximum number of half-open fragmentation packets from the same host.

■ Half-open fragmentation detect sensitive time period - Length of time

before a half-open fragmentation session is detected as half-open.

■ Flooding cracker block time - Length of time from detecting a flood

attack to blocking the attack.

Firewall 75

Special Applications Special Applications let you choose specific ports to be open for specific

applications to work properly with the Network Address Translation (NAT) feature of the Router.

Figure 60 Special Applications Screen

A list of popular applications has been included to choose from. Select the application from the Popular Applications drop-down menu. Then select the row that you want to copy the settings to from the Copy To drop-down menu, and click Copy To. The settings will be transferred to the row that you specified. Click Apply to save the setting for that application.

If your application is not listed, you will need to check with the application vendor to determine which ports need to be configured. You can manually enter the port information into the Router. To manually enter the port information:

1 Specify the trigger port (the one used by the application when it is

initialized) in the Trigger Port column, and specify whether the trigger is TCP or UDP.

2 Specify the Public Ports used by the application, that will need to be

opened up in the firewall for the application to work properly. Also specify whether these ports are TCP or UDP.

3 Check the Enabled checkbox, then click Apply.

76 CHAPTER 5: CONFIGURING THE ROUTER

Virtual Servers The Virtual servers feature allows you to route external (Internet) calls for

services such as a web server (port 80), FTP server (Port 21), or other applications through your Router to your internal network. Since your internal computers are protected by a firewall, machines from the Internet cannot get to them because they cannot be 'seen'.

If you need to configure the Virtual Server function for a specific application, you will need to contact the application vendor to find out which port settings you need.

The maximum number of virtual servers that can be configured is 20.

Figure 61 Virtual Servers Screen

A list of popular servers has been included to choose from. Select the server from the Popular servers drop-down menu. Then click Add, your selection will be added to the table.

If the server that you want to use is not listed in the drop-down menu, you can manually add the virtual server to the table. To manually configure your virtual servers:

1 Enter the IP address, and the description in the spaces provided for the

internal machine.

2 Select the protocol type (TCP, UDP, or both TCP and UDP) from the

drop-down menu.

Firewall 77

3 Specify the public port that will be seen by clients on the Internet, and the

LAN port which the traffic will be routed to.

4 You can enable or disable each Virtual Server entry by checking or

unchecking the appropriate Enabled checkbox.

5 Click Apply to save the changes for each Virtual Server entry.

DMZ If you have a client PC that cannot run an Internet application properly

from behind the firewall, you can open the client up to unrestricted two-way Internet access. This may be necessary if the NAT feature is causing problems with an application such as a game or video conferencing application.

Figure 62 DMZ Screen

Use this feature on a temporary basis. The computer in the DMZ is not protected from hacker attacks.

Check the Enable DMZ box, the IP Address of Virtual DMZ Host will appear.

1 Enter the last digits of the LAN IP address in the Client PC IP Address field.

Enter the IP address (if known) that will be accessing the DMZ PC into the Public IP Address field, so that only the computer on the Internet at this address can access the DMZ PC without firewall protection. If the IP address is not known, or if more than one PC on the Internet will need to access the DMZ PC, then set the Public IP Address to 0.0.0.0.

2 Click Apply.

78 CHAPTER 5: CONFIGURING THE ROUTER

PC Privileges The Router can be configured to restrict access to the Internet, email or

other network services at specific days and times. Restriction can be set for a single computer, a range of computers, or multiple computers.

You can define the traffic type permitted or not-permitted to the Internet.

Figure 63 PC Privileges Screen

1 Select one option from filtering function:

■ All PCs have access to the Internet: selecting this mode means that all

clients have full access to Internet.

■ PCs access authorised services only:

2 Click Add PC (refer to Figure 64).

To edit or delete specific existing filtering rules, click on Edit or Delete for the appropriate filtering rule.

Firewall 79

Figure 64 PC Privileges Add PC Screen

1 Enter a description in the Client PC Description field, and the IP address or

IP address range into the Client PC IP Address fields.

2 To bypass the URL Filter and Content Filter, check the corresponding

Bypass checkbox.

If you check the two options: Bypass URL Filter, and Bypass Content Filter, then the Web sites and keywords defined in this screen will not be filtered out.

3 Select the services to be blocked. A list of popular services is listed on this

screen, to block a particular service, check the appropriate Blocking checkbox.

If the service to be restricted is not listed here, you can enter a custom range of ports at the bottom of the screen, under User Defined Blocked

Ports.

4 If you want the restriction to apply only at certain times, select the

schedule rule to apply from the Schedule Rule drop-down menu.

Note that schedule rules are defined on the Schedule Rules screen (see page 80).

5 Click Apply to add the settings.

80 CHAPTER 5: CONFIGURING THE ROUTER

Schedule Rule The Router can be configured to restrict access to the Internet, email or

other network services at specific days and times. Define the time in this screen, and define the rules in the PC Privileges screen (see page 78).

Figure 65 Schedule Rule Screen

1 Click Add Rule to add a schedule rule (refer to Figure 66).

Figure 66 Add Schedule Rule Screen

2 Enter a name and comment for the schedule rule in the Name and

Comment fields.

3 Specify the schedule rules for the required days and times - note that all

times should be in 24 hour format.

4 Click Apply.

Firewall 81

URL Filter To configure the URL filter feature, use the table on the URL Filter screen

to specify the Web sites (www.somesite.com) and/or keywords you want to filter on your network.

For example, entering a keyword of xxx would block access to any URL that contains the string xxx.

Figure 67 URL Filter Screen

1 Check the Enable URL Filtering Function checkbox. The rule table will

appear.

2 Enter the URL address or keywords in the URL/Keyword field. 3 Select Denied or Allowed from the Mode drop-down menu.

To complete this configuration, you will need to create or modify the filtering rule in the PC Privileges screen (see page 78).

From the PC Privileges Add PC screen (Figure 64), if you check the two options: Bypass URL Filter, and Bypass Content Filter, then the Web sites and keywords defined in this screen will not be filtered out.

82 CHAPTER 5: CONFIGURING THE ROUTER

Advanced The Advanced section allows you to set additional parameter details for

the Router. You can configure:

■ Security

■ VLAN

■ Static Routes

■ RIP

■ DDNS

■ SNMP

■ Syslog

■ Proxy Arp

■ QoS Settings

Security Use the Security screen to set the advanced security settings for the

Router.

Figure 68 Security Screen

Advanced 83

■ NAT — Before you enable NAT (Network Address Translation), make

sure you have changed the administrator password. NAT is the method by which the Router shares the single IP address assigned by your ISP with the computers on your network.

This function should only be disabled by advanced users, and if your ISP assigns you multiple IP addresses or you need NAT disabled for an advanced system configuration. If you have a single IP address and you turn NAT off, the computers on your network will not be able to access the Internet. Other problems may also occur.

■ IPSEC NAT-T Pass-through — NAT-T (NAT Traversal) is an Internet

Draft proposed to IETF in order to help the problems associated with passing IPsec traffic through NAT Routers. For NAT-T to work, both ends of the connection need to support this function. Ensure that you select NAT-T only if it is needed as it will reduce LAN-WAN throughput. This Router supports NAT-T draft 2 implementation.

■ Universal Plug and Play — This is a technology that offers seamless

operation of voice messaging, video messaging, games, and other applications that are Universal Plug and Play compliant. Some applications require the Router's firewall to be configured in a specific way to operate properly. This usually requires opening TCP and UDP ports and in some instances setting trigger ports. An application that is Universal Plug and Play compliant has the ability to communicate with the Router, basically "telling" the Router which way it needs the firewall configured. The Router ships with the Universal Plug and Play feature disabled. If you are using any applications that are Universal Plug and Play compliant, and want to take advantage of the Universal Plug and Play features, you can enable this feature. Simply check the Enable Universal Plug and Play checkbox. Click Apply to save the change.

■ WAN Ping Blocking — Computer hackers use what is known as

"Pinging" to find potential victims on the Internet. By pinging a specific IP address and receiving a response from the IP address, a hacker can determine that something of interest might be there. The Router can be set up so it will not respond to an Internet Control Message Protocol (ICMP) Ping from the outside. This heightens the level of security of your Router. To turn off the ping response, check Block ICMP Ping and click Apply; the Router will not respond to an ICMP ping from the Internet.

84 CHAPTER 5: CONFIGURING THE ROUTER

■ MSS Clamping — You might not be able to browse some Web sites or

to send email messages that contain attachments from an Internet Connection Sharing client computer if your outbound connection is through a Windows XP-based Internet Connection Sharing host computer that uses Point-to-Point Protocol over Ethernet (PPPoE). This issue may occur if the Windows XP-based Internet Connection Sharing host computer uses a smaller Maximum Transmission Unit (MTU) size on the WAN interface (the PPPoE connection to the Internet) than it uses on the private interface (the Ethernet connection to the Internet Connection Sharing client). If a packet is larger than the MTU size on the WAN interface, the client sends an Internet Control Message Protocol (ICMP) error to the external server to request that the server negotiate the TCP Maximum Segment Size (MSS). However, this message may be blocked by some firewalls. When this occurs, the packet is dropped. To allow the message to go through the firewall, enable MSS Clamping. MSS clamping will make Internet Connection Sharing set the MSS value low enough to match the external interface.

■ Remote Administration — This feature allows you to make changes to

your Router’s settings from anywhere on the Internet. Four options are available:

■ If you do not want to use this feature, select Disable Remote

Administration.

■ Select Enable administration from a single Internet Host, and enter

the IP address, to allow only one computer to use the remote administration. This is more secure, as only the specified IP address will be able to manage the Router.

■ Select Enable administration from a whole Subnet Internet Host,

and enter the IP address and subnet mask, to allow PCs from that specific subnet group to use the remote administration.

■ Select Enable administration from any Internet Host, this allows

any computer to access the Router remotely.

Before you enable this function, ensure that you have set the Administration Password.

VLAN The VLAN screen allows you to setup VLAN groups.

Figure 69 VLAN Screen

Static Routes You can configure static routes in this screen.

Advanced 85

Figure 70 Static Routes Screen

To add a static route entry to the table, click Add (see Figure 71).

To change an existing entry, click Edit. To delete an entry, click Delete.

86 CHAPTER 5: CONFIGURING THE ROUTER

Figure 71 Add Static Route Screen

Enter the following information:

■ Index — the index of the entry.

■ Network Address — the network address of the static route.

■ Subnet Mask — the subnet mask of the route.

A network address of 0.0.0.0 and a subnet mask of 0.0.0.0 indicates the default route.

■ Gateway — the router used to route data to the network specified by

the network address.

■ Interface — select the interface.

After you have finished making changes to the table, click Apply.

Advanced 87

RIP RIP (Routing Information Protocol) - RIP allows the network administrator

to set up routing information on one RIP-enabled device and send that information to all RIP-enabled devices on the network.

Figure 72 RIP Parameter Screen

You can set up RIP independently on both LAN and WAN interfaces.

1 Check the Enable RIP checkbox. 2 Check the Enable Auto summary checkbox. Auto summarization sends

simplified routing data to other RIP-enabled devices rather than full routing data.

3 Select the Operation Mode:

■ Disable — RIP is not enabled for the WAN or LAN interface.

■ Enable — RIP is enabled for the WAN or LAN interface. The router will

transmit RIP update information to other RIP-enabled devices.

■ Silent — RIP is enabled, however the Router only receives RIP update

messages, it will not transmit any messages itself.

4 In the Version field, select 1 or 2.

3Com recommends that you only use RIPv1 if there is an existing RIP-enabled device on your network that does not support RIPv2. In all other cases, you should use RIPv2.

88 CHAPTER 5: CONFIGURING THE ROUTER

5 Use the Poison Reverse drop-down menu to enable or disable Poison

Reverse on the Router. Enabling Poison Reverse on your Router allows it to indicate to other RIP-enabled devices that they have both routes that point to each other, preventing data loops.

6 Use the Authentication Required field to choose the mode of

authentication:

■ None — Switches off authentication on the specified interface.

■ Password — An unencrypted text password that needs to be set on all

RIP-enabled devices connected to this Router. RIP information is not shared between devices whose passwords do not match.

7 In the Password field, enter the required password. 8 Click Apply.

Advanced 89

DDNS The Router provides a list of dynamic DNS providers for you to choose

from. Dynamic Domain Name Server (DDNS) enables you to map a static domain name to a dynamic IP address.

Before you set up DDNS, you must obtain an account, password or key and static domain name from your DDNS provider.

The Router supports five DDNS providers:

■ DynDNS.org

■ TZO.com

■ Dt DNS.com

■ No-IP.com

■ Zoneedit.com

Figure 73 Dynamic Domain Name Server (DDNS) Screen

1 Check Enable DDNS. 2 Select the provider, and then enter the necessary information provided by

your DDNS provider.

3 Click Apply.

90 CHAPTER 5: CONFIGURING THE ROUTER

SNMP SNMP (Simple Network Management Protocol) allows remote

management of your Router by a PC that has an SNMP management agent installed.

Check the Enable SNMP box, the table will appear.

Figure 74 SNMP Screen

To Configure SNMP Community:

1 In the Community column, enter the name of the SNMP communication

channel. Your SNMP management agent needs to be configured with this name so that it can communicate with your Router.

2 In the Access column, select Read to allow the management agent to

collect data (for example, bandwidth usage) from your Router. Select Write to allow the management agent to change the configuration of your Router.

3 Check the appropriate Valid checkbox to enable the communication

channel.

Advanced 91

You can configure your Router to send status messages to the SNMP management agent if a problem occurs on the network. To configure SNMP traps:

1 In the IP Address field, enter the IP address of the PC to which you want

your Router to send status messages.

2 In the Community field, enter the name of the SNMP communication

channel to which you want your Router to send status messages.

3 Set the Version field to match the version of trap messaging that your

SNMP management agent supports. The Router supports V1 and V2c trap messaging.

Syslog Using third party syslog software, this Syslog Server tool will automatically

download the Router log to the specified server IP address.

Figure 75 Syslog Server Screen

1 Check the Enable Syslog Server checkbox. 2 Enter the Server LAN IP Address in the space provided. 3 Click Apply.

92 CHAPTER 5: CONFIGURING THE ROUTER

Proxy ARP Proxy ARP is the technique in which one host, usually a Router, answers

ARP requests intended for another machine. By “faking” its identity, the Router accepts responsibility for routing packets to the “real” or intended destination. This heightens the security for your network.

Figure 76 Proxy ARP Screen

1 Check the Enable ProxyARP box. 2 Enter the corresponding IP address in the IP Address From and IP Address

To fields.

3 Click Apply.

Hewlett Packard Enterprise WL603 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Wireless 11n ADSL Firewall Router

ABOUT THIS GUIDE

Naming Convention Throughout this guide, the 3Com Wireless 11n ADSL Firewall Router is

Conventions Ta bl e 1 and Tab l e 2 list conventions that are used throughout this guide.

Feedback About This User Guide

Related Documentation

INTRODUCING THE ROUTER

Wireless 11n ADSL Firewall Router

Router Advantages The advantages of the Router include:

Package Contents The Router kit includes the following items:

Minimum System and Component Requirements

Physical Features The front panel of the Router contains a series of indicator lights (LEDs)

INSTALLING THE ROUTER

Introduction This chapter will guide you through a basic installation of the Router,

Safety Information Please note the following:

Positioning the Router

Wall Mounting There are two slots on the underside of the Router that can be used for

Powering Up the Router

Connecting the Router

Obtaining an IP Address Automatically

Windows 2000 If you are using a Windows 2000-based computer, use the following

SETTING UP YOUR COMPUTERS

Windows Vista

Windows XP

Macintosh If you are using a Macintosh computer, use the following procedure to

Disabling PPPoE and PPTP Client Software

Disabling Web Proxy

RUNNING THE SETUP WIZARD

Accessing the Router using the 3Com Detect Application

Running the 3Com Detect Application

Accessing the Setup Wizard

CONFIGURING THE ROUTER

Navigating Through the Router Configuration screens

Main Menu The main menu is located on the left side, as shown in Figure 30. When

Status

Figure 30 Welcome Screen

LAN Settings Your Router is equipped with a DHCP server that will automatically assign

LAN Settings The LAN Settings screen is used to specify the LAN IP address of your

DHCP Clients List The DHCP Clients List provides details on the devices that have received IP

Wireless Settings 49

Configuration The Wireless Configuration Screen allows you to turn on/ turn off the

Encryption This feature prevents any non-authorized party from reading or changing

Connection Control This feature is used to filter the clients based on their MAC addresses.

Client List You can view the list of all wireless clients that are connected to the

Advanced The Advanced screen allows you to configure detailed settings for your

Internet Settings You can configure the settings for your WAN port connection.

Clone MAC address To configure the Hostname and Clone MAC Address information for your

Firewall 71

Special Applications Special Applications let you choose specific ports to be open for specific

Virtual Servers The Virtual servers feature allows you to route external (Internet) calls for

PC Privileges The Router can be configured to restrict access to the Internet, email or

Schedule Rule The Router can be configured to restrict access to the Internet, email or

URL Filter To configure the URL filter feature, use the table on the URL Filter screen

Advanced The Advanced section allows you to set additional parameter details for

■ Security

VLAN The VLAN screen allows you to setup VLAN groups.

Static Routes You can configure static routes in this screen.

DDNS The Router provides a list of dynamic DNS providers for you to choose

SNMP SNMP (Simple Network Management Protocol) allows remote

Syslog Using third party syslog software, this Syslog Server tool will automatically

Proxy ARP Proxy ARP is the technique in which one host, usually a Router, answers
