Power

Socket

E0 Uplink

RJ-45 Port

E1 LAN

RJ-45 Port

Antenna

Reset Button

Wall Mount Slots

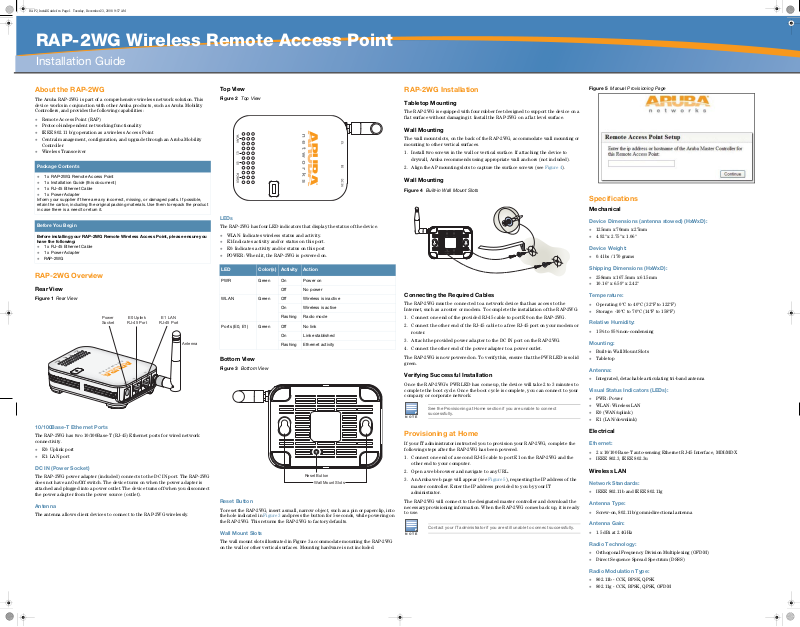

RAP2_InstallGuide.fm Page 1 Tuesday, December 23, 2008 9:57 AM

RAP-2WG Wireless Remote Access Point

Installation Guide

About the RAP-2WG

The Aruba RAP-2WG is part of a comprehensive wireless network solution. This
device works in conjunction with other Aruba products, such as Aruba Mobility
Controllers, and provides the following capabilities:

z Remote Access Point (RAP)
z Protocol-independent networking functionality
z IEEE 802.11 b/g operation as a wireless Access Point
z Central management, configuration, and upgrade through an Aruba Mobility

Controller

z Wireless Transceiver

Package Contents

z 1 x RAP-2WG Remote Access Point
z 1 x Installation Guide (this document)
z 1 x RJ-45 Ethernet Cable
z 1 x Power Adapter

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible,
retain the carton, including the original packing materials. Use them to repack the product
in case there is a need to return it.

Before You Begin

Before installing your RAP-2WG Remote Wireless Access Point, please ensure you
have the following:

z 1 x RJ-45 Ethernet Cable
z 1 x Power Adapter
z RAP-2WG

Top View

Figure 2 Top View

LEDs

The RAP-2WG has four LED indicators that display the status of the device.

z WLAN: Indicates wireless status and activity.
z E1:Indicates activity and/or status on this port.
z E0: Indicates activity and/or status on this port
z POWER: When lit, the RAP-2WG is powered on.

RAP-2WG Installation

Tabletop Mounting

The RAP-2WG is equipped with four rubber feet designed to support the device on a
flat surface without damaging it. Install the RAP-2WG on a flat level surface.

Wall Mounting

The wall mount slots, on the back of the RAP-2WG, accommodate wall mounting or
mounting to other vertical surfaces.

1. Install two screws in the wall or vertical surface. If attaching the device to
drywall, Aruba recommends using appropriate wall anchors (not included).

2. Align the AP mounting slots to capture the surface screws (see Figure 4).

Wall Mounting

Figure 4 Built-in Wall Mount Slots

Figure 5 Manual Provisioning Page

Specifications

Mechanical

Device Dimensions (antenna stowed) (HxWxD):

z 125mm x 70mm x 27mm
z 4.92" x 2.75" x 1.06"

Device Weight:

z 0.4 lbs / 170 grams

RAP-2WG Overview

Rear View

Figure 1 Rear View

10/100Base-T Ethernet Ports

The RAP-2WG has two 10/100Base-T (RJ-45) Ethernet ports for wired network
connectivity.

z E0: Uplink port
z E1: LAN port

DC IN (Power Socket)

The RAP-2WG power adapter (included) connects to the DC IN port. The RAP-2WG
does not have an On/Off switch. The device turns on when the power adapter is
attached and plugged into a power outlet. The device turns off when you disconnect
the power adapter from the power source (outlet).

Antenna

The antenna allows client devices to connect to the RAP-2WG wirelessly.

LED Color(s) Activity Action

PWR Green On Power on

Off No power

WLAN Green Off Wireless is inactive

On Wireless is active

Flashing Radio mode

Ports (E0, E1) Green Off No link

On Link established

Flashing Ethernet activity

Bottom View

Figure 3 Bottom View

Reset Button

To reset the RAP-2WG, insert a small, narrow object, such as a pin or paperclip, into
the hole indicated in Figure 3 and press the button for 5 seconds, while powering on
the RAP-2WG. This returns the RAP-2WG to factory defaults.

Wall Mount Slots

The wall mount slots illustrated in Figure 3 accommodate mounting the RAP-2WG
on the wall or other vertical surfaces. Mounting hardware is not included.

Connecting the Required Cables

The RAP-2WG must be connected to a network device that has access to the
Internet, such as a router or modem. To complete the installation of the RAP-2WG:

1. Connect one end of the provided RJ-45 cable to port E0 on the RAP-2WG.

2. Connect the other end of the RJ-45 cable to a free RJ-45 port on your modem or
router.

3. Attach the provided power adapter to the DC IN port on the RAP-2WG.

4. Connect the other end of the power adapter to a power outlet.

The RAP-2WG is now powered on. To verify this, ensure that the PWR LED is solid
green.

Verifying Successful Installation

Once the RAP-2WG’s PWR LED has come up, the device will take 2 to 3 minutes to
complete the boot cycle. Once the boot cycle is complete, you can connect to your
company or corporate network.

See the Provisioning at Home section if you are unable to connect

NOTE

successfully.

Provisioning at Home

If your IT administrator instructed you to provision your RAP-2WG, complete the
following steps after the RAP-2WG has been powered.

1. Connect one end of a second RJ-45 cable to port E1 on the RAP-2WG and the
other end to your computer.

2. Open a web browser and navigate to any URL.

3. An Aruba web page will appear (see Figure 5), requesting the IP address of the
master controller. Enter the IP address provided to you by your IT
administrator.

The RAP-2WG will connect to the designated master controller and download the
necessary provisioning information. When the RAP-2WG comes back up, it is ready
to use.

Contact your IT administrator if you are still unable to connect successfully.

NOTE

Shipping Dimensions (HxWxD):

z 258mm x 167.5mm x 61.5mm
z 10.16" x 6.59" x 2.42"

Temperature:

z Operating: 0ºC to 40ºC (32ºF to 122ºF)
z Storage: -10ºC to 70ºC (14ºF to 158ºF)

Relative Humidity:

z 15% to 95% non-condensing

Mounting:

z Built-in Wall Mount Slots
z Tabletop

Antenna:

z Integrated, detachable articulating tri-band antenna

Visual Status Indicators (LEDs):

z PWR: Power
z WLAN: Wireless LAN
z E0 (WAN/uplink)
z E1 (LAN/downlink)

Electrical

Ethernet:

z 2 x 10/100 Base-T auto-sensing Ethernet RJ-45 Interface, MDI/MDX
z IEEE 802.3, IEEE 802.3u

Wireless LAN

Network Standards:

z IEEE 802.11b and IEEE 802.11g

Antenna Type:

z Screw-on, 802.11b/g omni-directional antenna

Antenna Gain:

z 1.5 dBi at 2.4GHz

Radio Technology:

z Orthogonal Frequency Division Multiplexing (OFDM)
z Direct Sequence Spread Spectrum (DSSS)

Radio Modulation Type:

z 802.11b - CCK, BPSK, QPSK
z 802.11g - CCK, BPSK, QPSK, OFDM

!

᦭Ქ᦭ኂ‛ ჿ᣿䋼

Hazardous Materials Declaration

᦭Ქ᦭ኂ‛䋼ᚗర⚛Hazardous Substances)

ㇱઙฬ⒓

(Parts)

䪙



Lead

(Pb)

ᳮ

Mercury

(Hg)

䬝



Cadmium

(Cd)

౐ચ䫀

Chromium VI
Compounds

(Cr6+)

ᄙ

⒈ 㘨

⧶

Polybrominated

Biphenyls

(PBB)

ᄙ⒈䝮⧶ 

Polybrominated

Diphenyl Ether

(PBDE)

⬉

〝᧼

PCA Board

X O O O O O

᧍㒘ઙ

Mechanical

Subassembly

X O O O O O

O:⴫␜䆹᦭Ქ᦭ኂ‛䋼࿷䆹ㇱઙᚲ᦭ဋ䋼᧚ᢱ⊛฽㊂ဋ࿷SJ/T11363-2006󰵼ಎ㾘ቯ⊛㒢㊂ⷐ᳞એޕ

This component does not contain this hazardous substance above the maximum concentration values in homogeneous materials
specified in the SJ/T11363-2006 Industry Standard.

X: ⴫␜䆹᦭Ქ᦭ኂ‛䋼⥋ዋ࿷䆹ㇱઙ⊛ᨱ৻ဋ䋼᧚ᢱ⊛฽㊂⿥಴SJ/T11363-2006󰵼ಎ㾘ቯ⊛㒢㊂ⷐ᳞ޕ

This component does contain this hazardous substance above the maximum concentration values in homogeneous materials specified
in the SJ/T11363-2006 Industry Standard.

ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼ޕ

This table shows where these substances may be found in the supply chain of electronic information products, as of the date of sale of
the enclosed product.

ℸ󰵼ᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳ󰵼ᖫ
ᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ՟བ⬉∴ܗ῵ഫ䌈೼݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰

The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are per the
symbol shown here. The Environment- Friendly Use Period is valid only when the product is operated
under the conditions defined in the product manual. 

Part Number: 0510303-01

RAP2_InstallGuide.fm Page 2 Tuesday, December 23, 2008 9:57 AM

Media Access Control:

z CSMA/CA with ACK

Supported Frequency Bands 2.4GHz:

z 2.400 ~ 2.4835 GHz (Global), channels country specific

Supported Operating Channels:

802.11b 802.11g

z US, Canada, Taiwan 11
z ETSI up to 13

z US, Canada, Taiwan 11
z ETSI up to 13
z Japan 13

Supported Countries:

z Complete country list available at http://www.arubanetworks.com/products/aps/

certification

Data Rates:

z 802.11b - 1, 2, 5.5, 11 Mbps per channel
z 802.11g - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel

Output Transmit Power:

z 802.11b: 18 dBm
z 802.11g: 17 dBm at 6 Mbps; 14 dBm at 54 Mbps

Miscellaneous Functionality

Maximum Clients:

z 128 concurrent client sessions

Radio Band Selection:

z Via Mobility Controller in software

Manageability:

z Management of all 802.11 parameters
z Network Wide AP Management via CLI, WEB GUI and SNMPv3
z Access Point Profiles, managed by Geographical Location, BSSID and Radio

Type

Encryption (AP and Mobility Controller):

z 40 bit / 64 bit / 128 bit / 152 bit WEP, TKIP, AES

Compliance

Aruba provides a multi-language document containing country-specific restrictions
and additional safety and regulatory information for all Aruba hardware products.
You can read or download this document, on our website at

safety_addendum

.

www.arubanetworks.com/

Certifications

Electromagnetic Compatibility

z FCC DOC Part 15 Class B (digital portion)
z FCC Part 15 Subpart C 15.247
z FCC Part 15 Subpart E 15.407
z ICES-003 Class B (Canada)
z RSS 210 (Canada)
z VCCI Class B (Japan)
z Telec 2.4, Channel 14 and 5 GHz approved (Japan)
z CE marked
z MIC (Korea)
z SRRC (China)
z AS/NZS CISPR22: 2002
z AS/NZS 4268
z DGT (Taiwan)

The WEEE Directive 2002/96/EC and RoHS (Restriction of Hazardous Substances)
Directive 2002/95/EC sets collection, recycling and recovery targets for various
categories of electrical products and their waste.

European Union RoHS

The Restriction on Hazardous Substances Directive (RoHS)
(2002/95/EC), which accompanies the WEEE Directive, bans the

use of heavy metals and brominated flame-retardants in the
manufacture of electrical and electronic equipment. Specifically, restricted
materials under the RoHS Directive are Lead (Including Solder used in PCB’s),
Cadmium, Mercury, Hexavalent Chromium, and Bromine.

Aruba declares compliance with the European Union (EU) WEEE Directive (2002/
96/EC). For more information on WEEE, refer to:

http://www.dti.gov.uk/sustainability/weee

China RoHS

Aruba products comply with China environmental declaration
requirements and are labeled with the “EFUP 50” label shown at the
left.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:

z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this

CAUTION

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited
to channels 1 through 11.

equipment.

FCC Radiation Exposure Statement:

Warranty

Standard warranty - 1 year return to manufacturer

RAP-2WG Wireless Remote

Access Point

Installation Guide

Contacting Aruba Networks

Web Site Support

Main Site http://www.arubanetworks.com

Support Site https://support.arubanetworks.com

Software Licensing Site https://licensing.arubanetworks.com/login.php

Wireless Security Incident
Response Team (WSIRT)

Americas and APAC Support Email [e-mail]

EMEA Support Email [e-mail]

WSIRT Email
Please email details of any security
problem found in an Aruba product.

Telephone Support

Aruba Corporate [phone]

FAX [phone]

Support
United States
Universal Free Phone Service Number (UIFN): Australia, Canada,

China, France, Germany, Hong Kong, Ireland, Israel, Japan, Korea,
Singapore, South Africa, Taiwan, and the UK

All Other Countries

Copyright

© 2008 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, Bluescanner,
For Wireless That Works
Wireless Workplace Is Now Open For Business, and The Mobile Edge Company
Networks, Inc. All rights reserved. All other trademarks are the property of their respective owners.

®

, Mobile Edge Architecture, People Move. Networks Must Follow., RFprotect, The All

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open
Source Licenses. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation
for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken
against it with respect to infringement of copyright on behalf of those vendors.

Warranty

This hardware product is protected by the standard Aruba warranty of one year parts/labor. For more
information, refer to the ARUBACARE SERVICE AND SUPPORT TERMS AND CONDITIONS.

Altering this device (such as painting it) voids the warranty.

http://www.arubanetworks.com/support/wsirt.php

[e-mail]

800-WI-FI-LAN (800-943-4526)
+800-4WIFI-LAN ([phone])

[phone]

®

are trademarks of Aruba

Safety Compliance

z cULus Listed 60950
z IEC 60950
z EN 60950

Disposal of the RAP-2WG

For the most current information about Global Environmental Compliance and
Aruba products, see our website at

implementing Directive 2002/96EC on Waste of Electrical and Electronic Equipment
(WEEE).

This product at end of life is subject to separate collection and
treatment in the EU Member States, Norway, and Switzerland, and
therefore is marked with the symbol shown at the left (crossed out

www.arubanetworks.com/safety_addendum.

wheelie bin). The treatment applied at end of life of these products in
these countries shall comply with the applicable national laws

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated

WARNING

with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

Note to US model owner: To comply with US FCC regulation, the country
selection function has been completely removed from all US models. The

NOTE

above function is for non-US models only.

The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.

www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: [phone]

Fax [phone]

RAP-2WG Wireless Remote Access Point | Installation Guide
Part Number 0510577-01 | December 2008
