Hewlett Packard Enterprise ProLiant ML350p Gen8 Maintenance And Service Manual

HPE ProLiant ML350p Gen8 Server

Abstract

This document is for the person who installs, administers, and troubleshoots servers and storage systems. This document is intended for

Part Number: 661081-009 March 2016 Edition: 10

Maintenance and Service Guide

experienced IT professionals or end-users with no or prior hardware setup experience. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.

The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise website.

Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Intel® and Xeon® are trademarks of Intel Corporation in the U.S. and other countries.

Customer self repair

Hewlett Packard Enterprise products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis period Hewlett Packard Enterprise (or Hewlett Packard Enterprise service providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, Hewlett Packard Enterprise will ship that part directly to you for replacement. There are two categories of CSR parts:

• Mandatory—Parts for which customer self repair is mandatory. If you request Hewlett Packard

Enterprise to replace these parts, you will be charged for the travel and labor costs of this service.

• Optional—Parts for which customer self repair is optional. These parts are also designed for

customer self repair. If, however, you require that Hewlett Packard Enterprise replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

NOTE: Some Hewlett Packard Enterprise parts are not designed for customer self repair. In order to satisfy the customer warranty, Hewlett Packard Enterprise requires that an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.

Based on availability and where geography permits, CSR parts will be shipped for next business day delivery. Same day or four-hour delivery may be offered at an additional charge where geography permits. If assistance is required, you can call the Hewlett Packard Enterprise Support Center and a technician will help you over the telephone. Hewlett Packard Enterprise specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to Hewlett Packard Enterprise. In cases where it is required to return the defective part to Hewlett Packard Enterprise, you must ship the defective part back to Hewlett Packard Enterprise within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material. Failure to return the defective part may result in Hewlett Packard Enterprise billing you for the replacement. With a customer self repair, Hewlett Packard Enterprise will pay all shipping and part return costs and determine the courier/carrier to be used.

For more information about the Hewlett Packard Enterprise CSR program, contact your local service provider. For the North American program, go to the Hewlett Packard Enterprise CSR website (http://www.hpe.com/support/selfrepair).

Parts only warranty service

Your Hewlett Packard Enterprise Limited Warranty may include a parts only warranty service. Under the terms of parts only warranty service, Hewlett Packard Enterprise will provide replacement parts free of charge.

For parts only warranty service, CSR part replacement is mandatory. If you request Hewlett Packard Enterprise to replace these parts, you will be charged for the travel and labor costs of this service.

Réparation par le client (CSR)

Les produits Hewlett Packard Enterprise comportent de nombreuses pièces CSR (Customer Self Repair = réparation par le client) afin de minimiser les délais de réparation et faciliter le remplacement des pièces défectueuses. Si pendant la période de diagnostic, Hewlett Packard Enterprise (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut être effectuée à l'aide d'une pièce CSR, Hewlett Packard Enterprise vous l'envoie directement. Il existe deux catégories de pièces CSR :

Customer self repair 5

• Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à

Hewlett Packard Enterprise de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

• Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont

également conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à Hewlett Packard Enterprise de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.

REMARQUE: Certaines pièces Hewlett Packard Enterprise ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour que la garantie puisse s'appliquer, Hewlett Packard Enterprise exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces pièces sont identifiées par la mention "Non" dans le Catalogue illustré.

Les pièces CSR sont livrées le jour ouvré suivant, dans la limite des stocks disponibles et selon votre situation géographique. Si votre situation géographique le permet et que vous demandez une livraison le jour même ou dans les 4 heures, celle-ci vous sera facturée. Pour toute assistance, appelez le Centre d’assistance Hewlett Packard Enterprise pour qu’un technicien vous aide au téléphone Dans les documents envoyés avec la pièce de rechange CSR, Hewlett Packard Enterprise précise s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous devez le faire dans le délai indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation doivent être retournées dans l'emballage fourni. Si vous ne retournez pas la pièce défectueuse, Hewlett Packard Enterprise se réserve le droit de vous facturer les coûts de remplacement. Dans le cas d'une pièce CSR, Hewlett Packard Enterprise supporte l'ensemble des frais d'expédition et de retour, et détermine la société de courses ou le transporteur à utiliser.

Pour plus d'informations sur le programme CSR de Hewlett Packard Enterprise, contactez votre Mainteneur Agrée local. Pour plus d'informations sur ce programme en Amérique du Nord, consultez le site Web Hewlett Packard Enterprise (http://www.hpe.com/support/selfrepair).

Service de garantie "pièces seules"

Votre garantie limitée Hewlett Packard Enterprise peut inclure un service de garantie "pièces seules". Dans ce cas, les pièces de rechange fournies par Hewlett Packard Enterprise ne sont pas facturées.

Dans le cadre de ce service, la réparation des pièces CSR par le client est obligatoire. Si vous demandez à Hewlett Packard Enterprise de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

Riparazione da parte del cliente

Per abbreviare i tempi di riparazione e garantire una maggiore flessibilità nella sostituzione di parti difettose, i prodotti Hewlett Packard Enterprise sono realizzati con numerosi componenti che possono essere riparati direttamente dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica Hewlett Packard Enterprise (o un centro di servizi o di assistenza Hewlett Packard Enterprise) identifica il guasto come riparabile mediante un ricambio CSR, Hewlett Packard Enterprise lo spedirà direttamente al cliente per la sostituzione. Vi sono due categorie di parti CSR:

• Obbligatorie—Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida

la riparazione ad Hewlett Packard Enterprise, deve sostenere le spese di spedizione e di manodopera per il servizio.

• Opzionali—Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di

componenti progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad Hewlett Packard Enterprise, potrebbe dover sostenere spese addizionali a seconda del tipo di garanzia previsto per il prodotto.

Customer self repair 6

NOTA: alcuni componenti Hewlett Packard Enterprise non sono progettati per la riparazione da parte del cliente. Per rispettare la garanzia, Hewlett Packard Enterprise richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate da un "No" nel Catalogo illustrato dei componenti.

In base alla disponibilità e alla località geografica, le parti CSR vengono spedite con consegna entro il giorno lavorativo seguente. La consegna nel giorno stesso o entro quattro ore è offerta con un supplemento di costo solo in alcune zone. In caso di necessità si può richiedere l'assistenza telefonica di un addetto del centro di supporto tecnico Hewlett Packard Enterprise. Nel materiale fornito con una parte di ricambio CSR, Hewlett Packard Enterprise specifica se il cliente deve restituire dei component. Qualora sia richiesta la resa ad Hewlett Packard Enterprise del componente difettoso, lo si deve spedire ad Hewlett Packard Enterprise entro un determinato periodo di tempo, generalmente cinque (5) giorni lavorativi. Il componente difettoso deve essere restituito con la documentazione associata nell'imballo di spedizione fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di Hewlett Packard Enterprise. Nel caso di riparazione da parte del cliente, Hewlett Packard Enterprise sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare.

Per ulteriori informazioni sul programma CSR di Hewlett Packard Enterprise, contattare il centro di assistenza di zona. Per il programma in Nord America fare riferimento al sito Web (http://www.hpe.com/support/selfrepair).

Servizio di garanzia per i soli componenti

La garanzia limitata Hewlett Packard Enterprise può includere un servizio di garanzia per i soli componenti. Nei termini di garanzia del servizio per i soli componenti, Hewlett Packard Enterprise fornirà gratuitamente le parti di ricambio.

Per il servizio di garanzia per i soli componenti è obbligatoria la formula CSR che prevede la riparazione da parte del cliente. Se il cliente invece richiede la sostituzione ad Hewlett Packard Enterprise dovrà sostenere le spese di spedizione e di manodopera per il servizio.

Customer Self Repair

Hewlett Packard Enterprise Produkte enthalten viele CSR-Teile (Customer Self Repair), um Reparaturzeiten zu minimieren und höhere Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn Hewlett Packard Enterprise (oder ein Hewlett Packard Enterprise Servicepartner) bei der Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden kann, sendet Ihnen Hewlett Packard Enterprise dieses Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien unterteilt:

• Zwingend—Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie

den Austausch dieser Teile von Hewlett Packard Enterprise vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service berechnet.

• Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für

Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von Hewlett Packard Enterprise vornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

HINWEIS: Einige Hewlett Packard Enterprise Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen, muss das Teil von einem Hewlett Packard Enterprise Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

CSR-Teile werden abhängig von der Verfügbarkeit und vom Lieferziel am folgenden Geschäftstag geliefert. Für bestimmte Standorte ist eine Lieferung am selben Tag oder innerhalb von vier Stunden gegen einen Aufpreis verfügbar. Wenn Sie Hilfe benötigen, können Sie das Hewlett Packard Enterprise

Customer self repair 7

Support Center anrufen und sich von einem Mitarbeiter per Telefon helfen lassen. Den Materialien von Hewlett Packard Enterprise, die mit einem CSR-Ersatzteil geliefert werden, können Sie entnehmen, ob das defekte Teil an Hewlett Packard Enterprise zurückgeschickt werden muss. Wenn es erforderlich ist, das defekte Teil an Hewlett Packard Enterprise zurückzuschicken, müssen Sie dies innerhalb eines vorgegebenen Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss mit der zugehörigen Dokumentation in der Verpackung zurückgeschickt werden, die im Lieferumfang enthalten ist. Wenn Sie das defekte Teil nicht zurückschicken, kann Hewlett Packard Enterprise Ihnen das Ersatzteil in Rechnung stellen. Im Falle von Customer Self Repair kommt Hewlett Packard Enterprise für alle Kosten für die Lieferung und Rücksendung auf und bestimmt den Kurier-/Frachtdienst.

Weitere Informationen über das Hewlett Packard Enterprise Customer Self Repair Programm erhalten Sie von Ihrem Servicepartner vor Ort. Informationen über das CSR-Programm in Nordamerika finden Sie auf der Hewlett Packard Enterprise Website unter (http://www.hpe.com/support/selfrepair).

Parts-only Warranty Service (Garantieservice ausschließlich für Teile)

Ihre Hewlett Packard Enterprise Garantie umfasst möglicherweise einen Parts-only Warranty Service (Garantieservice ausschließlich für Teile). Gemäß den Bestimmungen des Parts-only Warranty Service stellt Hewlett Packard Enterprise Ersatzteile kostenlos zur Verfügung.

Für den Parts-only Warranty Service ist das CSR-Verfahren zwingend vorgegeben. Wenn Sie den Austausch dieser Teile von Hewlett Packard Enterprise vornehmen lassen, werden Ihnen die Anfahrtund Arbeitskosten für diesen Service berechnet.

Reparaciones del propio cliente

Los productos de Hewlett Packard Enterprise incluyen muchos componentes que el propio usuario puede reemplazar (Customer Self Repair, CSR) para minimizar el tiempo de reparación y ofrecer una mayor flexibilidad a la hora de realizar sustituciones de componentes defectuosos. Si, durante la fase de diagnóstico, Hewlett Packard Enterprise (o los proveedores o socios de servicio de Hewlett Packard Enterprise) identifica que una reparación puede llevarse a cabo mediante el uso de un componente CSR, Hewlett Packard Enterprise le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se clasifican en dos categorías:

• Obligatorio—Componentes cuya reparación por parte del usuario es obligatoria. Si solicita a

Hewlett Packard Enterprise que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

• Opcional—Componentes cuya reparación por parte del usuario es opcional. Estos componentes

también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que Hewlett Packard Enterprise realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

NOTA: Algunos componentes de Hewlett Packard Enterprise no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, Hewlett Packard Enterprise pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el catálogo ilustrado de componentes.

Según la disponibilidad y la situación geográfica, los componentes CSR se enviarán para que lleguen a su destino al siguiente día laborable. Si la situación geográfica lo permite, se puede solicitar la entrega en el mismo día o en cuatro horas con un coste adicional. Si precisa asistencia técnica, puede llamar al Centro de asistencia técnica de Hewlett Packard Enterprise y recibirá ayuda telefónica por parte de un técnico. Con el envío de materiales para la sustitución de componentes CSR, Hewlett Packard Enterprise especificará si los componentes defectuosos deberán devolverse a Hewlett Packard Enterprise. En aquellos casos en los que sea necesario devolver algún componente a Hewlett Packard Enterprise,

Customer self repair 8

deberá hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los componentes defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje de envío. Si no enviara el componente defectuoso requerido, Hewlett Packard Enterprise podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, Hewlett Packard Enterprise se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.

Para obtener más información acerca del programa de Reparaciones del propio cliente de Hewlett Packard Enterprise, póngase en contacto con su proveedor de servicios local. Si está interesado en el programa para Norteamérica, visite la página web de Hewlett Packard Enterprise CSR (http://www.hpe.com/support/selfrepair).

Servicio de garantía exclusivo de componentes

La garantía limitada de Hewlett Packard Enterprise puede que incluya un servicio de garantía exclusivo de componentes. Según las condiciones de este servicio exclusivo de componentes, Hewlett Packard Enterprise le facilitará los componentes de repuesto sin cargo adicional alguno.

Para este servicio de garantía exclusivo de componentes, es obligatoria la sustitución de componentes por parte del usuario (CSR). Si solicita a Hewlett Packard Enterprise que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

Customer Self Repair

Veel onderdelen in Hewlett Packard Enterprise producten zijn door de klant zelf te repareren, waardoor de reparatieduur tot een minimum beperkt kan blijven en de flexibiliteit in het vervangen van defecte onderdelen groter is. Deze onderdelen worden CSR-onderdelen (Customer Self Repair) genoemd. Als Hewlett Packard Enterprise (of een Hewlett Packard Enterprise Service Partner) bij de diagnose vaststelt dat de reparatie kan worden uitgevoerd met een CSR-onderdeel, verzendt Hewlett Packard Enterprise dat onderdeel rechtstreeks naar u, zodat u het defecte onderdeel daarmee kunt vervangen. Er zijn twee categorieën CSR-onderdelen:

• Verplicht—Onderdelen waarvoor reparatie door de klant verplicht is. Als u Hewlett Packard

Enterprise verzoekt deze onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht.

• Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn

ontworpen voor reparatie door de klant. Als u echter Hewlett Packard Enterprise verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.

OPMERKING: Sommige Hewlett Packard Enterprise onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen. Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".

Afhankelijk van de leverbaarheid en de locatie worden CSR-onderdelen verzonden voor levering op de eerstvolgende werkdag. Levering op dezelfde dag of binnen vier uur kan tegen meerkosten worden aangeboden, indien dit mogelijk is gezien de locatie. Indien assistentie is gewenst, belt u het Hewlett Packard Enterprise Support Center om via de telefoon ondersteuning van een technicus te ontvangen. Hewlett Packard Enterprise vermeldt in de documentatie bij het vervangende CSR-onderdeel of het defecte onderdeel aan Hewlett Packard Enterprise moet worden geretourneerd. Als het defecte onderdeel aan Hewlett Packard Enterprise moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde periode, gewoonlijk vijf (5) werkdagen, retourneren aan Hewlett Packard Enterprise. Het defecte onderdeel moet met de bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal. Als u het defecte onderdeel niet terugzendt, kan Hewlett Packard

Customer self repair 9

Enterprise u voor het vervangende onderdeel kosten in rekening brengen. Bij reparatie door de klant betaalt Hewlett Packard Enterprise alle verzendkosten voor het vervangende en geretourneerde onderdeel en kiest Hewlett Packard Enterprise zelf welke koerier/transportonderneming hiervoor wordt gebruikt.

Neem contact op met een Service Partner voor meer informatie over het Customer Self Repair programma van Hewlett Packard Enterprise. Informatie over Service Partners vindt u op de Hewlett Packard Enterprise website (http://www.hpe.com/support/selfrepair).

Garantieservice "Parts Only"

Het is mogelijk dat de Hewlett Packard Enterprise garantie alleen de garantieservice "Parts Only" omvat. Volgens de bepalingen van de Parts Only garantieservice zal Hewlett Packard Enterprise kosteloos vervangende onderdelen ter beschikking stellen.

Voor de Parts Only garantieservice is vervanging door CSR-onderdelen verplicht. Als u Hewlett Packard Enterprise verzoekt deze onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht

Reparo feito pelo cliente

Os produtos da Hewlett Packard Enterprise são projetados com muitas peças para reparo feito pelo cliente (CSR) de modo a minimizar o tempo de reparo e permitir maior flexibilidade na substituição de peças com defeito. Se, durante o período de diagnóstico, a Hewlett Packard Enterprise (ou fornecedores/parceiros da Hewlett Packard Enterprise) concluir que o reparo pode ser efetuado pelo uso de uma peça CSR, a Hewlett Packard Enterprise enviará a peça diretamente ao cliente. Há duas categorias de peças CSR:

• Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a Hewlett Packard

Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

• Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas

para o reparo feito pelo cliente. No entanto, se desejar que a Hewlett Packard Enterprise as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

OBSERVAÇÃO: Algumas peças da Hewlett Packard Enterprise não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a Hewlett Packard Enterprise exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca "No" (Não), no catálogo de peças ilustrado.

Conforme a disponibilidade e o local geográfico, as peças CSR serão enviadas no primeiro dia útil após o pedido. Onde as condições geográficas permitirem, a entrega no mesmo dia ou em quatro horas pode ser feita mediante uma taxa adicional. Se precisar de auxílio, entre em contato com o Centro de suporte técnico da Hewlett Packard Enterprise para que um técnico o ajude por telefone. A Hewlett Packard Enterprise especifica nos materiais fornecidos com a peça CSR de reposição se a peça com defeito deve ser devolvida à Hewlett Packard Enterprise. Nos casos em que isso for necessário, é preciso enviar a peça com defeito à Hewlett Packard Enterprise, você deverá enviar a peça com defeito de volta para a Hewlett Packard Enterprise dentro do período de tempo definido, normalmente em 5 (cinco) dias úteis. A peça com defeito deve ser enviada com a documentação correspondente no material de transporte fornecido. Caso não o faça, a Hewlett Packard Enterprise poderá cobrar a reposição. Para as peças de reparo feito pelo cliente, a Hewlett Packard Enterprise paga todas as despesas de transporte e de devolução da peça e determina a transportadora/serviço postal a ser utilizado.

Customer self repair 10

Para obter mais informações sobre o programa de reparo feito pelo cliente da Hewlett Packard Enterprise, entre em contato com o fornecedor de serviços local. Para o programa norte-americano, visite o site da Hewlett Packard Enterprise (http://www.hpe.com/support/selfrepair).

Serviço de garantia apenas para peças

A garantia limitada da Hewlett Packard Enterprise pode incluir um serviço de garantia apenas para peças. Segundo os termos do serviço de garantia apenas para peças, a Hewlett Packard Enterprise fornece as peças de reposição sem cobrar nenhuma taxa.

No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a Hewlett Packard Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

Customer self repair 11

Customer self repair 12

Customer self repair 13

Customer self repair 14

Illustrated parts catalog

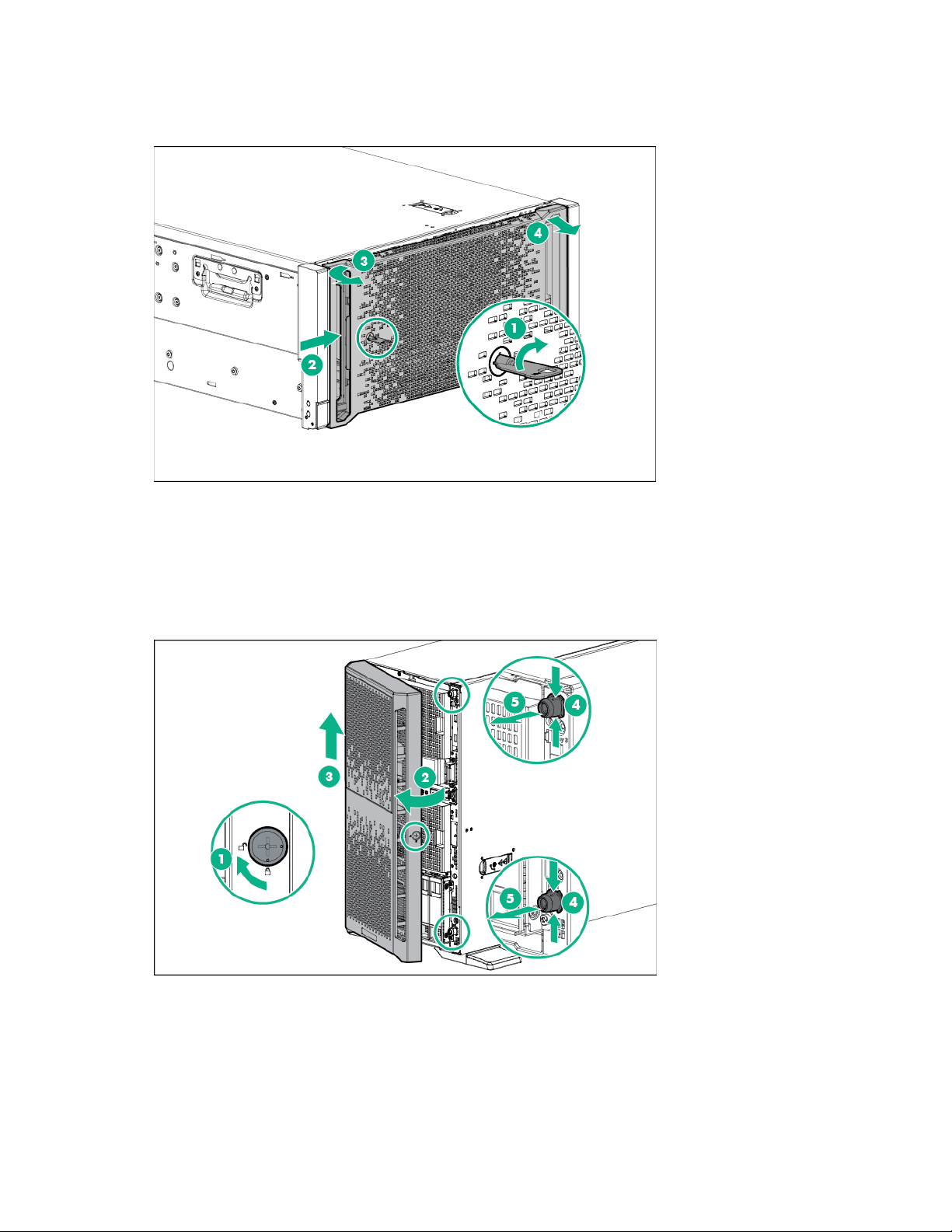

Front bezel

667267-001

Mandatory1 2

Second optical drive cage

670612-001

Optional2

3

Fan cage

667255-001

Optional2

4

Fan blank

667262-001

Mandatory1

Fan louver

667258-001

Optional2

PCI air baffles (2)

667280-001

Mandatory1

Mechanical components

Item Description Spare part number

1

5

6

Customer self repair (on page 5)

Illustrated parts catalog 15

(on page 5)

7

System air baffle

667256-001

Mandatory1

Bezel ear kit

667274-001

Mandatory1

a) Bezel ear, right

—

— b) Bezel ear, left*

—

c) T-10 screws (4)*

—

d) T-15 screws (4)*

—

— e) Discovery service cable*

—

— f) Server baseblank covers (2)*

—

— 9

Tower feet

667264-001

Mandatory1

10

LFF drive blank

667279-001

Mandatory1

11

SFF drive blank

667276-001

Mandatory1

12

Drive cage blank*

667261-001

Mandatory1

13

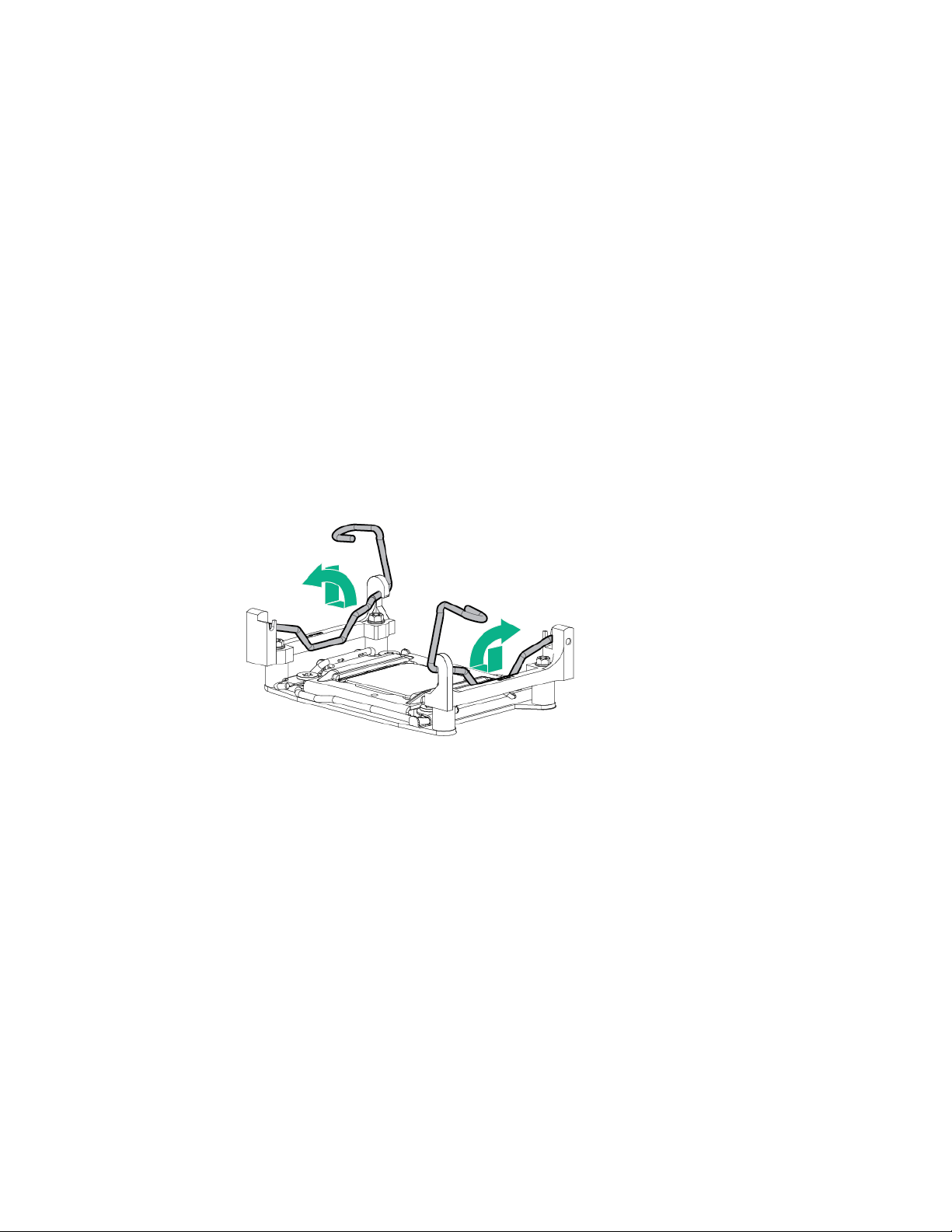

Heatsink retaining levers*

751444-001

Mandatory1

Item Description Spare part number

Customer self repair

8

*Not shown

1

Mandatory—Parts for which customer self repair is mandatory. If you request Hewlett Packard Enterprise to replace

these parts, you will be charged for the travel and labor costs of this service.

2

Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that Hewlett Packard Enterprise replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

3

No—Some Hewlett Packard Enterprise parts are not designed for customer self repair. In order to satisfy the customer warranty, Hewlett Packard Enterprise requires that an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.

1

Obligatoire—Pièces pour lesquelles le client doit procéder lui-même aux réparations. Si vous demandez à Hewlett Packard Enterprise de procéder au remplacement de ces pièces, les frais de transport et de main d’œuvre pour ce service vous seront facturés.

2

Facultatif—Pièces pour lesquelles une réparation par le client est facultative. Ces pièces sont également conçues pour que le client puisse procéder lui-même aux réparations. Cependant, les frais supplémentaires engendrés par le remplacement de ces pièces par Hewlett Packard Enterprise dépendent du type de service de garantie désigné pour votre produit.

3

Non—Certaines pièces Hewlett Packard Enterprise ne sont pas conçues pour être remplacées par le client. Afin de se conformer aux exigences de la garantie la garantie du client, Hewlett Packard Enterprise demande à un fournisseur de services agréé de procéder au remplacement de la pièce. Ces pièces sont signaléespar le mot « Non » dans le Catalogue de pièces illustré.

1

Obbligatorio—Parti per le quali il cliente è tenuto a effettuare autonomamente la riparazione. Se si richiede l'intervento di Hewlett Packard Enterprise per la sostituzione di queste parti, al cliente verranno addebitate le spese di viaggio e manodopera dell'operazione.

2

Facoltativo—Parti per le quali la riparazione in autonomia da parte del cliente è facoltativa. Queste parti sono progettate per consentire anche la riparazione da parte del cliente. Tuttavia, se il cliente richiedel'intervento di Hewlett Packard Enterprise per la sostituzione, potrebbero essere addebitate spese aggiuntive a seconda del tipo di garanzia in assistenza previsto per il prodotto.

3

No—Alcune parti Hewlett Packard Enterprise non sono progettate la riparazione in autonomia da parte del cliente. In base a quanto previsto dalla garanzia per il cliente, Hewlett Packard Enterprise richiede l'intervento di un tecnico autorizzato per la sostituzione della parte. Queste parti sono contrassegnate con"No"nel catalogo parti illustrato.

1

Zwingend—Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie den Austausch dieser Teile von Hewlett Packard Enterprisevornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service berechnet.

2

Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von Hewlett Packard Enterprisevornehmen lassen

Illustrated parts catalog 16

möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

3

Nein—Einige Hewlett Packard Enterprise Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen, muss das Teil von einem Hewlett Packard Enterprise Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

1

Obligatorio—Componentes cuya reparación por parte del usuario es obligatoria. Si solicita a Hewlett Packard Enterprise que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

2

Opcional—Componentes cuya reparación por parte del usuario es opcional. Estos componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que Hewlett Packard Enterprise realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

3

No—Algunos componentes de Hewlett Packard Enterprise no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, Hewlett Packard Enterprise pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el catálogo ilustrado de componentes.

1

Verplicht—Onderdelen die de klant zelf moet vervangen. Als u Hewlett Packard Enterprise vraagt deze onderdelen te vervangen, worden er reis- en arbeidskosten voor deze service in rekening gebracht.

2

Optioneel—Onderdelen die de klant zelf kan vervangen. Deze onderdelen zijn ook ontworpen om door de klant zelf te worden vervangen. Als u Hewlett Packard Enterprise verzoekt om deze te vervangen, kan het zijn dat hiervoor extra kosten in rekening worden gebracht, afhankelijk van het soort garantie dat op uw product van toepassing is.

3

Geen—Sommige onderdelen van Hewlett Packard Enterprise zijn niet ontworpen om door de klant zelf te worden vervangen. Om te voldoen aan de garantievoorwaarden eist Hewlett Packard Enterprise dat een geautoriseerde serviceverlener het onderdeel vervangt. Deze onderdelen worden aangeduid met 'Geen' in de geïllustreerde onderdelencatalogus.

1

Obrigatório—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a Hewlett Packard Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

2

Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a Hewlett Packard Enterprise as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

3

Não—Algumas peças da Hewlett Packard Enterprise não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a Hewlett Packard Enterprise exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca "No" (Não), no catálogo de peças ilustrado.

Illustrated parts catalog 17

System components

(on page 5)

13

Power supplies

—

a) HPE 460W CS Gold (92% efficiency)

511777-001

Mandatory1

b) HPE 460 W CS Platinum Plus (94% efficiency)*

660184-001

Mandatory1 c) HPE 750 W CS Gold (92% efficiency)*

511778-001

Mandatory1

d) HPE 750 W CS Platinum Plus (94% efficiency)*

660183-001

Mandatory1

f) HPE 1200 W CS Platinum Plus (94% efficiency)*

660185-001

Mandatory1 14

Heatsink

667268-001

Optional2

15

Processors**

—

a) 1.8 GHz Intel Xeon E5-2650L processor, 8C, 70 W

670534-001

Optional2

b) 1.8 GHz Intel Xeon E5-2603 processor, 4C, 80 W*

670533-001

Optional2

c) 1.8 GHz Intel Xeon E5-2603v2 processor, 4C, 80 W*

730243-001

Optional2

d) 2.0 GHz Intel Xeon E5-2650 processor, 8C, 95 W*

670526-001

Optional2

e) 2.0 GHz Intel Xeon E5-2630L processor, 6C, 60 W*

670535-001

Optional2

f) 2.0 GHz Intel Xeon E5-2620 processor, 6C, 95 W*

670529-001

Optional2

g) 2.0 GHz Intel Xeon E5-2640v2 processor, 8C, 95 W*

730239-001

Optional2

Item Description Spare part number

Customer self repair

Illustrated parts catalog 18

(on page 5)

h) 2.1 GHz Intel Xeon E5-2620v2 processor, 6C, 80 W*

730241-001

Optional2

i) 2.2 GHz Intel Xeon E5-2660 processor, 8C, 95 W*

670525-001

Optional2

j) 2.3GHz Intel Xeon E5-2630 processor, 6C, 95W*

670528-001

Optional2

k) 2.4 GHz Intel Xeon E5-2609 processor, 4C, 80 W*

670530-001

Optional2

l) 2.4 GHz Intel Xeon E5-2630L v2 processor, 6C, 60 W*

730244-001

Optional2

m) 2.4 GHz Intel Xeon E5-2665 processor, 8C, 115 W*

670524-001

Optional2

n) 2.5 GHz Intel Xeon E5-2640 processor, 6C, 95 W*

670527-001

Optional2

o) 2.5 GHz Intel Xeon E5-2670v2 processor, 10C, 115 W*

730236-001

Optional2

p) 2.5 GHz Intel Xeon E5-2609v2 processor, 4C, 80 W*

730242-001

Optional2

q) 2.6 GHz Intel Xeon E5-2670 processor, 8C, 115 W*

670523-001

Optional2

r) 2.6 GHz Intel Xeon E5-2650v2 processor, 8C, 95 W*

730238-001

Optional2

s) 2.6 GHz Intel Xeon E5-2630v2 processor, 8C, 80 W*

730240-001

Optional2

t) 2.7 GHz Intel Xeon E5-2680 processor, 8C, 130 W*

670522-001

Optional2

u) 2.7 GHz Intel Xeon E5-2697v2 processor, 12C, 130 W*

730245-001

Optional2

v) 2.8-GHz Intel Xeon processor E5-2680v2, 115W*

730235-001

Optional2

w) 2.9 GHz Intel Xeon E5-2667 processor, 6C, 130 W*

670537-001

Optional2

x) 2.9 GHz Intel Xeon E5-2690 processor, 8C, 135 W*

670521-001

Optional2

y) 3.0 GHz Intel Xeon E5-2637 processor, 2C, 80 W*

670539-001

Optional2

z) 3.0 GHz Intel Xeon E5-2690v2 processor, 10C, 130 W*

730234-001

Optional2

aa) 3.0 GHz Intel Xeon E5-2667v2 processor, 8C, 130 W*

730247-001

Optional2

bb) 3.3 GHz Intel Xeon E5-2643 processor, 4C, 130 W*

670538-001

Optional2

cc) 3.3 GHz Intel Xeon E5-2643v2 processor, 6C, 130 W*

730248-001

Optional2

dd) 3.5 GHz Intel Xeon E5-2637v2 processor, 4C, 130 W*

730249-001

Optional2 16

DIMMs

—

a) 2 GB, PC3L-10600E-9, single-rank x8

664694-001

Mandatory1

b) 2 GB, PC3-14900E-13, single-rank x8

715269-001

Mandatory1

c) 2 GB, PC3L-12800E-11, single-rank x8

715279-001

Mandatory1

d) 4 GB, PC3L-12800E-11, dual-rank x8

715280-001

Mandatory1

e) 4 GB, PC3L-12800R-11, single-rank x4

715282-001

Mandatory1

f) 4 GB, PC3-14900E-13, dual-rank x8

715270-001

Mandatory1

Item Description Spare part number

Customer self repair

Illustrated parts catalog 19

(on page 5)

g) 4 GB, PC3-14900R-13, single-rank x4

715272-001

Mandatory1

h) 4 GB, PC3L-10600R-9, single-rank x4*

664688-001

Mandatory1

i) 4 GB, PC3-12800R-11, single-rank x4*

664689-001

Mandatory1

j) 4 GB, PC3L-10600E-9, dual-rank x8*

664695-001

Mandatory1

k) 8 GB, PC3-12800R-11, single-rank x4*

664691-001

Mandatory1

l) 8 GB, PC3L-10600R, dual-rank x4*

664690-001

Mandatory1

m) 8 GB, PC3L-10600E, dual-rank x8*

664696-001

Mandatory1

n) 8 GB, PC3L-12800E-11, dual-rank x8*

715281-001

Mandatory1

o) 8 GB, PC3L-12800R-11, dual-rank x4*

715283-001

Mandatory1

p) 8 GB, PC3L-12800R-11, single-rank x4*

735302-001

Mandatory1 q) 8 GB, PC3-14900E-13, dual-rank x8*

715271-001

Mandatory1

r) 8 GB, PC3-14900R-13, dual-rank x4*

715273-001

Mandatory1

s) 8 GB, PC3-14900R-13, single-rank x4*

735303-001

Mandatory1

t) 16 GB, PC3L-12800R-11, dual-rank x4*

715284-001

Mandatory1

u) 16 GB, PC3-14900R-13, dual-rank x4*

715274-001

Mandatory1

v) 16 GB, PC3L-10600R-9, dual-rank x4*

664692-001

Mandatory1

w) 16 GB, PC3-12800R-11, dual-rank x4*

684031-001

Mandatory1

x) 32 GB, PC3-14900L-13, quad-rank x4*

715275-001

Mandatory1

y) 32 GB, PC3L-10600L, quad-rank x4*

664693-001

Mandatory1 17

System board assembly

667253-001

Optional2

18

SFF drive backplane

667275-001

Optional2

19

LFF drive backplane

667278-001

Optional2

20

Front I/O module assembly*

667260-001

Optional2

21

SID module assembly*

667271-001

Optional2

22

Miscellaneous cable kit

667266-001

Mandatory1

a) Mini-SAS to Mini-SAS, 12.75-in*

—

— b) Drive backplane power cable*

—

c) Graphic support cable, 2x4*

701539-001

— 23

Mini-SAS cables

—

a) Mini-SAS cable, 35 in*

667277-001

Mandatory1

b) Mini-SAS cable, 25.5 in*

498424-001

Mandatory1 24

Power cable*

667259-001

Optional2

25

SATA cable*

667265-001

Mandatory1

26

SFF drive backplane with expander*

693610-001

Optional2

27

LFF drive backplane with expander*

693611-001

Optional2

28

Fan module*

667254-002

Mandatory1

29

Bracket support holder*

667263-001

Mandatory1

Item Description Spare part number

Customer self repair

Illustrated parts catalog 20

(on page 5)

a) Right holder

—

— b) Left holder

—

Two-bay power supply backplane board* (with 2 T-15 screws)

667269-001

Optional2

Four-bay power supply backplane board* (with 2 T-15 screws)

667281-001

Optional2

Two-bay power supply blank*

667270-001

Mandatory1 33

Rail kit*

667272-001

Mandatory1

Rack bezel*

667273-001

Mandatory1 35

Power supply air baffle*

667257-001

Optional2

Item Description Spare part number

Customer self repair

30

31

32

34

*Not shown **All processors in this HPE ProLiant server must have the same cache size, speed, number of cores, and rated maximum power consumption.

1

Mandatory—Parts for which customer self repair is mandatory. If you request Hewlett Packard Enterprise to replace these parts, you will be charged for the travel and labor costs of this service.

2

Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that Hewlett Packard Enterprise replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

3

No—Some Hewlett Packard Enterprise parts are not designed for customer self repair. In order to satisfy the customer warranty, Hewlett Packard Enterprise requires that an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.

1

Obligatoire—Pièces pour lesquelles le client doit procéder lui-même aux réparations. Si vous demandez à Hewlett Packard Enterprise de procéder au remplacement de ces pièces, les frais de transport et de main d’œuvre pour ce service vous seront facturés.

2

Facultatif—Pièces pour lesquelles une réparation par le client est facultative. Ces pièces sont également conçues pour que le client puisse procéder lui-même aux réparations. Cependant, les frais supplémentaires engendrés par le remplacement de ces pièces par Hewlett Packard Enterprise dépendent du type de service de garantie désigné pour votre produit.

3

Non—Certaines pièces Hewlett Packard Enterprise ne sont pas conçues pour être remplacées par le client. Afin de se conformer aux exigences de la garantie la garantie du client, Hewlett Packard Enterprise demande à un fournisseur de services agréé de procéder au remplacement de la pièce. Ces pièces sont signaléespar le mot « Non » dans le Catalogue de pièces illustré.

1

Obbligatorio—Parti per le quali il cliente è tenuto a effettuare autonomamente la riparazione. Se si richiede l'intervento di Hewlett Packard Enterprise per la sostituzione di queste parti, al cliente verranno addebitate le spese di viaggio e manodopera dell'operazione.

2

Facoltativo—Parti per le quali la riparazione in autonomia da parte del cliente è facoltativa. Queste parti sono progettate per consentire anche la riparazione da parte del cliente. Tuttavia, se il cliente richiedel'intervento di Hewlett Packard Enterprise per la sostituzione, potrebbero essere addebitate spese aggiuntive a seconda del tipo di garanzia in assistenza previsto per il prodotto.

3

No—Alcune parti Hewlett Packard Enterprise non sono progettate la riparazione in autonomia da parte del cliente. In base a quanto previsto dalla garanzia per il cliente, Hewlett Packard Enterprise richiede l'intervento di un tecnico autorizzato per la sostituzione della parte. Queste parti sono contrassegnate con"No"nel catalogo parti illustrato.

1

Zwingend—Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie den Austausch dieser Teile von Hewlett Packard Enterprisevornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service berechnet.

2

Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von Hewlett Packard Enterprisevornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

3

Nein—Einige Hewlett Packard Enterprise Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen, muss das Teil von einem Hewlett Packard Enterprise Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

Illustrated parts catalog 21

1

Obligatorio—Componentes cuya reparación por parte del usuario es obligatoria. Si solicita a Hewlett Packard Enterprise que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

2

Opcional—Componentes cuya reparación por parte del usuario es opcional. Estos componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que Hewlett Packard Enterprise realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

3

No—Algunos componentes de Hewlett Packard Enterprise no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, Hewlett Packard Enterprise pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el catálogo ilustrado de componentes.

1

Verplicht—Onderdelen die de klant zelf moet vervangen. Als u Hewlett Packard Enterprise vraagt deze onderdelen te vervangen, worden er reis- en arbeidskosten voor deze service in rekening gebracht.

2

Optioneel—Onderdelen die de klant zelf kan vervangen. Deze onderdelen zijn ook ontworpen om door de klant zelf te worden vervangen. Als u Hewlett Packard Enterprise verzoekt om deze te vervangen, kan het zijn dat hiervoor extra kosten in rekening worden gebracht, afhankelijk van het soort garantie dat op uw product van toepassing is.

3

Geen—Sommige onderdelen van Hewlett Packard Enterprise zijn niet ontworpen om door de klant zelf te worden vervangen. Om te voldoen aan de garantievoorwaarden eist Hewlett Packard Enterprise dat een geautoriseerde serviceverlener het onderdeel vervangt. Deze onderdelen worden aangeduid met 'Geen' in de geïllustreerde onderdelencatalogus.

1

Obrigatório—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a Hewlett Packard Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

2

Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a Hewlett Packard Enterprise as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

3

Não—Algumas peças da Hewlett Packard Enterprise não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a Hewlett Packard Enterprise exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca "No" (Não), no catálogo de peças ilustrado.

Illustrated parts catalog 22

Removal and replacement procedures

not open this

To reduce the risk of injury from electric shock hazards, do not open this

Required tools

You need the following items for some procedures:

• T-10 Torx screwdriver

• T-15 Torx screwdriver

• HPE Insight Diagnostics software ("HPE Insight Diagnostics" on page 73)

Safety considerations

Preventing electrostatic discharge

Symbols on equipment

Before performing service procedures, review all the safety information.

To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.

To prevent electrostatic damage:

• Avoid hand contact by transporting and storing products in static-safe containers.

• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

• Place parts on a grounded surface before removing them from their containers.

• Avoid touching pins, leads, or circuitry.

• Always be properly grounded when touching a static-sensitive component or assembly.

The following symbols may be placed on equipment to indicate the presence of potentially hazardous conditions.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified personnel. WARNING: To reduce the risk of injury from electric shock hazards, do enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable parts. Do not open for any reason. WARNING: enclosure.

This symbol on an RJ-45 receptacle indicates a network interface connection. WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not plug telephone or telecommunications connectors into this receptacle.

Removal and replacement procedures 23

This symbol indicates the presence of a hot surface or hot component. If this surface

This symbol indicates that the component exceeds the recommended weight for one

observe local occupational health and safety requirements and guidelines for manual

To reduce the risk of injury from electric shock, remove all power cords

At least two people are needed to safely unload the rack from the pallet. An empty 42U rack

a component outside the rack. Extend only one component

When installing a server in a telco rack, be sure that the rack frame is adequately

115 kg

253 lb

Rack warnings

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

• The leveling jacks are extended to the floor.

• The full weight of the rack rests on the leveling jacks.

• The stabilizing feet are attached to the rack if it is a single-rack installation.

• The racks are coupled together in multiple-rack installations.

• Only one component is extended at a time. A rack may become unstable if more than one

component is extended for any reason.

WARNING: To reduce the risk of personal injury or equipment damage when unloading a rack:

• can weigh as much as 115 kg (253 lb), can stand more than 2.1 m (7 ft) tall, and might become unstable when being moved on its casters.

• Never stand in front of the rack when it is rolling down the ramp from the pallet. Always handle the rack from both sides.

WARNING: To reduce the risk of personal injury or damage to the equipment, adequately stabilize the rack before extending at a time. A rack may become unstable if more than one component is extended.

WARNING: secured at the top and bottom to the building structure.

is contacted, the potential for injury exists. WARNING: To reduce the risk of injury from a hot component, allow the surface to cool before touching.

individual to handle safely. WARNING: To reduce the risk of personal injury or damage to the equipment,

material handling.

These symbols, on power supplies or systems, indicate that the equipment is supplied by multiple sources of power. WARNING: to completely disconnect power from the system.

Preparation procedures

To access some components and perform certain service procedures, you must perform one or more of the following procedures:

• Power down the server (on page 25).

If you must remove a server from a rack or a non-hot-plug component from a server, power down the server.

• Remove the tower bezel (on page 26).

• Remove the rack bezel (on page 26).

• Extend the server from the rack (on page 27).

Removal and replacement procedures 24

If you are performing service procedures in a Hewlett Packard Enterprise, Compaq branded, Telco, or third-party rack cabinet, you can use the locking feature of the rack rails to support the server and gain access to internal components.

For more information about Telco rack solutions, refer to the RackSolutions.com website (http://www.racksolutions.com/hpe).

Power up the server

To power up the server:

1. Connect each power cord to the server.

2. Connect each power cord to the power source.

3. Press the Power On/Standby button.

The server exits standby mode and applies full power to the system. The system power LED changes from amber to green.

Power down the server

Before powering down the server for any upgrade or maintenance procedures, perform a backup of critical server data and programs.

IMPORTANT: When the server is in standby mode, auxiliary power is still being provided to the system.

To power down the server, use one of the following methods:

• Press and release the Power On/Standby button.

This method initiates a controlled shutdown of applications and the OS before the server enters standby mode.

• Press and hold the Power On/Standby button for more than 4 seconds to force the server to enter

standby mode.

This method forces the server to enter standby mode without properly exiting applications and the OS. If an application stops responding, you can use this method to force a shutdown.

• Use a virtual power button selection through iLO 4.

This method initiates a controlled remote shutdown of applications and the OS before the server enters standby mode.

Before proceeding, verify the server is in standby mode by observing that the system power LED is amber.

Removal and replacement procedures 25

Remove the security bezel

Unlock the security bezel, press the latch on the security bezel, and then remove the security bezel.

Remove the tower bezel

This server has a removable bezel that must be unlocked and opened before accessing the hard drives. The bezel must be kept closed during normal server operations.

1. Using the key provided with the server, unlock the bezel with a clockwise turn.

2. Remove the tower bezel.

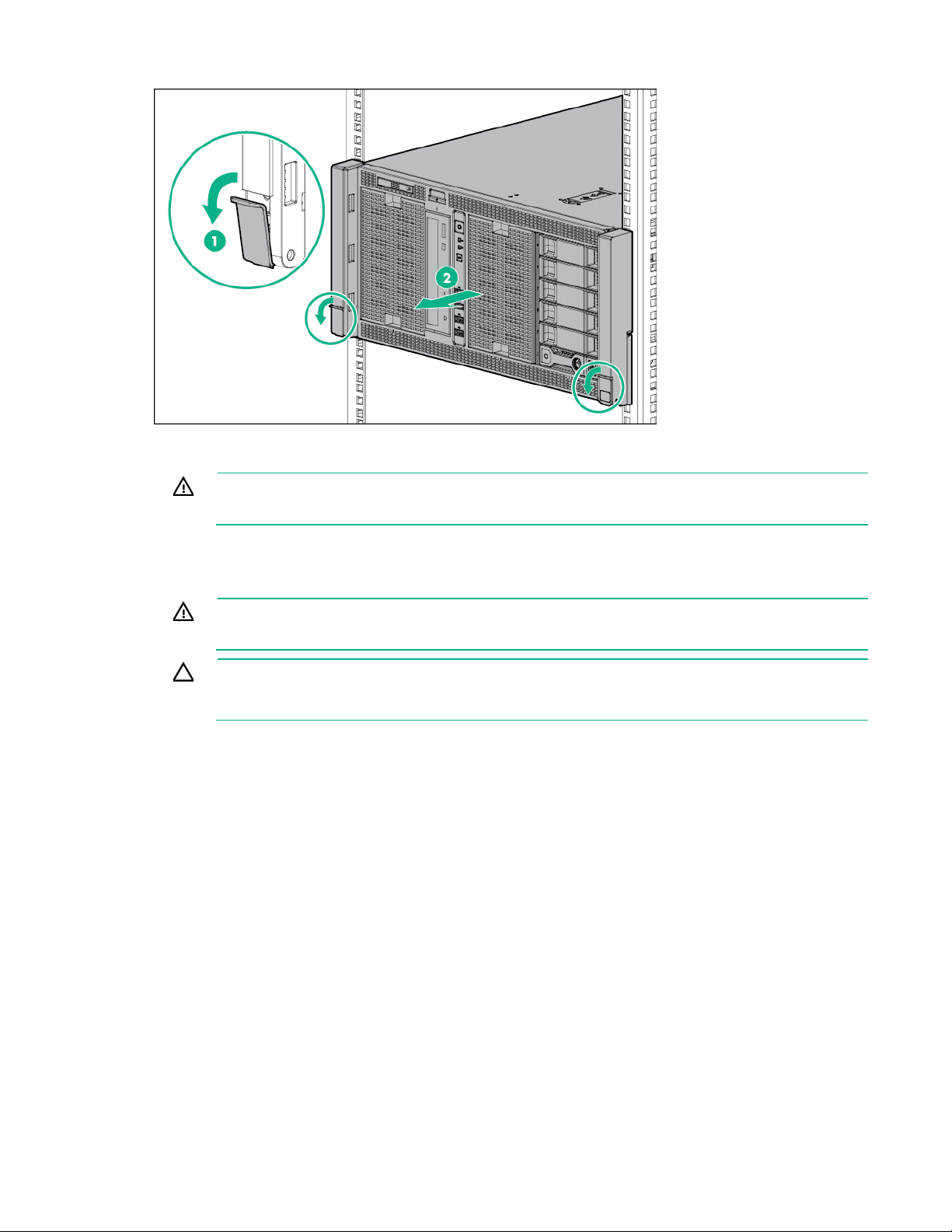

Remove the rack bezel

1. If installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power:

Removal and replacement procedures 26

a.

To reduce the risk of personal injury or equipment damage, be sure that the rack

Disconnect each power cord from the power source.

b. Disconnect each power cord from the server.

4. Extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Loosen the rack bezel thumbscrews located inside the chassis.

7. Remove the rack bezel.

Extend the server from the rack

IMPORTANT: If the server is installed in a telco rack, remove the server from the rack to access internal components.

1. Pull down the quick release levers on each side of the server.

2. Extend the server from the rack.

WARNING:

is adequately stabilized before extending a component from the rack.

WARNING: To reduce the risk of personal injury, be careful when pressing the server rail-release latches and sliding the server into the rack. The sliding rails could pinch your fingers.

Removal and replacement procedures 27

removed. Operating the server in this manner results in improper airflow and improper cooling

3. After performing the installation or maintenance procedure, slide the server back into the rack, and

then press the server firmly into the rack to secure it in place.

WARNING: To reduce the risk of personal injury or equipment damage, be sure that the rack is adequately stabilized before extending a component from the rack.

Access panel

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

CAUTION: Do not operate the server for long periods with the access panel open or

To remove the component:

1. Do one of the following:

2. Power down the server (on page 25).

3. Remove all power:

4. Do one of the following:

5. Open the locking latch, slide the access panel to the rear of the chassis, and then remove the access

that can lead to thermal damage.

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

panel.

If the locking latch is locked, use a T-15 Torx screwdriver to unlock it.

To replace the component, reverse the removal procedure.

Removal and replacement procedures 28

Air baffle

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle.

To replace the component, reverse the removal procedure.

PCI air baffles

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

Removal and replacement procedures 29

o

For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the PCI air baffles.

To replace the component, reverse the removal procedure.

Fan blank

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

Removal and replacement procedures 30

6.

Remove the fan blank.

To replace the component, reverse the removal procedure.

Fan

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

Removal and replacement procedures 31

components, one or more fans might need

6.

Remove the fan.

To replace the component, reverse the removal procedure.

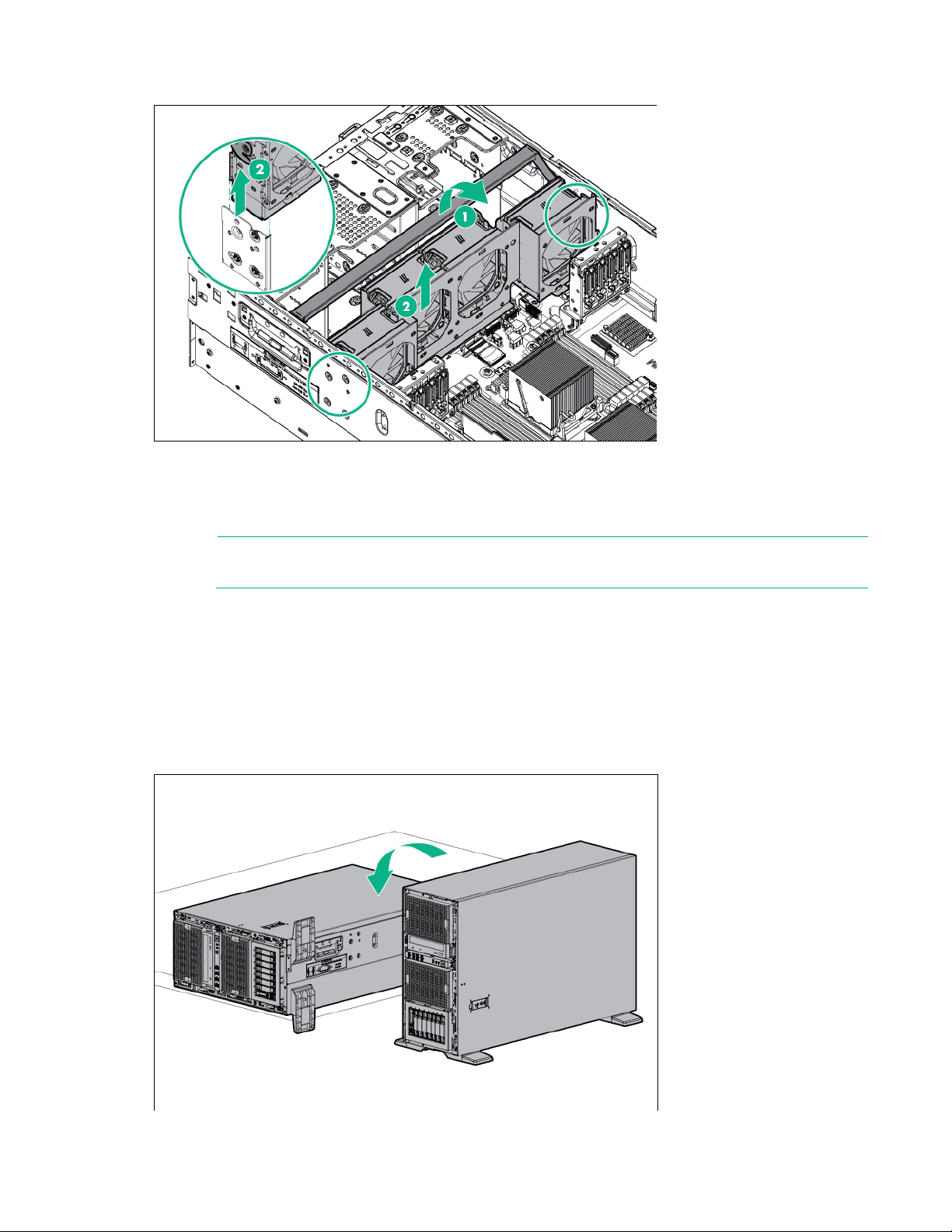

Fan cage

IMPORTANT: When installing or replacing server to be removed. To prevent an orderly or immediate server shutdown, Hewlett Packard Enterprise highly recommends powering down the server during these procedures. To

To remove the component:

1. Do one of the following:

2. Power down the server (on page 25).

3. Remove all power:

4. Do one of the following:

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

determine if powering down is required, see the specific procedure.

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

Removal and replacement procedures 32

7.

Remove the fan cage.

To replace the component, reverse the removal procedure.

Tower feet

NOTE: This procedure applies to tower servers only.

To remove the component:

1. Open and remove the bezel ("Remove the tower bezel" on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Place the server on the side.

Removal and replacement procedures 33

5.

Remove the tower feet.

To replace the component, reverse the removal procedure.

Component box blank

To remove the component:

1. For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

2. For rack models, do the following: a. If installed, remove the security bezel (on page 26). b. Power down the server (on page 25). c. Remove all power:

i. Disconnect each power cord from the power source.

ii. Disconnect each power cord from the server d. Remove the access panel ("Access panel" on page 28). e. Remove the rack bezel.

3. Remove the component box blank.

Removal and replacement procedures 34

To replace the component, reverse the removal procedure.

Drive blank

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if install, remove the security bezel (on page 26).

2. Remove the drive blank.

To replace the component, reverse the removal procedure.

Drive

To remove the component:

1. Do one of the following:

WARNING: To reduce the risk of injury from electric shock, do not remove more than one drive

carrier at a time.

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

Removal and replacement procedures 35

o

For rack models, if installed, remove the security bezel (on page 26).

2. Remove the drive.

To replace the component, reverse the removal procedure.

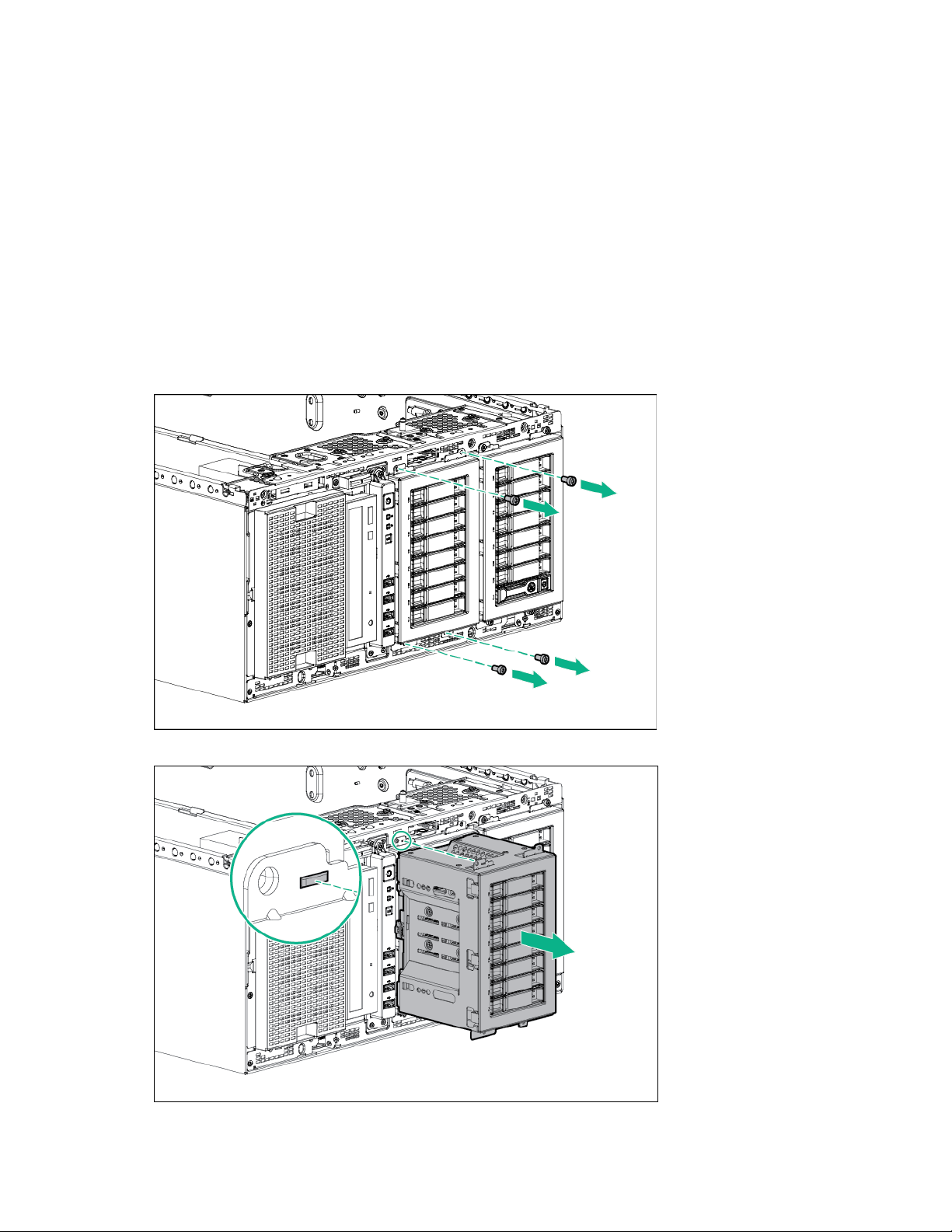

Optical drive cage

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. For tower models, do the following: a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28).

o Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Remove the air baffle ("Air baffle" on page 29).

7. Remove the fan cage.

8. Disconnect the data cable and the power cable from the rear of the optical drive cage.

Removal and replacement procedures 36

9.

Using the T-15 screwdriver, loosen T-15 screws securing the optical drive cage.

10. Remove the optical drive cage.

To replace the component, reverse the removal procedure.

Optical drive

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

Removal and replacement procedures 37

4.

For tower models, do the following:

a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28). c. Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Remove the air baffle ("Air baffle" on page 29).

7. Remove the fan cage.

8. Disconnect and remove the optical drive power and data cables.

9. Remove the optical drive.

To replace the component, reverse the removal procedure.

Front I/O assembly

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. For tower models, do the following: a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28).

Removal and replacement procedures 38

c.

Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Remove the air baffle ("Air baffle" on page 29).

7. Remove the fan cage.

8. Remove the front I/O module assembly.

To replace the component, reverse the removal procedure.

Power supply blank

Remove the blank.

To replace the component, reverse the removal procedure.

Power supply module

CAUTION: To prevent improper cooling and thermal damage, do not operate the chassis unless all bays are populated with a component or a blank.

Removal and replacement procedures 39

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Access the product rear panel.

5. If removing a DC power supply, first remove the grounding wire.

6. Remove the power supply.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply or

power supply blank to cool before touching it.

To replace the component, reverse the removal procedure.

Power supply backplane

CAUTION: To prevent improper cooling and thermal damage, do not operate the chassis unless all bays are populated with a component or a blank.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

Removal and replacement procedures 40

5.

To reduce the risk of personal injury from hot surfaces, allow the power supply or

Access the product rear panel.

6. Remove all power supply modules from the power supply cage ("Power supply module" on page 39).

WARNING:

power supply blank to cool before touching it.

7. Remove the screws, and slide the power supply cage out of the server:

o Two-bay power supply configuration

o Four-bay power supply configuration

8. Loosen the two thumbscrews, and remove the power supply backplane from the cage:

Removal and replacement procedures 41

o

Two-bay power supply backplane board

o Four-bay power supply backplane board

To replace the component, reverse the removal procedure, if the screws are not attached to the backplane assembly, use the screws provided in the spare backplane assembly kit.

Expansion board

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

Removal and replacement procedures 42

o

If removing an expansion board from slots 3, 6 or 8, first release the retaining lever on

For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Open the PCI retainer latch.

8. Remove the expansion board.

NOTE:

the system board and then remove the card from the system.

To replace the component, reverse the removal procedure.

Graphic card adapter

To remove the component:

1. Do one of the following:

Removal and replacement procedures 43

o

For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

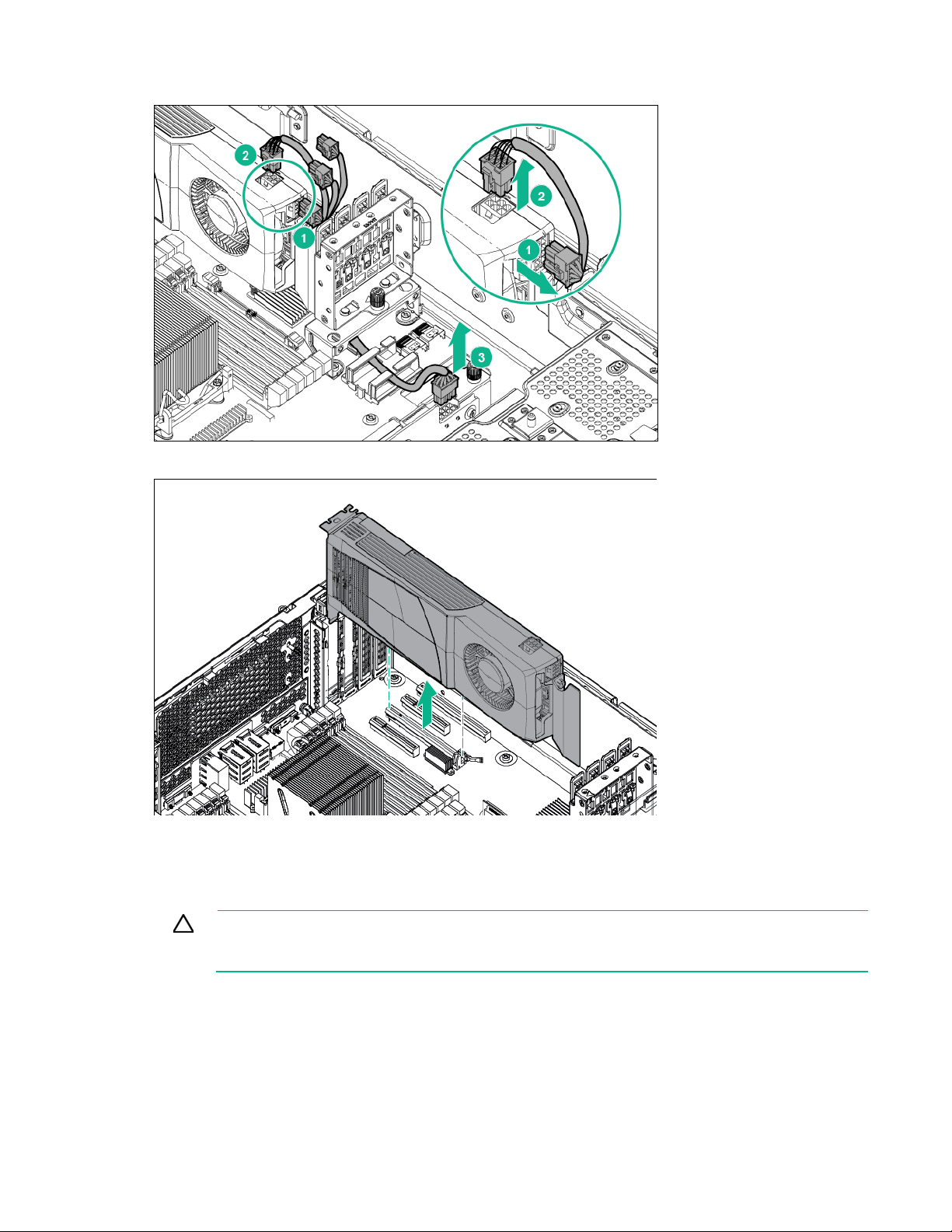

7. Loosen the screws, and then remove the graphic card bracket.

8. Open the PCI retainer latch.

Removal and replacement procedures 44

9.

Disconnect the cables from the graphic card.

10. Remove the graphic card.

To replace the component, reverse the removal procedure.

Cache module

CAUTION: In systems that use external data storage, be sure that the server is the first unit to be powered down and the last to be powered back up. Taking this precaution ensures that

To remove the component:

1. Do one of the following:

2. Power down the server (on page 25).

the system does not erroneously mark the drives as failed when the server is powered up.

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

Removal and replacement procedures 45

3.

move the battery pack while an array capacity expansion, RAID level migration, or stripe size

Remove all power:

a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Disconnect the capacitor pack cable from the cache module.

8. Remove the cache module.

To replace the component, reverse the removal procedure.

FBWC capacitor pack

CAUTION: To prevent a server malfunction or damage to the equipment, do not add or re migration is in progress.

Removal and replacement procedures 46

CAUTION: After the server

is powered down, wait for 30 seconds and then check the amber LED before disconnecting the cable from the cache module. If the amber LED flashes after 30 seconds, do not disconnect the cable from the cache module. The cache module is backing up

data, and data will be lost if the cable is disconnected while the amber LED is still flashing.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Remove the fan cage.

8. Disconnect the cable from the cache module only if the capacitor pack is not being used to recover

data from the server or transfer data to another server.

9. Remove the capacitor pack.

To replace the component, reverse the removal procedure.

SFF drive backplane

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

Removal and replacement procedures 47

2.

Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. For tower models, do the following: a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28). c. Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Disconnect all cables from the drive backplane.

7. Using a T-15 screwdriver, remove the screws that secure the SFF drive cage to the server.

8. Remove the SFF drive cage.

Removal and replacement procedures 48

9.

Remove all drives from the drive cage ("Drive" on page 35).

10. Loosen the thumbscrew on the drive backplane and remove it from the cage.

To replace the component, reverse the removal procedure.

LFF drive backplane

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. For tower models, do the following: a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28). c. Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Disconnect all cables from the drive backplane.

Removal and replacement procedures 49

7.

Using a T-15 screwdriver, remove the screws that secure the LFF drive cage to the server.

8. Remove the LFF drive cage.

9. Remove all drives from the drive cage ("Drive" on page 35).

Removal and replacement procedures 50

10.

Loosen the thumbscrew on the drive backplane and remove it from the cage.

To replace the component, reverse the removal procedure.

Systems Insight Display assembly

CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or crimped.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. For tower models, do the following: a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

5. For rack models, do the following: a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28). c. Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

6. Disconnect the cable that connects the Systems Insight Display assembly to the system board.

7. Remove the thumbscrews securing the Systems Insight Display assembly.

Removal and replacement procedures 51

8.

Remove the Systems Insight Display assembly.

To replace the component, reverse the removal procedure.

Heatsink

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Open the heatsink retaining levers.

Removal and replacement procedures 52

8. Remove the heatsink.

To replace the heatsink:

1. Use the alcohol swab to remove all the existing thermal grease from the processor. Allow the alcohol

to evaporate before continuing.

Removal and replacement procedures 53

2.

Remove the heatsink protective cover.

3. Install the heatsink, and then close the heatsink retaining levers.

4. Install the air baffle.

5. Install the access panel.

6. Do one of the following:

o For tower models, return the server to an upright position, and then install the bezel.

o For rack models, slide the server back into the rack.

7. Connect each power cord to the server.

8. Connect each power cord to the power source.

9. Press the Power On/Standby button.

The server exits standby mode and applies full power to the system. The system power LED changes from amber to green.

Removal and replacement procedures 54

Heatsink Retaining Levers

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Open the heatsink retaining levers.

Removal and replacement procedures 55

8.

The heatsink thermal interface media is not reusable and must be replaced if the

Remove the heatsink.

9. Remove the heatsink retaining levers.

To replace the component, reverse the removal procedure.

Processor

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

CAUTION: To prevent possible server malfunction and damage to the equipment, multiprocessor configurations must contain processors with the same part number.

CAUTION: heatsink is removed from the processor after it has been installed.

Removal and replacement procedures 56

CAUTION:

To prevent possible server overheating, always populate processor socket 2 with

a processor and a heatsink or a processor socket cover and a heatsink blank.

IMPORTANT: Processor socket 1 must be populated at all times or the server does not function.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Open the heatsink retaining levers.

Removal and replacement procedures 57

8.

Remove the heatsink.

9. Open each of the processor locking levers in the order indicated, and then open the processor

retaining bracket.

Removal and replacement procedures 58

10.

Remove the processor from the processor retaining bracket.

CAUTION: To avoid damage to the processor, do not touch the bottom of the processor, especially the contact area.

To install a processor:

1. Install the processor. Verify that the processor is fully seated in the processor retaining bracket by

visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.

Removal and replacement procedures 59

CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY

damage to the processor socket and the system board. Press only in the area indicated on the

DAMAGED. To avoid damage to the system board, do not touch the processor or the

2. Close the processor retaining bracket. When the processor is installed properly inside the processor

processor socket contacts.

retaining bracket, the processor retaining bracket clears the flange on the front of the socket.

CAUTION: Do not press down on the processor. Pressing down on the processor may cause

processor retaining bracket.

3. Press and hold the processor retaining bracket in place, and then close each processor locking

lever. Press only in the area indicated on the processor retaining bracket.

4. Use the alcohol swab to remove all the existing thermal grease from the heatsink. Allow the alcohol

to evaporate before continuing.

5. Apply the thermal grease to the top of the processor in the following pattern.

Removal and replacement procedures 60

To avoid damage to the hard drives, memory, and other system components, the

6.

Install the heatsink, and then close the heatsink retaining levers.

7. Install the air baffle.

8. Install the access panel.

9. Do one of the following:

o For tower models, return the server to an upright position.

o For rack models, slide the server back into the rack.

10. Connect each power cord to the server.

11. Connect each power cord to the power source.

12. Press the Power On/Standby button.

The server exits standby mode and applies full power to the system. The system power LED changes from amber to green.

13. Do one of the following:

o For tower models, install the bezel.

o For rack models, if removed, install the security bezel.

DIMMs

CAUTION: air baffle, drive blanks, and access panel must be installed when the server is powered up.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

Removal and replacement procedures 61

o

For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Open the DIMM slot latches..

8. Remove the DIMM.

To replace the component, reverse the removal procedure.

System board

IMPORTANT: If replacing the system board or clearing NVRAM, you must re-enter the server serial number through RBSU.

To remove the component:

1. Do one of the following:

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

2. Power down the server (on page 25).

3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

4. Do one of the following:

o For tower models, place the server on a flat, level surface with the access panel facing up.

o For rack models, extend the server from the rack (on page 27).

5. Remove the access panel ("Access panel" on page 28).

6. Remove the air baffle ("Air baffle" on page 29).

7. Remove the fan cage.

8. Remove all DIMMs ("DIMMs" on page 61).

9. Remove any installed PCI cards.

Removal and replacement procedures 62

10.

Remove the PCI card support bracket on both sides.

11. Disconnect all cables connected to the system board.

12. Open the heatsink retaining levers.

Removal and replacement procedures 63

13.

Remove the heatsink.

14. Open each of the processor locking levers in the order indicated, and then open the processor

retaining bracket.

Removal and replacement procedures 64

15.

Remove the processor from the processor retaining bracket.

CAUTION: To avoid damage to the processor, do not touch the bottom of the processor, especially the contact area.

CAUTION: To avoid damage to the system board:

• Do not touch the processor socket contacts.

• Always install the processor socket cover after removing the processor from the socket.

• Do not tilt or slide the processor when lowering the processor into the socket.

CAUTION: Removal of the processor or heatsink renders the thermal layer between the processor and heatsink useless. Clean the component with the provided alcohol swab, then

16. Loosen the four system board thumbscrews.

17. Using the system board tray handles, slide the tray forward, and then remove the failed system

add thermal grease.

board.

Removal and replacement procedures 65

To replace the system board:

1. Install the spare system board.

2. Open each of the processor locking levers in the order indicated, and then open the processor

retaining bracket.

Removal and replacement procedures 66

3.

Remove the clear processor socket cover. Retain the processor socket cover for future use.

4. Install the processor. Verify that the processor is fully seated in the processor retaining bracket by

visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.

CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. To avoid damage to the system board, do not touch the processor or the

5. Close the processor retaining bracket. When the processor is installed properly inside the processor

processor socket contacts.

retaining bracket, the processor retaining bracket clears the flange on the front of the socket.

Removal and replacement procedures 67

CAUTION:

Do not press down on the processor. Pressing down on the processor may cause

ress only in the area indicated on the

damage to the processor socket and the system board. P

6. Press and hold the processor retaining bracket in place, and then close each processor locking

processor retaining bracket.

lever. Press only in the area indicated on the processor retaining bracket.

7. Install the processor socket cover onto the processor socket of the failed system board.

8. Clean the old thermal grease from the heatsink and the top of the processor with the alcohol swab.

Allow the alcohol to evaporate before continuing.

9. Apply all the grease to the top of the processor in the following pattern to ensure even distribution.

Removal and replacement procedures 68

10.

Install all components with the same configuration that was used on the failed

Install the heatsink, and then close the heatsink retaining levers.

11. Install the processor socket cover onto the processor socket of the failed system board.

IMPORTANT:

system board.

12. Install all components removed from the failed system board.

13. Install the access panel.

14. Do one of the following:

o For tower models, return the server to an upright position.

o For rack models, slide the server back into the rack.

15. Connect each power cord to the server.

16. Connect each power cord to the power source.

17. Press the Power On/Standby button.

The server exits standby mode and applies full power to the system. The system power LED changes from amber to green.

18. Do one of the following:

o For tower models, install the bezel.

o For rack models, if removed, install the security bezel.

After you replace the system board, you must re-enter the server serial number and the product ID.

1. During the server startup sequence, press the F9 key to access RBSU.

2. Select the Advanced Options menu.

3. Select Service Options.

4. Select Serial Number. The following warnings appear:

WARNING! WARNING! WARNING! The serial number is loaded into the system during the manufacturing process and should NOT be modified. This option should only be used by qualified service personnel. This value should always match the serial number sticker located on the chassis.

Warning: The serial number should ONLY be modified by qualified personnel. This value should always match the serial number located on the chassis.

5. Press the Enter key to clear the warning.

6. Enter the serial number and press the Enter key.

Removal and replacement procedures 69

7.

Select Product ID. The following warning appears:

Warning: The Product ID should ONLY be modified by qualified personnel. This value should always match the Product ID on the chassis.

8. Enter the product ID and press the Enter key.

9. Press the Esc key to close the menu.

10. Press the Esc key to exit RBSU.

11. Press the F10 key to confirm exiting RBSU. The server automatically reboots.

System battery

If the server no longer automatically displays the correct date and time, you might have to replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years.

WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not properly handled. To reduce the risk of personal injury:

• Do not attempt to recharge the battery.

• Do not expose the battery to temperatures higher than 60°C (140°F).

• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

To remove the component:

1. Do one of the following:

2. Power down the server (on page 25).

3. Remove all power:

4. For tower models, do the following:

5. For rack models, do the following:

6. Remove the air baffle ("Air baffle" on page 29).

• Replace only with the spare designated for this product.

o For tower models, open and remove the bezel ("Remove the tower bezel" on page 26).

o For rack models, if installed, remove the security bezel (on page 26).

a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server.

a. Place the server on a flat, level surface with the access panel facing up. b. Remove the access panel ("Access panel" on page 28).

a. Extend the server from the rack (on page 27). b. Remove the access panel ("Access panel" on page 28). c. Release thumbscrews and remove the rack bezel ("Remove the rack bezel" on page 26).

Removal and replacement procedures 70

7.

TPM, administrators should consider the system compromised and take appropriate measures

Remove the battery.

IMPORTANT: Replacing the system board battery resets the system ROM to its default configuration. After replacing the battery, reconfigure the system through RBSU.

For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider.

HP Trusted Platform Module

The TPM is not a customer-removable part.

CAUTION: Any attempt to remove an installed TPM from the system board breaks or disfigures the TPM security rivet. Upon locating a broken or disfigured rivet on an installed

If you suspect a TPM board failure, leave the TPM installed and remove the system board. Contact a Hewlett Packard Enterprise authorized service provider for a replacement system board and TPM board.

to ensure the integrity of the system data.

Removal and replacement procedures 71

Troubleshooting

Troubleshooting resources

The ProLiant Gen8 Troubleshooting Guide, Volume I: Troubleshooting provides procedures for resolving common problems and comprehensive courses of action for fault isolation and identification, issue resolution, and software maintenance on ProLiant servers and server blades. To view the guide, select a language:

• English (http://www.hpe.com/support/Gen9_TSG_en)

• French (http://www.hpe.com/support/Gen9_TSG_fr)

• Spanish (http://www.hpe.com/support/Gen9_TSG_es)

• German (http://www.hpe.com/support/Gen9_TSG_de)

• Japanese (http://www.hpe.com/support/Gen9_TSG_ja)

• Simplified Chinese (http://www.hpe.com/support/Gen9_TSG_zh_cn)

The ProLiant Gen8 Troubleshooting Guide, Volume II: Error Messages provides a list of error messages and information to assist with interpreting and resolving error messages on ProLiant servers and server blades. To view the guide, select a language:

• English (http://www.hpe.com/support/Gen9_EMG_en)

• French (http://www.hpe.com/support/Gen9_EMG_fr)

• Spanish (http://www.hpe.com/support/Gen9_EMG_es)

• German (http://www.hpe.com/support/Gen9_EMG_de)

• Japanese (http://www.hpe.com/support/Gen9_EMG_ja)

• Simplified Chinese (http://www.hpe.com/support/Gen9_EMG_zh_cn)

Troubleshooting 72

Diagnostic tools

http://www.hpe.com/support/hpesc

HPE Insight Diagnostics

The Insight Diagnostics is a proactive server management tool, available in both offline and online versions, that provides diagnostics and troubleshooting capabilities to assist IT administrators who verify server installations, troubleshoot problems, and perform repair validation.

The Insight Diagnostics Offline Edition performs various in-depth system and component testing while the OS is not running. To run this utility, boot the server using Intelligent Provisioning.

The Insight Diagnostics Online Edition is a web-based application that captures system configuration and other related data needed for effective server management. Available in Microsoft Windows and Linux versions, the utility helps to ensure proper system operation.

For more information or to download the utility, see the Hewlett Packard Enterprise website (http://www.hpe.com/info/InsightDiagnostics). The Insight Diagnostics Online Edition is also available in the SPP.

HPE Insight Diagnostics survey functionality

HPE Insight Diagnostics (on page 73) provides survey functionality that gathers critical hardware and software information on ProLiant servers.

This functionality supports operating systems that may not be supported by the server. For operating systems supported by the server, see the Hewlett Packard Enterprise website (http://www.hpe.com/info/supportos).

If a significant change occurs between data-gathering intervals, the survey function marks the previous information and overwrites the survey data files to reflect the latest changes in the configuration.

Survey functionality is installed with every SmartStart-assisted Insight Diagnostics installation, or it can be installed through the HPE PSP.

NOTE: The current version of SmartStart provides the memory spare part numbers for the server. To download the latest version, see the Hewlett Packard Enterprise website (

).

Integrated Management Log

The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each event with 1-minute granularity.

You can view recorded events in the IML in several ways, including the following:

• From within SIM

• From within Survey Utility

• From within operating system-specific IML viewers

o For NetWare: IML Viewer (does not apply to ProLiant DL980 Servers)

o For Windows®: IML Viewer

o For Linux: IML Viewer Application

• From within the iLO 4 user interface

Diagnostic tools 73

• From within Insight Diagnostics ("HPE Insight Diagnostics" on page 73)

For more information, see the Management CD or DVD in the HPE Insight Foundation suite for ProLiant.

HPE Insight Remote Support

Hewlett Packard Enterprise strongly recommends that you register your device for remote support to enable enhanced delivery of your Hewlett Packard Enterprise warranty, HPE support services, or Hewlett Packard Enterprise contractual support agreement. Insight Remote Support supplements your monitoring continuously to ensure maximum system availability by providing intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which will initiate a fast and accurate resolution, based on your product’s service level. Notifications can be sent to your authorized Hewlett Packard Enterprise Channel Partner for onsite service, if configured and available in your country.

For more information, see Insight Remote Support and Insight Online Setup Guide for ProLiant Servers and BladeSystem c-Class Enclosures on the Hewlett Packard Enterprise website (http://www.hpe.com/info/insightremotesupport/docs). Insight Remote Support is available as part of Hewlett Packard Enterprise Warranty, HPE support services, or Hewlett Packard Enterprise contractual support agreement.

USB support

Hewlett Packard Enterprise provides both standard USB 2.0 support and legacy USB 2.0 support. Standard support is provided by the OS through the appropriate USB device drivers. Before the OS loads, Hewlett Packard Enterprise provides support for USB devices through legacy USB support, which is enabled by default in the system ROM.

Legacy USB support provides USB functionality in environments where USB support is not available normally. Specifically, Hewlett Packard Enterprise provides legacy USB functionality for the following:

• POST

• RBSU

• Diagnostics

• DOS

• Operating environments which do not provide native USB support

Diagnostic tools 74

Component identification

Item

Description

Media/Drive cage bay 2

SAS/SATA drives (8)

3

Serial number/iLO information pull tab*

Optical drive 5

USB connectors (4)

Front panel components

• SFF

1

4

*The serial number/iLO information pull tab is double-sided. The top side shows the server serial number, and the reverse side shows the default iLO account information. The same information is printed on a label attached to the chassis.

Component identification 75

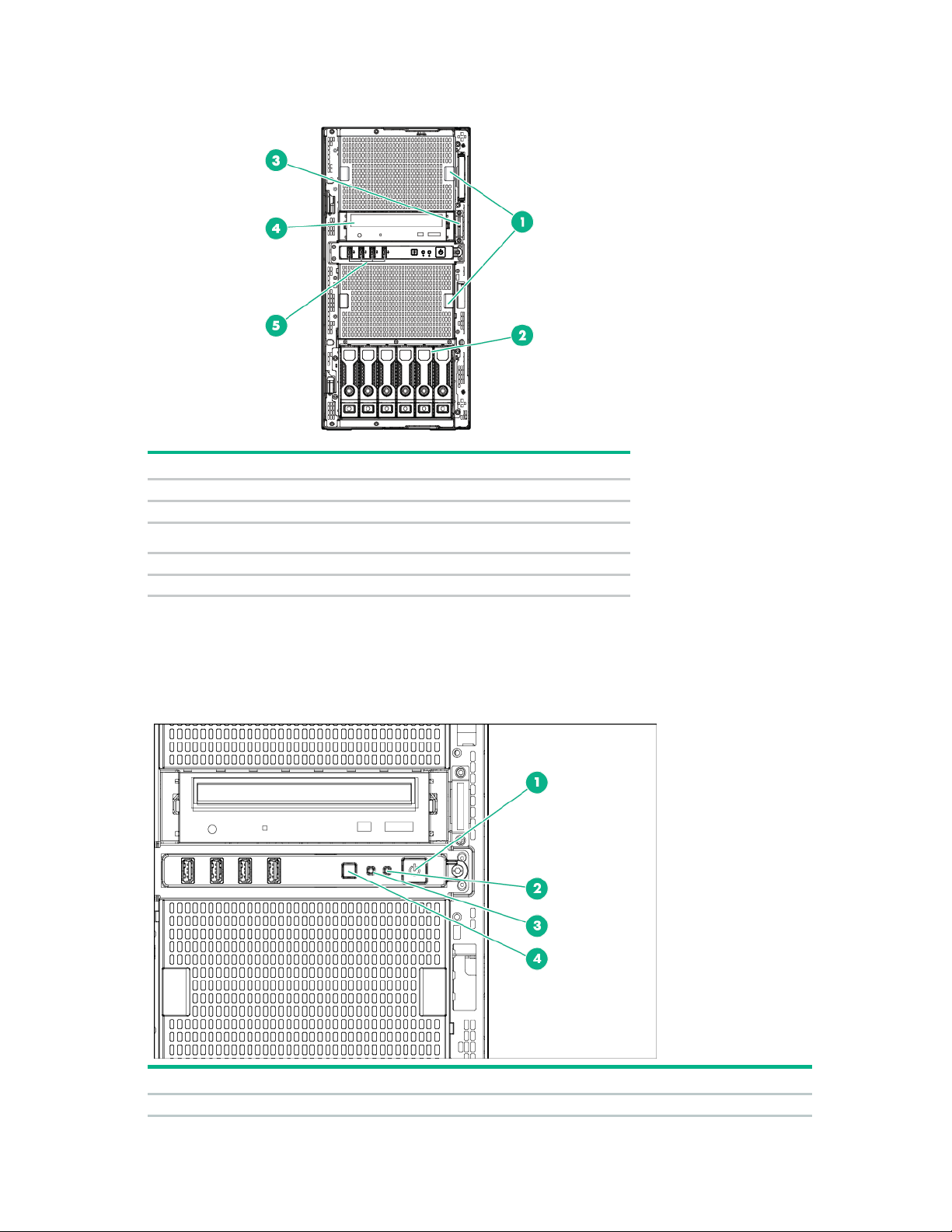

• LFF

Item

Description

1

Media/Drive cage bay

2

SAS/SATA drive (6)

Serial number/iLO information pull tab* 4

Optical drive

5

USB connectors (4)

Item

Description

Status

1

Power On/Standby button

Solid green = System on

3

*The serial number/iLO information pull tab is double-sided. The top side shows the server serial number, and the reverse side shows the default iLO account information. The same information is printed on a label attached to the chassis.

Front panel LEDs and buttons

Component identification 76

Item

Description

Status

and system power LED

Flashing green (1 Hz/cycle per sec) = Performing power on

NIC status LED

Solid green = Link to network

Health LED

Solid green = Normal

UID button/LED

Solid blue = Activated

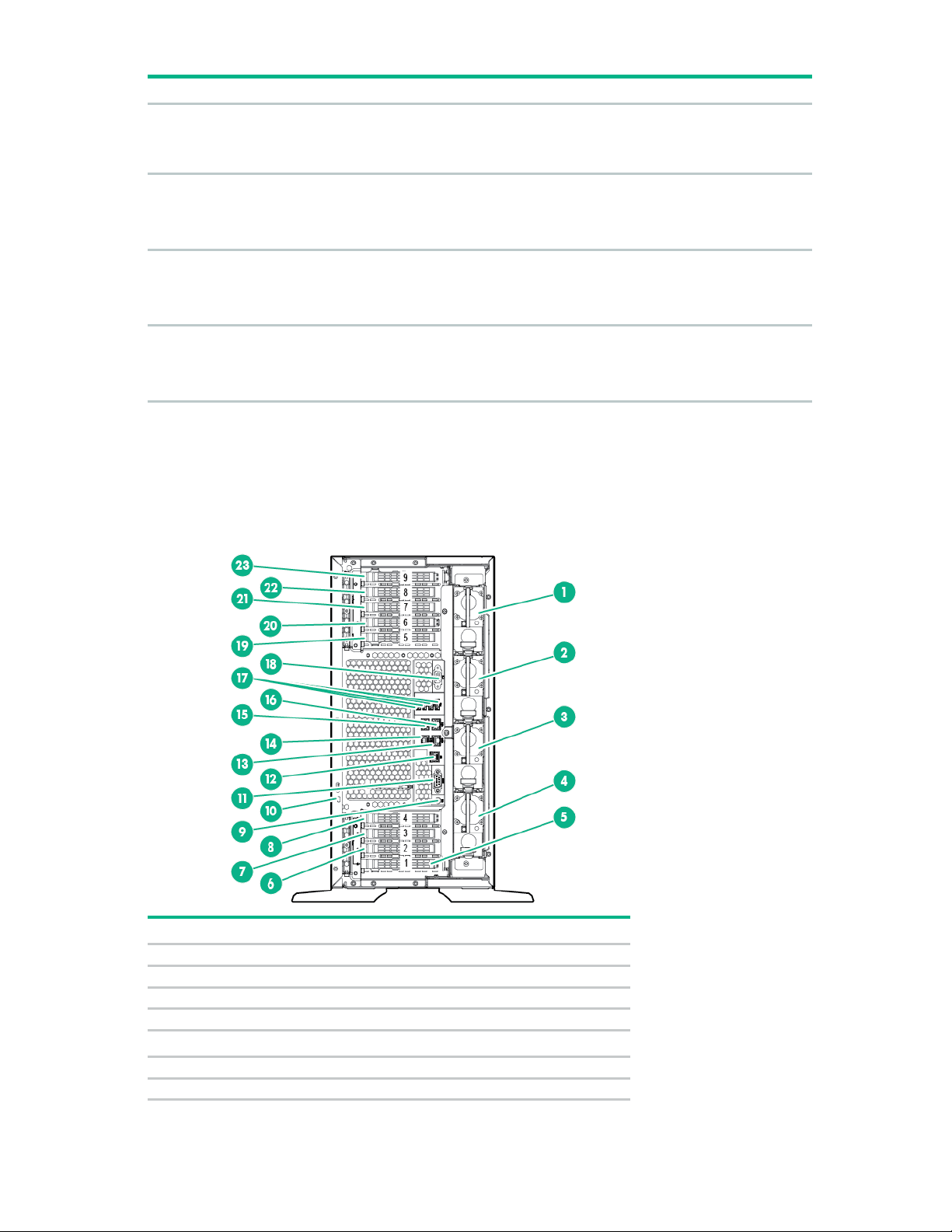

Item

Description

1

Power supply 4

2

Power supply 3

3

Power supply 2

4

Power supply 1

PCIe slot 1 (Processor 1) 6

PCIe slot 2 (Processor 1)

7

PCIe slot 3 (Processor 1)

sequence Solid amber = System in standby Off = No power present*

2

Flashing green (1 Hz/cycle per sec) = Network active Off = No network activity

3

4

*Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has occurred, or the power button cable is disconnected. **To identify components in a degraded or critical state, see the Systems Insight Display LEDs ("Systems Insight

Display assembly" on page 51), check iLO/BIOS logs, and reference the server troubleshooting guide.

Flashing amber = System degraded Flashing red (1 Hz/cycle per sec) = System critical Fast-flashing red (4 Hz/cycles per sec) = Power fault**

Flashing blue (1 Hz/cycle per sec) = Remote management or firmware upgrade in progress Off = Deactivated

Rear panel components

5

Component identification 77

Item

Description

8

PCIe slot 4 (Processor 1)

9

UID button/LED

10

Kensington security lock

11

Serial connector

12

iLO connector

13

NIC connector 3

14

NIC connector 4

15

NIC connector 2

16

NIC connector 1

17

USB connectors (4)

18

Video connector

19

PCIe slot 5 (Processor 2)

20

PCIe slot 6 (Processor 2)

21

PCIe slot 7 (Processor 2)

22

PCIe slot 8 (Processor 2)

23

PCIe slot 9 (Processor 2)

NIC activity LED

Green or flashing green = Network activity NIC link LED

Green = Linked to network

Power supply LED

Green = Normal

•

Rear panel LEDs

Item Description Status

1

2

3

Off = No network activity

Off = No network connection

Off = One or more of the following conditions exists:

Power is unavailable. Power supply failed. Power supply is in standby mode.

Power supply exceeded current limit.

Component identification 78

Item Description Status

UID LED

Blue = Activated iLO 4 link LED

Green = Linked to network

iLO 4 activity LED

Green or flashing green = Network activity

Item

Description

1

Slot 1 PCIe3 x16 (8, 4, 1)

2

Slot 2 PCIe3 x8 (4, 1)

3

Slot 3 PCIe3 x16 (16, 8, 4, 1)

4

Slot 4 PCIe3 x8 (4, 1)

5

Processor 1 DIMM slots

6

Smart Array P420i memory cache module

7

Mini-SAS connectors (2)

8

Processor 2 DIMM slots

9

Processor socket 2

10

SD card slot

11

Front panel connectors (2)

12

Fan cage connector

13

Internal USB tape connector

14

Discovery service cable connector

15

System battery

16

SATA connectors

17

Internal USB connector

18

Processor 2 DIMM slots

TPM connector

4

Flashing blue = System is being managed remotely Off = Deactivated

5

Off = No network connection

6

Off = No network activity

System board components

19

Component identification 79

Item

Description

20

System maintenance switch

NMI header 22

Slot 9 PCIe3 x8 (4, 1)

23

Slot 8 PCIe3 x16 ( 16, 8, 4, 1)

24

Slot 7 PCIe3 x8 (4, 1)

25

Slot 6 PCIe3 x16 (16, 8, 4, 1)

26

Slot 5 PCIe2 x8 (4, 1)

27

Processor 1 DIMM slots

28

Processor socket 1 (populated)

Off

Off = iLO 4 security is enabled.

Off

Off = System configuration can be

S3

Off

Reserved

S4

Off

Reserved

Off

Off = Power-on password is enabled.

Off

Off = No function

S7

—

Reserved

S8

—

Reserved

S9

—

Reserved

S10

—

Reserved

S11

—

Reserved

S12

—

Reserved

21

System maintenance switch

Position Default Function

S1

S2

S5

S6

On = iLO 4 security is disabled.

changed. On = System configuration is locked.

On = Power-on password is disabled.

On = ROM reads system configuration as invalid.

To access the redundant ROM, set S1, S5, and S6 to On.

When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all system configuration settings from both CMOS and NVRAM.

CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to properly configure the server or data loss could occur.

NMI functionality

An NMI crash dump creates a crash dump log before resetting a system which is not responding.

Crash dump log analysis is an essential part of diagnosing reliability problems, such as failures of operating systems, device drivers, and applications. Many crashes freeze a system, and the only available action for administrators is to restart the system. Resetting the system erases any information which could support problem analysis, but the NMI feature preserves that information by performing a memory dump before a system reset.

Component identification 80

To force the system to invoke the NMI handler and generate a crash dump log, do one of the following:

• Use the iLO Virtual NMI feature.

• Short the NMI header ("System board components" on page 79).

For more information, see the Hewlett Packard Enterprise website (http://www.hpe.com/support/NMI-CrashDump).

DIMM slots

DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the letter assignments for population guidelines.

NOTE: For proper orientation, the arrow indicates the front of the server.

Component identification 81

Systems Insight Display LEDs

Power cap

To determine Power cap status, see

AMP Status

Green = AMP mode enabled

DIMM LEDs

Amber = DIMM error

All other LEDs

Amber = Failure

The Systems Insight Display LEDs represent the system board layout.

Item Description Status

1

2

3

IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required. Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing each DIMM in a bank with a known working DIMM.

"Systems Insight Display LED combinations (on page 82)."

Amber = Failover Off = AMP mode disabled

Off = Normal

Systems Insight Display LED combinations

When the health LED on the front panel illuminates either amber or red, the server is experiencing a health event. Combinations of illuminated Systems Insight Display LEDs, the system power LED, and the health LED indicate system status.

Component identification 82

color

Red

Amber

One or more of the following conditions

•

Amber

Green

Processor in socket X is in a pre-failure DIMM (amber)

Red

Green

One or more DIMMs have failed.

DIMM (amber)

Amber

Green

DIMM in slot X is in a pre-failure condition.

Amber

Green

The Health Driver has detected a cautionary

Red

Amber

The server has detected a hardware critical

Amber

Green

Fan has failed or is missing, but still meets

Red

Green

Fan has failed or is missing and no longer

Red

Amber

•

Amber

Green

•

Power cap (off)

—

Amber

Standby

Power cap (green)

—

Flashing green

Waiting for power

amber)

—

Amber

Power cap has been exceeded Power cap (green)

—

Green

Power is available

Systems Insight Display LED and

Health LED

System power LED

Status

Processor (amber)

Overtemperature (amber)

Fan (amber)

Power supply (amber)

might exist:

Processor in socket X has failed. Processor X is not installed in the

socket.

Processor X is unsupported. ROM detects a failed processor during

POST

condition.

temperature level.

the minimum fan requirements.

meets the minimum fan requirements.

Only one power supply installed and in

standby mode.

Power supply fault

System board fault

Redundant power supply is installed

and only one power supply is functional.

AC power cord is not plugged into

redundant power supply.

Redundant power supply fault Power supply mismatch at POST or

through hot-plug addition.

Power cap (flashing

IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required. Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing each DIMM in a bank with a known working DIMM.

SAS and SATA device numbers

With optional drive cages installed, the server supports up to 24 SFF drives or up to 18 LFF drives. The server does not support mixing SFF and LFF drives.

Hewlett Packard Enterprise recommends that you populate drive bays starting with the lowest SAS or SATA device number. Drives are numbered from left to right in each component box. Component boxes are numbered 1 through 3, from bottom to top.

Component identification 83

• SFF drives

• LFF drives

Hot-plug drive LED definitions

Component identification 84

1

Locate

Solid blue

The drive is being identified by a host application.

Flashing blue

The drive carrier firmware is being updated or requires an 2

Activity ring

Rotating green

Drive activity

Off

No drive activity

Do not remove

Solid white

Do not remove the drive. Removing the drive causes one or Off

Removing the drive does not cause a logical drive to fail. 4

Drive status

Solid green

The drive is a member of one or more logical drives.

Flashing green

The drive is rebuilding or performing a RAID migration, strip size Flashing

The drive is a member of one or more logical drives and predicts Flashing amber

The drive is not configured and predicts the drive will fail.

Solid amber

The drive has failed.

Off

The drive is not configured by a RAID controller.

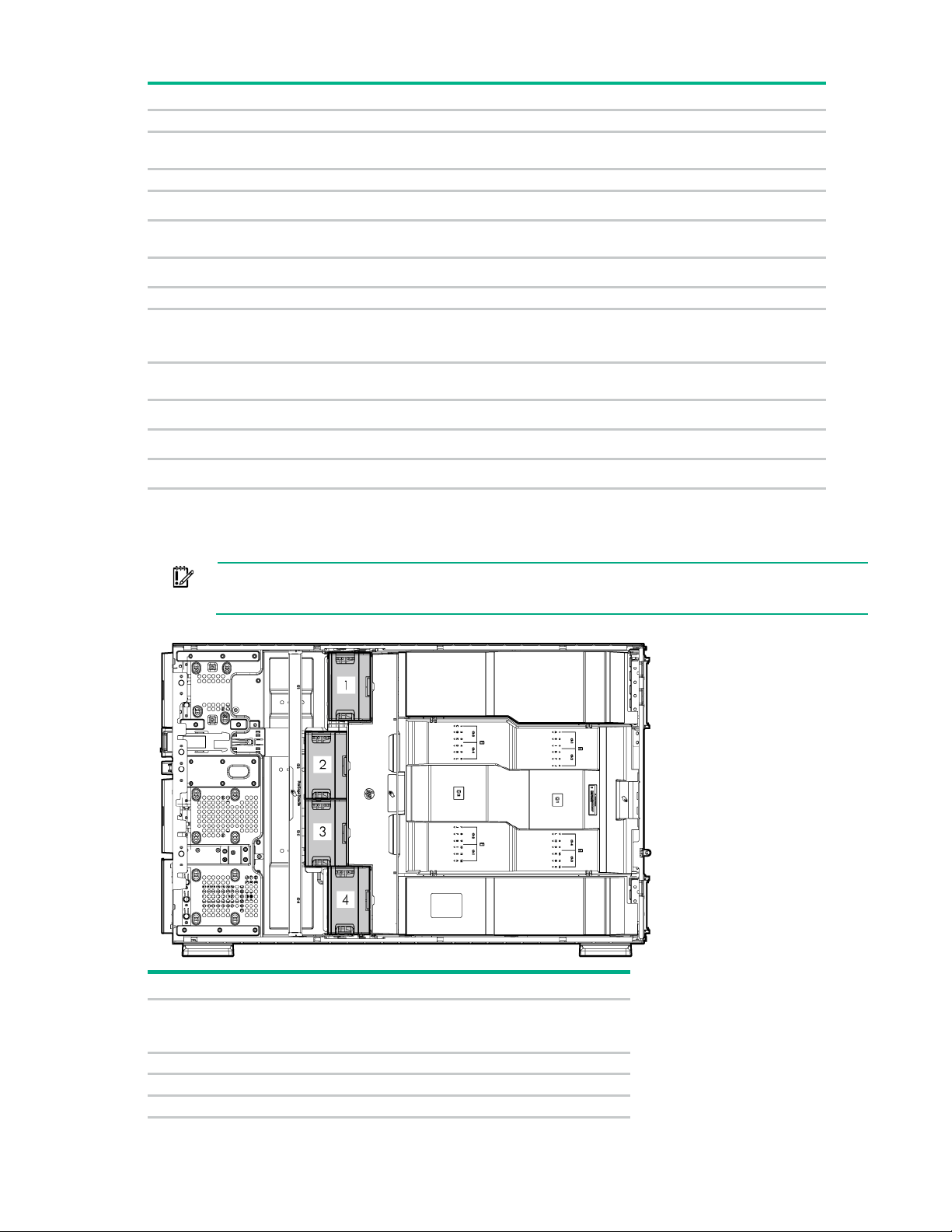

Item

Description

Configuration

Fan 1

Redundant (primary fan

2

Fan 2

Primary

3

Fan 3

Primary

4

Fan 4

Primary

Item LED Status Definition

3

Fans

update.

more of the logical drives to fail.

migration, capacity expansion, or logical drive extension, or is erasing.

amber/green

IMPORTANT: Fan louvers must be present for the redundant configuration. Without the louvers, all four fans are nonredundant.

the drive will fail.

1

when processor 2 is installed)

Component identification 85

1 - Amber

2 - Green

3 - Green

Interpretation

Off

The cache module is not powered.

Flashing 0.5 Hz

The cache microcontroller is executing from within its Flashing 1 Hz

Flashing 1 Hz

The cache module is powering up, and the capacitor

Off

Flashing 1 Hz

The cache module is idle, and the capacitor pack is

Off

On

The cache module is idle, and the capacitor pack is

On

The cache module is idle, the capacitor pack is

Off

Flashing 1 Hz

Off

A backup is in progress.

Off

On

Off

The current backup is complete with no errors.

Flashing 1 Hz

Off

The current backup failed, and data has been lost.

Flashing 1 Hz

On

A power error occurred during the previous or current Flashing 1 Hz

On

Off

An overtemperature condition exists.

Flashing 2 Hz

Off

The capacitor pack is not attached.

Flashing 2 Hz

On

The capacitor has been charging for 10 minutes, but On

Off

The current backup is complete, but power On

On

The cache module microcontroller has failed.

FBWC module LEDs (P222, P420, P420i, P421, P822)

The FBWC module has three single-color LEDs (one amber and two green). The LEDs on the cache module installed on a storage controller are duplicated on the reverse side of the module to facilitate status viewing.

Off

Flashing 1 Hz

Flashing 2 Hz

On

boot loader and receiving new flash code from the host controller.

pack is charging.

charging.

charged.

charged, and the cache contains data that has not yet been written to the drives.

boot. Data might be corrupt.

has not reached sufficient charge to perform a full backup.

fluctuations occurred during the backup.

Component identification 86

RPS riser board connectors

J7

Graphic card power connector

J9

Drive backplane bay 1/optical drive power connector 3

J5

Drive backplane bay 2 power connector

4

J6

Drive backplane bay 3 power connector

J8

Graphic card power connector

Item Connector Description

1

2

5

Component identification 87

Cabling

Item

Description

Optical drive connector

Drive cage 1, SAS connector 2 3

Drive cage 1, SAS connector 1

4

SATA connector

5

SAS connector

6

SAS connector

Server data cabling

1

2

Cabling 88

Media device data cabling

1

Optical drive connector

2

Optical drive connector

3

Optical drive connector

4

SATA connector

5

SATA connector

6

SATA connector

Item Description

Optical drive cabling

Cabling 89

Specifications

Specification

Value

Temperature range*

Operating

10°C to 35°C (50°F to 95°F)

Non-operating

-30°C to 60°C (-22°F to 140°F)

(non-condensing)

temperature of 28°C (82.4°F)

10% to 90% (101.7°F)

5% to 95%

Dimensions

Rack model

—

Height

21.8 cm (8.58 in)

Depth

73.22 cm (28.83 in)

Width

48.26 cm (19.00 in)

Tower model

—

Height

46.2 cm (18.19 in)

Depth

74.00 cm (29.13 in)

Width

21.8 cm (8.58 in)

Weight

Rack model

—

50.06 kg (110.36 lbs) Minimum

27.63 kg (60.91 lbs)

Tower model

—

Maximum

52.09 kg (144.84 lbs)

Minimum

31.09 kg (70.33 lbs)

Environmental specifications

Server specifications

Relative humidity

Operating, maximum wet bulb

Non-operating, maximum wet bulb temperature of 38.7°C

* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed.

Specification Value

Maximum

Power supply specifications

Depending on installed options, the server is configured with one of the following power supplies:

• HPE 460 W Gold Power Supply (92% efficiency)

• HPE 460 W Platinum Plus Power Supply (94% efficiency)

Specifications 90

• HPE 750 W Gold Power Supply (92% efficiency)

Specification

Value

Input requirements

—

Rated input voltage

100 to 120 VAC, 200 to 240 VAC

Rated input frequency

50 Hz to 60 Hz

5.5 A at 100 VAC

526 W at 100V AC input

1794 at 100V AC input Power supply output

—

460 W at 100V to 120V AC input

Specification

Value

Input requirements

—

Rated input voltage

100 to 240 VAC

Rated input frequency

47 Hz to 63 Hz

Rated input current

8 A

509 W at 115V AC input

1764 at 100V AC input

Power supply output

—

460 W at 100V to 120V AC input

Specification

Value

Input requirements

—

Rated input voltage

100 to 120 VAC, 200 to 240 VAC

Rated input frequency

50 Hz to 60 Hz

8.9 A at 100 VAC

• HPE 750 W Platinum Plus Power Supply (94% efficiency)

HPE 460 W Gold Power Supply (92% efficiency)

• HPE 1200 W Platinum Plus Power Supply (94% efficiency)

Rated input current

2.6 A at 200 VAC

Rated input power

505 W at 200V AC input

Btus per hour

1725 at 200V AC input

Rated steady-state power

460 W at 200V to 240V AC input

Maximum peak power

460 W at 200V to 240V AC input

HPE 460 W Platinum Plus Power Supply (94% efficiency)

Rated input power

495 W at 230V AC input

Btus per hour

1736 at 115V AC input 1694 at 200V AC input 1687 at 230V AC input

Rated steady-state power

460 W at 200V to 240V AC input

Maximum peak power

460 W at 200V to 240V AC input

HPE 750 W Gold Power Supply (92% efficiency)

Rated input current

4.3 A at 200 VAC

Specifications 91

857 W at 100V AC input

2925 at 100V AC input Power supply output

—

750 W at 100V to 120V AC input

Specification

Value

Input requirements

—

Rated input voltage

100 to 120 VAC, 200 to 240 VAC

Rated input frequency

50 Hz to 60 Hz

8.5 A at 100 VAC

831 W at 115V AC input

2878 at 100V AC input

Power supply output

—

750 W at 100V to 120V AC input

750 W at 100V to 120V AC input Input requirements

—

Rated input voltage

100 to 120 VAC, 200 to 240 VAC

Rated input frequency

50 Hz to 60 Hz

10 A at 100 VAC

990 W at 115V AC input

3060 at 100V AC input

Power supply output

—

800 W at 100V AC input

Rated input power

824 W at 200V AC input

Btus per hour

2812 at 200V AC input

Rated steady-state power

750 W at 200V to 240V AC input

Maximum peak power

750 W at 200V to 240V AC input

HPE 750 W Platinum Plus Power Supply (94% efficiency)

Rated input current

4.1 A at 200 VAC

Rated input power

808 W at 230V AC input

Btus per hour

2834 at 115V AC input 2769 at 200V AC input 2758 at 230V AC input

Rated steady-state power

750 W at 200V to 240V AC input

Maximum peak power

750 W at 200V to 240V AC input

HPE 1200 W Platinum Plus Power Supply (94% efficiency)

Specification Value

Rated input current

Rated input power

Btus per hour

Rated steady-state power

Maximum peak power

6.7 A at 200 VAC

1315 W at 230V AC input

3380 at 115V AC input 4503 at 200V AC input 4485 at 230V AC input

900 W at 120V AC input 1200 W at 200V to 240V AC input

Specifications 92

Acronyms and abbreviations

AMP

Advanced Memory Protection

CSR

Customer Self Repair

FBWC

flash-backed write cache

iLO

Integrated Lights-Out

IML

Integrated Management Log

LFF

large form factor

LRDIMM

load reduced dual in-line memory module

NMI

nonmaskable interrupt

NVRAM

nonvolatile memory

ORCA

Option ROM Configuration for Arrays

PCIe

Peripheral Component Interconnect Express

POST

Power-On Self Test

PSP

HPE ProLiant Support Pack

Acronyms and abbreviations 93

RBSU

ROM-Based Setup Utility

RPS

redundant power supply

SAS

serial attached SCSI

SATA

serial ATA

SFF

small form factor

SID

Systems Insight Display

SIM

Systems Insight Manager

TPM

Trusted Platform Module

UID

unit identification

USB

universal serial bus

Acronyms and abbreviations 94

Documentation feedback

Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page.

Documentation feedback 95

Index

A

access panel 28

B

battery 70 buttons 75

C

cables 88 cabling 88, 89 cache module 45 cautions 23 components 15, 23, 75 connectors 75 crash dump analysis 80

D

data cabling 88 device bay blank 34 device numbers 83 diagnosing problems 72 diagnostic tools 73 diagnostics utility 73 DIMM slots 81 DIMMs 61 drive LEDs 84 drives, removing 35

E

electrostatic discharge 23 environmental requirements 90 error messages 72 expansion board 42 extend server from rack 27

G

graphic card option 43 grounding methods 23 grounding requirements 23

H

hard drive blanks 35 hard drive LEDs 84 hard drives, determining status of 84 heatsink 52 heatsink levers 55 Hewlett Packard Enterprise contact information 5 HPE Insight Diagnostics survey functionality 73 HPE support services 74

I

identifying components 75 IML (Integrated Management Log) 73 Insight Diagnostics 73

L

LEDs, hard drive 84

M

mechanical components 15 media device data cabling 89 memory dump 80

N

NIC connectors 77 NMI header 80

O

F

fan blank 30 fan cage 32 fans 31, 85 features 75 firmware upgrade utility, troubleshooting 72 front I/O assembly 38 front panel components 75 front panel LEDs 76

operating system crash 80 optical device 37 optical drive cage 36

P

PCI air baffle 29 POST error messages 72 power LEDs, system 76 power supply backplane 40 power supply specifications powering down 25

90, 91, 92

Index 96

powering up 25 problem diagnosis 72, 73 processors 56

R

rack bezel 25, 26 rear panel components 77 rear panel LEDs 78 remote support and analysis tools 74

S

safety considerations 23 safety information 23 security bezel 26 server specifications 90 server warnings and cautions 24 Service Pack for ProLiant 73 specifications, server 90 static electricity 23 support services 74 symbols on equipment 23 system board battery 70 system board components 79 system board replacement 62 system components 18, 75 system configuration settings 80 system maintenance switch 80 Systems Insight Display 51 Systems Insight Display LEDs 82

T

technical support 5 temperature requirements 90 tower bezel, removing 26 tower feet 33 TPM (Trusted Platform Module) 71 troubleshooting 72 troubleshooting, firmware upgrade utility 72 Trusted Platform Module (TPM) 71

U

USB support 74 utilities 73

W

warnings 24

Index 97

Hewlett Packard Enterprise ProLiant ML350p Gen8 Maintenance And Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Abstract

Contents

Customer self repair

Parts only warranty service

Illustrated parts catalog

Mechanical components

System components

Removal and replacement procedures

Required tools

Safety considerations

Preventing electrostatic discharge

Symbols on equipment

Rack warnings

Preparation procedures

Power up the server

Power down the server

Remove the security bezel

Remove the tower bezel

Remove the rack bezel

Extend the server from the rack

Access panel

Air baffle

PCI air baffles

Fan blank

Fan cage

Tower feet

Component box blank

Drive blank

Drive

Optical drive cage

Optical drive

Front I/O assembly

Power supply blank

Power supply module

Power supply backplane

Expansion board

Graphic card adapter

Cache module

FBWC capacitor pack

SFF drive backplane

LFF drive backplane

Systems Insight Display assembly

Heatsink

Heatsink Retaining Levers

Processor

DIMMs

System board

System battery

HP Trusted Platform Module

Troubleshooting

Troubleshooting resources

Diagnostic tools

HPE Insight Diagnostics

HPE Insight Diagnostics survey functionality

Integrated Management Log

HPE Insight Remote Support

USB support

Component identification

Front panel components

Front panel LEDs and buttons

Rear panel components

Rear panel LEDs

System board components

System maintenance switch

NMI functionality

DIMM slots

Systems Insight Display LEDs

Systems Insight Display LED combinations

SAS and SATA device numbers

Hot-plug drive LED definitions

Fans

FBWC module LEDs (P222, P420, P420i, P421, P822)

RPS riser board connectors

Cabling

Server data cabling

Media device data cabling
