HP x2 210 G2 Detachable PC

Maintenance and Service Guide
IMPORTANT! This document is intended for HP
authorized service providers only.

Copyright 2016 HP Development Company, L.P.

Product notice

Software terms

Bluetooth is a trademark owned by its
proprietor and used by HP Inc under license.
Intel and Core are U.S. registered trademarks of
Intel Corporation. Microsoft and Windows are
U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.

The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.

First Edition: August 2016

Document Part Number: 903182-001

This guide describes features that are common
to most models. Some features may not be
available on your computer.

Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers,
and/or software to take full advantage of
Windows functionality. See

http://www.microsoft.com for details.

By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a refund subject to the
refund policy of your place of purchase.

For any further information or to request a full
refund of the computer, please contact your
local point of sale (the seller).

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the

device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by the International Standard for Safety of Information Technology
Equipment (IEC 60950-1).

iii

iv Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 External component identication .................................................................................................................. 4

Display .................................................................................................................................................................... 4

Top edge ................................................................................................................................................................. 5

Right side ............................................................................................................................................................... 6

Left side ................................................................................................................................................................. 7

Bottom edge .......................................................................................................................................................... 7

Locating the product number and serial number ................................................................................................. 8

3 Illustrated parts catalog ................................................................................................................................ 9

Tablet major components ...................................................................................................................................... 9

Dock major components ...................................................................................................................................... 12

Hinge components ............................................................................................................................................... 14

Cables ................................................................................................................................................................... 15

Rubber Kit ............................................................................................................................................................ 16

Miscellaneous parts ............................................................................................................................................. 17

4 Removal and replacement preliminary requirements ..................................................................................... 18

Tools required ...................................................................................................................................................... 18

Service considerations ......................................................................................................................................... 18

Plastic parts ....................................................................................................................................... 18

Cables and connectors ...................................................................................................................... 18

Grounding guidelines ........................................................................................................................................... 19

Electrostatic discharge damage ........................................................................................................ 19

Packaging and transporting guidelines .......................................................................... 20

Workstation guidelines ................................................................................ 20

5 Removal and replacement procedures ........................................................................................................... 22

Tablet component replacement procedures ....................................................................................................... 22

Back cover ......................................................................................................................................... 22

Docking connector (display) .............................................................................................................. 24

RTC battery ........................................................................................................................................ 25

Front webcam module ...................................................................................................................... 26

Antenna ............................................................................................................................................. 27

LCD shield .......................................................................................................................................... 28

v

Battery ............................................................................................................................................... 29

Speakers ............................................................................................................................................ 30

Audio board ....................................................................................................................................... 32

Power button board .......................................................................................................................... 33

Volume board .................................................................................................................................... 35

Rear webcam module and lens ......................................................................................................... 36

System board .................................................................................................................................... 38

Dock component replacement procedures ......................................................................................................... 40

Bottom cover ..................................................................................................................................... 40

Hard drive .......................................................................................................................................... 42

Docking board (models with a hard drive) ........................................................................................ 43

Docking board (models without a hard drive) .................................................................................. 45

TouchPad board ................................................................................................................................. 46

Hinge assembly ................................................................................................................................. 47

Hinge components ............................................................................................................................ 48

Top cover/keyboard ........................................................................................................................... 52

6 Using Setup Utility (BIOS) ............................................................................................................................. 53

Starting Setup Utility (BIOS) ................................................................................................................................ 53

Updating Setup Utility (BIOS) .............................................................................................................................. 53

Determining the BIOS version ........................................................................................................... 53

Downloading a BIOS update .............................................................................................................. 54

7 Using HP PC Hardware Diagnostics (UEFI) ....................................................................................................... 56

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................... 56

8 Specications .............................................................................................................................................. 58

9 Backing up, restoring, and recovering ........................................................................................................... 59

Creating recovery media and backups ................................................................................................................ 59

Creating HP Recovery media (select products only) ......................................................................... 59

Using Windows tools ........................................................................................................................................... 60

Restore and recovery ........................................................................................................................................... 61

Recovering using HP Recovery Manager ........................................................................................... 61

What you need to know before you get started ............................................................. 61

Using the HP Recovery partition (select products only) ................................................. 62

Using HP Recovery media to recover .............................................................................. 62

Changing the computer boot order ................................................................................ 63

Removing the HP Recovery partition (select products only) ......................................... 64

vi

10 Power cord set requirements ...................................................................................................................... 65

Requirements for all countries ............................................................................................................................ 65

Requirements for specic countries and regions ................................................................................................ 65

11 Recycling .................................................................................................................................................. 67

Index ............................................................................................................................................................. 68

vii

viii

1 Product description

Category Description Tablet Dock

Product Name HP x2 Detachable PC (model numbers 10-p0XX) √ √

HP x2 210 G2 Detachable PC √ √

Processor Intel Atom x5-Z8350 1.44-1.92 GHz quad core processor, 2 W, soldered-on-circuit

(SoC)

Chipset Integrated SoC √

Graphics Internal graphics

Intel® HD Graphics 400

Support Dynamic Graphics Frequency, DX12, OpenGL 3.X, OpenCL 1.2

Panel 16:10 Ultra Wide Aspect Ratio

10.1-in (1280x800), antiglare, WLED, WXGA, uslim-bent (2.6 mm), eDP; 250 nits

Touch screen with ush glass, multitouch enabled

Memory On-board system memory

DDR3L-1600 single channel support

●

2048 MB (256Mx16 x4pcs)

LPDDR3-1600 single channel support (LPDDR3-1866 1.2V downgraded to
LPDDR3-1600)

●

4096 MB (256Mx16x4x2pcs)

Supports up to 4 GB maximum system memory

Mass storage Tablet

eMMC (TLC) congurations:

128 GB (HP x2 210 G2 models only)

64 GB

32 GB

√

√

√

√

√

Dock

Single hard drive congurations (HP x2 models only)

1 TB, 5400 rpm, 7.2 mm

500 GB, 5400 rpm, 7.2 mm

Webcam Two xed integrated web cameras

Front: HP True Vision HD: HD camera - indicator LED, USB2.0, f2.0

Rear : HP True Vision 5 MP Fixed Focus (2592 x 1944) support WFOV

Single digital mic

HP Noise Cancellation enabled

Support for voice recognition

√

√

1

Category Description Tablet Dock

Audio Stereo speakers (2)

DTS Studio Sound

Sensors Accelerometer

eCompass

Gyroscope

Sensor hub

Wireless
networking

Intel Dual Band Wireless-AC 3165 802.11ac 1x1 WiFi + Bluetooth 4.2 Combo Adapter

Intel Dual Band Wireless-AC 7265 802.11ac 2x2 + Bluetooth Combo Adapter (non

External
expansion

Integrated Wireless options with dual antennas (LGA/PCIe)

Intel WiDi support

Connected Standby support

Compatible with Miracast-certied devices

(non-vPro)(HP x2 models)

vPro)(HP x2 210 G2 models)

Tablet

Micro Secure Digital (SD) Media Reader

Support SD/SDHC/SDXC

Push-push insertion/removal

√

√

√

√

√

√

Ports Tablet

●

Headphone/microphone combo jack

●

One USB 3.0 port

●

One USB 2.0 type C port supporting charging and data

●

Micro HDMI v1.4a port supporting up to 1920x1080 @ 60Hz

●

Pogo-pin (6-pin) docking connector

Keyboard Keyboard

Detachable hard keyboard cover

93% island style thin cover non-backlit keyboard (1.5 mm travel distance)

TouchPad

TouchPad with image sensor

●

Multitouch gestures enabled

●

Supports Windows 10 Modern Trackpad Gestures

Power
requirements

Battery

2-cell, 32.5-Whr polymer battery

Battery life enhancement

Supports battery fast charge

AC adapter

45-W USB Type C AC adapter with power cords

√ √

√

√

2 Chapter 1 Product description

Category Description Tablet Dock

1 m length power cord

Security fTPM 2.0 √

Operating
system

Preinstalled (HP x2 210 G2 models)

Serviceability End user replaceable part: AC adapter √ √

Preinstalled (HP x2 models)

For Developed Market (ML)

Windows 10 Entry 2-in-1 (Compact)

For Emerging Market (EM/SL)

CPPP Windows 10 Home China Language Edition 2-in-1 (Compact)

SEAP Windows 10 Entry 2-in-1 (Compact)

Windows 10 Home 64 Entry Tablet + 2-in-1 Notebook (Compact)

Windows 10 Home 64 Entry Tablet + 2-in-1 Notebook Single Language (Compact)

Windows 10 Home 64 Chinese Market CPPP (Compact)

Windows 10 Pro 64 Tablet + 2-in-1 Notebook (Compact)

Windows 10 Pro 64 Tablet + 2-in-1 Notebook Chinese Market (Compact)

Windows 10 Pro 64 StF MSNA (Compact)

Windows 10 Pro 64 StF MSNA EM (Compact)

Windows 10 Pro 64 StF MSNA - Strategic (Compact)

√ √

√ √

3

2 External component identication

Display

Component Description

(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless local

(2) Camera

NOTE: This computer includes a second camera

on the rear of the display cover.

(3) Camera light On: The camera is in use.

(4) Speakers (2) Produce sound.

(5) Rear camera Allows you to video chat, record video, and record still images.

*The antennas are not visible from the outside of the computer, and antenna location varies. For optimal transmission, keep the areas
immediately around the antennas free from obstructions.

4 Chapter 2 External component identication

area networks (WLANs).

Allows you to video chat, record video, and record still images.

Component Description

For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.

To access this guide:

▲ Select the Start button, select All apps, select HP Help and Support, and then select HP Documentation.

Top edge

Component Description

(1) Power button

(2) Internal microphone Records sound.

●

When the tablet is o, press the button to turn on the
tablet.

●

When the tablet is on, press the button briey to initiate
Sleep.

●

When the tablet is in the Sleep state, press the button
briey to exit Sleep.

●

When the tablet is in Hibernation, press the button briey
to exit Hibernation.

CAUTION: Pressing and holding down the power button will

result in the loss of unsaved information.

If the tablet has stopped responding and Windows shutdown
procedures are ineective, press and hold the power button
down for at least 10 seconds to turn o the tablet.

To learn more about your power settings, see your power
options. Type power in the taskbar search box, select Power
and sleep settings, and then select Power and sleep.

Top edge 5

Right side

Component Description

(1) microSD memory card reader Reads optional memory cards that enable you to store,

manage, share or access information.

To insert a card:

1. Hold the card label-side up, with connectors facing the

computer.

2. Insert the card into the memory card reader, and then

press in on the card until it is rmly seated.

To remove a card:

▲ Press in on the card, and then remove it from the

memory card reader.

(2) micro-HDMI port Connects an optional video or audio device, such as a high-

denition television, any compatible digital or audio

component, or a high-speed High-Denition Multimedia
Interface (HDMI) device.

(3) AC adapter and battery light

(4) USB Type-C power connector port Connects a USB device with a Type-C connector to an AC

(5) USB 3.0 port Connects an optional USB device such as a keyboard, mouse,

●

White: The AC adapter is connected and the battery is
fully charged.

●

Blinking white: The AC adapter is disconnected and the
battery has reached a low battery level.

●

Amber: The AC adapter is connected and the battery is
charging.

●

O: The battery is not charging.

adapter to provide power to the computer and allows data
transfer.

NOTE: Adapters (purchased separately) may be required.

external drive, printer, scanner or USB hub.

6 Chapter 2 External component identication

Left side

Component Description

(1) Audio-out (headphone)/Audio-in (microphone)

(2) Volume button Controls speaker volume on the tablet.

Bottom edge

combo jack

Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional standalone microphones.

WARNING! To reduce the risk of personal injury, adjust the

volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices.

To access this guide:

▲ Select the Start button, select All apps, select HP Help and

Support, and then select HP Documentation.

NOTE: When a device is connected to the jack, the computer

speakers are disabled.

Component Description

(1) Alignment posts (2) Guide the keyboard to the correct connection with the

tablet.

(2) Docking port Connects the tablet to the keyboard base.

Left side 7

Locating the product number and serial number

The tablet and serial number (2) and product number (3) are located on the tablet bottom edge. This
information may be needed when travelling internationally or when contacting support.

Component

(1) Quick Response (QR) code

(2) Serial number

(3) Product number

(4) Warranty period

(5) Model number (select models only)

8 Chapter 2 External component identication

3 Illustrated parts catalog

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

Tablet major components

Tablet major components 9

Item Component Spare part number

(1) Display panel assembly

Silver HP x2 and HP x2 210 G2 models 902380-001

White HP x2 models 902381-001

Red HP x2 models 902382-001

Display panel cable (not illustrated) 902354-001

(2) Battery, 2-cell, 32-Wh (includes cable) 859517-855

(3) Audio board bracket 902361-001

(4) Audio board 902368-001

Audio board cable (not illustrated) 902351-001

(5) RTC battery 902383-001

(6) Power button board 902369-001

Power button board cable (not illustrated) 902352-001

(7) Speaker Kit (includes left and right speakers and cables) 902391-001

(8) Rear webcam (includes bracket) 902256-001

(9) Front webcam (includes microphone rubber) 902255-001

Front webcam cable (not illustrated) 902355-001

(10) Antenna 902341-001

(11) Volume board 902370-001

Volume board cable (not illustrated) 902353-001

(12) Docking connector 902356-001

(13) LCD shielding (includes thermal pad) 902363-001

(14) System board equipped with an Intel Atom x5-z8350 processor and a graphics subsystem with UMA memory (includes

replacement thermal material)

For use in HP x2 210 G2 models:

For use in HP x2 and HP x2 210 G2 models:

●

Equipped with a 128-GB eMMC hard drive (SoC), 4 GB of system memory, and the
Windows 10 operating system

●

Equipped with a 128-GB eMMC hard drive (SoC), 4 GB of system memory, and Windows
7 or a non-Windows operating system

●

Equipped with a 64-GB eMMC hard drive (SoC), 4 GB of system memory, and the
Windows 10 operating system

●

Equipped with a 64-GB eMMC hard drive (SoC), 4 GB of system memory, and Windows
7 or a non-Windows operating system

903879-601

903879-001

902254-601

902254-001

●

Equipped with a 32-GB eMMC hard drive (SoC), 2 GB of system memory, and the
Windows 10 operating system

●

Equipped with a 32-GB eMMC hard drive (SoC), 2 GB of system memory, and Windows
7 or a non-Windows operating system

10 Chapter 3 Illustrated parts catalog

902251-601

902251-001

Item Component Spare part number

For use in HP x2 models:

(15) Hinge assembly

(16) Back cover

Silver HP x2 and HP x2 210 G2 models 902342-001

White HP x2 models 902343-001

Red HP x2 models 902344-001

●

Equipped with a 64-GB eMMC hard drive (SoC), 2 GB of system memory, and the
Windows 10 operating system

●

Equipped with a 64-GB eMMC hard drive (SoC), 2 GB of system memory, and Windows
7 or a non-Windows operating system

●

Equipped with a 32-GB eMMC hard drive (SoC), 4 GB of system memory, and the
Windows 10 operating system

●

Equipped with a 32-GB eMMC hard drive (SoC), 4 GB of system memory, and Windows
7 or a non-Windows operating system

NOTE: The hinge assembly is not spared as a whole unit. For more information about

hinge subcomponents, see Hinge components on page 14.

902252-601

902252-001

902253-601

902253-001

not spared

Tablet major components 11

Dock major components

Item Component Spare part number

(1) Bottom cover

For use in HP x2 and HP x2 210 models without a hard drive

For use in HP x2 models without a hard drive

For use in models HP x2 models with a hard drive

●

Silver models 902345-001

●

White models 902346-001

●

Red models 902347-001

●

Silver models 902348-001

●

White models 902349-001

12 Chapter 3 Illustrated parts catalog

Item Component Spare part number

(2) Hard drive

1 TB, 5400 rpm, 7 mm 762990-005

500 GB, 5400 rpm, 7 mm 778186-005

(3) Hard Drive Hardware Kit 902362-001

Docking board

(4) Models with a hard drive 902372-001

(5) Models without a hard drive 902371-001

(6) TouchPad bracket included with TouchPad

(7) TouchPad board

Silver models 902373-001

White models 907508-001

Red models 907509-001

TouchPad cable, for use in HP x2 and HP x2 210 G2 models without a hard drive (not

TouchPad cable, for use in HP x2 models with a hard drive (not illustrated) 902358-001

●

Red models 902350-001

illustrated)

board spare kit

902357-001

(8) Top cover/keyboard

For a list of keyboard country codes, see Top cover/keyboard on page 52.

HP x2 and HP x2 210 G2 models without a hard drive

HP x2 models without a hard drive

HP x2 models with a hard drive

●

Silver 902365-xx1

●

White 902366-xx1

●

Red 902367-xx1

●

Silver 902680-xx1

●

White 902681-xx1

●

Red 902682-xx1

Dock major components 13

Hinge components

Item Component Spare part number

(1) Hinge brackets, left and right 902364-001

Hinge Bezel Kit

(2) Hinge Mylar

(3) Hinge bezel

(4) Pogo docking connector

For use in HP x2 and HP x2 210 G2 models without a hard drive 902359-001

For use on HP x2 models with a hard drive 902360-001

(5) Magnets not spared

(6) Hinge cover

Silver HP x2 and HP x2 210 G2 models 902374-001

White HP x2 models 902375-001

Red HP x2 models 902376-001

●

Silver HP x2 and HP x2 210 G2 models 902377-001

●

White HP x2 models 902378-001

●

Red HP x2 models 902379-001

14 Chapter 3 Illustrated parts catalog

Cables

Item Component Spare part number

(1) TouchPad cable

For use in HP x2 and HP x2 210 G2 models without a hard drive 902357-001

For use in HP x2 models with a hard drive 902358-001

(2) Audio board cable 902351-001

(3) Display (LCD) cable 902354-001

(4) Volume board cable 902353-001

(5) Front webcam cable 902355-001

(6) Power button board cable 902352-001

(7) Rear webcam not spared

(8) Docking cable 902359-001

Cables 15

Rubber Kit

Item Component Spare part number

Rubber Kit for use in models without a hard drive

Silver HP x2 and HP x2 210 G2 models 902384-001

White HP x2 models 902385-001

Red HP x2 models 902386-001

Rubber Kit for use in models with a hard drive models

Silver HP x2 models 902387-001

White HP x2 models 902388-001

Red HP x2 models 902389-001

(1) Screw covers

(2) Bottom rubber strip

16 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Component Spare part number

45-W AC adapter, USB-C 844205-850

Power cord (3-pin, black, 1.00-m):

For use in Australia 213356-008

For use in the People’s Republic of China 286497-008

For use in Denmark 213353-008

For use in Europe (Austria, Belgium, Finland, France, Germany, the Netherlands, Norway and Sweden) 213350-009

For use in India 404827-003

For use in Israel 398063-003

For use in Italy 213352-008

For use in Japan 349756-002

For use in North America 213349-009

For use in South Africa 361240-002

For use in South Korea 267836-008

For use in Switzerland 213354-008

For use in Taiwan 393313-003

For use in Thailand 285096-006

For use in the United Kingdom and Singapore 213351-008

RJ-45/USB adapter 539614-001

Screw Kit 902390-001

HP Pro Tablet Active Pen 798051-001

External optical drive 747080-001

Miscellaneous parts 17

4 Removal and replacement preliminary

requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Magnetic screw driver

●

Phillips P0 screw driver

●

Plastic case utility tool

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.

NOTE: As you remove each subassembly from the tablet, place the subassembly (and all accompanying

screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care

when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.

Cables and connectors

CAUTION: When servicing the tablet, be sure that cables are placed in their proper locations during the

reassembly process. Improper cable placement can damage the tablet.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.

18 Chapter 4 Removal and replacement preliminary requirements

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.

CAUTION: To prevent damage to the tablet when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity aects the electrostatic voltage levels generated by dierent
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl oor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Grounding guidelines 19

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.

●

Use conductive eld service tools, such as cutters, screw drivers, and vacuums.

●

When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn o power and input signals before inserting or removing connectors or test equipment.

20 Chapter 4 Removal and replacement preliminary requirements

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.

●

When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or oor mats with hard ties to the ground

●

Field service kits

eective, the conductive must be worn in contact with the skin.

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and oor mats.

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Grounding guidelines 21

5 Removal and replacement procedures

This chapter provides removal and replacement procedures for authorized service provider only parts.

CAUTION: Tablet components described in this chapter should only be accessed by an authorized service

provider. Accessing these parts can damage the tablet and void the warranty.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

Tablet component replacement procedures

There are as many as 19 screws that must be removed, replaced, and/or loosened when servicing the tablet.
Make special note of each screw size and location during removal and replacement.

Back cover

Description Spare part number

Back cover

Silver HP x2 and HP x2 210 G2 models 902342-001

White HP x2 models 902343-001

Red HP x2 models 902344-001

Display panel

Silver HP x2 and HP x2 210 G2 models 902380-001

White HP x2 models 902381-001

Red HP x2 models 902382-001

Display cable 902354-001

Before disassembling the tablet, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

Remove the back cover:

CAUTION: Before turning the display panel assembly upside down, make sure the work surface is clear of

tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to the display
panel assembly.

22 Chapter 5 Removal and replacement procedures

1. Place the tablet on a at surface, display panel side down.

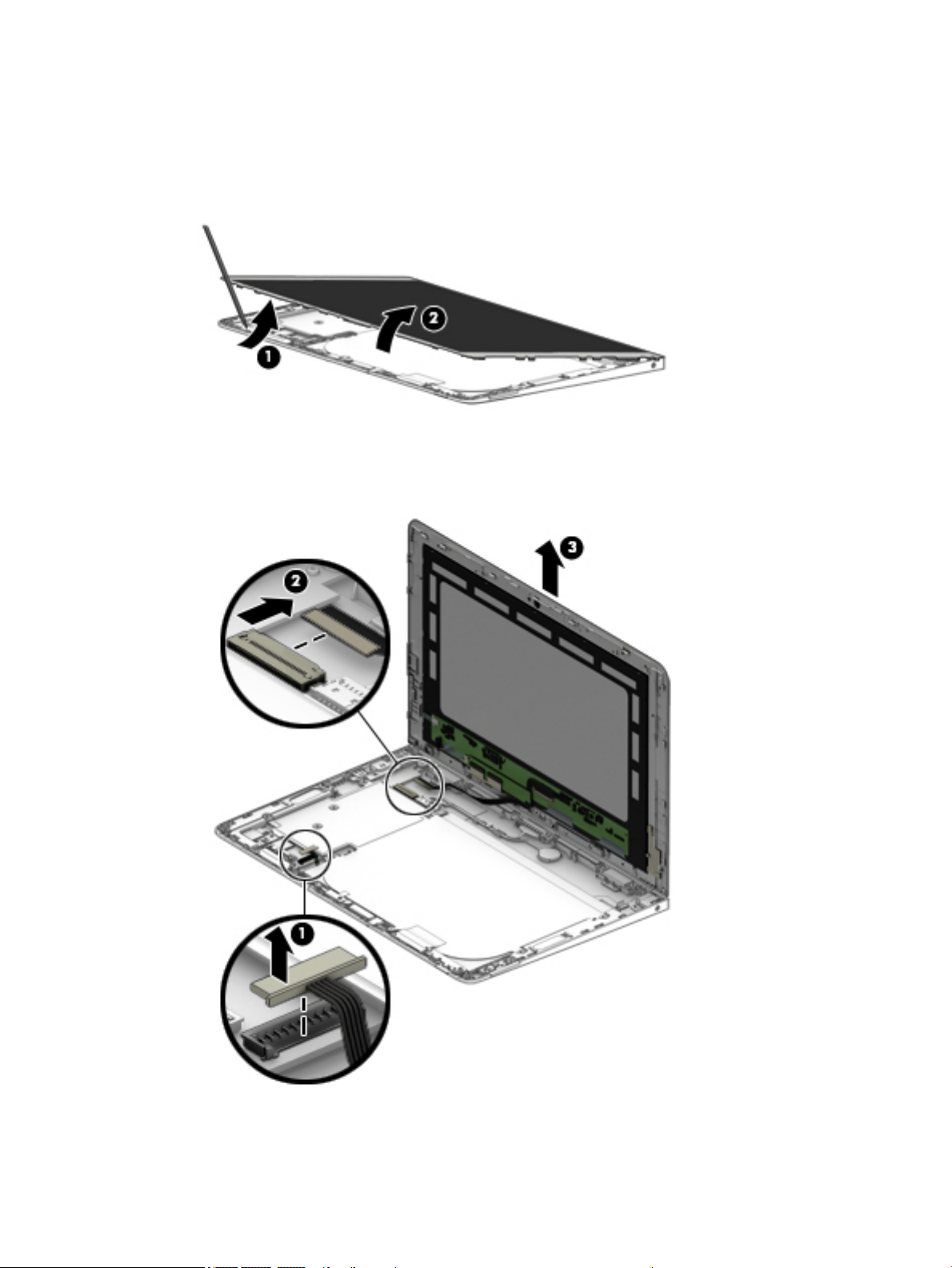

2. Starting from the sides, insert a thin, plastic tool in the seam to disengage the top and bottom of the

display (1).

3. Remove the back cover (2).

4. Disconnect the battery cable from the system board (1).

5. Disconnect the display cable from the system board (2), and then remove the display from the enclosure

(3).

Reverse this procedure to install the back cover.

Tablet component replacement procedures 23

Docking connector (display)

Description Spare part number

Docking connector 902356-001

Before removing the docking connector, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

Remove the docking connector:

1. Disconnect the docking connector from the system board (1), and remove the cable from the clip built

into the display enclosure (2).

2. Remove the two Phillips PM2.0×4.0 screws (3) that secure the docking connector to the display panel

assembly, and then remove the docking connector (4).

Reverse this procedure to install the display docking connector.

24 Chapter 5 Removal and replacement procedures

RTC battery

Description Spare part number

RTC battery 902383-001

Before removing the RTC battery, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

Remove the RTC battery:

1. Disconnect the battery cable from the system board (1), and remove the cable from the clip built into

2. Lift the battery to disengage the adhesive that secures it to the display enclosure (3).

then shut it down through the operating system.

the display enclosure (2).

Reverse this procedure to install the RTC battery.

Tablet component replacement procedures 25

Front webcam module

Description Spare part number

Front webcam module (includes microphone rubber) 902255-001

Front webcam cable 902355-001

Before removing the front webcam module, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

Remove the front webcam module:

1. Disconnect the webcam cable from the system board (1).

2. Lift the microphone rubber piece up and o the right side of the module (2).

3. Remove the cable from its routing path (3).

4. Remove the webcam module (4) from the display panel assembly (The webcam module cable is

attached to the display panel assembly with double-sided adhesive.

5. Remove the front webcam module and cable.

Reverse this procedure to install the front webcam module.

26 Chapter 5 Removal and replacement procedures

Antenna

Description Spare part number

Antenna 902341-001

Before removing the antenna, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the battery (see Battery on page 29).

Remove the antenna:

1. Peel the antenna o the shield (1).

2. Disconnect the antenna cable from the system board (2).

3. Remove the antenna cable from its routing path in the display enclosure (3).

4. Remove the antenna from the display panel assembly (4).

Reverse this procedure to install the antenna.

Tablet component replacement procedures 27

LCD shield

Description Spare part number

LCD shield (includes thermal pad) 902363-001

Before removing the LCD shield, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

Remove the LCD shield:

1. Peel the antenna o the shield (1).

2. Remove the 10 Phillips PM2.0×2.5 screws (2) that secure the shield to the display.

3. Lift the shield from the display panel assembly (3).

then shut it down through the operating system.

Reverse this procedure to install the LCD shield.

28 Chapter 5 Removal and replacement procedures

Battery

Description Spare part number

Battery, 2-cell, 32-Wh (includes cable) 859517-855

Before removing the battery, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

WARNING! To reduce potential safety issues, use only the battery provided with the tablet, a replacement

battery provided by HP, or a compatible battery purchased from HP.

CAUTION: Removing a battery that is the sole power source for the tablet can cause loss of information. To

prevent loss of information, save your work or shut down the tablet through Windows before removing the
battery.

Remove the battery:

1. Lift the battery straight up and out of the display assembly.

2. Remove the battery.

Reverse this procedure to install the battery.

Tablet component replacement procedures 29

Speakers

Before removing the speakers, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

Remove the speakers:

1. To remove the right speaker, disconnect the speaker cable from the system board (1).

2. Remove the speaker cable from its routing path in the display assembly (2).

3. Remove the right speaker (3).

Description Spare part number

Speaker Kit (includes left and right speakers and cables) 902391-001

then shut it down through the operating system.

4. To remove the left speaker, remove the Phillips PM2.0×2.0 screw (1) that secures the speaker to the

display panel assembly.

5. Disconnect the cable from the system board (2).

30 Chapter 5 Removal and replacement procedures

6. Remove the speaker (3).

Reverse this procedure to install the speakers.

Tablet component replacement procedures 31

Audio board

Description Spare part number

Audio board 902368-001

Audio board bracket 902361-001

Audio board cable 902351-001

Before removing the audio board, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

6. Remove the battery (see Battery on page 29).

Remove the audio board:

1. Release the ZIF connector (1) to which the audio board cable is attached, and then disconnect the audio

then shut it down through the operating system.

jack board cable from the audio board.

2. Remove the Phillips PM2.0×2.0 screw (2) that secures the audio board bracket to the display assembly.

3. Lift the bracket out of the display panel assembly (3).

4. Remove the audio board (4) and cable.

Reverse this procedure to install the audio board.

32 Chapter 5 Removal and replacement procedures

Power button board

Description Spare part number

Power button board 902369-001

Power button board cable 902352-001

Before removing the power button board, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

6. Remove the battery (see Battery on page 29).

Remove the power button board:

1. Remove the Phillips PM2.0×2.0 screw (1) that secures that secures the power button board to the

display panel assembly.

2. Lift the top of the board upward (2), and then pull the board out from under the tab (3).

3. Turn the board over so you can access the connector underneath (4).

4. Disconnect the cable from the system board (5).

Tablet component replacement procedures 33

5. Remove the power button board (6).

Reverse this procedure to install the power button board.

34 Chapter 5 Removal and replacement procedures

Volume board

Description Spare part number

Volume board 902370-001

Volume board cable 902353-001

Before removing the volume board, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

6. Remove the battery (see Battery on page 29).

Remove the volume board:

1. Disconnect the cable from the volume board (1).

2. Remove the two Phillips PM2.0×2.0 screws (2) that secure the volume board to the display panel

assembly.

3. Remove the volume board (3).

Reverse this procedure to install the volume board.

Tablet component replacement procedures 35

Rear webcam module and lens

Description Spare part number

Rear webcam module (includes bracket) 902256-001

Before removing the rear webcam module, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

6. Remove the left speaker (see Speakers on page 30).

Remove the rear webcam module:

1. Lift the bracket from atop the webcam module (1).

2. Disconnect the webcam cable from the system board (2).

3. Remove the webcam module (3) from the display panel assembly.

4. Remove the rear webcam module and cable.

NOTE: You have to clean the lens when replacing the rear webcam.

36 Chapter 5 Removal and replacement procedures

5. To remove the rear webcam lens, from inside of the display enclosure, pull the lens up to remove it. The

lens is secured with adhesive.

Reverse this procedure to install the rear webcam module.

Tablet component replacement procedures 37

System board

Description Spare part

System board equipped with an Intel Atom x5-z8350 processor and a graphics subsystem with UMA memory (includes replacement
thermal material)

For use in HP x2 210 G2 models:

128-GB eMMC hard drive (SoC), 4 GB of system memory, and the Windows 10 operating system 903879-601

128 eMMC hard drive (SoC), 4 GB of system memory, and Windows 7 or a non-Windows operating system 903879-001

For use in HP x2 and HP x2 210 G2 models:

64-GB eMMC hard drive (SoC), 4 GB of system memory, and the Windows 10 operating system 902254-601

64-GB eMMC hard drive (SoC), 4 GB of system memory, and Windows 7 or a non-Windows operating system 902254-001

32-GB eMMC hard drive (SoC), 2 GB of system memory, and the Windows 10 operating system 902251-601

32-GB eMMC hard drive (SoC), 2 GB of system memory, and Windows 7 or a non-Windows operating system 902251-001

For use in HP x2 models:

64-GB eMMC hard drive (SoC), 2 GB of system memory, and the Windows 10 operating system 902252-601

64-GB eMMC hard drive (SoC), 2 GB of system memory, and Windows 7 or a non-Windows operating system 902252-001

32-GB eMMC hard drive (SoC), 4 GB of system memory, and the Windows 10 operating system 902253-601

number

32-GB eMMC hard drive (SoC), 4 GB of system memory, and Windows 7 or a non-Windows operating system 902253-001

Before removing the system board, follow these steps:

1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and

then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see Back cover on page 22).

5. Remove the LCD shield (see LCD shield on page 28).

6. Remove the battery (see Battery on page 29).

7. Remove the left speaker (see Speakers on page 30).

8. Remove the rear webcam (see Rear webcam module and lens on page 36).

Remove the system board:

1. Disconnect the following cables from the system board:

(1) Docking connector cable (see Docking connector (display) on page 24)

(2) RTC battery (see RTC battery on page 25)

(3) Audio board cable (see Audio board on page 32)

(4) Volume board cable (see Volume board on page 35)

(5) Power button board cable (see Power button board on page 33)

38 Chapter 5 Removal and replacement procedures

(6) Right speaker cable (see Speakers on page 30)

(7) Front webcam (see Front webcam module on page 26)

(8) WLAN antennas (see Antenna on page 27)

2. Remove the broadhead Phillips PM2.0×2.0 screw (1) that secures the system board to the display panel

assembly.

3. Lift the right side of the system board up (2), and then pull the board toward the right, away from the

connectors on the side of the display, and then out of the display enclosure (3).

Reverse this procedure to install the system board.

Tablet component replacement procedures 39

Dock component replacement procedures

There are as many as 32 screws that must be removed, replaced, and/or loosened when servicing the dock.
Make special note of each screw size and location during removal and replacement.

Bottom cover

Description Spare part number

Bottom cover for use in HP x2 models with a hard drive:

Silver models 902348-001

White models 902349-001

Red models 902350-001

Bottom cover for use in HP x2 and HP x2 210 G2 models without a hard drive:

Silver models 902345-001

Bottom cover for use in HP x2 models without a hard drive:

White models 902346-001

Red models 902347-001

Remove the bottom cover:

1. Place the dock upside-down on a at surface.

2. Remove the two screw covers (1) and two silver Phillips PM2.0×4.0 screws (2).

3. Remove the rubber strip from the bottom cover (3).

4. Remove the four black Phillips PM2.0×3.0 screws (4) from under the rubber strip.

5. Insert a thin, plastic tool between the bottom cover and the dock (5) and pry upward to separate the

bottom cover from the dock.

40 Chapter 5 Removal and replacement procedures

6. Remove the bottom cover (6).

Reverse this procedure to install the bottom cover.

Dock component replacement procedures 41

Hard drive

Description Spare part number

Hard drive, 1 TB 762990-005

Hard drive, 500 GB 778186-005

Hard Drive Hardware Kit 902362-001

Before disassembling the dock, follow this step:

▲

Remove the hard drive:

1. Remove the four Phillips PM2.0×3.0 screws (1) that secure the hinges to the dock.

2. Pull the hard drive away from the connector (2), and then remove the hard drive from the dock (3).

Remove the bottom cover (see Bottom cover on page 40).

3. To remove the hard drive brackets, remove the four Phillips PM3.0×3.0 screws (1) that secure the

brackets to the hard drive.

42 Chapter 5 Removal and replacement procedures

4. Pull the brackets away from the hard drive (2).

Be sure to transfer the brackets from the old hard drive to the new hard drive.

Reverse this procedure to install the hard drive.

Docking board (models with a hard drive)

Description Spare part number

Docking board (hard drive models) 902372-001

Before disassembling the dock, follow this step:

▲

Remove the bottom cover (see Bottom cover on page 40).

Remove the docking board:

1. Remove the two Phillips PM2.0×2.0 screws (1) that secure the board to the dock.

2. Disconnect the touchpad cable from the docking board (2).

Dock component replacement procedures 43

3. Turn the board over to access the connector on the bottom (3).

4. Disconnect the keyboard cable from the docking board (4).

5. Remove the docking board from the dock (5).

Reverse this procedure to install the docking board.

44 Chapter 5 Removal and replacement procedures

Docking board (models without a hard drive)

Description Spare part number

Docking board (models without a hard drive) 902371-001

Before disassembling the dock, follow this step:

▲

Remove the bottom cover (see Bottom cover on page 40).

Remove the docking board:

1. Disconnect the keyboard cable from the docking board (1).

2. Disconnect the touchpad cable from the docking board (2).

3. Remove the two Phillips PM2.0×2.0 screws (3) that secure the board to the doc.

4. Remove the docking board from the dock (4).

Reverse this procedure to install the docking board.

Dock component replacement procedures 45

TouchPad board

Description Spare part number

TouchPad board for use in silver models 902373-001

TouchPad board for use in white models 907508-001

TouchPad board for use in red models 907509-001

TouchPad board cable (for use in HP x2 and HP x2 210 G2 models without a hard drive) 902357-001

TouchPad board cable (for use in HP x2 models with a hard drive) 902358-001

Before removing the TouchPad board, follow this step:

▲

Remove the bottom cover (see Bottom cover on page 40).

Remove the TouchPad board:

1. Disconnect the cable from the TouchPad (1).

2. Remove the three black Phillips PM2.0×2.0 screws (2).

3. Lift the bracket o the board (3).

4. Remove the three broadhead silver Phillips PM2.0×2.0 screws (4).

5. Remove TouchPad board from the dock (5).

Reverse this procedure to install the TouchPad board.

46 Chapter 5 Removal and replacement procedures

Hinge assembly

Description Spare part number

Hinge assembly

NOTE: The hinge assembly is not spared as a whole unit. For more information about replacing hinge

subcomponents, see Hinge components on page 48.

not spared

Before disassembling the hinge assembly, follow this step:

▲

Remove the bottom cover (see Bottom cover on page 40).

Remove the hinge assembly:

1. Disconnect the cable from the system board (1).

2. Rotate the hinge assembly up to a 45 degree angle (2).

3. Remove the four Phillips PM2.0×3.0 screws (3) that secure the hinge assembly to the dock.

4. Remove the hinge assembly from the dock (4).

Reverse this procedure to install the hinge assembly.

Dock component replacement procedures 47

Hinge components

Before disassembling the hinge assembly, follow these steps:

1. Remove the bottom cover (see Bottom cover on page 40).

2. Remove the hinge assembly (see Hinge assembly on page 47).

Disassemble the hinge assembly:

1. Peel the Mylar from the hinge assembly. A tool such as tweezers may be required to grasp the Mylar. The

Mylar is secured with adhesive and is reusable.

The Mylar is available in the hinge bezel kit using the following spare part numbers:

Silver HP x2 and HP x2 210 G2 models: 902377-001

White HP x2 models: 902378-001

Red HP x2 models: 902379-001

2. To remove the hinge bezel, remove the two silver outer Phillips PM2.0×6.0 screws (1).

3. Remove the black middle Phillips PM2.0×5.0 screw (2).

4. Use a tool to pry in the gap near the docking connector to pry the bezel loose (3).

48 Chapter 5 Removal and replacement procedures

5. Pry up and down along the seam to disengage the bezel from the hinge, and then separate the bezel

from the hinge (4).

The bezel is available in the hinge bezel kit using the following spare part numbers:

Silver HP x2 and HP x2 210 G2 models: 902377-001

White HP x2 models: 902378-001

Red HP x2 models: 902379-001

6. Remove the Phillips PM2.0×4.0 screw from each bracket (1).

7. Lift the brackets away from each hinge (2).

Left and right hinge brackets are available using spare part number 902364-001.

8. Remove the Phillips PM2.0×5.0 screw (1) from the docking connector.

Dock component replacement procedures 49

9. Remove the cable from its routing path (2).

10. Lift the connector and cable away from the hinge (3).

The POGO cable is available using spare part number 902359-001 for HP x2 and HP x2 210 G2 models
without a hard drive and 902360-001 for HP x2 models with a hard drive.

The hinge cover is available using the following spare part numbers:

Silver HP x2 and HP x2 210 G2 models: 902374-001

White HP x2 models: 902375-001

Red HP x2 models: 902376-001

50 Chapter 5 Removal and replacement procedures

11. Use the images to proper installation location for the magnets.

Hinge assembly magnet installation locations

Display assembly magnet installation locations

Reverse this procedure to install the wireless antenna.

Dock component replacement procedures 51

Top cover/keyboard

The top cover/keyboard spare part remains after all other spare parts have been removed.

In this section, the rst table provides the main spare part number for the keyboard. The second table
provides the country codes.

NOTE: All top cover/keyboard spare part kits include TouchPad.

Description Spare part number

HP x2 and HP x2 210 G2 models without a hard drive

Silver models 902365-xx1

HP x2 models without a hard drive

White models 902366-xx1

Red models 902367-xx1

HP x2 models with a hard drive

Silver models 902680-xx1

White models 902681-xx1

Red models 902682-xx1

For use in country
or region

Belgium -A41 Israel -BB1 Slovenia -BA1

Bulgaria -261 Italy -061 South Korea -AD1

Canada -DB1 Japan -291 Spain -071

Czech Republic
and Slovakia

Denmark, Finland, and
Norway

France -051 Portugal -131 Thailand -281

Germany -041 Romania -271 Turkey -141

Greece -151 Russia -251 United Kingdom -031

Hungary -211 Saudi Arabia -171 United States -001

Spare
part
number

-FL1 Latin America -161 Switzerland -BG1

-DH1 The Netherlands -B31 Taiwan -AB1

For use in country

or region

Spare
part
number

For use in country

or region

Spare
part
number

52 Chapter 5 Removal and replacement procedures

6 Using Setup Utility (BIOS)

Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output
devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility (BIOS)
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.

NOTE: To start Setup Utility on convertible computers, your computer must be in notebook mode and you

must use the keyboard attached to your notebook.

Starting Setup Utility (BIOS)

CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the computer

from operating properly.

●

Computers or tablets with keyboards:

▲ Turn on or restart the computer, quickly press esc, and then press f10.

●

Tablets without keyboards:

1. Turn on or restart the tablet, and then quickly hold down the volume up button.

- or -

Turn on or restart the tablet, and then quickly hold down the volume down button.

- or -

Turn on or restart the tablet, and then quickly hold down the Windows button.

2. Tap f10.

Updating Setup Utility (BIOS)

Updated versions of Setup Utility (BIOS) may be available on the HP website.

Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.

Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.

Determining the BIOS version

To decide whether you need to update Setup Utility (BIOS), rst determine the BIOS version on your computer.

To reveal the BIOS version information (also known as ROM date and System BIOS), use one of these options.

●

HP Support Assistant

1. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Starting Setup Utility (BIOS) 53

Click the question mark icon in the taskbar.

2. Select My PC, and then select Specications.

●

Setup Utility (BIOS)

1. Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 53).

2. Select Main, select System Information, and then make note of the BIOS version.

3. Select Exit, select No, and then follow the on-screen instructions.

To check for later BIOS versions, see Downloading a BIOS update on page 54.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and

install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:

●

Do not disconnect power from the computer by unplugging the power cord from the AC outlet.

●

Do not shut down the computer or initiate Sleep.

●

Do not insert, remove, connect, or disconnect any device, cable, or cord.

NOTE: If your computer is connected to a network, consult the network administrator before installing any

software updates, especially system BIOS updates.

1. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Click the question mark icon in the taskbar.

2. Click Updates, and then click Check for updates and messages.

3. Follow the on-screen instructions.

4. At the download area, follow these steps:

a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your

computer. If the update is more recent than your BIOS version, make a note of the date, name, or
other identier. You may need this information to locate the update later, after it has been
downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.

BIOS installation procedures vary. Follow any instructions that appear on the screen after the download is
complete. If no instructions appear, follow these steps:

1. Type file in the taskbar search box, and then select File Explorer.

2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder that contains the update.

54 Chapter 6 Using Setup Utility (BIOS)

4. Double-click the le that has an .exe extension (for example, lename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le

from your hard drive.

Updating Setup Utility (BIOS) 55

7 Using HP PC Hardware Diagnostics (UEFI)

HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic
tests to determine whether the computer hardware is functioning properly. The tool runs outside the
operating system so that it can isolate hardware failures from issues that are caused by the operating system
or other software components.

When HP PC Hardware Diagnostics UEFI detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. This ID code can then be provided to support to help determine how to correct
the problem.

To start HP PC Hardware Diagnostics (UEFI), follow these steps:

1. Start BIOS.

●

Tablets with keyboards

▲ Turn on or restart the computer, quickly press esc.

●

Tablets without keyboards

▲ Turn on or restart the tablet, and then quickly hold down the volume up button.

2. Press or tap f2.

The BIOS searches three places for the diagnostic tools, in the following order:

a. Connected USB drive

NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading

HP PC Hardware Diagnostics (UEFI) to a USB device on page 56.

b. Hard drive

c. BIOS

3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the

on-screen instructions.

NOTE: To stop a test, press the button you used to access UEFI.

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device

NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you

must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are oered.

There are two options to download HP PC Hardware Diagnostics to a USB device.

Download the latest UEFI version

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics section, select the Download link, and then select Run.

56 Chapter 7 Using HP PC Hardware Diagnostics (UEFI)

Download any version of UEFI for a specic product

1. Go to http://www.hp.com/support.

2. Select Get Software and drivers.

3. Enter the product name or number.

– or –

Select Identify now to let HP automatically detect your product.

4. Select your computer, and then select your operating system.

5. In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version

you want.

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device 57

8 Specications

Metric U.S.

Dimensions (landscape orientation)

Width 26.50 cm 10.4 in

Depth (display)

Depth (dock)

Height (display)

Height (display+ dock with no HDD; front - rear)

Height (display+ dock with HDD; front - rear)

Weight (display)

Weight (display + dock)

Input power 5 V dc @ 3A - 15W

NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not exceeding 240 V rms.

NOTE: The tablet operating voltage and current can be found on the system regulatory label.

Temperature

Operating 5°C to 35°C 41°F to 95°F

Nonoperating 20°C to 60°C 4°F to 140°F

Relative humidity (non-condensing)

Operating 10% to 90%

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

17.30 cm

18.30 cm

0.92 cm

1.62 - 1.84 cm

1.62 - 2.35 cm

582 g

1190 g

6.81 in

7.21 in

0.36 in

0.64 - 0.72 in

0.64 - 0.93 in

1.28 lb

2.62 lb

Operating 15 m to 3,048 m ?50 ft to 10,000 ft

Nonoperating 15 m to 12,192 m ?50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of

temperatures.

58 Chapter 8 Specications

9 Backing up, restoring, and recovering

This chapter provides information about the following processes. The information in the chapter is standard
procedure for most products.

●

Creating recovery media and backups

●

Restoring and recovering your system

For additional information, refer to the HP support assistant app.

▲

Type support in the taskbar search box, and then select the HP Support Assistant app.

‒ or –

Click the question mark icon in the taskbar.

IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least

70% charged before you start the recovery process.

IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before

beginning any recovery process.

Creating recovery media and backups

The following methods of creating recovery media and backups are available on select products only. Choose
the available method according to your computer model.

●

Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This
step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall
the original operating system in cases where the hard drive is corrupted or has been replaced. For
information on creating recovery media, see Creating HP Recovery media (select products only)

on page 59. For information on the recovery options that are available using the recovery media, see
Using Windows tools on page 60.

●

Use Windows tools to create system restore points and create backups of personal information.

For more information, see Recovering using HP Recovery Manager on page 61.

NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.

Creating HP Recovery media (select products only)

If possible, check for the presence of the Recovery partition and the Windows partition. From the Start menu,
select File Explorer, and then select This PC.

●

If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery
media for your system from support. See the Worldwide Telephone Numbers booklet included with the
computer. You can also nd contact information on the HP website. Go to http://www.hp.com/support,
select your country or region, and follow the on-screen instructions.

Creating recovery media and backups 59

You can use Windows tools to create system restore points and create backups of personal information,
see Using Windows tools on page 60.

●

If your computer does list the Recovery partition and the Windows partition, you can use HP Recovery
Manager to create recovery media after you successfully set up the computer. HP Recovery media can be
used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls the
original operating system and software programs that were installed at the factory and then congures
the settings for the programs. HP Recovery media can also be used to customize the system or restore
the factory image if you replace the hard drive.

—

Only one set of recovery media can be created. Handle these recovery tools carefully, and keep
them in a safe place.

—

HP Recovery Manager examines the computer and determines the required storage capacity for
the media that will be required.

—

To create recovery discs, your computer must have an optical drive with DVD writer capability, and
you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use
rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray)
discs; they are not compatible with HP Recovery Manager software. Or, instead, you can use a high­quality blank USB ash drive.

—

If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased
separately) to create recovery discs. If you use an external optical drive, it must be connected
directly to a USB port on the computer; the drive cannot be connected to a USB port on an external
device, such as a USB hub. If you cannot create DVD media yourself, you can obtain recovery discs
for your computer from HP. See the Worldwide Telephone Numbers booklet included with the
computer. You can also nd contact information on the HP website. Go to http://www.hp.com/

support, select your country or region, and follow the on-screen instructions.

—

Be sure that the computer is connected to AC power before you begin creating the recovery media.

—

The creation process can take an hour or more. Do not interrupt the creation process.

—

If necessary, you can exit the program before you have nished creating all of the recovery DVDs.
HP Recovery Manager will nish burning the current DVD. The next time you start HP Recovery
Manager, you will be prompted to continue.

To create HP Recovery media:

IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before

beginning these steps.

1. Type recovery in the taskbar search box, and then select HP Recovery Manager.

2. Select Create recovery media, and then follow the on-screen instructions.

If you ever need to recover the system, see Recovering using HP Recovery Manager on page 61.

Using Windows tools

You can create recovery media, system restore points, and backups of personal information using Windows
tools.

NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.

For more information and steps, see the Get started app.

▲ Select the Start button, and then select the Get started app.

60 Chapter 9 Backing up, restoring, and recovering

Restore and recovery

There are several options for recovering your system. Choose the method that best matches your situation
and level of expertise:

IMPORTANT: Not all methods are available on all products.

●

Windows oers several options for restoring from backup, refreshing the computer, and resetting the
computer to its original state. For more information see the Get started app.

▲ Select the Start button, and then select the Get started app.

●

If you need to correct a problem with a preinstalled application or driver, use the Reinstall drivers and/or
applications option (select products only) of HP Recovery Manager to reinstall the individual application
or driver.

▲ Type recovery in the taskbar search box, select HP Recovery Manager, select Reinstall drivers

and/or applications

●

If you want to recover the Windows partition to original factory content, you can choose the System
Recovery option from the HP Recovery partition (select products only) or use the HP Recovery media.
For more information, see Recovering using HP Recovery Manager on page 61. If you have not already
created recovery media, see Creating HP Recovery media (select products only) on page 59.

●

On select products, if you want to recover the computer's original factory partition and content, or if you
have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more
information, see Recovering using HP Recovery Manager on page 61.

, and then follow the on-screen instructions.

●

On select products, if you want to remove the recovery partition to reclaim hard drive space, HP
Recovery Manager oers the Remove Recovery Partition option.

For more information, see Removing the HP Recovery partition (select products only) on page 64.

Recovering using HP Recovery Manager

HP Recovery Manager software allows you to recover the computer to its original factory state by using the
HP Recovery media that you either created or that you obtained from HP, or by using the HP Recovery
partition (select products only). If you have not already created recovery media, see Creating HP Recovery

media (select products only) on page 59.

What you need to know before you get started

●

HP Recovery Manager recovers only software that was installed at the factory. For software not provided
with this computer, you must either download the software from the manufacturer's website or reinstall
the software from the media provided by the manufacturer.

IMPORTANT: Recovery through HP Recovery Manager should be used as a nal attempt to correct

computer issues.

●

HP Recovery media must be used if the computer hard drive fails. If you have not already created
recovery media, see Creating HP Recovery media (select products only) on page 59.

●

To use the Factory Reset option (select products only), you must use HP Recovery media. If you have not
already created recovery media, see Creating HP Recovery media (select products only) on page 59.

●

If your computer does not allow the creation of HP Recovery media or if the HP Recovery media does not
work, you can obtain recovery media for your system from support. See the Worldwide Telephone
Numbers booklet included with the computer. You can also nd contact information from the HP

Restore and recovery 61

website. Go to http://www.hp.com/support, select your country or region, and follow the on-screen
instructions.

IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data. Before

beginning recovery, back up any personal data you want to retain.

Using HP Recovery media, you can choose from one of the following recovery options:

NOTE: Only the options available for your computer display when you start the recovery process.

●

System Recovery—Reinstalls the original operating system, and then congures the settings for the
programs that were installed at the factory.

●

Factory Reset—Restores the computer to its original factory state by deleting all information from the
hard drive and re-creating the partitions. Then it reinstalls the operating system and the software that
was installed at the factory.

The HP Recovery partition (select products only) allows System Recovery only.

Using the HP Recovery partition (select products only)

The HP Recovery partition allows you to perform a system recovery without the need for recovery discs or a
recovery USB ash drive. This type of recovery can be used only if the hard drive is still working.

To start HP Recovery Manager from the HP Recovery partition:

IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before

beginning these steps (select products only).

1. Type recovery in the taskbar search box, select Recovery Manager, and then select HP Recovery

Environment

- or-

For computers or tablets with keyboards attached, press f11 while the computer boots, or press and
hold f11 as you press the power button.

For tablets without keyboards:

Turn on or restart the tablet, and then quickly hold down the volume up button; then select f11.

- or -

Turn on or restart the tablet, and then quickly hold down the volume down button; then select f11.

- or -

Turn on or restart the tablet, and then quickly hold down the Windows button; then select f11.

2. Select Troubleshoot from the boot options menu.

3. Select Recovery Manager, and then follow the on-screen instructions.

.

Using HP Recovery media to recover

You can use HP Recovery media to recover the original system. This method can be used if your system does
not have an HP Recovery partition or if the hard drive is not working properly.

62 Chapter 9 Backing up, restoring, and recovering

1. If possible, back up all personal les.

2. Insert the HP Recovery media, and then restart the computer.

NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer

boot order. See Changing the computer boot order on page 63.

3. Follow the on-screen instructions.

Changing the computer boot order

If your computer does not restart in HP Recovery Manager, you can change the computer boot order, which is
the order of devices listed in BIOS where the computer looks for startup information. You can change the
selection to an optical drive or a USB

To change the boot order:

IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before

beginning these steps.

1. Insert the HP Recovery media.

2. Access the system Startup menu.

For computers or tablets with keyboards attached:

▲

Turn on or restart the computer or tablet, quickly press esc, and then press f9 for boot options.

ash drive.

For tablets without keyboards:

▲

Turn on or restart the tablet, and then quickly hold down the volume up button; then select f9.

- or -

Turn on or restart the tablet, and then quickly hold down the volume down button; then select f9.

- or -

Turn on or restart the tablet, and then quickly hold down the Windows button; then select f9.

3. Select the optical drive or USB ash drive from which you want to boot.

4. Follow the on-screen instructions.

Restore and recovery 63

Removing the HP Recovery partition (select products only)

HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive space.

IMPORTANT: After you remove the HP Recovery partition, you will not be able to perform System Recovery

or create HP recovery media from the HP Recovery partition. So before you remove the Recovery partition,
create HP Recovery media; see Creating HP Recovery media (select products only) on page 59.

NOTE: The Remove Recovery Partition option is only available on products that support this function.

Follow these steps to remove the HP Recovery partition:

1. Type recovery in the taskbar search box, and then select HP Recovery Manager.

2. Select Remove Recovery Partition, and then follow the on-screen instructions.

64 Chapter 9 Backing up, restoring, and recovering

10 Power cord set requirements

The wide-range input feature of the tablet permits it to operate from any line voltage from 100 to 120 volts
AC, or from 220 to 240 volts AC.

The 3-conductor power cord set included with the tablet meets the requirements for use in the country or
region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or region
where the tablet is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:

●

The length of the power cord set must be at least 1.0 m (3.3 ft) and no more than 2.0 m (6.5 ft).

●

All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in
the country or region where the power cord set will be used.

●

The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of
125 or 250 V AC, as required by the power system of each country or region.

●

The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet
C13 connector for mating with the appliance inlet on the back of the tablet.

Requirements for specic countries and regions

Country/region Accredited agency Applicable note number

Australia EANSW 1

Austria OVE 1

Belgium CEBC 1

Canada CSA 2

Denmark DEMKO 1

Finland FIMKO 1

France UTE 1

Germany VDE 1

Italy IMQ 1

Japan METI 3

The Netherlands KEMA 1

Norway NEMKO 1

The People's Republic of China COC 5

South Korea EK 4

Requirements for all countries 65

Country/region Accredited agency Applicable note number

Sweden CEMKO 1

Switzerland SEV 1

Taiwan BSMI 4

The United Kingdom BSI 1

The United States UL 2

1. The exible cord must be Type HO5VV-F, 3-conductor, 1.0-mm conductor size. Power cord set ttings (appliance coupler and wall

plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.

2. The exible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type

with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) conguration.

3. The appliance coupler, exible cord, and wall plug must bear a T mark and registration number in accordance with the Japanese

Dentori Law. The exible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm conductor size. The wall plug must be a two­pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) conguration.

4. The exible cord must be Type RVV, 3-conductor, 0.75-mm conductor size. Power cord set ttings (appliance coupler and wall

plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.

5. The exible cord must be Type VCTF, 3-conductor, 0.75-mm conductor size. Power cord set ttings (appliance coupler and wall

plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.

66 Chapter 10 Power cord set requirements

11 Recycling

When a non-rechargeable or rechargeable battery has reached the end of its useful life, do not dispose of the
battery in general household waste. Follow the local laws and regulations in your area for battery disposal.

HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/recycle.

67

Index

A

AC adapter, spare part number 17
AC adapter/battery 6
antenna

removal 27
spare part number 27

audio board

removal 32
spare part number 10, 32

audio board cable

spare part number 10
audio, product description 2
audio-out (headphone)/audio-in

(microphone) combo jack,
identifying 7

B

back cover

removal 22

spare part number 11, 22
back cover, spare part number 22
backups 59
battery

removal 29

spare part number 10, 29
BIOS

determining version 53

downloading an update 54

starting the Setup Utility 53

updating 53
boot order

changing 63
Bottom cover

spare part number 12
bottom cover

removal 40

spare part number 40
buttons

power 5

C

cables 15
cables, service considerations 18
camera

identifying 4

camera light, identifying 4
components

bottom edge 7
display 4
left side 7
right side 6
top edge 5

connectors, service considerations

18

D

display cable, spare part number

10, 22
display panel, product description 1
display panel, spare part number

10, 22
dock

major components 12

docking board

spare part number 13

docking board (hard drive models)

removal 43
spare part number 43

docking board (no hard drive models)

removal 45
spare part number 45

docking connector

removal 24
spare part number 24

docking port, identifying 7

E

electrostatic discharge 19
equipment guidelines 21
external expansion, product

description 2
external optical drive, spare part

number 17

F

front webcam cable

spare part number 10

front webcam module

removal 26
spare part number 10, 26

G

graphics, product description 1
grounding guidelines 19
guidelines

equipment 21
grounding 19
packaging 20
transporting 20
workstation 20

H

hard drive

removal 42
spare part number 13, 42

Hard Drive Hardware Kit

spare part number 13

HDMI port

identifying 6

hinge assembly

removal 47

spare part number 47
hinge components 14
hinge cover

removal 48

spare part number 48
HP PC Hardware Diagnostics (UEFI)

Failure ID code 56

using 56
HP Recovery Manager

correcting boot problems 63

starting 62
HP Recovery media

creating 59

recovery 62
HP Recovery partition

recovery 62

removing 64

I

internal microphone, identifying 5

J

jacks

audio-out (headphone)/audio-in

(microphone) combo 7

68 Index

K

keyboard

product description 2
spare part numbers 13

L

LCD shield

removal 28
spare part number 28

LCD shielding

spare part number 10

lights

AC adapter and battery 6

M

magnetic latches, identifying 7
mass storage device, product

description 1
memory card reader, identifying 6
memory module, product

description 1
micro-HDMI port

identifying 6

microphone

product description 1

microSD memory card reader,

identifying 6
minimized image recovery 62
minimized image, creating 61
model name 1

O

operating system, product

description 3
optical drive, spare part number 17
original system recovery 61

P

packaging guidelines 20
plastic parts, service

considerations 18
Pogo docking connector

spare part number 14

ports

micro-HDMI 6
product description 2
USB 3.0 6
USB Type-C power connector 6

power button board

removal 33
spare part number 10, 33

power button board cable

spare part number 10
power button, identifying 5
power cord

spare part numbers 17
power cord, set requirements 65
power requirements, product

description 2
processor, product description 1
product description

audio 2
display panel 1
external expansion 2
graphics 1
keyboard 2
mass storage 1
memory module 1
microphone 1
operating system 3
ports 2
power requirements 2
processors 1
product name 1
sensor 2
serviceability 3
webcam 1
wireless networking 2

product name 1

R

rear camera, identifying 4
rear webcam module

removal 36
spare part number 36

recover

options 61

recovery

discs 60, 62
HP Recovery Manager 61
media 62
starting 62
supported discs 60
system 61
USB ash drive 62
using HP Recovery media 60

recovery media

creating 59
creating using HP Recovery

Manager 60

recovery partition

removing 64

RTC battery

removal 25
spare part number 25

RTCV battery

spare part number 10

Rubber Kit 16

S

Screw Kit, spare part number 17
sensor, product description 2
service considerations

cables 18
connectors 18

plastic parts 18
serviceability, product description 3
slots

microSD memory card reader 6
Speaker Kit, spare part number 10,

30

speakers

removal 30

spare part number 10, 30
speakers, identifying 4
supported discs, recovery 60
system board

removal 38

spare part numbers 10, 38
system recovery 61
system restore point

creating 60
system restore point, creating 59

T

tablet

major components 9

specications 58
tools required 18
top cover/keyboard

removing 52
TouchPad board

removal 46

spare part number 13, 46
TouchPad board cable

spare part number 13
transporting guidelines 20

U

USB 3.0 port, identifying 6

Index 69

USB Type-C power connector port,

identifying 6

V

volume board

removal 35
spare part number 10, 35

volume board cable

spare part number 10

W

webcam

product description 1

webcam (front)

removal 26
spare part number 26

webcam (rear) module

removal 36
spare part number 36

Windows

system restore point 59, 60

Windows tools

using 60

wireless networking, product

description 2

workstation guidelines 20

70 Index
