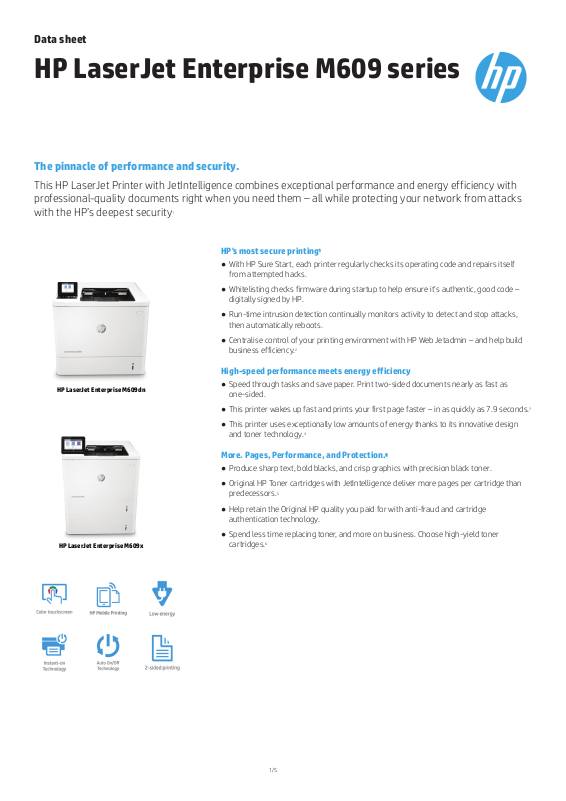

Data sheet
HP LaserJet Enterprise M609 series
The pinnacle of performance and security.
This HP LaserJet Printer with JetIntelligence combines exceptional performance and energy efficiency with
professional-quality documents right when you need them – all while protecting your network from attacks
with the HP’s deepest security
1
HP LaserJet Enterprise M609dn
HP LaserJet Enterprise M609x
HP's most secure printing
With HP Sure Start, each printer regularly checks its operating code and repairs itself
●
1
from attempted hacks.
Whitelisting checks firmware during startup to help ensure it’s authentic, good code –
●
digitally signed by HP.
Run-time intrusion detection continually monitors activity to detect and stop attacks,
●
then automatically reboots.
Centralise control of your printing environment with HP Web Jetadmin – and help build
●
business efficiency.
2
High-speed performance meets energy efficiency
Speed through tasks and save paper. Print two-sided documents nearly as fast as
●
one-sided.
This printer wakes up fast and prints your first page faster – in as quickly as 7.9 seconds.
●
This printer uses exceptionally low amounts of energy thanks to its innovative design
●
and toner technology.
More. Pages, Performance, and Protection.
Produce sharp text, bold blacks, and crisp graphics with precision black toner.
●
Original HP Toner cartridges with JetIntelligence deliver more pages per cartridge than
●
predecessors.
Help retain the Original HP quality you paid for with anti-fraud and cartridge
●
4
5
5
authentication technology.
Spend less time replacing toner, and more on business. Choose high-yield toner
●
cartridges.
6
3
1/5
Data sheet | HP LaserJet Enterprise M609 series
Product walkaround
HP LaserJet Enterprise M609x shown
1. Hardware Integration Pocket
2. 10.9 cm colour touchscreen control panel
3. Easy-access USB port
4. 100-sheet multipurpose tray 1
5. Front door access to toner cartridges
6. 550-sheet input tray 2
7. 550-sheet input tray 3
8. 500-sheet output bin
9. Automatic two-sided printing
10. Wi-Fi Direct/Bluetooth Low Energy
11. Host USB port
12. Gigabit Ethernet network port
13. Hi-Speed USB 2.0 printing port
14. Slot for cable-type security lock
Series at a glance
Model
Product number
Print speeds (A4)*
Control panel
Automatic two-sided printing
Hardware Integration Pocket**
100-sheet tray 1, 550-sheet
tray 2
550-sheet paper feeder***
2.100-sheet paper feeder***
Envelope feeder
Printer stand
5-bin stapler/stacker/mailbox
with job offset
Direct mobile printing****
Wireless networking*****
HP High-Performance Secure
Hard Disk
*Measured using ISO/IEC 24734; excludes first set of test documents. For more information, see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, drive
and document complexity.
** Solutions deployed through the Hardware IntegrationPocket (HIP) may require additional purchase.
*** Both models come standard with the 100-sheet multipurpose tray and 550-sheet tray 2. The HP LaserJet Enterprise M609x model comes with one additional 550-sheet paper feeder standard, and can add up
to three additional optional 550-sheet paper feeders and the optional 2,100-sheet paper feeder. The M609dn model can add up to four additional optional 550-sheet paper feeders and the optional 2,100-sheet
paper feeder.
**** Wi-Fi Direct printing and Touch-to-print capability are embedded in the HP LaserJet Enterprise M609x model. The other models can add wireless direct and Touch-to-print capability with the purchase of the
optional HP Jetdirect 3000w NFC/Wireless Direct Accessory. The mobile device needs to be connected directly to the signal of a Wi-Fi Direct® supported MFP or printer prior to printing. Depending on mobile device,
an app or driver may also be required. For details, see hp.com/go/mobileprinting. Wi-Fi Direct is a registered trademark of Wi-Fi Alliance®. Also, the mobiledevice must support Near Field Communication
(NFC)-enabled printing. For more information, see hp.com/go/businessmobileprinting. BluetoothLow Energy is standard only on the HP LaserJet Enterprise M609x model , and it cannot be added to other models.
Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license.
***** All models can add wireless networking with the purchase of the optional HP Jetdirect 2900nw Print Server. Wireless performance is dependent on physical environment and distance from access point, and
may be limited during active VPN connections.
HP LaserJet Enterprise M609dn HP LaserJet Enterprise M609x
K0Q21A K0Q22A
Up to 71 ppm Up to 71 ppm
6.9 cm LCD with keypad 10.9 cm colour touchscreen
Yes Yes
Yes Yes
Yes Yes
Optional (up to four) Yes (plus up to three optional)
Optional Optional
Optional (up to two) Optional (up to two)
Optional Optional
Optional Optional
Optional wireless direct/NFC Embedded Wi-Fi Direct/Bluetooth Low Energy
Optional Optional
Optional Optional
2/5
Data sheet | HP LaserJet Enterprise M609 series
Accessories, Supplies and Support
Supplies
Accessories
Connectivity
Service and support
CF237A HP 37A Black Original LaserJet Toner Cartridge
CF237X HP 37X High Yield Black Original LaserJet Toner Cartridge
CF237Y HP 37Y Extra High Yield Black Original LaserJet Toner Cartridge
L0H17A HP LaserJet 550-sheet Paper Tray
L0H18A HP LaserJet 2100 Sheet Paper Tray
L0H19A HP LaserJet Printer Stand
L0H20A HP LaserJet Stapler/Stacker/Mailbox
L0H21A HP LaserJet Envelope Feeder
L0H22a HP LaserJet Extension Tray Cover
J8030A HP Jetdirect 3000w NFC/Wireless Accessory
J8031A HP Jetdirect 2900nw Print Server
U9MZ0E HP 3 year Next Business Day Hardware Support with Defective Media Retention for LaserJet Enterprise M609
U9MZ1E HP 4 year Next Business Day Hardware Support with Defective Media Retention for LaserJet Enterprise M609
U9MZ2E HP 5 year Next Business Day Hardware Support with Defective Media Retention for LaserJet Enterprise M609
U9NB4PE HP 1 year Post Warranty Next Business Day Hardware Support with Defective Media Retention for LaserJet Enterprise M609
U9NB5PE HP 2 year Post Warranty Net Business Day Hardware Support with Defective Media Retention for LaserJet Enterprise M609
Technical specifications
Model
Product number
Functions
Control panel
Print
Print technology
Print speed
First page out
1
2
Print resolution
Monthly duty cycle
Printer smart software features
Standard print languages
Fonts and typefaces
Print area
Duplex printing
Processor speed
Connectivity
Standard
Optional
Mobile printing capability
3
Supported network protocols
Memory
Media handling
Number of paper trays
Media types
Media size
HP LaserJet Enterprise M609dn HP LaserJet Enterprise M609x
K0Q21A K0Q22A
Print
Rotating 6.86 cm (2.7 in) QVGA LCD (colour graphics) with 24 key pad. 10.92 cm (4.3 in) Colour Graphics Display (CGD) with touchscreen, rotating
(adjustable angle) display, home button
Laser
Black (A4, normal): Up to 71 ppm; Black (A4, duplex): Up to 58 ppm
Black (A4, ready): As fast as 5.4 sec; Black (A4, sleep): As fast as 7.9 sec
Black (best): Up to 1200 x 1200 dpi; Technology: FastRes 1200; 1200 x 1200 dpi
Up to 300,000 pages (A4); Recommended monthly page volume: 5,000 to 30,000
Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB
HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™
105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript level 3 emulation (Euro symbol built-in); 1 internal Unicode
Fonts (Andale Mono WorldType); 2 Internal Windows Vista 8 Fonts (Calibri, Cambria); Additional font solutions available via third-party flash memory
cards; HP LaserJet Fonts and IPDS Emulation available at http://www.hp.com/go/laserjetfonts
Print margins: Top: 4.3 mm, Bottom: 4.3 mm, Left: 4.3 mm, Right: 4.3 mm
Automatic (standard)
1.2 GHz
1 Hi-Speed USB 2.0 Device; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet
10/100/1000T network
1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit/Fast
Ethernet 10/100/1000 Base-TX network; Hardware Integration Pocket; 1
Wi-Fi direct 802.11b/g/n; 1 Bluetooth low energy I/O
HP Jetdirect 2900nw Print Server J8031A; HP Jetdirect 3000w NFC/Wireless Accessory J8030A
HP ePrint; Apple AirPrint™; Mopria-certified HP ePrint; Wireless direct printing; Apple AirPrint™; Mopria-certified
Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0,
Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; DISCOVERY: SLP, Bonjour, Web Services Discovery; IP CONFIG: IPv4 (BootP, DHCP, AutoIP, Manual,
TFTP Config, ARP-Ping, IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, FTP
FW Download, Syslog; Security: SNMPv3, SSL Cert Management, Firewall, ACL, 802.1x
Standard: 512 MB; Maximum : 1.5 GB, MAX memory, when 1GB Accessory DIMM is installed
Standard: 2; Maximum: Up to 6 Standard: 3; Maximum: Up to 6
Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, colored, rough, heavy rough), monochrome transparency,
labels, letterhead, envelope, heavy envelope
Custom (metric): Feeder 1: 76 x 127 to 216 x 356 mm; Feeder 2: 99 x 148
to 216 x 356 mm
Supported (metric): Feeder 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15
cm, Oficio (216 x 340 mm), 16K, envelopes (C5, B5, C6, DL ISO), Postcard
(JIS single and double); Feeder 2: A4, A5, A5-R, B5 (JIS), 16K
Custom (metric): Feeder 1: 76 x 127 to 216 x 356 mm; Feeder 2: 99 x 148
to 216 x 356 mm; Feeder 3: 99 x 148 to 216 x 356 mm
Supported (metric): Feeder 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15
cm, Oficio (216 x 340 mm), 16K, envelopes (C5, B5, C6, DL ISO), Postcard
(JIS single and double); Feeder 2: A4, A5, A5-R, B5 (JIS), 16K; feeder 3: A4,
A5, A5-R, B5 (JIS), 16K
3/5
Data sheet | HP LaserJet Enterprise M609 series
Model
Product number
Media handling
Media weight
Input capacity
Output capacity
Compatible operating systems
Compatible network operating
systems
Minimum system requirements
Software included
Security management
Printer management
Dimensions and Weight
Printer dimensions (W x D x H)
Package dimensions (W x D x H)
Printer weight
Package weight
Operating environment
Storage
4
Power
Energy savings feature
technology
Certifications
What's in the box
5
Warranty
HP LaserJet Enterprise M609dn HP LaserJet Enterprise M609x
K0Q21A K0Q22A
Standard input: 100-sheet multipurpose feeder, 550-sheet input feeder
Standard output: 500 sheet output bin
Optional input: Optional 1 x 550-sheet paper feeder, optional 1 x 550
paper feeder and stand with cabinet, optional 3 x 550-sheet paper feeder
and stand, optional high-capacity paper feeder and stand with 1 x 550
sheet feeder and 1 x 2,000-sheet feeder
Standard input: 100-sheet multipurpose feeder, 550-sheet input feeder,
550 accessory feeder
Standard output: 500 sheet output bin
Optional input: Optional 1 x 550-sheet paper feeder, optional 1 x 550
paper feeder and stand with cabinet, optional 3 x 550-sheet paper feeder
and stand, optional high-capacity paper feeder and stand with 1 x 550
sheet feeder and 1 x 2,000-sheet feeder
Feeder 1: 60 to 199 g/m²; Feeder 2: 60 to 120 g/m² Feeder 1: 60 to 199 g/m²; Feeder 2, 3: 60 to 120 g/m²
Maximum: Up to 4,400 sheets
Standard: Up to 500 sheets
Envelopes: Up to 75 envelopes
Transparencies: 200
Maximum: Up to 1,300 sheets
Android, Linux Boss (5.0), Linux Debian (7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6), Linux Fedora (22, 23, 24), Linux Mint
(17, 17.1, 17.2, 17.3, 18), Linux Red Hat Enterprise (6.0, 7.0), Linux SUSE (13.2, 42.1), Linux Ubuntu (12.04, 14.04, 15.10, 16.04, 16.10), OS macOS
10.12 Sierra, OS X 10.11 El Capitan, OS X 10.10 Yosemite, UNIX, Windows 10 all 32/64-bit editions (excluding RT OS for Tablets), Windows 7 all 32/64-bit
editions, Windows 8/8.1 all 32/64-bit editions (excluding RT OS for Tablets), Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.),
Windows XP SP3 32-bit editions (XP Home, XP Pro, etc.)
Citrix MetaFrame Presentation Server 3.0, Citrix MetaFrame XP Presentation Server (Feature Release 1, 2, and 3), Citrix on Windows Server 2003/2003
R2, Citrix on Windows Server 2008/2008 R2/2008 R2 SP1, Citrix on Windows Server 2012/2012 R2, Citrix Presentation Server 4.0/4.5, Citrix XenApp 5.0
(Plus Feature Pack 2 & 3) for Windows Server 2008 Terminal Services 32/64-bit,Citrix XenApp 6.0/6.5 (for Windows Server 2008 R2 Terminal Services,
32/64-bit), Citrix XenApp 6.0/6.5/7.5 (for Windows Server 2008 R2 SP1 Terminal Services, 32/64-bit), Citrix XenApp 7.5 (for Windows Server 2012 and
2012 R2 Terminal Services, 64-bit), Citrix XenDesktop 5.6 (for Windows Server 2008 R2 Terminal Services, 32/64-bit), Citrix XenDesktop 5.6/7.0/7.5 (for
Windows Server 2008 R2 SP1 Terminal Services, 32/64-bit), Citrix XenDesktop 7.0/7.5 (for Windows Server 2012 and 2012 R2 Terminal Services,
64-bit), Novell NetWare 6.5/SP8 Novell Clients http://www.novell.com/iprint, Novell iPrint Appliance v1.0, Novell Open Enterprise Server 11/SP1, Novell
Open Enterprise Server 2 for Linux, Novell Servers http://www.novell.com/iprint, Windows Server 2003/2003 R2 32/64-bit (SP1/SP2)
Standard/Enterprise/Datacenter (+ Cluster & Terminal Services), Windows Server 2003/2003 R2 32-bit (SP1/SP2), Standard/Enterprise (+ Cluster &
Terminal Services), Windows Server 2008 32/64-bit (SP2) Standard/Enterprise (+ Cluster & Terminal Services), Windows Server 2008 R2 64-bit (SP1)
Standard/Enterprise (+ Cluster & Terminal Services), Windows Server 2008/2008 R2 32/64-bit (SP1/SP2) Standard/Enterprise/Datacenter (+ Cluster &
Terminal Services), Windows Server 2012/2012 R2 64-bit Standard/Foundation/Essentials/Datacenter (+ Cluster & Terminal Services)
Windows: 2 GB available hard disk space; OS hardware requirements see http://www.microsoft.com;
Mac: 1.3 GB available hard drive space; Internet; OS hardware requirements see http://www.Apple.com for more info
HP Connected, HP Device Experience (DXP), HP PCL 6 (XPS) Printer Driver, HP Software Installer/Uninstaller, Mac OS Welcome Screen (Directs users to
http://www.123.HP.com or OS App Source for printer software), online user manuals
Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; optional HP and 3rd party advanced authentication solutions
(e.g.; badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key, and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in;
802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses
FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port
disablement; Hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device
monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs,
EXEs, ...); Security management: Compatible with HP JetAdvantage Security Manager, Device Security Syslog Messages processed and accessible in
Arcsight and Splunk SIEMs
HP JetAdvantage Security Manager; HP SNMP Proxy Agent; HP Web JetAdmin Software; HP WS Pro Proxy Agent; Printer Administrator Resource Kit for
HP Universal Print Driver
Minimum: 431 x 466 x 380 mm; Maximum: 431 x 1040 x 453 mm Minimum: 431 x 466 x 505 mm; Maximum: 431 x 1100 x 581 mm
597 x 497 x 539 mm 762 x 593 x 511 mm
21.6 kg 26.3 kg
27.2 kg 33.80 kg
Temperature: 15 to 32.5ºC; Humidity: 10 to 90% RH
Temperature: -20 to 40ºC; Humidity: 10 to 80% RH
Requirements: 220V - 240V nominal; +/-10% (min 198V, Max 264V); 50 - 60Hz nominal +/- 3Hz (min 47Hz, max 63Hz), 6 A Consumption: 780 watts
(printing), 15.3 watts (ready), 3.1 watts (sleep), < 0.1 watts (Auto Off/Manual On), < 0.1 watts (Manual Off); Typical Electricity Consumption (TEC):
Energy Star: 3.173 kWh/week; Blue Angel: 2.948 kWh/week; Power supplytype: Built in 220V Power Supply
HP Auto-On/Auto-Off Technology; Instant-on Technology
CISPR 22:2008 (International) - Class A, EN 55022:2010 (EU) - Class A, EN
61000-3-2:2006 +A1:2009 +A2:2009, EN 61000-3-3:2008, EN
55024:2010, EMC Directive 2004/108/EC; Other EMC approvals as required
by individual countries
ENERGY STAR® qualified; Blue Angel; CECP; EPEAT® Silver; EPEAT® Gold
CISPR 22:2008 (International) - Class A, EN 55022:2010 (EU) - Class A, EN
61000-3-2:2006 +A1:2009 +A2:2009, EN 61000-3-3:2008, EN
55024:2010, EMC Directive 2004/108/EC; Other EMC approvals as required
by individual countries
ENERGY STAR® qualified; Blue Angel; CECP; EPEAT® Silver
(optional)
HP LaserJet Enterprise M609dn Printer; HP Black Original LaserJet Toner
Cartridge (11,000 yield); CD with software drivers and documentation;
Documentation (hardware install guide); Power cord
HP LaserJet Enterprise M609x Printer; HP Black Original LaserJet Toner
Cartridge (11,000 yield); CD with software drivers and documentation;
Documentation (hardware install guide); Power cord
One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to
http://www.hp.com/support to learn about HP award winning service and support options in your region.
4/5
Data sheet | HP LaserJet Enterprise M609 series
Footnotes
1
Based on HP review of 2016 published security features of HP in-class printers. HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software
integrity in a reboot.
2
HP Web Jetadmin is available for download at no additional charge at hp.com/go/webjetadmin.
3
Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.
4
Based on HP testing using the ENERGY STAR® programme’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov versus the top three leading competitors as of 8/2015. Actual results may vary.
For details see http://www.hp.com/go/Ljclaims.
5
More pages versus predecessor cartridges claim based on page-yield comparison of HP 37X High Yield Black Original LaserJet Toner Cartridges with HP 87X High Yield Black Original LaserJet Toner Cartridges. For more
information, see http://www.hp.com/go/learnaboutsupplies.
6
HP 37X High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately.
Technicalspecifications disclaimers
1
Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver,
and document complexity.
2
Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
3
May require a firmware upgrade to be compatible, download at http://www.hp.com/go/support
4
Power requirements are based on the country/regionwhere the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
5
Cartridges included, yields 11,000 black pages based on ISO/IEC 19798 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see
http://www.hp.com/go/learnaboutsupplies
http://www.hp.com/uk
The product could differ from the images shown. © Copyright 2017 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
Published in EMEA 4AA6-9966EEE, April 2017
AD
5/5
Loading...
