Hewlett-Packard F710 Quick Start Guide

f710

完整版產品使用者手冊請至

完整版產品用戶手冊請至

f710

Caution

Before you start using the

ar Camcorder it is



Use the authorized charger only.



Never disassemble or attempt repair of this product. Doing so may

damage the camcorder, cause electric shock and void your product

warranty.



Never short-circuit the battery.



Set up time and date accurately before you use this camcorder.



Exposing the camcorder to open flames can cause explosion.



Due to local laws and vehicles safety considerations, do not manually

operate the camcorder while driving.



The values displayed in this system, such as speed, position, and the

distance warning to the speed camera set points, may be inaccurate

due to the influence of surrounding environment. They are for your reference only.



Hewlett-Packard Company is NOT responsible for the loss of any

data/content during operation.

assumed that you agree to the above statements.

1 Introduction

Thank you for purchasing this advanced camcorder. This camcorder is specifically designed for real time video and audio recording when driving.

1.1 Features

• High Dynamic Range Imaging (HDR)

• Super HD 2304*1296

• Up to 150 Degree Wide Angle Glass Lens &IR-Filter

• Built-in G-sensor

• Motion Detection

• Collision Detection

• Emergency Recording File

• Advanced Driver Assistance Systems (ADAS)

1.2 Package Contents

The package contains the following items. If there are any missing or damaged items, contact your dealer immediately.

Car camcorder Hook+Band CD-ROM

Quick start guide Car adapter

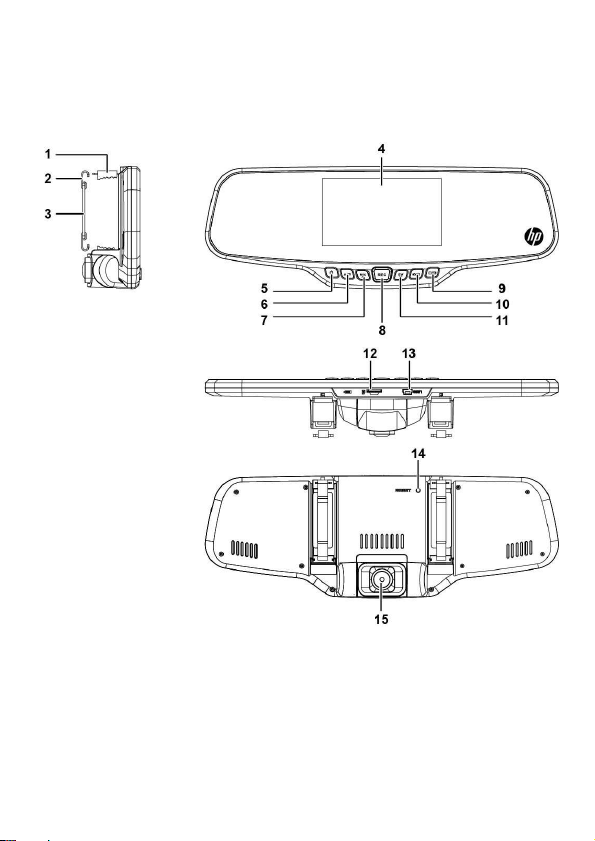

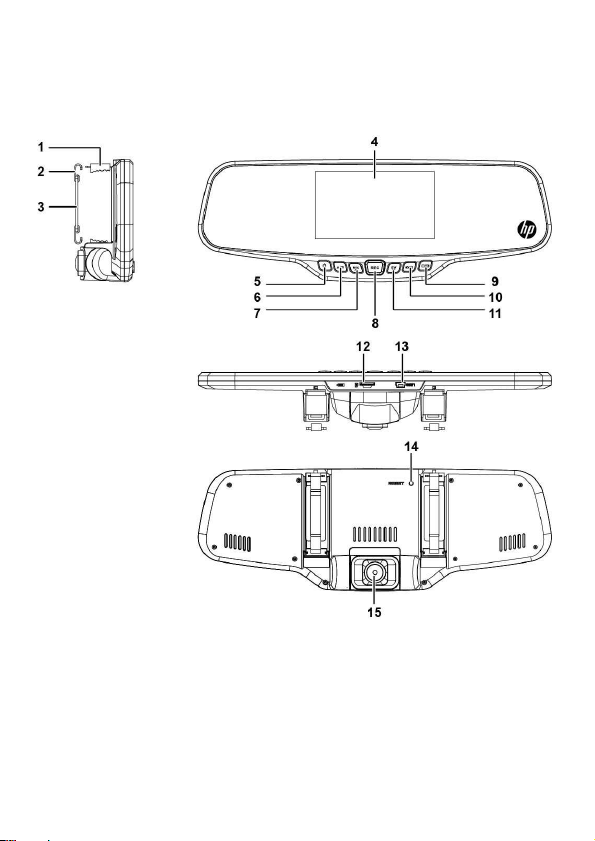

1.3 Product Overview

No.

1 Rearview mirror clip

2 Hook

3 Band

4 Display

Power on/off( )

6 Settings Menu and Delete button ( )

Microphone enable/ disable and Up navigation button.

( )

8 Record Stop/Start and Select button ( )

9 Press to turn LCD on or off. ( )

10 Mode Select ( )

Exposure Value setting and Down navigation button ( )

12 MicroSD memory card port

13 Car power adapter and PC connection USB port

14 Reset

15 Lens

Item

2 Getting Started

2.1 Inserting the Memory Card

Insert the memory card with the gold contacts facing the back of the camcorder. Push the memory card until it clicks into place. (Use class 6 or greater speed micro SD cards for this camcorder; It is recommended to format the micro SD cards before the initial use.)

To remove the memory card

Push the edge of the memory card inward until you hear/feel it click, then allow it to push out until you can remove it from the slot.

Note:

1. Do not remove or insert the memory card when the camcorder is powered on. This may damage the memory card.

2. It is recommended to use a 32 GB, Class 6 speed or above micro SD card.

3. It is recommended to format the micro SD cards before the initial use.

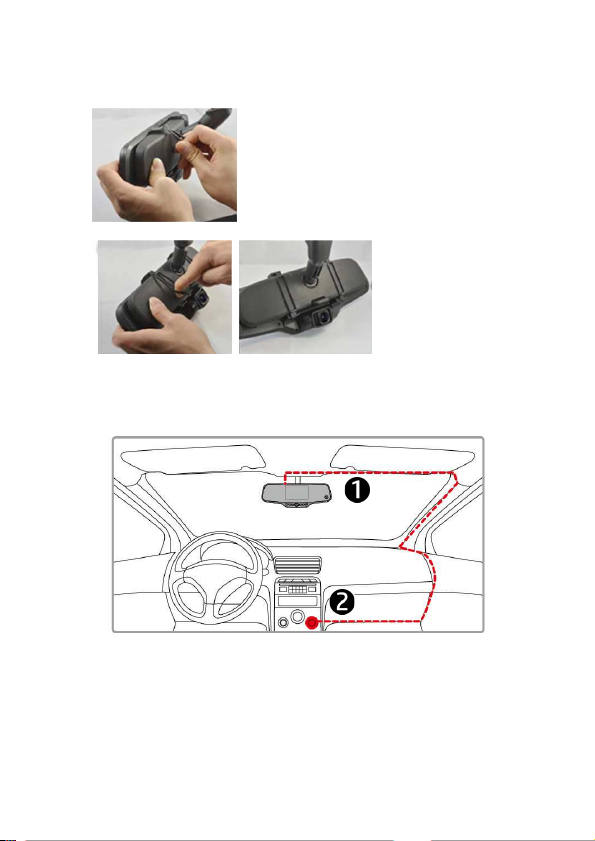

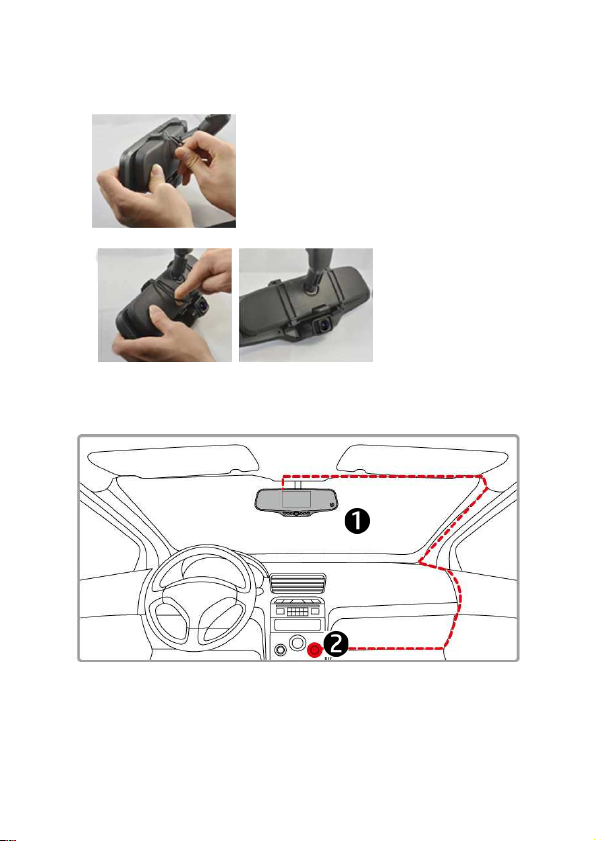

2.2 Installing in Vehicles

1. Chip on to your original car mirror.

2. Circle the clip with the band.

3. Adjust the camcorder lens.

2.3 Connecting to Power

Use only the supplied car adapter to power up the camcorder and charge the built-in battery.

1. Connect one end of the car adapter to the USB connector of the

camcorder.

2. Plug the other end of the car charger to the cigarette lighter socket

of your vehicle. Once the vehicle engine is started, the camcorder automatically powers on.

Note:

Please take note if the environment temperature reaches 45°C or above, the car adapter still can

supply power to camcorder, but it may not charge the battery. This is characteristic of Lithium polymer battery and is not a malfunction.

2.4 Powering the Camcorder On / Off

2.4.1 Auto Power On/Off

Once the vehicle engine is started, the camcorder automatically powers on. And the recording will automatically start.

Once the vehicle engine shuts down, the camcorder automatically saves the recording and turns off the power within 10 seconds.

Note:

Automatic power up and shut down assumes the power socket is linked to the car ignition.

2.4.2 Manual Power On/Off

To manually turn on the power, press the POWER button.

To turn off, press and hold the POWER button for at least 2 seconds.

To reset, press and hold the RESET button on the back of the camcorder for at least 5 seconds.

2.5 Initial Settings

2.5.1 Set the Date and Time

To set the correct date and time, do the following:

1. Press the button twice to enter the OSD menu .

2. Press the or button to

select Date / Time and press the

button.

3. Press the or button to

adjust the value and press the

button to move to another

field.

4. Repeat step 3 until the date and time setting is complete.

5. Press the button to exit the Date/Time settings. Press the

Note:

When the battery is depleted, you must reset the date/time before the function -automatic record is started. If the user doesn't reset the date/time, the camcorder will give you an alert after one minute and the automatic record will be started.

button again to exit the settings menu and return to the live

view mode.

3 Using the Camcorder

3.1 Recording Videos

3.1.1 Record videos while driving

When the vehicle engine starts up and the Automatic Record function is enabled, the camcorder automatically turns on and starts recording.

Recording will automatically stop when the engine is switched off. Or, press the button to stop recording manually.

Note:

With some vehicle models, the automatic power up and off feature of this car camcorder will not function because the cigarette lighter/power socket is not linked to the ignition system.

To work around this issue, please do one of the following:

- Manually turn on or off the cigarette lighter/power socket if this is possible with your vehicle model.

- Manually plug in the power adapter into the socket to turn on the car camcorder and unplug from

the socket to turn off the car camcorder.

3.1.2 Emergency Recording

This Car Camcorder is equipped with a sensor that is designed to detect collisions and automatically trigger the Emergency Recording feature.

The Emergency Recording icon will be displayed if this feature is initiated as illustrated. The Emergency Recording video will not be overwritten via the normal loop recording function of this product.

To manually initiate the Emergency Recording feature, press the button during the normal recording function.

To stop the recording, press the button.

3.2 Playback Videos and Photos

1. If recording is in progress, press the button to stop recording.

The standby screen is displayed.

2. Press the button twice to

enter the playback menu.

3. Press the or button to

select the file category or

that you want to browse and press the button to display thumbnail images of the recorded video or photo files.

4. Use the or to navigate through the video or photos thumbnails. Thumbnails will become slightly enlarged when selected.

3.2.1 Playing Videos

To play videos, do the following:

1. If recording is in progress, press the button to stop recording.

2. Press the button twice to enter the playback menu.

3. Press the or button to select Emergency events icon or

Video/Photo icon

and press the

4. Press the or button to select Video and press the

button.

5. Press the or button to browse for the desired video file and press the button to play the video.

6. Press the button to pause the playback. Press it again to resume.

3.2.2 Viewing Photos

To view photos, do the following:

1. If recording is in progress, press the button to stop recording.

2. Press the button twice to enter the Playback menu.

3. Press the or button to enter Photo Playback and press the button.

4. Press the or button to select the icon and press the button.

5. Press the or button to browse for the desired photo file and press the button to view the file in full screen.

3.2.3 Deleting Files

To delete file(s), perform the following steps:

1. If recording is in progress, press the button to stop recording.

2. Press the button twice to enter the playback menu.

3. Press the or button

to select the Video/photo files icon. Note that by design, Emergency Event files cannot be deleted with this procedure and press the button.

4. Press the or button to select the file to be deleted.

5. Press the button to enter the Delete option menu and press the button.

6. Press the or button to select an option.

Item Description

Delete this file Delete the current selected file.

Delete All Deletes all files except Emergency Event files.

7. Press the button to confirm delete.

Note:

Deleted files CANNOT be recovered. Ensure the files you wish to preserve are backup before deletion. Emergency Event files can be deleted if connected to a PC/laptop or if the memory card is formatted in the Settings menu.

注意

只能使用授權的充電器。



千萬不要拆解或試圖修理本產品。此舉可能損壞行車記錄器，造成觸



電並使產品保固失效。

千萬不要使電池短路。



使用此行車記錄器之前請準確設定時間與日期。



此行車記錄器暴露於明火中可能爆炸。



由於當地的法律及車輛安全考量，行駛當中請勿手動操作行車記錄器。



此系統顯示的數值，例如速度、位置，以及警告測速照相機設置點的



距離，都可能因為周遭環境的影響而不準確。這些數值僅供參考。

惠普公司對於操作當中的任何數據/內容流失概不負責。



在您開始使用此行車記錄器前，假設您已同意上述聲明。

簡介

本公司在此先感謝您購買此行車記錄器。此行車記錄器經過特別設計，可於駕駛時錄下即時的影像與聲音。

1.1

•

1.2

包裝內包含下列項目。如有任何項目遺漏或毀損，請立刻聯絡經銷商。

特色

高動態範圍成像超高畫質達

度廣角玻璃鏡頭及紅外線過濾器

150

內建G-感應器移動偵測碰撞偵測緊急錄影檔案先進駕駛輔助系統

包裝內容

(HDR)

2304*1296

(ADAS)

行車記錄器

快速使用說明

掛勾+鬆緊帶

汽車轉接器

CD-ROM

1.3

產品概觀

號碼

後視鏡夾

掛勾

鬆緊帶

顯示器

電源開關

( )

設定選單及刪除按鈕

麥克風啟用/停用及向上導覽按鈕

錄影停止/開始及選擇按鈕

按下打開或關閉液晶顯示器

模式選擇

( )

曝光值設定及向下導覽按鈕

記憶卡埠

MicroSD

汽車電源轉接器及PC連接

重設

鏡頭

( )

USB埠

項目

( )

開始

2.1

插入記憶卡

記憶卡金色接觸面朝向行車記錄器背面插入。將記憶卡推到底直到扣住。(此記錄器請使用初次使用前先將

micro SD

class 6

卡格式化。

或速度更快的

)

micro SD

記憶卡；建議在

移除記憶卡

將記憶卡邊緣往內推到你聽到/感覺到喀噠聲，然後讓它從卡槽推出直到你可以移除。

備註：

行車記錄器電源打開時不要移除或插入記憶卡。此舉可能損壞記憶卡。

建議使用

32 GB

初次使用前建議先將

，速度

Class 6

micro SD

以上的

micro SD

記憶卡格式化。

記憶卡。

安裝於車內

2.2

夾在原本的汽車後視鏡上。

用鬆緊帶圈住夾子。

調整記錄器鏡頭。

連接電源

2.3

僅使用供應的汽車轉接器供電給行車記錄器並讓內建的電池充電。

汽車轉接器的一端連接到記錄器的

將汽車充電器的另一端插到車內的點煙器插孔內。車輛的引擎一

旦發動，記錄器電源自動打開。

連接器。

USB

備註：

請注意如果環境溫度達這是鋰電池的特性而非故障。

記錄器電源開/關

2.4

以上，汽車轉接器仍可供電給記錄器，但可能無法讓電池充電。

45°C

2.4.1

車輛引擎一旦發動，記錄器電源便自動打開，並且開始自動錄影。

車輛引擎一旦關閉，記錄器便自動儲存錄影並且在10秒內關掉電源。

備註：假設電源插座有連結到汽車點煙器，則電源會自動打開及關閉。

電源自動開/關

2.4.2

按下

按住

按住記錄器背面的重設按鈕至少5秒重新設定。

手動電源開/關

電源開關

按鈕以手動方式打開電源。

按鈕至少2秒關掉電源。

2.5

最初設定

2.5.1

進行下列動作設定正確的日期及時間：

備註：電池電力耗盡時，必須在啟動自動錄影前重設時間設定。如果使用者沒有重設時間設定，行車記錄器會在一分鐘後發出警報並且開始自動錄影。

設定日期及時間

按兩次

按

或

並按下

設定

按並按

重複步驟設定完畢。

按回到現場取景模式。

或

按鈕移至另一欄。

鈕退出時間設定。再按一次

按鈕進入

按鈕選擇

按鈕調整數值

直到日期與時間

按鈕。

OSD

時間

選單。

按鈕退出設定選單並

使用行車記錄器

錄影

3.1

3.1.1

車輛引擎發動時會啟動影。

引擎關閉時便自動停止錄影。或者，按

備註：

某些車款因為點煙器/電源插座沒有連結點火系統，所以此行車記錄器自動打開及關閉的功能不能發揮作用。

要解決此問題，請進行以下任一種動作：

行駛中錄影

按鈕以手動方式停止錄影。

如果你的車款可以這麼做，請以手動方式打開或關閉點煙器/電源插座。

以手動方式將電源轉接器插入插座內打開行車記錄器，並且從插座拔出以關閉行車記錄器。

自動錄影

功能，行車記錄器自動開啟並開始錄

按鈕停止錄影。

緊急錄影

按鈕，以手動方式將緊急錄影初始

3.1.2

此行車記錄器配備一個感應器專門偵測碰撞並且自動觸發緊急錄影功能。如果此功能依照說明初始化，將會顯示緊急錄影圖示。緊急錄影影片不會經由本產品正常迴路的錄影功能而被覆寫。

在正常錄影功能當中按下化。

按

播放影片及照片

3.2

如果正在錄影中，按

按兩次

選單。

按

或

要瀏覽的種類為

，並按

下的影片或照片檔的縮圖。

用

或

按鈕進入播放

按鈕選擇你想

或

按鈕顯示錄

導覽影片或照片縮圖。選擇之後縮圖會略為放大。

3.2.1

進行下列動作播放影片：

播放影片

如果正在錄影中，按

按兩次

按下

或

急事故圖示或影片/照片圖示並按下

按鈕。

按下片

按下影片。

按下

或

並按下

或

按鈕暫停播放。再按一次繼續播放。

按鈕進入播放選單。

按鈕選擇緊

按鈕選擇

按鈕。

按鈕瀏覽想要的影片檔，並按下

按鈕停止錄影。畫面顯示待機。

按鈕停止錄影。

影

按鈕播放
