Hewlett-Packard F505g Instruction Manual

f505g

User Manual

Car Camcorder

Contents

About this Guide ........................................................................... 3

FCC Statement .............................................................................. 3

WEEE Notice .................................................................................. 4

CE Regulatory Notice .................................................................... 4

Battery warning ............................................................................ 4

Notes on Installation .................................................................... 5

Caution ......................................................................................... 5

1 Introduction ................................................................... 7

1.1 Features ............................................................................ 7

1.2 Package Contents ............................................................. 7

1.3 Product Overview .............................................................. 8

2 Getting Started .............................................................. 9

2.1 Inserting the Memory Card ............................................... 9

2.2 Installing in Vehicles .......................................................10

2.2.1 Mount to Windshield ...........................................10

2.2.2 Adjust the camcorder position ............................11

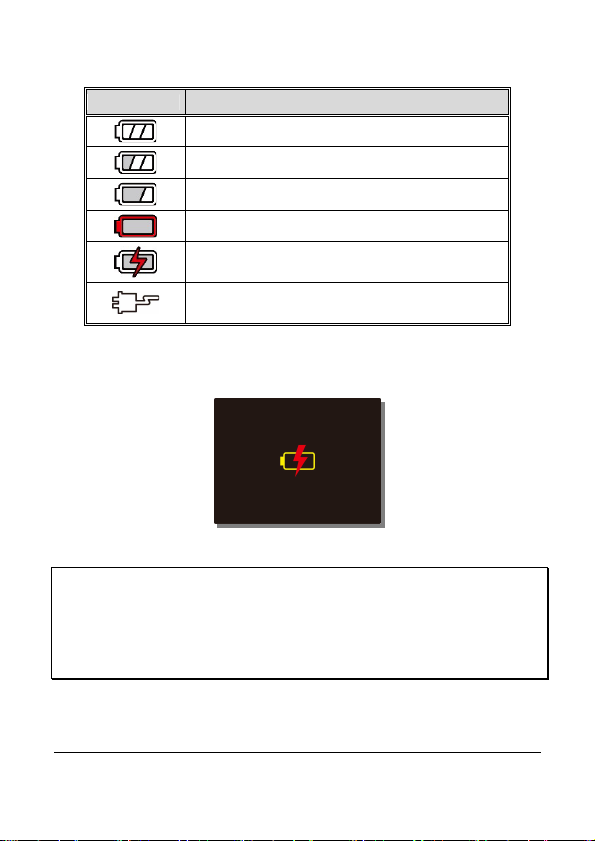

2.3 Connecting to Power .......................................................12

2.4 Powering the Camcorder On / Off ...................................14

2.4.1 Auto Power On/Off ..............................................14

2.4.2 Manual Power On/Off ..........................................14

2.5 Initial Settings .................................................................15

2.5.1 Set the Date and Time .........................................15

2.5.2 Setting the Universal Time Code (UTC) ...............16

3 Using the Car Camcorder ............................................... 17

3.1 Recording Videos ............................................................17

3.1.1 Record videos while driving ................................17

3.1.2 Driver Fatigue Alert .............................................17

3.1.3 Speed Cam Alert ..................................................18

3.1.4 LDWS (Lane Departure Warning Systems) ..........19

3.1.5 FCWS (Forward Collision Warning System) .........20

3.1.6 Parking Mode ......................................................21

3.1.7 Headlight Warning ..............................................22

3.1.8 Emergency Recording .........................................22

3.1.9 The Recording Screen..........................................23

3.2 Playback Videos and Photos ...........................................24

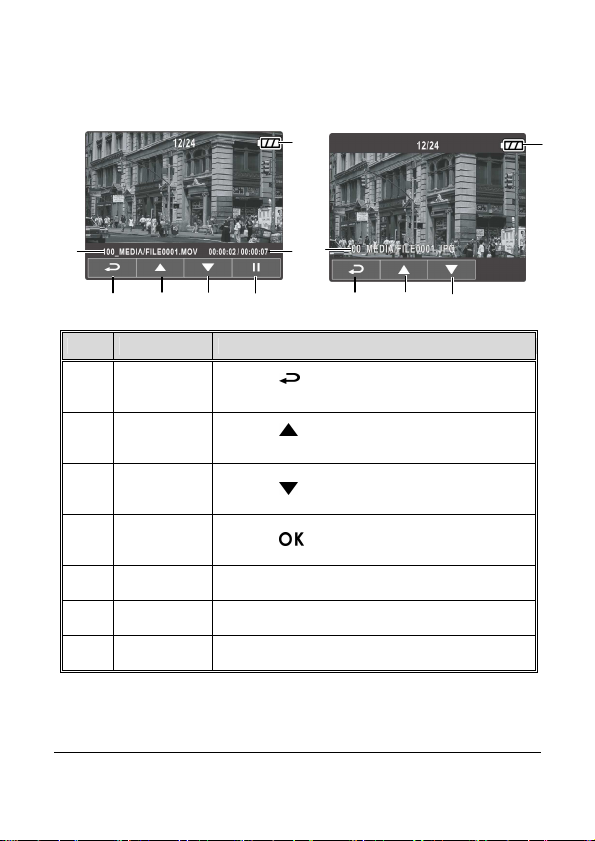

3.2.1 The Playback Screen ...........................................25

3.2.2 Deleting Files ......................................................26

4 Adjusting the Settings .................................................. 27

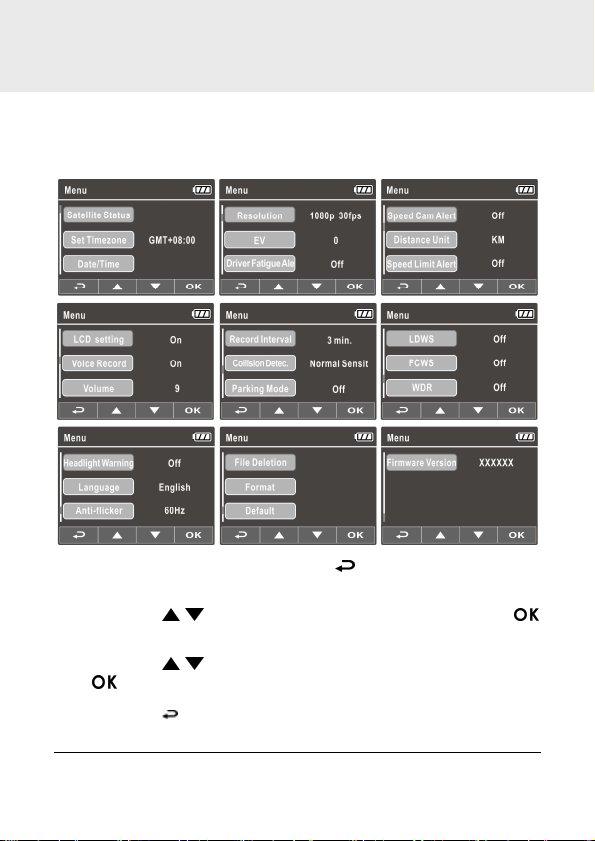

4.1 Using the Menu ...............................................................27

4.2 Menu Tree .......................................................................28

5 Installing the Software ................................................. 31

6 SuperCar ...................................................................... 32

7 Specifications .............................................................. 33

About this Guide

The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

WEEE Notice

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union

This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

CE Regulatory Notice

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2014/30/EU, the R&TTE Directive 1999/5/EC and the RoHS Directive 2011/65/EC.

Battery warning

 Never dismantle, crush, or pierce the battery, or allow the battery

to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use.

 Always charge using the system. Risk of explosion if battery is

replaced by an incorrect type.

 Keep the battery out of reach of children.  Batteries may explode if exposed to open fire. Never dispose of

batteries in a fire.

 Never replace the battery on your own; have the dealer do it for

you.

 Disposed of used batteries observing local regulations.

Notes on Installation

1. This product shall be installed near the rear view-mirror, at the

center of windshield, if possible, for optimal viewing.

2. Make sure that the lens is within the wiping range of the

windscreen wiper to ensure a clear view even when it rains.

3. Do not touch the lens with your fingers. Finger grease may be left

on the lens and will result in unclear videos or snapshots. Clean the lens on a regular basis.

4. Do not install the camcorder on a tinted window. Doing so may

damage the tint film.

5. Make sure that the installation position is not hindered by the

tinted window.

6. To use the products of the attached power charger only, please do

not use other brand power charger, in order to avoid equipment burn or cause the battery explosion.

Caution

 Due to local laws and vehicles safety considerations, do not

operate the camcorder while driving.

 Set up time and date accurately before you use this device.  Please use SuperCar software in condition that Electronic Map is

function normally.

 The firmware function in the camcorder is for reference only,

please follow the actual road condition.

 The results of GPS positioning are only for reference, and should

not affect the actual driving situation. The system also cannot ensure the positioning accuracy.

 GPS positioning accuracy may differ depending on weather and

location such as high buildings, tunnels, undergrounds, or forests. GPS satellite signals cannot pass through solid materials (except glass). Tinted window will also affect the performance of the GPS satellite reception.

 GPS reception performance on each camcorder may differ. The

Before you start using the system, i

t assumes that

you agree to the above statement.

system cannot determine the accuracy of the positioning results from different camcorders.

 The values displayed in this system, such as speed, position, and

the distance warning to the speed camera set points, may be inaccurate due to the influence of surrounding environment. They are for your reference only.

 The system is used only for non-commercial use, within the

maximum limits permitted by applicable law. Our company does not accept any responsibility for any data loss during the operation.

 This product gets warm when in use; this is normal.  Improper use or operation of the product may result in damage of

the product or its accessories and void the warranty.

 HP Inc. is NOT responsible for the loss of any data/content during

operation.

1 Introduction

Thank you for purchasing this advanced Car Camcorder. This camcorder is specifically designed for real time video and audio recording when driving.

1.1 Features

• WFHD camera (2560x1080 @ 30fps)

• 2.4” LCD color screen

• Up to 140 ﾟ Wide angle lens

• Motion detection

• Automatic Emergency recording for collision detection

• Supports SDHC up to 32GB

• Supports WDR / LDWS / GPS/ FCWS / Parking Mode

1.2 Package Contents

The package contains the following items. In case there is any missing or damaged item, contact your dealer immediately.

Car Camcorder Bracket CD-ROM

Quick start guide Car adapter

1.3 Product Overview

Side (Left and Right) Views

Top and Bottom Views

5 6

Front View

Rear View

No. Item No. Item

1 Bracket Socket 8 LED Indicator

2 Microphone 9 LCD Panel

3 Power Button 10 Up Button ( )

4 Memory Card Slot 11 Down Button ( )

5 USB Connector 12 Enter Button ( )

6 HD(Mini HDMI) Connector 13 Wide Angle Lens

7 Back Button ( ) 14 Speaker

Note:

To operate the camcorder, press the corresponding buttons (7,10,11,12) according to guide icons shown the screen.

8 9 10 11

2 Getting Started

2.1 Inserting the Memory Card

Insert memory card with the gold section facing upward and the screen of the camcorder facing upward too, as illustrated.

Push the memory card in until a click sound is heard, indicating the card is in position.

To remove the memory card

Push to eject the memory card out of the slot.

Note:

1. Do not remove or insert the memory card when the camcorder is turned on. This may damage the memory card.

2. Please use a 32GB, Class 6 or above Micro SD card.

3. Please format the micro SD cards before the initial use.

2.2 Installing in Vehicles

2.2.1 Mount to Windshield

1. Attach the bracket to the camcorder.

Slide it into the bracket holder until you hear a click.

2. Before installing the bracket, please

use alcohol to clean the windshield and suction cup of the bracket. Wait for dry and press suction-cup on the windshield.

3. Hold the base firmly on the

windshield and press down the clamp to mount the car holder to the windshield. Make sure the base is securely locked in place.

Warning: Do not install the camcorder on a tinted window. Doing so may damage the tint film.
