QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 1

HP ElitePOS G1 Retail System, Models 141, 143, & 145

FRONT VIEW

1.

14-inch diagonal display panel (wide-aspect ratio); FHD
1920 x 1080 resolution Projected Capacitive Touch Screen

4.

HP ElitePOS Integrated MSR

2.

HP ElitePOS Integrated Column Printer

5.

Recessed Power Button

3.

Choice of 2 ElitePOS I/O Connectivity Bases

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 2

REAR VIEW

REAR VIEW

1.

HP ElitePOS Top Mount 2x20 Customer-facing Display (CFD)

3.

Choice of 2 ElitePOS I/O Connectivity Bases

2.

Rotate/Tilt Stand (Fixed Position Stand Available)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 3

HP ElitePOS

Basic I/O Connectivity Base (Rear/Side View)

Basic I/O Connectivity Base components

1.

Cash drawer jack

7.

USB Type-C port

2.

Power connector

8.

RJ-45 network jack

3.

USB Type-C power port

9.

Security cable slot

4.

Powered serial ports (3)

10.

MicroSD card reader

5.

USB 2.0 ports (4)

11.

Headset jack

6.

USB 3.0 ports (2)

IMPORTANT: To avoid damage to the computer, DO NOT plug a telephone cable into the cash drawer jack.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 4

Advanced I/O Connectivity Base* (Rear/Side View)

Advanced I/O Connectivity Base components

1.

Cash drawer jack

7.

USB 3.0 ports (4)

2.

Powered USB 12 V ports (2)

8.

USB Type-C port

3.

Powered USB 24 V port

9.

RJ-45 network jack

4.

Power connector

10.

Security cable slot

5.

USB Type-C power port

11.

MicroSD card reader

6.

Powered serial ports (2)

12.

Headset jack

IMPORTANT: To avoid damage to the computer, DO NOT plug a telephone cable into the cash drawer jack.

* Available November 2017

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 5

Component Breakdown

Component Breakdown

1.

Head unit: Choice of Model 141 (Intel® Celeron® 3965U), 143
(Intel® Core™ i3 - 7100U)* or 145 (Intel® i5 -7300U)*

4.

Stability Base Plate

2.

Fixed Position or Swivel & Tilt stand or No Stand Option

5.

Connectivity Base: 2 Options based on I/O requirements

3.

Optional Integrated Printer or Stand Spacer

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 6

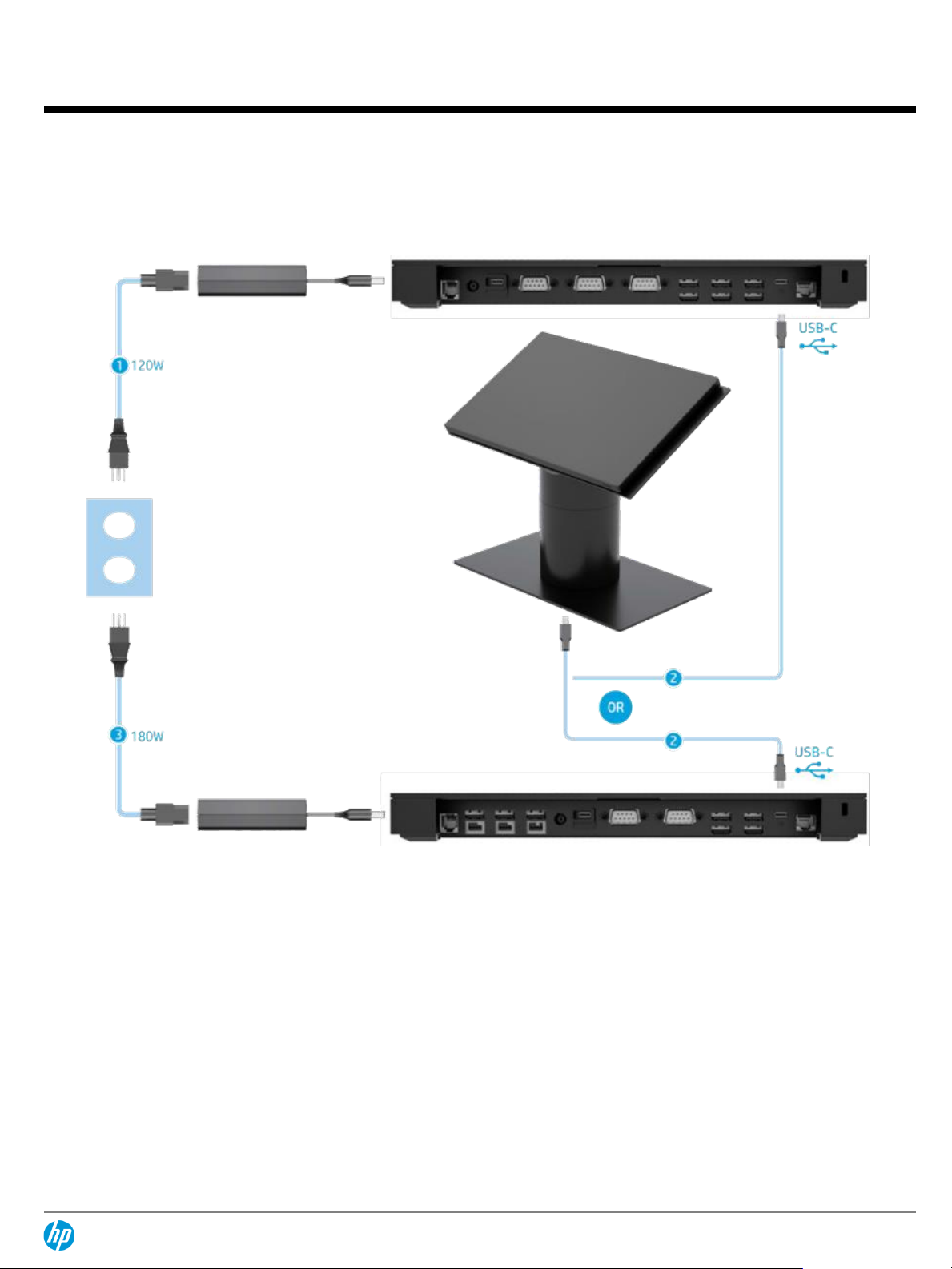

Not shown: Stand connects through a Single USB-C Cable with secure latching to connectivity base (Refer to page xxx)

* Available November 2017

Stand Options

1.

HP ElitePOS Rotate/Tilt Stand with Integrated Column Printer

3.

HP ElitePOS Fixed Position Stand

2.

HP ElitePOS Rotate/Tilt Stand

NOTE: The stands are shown on a Stability Base Plate.

Stand Configurations

HP ElitePOS No Stand Option - Display Head Only (Includes 100mm VESA Mounting
Bracket)

HP ElitePOS Fixed Position Stand with Stability Base Plate

HP ElitePOS Fixed Position Stand Counter Mount -No Base Plate-includes Counter
Mounting Bracket

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 7

HP ElitePOS Rotate/Tilt Stand with Stability Base Plate
HP ElitePOS Rotate/Tilt Counter Mount No Base Plate/includes Counter Mounting

Bracket

HP ElitePOS Rotate/Tilt Stand with Integrated Printer and Stability Base Plate

HP ElitePOS Rotate/Tilt Stand with Integrated Printer and No Base Plate-includes
counter mount

NOTE:The mounting bracket requires an 80 mm hole in the countertop. The thickness of the countertop must be 10mm to 50 mm.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Overview

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 8

At A Glance

 Align Model to preferred solution

o Model 141: Anti-glare WLED SVA 300-nit panel with FHD 1920 x 1080 resolution and an Intel® Celeron® 3965U

2.2GHz 2M 2133 2C6 processor

o Model 143: Anti-glare WLED UWVA 500-nit panel with FHD 1920 x 1080 resolution and an Intel® Core™ i3 -

7100U 2.40GHz 3M 2133 2C6 processor*

o Model 145: Anti-glare WLED UWVA 500-nit panel with FHD 1920 x 1080 resolution and an Intel® i5 -7300U

2.60GHZ 3MB 2133 2C6 processor*

 Long lifecycle performance All-in-One (AiO) Retail System for retail and hospitality markets Choice of operator display:

o 14”diagonal Wide Aspect ratio Projected Capacitive display; Full HD SVA 1920 x 1080 Resolution, Anti-glare
o 14”diagonal Wide Aspect ratio Projected Capacitive display; Full HD UWVA 1920 x 1080 Resolution, Anti-glare*

 Processor choices:

o Intel® Core™ i5-7300U with vPro (2.6GHz, 3M Cache, 2 Cores)*
o Intel® Core™ i3-7100U (2.4GHz 3M Cache, 2 Cores)*
o Intel® Core™ Celeron® 3965U (2.2GHz, 2M Cache, 2 Cores)

 Operating System choices:

o Windows 10 Professional 64-bit
o Windows 10 IoT Enterprise 2016 LTSB 64-bit
o FreeDOS 2.0

 Connectivity Base Choices

o HP Basic I/O Connectivity Base
o HP Advanced I/O Connectivity Base*

 Integrated peripheral options (can also be purchased and installed separately except for the HP ElitePOS MSR & HP

ElitePOS Column Printer which are configurable options):

o HP ElitePOS MSR
o HP ElitePOS Column Printer
o HP ElitePOS Fingerprint Reader
o HP ElitePOS Top Mount 2x20 CFD

 Industry-standard 100mm VESA mounting pattern allows for flexible use without the optional stand (Mounting hardware

sold separately)

 Choice of Fixed Position Stand, Rotate/Tilt Stand that allows for 10° angle adjustability & 180-degree rotation left or

right, or no stand (display – head unit only) which includes 100mm VESA Mounting Bracket

 (2) Two DDR4 Memory Slots (32 GB Maximum)
 Realtek RTL8153 Ethernet Connection
 Intel & Realtek WLAN Options
 Trusted Platform Module (TPM 2.0)
 HP BIOSphere with HP Sure Start technology
 (1) M.2 drive bay
 Cable Management Features
 ENERGY STAR® certified, EU Compliant, RoHS2 Compliant, EPEAT® Gold
 Basic Retail I/O connectivity Base: 120W, 88% efficient, active PFC (external)
 Advanced Retail I/O connectivity Base: 180W, 89% efficient, active PFC (external)
 Display Head unit Only 65W, 89% efficient at 20V, active PFC (external)
 Standard Warranty Options – 90/90/90, 1/1/1, 3/3/3; Plus Optional Care Packs

* Available November 2017

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 9

OPERATING SYSTEM

Preinstalled

Windows 10 Professional 64-bit
Windows 10 IoT Enterprise 2016 LTSB 64-bit
FreeDOS 2.0

Certified

SuSE Linux® 12 SP3**

NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system
on products configured with Intel® 7th generation and forward processors or provide any Windows 8 or Windows 7
drivers on http://www.support.hp.com

* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time
for updates. See http://www.microsoft.com

** SUSE YES Certification is planned for late CY17 on a single platform configuration. More information about SUSE YES
certification on https://www.suse.com/partners/ihv/yes/

The following features are not supported by SUSE Linux Enterprise Desktop:

 Power Management features
 Multi-touch capabilities
 Systems configured with Linux do not qualify for ENERGY STAR

PROCESSORS

Model 143 & 145***

 Intel® Core™ i5-7300U with vPro (2.6GHz, 3M Cache, 2 Cores)
 Intel® Core™ i3-7100U (2.4GHz 3M Cache, 2 Cores)

Model 141

 Intel® Core™ Celeron® 3965U (2.2GHz, 2M Cache, 2 Cores)

NOTE: Core™ i5 Turbo Boost technology – performance can be increased through the BIOS

*NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system
on products configured with Intel® 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers
on http://www.support.hp.com

**Note: Multi-Core is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance and

clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s

numbering is not a measurement of higher performance.

***Available November 2017

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 10

CORE™ vPRO™ PROCESSORS

INTEL® 7th GENERATION CORE™ vPRO™ PROCESSORS

The HP ElitePOS Retail System features this technology, and includes processors that are part of the Intel® Stable Image.
Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP ElitePOS
Retail System. This makes these models the most stable, secure, and manageable platforms available to retailers today.

Intel® Advanced Management Technology (AMT) v11.6+ – An advanced set of remote management features and
functionality which provides network administrators the latest and most effective tools to remotely discover, heal, and
protect networked client systems regardless of the system's health or power state. AMT 11.6+ includes the following
advanced management functions:

 Power Management (on, off, reset)
 Hardware Inventory (includes BIOS and firmware revisions
 Hardware Alerting
 Agent Presence
 System Defense Filters
 SOL/USBR
 Cisco NAC/SDN Support
 ME Wake-on-LAN
 DASH 1.1 compliance
 IPv6 Support
 Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS screen,

periodic connections, or alert triggered connection

 Remote Scheduled Maintenance - pre-schedule when the PC connects to the IT or service provider console

for maintenance. Remote PCs can get required patches, be inventoried, etc. by connecting to their IT console or
Service Provider when it's convenient.

 Remote Alerts - automatically alert IT or service provider if issues arise
 Access Monitor - Provides oversight into Intel® AMT actions to support security requirements
 PC Alarm Clock
 Microsoft NAP Support
 Host-based set-up and configuration
 Management Engine (ME) firmware roll back
 Wireless AMT functionality on Desktop (WoDT)
 Enhanced KVM resolution

*Some functionality of this technology, such as Intel Active management technology and Intel Virtualization technology,
requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel

vPro™ technology is dependent on 3rd party software providers. Compatibility with future "virtual appliances” is yet to be

determined.

** Intel® Active Management Technology requires an Intel® AMT-enabled chipset, network hardware and software, as well
as connection with a power source and a corporate network connection. Setup requires configuration by the purchaser
and may require scripting with the management console or further integration into existing security frameworks to enable
certain functionality. It may also require modifications of implementation of new business processes.

CHIPSET

Intel® Multi-Chip Package – MCP

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 11

HP BIOS

Key features of the HP BIOS include:

 Deployment and manageability – HP BIOS provides several technologies that help integrate the HP ElitePOS G1

Retail System into a business environment, such as PXE, remote configuration, remote control, and F10 Setup
support for 14 languages.

 Update your BIOS via the cloud or standardize on a BIOS version hosted on Enterprise network.
 Select models feature either Intel® Standard Manageability or Intel® Core™ vPro™ Processor Technology.
 Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory

and advanced change notification.

 UEFI specification 2.5
 Absolute Persistence agent – For tracking and tracing services, available in select countries, separate software

and purchase of a subscription is required.

 Thermal and power management – The HP BIOS provides and enables thermal and power management

technologies so component temperatures are managed for high reliability and to assist in operating the ElitePOS
G1 Retail System in any retail environment.

 Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
 Serviceability – HP BIOS provides diagnostic and detailed service information.
 Upgrades and recovery – HP BIOS provides numerous ways to update the HP ElitePOS, using a host-based

Windows application, various remote deployment tools (HP Client Manager, HP Software Support Manager,
scheduled network updates, and fail-safe recovery. In addition, the HP ElitePOS system supports management
tools for replicating BIOS settings throughout the Enterprise, either host-based software (HP BIOS Configuration
Utility), 3rd party remote management tools such as SCCM, or manually using USB.

 HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery.

Additional HP BIOS Features:

 Power-On password – Helps prevent an unauthorized user from powering on the system.
 Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the

system configuration. If the administrator password is not known, the BIOS version cannot be changed and
changes cannot be made to BIOS settings using F10 setup or under the OS.

 Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and

configuration management, allowing operating systems and applications to manage power based on activity and
usage. The HP ElitePOS G1 Retail System uses ACPI to provide power conservation features.

 S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below .5W

in S5 (when turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with
WOL functionality and USB Charging ports.

 When the S5 Maximum Power Savings feature is enabled, only the power button will turn on the system. Other

wake sources such as Wake on LAN are powered off and do not function.

Sure Start

 BIOS Integrity checking – Sure Start protection ensures that only trusted BIOS code is executed and not rootkits,

viruses and malware. Verification is done upon boot up, shutdown and while on.

 Sure Start is set by default to automatically repair the BIOS if corrupted or compromised but is policy driven for

better manageability.

 Protecting beyond BIOS – Integrity checking and repair is extended to other data that should be protected such as

network configuration parameters (network name), platform specific information (i.e. system IDs) and other code
the system needs to boot.

 Audit enabled – System Audit via Sure Start Event Logs capture data such as incident, repair date and time for

troubleshooting and investigating.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 12

Security

 HP ElitePOS Biometric Fingerprint Reader (optional)
 Bolt to counter mechanism
 VESA mounting
 HP ElitePOS Keyed Cable Lock
 HP BIOSphere with SureStart Gen 3
 Device Guard
 Credential Guard and password protection
 Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified)
 Drive lock
 USB enable/disable (via BIOS)
 Power-on password (via BIOS)
 Setup password (via BIOS)
 Tamper Resistant Screw affixed on stand of the system unit, used to secure display head to stand without Quick

Release

NOTE: BIOS supports configuration on ports for the ElitePOS Basic I/O Connectivity Base and ElitePOS Advanced I/O Connectivity
Base. The functionality is not supported with other products.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 13

SOFTWARE

HP Client Management Solutions (available for free download from hp.com/go/easydeploy)

HP BIOSphere with Sure Start Generation 3.0

HP Support Assistant

Device Guard

Credential Guard

GRAPHICS

Intel® HD Graphics (integrated)

Integrated Graphics

Intel Integrated HD Graphics 610 (Celeron, Model 141); Intel Integrated HD Graphics 620 (Core
i3, Model 143, Core i5, Model 145)

DisplayPort

Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and Multi­Stream Technology for a maximum of 3 displays (including the integrated panel)

Memory

The BIOS has options for selecting the dedicated memory size of 128MB, 256MB or 512MB

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory
Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphics Memory

Windows 10

>4 GB

Note: the actual amount of maximum graphics memory can be less than the amounts listed
above depending upon your computer’s configuration.

Maximum Color Depth

32 bits/pixel

Graphics/Video API Support

7th Generation Core™ processors:

 Next Generation Intel® Clear Video Technology HD Support is a collection of video

playback and enhancement features that improve the end user's viewing experience

o Encode/transcode HD content
o Playback of high definition content including Blu-ray Disc
o Superior image quality with sharper, more colorful images

 DirectX Video Acceleration (DXVA) support for accelerating video processing

o Full AVC/VC1/MPEG2/HEVC HW Decode

 Advanced Scheduler 2.0, 1.0
 Windows 10, Linux OS Support
 DirectX 12.1
 OpenGL 4.4
 Open CL 1.2 (Intel® HD Graphics 510)

 Open CL 1.2/2.0 (Intel® HD Graphics 530)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 14

Supported Display Resolutions and Refresh Rates

Note: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

640x480

60 Hz

800x600

60 Hz

1024x768

60 Hz

1280x720

60 Hz

1280x768

60 Hz

1360x768

60 Hz

1280x1024

60 Hz

1400x1050

60 Hz

1680x1050

60 Hz

1920x1080

60 Hz

1920x1200*

60 Hz

2048x1152*

60 Hz

2048x1280*

60 Hz

2048x1536*

60 Hz

2304x1440*

60 Hz

2560x1440*

60 Hz

3840x2160**

30 Hz

2560x1600*

60 Hz

2880x1800*

60 Hz

3200x2400*

60 Hz

4096x2160*

60 Hz

4096x2304*

60 Hz

* Only supported on displays connected to the external DisplayPort connector.
** 3840x2160 is not supported for Celeron series processors

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 15

MEMORY

Type

DDR4-2400 Memory DIMMs, Transfer rates up to 2400 MT/s

Maximum

32 GB

# of Slots

2 SODIMM

Memory Upgrades

Both slots are customer accessible / upgradeable.

 4 GB (4 GB x 1)
 8 GB (4 GB x 2)
 8 GB (8 GB x 1)
 16 GB (8 GB x 2)
 16 GB (16 GB x 1)
 32 GB (16 GB x 2)

System Memory Support

The HP ElitePOS G1 Retail System supports DDR4 protocols with two independent, 64-bit wide channels each accessing
one or two SoDIMMs.

 Two channels of non-ECC DDR4 unbuffered small outline dual in-line memory modules (SO-DIMM) with a

maximum of one DIMMs per channel

 Single-channel and dual-channel memory organization modes
 Data burst length of eight for all memory organization modes
 Memory data transfer rates of up to 2400 MT/s; actual supported data transfer rate determined by the

configured processor.

 64-bit wide channels
 DDR4 system memory I/O voltage of 1.2V
 Theoretical maximum memory bandwidth of:
 21.3 GB/s in dual-channel mode assuming 1333 MT/s
 25.6 GB/s in dual-channel mode assuming 1600 MT/s
 34.0 GB/s in dual-channel mode assuming 2133 MT/s
 38.4 GB/s in dual-channel mode assuming 2400 MT/s

Key Benefits of DDR4 Memory:

 Dual channel configuration – HP ElitePOS features motherboards designed with two memory channels instead

of a single channel.

 Reduce system latencies and significantly improve your system performance with dual channel memory

configurations by utilizing the theoretical bandwidth of two memory modules instead of one.

 Expect fast start-up times with reduced delays during routine operations and system maintenance functions.

Meet everyday workloads head on, and run more programs simultaneously. Easily toggle back and forth
between several open applications with noticeable speed.

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be
available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

Memory modules support data transfer rates up to 2400 MT/s; actual data rate is determined by the system's configured
processor. See processor specifications for supported memory data rate.
CAUTION: You must shut down the Retail System and disconnect the power cord before adding or removing memory
modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the Retail
System is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 16

HARD DISK AND SOLID STATE STORAGE

Drive Bays

1 (one) M.2 SSD Bays

 SATA
 PCIe (NVME)

M.2 Storage:

M.2 SATA

128GB M2 SATA-3 TLC
256GB M2 SATA-3 TLC SSD
512GB M2 SATA-3 TLC SSD

512GB Turbo Drive G2 MLC SSD

NVMe

128GB TLC 6000p SSD
256GB PCIe NVMe TLC SSD
256GB TLC Pro 6000p SSD
512GB PCIe NVMe TLC SSD
512GB TLC Pro 6000p SSD
1TB PCIe-3x4 NVMe TLC SSD

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Standard and Configurable Components

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 17

OPERATOR DISPLAY

14" Diagonal Wide-Aspect Operator Value Display (Model 141), Anti-Glare WLED SVA

Touch Technology

Projected Capacitive Touchscreen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Color

262K

Brightness

Typical 300 nits (LCM)*

Contrast Ratio

Typical 300:1*

Pixel Pitch

160.86 um x 160.86 um

Viewing Angle

Horizontal 900, Vertical 650

Response rate

10ms (Typical On/Off)

Backlight

LED

Operating Temperature range

0 to 600C (+ 600C as panel surface temperature)

14" Diagonal Wide Aspect Projective Capacitive Operator Display (Models 143 & 145), Anti-Glare WLED UWVA

Touch Technology

Projected Capacitive Touchscreen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Color

262K

Brightness

Typical 500 nits (LCM)*

Contrast Ratio

Typical 800:1

Pixel Pitch

161um x 161 um

Viewing Angle

Horizontal 1780, Vertical 1780

Response rate

25ms (Typical On / Off)

Backlight

LED

Operating Temperature range

0 to 600C (+ 600C as panel surface temperature)

*NOTE: Nits is the measure of the typical brightness of the panel as specified, prior to anti-glare coating

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications - Audio

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 18

High Definition Audio*

ElitePOS System Audio (Realtek ALC3228)

Type

Integrated

HD Stereo Codec

ALC3228 High Definition Audio Codec

Internal Speaker Amplifier

1W amplifier for the internal speaker only.

Sampling

All DACs support 44.1k/48k/96k/192kHz sample rate
All ADCs support 44.1k/48k/96k/192kHz sample rate
S/PDIF-OUT support 16/20/24-bit format and 32/44.1/48/88.2/96/192kHz rate

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

Internal Speaker

Yes

Advanced & Basic I/O Base (Realtek ALC4040)

Type

USB

Audio Codec

ALC4040 Audio Codec with USB to I2S audio controller and hardware active
noise cancellation

Audio I/O Ports

1 headphone-out/microphone-in combo

Sampling

One I2S/PCM/TDM digital interface supports sample rates 8k, 16k, 32k, 44.1k,
48k, 96k, and 192kHz
One stereo DAC supports up to 44.1, 48, and 192KHz Sample Rate, 16/24-bit
One stereo ADC Input supports 44.1, 48, and 96KHz Sample Rate, 16/24-bit

Analog Audio

Yes

# of Channels on Line-Out

2

External Speaker Jack

1

NOTE(Retail Advanced & Basic Hubs Only): Audio input ports are re-taskable as a Line-in or Microphone-in port. External
speakers must be powered externally. Multi-streaming can be enabled to allow independent audio streams to be sent
to/from the internal speakers and headphone/Line out jack. This allows for different audio applications to use separate
audio ports on the system. For example, the Headphone jack could be used with a headphone for a communications
application while the internal speakers for a multimedia application.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 19

Introduction:

HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance by providing the technologies to meet
your increasing storage demands with high-capacity drives offering superior reliability and performance.
SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in
future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the
Platform, enabling easy aggregation of multiple hard drives into a single Retail Point of Sale system. This offers you the additional
benefits of dedicated bandwidth, the ability to more easily identify device failures and scalability. The HP ElitePOS Retail System
supports the latest SATA 6.0Gb/s specification.

HP Drive Lock

Implementation of the industry standard ATA Security feature set. When enabled, it prevents software access to user data on the
drive until one or two user-defined passwords are provided.

SMART IV Technology

Self-Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health
and to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive
technology enables the intelligent manageability or management software to generate a fault alert. While the current versions of
SMART hard drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and
quality has promoted HP to implement SMART IV technology which constantly checks that the data flow from host interface to
media and media to host interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte
block in the data path of the hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard
drives, allows for more complete error detection coverage encompassing the entire data path between the host and the hard
drive.

Smart IV is also known as IOEDC: I/O Error Detection Code.

Native Command Queuing

NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands
outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next
command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best
overall throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory
Access (FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding
commands, without involving the host processor. NCQ can contribute to better performance but the results are dependent on
many factors, including the access patterns of the various applications and operating system functions that are initiating drive
accesses. Enabling NCQ features in the hard drive requires AHCI support from the host system BIOS, controller, and driver.

Note: GB = 1 billion bytes. Actual available capacity is less.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 20

Intel 128GB Three Layer Cell 6000p Solid State Drive

Unformatted Capacity

128 GB

Architecture

3D Tri-Level Cell (TLC) NAND

Interface

PCIe NVMe 3.0 x4

Form Factor

M.2 (80mm)

Height

Up to 1.5mm

Width

22mm

Length

80mm

Weight

Up to 40 g

Bandwidth Performance

Sustained Sequential
Read:

Up to 770 MB/s

Sustained Sequential
Write:

Up to 450 MB/s

Random Read

Up to 40k IOPS

Random Write

Up to 35k IOPS

Useful Drive Life

72TB written, up to 40GB/day for 5 years

Power

Power consumption:

Active: 200mW Typical Idle: 50mW Typical L1.2 Sleep 5mW Typical

Mean Time Between Failure
(MTBF)

1,600,000 Hours

Environmental
(all conditions, non-condensing)

Operating
Temperature:

32° to 158° F (0° to 70° C)

Vibrating – Operating

2.17 GRMS (5-700Hz) Max

Vibrating – Non­Operating

3.13 GRMS (5-800Hz) Max

128GB Solid State M2 SATA-3 Three Layer Cell Drive

Drive Weight

0.019 lb (8.5 g)-0.022 lb (10 g)

Capacity

128 GB

Height

0.09 in (2.23 mm)- 0.14 in (3.58 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Bandwidth Performance

Maximum Sequential
Read:

500 ~ 540 MB/s

Maximum Sequential
Write:

130 ~ 450 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C)
[ambient temp]

Features

DIPM; TRIM; DEVSLP

Security Features

ATA Security

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 21

256GB M2 SATA-3 Three Layer Cell Solid State Drive

Drive Weight

0.022 lb (10 g)

Capacity

256 GB

Height

0.09 in (2.3 mm)- 0.14 in (3.58 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Bandwidth Performance

Maximum Sequential
Read:

515 ~ 540 MB/s

Maximum Sequential
Write:

260 ~ 450 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

Security Features

ATA Security

256GB PCIe NVMe Three Layer Cell Solid State Drive

Unformatted Capacity

256 GB

Architecture

Solid State Drive with TLC NAND Flash and PCIE interface.

Complies with NVMe Standard

Power Saving Modes: L1 substates support

Multi Queue support

Interface

PCI-E Gen3 x 4

Form Factor

M.2 2280

Height

3.73 mm

Width

22.00 ± 0.15 mm

Length

80.00 ± 0.15 mm

Weight

Up to 8 g

Bandwidth Performance

Sustained Sequential
Read:

Up to 2600 MB/s

Sustained Sequential
Write:

Up to 1000 MB/s

Power

Power consumption:

Active: Typical 6.1W;
Idle: Typical 80mW
L1.2: Typical 5mW

Mean Time Between Failure

(MTBF)

1,500,000 hours

Environmental
(all conditions, non-condensing)

Operating
Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Shock:

1,500 G/0.5 ms

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 22

Intel 256GB Three Layer Cell Pro 6000p Solid State Drive

Unformatted Capacity

256GB*

Architecture

3D Tri-Level Cell (TLC) NAND

Interface

PCIe NVMe 3.0 x4

Form Factor

M.2 22 x 80mm

Height

Up to 1.5mm

Width

22mm

Length

80mm

Weight

Up to 40 g

Bandwidth Performance

Sustained Sequential Read:

Up to 1570 MB/s

Sustained Sequential Write:

Up to 540 MB/s

Random Read:

Up to 80K IOPs

Random Write:

Up to 70K IOPs

Power

Total power consumption:

200mW (active); 50mW (idle)

Mean Time Between Failure (MTBF)

1,600,000 Hours

Useful Drive Life

144TB written, up to 80GB/day for 5 years

Environmental
(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Vibrating - Operating:

2.17 GRMS (5-700Hz) Max

Vibrating – Non-Operating

3.13 GRMS (5-800Hz) Max

* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 36 GB (for Windows 8.1/10) of system disk is reserved for the system recovery software.

512GB M2 SATA-3 Three Layer Cell Solid State Drive

Drive Weight

0.019 lb (8.5 g)- 0.02 lb (10 g)

Capacity

512 GB

Height

0.09 in (2.3 mm)- 0.14 in (3.58 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Bandwidth Performance

Maximum Sequential
Read:

500 ~ 540 MB/s

Maximum Sequential
Write:

440 ~ 515 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, DIPM; TRIM; DEVSLP

512GB PCIe NVMe Three Layer Cell Solid State Drive

Unformatted Capacity

512 GB

Architecture

Solid State Drive with TLC NAND Flash and PCIE interface.

Complies with NVMe Standard

Power Saving Modes: L1 substates support

Multi Queue support

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 23

Interface

PCI-E Gen3 x 4

Form Factor

M.2 2280

Height

3.73 mm

Width

22.00 ± 0.15 mm

Length

80.00 ± 0.15 mm

Weight

Up to 8 g

Bandwidth Performance

Sustained Sequential
Read:

Up to 2600 MB/s

Sustained Sequential
Write:

Up to 1200 MB/s

Power

Power consumption:

Active: Typical 6.1W;
Idle: Typical 80mW
L1.2: Typical 5mW

Mean Time Between Failure
(MTBF)

1,500,000 hours

Environmental
(all conditions, non-condensing)

Operating
Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Shock:

1,500 G/0.5 ms

512GB Turbo Drive G2 Multi-Layer Cell Solid State Drive

Drive Weight

0.02 lb (10g)

Capacity

512 GB

Height

0.09 in (2.3 mm) ~ 0.14 in (3.65 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Bandwidth Performance

Maximum Sequential
Read (128KB):

2,260 ~ 3,000 MB/s

Maximum Sequential
Write (128KB):

1,500 ~ 1,600 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security (Option); TRIM; L1.2

Intel 512GB Three Layer Cell Pro 6000p Solid State Drive

Unformatted Capacity

512 GB

Architecture

3D Tri-Level Cell (TLC) NAND

Interface

PCIe NVMe 3.0 x4

Form Factor

M.2 2280

Height

Up to 1.5mm

Width

.22mm

Length

80mm

Weight (typical)

Up to 10 g

Bandwidth Performance

Sustained Sequential Read:

Up to 1775 MB/s

Sustained Sequential Write:

Up to 560 MB/s

Random Read:

Up to 100k IOPS

Random Write:

Up to 90k IOPS

Power

Total power consumption:

200mW (active); 50mW (idle)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Storage

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 24

Mean Time Between Failure
(MTBF)

1,600,000 Hours

Useful Drive Life

288 TBW Written, up to 160GB/day for 5 Years

Environmental
(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Vibrating - Operating:

2.17 GRMS (5-700Hz) Max

Vibrating – Non-Operating

3.13 GRMS (5-800Hz) Max

1TB PCIe-3x4 NVMe Three Layer Cell Solid State Drive

Drive Weight

0.02 lb (10 g)

Capacity

1024 GB

Height

0.09 in (2.3 mm) ~ 0.14 in (3.65 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Bandwidth Performance

Maximum Sequential
Read:

2,500 ~ 3,000 MB/s

Maximum Sequential
Write:

1,400~ 1,700 MB/s

Logical Blocks

2,000,409,264

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security (Option); TRIM; L1.2

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Networking and Communications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 25

Realtek RTL8153

Connector

RJ-45

System Interface

PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ

NIC Device Driver Name

PCIe GBE Ethernet Family Controller

Ethernet Features

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection

Power
Management

ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power consumption

Performance
Features

TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling

Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake­on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status

Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac
(2x2) WiFi and Bluetooth® 4.2 Combo
(non-vPro and vPro)

Wireless LAN Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac

Interoperability

Wi-Fi certified

Frequency Band

802.11b/g/n

 2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.

802.11a/n

 4.9 – 4.95 GHz (Japan)
 5.15 – 5.25 GHz

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Networking and Communications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 26

 5.25 – 5.35 GHz
 5.47 – 5.725 GHz
 5.825 – 5.850 GHz

Note: Indonesia no support this band)

Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15 (20MHz and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Modulation

Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Security1

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g

mode only

 AES-CCMP: 128 bit in hardware
 802.1x authentication
 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
 WPA2 certification
 IEEE 802.11i
 Cisco Certified Extensions, all versions through CCX4 and CCX Lite
 WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between band Access Points

Output Power2

 802.11b : +16dBm minimum
 802.11g : +14dBm minimum
 802.11a : +14dBm minimum
 802.11n HT20(2.4GHz) : +14dBm minimum
 802.11n HT40(2.4GHz) : +12dBm minimum
 802.11n HT20(5GHz) : +14dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

Power Consumption

Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 50 mW (WLAN unassociated)
Connect Standby: 10 mW (WLAN+BT)
Radio disabled: 5 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -88dBm maximum

802.11a, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Networking and Communications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 27

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Type 2230 : 2.8g
Or
Type 1630 : 2g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

Notes

1. Check latest software/driver release for updates on supported security
features.

2. Maximum output power may vary by country according to local
regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b
(CKK modulation) and apacket error rate of 10% for 802.11a/g (OFDM
modulation).

* Wireless access point and internet service required. Availability of public
wireless access points limited.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
(System Bluetooth Specifications)

Bluetooth Specification

4.0+EDR Compliant

Frequency Band

2402 to 2480 MHz

Number of Available
Channels

79 (1 MHz) available channels

Data Rates and Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric
or 1306.9 kbps symmetric

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of +4 dBm for BR and EDR.

Receiver Sensitivity

Modulation

0.01% BER

0.001% BER

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications – Networking and Communications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 28

GFSK

-80 dBm

-70 dBm

π/4-DQPSK

-80 dBm

-70 dBm
8DPSK

-80 dBm

-70 dBm

Power Consumption

Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW

Range

Up to 33 ft (10 m)

Electrical Interface

USB 2.0 compliant

Bluetooth Software
Supported

Link Topology

Microsoft Windows Bluetooth Software

Electrical Interface

Bluetooth Software
Supported Security

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Power Management
Power Management
Certifications

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff

Security

All necessary regulatory approvals for supported countries, including:

Certifications
Bluetooth Profiles
Supported

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management
Certifications

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

Certifications
Bluetooth Profiles
Supported

UL, CSA, and CE Mark

Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2

FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)

Realtek 802.11b/g/n (1x1) WiFi and Bluetooth® 4.0 Combo

Wireless LAN Standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Interoperability

Wi-Fi certified

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 29

Frequency Band

802.11b/g/n

 2.402 – 2.482 GHz

Note: The FCC has declared as of September 1, 2014 products that utilize passive scanning on
channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247
or otherwise disable those channels.

Data Rates

 802.11b: 1, 2, 5.5, 11 Mbps
 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

 802.11n: MCS 0 ~ MCS 07, (20MHz)

Modulation

Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,

Security1

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
 AES-CCMP: 128 bit in hardware
 802.1x authentication
 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
 WPA2 certification
 IEEE 802.11i
 Cisco Certified Extensions, all versions through CCX4 and CCX Lite

 WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

802.11b : +16dBm minimum

802.11g : +14dBm minimum

802.11n HT20(2.4GHz) : +13dBm minimum

802.11n HT40(2.4GHz) : +13dBm minimum

802.11n HT20(5GHz) : +12dBm minimum

802.11n HT40(5GHz) : +12dBm minimum

Power Consumption

Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW

Power Management

ACPI and PCI Express compliant power management 802.11 compliant power saving mode

Receiver Sensitivity3

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded antennas for 2.4GHz are provided to the card to support WLAN and Bluetooth
communications. (Support Dual antenna or Single antenna, depend on platform requirement)

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Type 2230 : 2.8g
Or
Type 1630 : 2g

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 30

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10%

for 802.11a/g (OFDM modulation).

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 31

POWER

Power Supply

120W for Basic Retail I/O connectivity Base, 180W for Advanced Retail I/O connectivity Base, 65W for
Display Head Unit Only

120W, 88% efficient, active PFC (external), 180W, 89% efficient, active PFC (external), 65W, 89%
efficient at 20V, active PFC (external)

Operating Voltage Range

90V~264VAC

Rated Voltage Range

100V~240AC

Rated Line Frequency

50~60HZ

Operating Line Frequency
Range

47~63HZ

Rated Input Current

<2.2A/120W, <2.52A/180W, 1.7A/65W

Power Supply Fan

N/A

ENERGY STAR® Compliant

ENERGY STAR® certified and EPEAT® registered configurations available

Power Cord Length

2 I/O Base Cable Options:
(1) 45cm – when I/O Base is attached to Stand
(2) 1.8m – when I/O Base is detached or display head only

Current Leakage (NFPA99)

Less than 300 microamps of leakage current at 120 Vac with the ground wire disconnected, as
required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that
contact patients in normal use. Per section 10.3.5.1 of “National Fire Protection Association
standard” NFPA99 2012 edition.

Less than 100 microamps of leakage current at 120 Vac with the ground wire intact with normal
polarity, as required for Non-patient Electrical Appliances and Equipment used in a patient care
facility or that contact patients in normal use. Per section 10.3.5.1 of “National Fire Protection
Association standard” NFPA99 2012 edition.

NOTE: This power supply meets ENERGY STAR® compliance in conjunction with a select range of
processors and modules.

WEIGHTS & DIMENSIONS

NOTE: Weight and dimensions below do not include MSR, Biometric Reader, Webcam, or CFD.

Head unit (no MSR)

Product Dimensions

336.2mm (L) X 216.4mm (D) X 17.6mm (H) , 13.2in x 8.5in x .7in

Dimension Note

Without stand

Rotate / tilt stand & fixed position
stand/Column Printer

Product Dimensions

96(L) x 96(D) x 220(H) mm / 260 (H) mm, 3.8in (L) x 3.8in (D) x 8.7in (H) /

10.2in (H)

Dimension Note

Fixed Position Stand & Rotate Tilt Stand w/ Integrated Column Printer

Retail I/O connectivity Base

Product Dimensions

284 (L) x 162(D) x 29.2(H) mm, 11.2in (L) x 6.4in (D) x 1.1in (H)

Dimension Note

Connectivity Base Only

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 32

Display Head Unit with collar

Weight

1.4 kg / 3.1 lbs

Weight Note

Starting weight without stand. Exact weight depends on configuration.

Rotate / Tilt Stand

Weight

1.3 kg / 3.0 lbs

Weight Note

Weight of Rotate/Tilt Stand only

Fixed Position Stand

Weight

1.1 kg / 2.4 lbs

Weight Note

Weight of Fixed Position Stand only

Retail I/O Connectivity Base

Weight

.6 kg / 1.3 lbs

Weight Note

Weight of Connectivity Base only

Packaging Carton (Display Head & Hub Only)

Packaging Dimensions

552mm (L) X 165mm (D) X 318mm (H) , 21.7in x 6.5in x 12.5in

Packaging Carton (Display Head, Stand & Hub)

Packaging Dimensions

495mm (L) X 295mm (D) X 453mm (H) , 19.5in x 11.6in x 17.8in

Bundled Packaging

Weight

11.8 kg / 26 lbs

Weight Note

Weight of Bundled Packaging only

Display Head Only Packaging

Weight

4.3 kg / 9.3 lbs

Weight Note

Weight of Display Head Packaging only

Standard Packaging

Weight

7.2 kg / 15.9 lbs

Weight Note

Weight of Standard Packaging only

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 33

MISCELLANEOUS FEATURES

Management Features

 Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.
 Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or

powered-off state without affecting other elements of the system.

 Intel® Wired for Management support; industry wide initiative to make Intel® architecture based PCs, servers and mobile

computers more inherently manageable out-of-the-box and over the network

 Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button

HP Point of Sale Diagnostics UEFI:

 This utility enables hardware level testing outside the operating system on many components. The diagnostics can be

invoked by pressing F2 at POST, and is available as a download from HP Support

Serviceability Features:

 System/Emergency ROM
 Flash ROM
 Flash Recovery with Video Configuration Record Software
 Over-Temp Warning on Screen (Requires IM Agents)
 Clear Password Jumper
 Clear CMOS Button
 Color coordinated cables and connectors
 Front power switch
 System memory can be upgraded without removing the system board or any internal components

Interpreting System Validation Diagnostic Front Panel LEDs and Audible Codes

During the system validation phase that occurs at system startup, the BIOS validates the functionality of the
following subsystems and conditions:

 AC adapter
 System board power
 Processor failure
 BIOS corruption
 Memory failure
 Graphics failure
 System board failure
 BIOS authentication failure

If an error is detected, specific patterns of long and short blinks, accompanied by long and short beeps (where
applicable) are used to identify the error. These patterns will make up a two part code:

 Major – the category of the error
 Minor – the specific error within the category

Number of long beeps/blinks

Error category

1

Not used

2

BIOS

NOTE: Single beep/blink codes are not used.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 34

3

Hardware

4

Thermal

5

System board

Patterns of blink/beep codes are determined by using the following parameters:

 1 second pause occurs after the last major blink.
 2 second pause occurs after the last minor blink.
 Beep error code sequences occur for the first 5 iterations of the pattern and then stop.
 Blink error code sequences continue until the computer is unplugged or the power button is pressed.

The red LED blinks to represent the major error category (long blinks). The white LED blinks to represent the minor
error category (short blinks). For example, ‘3.5’ indicates 3 long red blinks and 5 short white blinks to
communicate the processor is not detected.

Category

Major/minor code

Description

BIOS

2.2

The main area (DXE) of BIOS has become corrupted and there is no recovery
binary image available.

2.3

The embedded controller policy requires the user to enter a key sequence.

2.4

The embedded controller is checking or recovering the boot block.

Hardware

3.2

The embedded controller has timed out waiting for BIOS to return from
memory initialization.

3.3

The embedded controller has timed out waiting for BIOS to return from
graphics initialization.

3.4

The system board displays a power failure (crowbar).*

3.5

The processor is not detected.*

3.6

The processor does not support an enabled feature.

Thermal

4.2

A processor over temperature condition has been detected.*

4.3

An ambient temperature over temperature condition has been detected.

4.4

An MXM over temperature condition has been detected.

System board

5.2

The embedded controller cannot find valid firmware.

5.3

The embedded controller has timed out waiting for the BIOS.

5.4

The embedded controller has timed out waiting for BIOS to return from
system board initialization.

5.5

The embedded controller rebooted the system after a possible lockup
condition had been detected through the use of a System Health Timer,
Automated System Recovery Timer, or other mechanism.

* Indicates hardware triggered event; all other events are controlled by the BIOS.

Additional Features

Description

NOTE: Not all diagnostic lights and audible codes are available on all models.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 35

Drive Lock

Implementation of the industry standard ATA Security feature set. When enabled, it prevents software
access to user data on the drive until one or two user-defined passwords are provided.

DPS Access through F10 Setup during Boot

A diagnostic hard drive self-test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the user

Drive Protection System

Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced

The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain
types of failures

SMART Technology (Self­Monitoring, Analysis and
Reporting Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted

SMART I - Drive Failure
Prediction

Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count

SMART II - Off-Line Data
Collection

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure

SMART III - Off-Line Read
Scanning

IOEDC: I/O Error Detection Circuitry

Defect Reallocation

Detects errors in Read/Write buffers on HDD cache RAM

SMART IV - End-to-End
CRC for hard drives

Interface in F10 setup provides confirmation of SMART IV support.

TEMPERATURE, HUMIDITY, ALTITUDE

Temperature
Operating

50° to 104° F (10 to 40° C)

Non-operating

-22° to 149° F (-30°to 65° C)

Relative humidity

Operating

20 to 85%

Altitude
(unpressurized)

Operating

0 to 10,000 ft (3,048 m)

Non-operating

0 to 30,000 ft (9,144 m)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 36

ENVIRONMENTAL & INDUSTRY

Environmental Data

Eco-Label Certifications &
declarations

This product has received or is in the process of being certified to the following approvals and
may be labeled with one or more of these marks:

 IT ECO declaration
 US ENERGY STAR®
 EPEAT® Gold registered in the United States. See http://www.epeat.net for registration

status in your country.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the
ElitePOS model is based on a typically configured system featuring a hard disk drive, a high
efficiency power supply, and a Microsoft Windows® operating system.

HP ElitePOS G1 Model 141

Energy Consumption
(in accordance with US ENERGY
STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

12.58W

13.07W

12.65 W

Normal Operation (Long idle)

10.71 W

10.96W

10.79 W

Sleep

3.28 W

3.31W

3.26W

Off

1.15W

1.18 W

1.15 W

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

42.89 BTU/hr

44.59 BTU/hr

43.02 BTU/hr

Normal Operation (Long idle)

36.54 BTU/hr

37.39 BTU/hr

36.74 BTU/hr

Sleep

11.15 BTU/hr

11.29 BTU/hr

11.12 BTU/hr

Off

3.92 BTU/hr

3.99 BTU/hr

3.92 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour

Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

2.7

17

Fixed Disk – Random writes

2.7

17

NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within
the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the
applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for
computers. If a model family does not offer ENERGY STAR® compliant configurations, then
energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high
efficiency power supply, and a Microsoft Windows® operating system.

HP ElitePOS G1 Model 143/145

Energy Consumption
(in accordance with US ENERGY
STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

12.58W

13.07W

12.65 W

Normal Operation (Long idle)

10.71 W

10.96W

10.79 W

Sleep

3.28 W

3.31W

3.26W

Off

1.15W

1.18 W

1.15 W

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 37

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

42.89 BTU/hr

44.59 BTU/hr

43.02 BTU/hr

Normal Operation (Long idle)

36.54 BTU/hr

37.39 BTU/hr

36.74 BTU/hr

Sleep

11.15 BTU/hr

11.29 BTU/hr

11.12 BTU/hr

Off

3.92 BTU/hr

3.99 BTU/hr

3.92 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour

Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

2.7

17

Fixed Disk – Random writes

2.7

17

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 38

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:

 2 memory slots
 M.2 2230 slot for WLAN
 (1) M.2 2280 slot for SSD
 (4) USB Ports (2 – USB 2.0; 2 – USB 3.0) Plug in ports for 2 bases
 (3) USB Ports for Peripheral Integration around display head (Top, Left, Right)

Spare parts are available throughout the warranty period and or for up to “5” years after the end

of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell)
Battery type: Lithium

Additional Information

 This product is in compliance with the Restrictions of Hazardous Substances (RoHS)

directive - 2011/65/EC.

 This HP product is designed to comply with the Waste Electrical and Electronic

Equipment (WEEE) Directive – 2002/96/EC.

 This product is in compliance with California Proposition 65 (State of California; Safe

Drinking Water and Toxic Enforcement Act of 1986).

 This product is in compliance with the IEEE 1680 (EPEAT) standard at the <gold> level,

see www.epeat.net

 Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

 This product contains 25.4% post-consumer recycled plastic (by wt.)
 This product is 96% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Corrugated

1350 g

Internal:

PLASTIC/EPE (Expanded Polyethylene)

575 g

The EPE foam packaging material is made from 0% recycled content.

The corrugated paper packaging materials contains at least 25% recycled content.

Material Usage

This product does not contain any of the following substances in excess of regulatory limits
(refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

 Asbestos
 Certain Azo Colorants
 Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
 Cadmium
 Chlorinated Hydrocarbons
 Chlorinated Paraffins
 Formaldehyde
 Halogenated Diphenyl Methanes
 Lead carbonates and sulfates
 Lead and Lead compounds
 Mercuric Oxide Batteries

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 39

 Nickel – finishes must not be used on the external surface designed to be frequently

handled or carried by the user.

 Ozone Depleting Substances
 Polybrominated Biphenyls (PBBs)
 Polybrominated Biphenyl Ethers (PBBEs)
 Polybrominated Biphenyl Oxides (PBBOs)
 Polychlorinated Biphenyl (PCB)
 Polychlorinated Terphenyls (PCT)
 Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has

been voluntarily removed from most applications.

 Radioactive Substances

 Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

 Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in

packaging materials.

 Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
 Design packaging materials for ease of disassembly.
 Maximize the use of post-consumer recycled content materials in packaging materials.
 Use readily recyclable packaging materials such as paper and corrugated materials.
 Reduce size and weight of packages to improve transportation fuel efficiency.
 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and
Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your
nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information
for each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the HP Inc. web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

HP Inc. Corporate
Environmental Information

For more information about HP’s commitment to the environment

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

PC Product Design ISO 14001 certificate

and

HP Operations ISO 14001 certificate

SERVICE AND SUPPORT

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Technical Specifications

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 40

Ninety-day (90-90-90), one-year (1-1-1), and three-year (3-3-3) limited warranty delivers (ninety days/one year/three years) of
on-site, next business day2 service for parts and labor and complimentary limited technical support.3 Three-year onsite and labor
are not available in all countries. Service offers terms up to 5 years by choosing an optional HP Care Pack.1 To choose the right
level of service for your HP product, visit HP Care Pack Central: http://www.hp.com/go/cpc

NOTES:

1. Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be

offered in your region.

2. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider,

and is not available in certain countries. Global service response times are based on commercially reasonable best effort
and may vary by country.

3. Technical support applies only to HP-configured Compaq and third-party HP-qualified hardware and software. 24 x 7

support may not be available in some countries.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 41

HP ElitePOS Serial USB Thermal Printer

Models

HP ElitePOS Serial USB Thermal Printer

1RL96AA

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 42

General

Supported Character Sets Resident Code Pages:

437 (US)
720(Arabic)
737 (Greek)

775 (Lithuanian)
850(Multilingual)
852 (Slavic)
857(Turkish)
858 (with Eurosymbol)
860 (Portuguese)
862(Hebrew)
863 (French Canadian)
864 (Arabic)
865(Nordic)
866(Cyrillic)
874 (Thai)
932(Kanji)
936 (Simplified Chinese)
949 (Korean - Hangul)
950 (Traditional Chinese)
KZ_1048 (Kazakh)
1250(Latin)
1251(Cyrillic)
1252 (Windows Latin I)
1254
(Turkish)
1255
(Hebrew)
1256(Arabic)
1257(Baltic)
Katakana
28591 (ISO8859-1, Latin 1)
28592 (ISO8859-2, Latin 2)
28594 (ISO8859-4, Latin 4)
28596 (ISO8859-6, Latin/Arabic)
28599 (ISO8859-5, Latin 5/Turkish)
28605 (ISO8859-15, Latin 9)
Unicode UTF-8 encoding for listed code pages

Bar Codes 1D: UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Interleaved 2 of

5

Codabar, Code 128, Code 128, EAN 128, GS1 Databar

2D: Datamatrix, QR code, PDF 417

Print Method Direct Thermal
Printing Speed 114 mm/sec (33.75 LPS)
Resolution 203 DPI
Flash Memory 8 MB
RAM 8 MB
Knife Full and Partial cuts supported
Receipt-Columns 44/56

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 43

Paper Type Direct Thermal Monochrome POS Grade(s)

Paper Roll Size (W x D) 3.1 in. X 3.26 in. (80 mm X 83 mm)
Paper Thickness Range 2.3 – 3.2 mil

Cash Drawers

1 connector can drive 2 cash drawers with separately purchased splitter
cable (default configuration is connection to 1 cash drawer)

Mechanical

Dimensions (WxDxH)

4.4 in. X 5.2 in. X 4.06 in. (111.8 mm X 131.6 mm X 103 mm)

Weight

1.75lbs. (.793 kg) (printer only)

Color

Ebony black

Interface/Connection Interface

RS232 (9-Pin Female to 9-Pin Female NULL modem cable) or standard
USB 2.0 cable.

24V Cash Drawers support with RJ 12 interface

Power External Power Supply

48 w

Operating Voltage

24 V

Full Load Current

2 A w/active power management system

Idle Current

25mA

Idle Power

0.6 W

Temperature Range Operating

41°F to 95°F (5°C to 35°C) at 5% to 90% humidity

95°F to 122°F (35°C to 50°C) at 5% to 40% humidity

Non-operating

Transit range: -40°F to 140°F (-40°C to 60°C) 5% to 95% humidity
Storage range: 14°F to 122°F (35°C to 50°C) at 5% to 90% humidity

Drivers

Windows, OPOS, JPOS

Operating Systems Windows

 Windows 10 IoT Enterprise for Retail (64-bit)
 Windows 10 Pro (64-bit)

Linux

 Red Hat/CentOS 6 and 7 (32-bit and 64 bit)
 Suse Linux® Enterprise POS 11 and 12 (32-bit and 64-bit)
 Ubuntu 14.04 LTS (32-bit and 64-bit)

Reliability

MCBF Print Mechanism: 29-million lines
MCBF Knife Cuts: 1-million

Print Head Life: 100 km

Agency Certifications

Flammability: UL 94V-0

Safety: UL 60950-1 2nd edition 2014-10-14; UL 62382-1

CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
EN 60950-1:2006 + A1:2010+ A2:2013
IEC/EN 62382-1 2ND Edition
CB Report: IEC 60950-1:2005 + A1:2009 +A2:2013
GB4943.1-2011-China
IS 13252-1 (2010)/A1:2013/A2:2015

Radiated Emissions: FCC 47CFR, Part 15, Class B
ICES-003: 2012, Issue 6, Class B

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 44

EN 55032:2015 Class B
CISPR22 Class B
VCCI: V-3/2015.04 Class B
AS/NZS 3548

Immunity: EN55024: 2010
EN61000-4-2 Level 4 (8kV direct, 15kV air discharge)
EN61000-4-3: Level 3 (10V/m)
EN61000-4-6 Level 3 (10V rms)
EN61000-4-4: Level 3 (2kV mains, 1kV data lines)

RoHS, WEEE

Option kit contents HP ElitePOS Serial USB Thermal Printer, Starter paper roll

NOTE: This printer does not comply with fiscalization requirements that may be required in

certain countries.

Cable kits sold separately:
1RM02AA – HP ElitePOS USB + Pwr Adapter
1RM03AA – HP ElitePOS Serial + Pwr Adapter
BM477AA– HP ElitePOS PUSB Y Cable
1RM05AA – HP ElitePOS PUSB Pw only

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 45

HP ElitePOS 2D Barcode Scanner

Model

HP ElitePOS 2D Barcode Scanner

1RL97AA

General

Scanner Type

2D Imager

Light source

White LED

Read Rate

30 frames/seconds

Nominal working
distance

Depth of Field
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.

Typical Performance *

Narrow Width

Depth of Field

10 mil Code 39

27.94-330.2 mm (1.1-13.0”)

10 mil Code 128

27.94-330.2 mm (1.1-13.0”)

100% UPC-A

45.72-419.1 mm (1.8-16.5”)

10 mil Aztec

53.34-203.2 mm (2.1-8.0”)

6.7 mil PDF 417

45.72-182.88 mm (1.8 - 7.2”)

10 mil DM**

53.34-203.2 mm (2.1 – 8.0”)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 46

Symbol Contrast

* Performance may be impacted by bar code quality and environmental conditions
** Data Matrix (DM)

35% minimum reflectance difference

Roll (tilt)

± 360°

Pitch

± 60°

Skew

± 70°

1D decode symbologies

UPC/EAN (A)
UPC/EAN (E)
UPC/EAN/ ( 13)
UPC/EAN ( 8)
Code 39 (Regular)
Code 128
EAN 128
Code 93
GS1 Databar Omnidirectional
GS1 DataBar Stacked
GS1 DataBar Truncated
GS1 Databar Expanded
UPC/EAN/JAN (ISBN )
UPC/EAN/JAN (Bookland )
UPC/EAN/JAN ( ISSN)
ISSN - 2
EAN 13/P2 (with 2 digits Add-On)
EAN 13/P5 (with 5 digits Add-On)
Code 39 (including full ASCII)
Code39 CIP (French Pharmaceutical)
Code 39 (trioptic)
LOGMARS (Code 39 w/ standard check digit enabled)
Code 32 (Italian Pharmacode 39)
Interleaved 2 of 5
Standard 2of 5
Industrial 2 of 5
Code 11 (with two check digits)
Code 11 (with one check digit)
Codabar
MSI
PZN - code 39
GS1 DataBar Limited
Codablock F

2D decode symbologies

Datamatrix
QR Codes (QR, Micro QR and Multiple QR Codes)
PDF-417
Aztec
Maxicode
Micro PDF417
Datamatrix (2D inversed)
Chinese Sensible Code
GS1 DataBar Stacked Omni-directional
GS1 DataBar Expanded Stacked
Postal Codes
Australian

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 47

Japanese
Planet
Postnet
Royal Mail

Mechanical

Dimensions (L x W x H)

125 x 44 x 76.8 mm (4.92 x 1.73 x 3.02 in)

Weight

130 g (4.59 oz)

Cable length

2m

Color

Ebony Black

Interface/Connection

Cable

USB

Temperature

Operating

32°F to 122°F (0°C to 50°C)

While Charging
Storage/transport

32°F to 104°F (0°C to 40°C)

-40 to 158 °F (-40 to 70 °C)

Humidity (non­condensing)

0 to 95% relative humidity

Power

Idle Current

Standby/Idle (Typical):< 70mA

Input Voltage

5V, 500mA

Drivers

Windows USB COM, OPOS, and JPOS

Operating System

Compatible with:

Windows

Windows 10 IoT Enterprise for Retail (64-bit)
Windows 10 Pro (64-bit)

Linux

Red Hat/Cento 6 and 7 (32-bit and 64-bit)
Suse Linux® Enterprise POS 11 SP3 (32-bit and 64-bit)
Ubuntu 14.04 LTS (32-bit and 64-bit)

Agency Certifications

C-Tick, KCC, BSMI, VCCI, CSA, CE, FCC

Option Kit Contents

HP ElitePOS 2D Barcode Scanner with attached 6.5 ft (2M) USB cable, Scanner Stand.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 48

HP ElitePOS Fingerprint Reader
Models

HP ElitePOS Fingerprint Reader

1RL98AA

Model

HP ElitePOS Fingerprint Reader

1RL98AA

General

Scan Data

8-bit grayscale (256 levels of gray)

Pixel resolution

508 DPI

Scan capture area

18mm x 1280mm

Mechanical

Standalone Dimensions(LxWxH)

162 x 30 x 20.7 (mm) (6.38 x 1.18 x .81 in)

Attached Dimensions (LxWxH)

162x30 x29.2 (mm) (6.38 x 1.18 x 1.15 in)

Standalone Weight

79g (2.79 oz)

Attached Weight

116g (4.09 oz)

Color

Ebony Black

Interface/Connection

Interface

USB 2.0

Power

Supply Voltage

5.0V ±5% supplied by USB

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 49

Supply Current Imaging Mode

80 mA @ 3.3V

Supply Current Sleep Mode

1350 uA @ 3.3V

Environmental

Temperature

- 20 C to + 70 C

Humidity

5% to 93% RH w/o condensation

Drivers

Windows

Operating Systems

Compatibility

Windows

Windows 10 IoT Enterprise for Retail 64-bit*,***

Windows 10 Professional 64-bit*,***

Windows 8.1 Professional 64-bit**

Windows Industry 8.1 Pro Retail 64-bit**

Windows 7 Professional 64-bit**

Windows 7 Professional 32-bit**

Windows Embedded POSReady 7 64-bit**

Windows Embedded POSReady 7 32-bit**

Linux

Ubuntu 12.04

Ubuntu 13.04

Ubuntu 14.04

Reliability

Surface Coating

Scratch Resistant
Withstands more than 4 million rubs

Readability

More than 100,000 read/write cycle
More than 20 yrs data retention
Works well with dry, moist, or rough fingerprints

Security

Counterfeit Finger Rejection
Latent Print Rejection
Encryption Fingerprint Data

* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased
hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See

http://www.microsoft.com

** Not all features are available in all editions of Windows. This system may require upgraded and/or separately purchased hardware
to take full advantage of Windows functionality. See http://www.microsoft.com.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 50

*** Full support on all x86-based Windows, NO current support drivers for ARM processor platforms.

HP ElitePOS Top Mount 2x20 CFD

Models

HP ElitePOS Top Mount 2x20 CFD 1RL95AA

General

Display Type

TFT LCD

Resolution

480(W) x 3(RGB) x 64(H) Pixel Dots

Average Brightness

Display Mode

Alphanumeric: 20 digits x 2 lines

Character Dot Matrix

24x32 dots for 20 x 2

Dot Size (X *Y)

0.279 (W) x 0.281 (H) mm

Character Type

Alphanumeric and Compound (2-Bytes) Words

Character Size

9.0 (H) mm x 6.7 (W) mm

User Define Character

96 characters

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 51

Language

Compound (2-Bytes Words):

Arabic
Japanese
Korean
Persian
Simplified Chinese
Traditional Chinese
Alphanumeric:
Bosnian
Croatian
Czech
Danish
Dutch
English (US)
Estonian
Faroese
Finnish
Flemish
French
French Canadian
German
Greek
Hebrew
Hungarian
Icelandic
Indonesian
International English
Irish
Italian
Katakana
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
Slovak
Slovene
Spanish
Swedish
Turkish

Viewing Direction

12 O’clock : Customer application
6 O’clock: Gray scale inversion

Viewing Area

135.28 (W) * 19.0 (L)

Viewing Angle

θL Φ = 180˚ (9 o’clock) 70 degree
θR Φ = 0˚ (3 o’clock) 70 degree
θT Φ = 90˚ (12 o’clock) 50 degree
θB Φ = 270˚ (6 o’clock) 70 degree

Command Modes

ADM788, AEDEX, CD5520, DSP880, EMAX, Epson, LD540, Logic Control,
UTC/P / UTC/S

Mechanical

Product Dimensions

157.47 (W) x 34.47 (H) x 12.9 (D) mm (6.2 x 1.36 x .51 in) (metal bracket for
inserting to platform excluded)

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 52

Panel Dimensions

148.9 (W) x 29.1 (L) x 3.35 (H) (5.86 x 1.15 x .132 in)

Net Weight

Approx. 110 grams (3.88 oz)

Color

Ebony Black

Interface/Connection

Interface

USB

Baud Rate

Direct connection 9600

Power

Voltage (typical)

5VDC +/-10%

Current consumption
(typical)

400mA

Reliability

MTBF

30,000 hours

Operating Systems
(Compatible with)

Windows

Windows 10 IoT Enterprise for Retail (64-bit)*
Windows 10 Pro (64-bit)*

Linux

Red Hat/Cento 6 and 7 (32-bit and 64-bit)
Suse Linux® Enterprise POS 11 SP3 (32-bit and 64-bit)
Ubuntu 14.04 LTS (32-bit and 64-bit)

Drivers

Windows USB COM, OPOS, JPOS

Certifications

FCC, CE, VCCI, RCM, KCC, ICE, CSA, EAC

Kit Contents

HP ElitePOS Top Mount 2x20 CFD, 2 screws

* Not all features are available in all editions or versions of Windows. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of
Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may
apply and additional requirements may apply over time for updates. See http://www.microsoft.com.

**Not all features are available in all editions or versions of Windows. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of
Windows functionality. See http://www.microsoft.com.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 53

HP ElitePOS Column Printer

Models

HP ElitePOS Column Printer

Configurable option only. Not available as after-market option.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 54

General

Supported Character Sets Resident Code Pages:

437 (US)
720 (Arabic)
737 (Greek)

775 (Lithuanian)
850(Multilingual)
852 (Slavic)
857 (Turkish)
858 (with Eurosymbol)
860 (Portuguese)
862 (Hebrew)
863 (French Canadian)
864 (Arabic)
865 (Nordic)
866 (Cyrillic)
874 (Thai)
932 (Kanji)
936 (Simplified Chinese)
949 (Korean - Hangul)
950 (Traditional Chinese)
KZ_1048 (Kazakh)
1250 (Latin)
1251 (Cyrillic)
1252 (Windows Latin

1)
1254
(Turkish)
1255
(Hebrew)
1256 (Arabic)
1257 (Baltic)
Katakana
28591 (ISO8859-1, Latin 1)
28592 (ISO8859-2, Latin 2)
28594 (ISO8859-4, Latin 4)
28596 (ISO8859-6, Latin/Arabic)
28599 (ISO8859-5, Latin 5/Turkish)
28605 (ISO8859-15, Latin 9)
Unicode UTF-8 encoding for listed code pages

Bar Codes 1D: UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Interleaved 2 of 5
Codabar, Code 128, Code 128, EAN 128, GS1 Databar

2D: Datamatrix, QR code, PDF 417

Print Method Direct Thermal
Printing Speed 114 mm/sec (33.75 LPS)
Resolution 203 DPI
Flash Memory 8 MB
RAM 8 MB
Knife Full and Partial cuts supported

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 55

Receipt-Columns 44/56

Paper Type Direct Thermal Monochrome POS Grade(s)

Paper Roll Size (W x D) 3.1 in. X 2 in. (80 mm X 51 mm)
Paper Thickness Range 2.3 – 3.2 mil

Cash Drawers

1 connector can drive 2 cash drawers with separately purchased splitter
cable (default configuration is connection to 1 cash drawer)

Mechanical

Dimensions (DxH)

3.78 in. (D) x 5.5 in. (H) (96 mm x 140 mm)

Color

Ebony black

Interface/Connection Interface

Standard USB 2.0 cable Type A to Type B mini
24V Cash Drawers support with RJ 12 interface

Power External Power Supply

48 w

Operating Voltage

24 V

Full Load Current

2 A w/ active power management system

Idle Current

25mA

Idle Power

0.6 W

Temperature Range Operating

41°F to 95°F (5°C to 35°C) at 5% to 90% humidity

95°F to 122°F (35°C to 50°C) at 5% to 40% humidity

Non-operating

Transit range: -40°F to 140°F (-40°C to 60°C) 5% to 95% humidity
Storage range: 14°F to 122°F (35°C to 50°C) at 5% to 90% humidity

Drivers

Windows, OPOS, JPOS

Operating Systems Windows

 Windows 10 IoT Enterprise for Retail (64-bit)
 Windows 10 Pro (64-bit)

Linux

 Red Hat/CentOS 6 and 7 (32-bit and 64 bit)
 Suse Linux® Enterprise POS 11 and 12 (32-bit and 64-bit)
 Ubuntu 14.04 LTS (32-bit and 64-bit)

Reliability

MCBF Print Mechanism: 29-million lines
MCBF Knife Cuts: 1-million

Print Head Life: 100 km

Agency Certifications

Flammability: UL 94V-0

Safety: UL 60950-1 2nd edition 2014-10-14; UL 62382-1

CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
EN 60950-1:2006 + A1:2010+ A2:2013
CB Report: IEC 60950-1:2005 + A1:2009 +A2:2013
IEC/EN 62382-1 2ND Edition

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 56

GB4943.1-2011-China
IS 13252-1 (2010)/A1:2013/A2:2015

Radiated Emissions: FCC 47CFR, Part 15, Class B
ICES-003: 2012, Issue 6, Class B

EN 55032:2015 Class B
CISPR32
VCCI: V-3 Class B ITE VCCI-CISPR32
AS/NZS 3548

Immunity: EN55024: 2010
EN61000-4-2 Level 4 (8kV direct, 15kV air discharge)
EN61000-4-3: Level 3 (10V/m)
EN61000-4-6 Level 3 (10V rms)
EN61000-4-4: Level 3 (2kV mains, 1kV data lines)

RoHS, WEEE

Option kit contents

Starter paper roll

NOTE: This printer does not comply with fiscalization requirements that may be required in certain
countries.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 57

HP ElitePOS MSR

Models

HP ElitePOS MSR

Configurable option only. Not available as after-market option.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

HP ElitePOS Peripherals

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 58

General

Magnetic stripe formats

ISO 7811, AAMVA

Type

Singe-head, bi-directional, 3-Track, encryption capable

Card thickness

0.015 to 0.045 in (0.38 to 1.14 mm)

Indicators

Bi-colored LED, beeper (requires system audio driver)

Mechanical

Slot width

0.045 in (1.14 mm)

Color

Ebony Black

Interface/Connection

Connection

Integrated directly into head unit.

Power

Voltage (typical)

5 VDC +/- 10%, 50mV ripple max

Current consumption (typical)

40mA max

Drivers

Windows native, OPOS, JPOS

Operating Systems

Compatibility

Windows

Windows 10 IoT Enterprise for Retail (64-bit)*,***
Windows 10 Pro (64-bit)*,***

Temperature Range

Operational

0° C to 55° C

Relative Humidity

90% (non-condensing)

Reliability

Operating Life

1,000,000 card swipes minimum

Agency Certifications

FCC, CE, USB-IF

Country of Origin

Taiwan

* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased
hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See

http://www.microsoft.com

** Not all features are available in all editions of Windows. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows functionality. See http://www.microsoft.com.
*** Full support on all x86-based Windows, NO current support drivers for ARM processor platforms.

**** The MSR designed into the ElitePOS terminal has an optional encryption functionality. HP has partnered with IDTECH Products
to perform key injection services remotley. For more information about their service, contact the IDTECH Product sales team at
[e-mail].

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 59

ElitePOS cable matrix with integrated column printer and basic I/O connectivity base

Cables

1.

Column printer power adapter cord

5.

I/O connectivity base mini USB Type-B to USB Type-A data
cable

2.

Column printer power cable

6.

I/O connectivity base USB Type-C cable

3.

Cash drawer cable (purchased separately with cash
drawer)

7.

I/O connectivity base 120 W power adapter cord

4.

Column printer cash drawer cable

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 60

ElitePOS cable matrix with integrated column printer and advanced I/O connectivity base

Cables

1.

I/O connectivity base 180 W power adapter cord

4.

Column printer 24 V PUSB power and data “Y” cable

2.

Cash drawer cable (purchased separately with cash
drawer)

5.

I/O connectivity base USB Type-C cable

3.

Column printer cash drawer cable

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 61

ElitePOS cable matrix without I/O connectivity base

Cables

1.

Power adapter cord

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 62

ElitePOS cable matrix with I/O connectivity base and without

printer

Cables

1.

Basic I/O connectivity base 120 W AC power adapter
cord

3.

Advanced I/O connectivity base 180 W AC power adapter cord

2.

I/O connectivity base USB Type-C cable

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 63

ElitePOS cable matrix with basic I/O connectivity base and standalone printer

Cables

1.

Printer power adapter cord

4.

Printer USB Type-A data cable

2.

Basic I/O connectivity base 120 W AC power adapter
cord

5.

Basic I/O connectivity base USB Type-C cable

3.

Printer serial data cable

IMPORTANT: Connect either the serial data cable (3) or the USB Type-A data cable (4) between the I/O connectivity base and the
printer. Do not connect both.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Cable Routing Configurations

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 64

ElitePOS cable matrix with advanced I/O connectivity base and standalone printer

Cables

1.

Printer 24 V PUSB power and data “Y” cable

4.

Printer serial data cable

2.

Advanced I/O connectivity base 180 W AC power
adapter cord

5.

Advanced I/O connectivity base USB Type-C cable

3.

Printer 24 V PUSB power cable

IMPORTANT: Connect either the 24 V PUSB power and data “Y” cable (1) or the 24 V PUSB power cable (3) and serial data cable
(4) between the I/O connectivity base and the printer. Do not connect both.

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

ElitePOS Accessories

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 65

Connectivity Bases

Part Number

HP ElitePOS Advanced I/O Connectivity Base*

1UN12AA

HP ElitePOS Basic I/O Connectivity Base

1UN11AA

Printers

HP ElitePOS Serial USB Thermal Printer

1RL96AA

HP Hybrid POS Printer with MICR

FK184AA

HP Hybrid POS Printer with MICR II

X3D36AA

HP Ethernet Network Receipt Printer

M2D54AA

HP PUSB Thermal Receipt Printer

FK224AA

HP Serial USB Thermal Receipt Printer

BM476AA

HP Value PUSB Receipt Printer

F7M67AA

HP Value Serial/USB Receipt Printer II

X3B46AA

Epson H2000 PUSB Printer

K3L29AA

Epson TMT88V PUSB Thermal Receipt Printer

E1Q93AA

Epson TMT88V Serial USB Thermal Receipt Printer

D9Z52AA

Integrated Peripherals

HP ElitePOS Fingerprint Reader

1RL98AA

HP ElitePOS Top Mount 2x20 CFD

1RL95AA

Customer Facing Displays and Display Options

HP ElitePOS 10.1in Touch Display*

1XD81AA

HP ElitePOS 10.1in Non-Touch Display*

1XD80AA

Pole Displays

HP Graphical POS Pole Display

QZ704AA

HP LCD Pole Display

F7A93AA

HP POS Pole Display

FK225AA

*Available November 2017

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

ElitePOS Accessories

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 66

Cable kits for stand alone printer

Part Number

HP ElitePOS Printer USB + Pwr Adpter

1RM02AA

HP ElitePOS Printer Serial + Pwr Adptr

1RM03AA

HP ElitePOS Printer PUSB Y Cable

BM477AA

HP ElitePOS Printer Serial + PUSB Pw only

1RM05AA

Graphics Video Adapters & Cables

HP Type-C to DisplayPort Adapter

N9K78AA

HP Type-C to HDMI Adapter

N9K77AA

HP Type-C to VGA Adapter (Slice)

N9K76AA

IO Devices, I/O Adapters

HP USB to Serial Port Adapter (Win7/8/10)

J7B60AA

HP USB Business Slim Keyboard

N3R87AA

HP USB 1000dpi Laser Mouse

QY778AA

HP USB Hardened Mouse

P1N77AA

HP USB Optical 2.9M Mouse

Z3Q64AA

HP POS Keyboard

FK221AA

HP POS Keyboard with MSR

FK218AA

HP PUSB Y Cable

BM477AA

Scanners

Part Number

HP ElitePOS 2D Barcode Scanner

1RL97AA

HP Linear Barcode Scanner II

Z1Z36AA

HP Imaging Barcode Scanner

BW868AA

HP Presentation Barcode Scanner

QY439AA

HP Wireless Barcode Scanner

E6P34AA

Cash Drawers

HP Flip Top Cash Drawer

BW867AA

HP Heavy Duty Cash Drawer

FK182AA

HP Standard Duty Cash Drawer

QT457AA

HP USB Standard Duty Cash Drawer

E8E45AA

HP Standard Duty Till Insert w/ Lockable Lid

QT458AA

HP Cable Pack for Dual HP Cash Drawers

QT538AA

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

Summary of Changes

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 67

Date of change:

Version History:

Description of change:

August 16, 2017

From v1 to v2

Changed

Format on sections

August 25, 2017

From v2 to v3
Added

Notes about the Mounting bracket, BIOS support and the MSR,
added Packaging Weights

Changed

Format on sections

September 22, 2017

From v3 to v4

Changed

Page 44: HP ElitePOS PUSB Y Cable part number to BM477AA.
Page 66: HP ElitePOS Printer PUSB Y Cable part number to
BM477AA

QuickSpecs

HP ElitePOS G1 14 inch Touch AiO Retail System

c05573243 — DA – 16012 Worldwide — Version 4 — September 22, 2017

Page 68

Copyright © 2014, 2017 HP Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows 7, Windows 8, and Windows 10 are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Intel®, Celeron®, Pentium® and CoreTM are registered trademarks or
trademarks of Intel Corporation in the U.S. and/or other countries. Linux is the registered trademark of Linus Torvalds in the U.S.
and other countries. Bluetooth® is a registered trademark of its proprietor and used by HP Inc. under license. ENERGY STAR® is a
registered trademark owned by the U.S. Environmental Protection Agency.

The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
