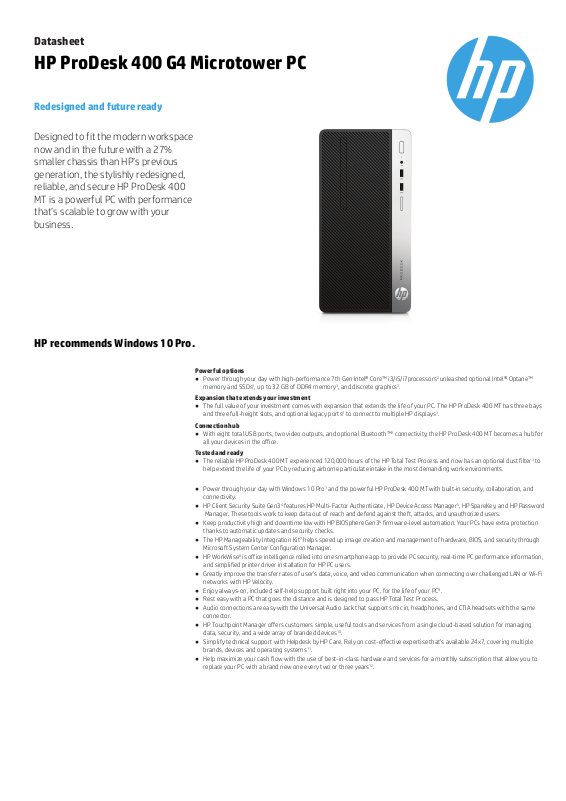

Datasheet
HP ProDesk 400 G4 Microtower PC
Redesigned and future ready
Designed to fit the modern workspace now and in the future with a 27% smaller chassis than HP’s previous generation, the stylishly redesigned, reliable, and secure HP ProDesk 400 MT is a powerful PC with performance that’s scalable to grow with your business.
HP recommends Windows 10 Pro.
Powerful options
Power through your day with high-performance 7th Gen Intel® Core™ i3/i5/i7processors2unleashed optional Intel® Optane™
memory and SSDs3, up to 32 GB of DDR4 memory3, and discrete graphics3.
Expansion that extends your investment
The full value of your investment comes with expansion that extends the life of your PC. The HP ProDesk 400 MT has three bays
and three full-height slots, and optional legacy ports3to connect to multiple HP displays3.
Connection hub
With eight total USB ports, two video outputs, and optional Bluetooth™3connectivity, the HP ProDesk 400 MT becomes a hub for
all your devices in the office.
Tested and ready
The reliable HP ProDesk 400 MT experienced 120,000 hours of the HP Total Test Process and now has an optional dust filter3to
help extend the life of your PC by reducing airborne particulate intake in the most demanding work environments.
Power through your day with Windows 10 Pro1and the powerful HP ProDesk 400 MT with built-in security, collaboration, and
connectivity. HP Client Security Suite Gen34features HP Multi-Factor Authenticate, HP Device Access Manager5, HP SpareKey, and HP Password
Manager. These tools work to keep data out of reach and defend against theft, attacks, and unauthorized users.
Keep productivity high and downtime low with HP BIOSphere Gen36firmware-level automation. Your PCs have extra protection
thanks to automatic updates and security checks. The HP Manageability Integration Kit7helps speed up image creation and management of hardware, BIOS, and security through
Microsoft System Center Configuration Manager. HP WorkWise8is office intelligence rolled into one smartphone app to provide PC security, real-time PC performance information,
and simplified printer driver installation for HP PC users. Greatly improve the transfer rates of user’s data, voice, and video communication when connecting over challenged LAN or Wi-Fi
networks with HP Velocity. Enjoy always-on, included self-help support built right into your PC, for the life of your PC9.
Rest easy with a PC that goes the distance and is designed to pass HP Total Test Process.
Audio connections are easy with the Universal Audio Jack that supports mic in, headphones, and CTIA headsets with the same
connector. HP Touchpoint Manager offers customers simple, useful tools and services from a single cloud-based solution for managing
data, security, and a wide array of branded devices10. Simplify technical support with Helpdesk by HP Care. Rely on cost-effective expertise that’s available 24x7, covering multiple
brands, devices and operating systems11. Help maximize your cash flow with the use of best-in-class hardware and services for a monthly subscription that allow you to
replace your PC with a brand new one every two or three years12.
Datasheet
HP ProDesk 400 G4 Microtower PC Specifications Table
Form Factor
Available Operating System
Available Processors
4,17
Chipset
Maximum Memory
Memory slots
Internal Storage
Available Graphics
Audio
Communications
Expansion Slots
Ports and Connectors
Internal Drive Bays
Input Device
Available Software
Security Management
Power
Dimensions
Weight
Energy Efficiency Compliance
Warranty
Microtower
Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 Windows 10 Home Single Language 64 Windows 7 Professional 64 (available throughdowngrade rights from Windows 10 Pro) FreeDOS 2.0
Intel® Core™ i7-7700 with Intel HD Graphics 630 (3.6 GHz, up to 4.2 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-7500 with Intel HD Graphics 630 (3.4 GHz, up to
3.8 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-7100 with Intel HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4560 with Intel HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores); Intel® Celeron™ G3930 with Intel HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores); Intel® Core™ i7-6700 with Intel HD Graphics 530 (3.4 GHz, up to
4.0 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-6500 with Intel HD Graphics 530 (3.2 GHz, up to 3.6 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-6100 with Intel HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4400 with Intel HD Graphics 510 (3.3 GHz, 3 MB cache, 2 cores); Intel® Celeron™ G3900 with Intel HD Graphics 510 (2.8 GHz, 2 MB cache, 2 cores)
Intel® H270
Up to 32 GB DDR4-2400 SDRAM Standard memory note: Transfer rates up to 2400 MT/s
2 DIMM
500 GB up to 2 TB 3.5" SATAHDD (7200 rpm) 128 GB up to 256 GB SATASSD
Integrated: Intel® HD Graphics 530; Intel® HD Graphics 630; Intel® HD Graphics 610 Discrete: NVIDIA® GeForce® GT 730 (2 GB DDR3 dedicated)
Conexant CX20632 codec with universal audio jack and 2W internal speaker, headset and headphone front ports (3.5 mm), multi-streaming capable
LAN: Realtek RTL8111 HSH GbE LOM network connection WLAN: Intel® 7265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™
Turbo Drive (M.2 PCIe); 1 M.2 2230 for wireless NIC; PCI Express x16 (v3.0)(wired as a x4) 4.2", full height 6.6" length, 35 W max power; PCI Express x16 (v3.0) 4.2" full height, 6.6" length, 75 W max power
Front: Universal audio jack with CTIA headset support; 2 USB 3.1 Gen 1; 1 SD 3 card reader (optional) Back: 1 audio out connector; 1 DisplayPort™; 1 VGA; 4 USB 2.0; 2 USB 3.1 Gen 1; 1 audio in connector; 1 RJ-45; 1 power connector
One 9 mm slim ODD; Secure digital (SD) 3 reader; One 3.5" or 2.5" HDD; One 3.5" HDD
HP USB Business Slim Keyboard; HP USB Grey Keyboard HP USB Mouse
HP business PCs are shipped with a variety of software titles including: HP BIOSphere Gen3, CyberLink Power Media Player, Native Miracast Support, HP ePrint Driver, HP Support Assistant. Please refer to this product's quick spec document for a full list of preinstalled software.
Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified); SATA 0,1 port disablement (via BIOS); Drive lock; Serial, USB enable/disable (via BIOS); Power-on password (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Integrated hood sensor
80 PLUS Bronze: 180 W, up to 85% efficient, active PFC; 80 PLUS Bronze:310 W, up to 85% efficient, active PFC
17 x 33.8 x 27.4 cm
5.47 kg
ENERGY STAR®certified and EPEAT® registered configurations available
1-year (1-1-1) limited warranty and service offering includes 1 year of parts, labor and on-site repair.Terms and conditions vary by country. Certain restrictions and exclusions apply.
1
12
1
6
7
HP recommends Windows 10 Pro.
1
3
7
9,10,11
8
12
13,14,15
16
Datasheet
HP ProDesk 400 G4 Microtower PC
Accessories and services (not included)
HP USB Slim Business Keyboard
HP USB 1000dpi Laser Mouse
HP 256GB Turbo Drive G2 PCIe SSD Drive
Get fast data entry and quick USB connectivity with the HP USB Business Slim Keyboard, designed to complement the 2015 class of HP Business PCs.
Product number: N3R87AA
Obtain the speed and accuracy of laser tracking in a simple, elegant design with the HP USB 1000dpi Laser Mouse – for the latest in laser sensing technology.
Product number: QY778AA
Reduce boot up, calculation, and graphics response times and revolutionize how your HP Business Desktop handles large files with the HP 256GB Turbo Drive G2 PCIe SSD Drive, a remarkably affordable and innovative storage solution.
Product number: T7W25AA
HP recommends Windows 10 Pro.
HP 3 year Next Business Day Onsite Hardware Support for Desktops
Receive 3 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the issue cannot be solved remotely.
Product number: U6578E
Datasheet
HP ProDesk 400 G4 Microtower PC
HP recommends Windows 10 Pro.
Messaging Footnotes
1
Not all features are availablein all editions or versions ofWindows. Systems may require upgradedand/or separately purchasedhardware, drivers, softwareor BIOS update to take fulladvantage of Windows functionality. Windows 10is automatically updated,
which is alwaysenabled. ISP fees may applyand additional requirements may apply overtime for updates. See http://www.windows.com.
2
Multi-Core isdesigned to improve performance ofcertain software products. Not allcustomers or software applications willnecessarily benefit from use ofthis technology. Performance and clockfrequency will vary depending on application workload and your
hardware andsoftware configurations. Intel’s numbering is nota measurement of higher performance.
3
Sold separatelyor as an optional feature.
4
HP Client Security SuiteGen3 requires Windows and Intel®7th Gen processors.
5
HP Multi Factor Authenticate requires7th Generation Intel® Core™ processor,Intel® integrated graphics, and Intel®WLAN.
6
HP BIOSphere Gen3features may vary depending on thePC platform and configurations.
7
HP Manageability IntegrationKit is planned to be availablefirst quarter 2017 and can bedownloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
8
HP WorkWise smartphoneapp will soon be available asa free download on the AppStore and Google Play.
9
Requires Windows andinternet access.
10
HP TouchpointManager requires purchase ofa subscription and supports Android™, iOSand Windows 7 or higher operating systemsand PCs, notebooks, tablets andsmartphones from various manufacturers. Notavailable in all countries see
www.hp.com/touchpoint foravailability information.
11
HP Care Servicesare optional. Service levels andresponse times for HP CarePack Services may vary depending on yourgeographic location. Service starts on dateof hardware purchase. Restrictionsand limitations apply. For details,visit www.hp.com/go/cpc. HP services aregoverned by the applicable HP termsand conditions of service providedor indicated to Customer at thetime of purchase. Customer mayhave additional statutory rights accordingto applicable local laws, and suchrights are not in any wayaffected by the HP termsand conditions of service or theHP Limited Warranty provided withyour HP Product.
12
Financing and service offeringsavailable through Hewlett-Packard Financial Services Companyand its subsidiaries and affiliates (collectively HPFSC) in certaincountries and is subject to creditapproval and execution ofstandard HPFSC documentation. Subscriptions to useare available for 24 or36 month terms. Rates and termsare based on customer’s credit rating,offering types, services and/orequipment type and options. Not allcustomers may qualify. Not all servicesor offers are available inall countries. Other restrictions mayapply. HPFSC reserves the right tochange or cancel this programat any time without notice.
Technical specifications disclaimers
1
Not all features are availablein all editions or versions ofWindows. Systems may require upgradedand/or separately purchasedhardware, drivers, softwareor BIOS update to take fulladvantage of Windows functionality. Windows 10is automatically updated,
which is alwaysenabled. ISP fees may applyand additional requirements may apply overtime for updates. See http://www.windows.com/.
2
Some devices foracademic use will automatically beupdated to Windows 10 Pro Educationwith the Windows 10 Anniversary update.Features vary; see https://aka.ms/ProEducationfor Windows 10 Pro Educationfeature information.
3
This system ispreinstalled with Windows 7 Prosoftware and also comes with alicense and media for Windows 10 Prosoftware. You mayonly use one version of the Windowssoftware at a time. Switchingbetween versions will require youto uninstall one
version and installthe other version. You mustback up all data (files,photos, etc.) before uninstallingand installing operating systems to avoidloss of your data.
4
Multicore isdesigned to improve performance ofcertain software products. Not allcustomers or software applications willnecessarily benefit from use ofthis technology. Performance and clockfrequency will vary depending on applicationworkload and your
hardware andsoftware configurations. Intel’s numbering is nota measurement of higher performance.
5
In accordancewith Microsoft’s support policy, HPdoes not support the Windows® 8 orWindows 7 operating system on productsconfigured with Intel® and AMD 7thgeneration and forward processorsor provide any Windows® 8 or Windows7 drivers on
http://www.support.hp.com
6
Due to the non-industrystandard nature of some third-partymemory modules, we recommend HP brandedmemory to ensure compatibility. If youmix memory speeds, the system willperform at the lower memory speed.
7
For storagedrives, GB = 1 billion bytes.TB = 1 trillion bytes. Actual formatted capacity is less.Up to 30 GB (for Windows10) is reserved for systemrecovery software.
8
Wireless cardsare optional or add-on featuresand requires separately purchasedwireless access pointand internet service. Availability of publicwireless access points limited.The specifications for the 802.11ac WLAN aredraft specifications and are notfinal. If
the final specifications differfrom the draft specifications, it mayaffect the ability of the notebookto communicate with other 802.11ac WLANdevices.
9
Intel® HD Graphics530: integrated on 6th gen Core™i7/i5/i3 processors
10
Intel® HD Graphics630: integrated on 7th gen Core™i7/i5/i3 processors and Pentium® G4620,4600, 4600T
11
Intel® HD Graphics610: integrated on Pentium® G4560, G4560T, Celeron™ G3950, G3930, G3930T
12
Sold separatelyor as an optional feature.
13
HP BIOSphere withSure Start available onlyon business PCs with HP BIOS. HPBIOSphere Gen 3 requires Intel®7th generation processors.
14
Miracast is awireless technology your PC canuse to project your screento TVs, projectors, and streamingmedia players that also support Miracast.You can use Miracast toshare what you’re doing onyour PC and present a slide show.For more information: http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.
15
HP ePrint Driver requires an Internet connectionto HP web-enabled printer andHP ePrint account registration (fora list of eligible printers,supported documents and image types and otherHP ePrint details, see www.hp.com/go/eprintcenter).Requires optional broadband module.Broadband use requires separatelypurchased service contract. Check with serviceprovider for coverage andavailability in your area. Separatelypurchased data plans or usagefees may apply. Print times andconnection speeds may vary.
16
EPEAT® registered where applicable.EPEAT registration variesby country. See www.epeat.net for registrationstatus by country.
17
NOTE: Your product does notsupport Windows 8 or Windows 7. Inaccordance with Microsoft’s support policy, HP does notsupport the Windows 8 or Windows 7 operatingsystem on products configuredwith Intel and AMD 7th generation andforward processors orprovide any Windows 8 or Windows 7drivers on http://www.support.hp.com.
Sign up for updates
www.hp.com/go/getupdated
Copyright © 2017 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel, Core, Pentium, Celeron and vPro are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. All Rights Reserved. All other trademarks are the property of their respective owners.
4AA6-9337EEE, May 2017
