OURA-SERIES
OPERATING
INSTRUCTIONS
www.heta.dk
www.heta.dk
GB
1
Congratulations on your new stove. We
are sure that you will be happy with your
investment, especially if you follow the
advice and instructions we have put
together in these operating instructions.
specifications and requirements intended to ensure that the materials used
are of good quality, that the stove does
not adversely affect the environment,
and hat it is economical to use.
The Oura series have been approved according to the EN 13240, NS
3058/3059 and 15a B-VG.
Approval means that consumers can
be sure, that the stove meets a range of
With your new stove you should have
received the following:
a. Operating instructions
b. A stove glove
INSTALLATION INSTRUCTIONS
Safety clearances
Stoves must always be installed in line
with national and, if applicable, local
regulations. It is important to abide by
local regulations regarding setting up
chimneys and connection to same.
Therefore, always consult your local
chimney sweep before installation, as
you are personally responsible for ensuring that the applicable regulations
have been met.
Distance regulations
A difference applies to installation
next to flammable and non-flammable
walls. If the wall is made of nonflammable material the stove can, in
principle, be placed flush against it.
However, we recommend leaving a
gap of at least 5 cm to facilitate cleaning behind the stove. The minimum
distances to flammable material are
stated on the boiler plate and are
listed in the table on page 6.
Warning
of 90 degrees) Take care
to ensure that children can
not come into contact with
it. Combustible materials should
not be stored in the compartment
below the ashpan.
A stove gets hot. (In excess
IMPORTANT
1. Make sure there is adequate provision to sweep the chimney.
2. Make sure there is adequate ventilation to the room.
3. Please note that any extraction
fans operating in the same room
as the wood-burning stove can
reduce the chimney draft – which
may have an adverse effect on
stove combustion properties. In
addition, this may cause smoke to
be emitted from the stove when
the firing door is opened.
4. It must not be possible to cover
any air vents.
The floor
It is essential to ensure that the floor
surface can actually bear the weight
of the stove and a top-mounted steel
chimney, if applicable. The stove must
stand on a nonflammable surface
such as a steel floor plate or a brick
or tile floor. The size of the nonflammable surface used to cover the floor
area must match national and local
regulations.
The chimney connection
The chimney opening must follow national and local regulations. However,
the area of the opening should never
be less than 175 cm2, which corresponds to a diameter of 150 mm. If a
2
damper is fitted in the flue gas pipe,
there must always be at least 20 cm2
of free passage, even when the damper is in its “closed” position. If local
regulations permit, two contained fireplaces can be connected to the same
chimney. However, you must abide by
local regulations regarding the distance between the two connections.
Wood-burning stoves must never
be connected to chimneys that are
also linked to a gasfired heater. An
efficient stove makes high demand on
chimney properties – so always have
your local chimney sweep evaluate
your chimney.
Connection to a brick chimney
Brick a thimble into the chimney and
seat the flue gas pipe in this. The
thimble and flue gas pipe must not
penetrate the chimney opening itself,
but must be flush with the inside of
the chimney duct. Joins between
brickwork, the thimble and flue gas
pipe must be sealed with fireproof
material and/or beading
Connection to a steel chimney
When fitting a connection from a topoutput stove directly to a steel chimney, we recommend fitting the chimney tube inside the flue gas spigot so
that any soot and condensation drops
into the stove itself rather than collecting on the exterior surface of the

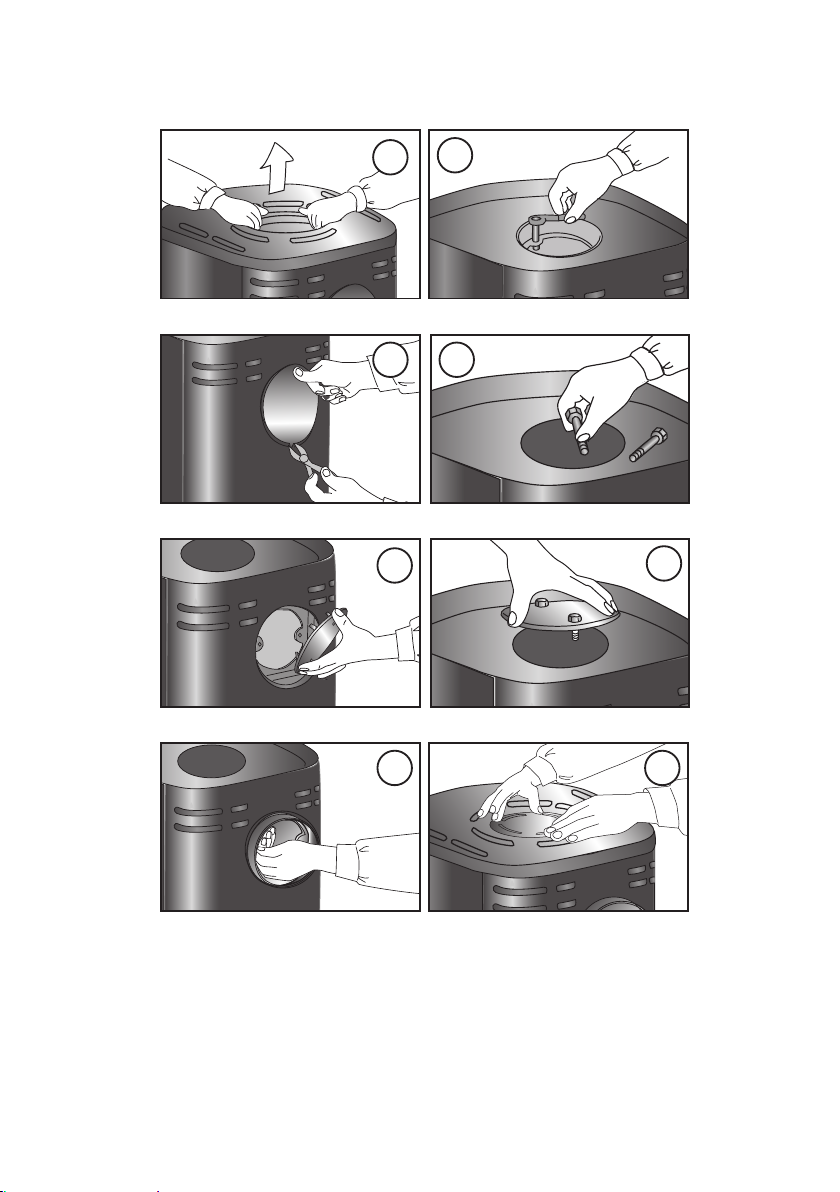

stove. Changing smoke outlet from
top-mounted to rear-mounted (see fig.
8-15 on page 10).
For connections to chimneys that are
run through ceilings, all national and
local regulations regarding distance to
flammable material must be followed.
It is important that the chimney is
fitted with roof support so that the top
panel of the stove is not required to
bear the entire weight of the chimney
(excessive weight may cause damage
on or noise from the stove).
Draft conditions
Poor draft may result in smoke being
emitted from the stove when the door
is opened. The minimum chimney
draft to ensure satisfactory combustion in stoves of this kind is 12 PA.
However, there will still be a risk of
smoke emission if the firing door is
opened during powerful firing. The flue
gas temperature at nominal output is
278°C when expelled to an exterior
temperature of 20°C. The flue gas
mass flow is 6.1 g/sec. The chimney
draft is generated by the difference
between the high temperature of the
chimney and the low temperature of
the fresh air. The length and insulation
of the chimney, wind and weather
conditions also have an effect on the
ability of the chimney to generate appropriate under-pressure.
If the stove has not been used in a
while, check that the chimney and
stove are not blocked with soot, bird
nests, etc., before using it.
Reduced draft can occur
when:
• The difference in temperature
is too small – due to insufficient
chimney insulation, for example.
• The outdoor temperature is too
high – in summer, for example.
• No wind is blowing.
• The chimney is too low and shel-
tered.
• The chimney contains false air.
• The chimney and flue gas pipe are
blocked.
• The house is too airtight (i.e. when
there is an insufficient supply of
fresh air).
• Poor smoke extraction (poor draft
conditions) due to a cold chimney
or bad weather conditions can be
compensated for by increasing
the airflow into the stove.
3
Good draft occurs when:
• The difference in temperature
between the chimney and outdoor
air is high.
• The weather is fine.
• The wind is blowing strongly.
• The chimney is of the correct
height: at least 4.00 m above the
stove and free of the roof ridge.
INSTRUCTIONS FOR USE
First firing
The stove has been treated with a
heat-resistant coating which hardens
at a temperature of approximately 250
ºC. This hardening process causes the
production of smoke and malodorous
fumes, so the room must be very well
ventilated. During the first firing, which
should be carried out using approximatly 1 kg. of wood, the stoking door
must be opened slightly every 10 minutes for the first two hours to prevent
the sealing rope sticking to the stove.
Fuel
Your new stove is EN approved for
firing with wood fuel. You must therefore only burn clean, dry wood in your
stove. Never use your stove to burn
drifwood, as this may contain a lot of
salt which can damage both the stove
and the chimney. Similarly, you must
not fire your stove with refuse, painted
wood, pressure-impregnated wood
or chipboard, as these materials can
emit poisonous fumes and smoke.
Correct firing using well seasoned
wood provides optimal heat output
and maximum economy. At the same
time, correct firing prevents environmen-tal damage in the form of smoke
and emmissions and also reduces
the risk of chimney fires. If the wood
is wet and inadequately seasoned, a
large proportion of the energy in the
fuel will be used to vaporise the water,
4
and this will all disappear up the chimney. Thus it is important to use dry,
well seasoned wood, i.e. wood with
a moisture content of no more than
20%. This is achieved by storing the
wood for 1–2 years before use. Pieces
of firewood with a diameter of more
than 10 cm should be split before
storing. The pieces of firewood should
be of an appropriate length (approx.
25 cm) so that they can lie flat on the
bed of embers. If you store your wood
outdoors, it is best to cover it.
Examples of recommended
woods types
and their typical specific gravity per
cubic meter stated as 100% wood
with a moisture content of 18%
Wood kg/m3Wood kg/m
Beech 710 Alder 540
Ash 700 Scotch
pine
Elm 690 Larch 520
Maple 660 Lime 510
Birch 620 Spruce 450
Mountain
pine
Willow 560
600 Poplar 450
It is advised not to use very oilcontaining woods like teak tree
and mahogany, as this can cause
damage to the glass.
3
520
Heating value in wood
You have to use about 2.4 kg normal
wood to replace one litre of heating
oil. All woods have almost the same
heating value per kg, which is about
5.27 kW/hour for absolute dry wood.
Wood with a moistness of 18% has a
efficiency of about 4.18 kW/hour per
kg, and one litre heating oil contains
about 10 kW/hour.
CO2 release
At combustion 1000 litres of heating
oil forms 3.171 tons CO2. As wood
is a CO2 neutral heat/ energy source,
you save the environment about 1.3
kg CO2 every time you have used 1 kg
normal wood.
Chimney fires
In the event of a chimney fire – which
often results from incorrect operation
or protracted firing with moist wood
– close the door and shut off the secondary/start-up air supply to smother
the fire. Call the fire department.
Airflow regulation
Use the handle at the front under the
door to adjust combustion airflow.
Combustion air flow is fully open when
the handle is furthest to the right (fig.
1). To reduce combustion air flow,
gradually slide the handle to the left
(fig 2.).
Fig. 1 Fig. 2
Open Closed
Lighting the stove
To light the stove, use firelighters,
paraffin firelighter bags or small
pieces of wood. Place over the grate.
Place larger logs over the fire-lighting
material, at right angles to the door.
Turn handle to top position for max.
Combustion- airflow. The stove door
should be slightly ajar (about 1 cm).
When the wood is well lit and the
chimney is hot (after about 10 minutes), close the stove door. When
lighting the stove from cold, we recommend that the combustion airflow
is at maximum until the first stack of
wood has burned out so that the stove
and chimney are heated through.
Adding fuel
A fresh supply of fuel should normally be added while there is still a
good layer of hot embers. Spread
the embers over the base grate,
most towards the front of the stove.
Lay a single layer of wood fuel corresponding to about 1.5 kg over the
embers, at right angles to the stove
door. Turn handle into top position
(max. Combustion- airflow). Keep
door ajar if necessary. (The door
should not be left open but fuel will
ignite more quickly while the door is
ajar.) The wood should ignite within a
very short time (usually 1-3 minutes).
If the door is ajar, close it as soon as
the fuel is ignited. When the flames
spread across the fuel stack, adjust
the combustion airflow to the required
level. Nominal operation 5.5 kW corresponds to 70% combustion airflow.
When adding fuel, make sure that the
fuel is not too tightly packed, as this
will lead to poorer combustion and
fuel inefficiency.
Never fill firewood over the stove’s
max. fill line. See fig. 3.
5
Fig. 3
Max. fill line
Reduced rate of combustion
The stove is suitable for intermittent
use. If you require a lower rate of heat
effect, fill the combustion chamber
with less wood. Allow lower combustion airflow. Do not forget that the
combustion airflow must never be
completely closed when lighting up.
It is important to maintain the layer of
embers. Low-effect heating is achieved when the wood is glowing, i.e.
there are no more flames because the
wood fuel has been transformed into
glowing charcoal.
Optimal combustion
For optimal combustion and heating,
this stove is designed to provide an
optimum mix of primary and secondary air (in these instructions, we
call this combustion air). The stove
provides excellent heating efficiency
and the window is easy to maintain as
the secondary air ‘flushes’ the surface
of the glass. Note that the stove will,
of course, blacken if the airflow is too
low. If there is too little oxygen, there
is a risk that the window, etc. will
Blacken due to the formation of soot
deposits. A combination of incorrect
combustion and damp wood fuel can
cause a heavy, sticky coat of soot
to form, which may cause the door
seal to tear off next time the door is
opened.
Risk of explosion
After you add new fuel, it
is very important that you do
not leave the stove unat
tended until the wood is burning
constantly. This will normally occur
within 30 to 60 seconds.
A risk of explosion can possibly arise if
too much wood is placed in the stove.
This may result in the production of
large volumes of gas, and this gas can
explode if the intake of primary and
secondary air is insufficient.
It is an advantage always to leave some
ash lying in the bottom of the combstion chamber.
Take care when emptying the ash
pan, as cinders can continue to burn
in the ash for long periods of time.
Stove data table in accordance with EN 13240 testing.
Stove
type
Scan-Line
series
Oura
with side
windows
The nominal output is the output to which the stove has been tested.
The test was carried out with the secondary air 70% open.
6
Nominal
uegas
temperature c°
278
Smoke
stub
mm
ø150
Fuel
volume
kg
1.8
Draught
min
mbar
0.12
Nominal
Heat
output
tested
kW
Distance to flammable
output
materials in mm
behind at the
%
the stove sides
Distance to
furnitures from
the stove in
mm
7.0 80 100 600 850
Stove
weight
kg
111
OPERATIONAL PROBLEMS
The chimney must be swept at least
once a year, we recommend the use
of a NACS (national association of
chimney sweeps) registered chimney sweep. In the event of smoke or
malodorous fumes being produced,
you must first check to see whether
the chimney is blocked. The chimney must, of course, always provide
the minimum draught necessary to
ensure that it is possible to regulate
the fire. Please note, however, that
chimney draft is dependent on the
weather conditions. In high winds, the
draft can become so powerful that it
may be necessary to fit a damper in
MAINTENANCE
The surface of the stove has been
trea-ted with heat-resistant paint.
The stove should be cleaned with a
damp cloth. Any damage to the surface in the form of chips or scratches
can be repaired using touch-up paint,
which is available in spray cans.
the flue gas pipe to regulate the draft.
When cleaning the chimney, soot and
other deposits may come to fall on the
smoke turning plate. In cases where
the wood burns too quickly, this may
be due to excessive chimney draught.
You should also check to make sure
that the door seal is intact and correctly fitting.
If the stove it generating too little heat,
this may be because you are firing
with wet wood. In this case, much of
the heating energy is used to dry the
wood, resulting in poor heating economics and an increased risk of soot
deposits in the chimney.
Cleaning the glass
Incorrect firing, for example using
wet wood, can result in the viewing
window becoming covered in soot.
This soot can be easily and effectively
removed by using proprietary stove
glass cleaner.
7
GUARANTEE
The model Scan-Line 800 stoves are
subjected to stringent quality control procedures both throughout the
produc-tion process and immediately
before delivery to the dealer. Therefore, the stoves are guaranteed against
defects in manufacturing
FOR FIVE YEARS.
This guarantee does not cover: Wearing parts/fragile parts such as:
• The fire-proof bricks in the combu
stion chamber.
• The smoke baffle
• The glass
• The sealing rope
• The grate frame
Damage resulting from incorrect use
Transport costs in connection with
repairs carried out under guarantee
Installation/disassembly in connection
with repairs carried out under guarantee. Should you have cause to make
a complaint, please quote our invoice
no.
Warning
Any unauthorised modification
of the stove and any use of
non-original spares will void
the guarantee.
The stove is
prepared for
a fresh air
intake.
8

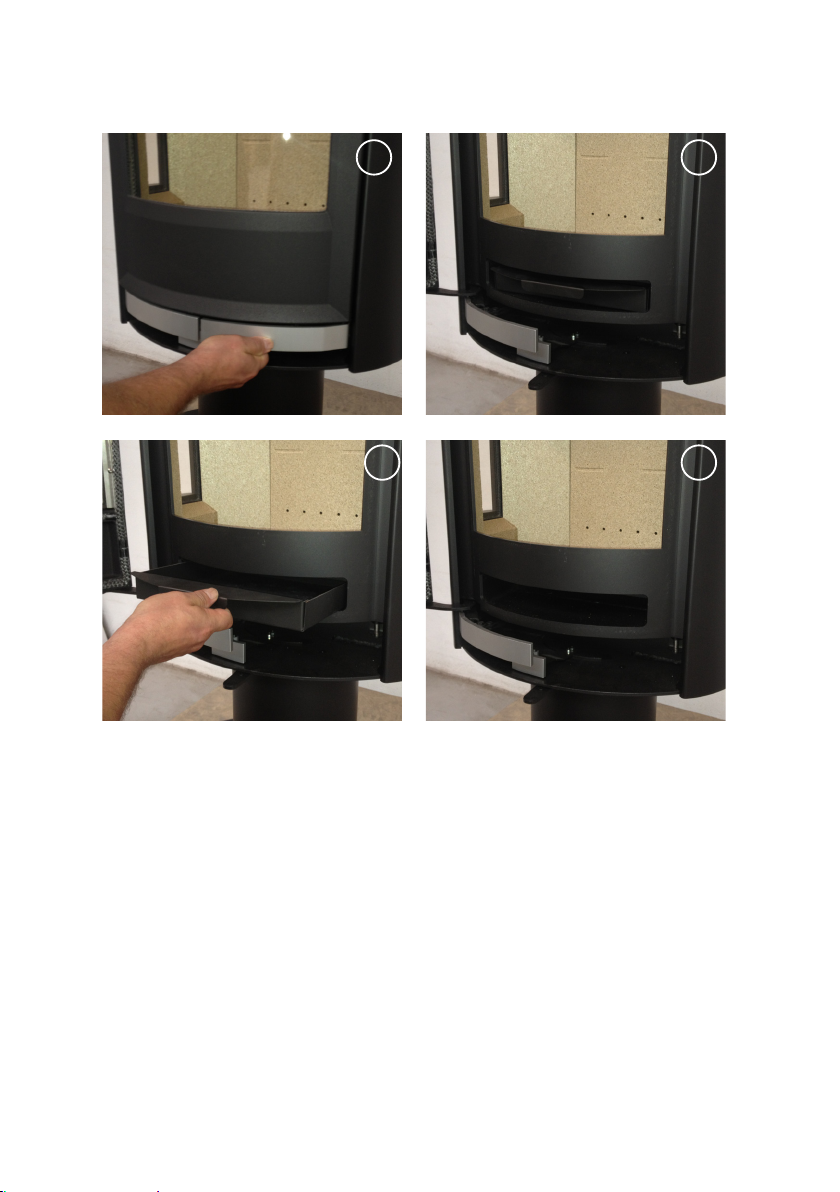

Emptying the ash pan, fig. 4-7
4 5
6 7
9
Changing to back smoke outlet Fig. 8-15
8
10
12
9
11
13
10
14
15
Cleaning after sweeping the chimney andreplacing the
stones. Fig 16-24
16
19 20 21
17
18
242322
11
12
24-01-2013 0037-1375
Loading...
