Declaration of Performance EN
__________________________________________________________________________________________________________________________________
Regulation No. 305/2011
DOP-Scan-Line 8 2240-2016
1. Unique identification code of product-type Stove
2. Product name Scan-Line 8
3. Intended use or uses of the construction product, in
accordance with the applicable technical specification
Room heater burning solid fuel without hot water supply
4. Name and contact address of the manufacturer Heta A/S, Jupitervej 22, DK-7620 Lemvig. heta@heta.dk
5. Where applicable, name and contact address of
authorized representative. E-mail.
6. System of assessment and verification of constancy of
performance of the construction product
System 3
7. Notified body relevant to the assessment and
verification of constancy of performance
Teknologisk Institut, DK-8000 Aarhus
Notified body No. 1235
8. Declared Performance
Harmonized technical specification EN 13240:2001/A2:2004
Emission CO 0,0525%
Nox 99 mg/Nm
3
Dust >3 mg/Nm
3
Dust (NS3058/3059) 0,63 g/kg
OGC (CEN/TS 15883) 32 mgC/Nm
3
- 13% O2
9. Fire safety
Reaction to fire A1
Test of fire safety in connection with the burning of wood Approved
Distance to combustible materials
Rear
Distance to flamable materials without side windows
Distance to flamable materials with side windows
Distance to flamable materials - infornt of the insert
Minimum distances in mm
120
350
150
850
10. Safety
Mechanical resistance (to carry a chimney / flue) Not tested (NPD)
Electrical safety NA
Surface temperature Approved
Cleanability No specification
11. Thermal output
Nominal heat output 4,5 kW
Energy efficiency
Ƞ 81%
Fluegas temperature at nominal heat output T 261
o
C
Water heating output NA
Maximum water operating pressure NA
The performance of the product identified in points1 and 2 is in conformity with the declared performance in point 8. This
declaration of performance is issued under the sole responsibility of the manufacturer.
Signed on behalf the manufacturer of
_____________________________________
Lemvig 05-10-2016 Lars Kirk HOD
____________________________________________________________________________________________________________________
In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid.
Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk
Page 1 of 1
Page 3
3
Congratulations on your new wood stove, we are confident that you will be more than
satisfied with your new Heta stove. Especially if you follow the following advice and
instructions.
Scan-Line 8 wood stove is approved according to EN 13240, NS 3058, NS 3059 and
A15 Østrig. These approvals, means that the wood stove meets a variety of specifications and requirements, ensuring it is made of quality materials, minimum environmental impact and that it has an optimum fuel economy.
Operating Instructions
Contents
Declaration of Performance ................................................................2
Before installation ........................................................................... 4-5
1. Operating instructions ........................................................................ 6
1.1 Before using ....................................................................................... 6
1.2 First firing ........................................................................................... 6
1.3 Regulating the airflow ........................................................................ 6
1.4 Lighting the stove ............................................................................... 6
1.5 Refueling ............................................................................................ 6
1.6 Door Stop ........................................................................................... 7
1.7 Emptying the ash ............................................................................... 7
1.8 Reduced burning ................................................................................ 7
1.9 Risk of explosion ................................................................................ 7
1.10 Draft conditions in the chimney ......................................................... 8
1.11 Fuel ..................................................................................................... 9
1.12 Operating problems ........................................................................... 9
1.13 Chimney fires ..................................................................................... 9
1.14 Troubleshooting ............................................................................... 10
1.15 Maintenance ..................................................................................... 11
1.16 Cleaning the glass ............................................................................ 11
1.17 Maintenance schedule ..................................................................... 11
1.18 Cleaning/Replacing bicks after chimney sweeping ......................... 12
1.19 Stove data table EN 13240 .............................................................. 13
1.20 Garantee ........................................................................................... 13
1.21 Parts ............................................................................................ 14-17
2. Installation Instructions .................................................................... 18
Heta A/S
Jupitervej 22,
DK-7620 Lemvig
Phone: +45 9663 0600
E-mail: [email protected]
Copyright © 2014
Heta is a registered
trademark of Heta A/S
25.10.2016
0037-1495 Version 1
Printed in Denmark
Subject to printing errors
and changes.
Page 4
4
BEFORE INSTALLATION
Heta wood stoves are quality products, therefore, your first impression is very important! We have
a good logistics network, which transports Heta products with great care for our dealers. Nevertheless, when in transport or handling, damage of the often-heavy stoves can occur. It is important that
upon receipt check your Heta product completely and report any damage or defects to your dealer.
The packaging must be disposed of as follows:
Wood is untreated and able to burn in the stove.
Plastic and cardboard you can drop off at your local recycling center.

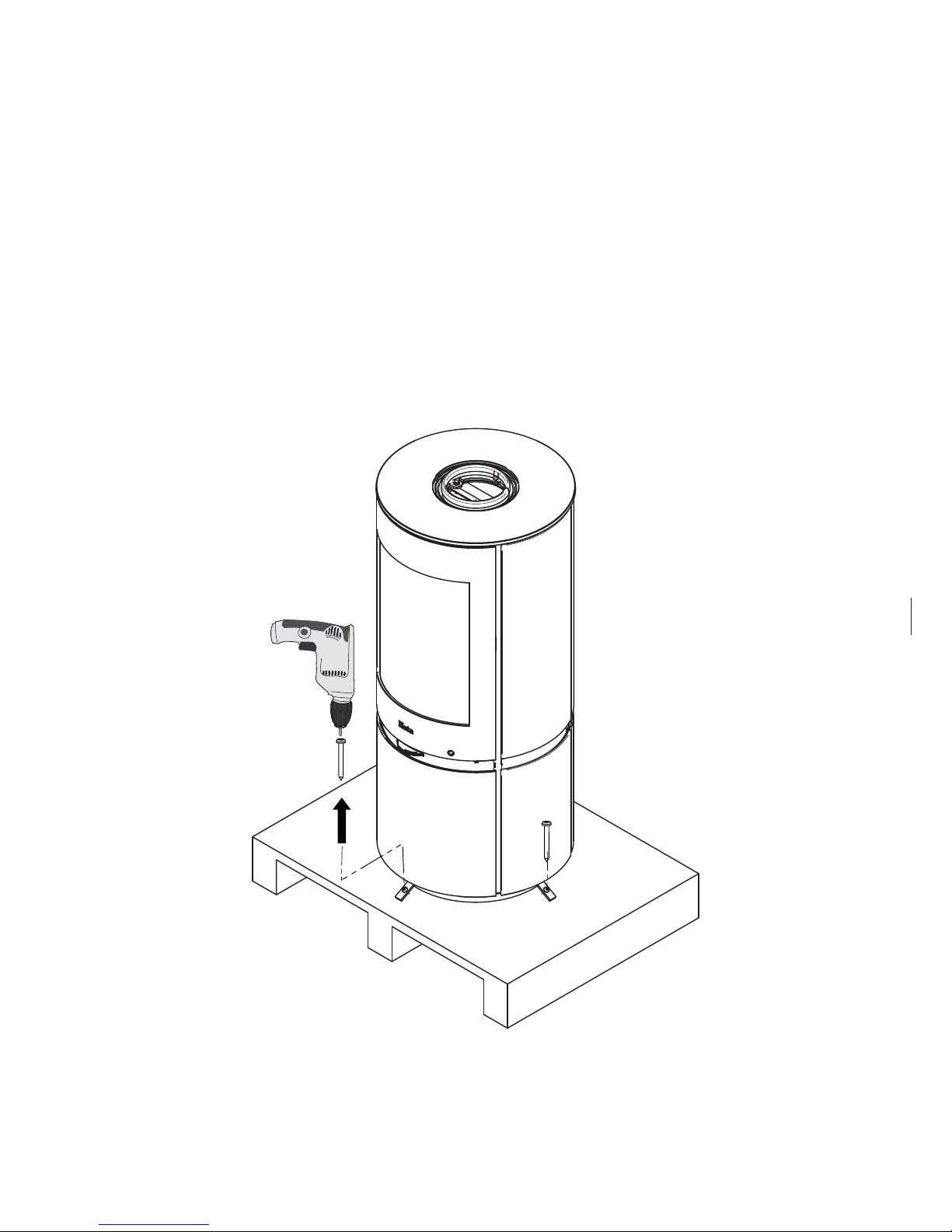

Unpacking the stove
Page 5
5

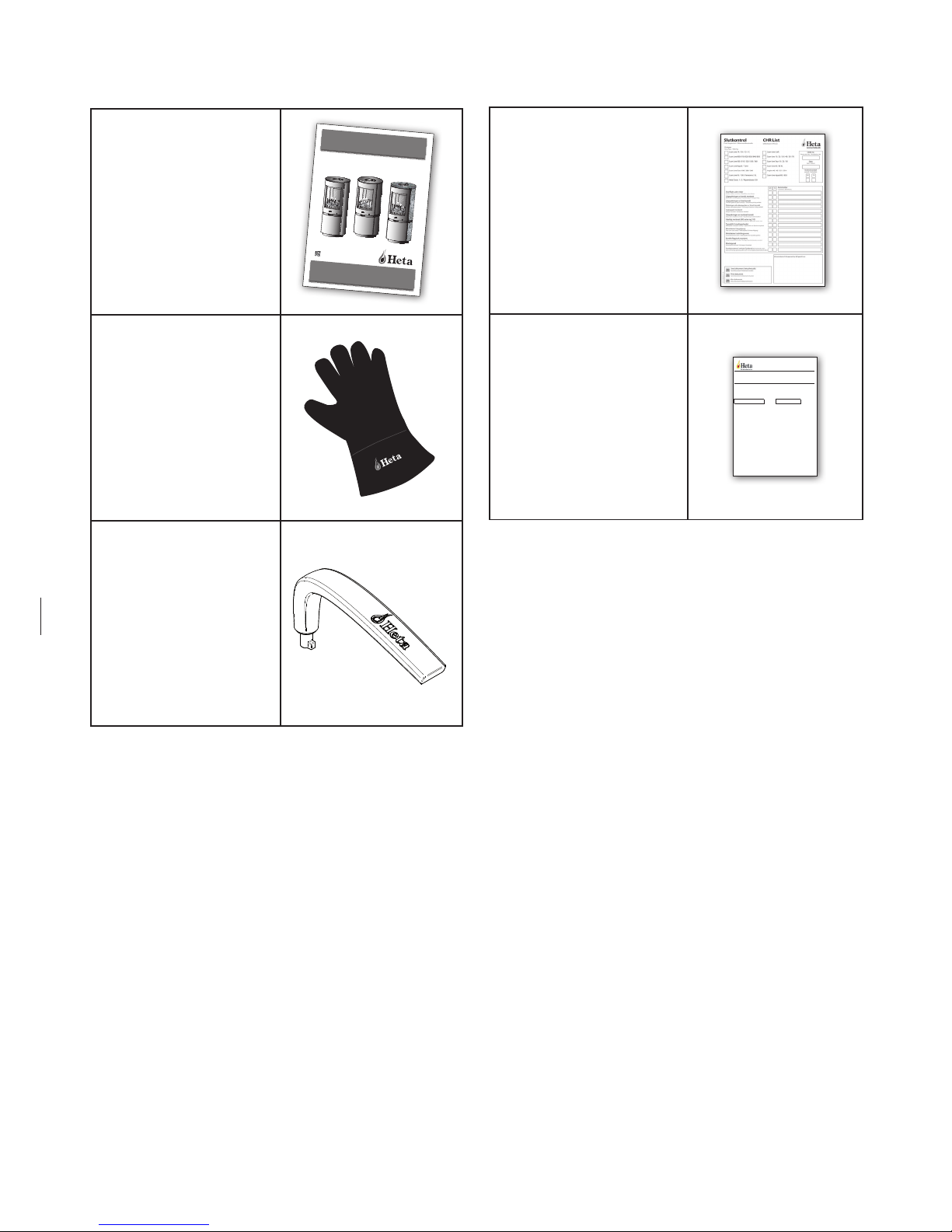

With your new wood stove you should find the following:
Operating /
Instruction manual
Heta glove
Handle
1520-0041
Q.C. check
Data plate
1
OPERATING A ND INSTALLATION
INSTRUCT IONS
DANISH DESIGN . DANISH QUAL ITY . DANIS H PRODUCTIO N
www.heta.dk
EN
SCAN-LIN E 8 STOVE
is exempt for us e in smoke control are as when bur ning dry wo od
8056-0000-DK
CE
Heta A/S Jupitervej 22
7620 Lemvig Denmark
Produkons år: 2016
Produkt beskrivelse Produkonsnummer
Afstand l brændbart materiale - bag ovn
Afstand l brændbart materiale - side af ovn
Afstand l møbel
Middel CO emission nominel last ved 13% O2
Middel CO emission I Mg/Nm3 ved 13% O2 656 Mg.
Røggas Temp. Nominel last 261 C°
Støv > 3 Mg/Nm3
OGC 32 Mg/Nm3
Ydelse nominel last 4,5 k
w
Virkningsgrad nominel last 81%
Støv (NS 3058/3059) samlet vægtet parkelemission 0,63 g/kg
Brændsel Træ
ovnen er egnet l intermiterrende drif
t
Anvend kun godkendt brændsel
Følg fabrikantens brugervejledning
DOP-Scan-line 8 -XXXX-2016
0,05%
DS/EN 13240, AEA, NS 3058/3059, Aus §15A
120 mm
350 mm
850 mm
Scan-line 8 brændeovn
Required tools are not supplied.
Page 6
1
Air control
Stove door
Ash container
Log
retainer
Shaking
gratehandle
Handle
door stop
Closed
Open
3
2
6

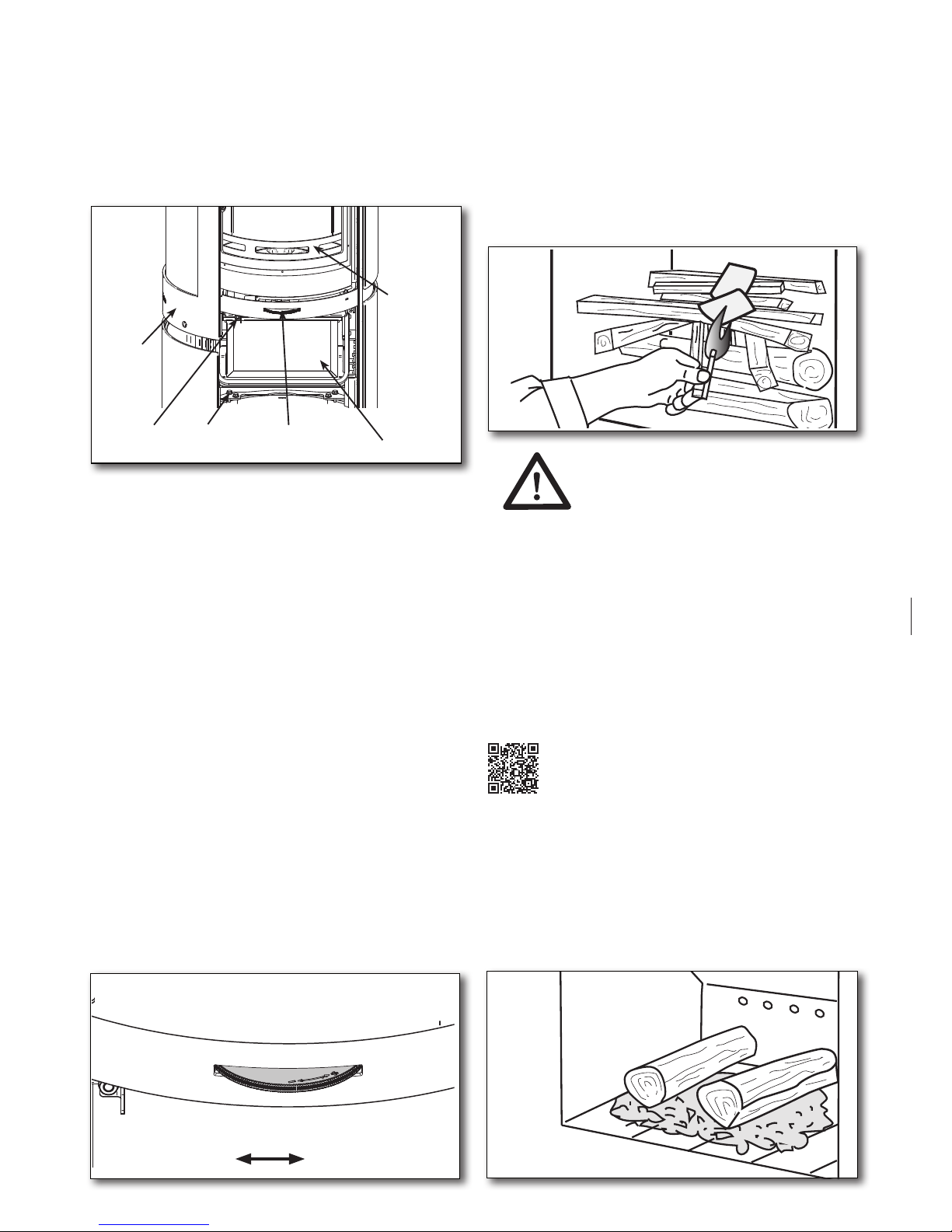

1. OPERATING INSTRUCTIONS
1.1 Before using
Before the wood stove is used make sure
required installation conditions, are met. See
page 18.
1.2 First firing
Heta wood stoves are, treated with a heat-resistant coating, which hardens at a temperature
of about 250° C.
This curing process will cause some smoke and
odor, so there should be sufficient ventilation in order to avoid the door seal sticking to the stove during this curing process, open the door every ten
minutes during the first two hours of the first firing.
The doors self-closing damper may not function
properly if the stove is to cold. After transporting
or standing in a cold environment, it might be necessary to close the door the last little bit until the
stove has warmed up.
1.3 Regulating the air flow
The stoves combustion air is controlled by the
wheel under the stove door.
1.4 Lighting the stove
Place two pieces of wood on the bottom. Stack
kindling on top in layers with air between. Set
ting fire starter (bag, brick, paraffin) on the top,
now you are ready to light the fuel. The flames
must work from the top down.
The use of lighter fluid, oils or any
liquid fuels is strictly forbidden
from use in a wood stove.
Fully open the combustion air into the start-up
air position and the door ajar (about one cm
open). Once the fire is established and the chimney is hot (after about ten minutes) closed door
and regulate the air into operating position. We
recommend, all of the first fuel is burned with
the combustion air fully open in the operating
position. This ensures the stove and chimney
are thoroughly heated.
The door must be kept closed during operation.
Startup/Lighting
Scan the code and select a language.
1.5 Refueling
Refueling of your stove should be done while
there is still a good layer of embers. Distributethe embers with the majority of them to the
front. Place pieces of wood equivalent to about
1,1 kg on top of the embers perpendicular to
4
Page 7
Maximum
wood filling

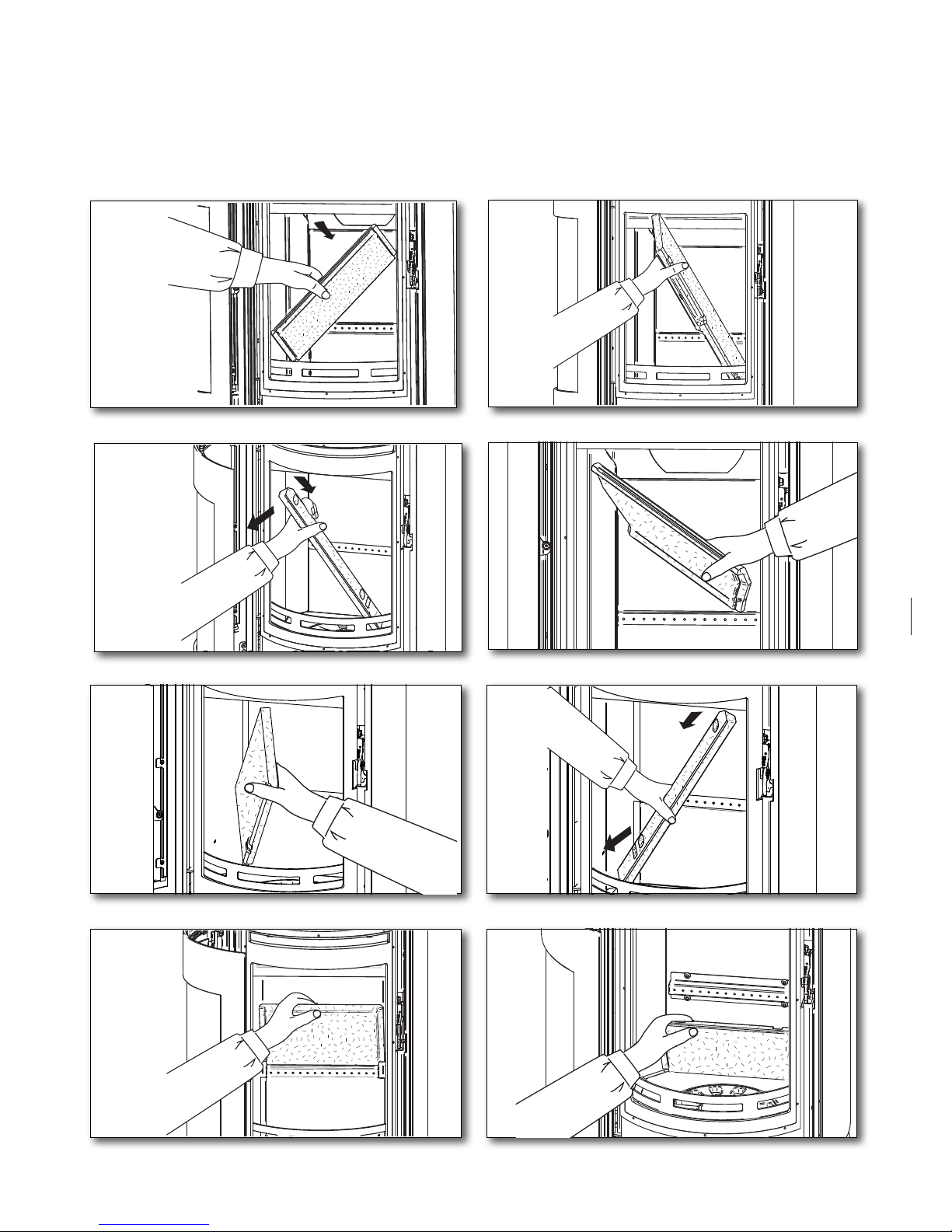

5
Vermiculite
(stone)
8
7
6
7
the door. Now open the combustion air completely. If the stove and/or chimney cools down
too much, it may be necessary to use the startup air and possibly have the door ajar.
The wood will then ignite within a very short time
(Typically 1 to 3 minutes). Once the fuel is Ignited
.
Close the door and regulate the air back to operating air. When the fire is well established, you
can now regulate the operating air to the desired
combustion level.
Rated output (see DOP of page 2) measured
when the combustion air is about 35% open.
Ensure when refueling that the wood is not too
close, it will cause poorer combustion, less heat
out-put and lower efficiency.

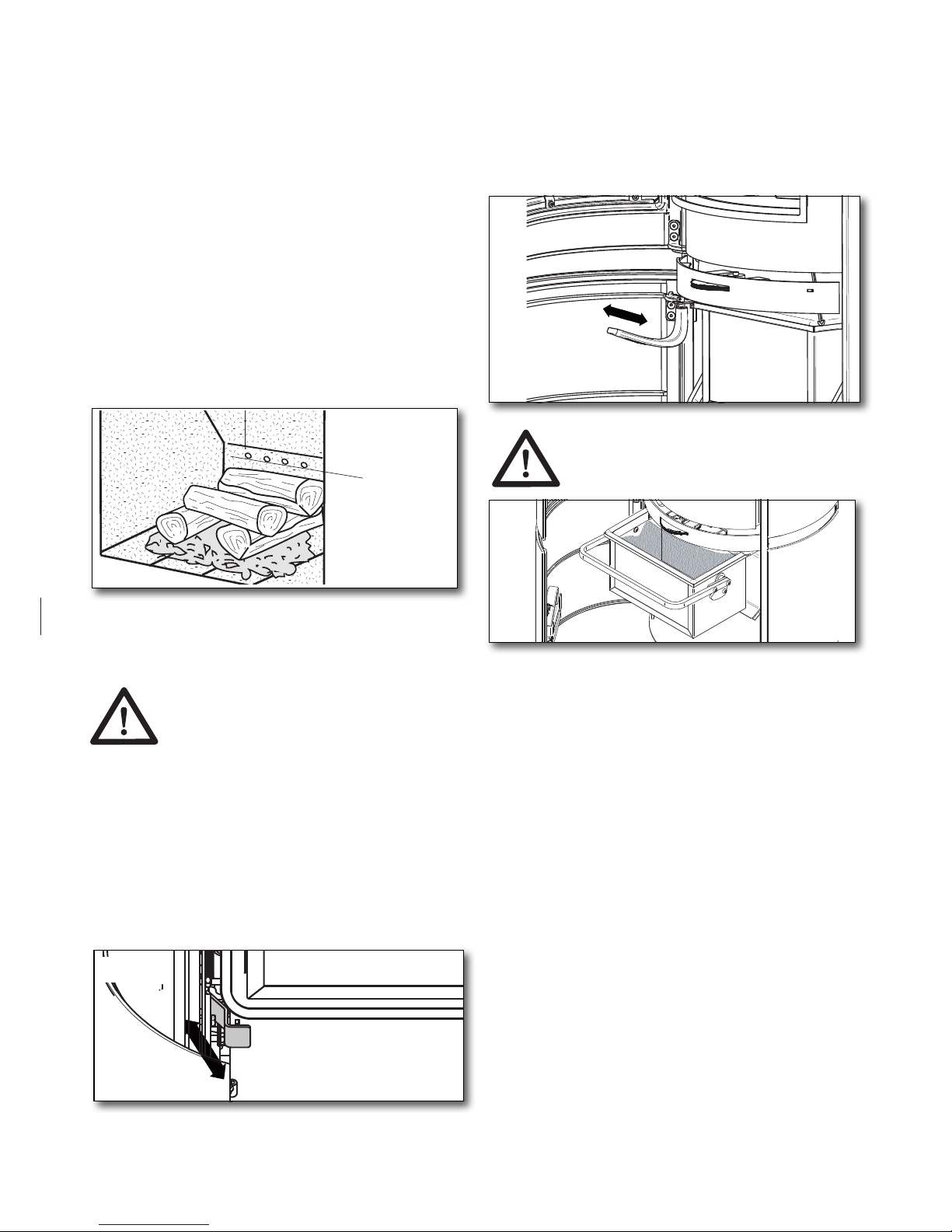

The fuel load, must be maintained below the top
series of air holes and within the outer vent in
each side. Fig. 5
When refueling be careful to place
the fuel into the combustion
chamber gently, (use the provided glove).
By not doing so you risk cracking or
breaking the vermiculite.
If there is reduced draft in the chimney, we recommend opening a window at stoking. This will
give better ventilation to the room and more oxygen for combustion.
1.6 Door stop
The stove door is held open by pressing the
door stop in while the door is fully open.
1.7 Emptying the ash
By using the shaker grate, it rotates back and
forth so the ash falls through the holes and into
the ashtray, see Fig. 7. It is advantageous to
leave a layer of ash in the bottom of the combustion chamber on top of the grate as insulation.
Be careful when emptying the
ashes out. There can be hot embers
left for a long time.
It is an advantage for the next firing to leave a
layer of ash lying in the bottom of the firebox.
1.8 Reduced burning
The stove is, designed for intermittent use.
It is important to maintain the layer of hot embers. Lower heat out-put occurs when no flames
come from the tree, when it is becomes glowing
charcoal.
If you are looking for less heat out-put, achieve
this by fueling with smaller volumes of wood and
a lower operating air. You may not completely
close the operating air during firing.
Be aware that the stove will naturally soot if the
operating air is too low. This is not good for the
environment. There is also a risk for the glass,
t
he chimney and other parts will become sooted.
By a combination of the above and possibly
burning damp wood. Can lead to high levels of
soot that it becomes sticky. Causing the sealing
of the door to tear off when opening the door
the next day.
Page 8

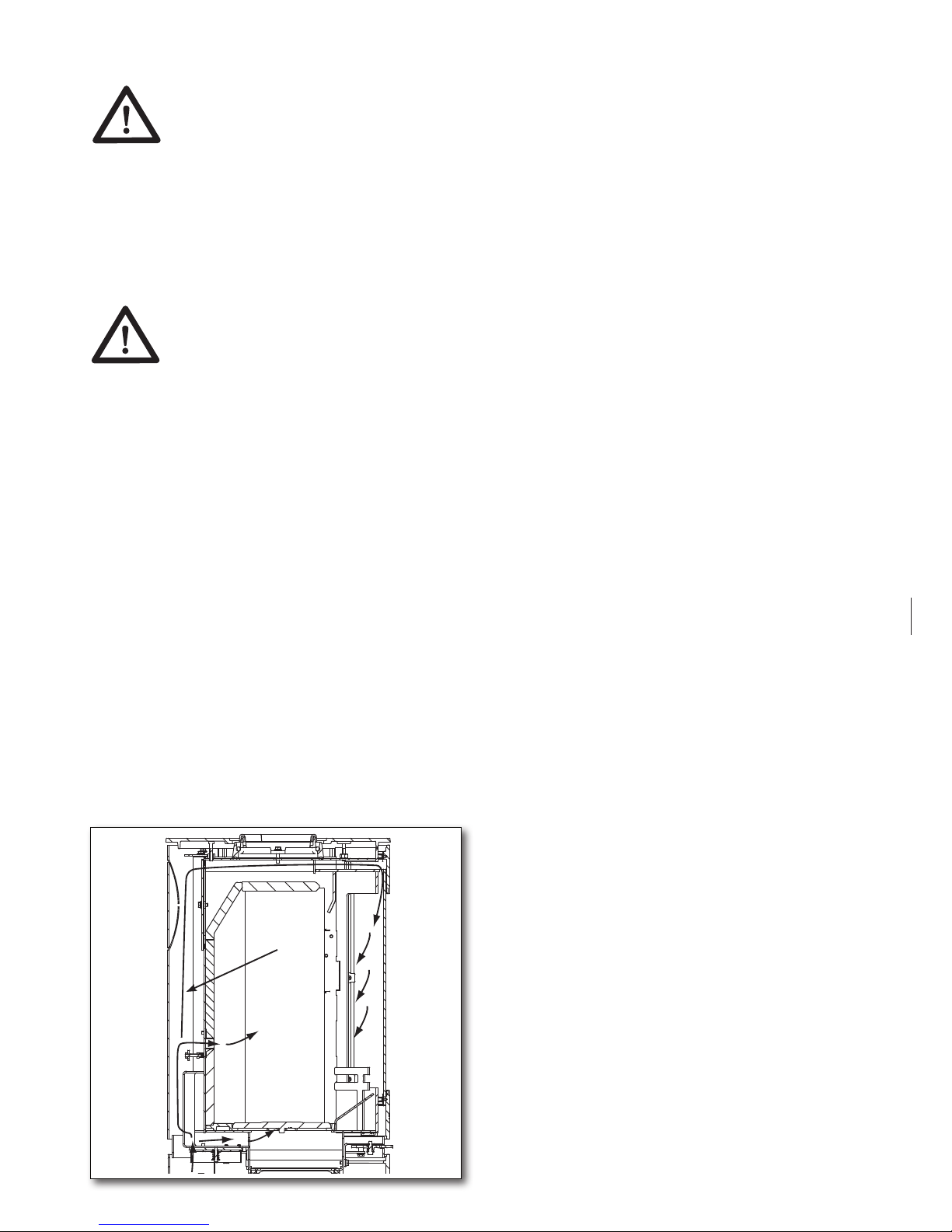

Combustion air
6
8
1.9 Explosion!!!
It is very important never to leave
The stove after start up or refueling,
before the fire is established.
(Typically 1 to 3 minutes)
Explosion can occur if filled with too much fuel
in the stove, the production of large volumes of
gas, which can explode if the air supply becomes
too low.
Warning!
One must always use cation around
the stove seen, as it gets very warm
during use. (In excess of 90° C).
Children should avoid contact with the stove.
Setting up a fence if you have small children may
be necessary.
Do not place flammable objects like drying racks,
furniture, curtains too close to the stove.
1.10 Draft conditions
and the chimney
Poor draft will not allow the stove to burn, as it
should. The glass can soot, requires cleaning of
the chimney more often, smoke can escape out
when the door is open and it gives poor fuel efficiency. Leading to unnecessary polluting of the
environment.
Good draft will allow the stove to achieve optimal combustion and the highest possible efficiency. Heta wood stoves are constructed so
that it itself provides an optimal blend of com-
bustion air. This provides a high efficiency/heat,
clean glass and low environmental impact.
Minimum chimney draft
: 11
pascal
.
It is the draft that the stove has been tested and
approved on. The minimum draft is necessary to
provide clean burning, beautiful flame picture,
as well as achieving the rated efficiency.
There is a risk of smoke escaping into the room
if the door is opened during vigorous firing, or if
there is a lack of air supply to the room, for ex. if
an extraction fan is in use.
261°C, relative to
20°C.
Flue gas flow is: 3,8 g/sec.
The chimney height and diameter, as well as
the temperature difference between the flue gas
and outside temperature generates the chimney
draft. Chimney insulation is therefore important
as new efficient stoves create lower flue temperatures. Wind and weather conditions also influence draft, in some cases it may be disadvantageous wind direction, combined with the
position of the chimney can cause negative draft
(it blows through the chimney), causing smoke
escape from the stove.
Before using after a long period of inactivity,
check that the chimney is free for any blockages. (soot build-up, bird nests, leaves etc.).
Reduced draft can occur when:
• The temperature difference is too small
between smoke gasses and outdoor
temperature, for ex. poorly insulated chimney
• To short of a chimney
• The outside temperature is high, and indoor
temperature is low f. ex. in summer
• False air in the chimney
• Chimney is blocked
• Air tight house (lack of combustion air supply)
• Poorly placed chimney for the surroundings,
for ex. the ridge and trees may cause
turbulence
Good draft occurs when:
• The difference in temperature in the chimney
(warmer) and outside temperature (colder)
• It is clear weather
• The chimney has the right height min 4 meters
above the stove, and clear of the roof ridge
Page 9
9
1.11 Fuel
Your new stove is EN approved for firing with
wood fuel. You must therefore only burn clean,
dry wood in your stove. Never use your stove
to burn driftwood, as this may contain a lot of
salt which can damage both the stove and the
chimney. Similarly, you must not fire your stove
with refuse, painted wood, pressure-impregnated wood or chipboard, as these materials can
emit poisonous fumes and smoke.
Correct firing using well seasoned wood provides optimal heat output and maximum efficiency. At the same time, correct firing prevents
environmental damage in the form of smoke
emissions and reduces the risk of chimney fires.
If the wood is damp and inadequately seasoned,
a large proportion of the energy in the fuel will
be used to vaporize the water, and this will all
disappear up the chimney. Thus, it is important
to use dry, well seasoned wood, i.e. wood with a
moisture content of less than 20 %. Achieve this
by storing the wood for 1–2 years before use.
Pieces of firewood with a diameter of more than
10 cm should be split before before storing. The
pieces of firewood should be of an appropriate
length (approx. 19-25 cm) so that they can lie
flat on the bed of embers.
If you store your wood outdoors, it is best to
cover it.
Examples of fuel values
for different woods and their typical densities
per cubic meter, specified for 100% wood with
a moisture content of 18%.
Wood kg/m3Wood kg/m
3
Beech 710 Alder 540
Ash 700 Scotch pine 520
Elm 690 Larch 520
Maple 660 Lime 510
Birch 620 Spruce 450
Mountain pine 600 Poplar 450
Willow 560
It is advised not to use oil-containing woods
like teak tree and mahogany, as this can cause damage to the glass.
Heating value in wood
You have to use about 2.4 kg normal wood to
replace one litre of heating oil. All woods have
almost the same heating value per kg, which is
about 5.27 kW/hour for absolute dry wood.
Wood with a moistness of 18% has a efficiency
of about 4.18 kW / hour per kg, and one litre
heating oil contains about 10 kW / hour.
CO2 release
At combustion 1000 litres of heating oil forms 3.171
tons CO
2
. As wood is a CO2 neutral heat/energy
source, you save the environment about 1.3 kg CO2
every time you have used 1 kg normal wood.
1.12 Operational problems
The chimney must be swept at least once a
year, we recommend the use of a NACS (national association of chimney sweeps) registered
chimney sweep.
In the event of smoke or malodorous fumes are
being produced, you must first check to see
whether the chimney is blocked.
T
he chimney must, of course, always provide the
minimum draft necessary to ensure that it is possible to regulate the fire. Please note, how-ever,
that chimney draft is dependent on the weather
conditions. In high winds, the draft can become
so powerful that it may be necessary to fit a
damper in the flue gas pipe to regulate the draft.
When cleaning the chimney, soot and other
deposits may come to fall on the baffle plate,
remove and clean it. In cases where the wood
burns too quickly, this may be due to excessive
chimney draft. You should also check to make
sure that the door seal and ash pan seal is intact
and correctly fitting.
If the stove it generating too little heat, this may
be because you are firing with wet wood. In this
case, much of the heating energy is used to dry
the wood, resulting in poor efficiency, potentially damaging the vermiculite and an increased
risk of soot deposits in the chimney.
1.13 Chimney fire
In case of a chimney fire, which often results from
incorrect operation/maintenance or prolonged
use of damp wood, close the door and the air
supply completely, to help slow/smother the fire.
Call the fire department. The stove and chiminey must be inspected before use again.
Page 10
10
1.14 Troubleshooting table
Fault Cause Troubleshooting Solution
Lighting problems. When the
stove is cold, smoke seeps
into the room. Once the combustion chamber has heated
up, the stove burns well.
Inadequate chimney draft.
The chimney only has
sufficient draft when it is hot.
You can test using a lighter whether
flame is drawn into the combustion
chamber.
Improve the chimney.
The stove burns poorly after
the warm-up phase,
and the
glass slowly soots up.
Soot in the flue pipe. Check the flue pipe regularly, as the
problem arises slowly.
Clean regularly, and limit the use
of horizontal flue pipes. Do not use
firewood which generates large
quantities of ash.
Inadequate chimney draft.
The fault usually already occurs during
lighting. Measure the chimney draft
.
Improve the chimney draft.
Insufficient air supply. Check the air supply. Read the operating instructions and
instruct all users.
Damp wood. Use clean, dry wood with a maximum
moisture content of 20%.
Firewood should ideally be dried for
at least one year after splitting.
Firewood pieces too large. The optimum size is a length of 25 cm
and max. diameter of 10 cm.
Use smaller pieces of firewood.
Insufficient air supply to the
room. Range hoods, airtight
windows, etc.
Ensure there is sufficient fresh air
supply, open a window, check the
outdoor air supply.
Depending on the cause, windows
must be opened or the outdoor air
connection cleaned.
Insufficient air supply to the
room. Range hoods, airtight
windows, etc
Ensure there is sufficient fresh air
supply, open a window, check the
outdoor air supply.
Depending on the cause, windows
must be opened or the outdoor air
connection cleaned.
The vermiculite in the
combustion chamber is
becoming very worn.
Wood and flue gases wear
down the vermiculite.
Investigate whether the wear is
normal.
Normal wear and minor cracks are of
no significance. It should be replaced
when the steel of the combustion
chamber is visible.
Too rapid combustion. Too much chimney draft. T
o test, you can open the cleaning
hatch, but remember to close it again.
Measure the chimney draft and install
a damper in the flue pipe if necessary.
The door or ash pan/drawer
seal is defective.
While cold, close a piece of paper in
the door – the seal should hold the
paper gently in place so it does not
fall out by itself. Normal wear.
Replace the seal.
The vermiculite in the
combustion chamber is
cracked.
Shocks or impacts while
adding firewood.
Normal wear Cracks only have cosmetic signifi-
cance. Replace when the steel of the
combustion chamber is visible.
Steel surfaces in the
combustion chamber
have oxidised.
The temperature in the
combustion chamber is
too high.
Unsuitable fuel is being used (such as
coal). Check the quantity of firewood
being used, read the operating
instructions.
If there are clear cracks or weaknesses in the stove body, it must be
replaced.
The stove whistles Too much chimney draft To test, you can open the cleaning
hatch, but remember to close it again.
Install a damper.
The stove 'clunks' Usually due to tension in the
metal plates.
Generally only occurs while heating
up and cooling down.
Adjust the metal plates.
The stove ticks Normal expansion and
contraction due to
temperature changes.
A normal sound. Ensure that the temperature in the
combustion chamber is as constant
as possible.
The stove creaks. The temperature in the com-
bustion chamber is too high.
Use less firewood. Also check the seal
in the ash pan/drawer.
See the operating instructions.
The stove smells.
The surface is steaming.
The paint on the stove surace is not yet fully hardened.
See the operating instructions
regarding the first firing.
Ensure there is sufficient ventilation.
Condensation in the
combustionchamber.
Moisture in the vermiculite. C
heck the condition of the vermiculite.
Evaporates by itself after the stove has
been lit a few times.
Damp wood. Measure the moisture content. Use dry firewood.
Condensation from the flue
pipe.
The pipe is too long or the
chimney is too cold.
Check the flue pipe's length and heat
loss.
Improve the flue pipe, insulate the
chimney.
Damp wood Measure the moisture content. Use dry firewood.
Page 11
11
1.17 Diagram for the maintenance
1.15 Maintenance
The surface of the stove is treated with a heatresistant paint. The stove should be cleaned
with a damp cloth.
Any damage to the surface in the form of chips
or scratches can be repaired using touch-up
paint, which is available in spray cans.
1.16 Cleaning the glass
Incorrect firing, for example using wet wood,
can result in the viewing window becoming
covered in soot. This soot can be easily and
effectively removed by using proprietary stove
glass cleaner.
Stove Owner
Qualified
Technicia
Maintenance / Period
Before
Autum
Daily
1
week
30
days
60-90
days
1st Year 2st Year
Cleaning the chimney (see. Chimney)
C
Cleaning the chimney and stove
C C
Cleaning the stoves firebox
C VI C
Cleaning combustion air intake
C C
Cleaning ash bucket 5 Liter
C VI C
Cleaning of the firebox
C VI C
Checking / switch, gasket for door
C/S VI C/S
Checking / changing, gasket for glass
C/S VI C/S
Checking / switch, gasket for ashpan
C/S VI C/S
Checking / changing gasket for flue pipe
C/S VI C/S
Checking / changing vermiculite
C/S VI C/S
Lubricate hinges
L VI L
Lubricate lock
L VI L
For the lubricant used a heat-resistant product. (300c)
C = Cleaning
C/S = Checking /Switch
L = Lubricate
VI = Visual Inspection, pos. cleaning/replacing/adjusting
Page 12
1
2
1
2
12
1.18 Cleaning after sweeping
or before replacing vermiculite stones
Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone.

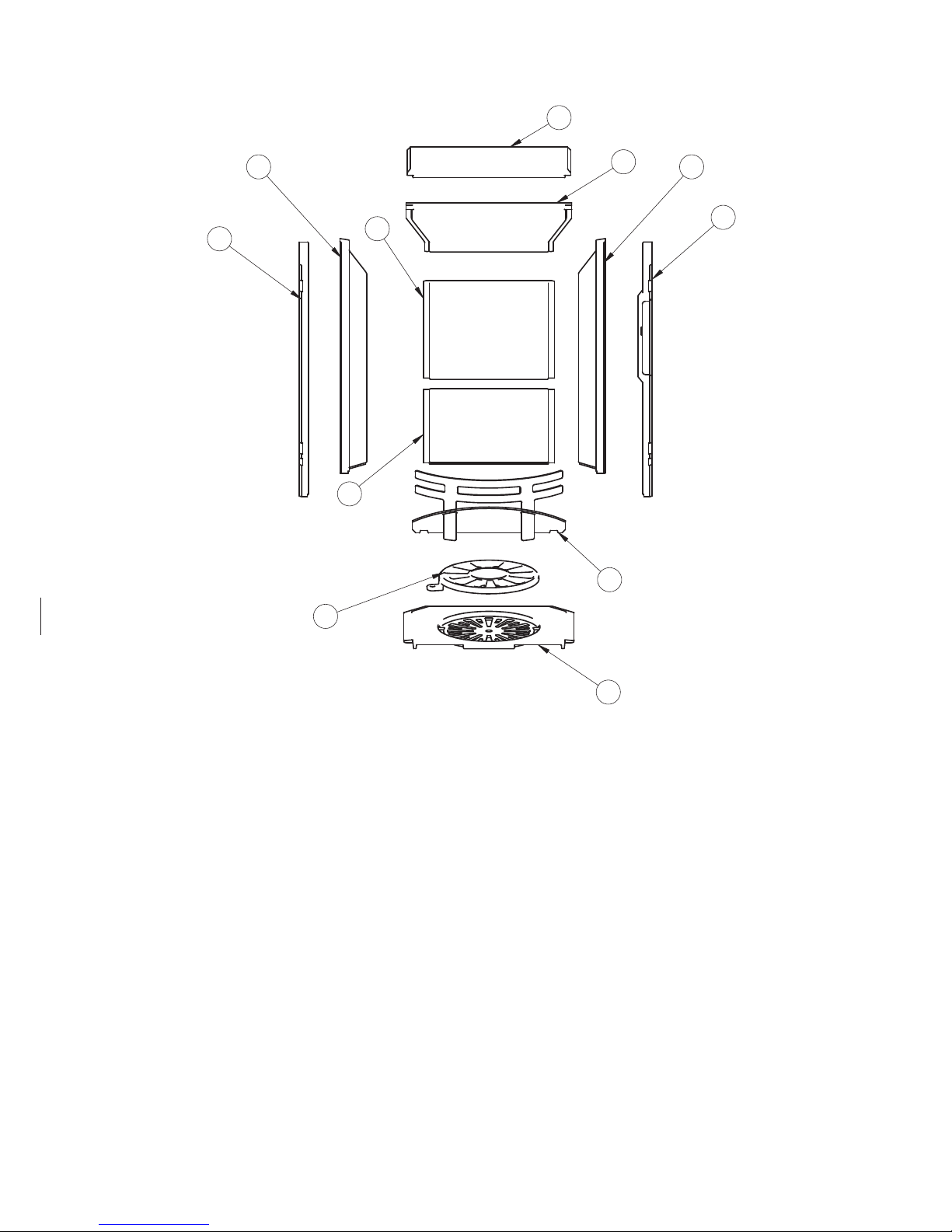

Order of removing Fire bricks.
Replace in reverse order. Starting with Fig. 8.
1
5
4
6
2
3
7
8
Page 13
13
1.19 Stove data table in accordance with en 13240 testing
Tested as a freestanding oven and with uninsulated flue
Stove type Nominal
fluegas
temperature
C°
Flue
mm
Fuel
volume
kg
Draft
min.
mbar
Nominal
output
tested
kW
Actual
efficiency
%
Distance to flamable materials i mm Stove
weight
kg
at the
sides
rear the
stove
to
furnitures
Scan-Line 8
261 ø150 1,1
0,11
4,5 81 350 120 850 *
* Scan-Line 8 - With steel sides: 100 kg.
* Scan-Line 8 - With soapstone top and steel sides: 105 kg.
* Scan-Line 8 - With casted sides: 126 kg.
* Scan-Line 8 - With soapstone: 134 kg.
* Scan-Line 8 - With soapstone top and casted sides: 131 kg.
The nominal output is the output to which the stove has been tested.
Testing is conducted with the combustion air around 50% open.
1.20 Guarantee
Heta wood stoves, subjected to a strict quality
control during production and before delivery to
the dealer.
Therefore, the stoves guarantee is
FOR FIVE YEARS
Against defects in manufacturing
The guarantee does not cover:
Wearing parts / fragile parts such as:
- Vermiculite stones in the combustion
chamber, glass, seals and the casted bottom
or shaking grate.
- Damage caused by improper use.
- Transportation costs for warranty repair.
- Assembly / disassembly of warranty repair.
Should you have cause to make a complaint,
please quote our invoice no.
Warning
Any unauthorized alterations to the
stove and the use of non-original
parts will void the warranty.
Page 14
14
Pos. No. Name Qty.
1 0008-0021 Flanged M5x10 BN 11252 2
2 0008-0036 Cylinder screw M4x6 BN 1206 2
3 0008-0045 Countersunk screw M5 X10 BN20 2
4 0008-0054 Clanged M6x10 BN 11252 3
5 0008-0099 Countersunk M5 X12 BN 20 8
6 0008-1114 M 6 x 20 2
7 0008-1117 M 6 x 10 8
8 0008-2001 Stainless M3 countersunk 10
9 0008-2304 Machine screw M4 x 6 torx 6
10 0008-9082 Hinge pins 2
11 0021-0061 Glass 1
12 0023-3008 Door gasket 1
13 0023-3023 Glass gasket 1
14 0030-2621 Handle 1
15 0030-2622 Bracket for handle 1
16 1013-0432 Glass clips, small 6

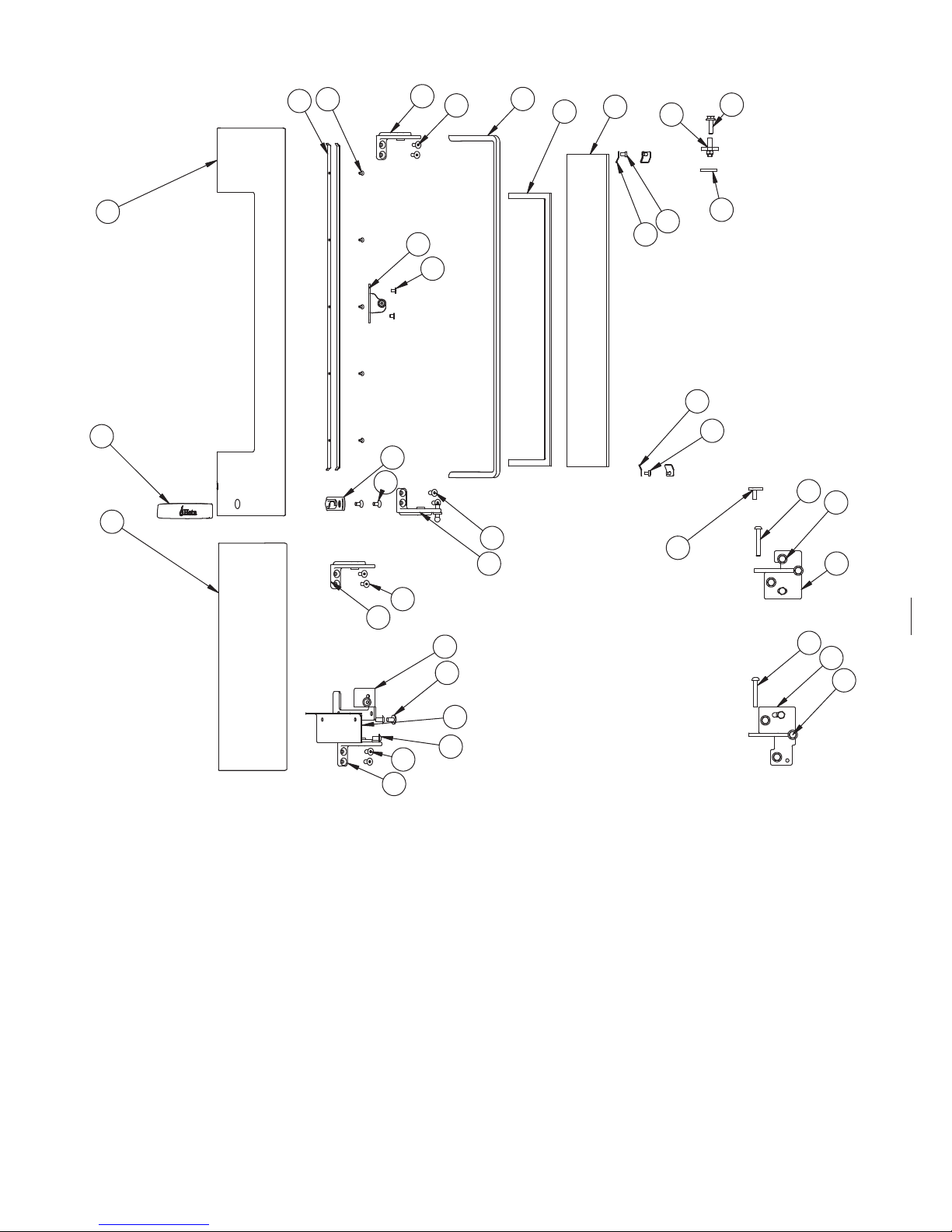

1.21 Parts - Doors
23
5
19
8
26
2
12
13
11
16
9
6
29
20
15
3
24
5
23
5
14
21
1
17
18
4
25
5
27
10
7
10
7
28
30
16
9
22
Pos. No. Name Qty.
17 1013-0907 Bracket handle 1
18 1013-0908 Bracket 2 handles 1
19 1013-0932 Door gasket mounting rails 2
20 1027-0496 Spacer top 1
21 1505-0083 Ash door 1
22 1505-0088 Stove door 1
23 1513-0132 Upper hinge 2
24 1513-0133 Hinge for automatic door closing 1
25 1513-0134 Lower hinge 1
26 1513-0135 Closing roller 1
27 1513-0138 Welded hinge ash door bottom 1
28 1513-0139 Hinge ash door top 1
29 1513-0141 Mounted hinge top 1
30 1513-0142 Mounted hinge pin bottom 1
Page 15
15
Parts - Inside fire chamber
Pos. No. Name Qty.
1 0023-0198 Upper baffle 900 Kg / M3 1
2 0023-0199 Baffle 1
3 0023-0200 Back stone top 1
4 0023-0201 Back stone bottom 1
5 0023-0202 Right side stone back 1
6 0023-0203 Left side stone back 1
7 0023-0204 Right side stone front, 1
8 0023-0205 Left side stone front 1
9 0030-0023 Casted bottom 1
10 0030-0201 Grate 1
11 1519-0018 Log retainer 1
7
5
8
6
1
2
3
4
11
9
10
Page 16
16

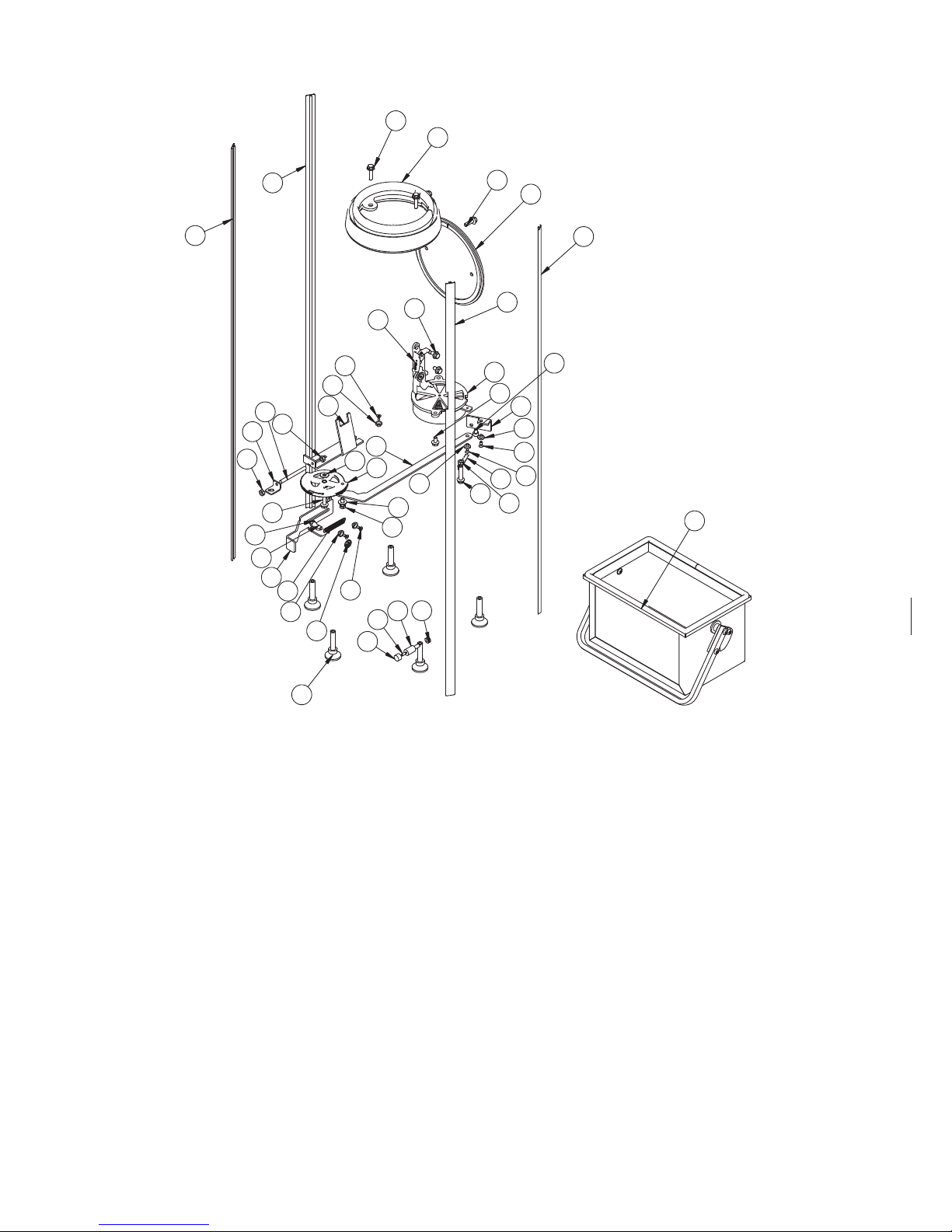

Parts - Internal parts
Pos. No. Name Qty.
1 0008-0008 Set screw M 4 x 8 1
2 0008-0017 Countersunk screw M4x10 BN 20 5
3 0008-0041 M6 X 8 allen 1
4 0008-0211 M6x16 BN 54 1
5 0008-0501 1/4 X 1.1 washer M6 2
6 0008-0903 Hinge pin M6x28 1
7 0008-1114 M 6 x 20 3
8 0008-1115 M 6 x 25 2
9 0008-1117 M 6 x 10 4
10 0008-1118 M 6 x 30 1
11 0008-1402 Nut M6 5
12 0008-9019 Glider for shoot 5
13 0008-9066 Quick Lock Ø6 1
11
17
15
30
7
29
8
25
22
28
22
22
9
26
31
9
14
10
11
20
12
2
3
24
2
12
2
12
18
11
19
23
11
27
27
4
5
7
21
6
11
14
13
2
12
1
16
Pos. No. Name Qty.
14 0008-9067 Tension spring 1x8x60 2
15 0015-2035 Magnet 1
16 0015-3003 Adjustment screw M10 x 40 5
17 0016-0140 Spacers magnet 1
18 1013-0873 Shaker bracket 1
19 1013-0904 Bracket for riddling 1
20 1013-0906 Combustion air limiter 1
21 1013-0921 Door hold 1
22 1020-0123 Aluminum rail 3
23 1021-0080 Shaker pin 1
24 1027-0491 Connect louver 1
25 1512-0014 Outlet cover 1
26 1513-0123 Self-closing 1
27 1513-0136 Air control 1
28 1520-0039 Machined aluminum rail 1
29 1525-0025 Flue 1
30 4018-0046 Ash container 1
31 4027-0046 Air intake 1
Page 17
17
Pos. No. Name Qty.
1 0008-0903 Hinge pin M6x28 1
2 0008-1114 M 6 x 20 1
3 0008-1402 Nut M6 2
4 0008-9066 Quick lock Ø6 3
5 0008-9095 Spring 1,4xØ10x68,9 1
6 0016-0087 Brass bearing for self-closing 1
7 0016-0128 Extension to the gas cylinder 1
8 0025-0151 Gas cylinder 1
9 1012-0096 Spacer for pivot 1
10 1513-0129 Swivel 1
11 1513-0130 Tie rod swivel 1

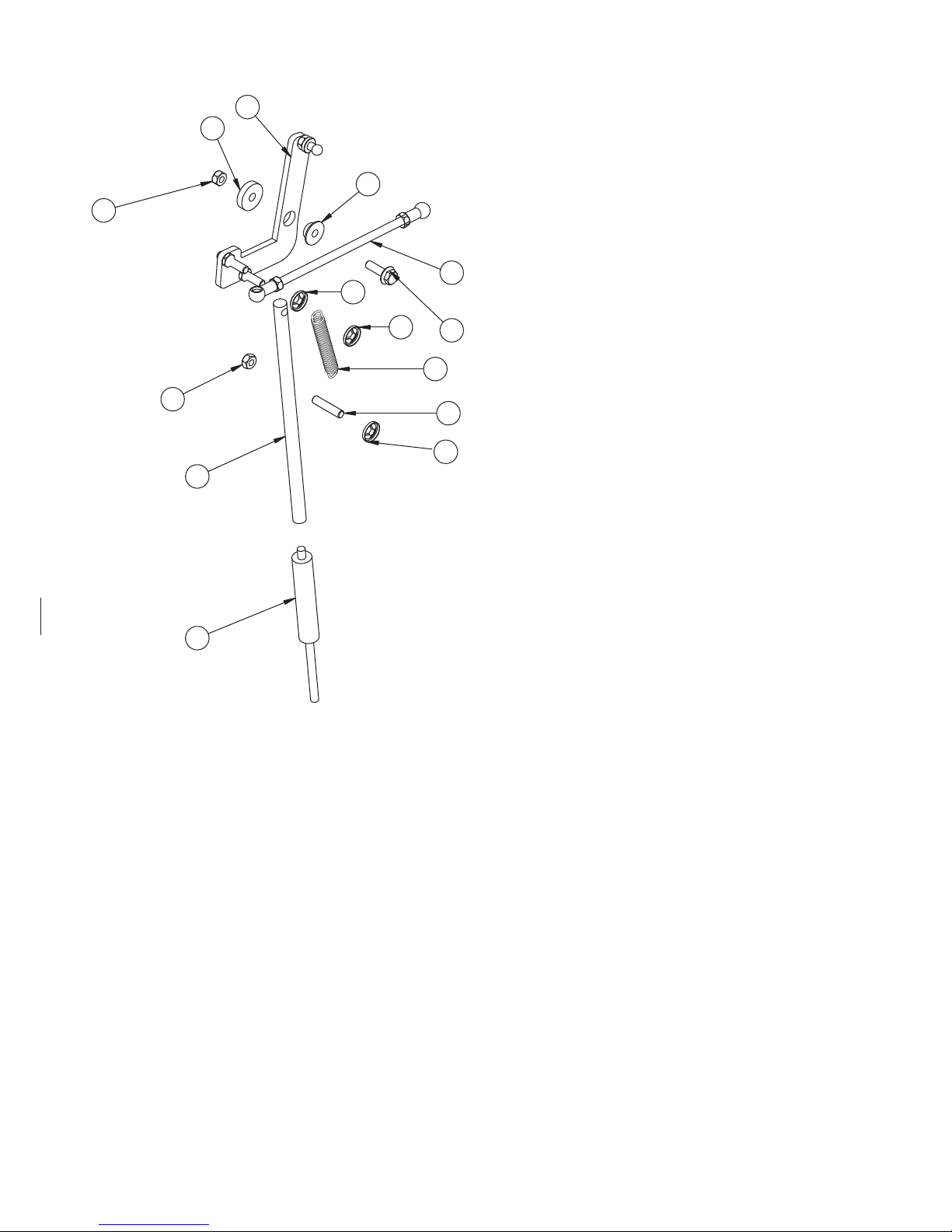

Parts - Self-closing system
3
9
10
11
6
2
3
7
8
4
1
5
4
4
Page 18
18
Remember
The stove and chimney installation, must comply with
local regulations, including those referring to national
and European standards.
Installation Instructions
Contents
2. Installation instructions ..................................................................... 19
2.1 Distance requirements ...................................................................... 19
2.2 Floor .................................................................................................. 19
2.3 Chimney connection ......................................................................... 19
2.4 Combustion air and ventilation ........................................................ 20
2.5 Stovedrawings/measurments ........................................................... 20
2.6 Clearances for installation ................................................................. 21

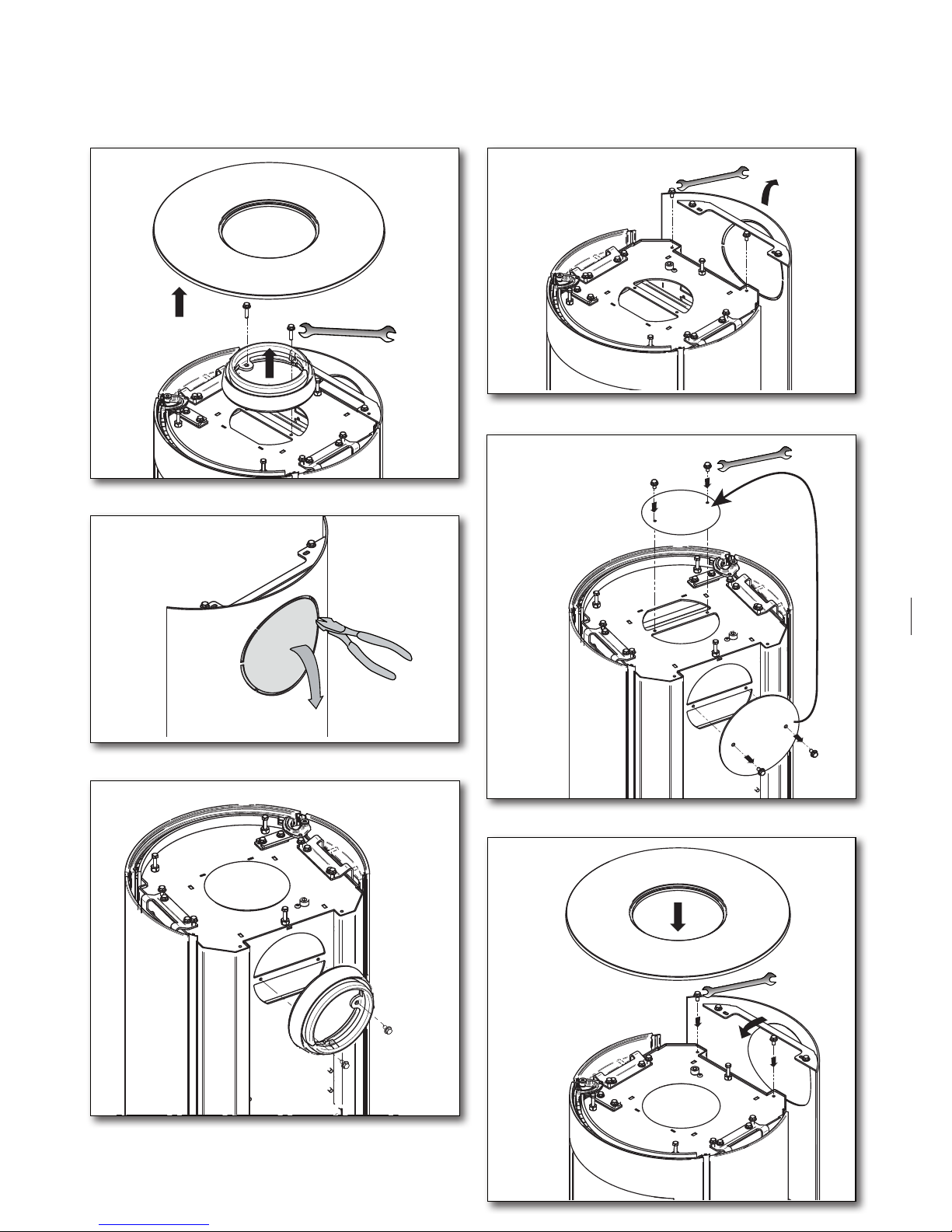

2.7 Changing to a back flue outlet -
stoves with casted and/or stone cladding ........................................ 22
2.8 Changing to a back flue outlet - stoves with steel cladding ............. 23
3. Data plate .......................................................................................... 24
4. Appendix A ........................................................................................ 24
Page 19
19
2. Installation instructions
The stove installation must be in accordance
with national, European and possibly local regulations. You must follow local regulations with
regard to installation of chimney and connection
to the chimney. We recommend that you let a
professional Heta dealer install the stove. Alternatively, you can ask the local chimney sweep
before installation. Be aware that it is always the
owner himself who has responsibility for ensuring that applicable rules are complied with.
A modern stove places heavy demands on the
chimney due to the high efficiency. It may be
necessary to enhance or even replace an old
chimney.
Remember
1. Always ensure free access to any cleaning
doors in a chimney.
2. Always ensure ample fresh air to the room.
3. Exhaust/extraction fans in the house can reduce or create negative draft in the chimney.
Reduced draft can lead to the stove having
a
dverse combustion properties. It may result
in smoke coming out of the stove when the
door is open. A negative draft due to an
exhaust/extraction fan can cause the chimney to work in reverse, drawing smoke into
the house because of the fan.
4. Any air vents must not be covered.

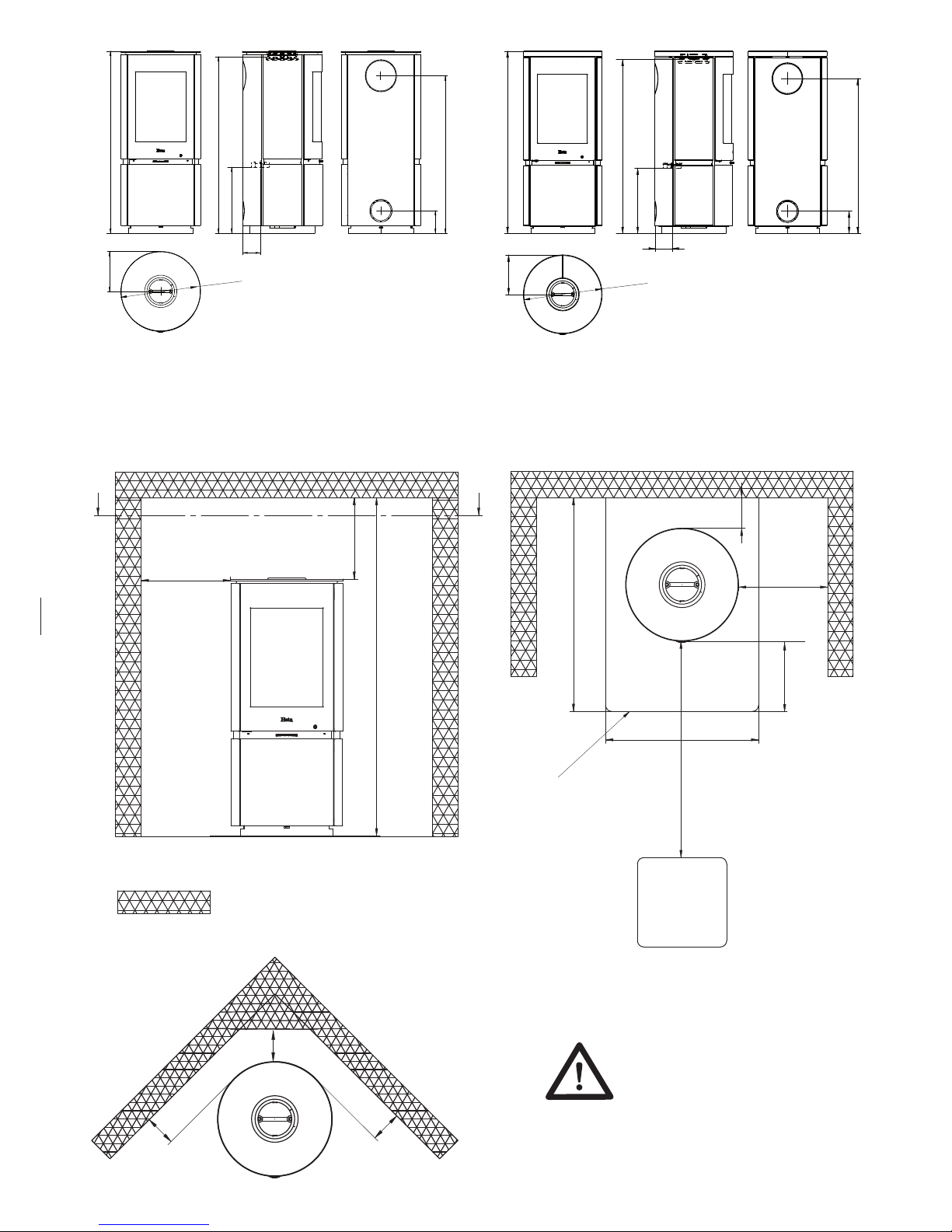

2.1 Distance Provisions
There is a difference between installation next
to
flammable wall or non-flammable wall. If the wall
is made of non-flammable material, the stove
in
principle may be placed flush against it.
We recommend a minimum of 5 cm to facilitate
air circulation around the stove.
The minimum distance to combustibles can be
found on the model plate provided with the stove or on page 13 of this manual.
2.2 Floor
You must ensure that the floor can support the
weight of the stove and a top-mounted steel
chimney.
In front of the fireplace insert, the substrate
must consist of non-combustible material, for
ex. Steel/glass plate, stone or tile floor. The size
of the non-combustible surface must follow the
applicable national and local regulations. Protecting your floor from embers that may fall out
of the oven.
Distances see data table page 13.
Pay special attention to the distance from flammable floor, which is also valid even if there are
a steel, glass, stone or tile over flammable materials. It is the floor itself, which must be nonflammable. (Concrete, tile or similar). These
stoves can be installed on a 12 mm non combustible hearth.
2.3 The chimney connection
The chimney opening must follow national and
local regulations. However, the area of the opening should never be less than 115 cm2, which
corresponds to a diameter of 121 mm. If a damper
is fitted in the flue gas pipe, there must always
be at least 20 cm2 of free passage, even when
the damper is in its “closed” position.
If local regulations permit, two contained stoves
can be connected to the same chimney. However, you must abide by local regulations regarding the distance between the two connections.
The insert stove must never be connected to
a chimney that is linked to a gas fire stove.
An efficient stove makes high
demand on chimney
properties
– so always have your local
chimney sweep evaluate
your chimney.
Connection to a brick chimney
Brick a thimble into the chimney and seat the
flue gas pipe in this.
The thimble and flue gas pipe must not penetrate the chimney opening itself, but must be flush
with the inside of the chimney duct. Joins between brickwork, the thimble and flue gas pipe
m
ust be sealed with fireproof material and / or
beading
. Heta A/S stresses that it is of utmost
Page 20
20
im
portance that this is done correctly with very
tight joints
. As mentioned earlier, we recommend
that setup and installation be left to a professional Heta dealer.

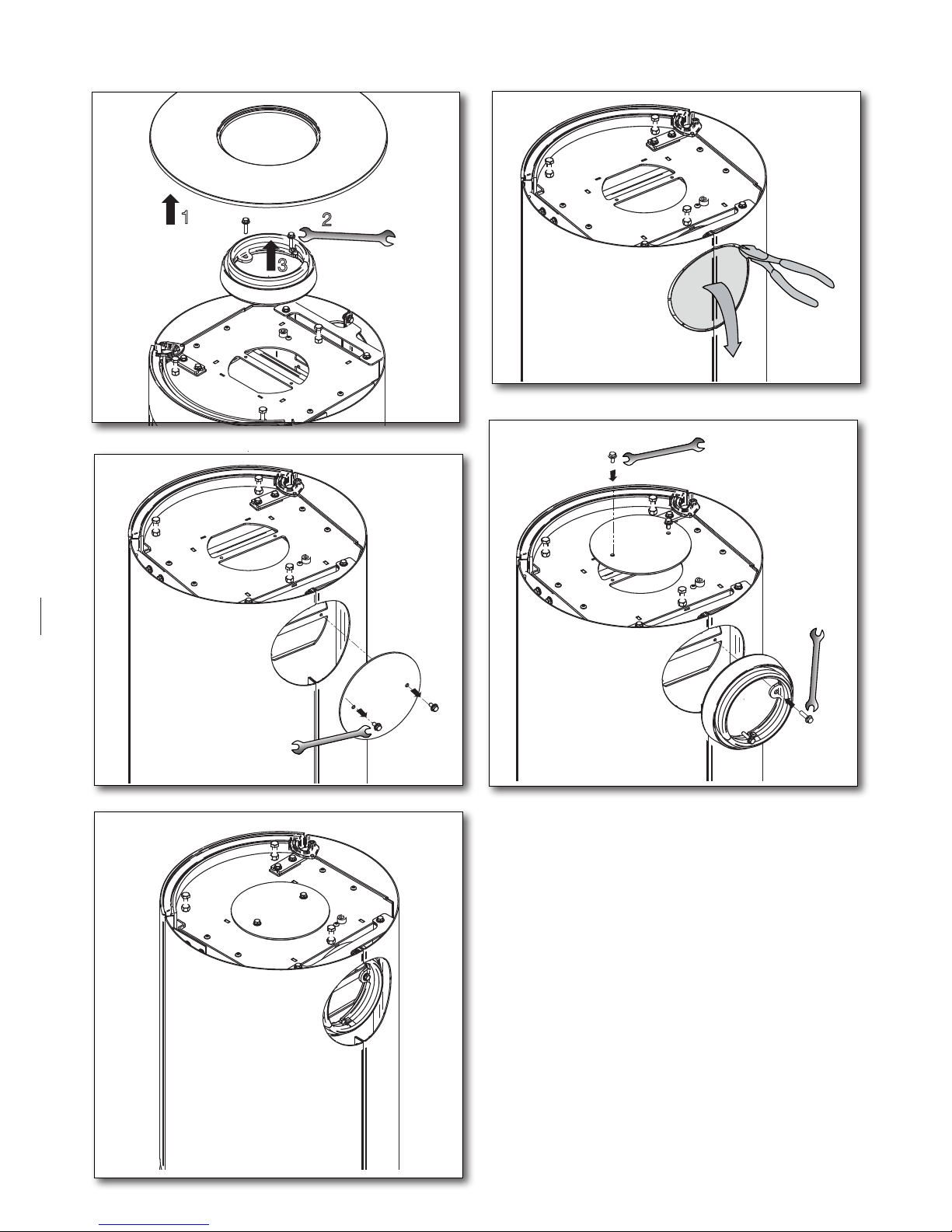

Connection to a steel chimney
When fitting a connection from a top outlet stove
directly to a steel chimney, we recommend fitting the chimney tube inside the flue gas spigot
so that any soot and condensation drops into
the stove itself rather than collecting on the exterior surface of the stove.
For connections to chimneys that are run through
ceilings, all national and local regulations regarding distance to flammable material must be followed. It is important that the chimney is fitted
with roof support so that the top panel of the
stove is not required to bear the entire weight
of the chimney (excessive weight may damage
the stove).
2.4
Combustion air and Ventilation
The insert stove is approved as a room air depen-
dent insert stove in accordance with EN 13240.
All the combustion air in the inset stove comes
from the room in which it is fitted. However, by
connecting a sealed air inlet to the insert stove’s
air intake connector, the stove can be supplied
with external combustion air. In this respect, the
following requirements must be met:
• Only approved materials may be used from
the ventilation unit to the air inlet vent.
• The air inlet vent must be fitted correctly and
insulated to prevent formation of condensate.
The cross section of the vent and grille must
be at least 78 cm².
• If the vent leads out into the open air, please
note that the grille must be fitted with suitable
wind protection. There must be no risk that
the grille can get clogged by leaves, etc.
Ventilation
Adequate ventilation must be provided in accordance with building regulations (Doc J Oct
2010) especially when installing in newer build
properties when the stove is not going to be installed to an outside air supply.
The Scan-Line 8 has a nominal output of less
than 5kW and does not need additional ventilation in older properties where it will be ventilated
by natural leakage.
Houses built after 2008 where the air leakage
rate is less than than 5 m3 / hour / m2 then a ventilator equivalent to 550 mm2 per kW output will
be required (4.5 kW x 550 mm = 2475 mm2) unless the stove is connected to an outside fresh
air supply.

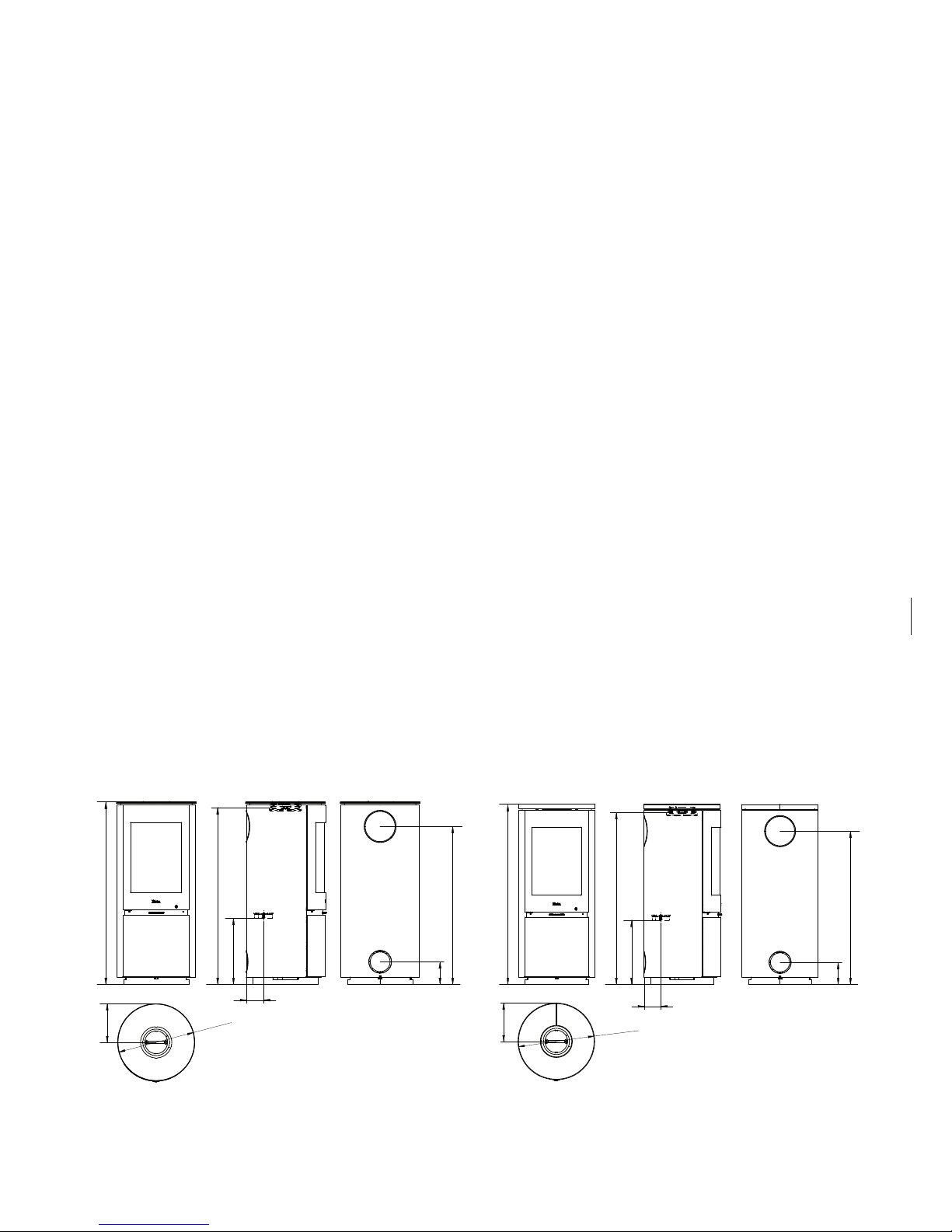

2.5 Stovedrawings/measurments
366
981
1011
94
125
875
221
Ø 443
Scan-Line 8
- With steel sides
366
981
1029
94
125
875
Ø 445
222
Scan-Line 8
- With soapstone top
and steel sides
Page 21
21
Combustible material
2.6 Clearances for installation EN 13 240
320
1327
350
A
A
A-A
120
600
839
350
850
300
Not combustible
Furnitures
120
120
120
The dimensions are the
minimum dimensions,
unless otherwise stated.
Ø 445
366
981
1029
222
875
125
97
Scan-Line 8
- With soapstone
- With soapstone top
and casted sides
1011
981
366
97
221
875
125
Ø 443
Scan-Line 8
- With casted sides
Page 22
22
2.7 Changing to a back outlet
stoves with casted and/or stone cladding
1
2
3
4
6
1
1
2
3
1
2
1
2
5
2
3
1
Page 23
23
2.8 Changing to a back outlet - stoves with steel cladding
1
2
1
2
3
3
4
5
Page 24
24
3. Data plate
Note your own number here
Under the Clean Air Act local authorities may
declare the whole or part of the district of the
authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if
located in a designated smoke control area. It
is also an offence to acquire an” unauthorized
fuel” for use within a smoke control area unless
it is used in an” exempt” appliance (” exempted”
from the controls which generally apply in the
smoke control area).
In England appliances are exempted by publication on a list by the Secretary of State in accordance with changes made to sections 20 and
21 of the Clean Air Act 1993 by section 15 of
the Deregulation Act 2015. Similarly, in Scotland
appliances are exempted by publication on a list
by Scottish Ministers under section 50 of the Re-
gulatory Reform (Scotland) Act 2014. In Wales
and Northern Ireland these are authorized by
regulations made by Welsh Ministers and by the
Department of the Environment respectively.
Further information on the requirements of the
Clean Air Act can be found here:
https://www.gov.uk/smoke- control-area-rules
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas
and you can contact them for details of Clean
Air Act requirements
The Scan-Line 8 with and without side windows
have all been recommended as suitable for use
in smoke control areas when burning dry wood
logs.
6. Appendix A
The Clean Air Act 1993 and Smoke Control Areas.
8056-0000-EN
DOP-Scan-Line 8 2240-2016
Heta A/S
Jupitervej 22 . DK-7620 Lemvig . Denmark
Production year: 2016
DS/EN 13240/AEA, NS 3058/3059, Aus §15A
Product description: Serial No:
Distance to combustible back wall: 120 mm
Distance to combustible at the side wall: 350 mm
Distance to furniture: 850 mm
Average CO emission (bases on 13% O2): 0.05%
Emission of CO in combustion products: 656 mg/Nm
3
Average flue outlet temperatur: 261
0
C
Dust: > 3 mg/Nm
3
OGC: 32 mgC/Nm3
Heat output: 4,5 kW
Engery efficiency: 81%
Dust (NS3058/3059) Weighted emission of particulates: 0.63 g/kg
Permitted fuel: Spilt logs
Appliance is suitable for multiple chimney allocation.
The stove is suitable for intermittent use.
Only use the permitted fuel.
Read the instructions carefully.
Scan-Line 8 stove
Loading...
