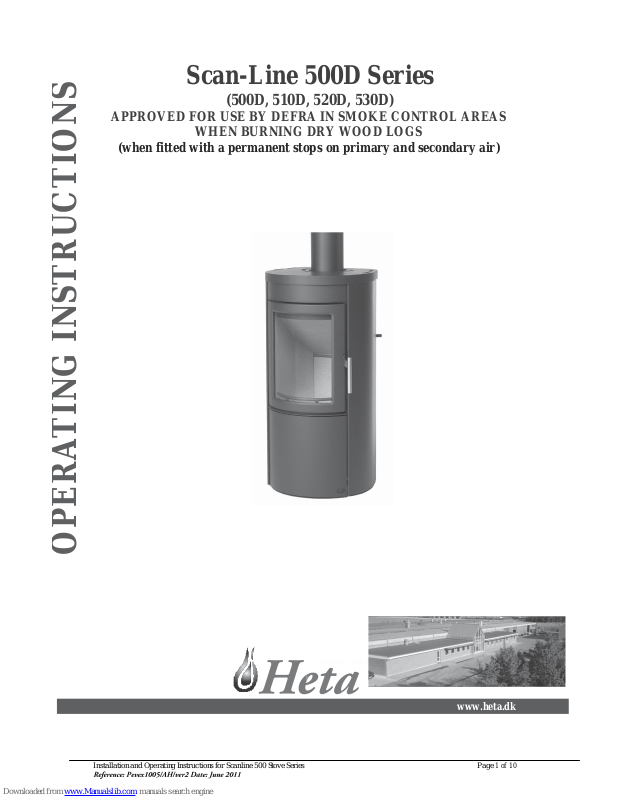

Scan-Line 500D Series

(500D, 510D, 520D, 530D)

APPROVED FOR USE BY DEFRA IN SMOKE CONTROL AREAS

WHEN BURNING DRY WOOD LOGS

(when fitted with a permanent stops on primary and secondary air)

www.heta.dk

Installation and Operating Instructions for Scanline 500 Stove Series Page 2 of 10

Congratulations on your new stove. We are sure that you will be happy with your investment, especially if you follow the
advice and instructions we have put together in these operating instructions.

The Scanline 500 series has been approved according to the EN 13240, DINplus, NS3058 and 15a B-VG and has been fully
tested and approved for use in smoke control areas throughout the UK (see clean air act Appendix A).

Approval means that consumers can be sure, that the stove meets a range of specifications and requirements intended to
ensure that the materials used are of good quality, that the stove does not adversely affect the environment, and that it is
economical to use.

With your new stove you should have received the following:

a. Operating instructions
b. Guarantee slip
c. A stove glove
d. Ashpan cover

INSTALLATION INSTRUCTIONS

Safety clearances

Stoves must always be installed in line with national and, if applicable, local regulations. It is important to abide by local
regulations regarding setting up chimneys and connection to same. Therefore, always consult your local chimney sweep
before installation, as you are personally responsible for ensuring that the applicable regulations have been met.

Distance regulations
A difference applies to installation next to flammable and non-flammable walls. If the wall is made of non-flammable
material the stove can, in principle, be placed flush against it. However, we recommend leaving a gap of at least 5 cm to
facilitate cleaning behind the stove. The minimum distances to flammable material are stated on the stove plate and are

listed in the table on page 6.
Warning

A stove gets hot (in excess of 90 degrees) - take care to ensure that children, elderly or infirm people cannot come into
contact with it.

Combustible materials should not be stored in the compartment below the ashpan.

IMPORTANT

1. Make sure there is adequate provision to sweep the chimney.

2. Make sure there is adequate ventilation to the room.

3. Please note that any extraction fans operating in the same room as the wood burning stove can reduce the chimney

draft – which may have an adverse effect on stove combustion properties. In addition, this may cause smoke to
be emitted from the stove when the firing door is opened.

4. It must not be possible to cover any air vents.

The floor
It is essential to ensure that the floor surface can actually bear the weight of the stove and a top mounted steel chimney, if
applicable. The stove must stand on a nonflammable surface such as a steel floor plate or a brick or tile floor. The size of the
nonflammable surface used to cover the floor area must match national and local regulations.

The chimney connection The chimney opening must follow national and local regulations. However, the area of the
opening should never be less than 175 cm2, which corresponds to a diameter of 150 mm. If a damper is fitted in the flue
gas pipe, there must always be at least 20 cm2 of free passage, even when the damper is in its “closed” position. If local
regulations permit, two contained fireplaces can be connected to the same chimney. However, you must abide by local
regulations regarding the distance between the two connections. Wood burning stoves must never be connected to
chimneys that are also linked to a gas fired heater. An efficient stove makes high demand on chimney properties – so
always have your local chimney sweep evaluate your chimney.

Connection to a brick chimney
Brick a thimble into the chimney and seat the flue gas pipe in this. The thimble and flue gas pipe must not penetrate the
chimney opening itself, but must be flush with the inside of the chimney duct. Joins between brickwork, the thimble and flue
gas pipe must be sealed with fireproof material and/or beading.

Connection to a steel chimney When fitting a connection from a top output stove directly to a steel chimney, we
recommend fitting the chimney tube inside the flue gas spigot so that any soot and condensation drops into the stove itself
rather than collecting on the exterior surface of the stove. Changing smoke outlet from top mounted to rear mounted (see fig.

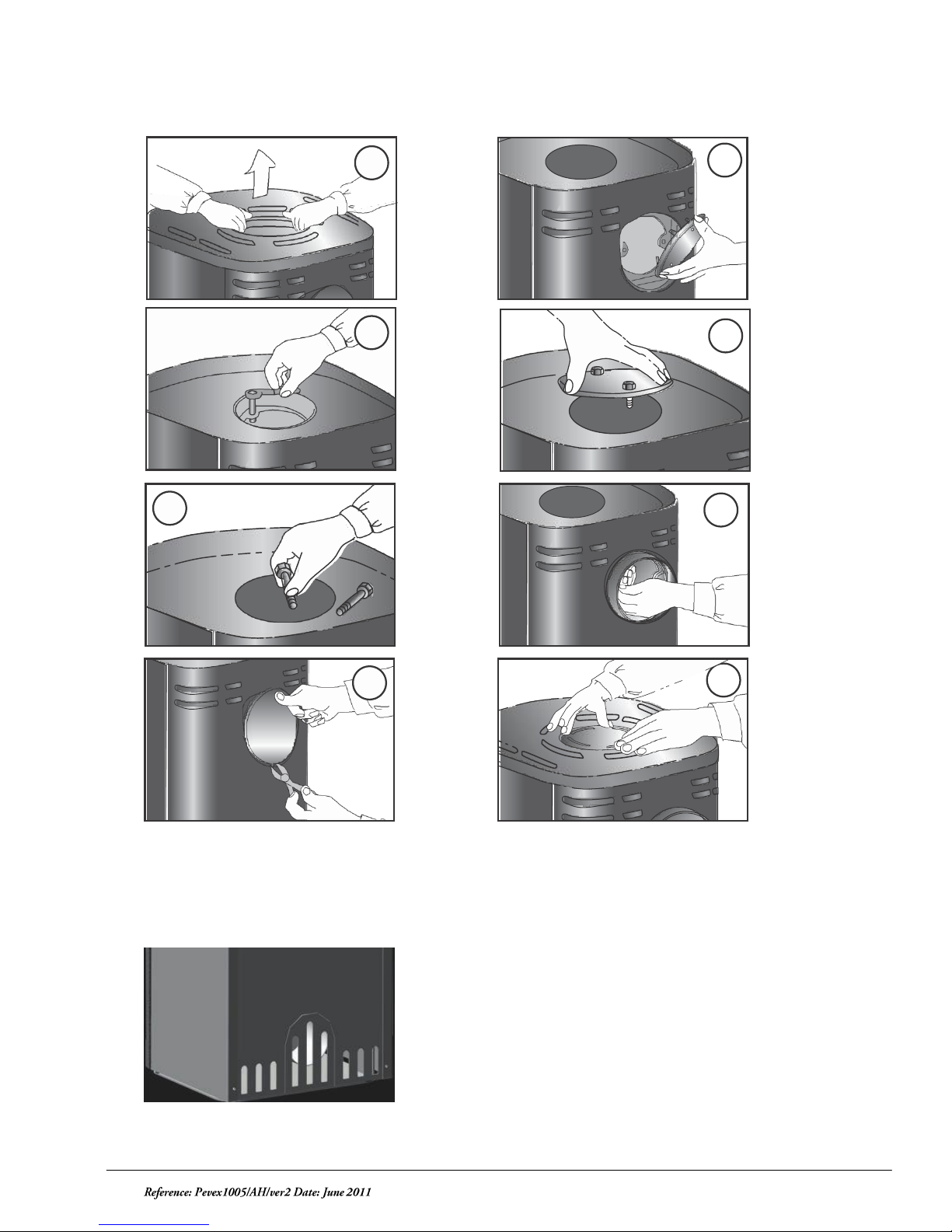

11–18 on page 9).

For connections to chimneys that are run through ceilings, all national and local regulations regarding distance to
flammable material must be followed.

Installation and Operating Instructions for Scanline 500 Stove Series Page 3 of 10

It is important that the chimney is fitted with roof support so that the top panel of the stove is not required to bear
the entire weight of the chimney (excessive weight may damage the stove).

Draft conditions
Poor draft may result in smoke being emitted from the stove when the door is opened. The minimum chimney draft to ensure
satisfactory combustion in stoves of this kind is 10 PA. However, there will still be a risk of smoke emission if the firing
door is opened during powerful firing. The flue gas temperature at nominal output is 270°C when expelled to an exterior
temperature of 20°C. The flue gas mass flow is 5.5 g/sec. The chimney draft is generated by the difference between the high
temperature of the chimney and the low temperature of the fresh air. The length and insulation of the chimney, wind and
weather conditions also have an effect on the ability of the chimney to generate appropriate under pressure.

If the stove has not been used in a while, check that the chimney and stove are not blocked with soot, bird nests, etc., before
using it.

Reduced draft can occur when:

- The difference in temperature is too small – due to insufficient chimney insulation, for example.

- The outdoor temperature is too high
– in summer, for example.

- No wind is blowing.

- The chimney is too low and sheltered.

- The chimney contains false air.

- The chimney and flue gas pipe are blocked.

- The house is too airtight (i.e. when there is an insufficient supply of fresh air).

- Poor smoke extraction (poor draft conditions) due to a cold chimney or bad weather conditions can be
compensated for by increasing the airflow into the stove.

Good draft occurs when:

- The difference in temperature between the chimney and outdoor air is high.

- The weather is fine.

- The wind is blowing strongly.

- The chimney is of the correct height: at least 4.00 m above the stove and free of the roof ridge.

INSTRUCTIONS FOR USE

First firing

The stove has been treated with a heat resistant coating which hardens at a temperature of approximately 250 ºC. This
hardening process causes the production of smoke and malodorous fumes, so the room must be very well ventilated.

During the first firing, which should be carried out using approximately 1 kg of wood, the stoking door must be left slightly
open and must not be closed until the stove is cold. This is to prevent the sealing rope sticking to the stove.

Fuel
Your new stove is EN approved for firing with wood fuel. You must therefore only burn clean, dry wood in your stove.
Never use your stove to burn driftwood, as this may contain a lot of salt which can damage both the stove and the chimney.
Similarly, you must not fire your stove with refuse, painted wood, pressure impregnated wood or chipboard, as these
materials can emit poisonous fumes and smoke. Correct firing using well seasoned wood provides optimal heat output and
maximum economy. At the same time, correct firing prevents environmental damage in the form of smoke and emissions
and also reduces the risk of chimney fires. If the wood is wet and inadequately seasoned, a large proportion of the energy in
the fuel will be used to vaporise the water, and this will all disappear up the chimney. Thus it is important to use dry, well
seasoned wood, i.e. wood with a moisture content of no more than 20%. This is achieved by storing the wood for 1–2 years
before use. Pieces of firewood with a diameter of more than 10 cm should be split before storing. The pieces of firewood
should be of an appropriate length (approx. 25-30 cm) so that they can lie flat on the bed of embers. If you store your wood
outdoors, it is best to cover it.

Examples of recommended woods types and their typical specific gravity per cubic meter stated as 100% wood with a
moisture content of 18%

Wood

kg/m3

Wood

kg/m3

Beech

710

Alder

540

Ash

700

Scotch
pine

520
Elm

690

Larch

520

Maple

660

Lime

510

Birch

620

Spruce

450

Installation and Operating Instructions for Scanline 500 Stove Series Page 4 of 10

Mountain
pine

600

Poplar

450
Willow

560

It is advised not to use very oil containing woods like teak tree and mahogany, as this can cause damage to the glass.

Heating value in wood

You have to use about 2.4 kg normal wood to replace one litre of heating oil. All woods have almost the same heating value
per kg, which is about 5.27 kW/ hour for absolute dry wood. Wood with a moistness of 18% has a efficiency of about 4.18
kW/hour per kg, and one litre heating oil contains about 10 kW/hour.

CO2 release
At combustion 1000 litres of heating oil forms 3.171 tons CO2. As wood is a CO2 neutral heat/ energy source, you save the
environment about 1.3 kg CO2 every time you have used 1 kg normal wood.

Chimney fires
In the event of a chimney fire – which often results from incorrect operation or protracted firing with moist wood

– close the door and shut off the secondary/start-up air supply to smother the fire. Call the fire department.
Lighting and combustion

To open the flow of secondary air, use the operating handle at the back of the side panel. The secondary airflow is
completely open in top position, fig 1. Shut off the secondary airflow gradually by lowering the handle. The supply is
completely shut off when the handle is at its bottom position, fig 2.

Start up airflow (primary air slider)
To open the start-up airflow for the stove, open the lower door on the stove and pull the handle on the primary air slider to the
right, fig 3. To close the primary air slider push the lever all the way to the left to its stop, fig 4. Please note that that the stop
position ensures that a constant preset bleed of air enters the stove to ensure minimum smoke discharge.

Lighting
To ignite the fuel, use fire lighters, small paraffin ignition bags or small pieces of wood placed on the bottom grate. Place
larger pieces of wood on top of this kindling material, at right angles to the firing, doors. Completely open the start-up and
secondary air supply and leave the firing door ajar – i.e. approx. 1 cm open. Once the fire has taken a good hold of the fuel
and the chimney has heated up (after about 10 min) close the firing door. We recommend that you burn the entire first firing
with the secondary air supply fully open to make sure that the chimney is thoroughly heated.

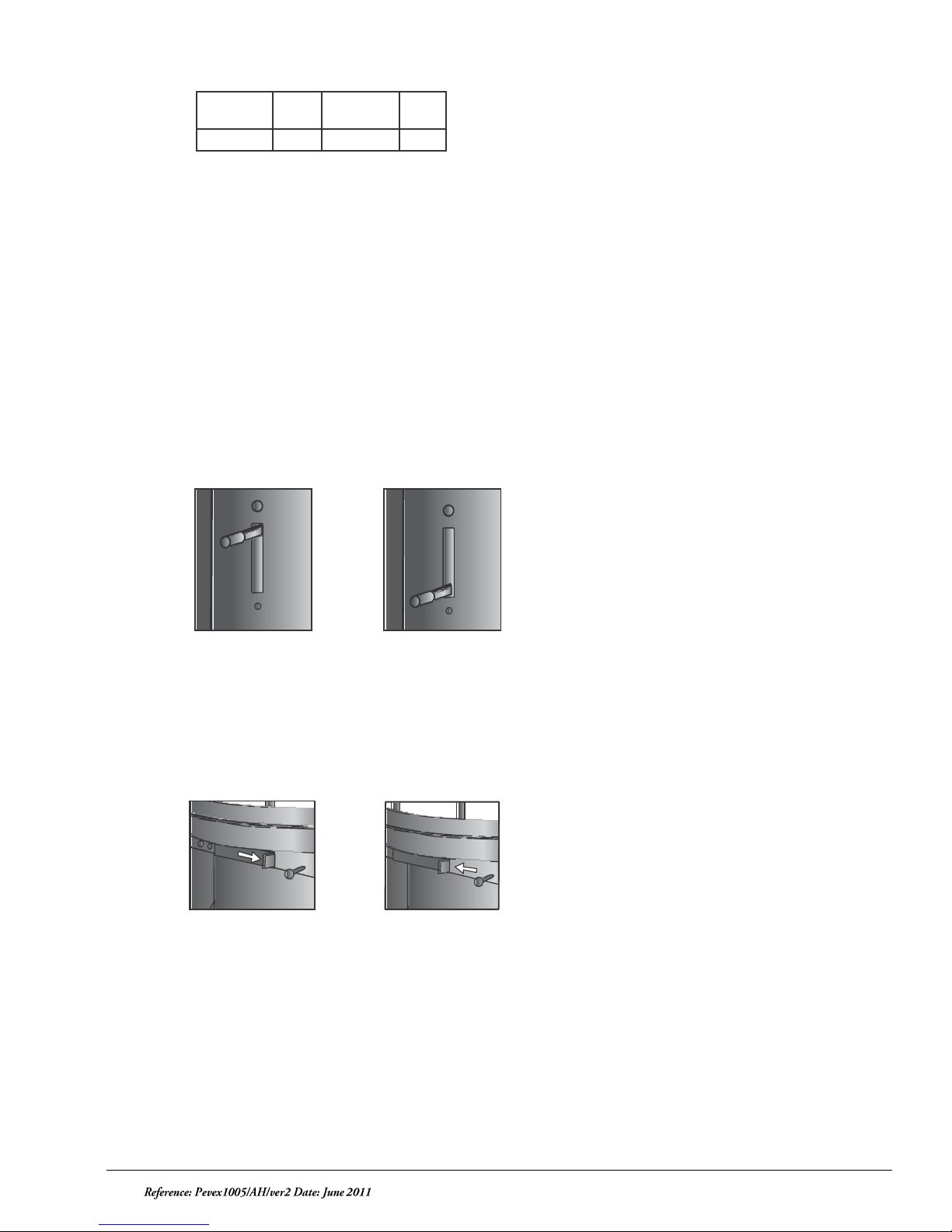

Fig 1 - open

Fig 2 - closed

Fig 3 - open

Fig 4 - closed

Installation and Operating Instructions for Scanline 500 Stove Series Page 5 of 10

4. After about 5/10 minutes and
with the fire established the door
can be shut and the stove can be
controlled by the airsliders. Shut
the lower primary airslider and
control the burning rate with the
secondary air to give optimal
combustion.

6. Place 2/3 logs on the ash bed
ensuring that the wood is not
stacked too closely and with the
airsliders fully open. The wood
will ignite in 2/3 minutes. Shut
the primary air and adjust the
secondary air for optimum
combustion.

.

Note:
If the fire dies down completely or embers

are smoldering then it will be necessary
to place some screwed up paper or
firelighters onto the grate with some
kindling or small pieces of wood to
reestablish the fire once again. Leave
the airsliders fully open and allow the fire
to build before refueling with larger pieces
of wood and then adjust the sliders for
optimum combustion.

Do not overload the firebox by loading
above the tertiary air diffuser at the
back of the firebox and ensure that the
wood is retained by the log guard.
Always ensure that the wood is not
tightly stacked so that air can circulate
freely.

5. After about 40/50 minutes
and when the last flames go out
a red hot ember bed will be left
and further wood can be added.

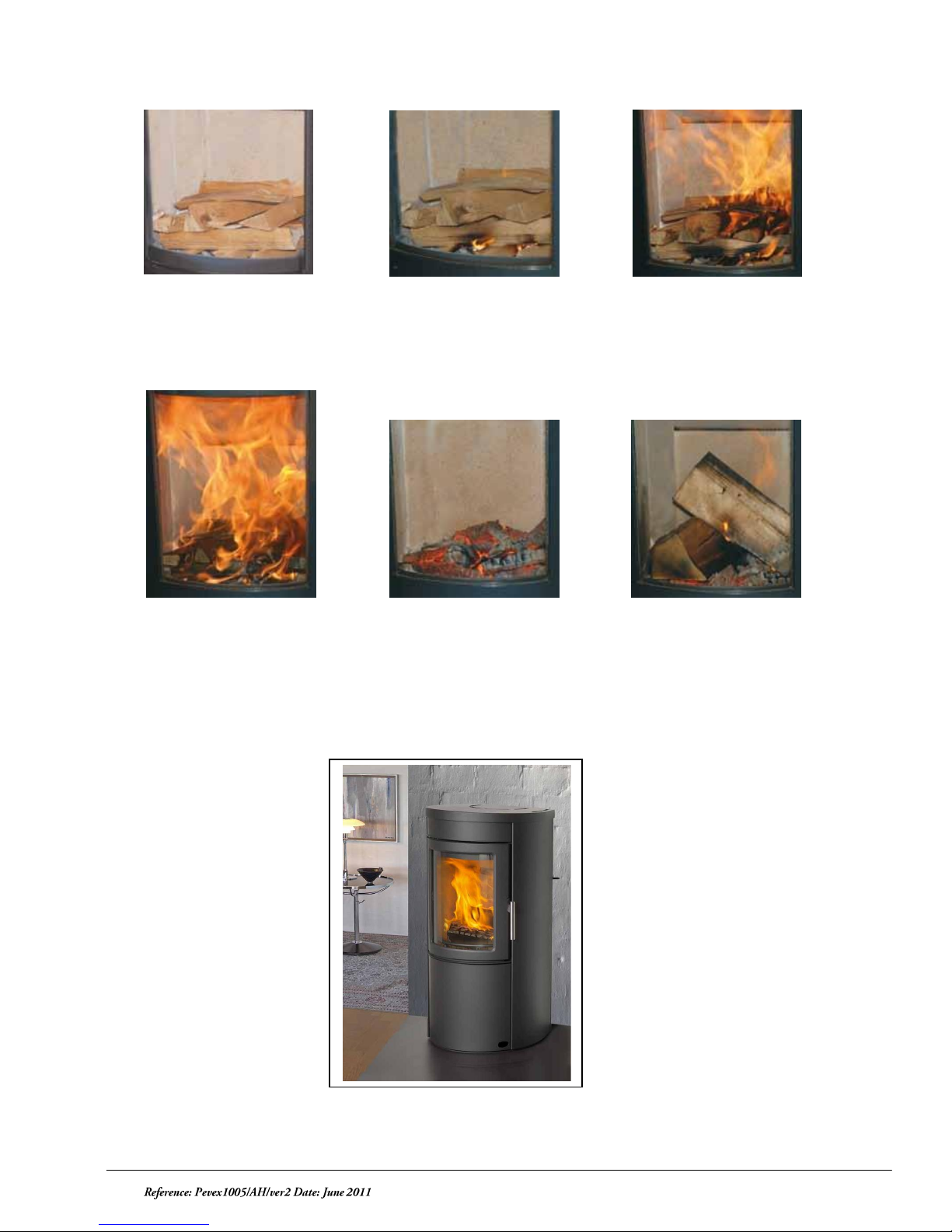

1. Place some scrunched up
newspaper and firelighters on the
base of the stove and stack some
small pieces of wood/kindling on
top into about 3 layers leaving
gaps in between.

2. Fully open the primary and
secondary air controls. Light

the firelighters and leave the

door slightly ajar to allow air to

enter and the fire to establish.

3. With plenty of air the
flames will burn brightly quickly
warming the stove and
chimney.

LIGHTING INSTRUCTIONS FOR HETA STOVES

Once the flames
have taken hold,
the air supply can
be regulated to give
the required amount
of heat.

Installation and Operating Instructions for Scanline 500 Stove Series Page 6 of 10

Refuelling
You should normally refuel the stove while there is still a good layer of embers (insufficient burning embers will cause
excessive smoke to occur when you refuel the stove). Distribute the embers across the bottom grate, place pieces of fuel
(max 0.7 kg) on the embers in a single layer perpendicular to the firing opening. If there are not enough embers then use
small pieces of kindling and space them apart for air to circulate. Close the firing door and fully open the start-up
mechanism. The wood will then ignite very quickly – i.e. in 30 seconds or 1 minute. When the wood is burning with a
steady flame, close the start-up mechanism. Then adjust the secondary airflow to the level required. For nominal operation
(5 kW), the secondary air supply should be 100% open. When firing, take care not to place the pieces of fuel too closely
together and do not overload the firebox, as this will result in poor combustion, excess smoke and insufficient exploitation of
the fuel. Please note that both the door and air control mechanisms must not remain fully open during normal operation of
the stove, as this may lead to both excess smoke being produced and the possibility of overheating. It must only be used
until the fuel is burning with a steady flame.

Reduced burning
The stove is well suited to intermittent use. If you wish to operate the stove with reduced output, simply insert smaller
volumes of wood at each firing, and apply a lower airflow. However, remember that the secondary combustion air supply
must never be shut off completely during firing. It is important to keep a good bed of embers. Gentle heat is released when
the fire settles - i.e. when the wood no longer generates flames and has been converted to glowing embers.

Optimal firing
To achieve optimal firing and the highest possible effect, it is important to make sure that the air supply is used correctly. As
a general rule, the secondary air is to be used to control the fire to ignite the flue gases. This produces a high effect and keeps

the glass window completely clear of soot as the secondary air “washes” down over it. Please note that the stove will,

naturally, produce soot if both the start-up mechanism* and secondary air intakes are closed completely. This will prevent
oxygen from being drawn into the stove, and the viewing window and other parts will become covered with soot. If this
situation is combined with firing with wet wood, the build-up of soot can become so thick and sticky that the sealing rope
can, for example, become detached when the door is opened the next day.

* The Scanline 500 (500D, 510D, 520D, 530D) stoves are considered suitable for use in smoke control areas throughout the
UK and is fitted with permanent stops to ensure that the primary and secondary air controls can not be closed beyond 95%
and 50% respectively. The appliances will only be considered as exempt appliances if these stops are in place.

Risk of explosion
After you add new fuel, it is very important that you do not leave the stove unattended until the wood is burning
constantly. This will normally occur within 30 to 60 seconds.

A risk of explosion can possibly arise if too much wood is placed in the stove. This may result in the production of large
volumes of gas, and this gas can explode if the intake of primary and secondary air is insufficient.

It is an advantage always to leave some ash lying in the bottom of the combustion chamber.

Take care when emptying the ash pan, as cinders can continue to burn in the ash for long periods of time.

Stove data table in accordance with EN13240 testing.

Stove

type

Nominal flue

gas

temperature

Flue

outlet

dia

Fuel

Volume

Draught

min

Nominal

output

Efficiency

Distance to

flammable

materials (mm)

Distance

to

furniture

Stove

weight C

mm

kg

mbar

kW % Behind

sides

mm

kg

500

270

150

1.6

0.1 5 81

150

400

800

115-250

The nominal output is the output to which the stove has been tested. The test was carried out with the secondary air 100%
open.

OPERATIONAL PROBLEMS

The chimney must be swept at least once a year, we recommend the use of a NACS (national association of chimney
sweeps) registered chimney sweep. In the event of smoke or malodorous fumes being produced, you must first check to see
whether the chimney is blocked. The chimney must, of course, always provide the minimum draught necessary to ensure
that it is possible to regulate the fire. Please note, however, that chimney draft is dependent on the weather conditions. In
high winds, the draft can become so powerful that it may be necessary to fit a damper in the flue gas pipe to regulate the
draft. When cleaning the chimney, soot and other deposits may come to fall on the smoke turning plate. In cases where the

Installation and Operating Instructions for Scanline 500 Stove Series Page 7 of 10

wood burns too quickly, this may be due to excessive chimney draught. You should also check to make sure that the door
seal and seal on back of the stones is intact and correctly fitting.

If the stove it generating too little heat, this may be because you are firing with wet wood. In this case, much of the heating
energy is used to dry the wood, resulting in poor heating economics and an increased risk of soot deposits in the chimney.

MAINTENANCE

The surface of the stove has been treated with heat-resistant paint.
The stove should be cleaned with a damp cloth. Any damage to the surface in the form of chips or scratches can be repaired
using touch-up paint, which is available in spray cans.

Cleaning the glass
Incorrect firing, for example using wet wood, can result in the viewing window. Check whether the air holes in the stones
are blocked with for example ashes etc. Below the casted shaking grate is it possible to clean the air channel for the start-up
airflow becoming covered in soot. This soot can be easily and effectively removed by using proprietary stove glass cleaner.

Door sealing

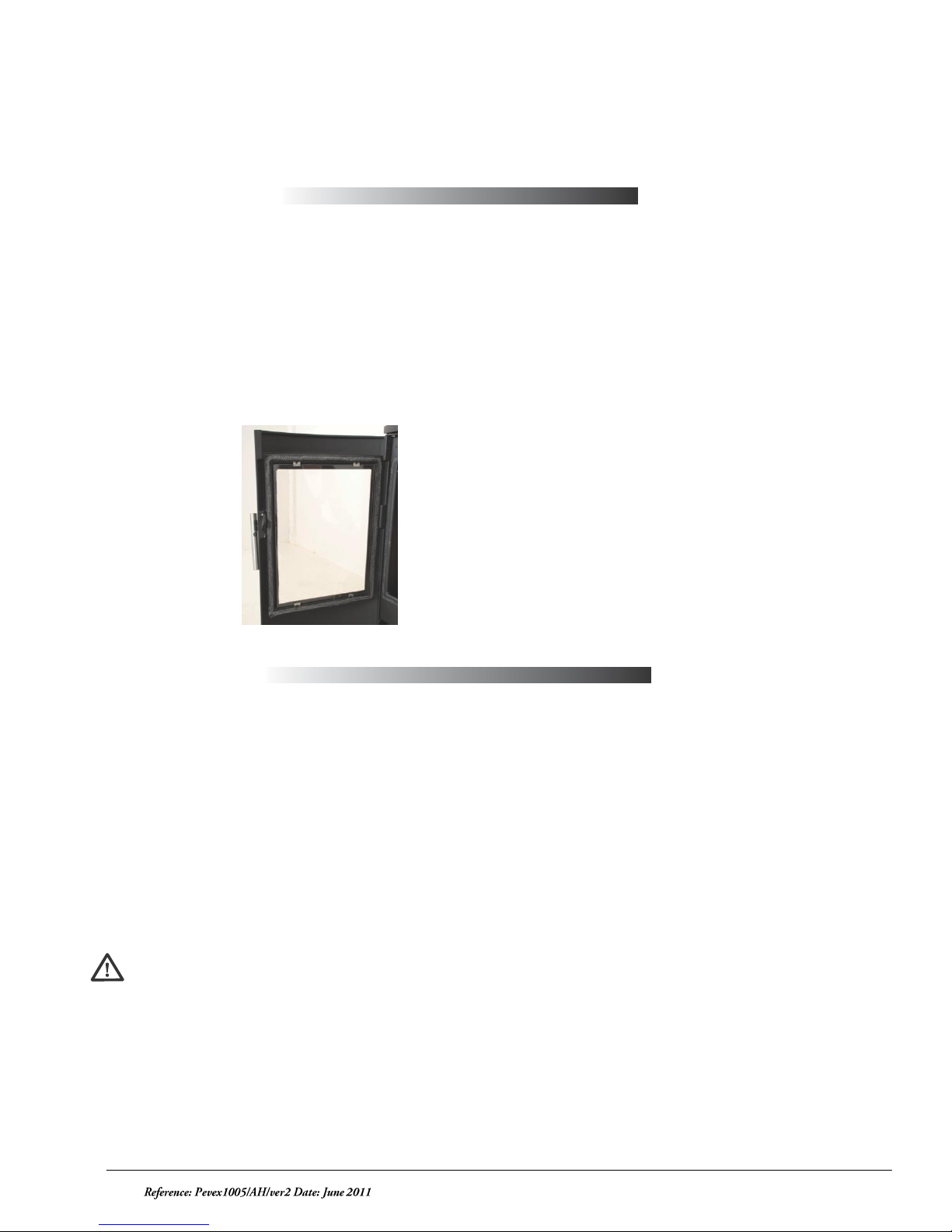

It is recommended at least once a year to check the sealing of the door to see if it is intact and correctly fitting. (See figure 2)

GUARANTEE

The model Scan-Line 500 stoves are subjected to stringent quality control procedures both throughout the production process
and immediately before delivery to the dealer. Therefore, the stoves are guaranteed against defects in manufacturing FOR
FIVE YEARS.

This guarantee does not cover: Wearing parts/fragile parts such as:

• The fire-proof bricks in the combustion chamber.

• The smoke baffle

• The glass

• The sealing rope

• The grate frame.

Damage resulting from incorrect use, transport costs in connection with repairs carried out under guarantee Installation/
disassembly in connection with repairs carried out under guarantee. Should you have cause to make a complaint, please
quote our invoice no.

Warning
Any unauthorised modification of the stove and any use of non-original spares will void the guarantee.

Installation and Operating Instructions for Scanline 500 Stove Series Page 8 of 10

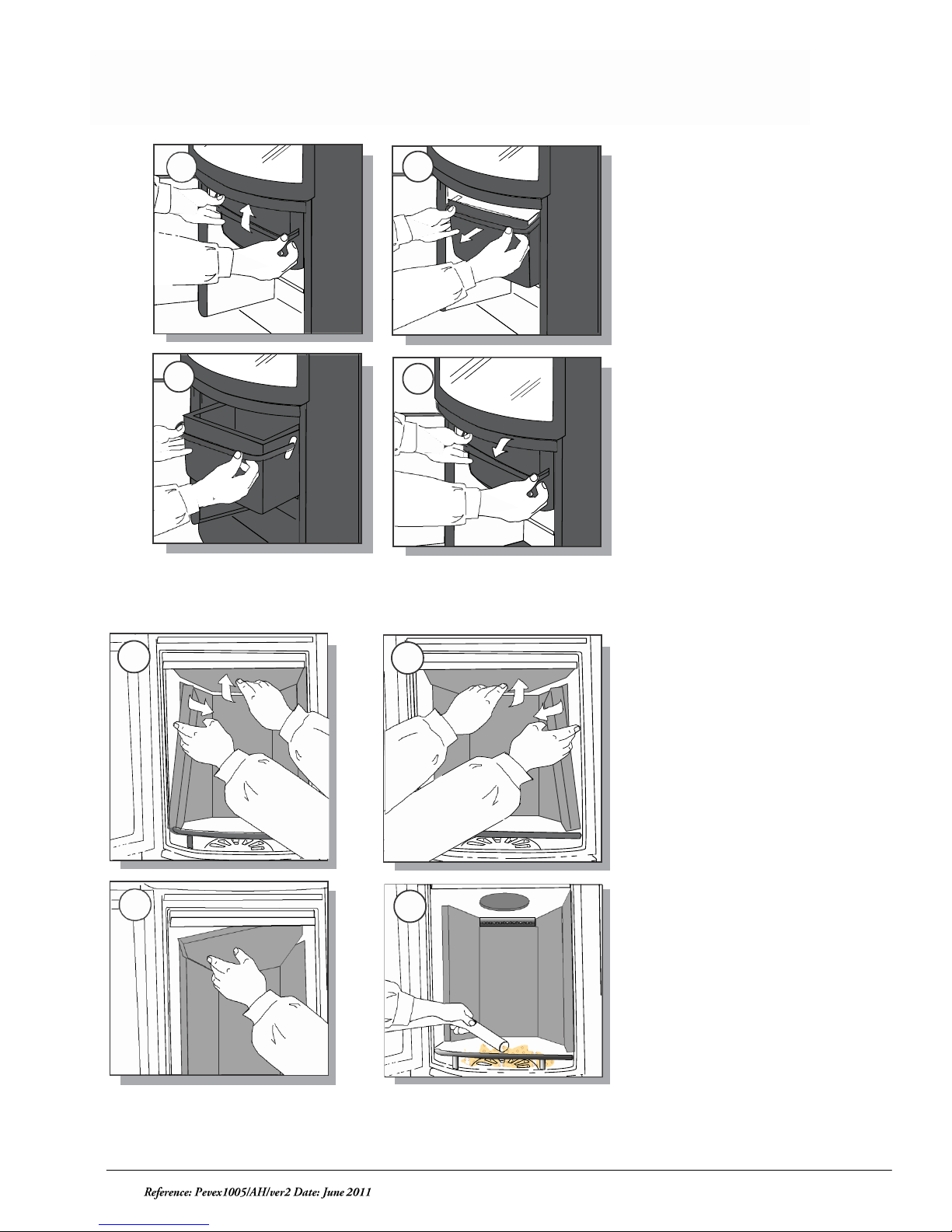

Emptying the ash pan, fig 5-8

Cleaning and replacing the fire bricks fig 9-12

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Installation and Operating Instructions for Scanline 500 Stove Series Page 9 of 10

Changing to back smoke outlet fig. 13-20

The stove is prepared for a fresh air intake.

Fig 13

Fig 14

Fig 15

Fig 16

Fig 17

Fig 18

Fig 19

Fig 20

Installation and Operating Instructions for Scanline 500 Stove Series Page 10 of 10

Appendix A

The Clean Air Act 1993 and Smoke Control Areas

Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a
smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any
fixed boiler if located in a designated smoke control area. It is also an offence to acquire an "unauthorised fuel"
for use within a smoke control area unless it is used in an "exempt" appliance ("exempted" from the controls
which generally apply in the smoke control area).

The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to authorise smokeless
fuels or exempt appliances for use in smoke control areas in England. In Scotland and Wales this power rests
with Ministers in the devolved administrations for those countries. Separate legislation, the Clean Air (Northern
Ireland) Order 1981, applies in Northern Ireland. Therefore it is a requirement that fuels burnt or obtained for
use in smoke control areas have been "authorised" in Regulations and that appliances used to burn solid fuel in
those areas (other than "authorised" fuels) have been exempted by an Order made and signed by the Secretary of
State or Minister in the devolved administrations.

The Scanline 500 Series (500, 510, 520, 530) have been recommended as suitable for use in smoke control areas
when burning wood fuel.

Further information on the requirements of the Clean Air Act can be found here :
http://smokecontrol.defra.gov.uk/

Your local authority is responsible for implementing the Clean Air Act 1993 including designation and
supervision of smoke control areas and you can contact them for details of Clean Air Act requirements.
