Congratulations on your new stove. We
are sure that you will be happy with
your investment, especially if you follow
the advice and instructions we have put
together in these operating instructions.
The Scan-line 7 series has been approved according to the DIN EN 13240, NS
3058/3059, DINplus and 15a B-VG.
Approval means that consumers can be
sure, that the stove meets a range of
specifications and requirements inten-
IMPORTANT
1. Make sure there is adequate provision
to sweep the chimney.
2. Make sure there is adequate ventilation to the room.
3. Please note that any extraction fans
operating in the same room as the
wood-burning stove can reduce the
chimney draft – which may have an
adverse effect on stove combustion
properties. In addition, this may cause
smoke to be emitted from the stove
when the firing door is opened.
4. It must not be possible to cover any
air vents.
The oor
It is essential to ensure that the floor
surface can actually bear the weight of
the stove and a top-mounted steel chimney, if applicable. The stove must stand
on a nonflammable surface such as a
steel floor plate or a brick or tile floor.
The size of the nonflammable surface
used to cover the floor area must match
national and local regulations.
The chimney connection
The chimney opening must follow national and local regulations. However,
the area of the opening should never
be less than 175 cm
2
, which corresponds
to a diameter of 150 mm. If a damper is
fitted in the flue gas pipe, there must always be at least 20 cm
2
of free passage,
ded to ensure that the materials used
are of good quality, that the stove does
not adversely affect the environment,
and hat it is economical to use.
With your new stove you should have
received the following:
a. Operating instructions
b. A stove glove
Safety clearances
Stoves must always be installed in line
with national and, if applicable, local
regulations. It is important to abide by
local regulations regarding setting up
chimneys and connection to same. Therefore, always consult your local chimney
sweep before installation, as you are
personally responsible for ensuring that
the applicable regulations have been met
.
Distance regulations
A difference applies to installation next
to flammable and non-flammable walls.
If the wall is made of non-flammable
material the stove can, in principle, be
placed flush against it. However, we recommend leaving a gap of at least 5 cm
to facilitate cleaning behind the stove.
The minimum distances to ammable
material are stated on the boiler plate
and are listed in the table on page 6.
Warning
A stove gets hot. (In excess of
90 degrees) Take care to ensure
that children and elderly or
inrm people cannot come into
contact with it.
Combustible materials should
not be stored in the compart ment below the ashpan.
INSTALLATION INSTRUCTIONS
Page 3
3
even when the damper is in its “closed”
position. If local regulations permit, two
contained fireplaces can be connected
to the same chimney. However, you must
abide by local regulations regarding the
distance between the two connections.
Wood-burning stoves must never be
connected to chimneys that are also
linked to a gasred heater. An efficient
stove makes high demand on chimney
properties – so always have your local
chimney sweep evaluate your chimney.
Connection to a brick chimney
Brick a thimble into the chimney and
seat the flue gas pipe in this. The thimble and flue gas pipe must not penetrate
the chimney opening itself, but must
be flush with the inside of the chimney
duct. Joins between brickwork, the thimble and flue gas pipe must be sealed
with fireproof material and/or beading
Connection to a steel chimney
When fitting a connection from a topoutput stove directly to a steel chimney,
we recommend fitting the chimney tube
inside the flue gas spigot so that any
soot and condensation drops into the
stove itself rather than collecting on the
exterior surface of the stove. Changing

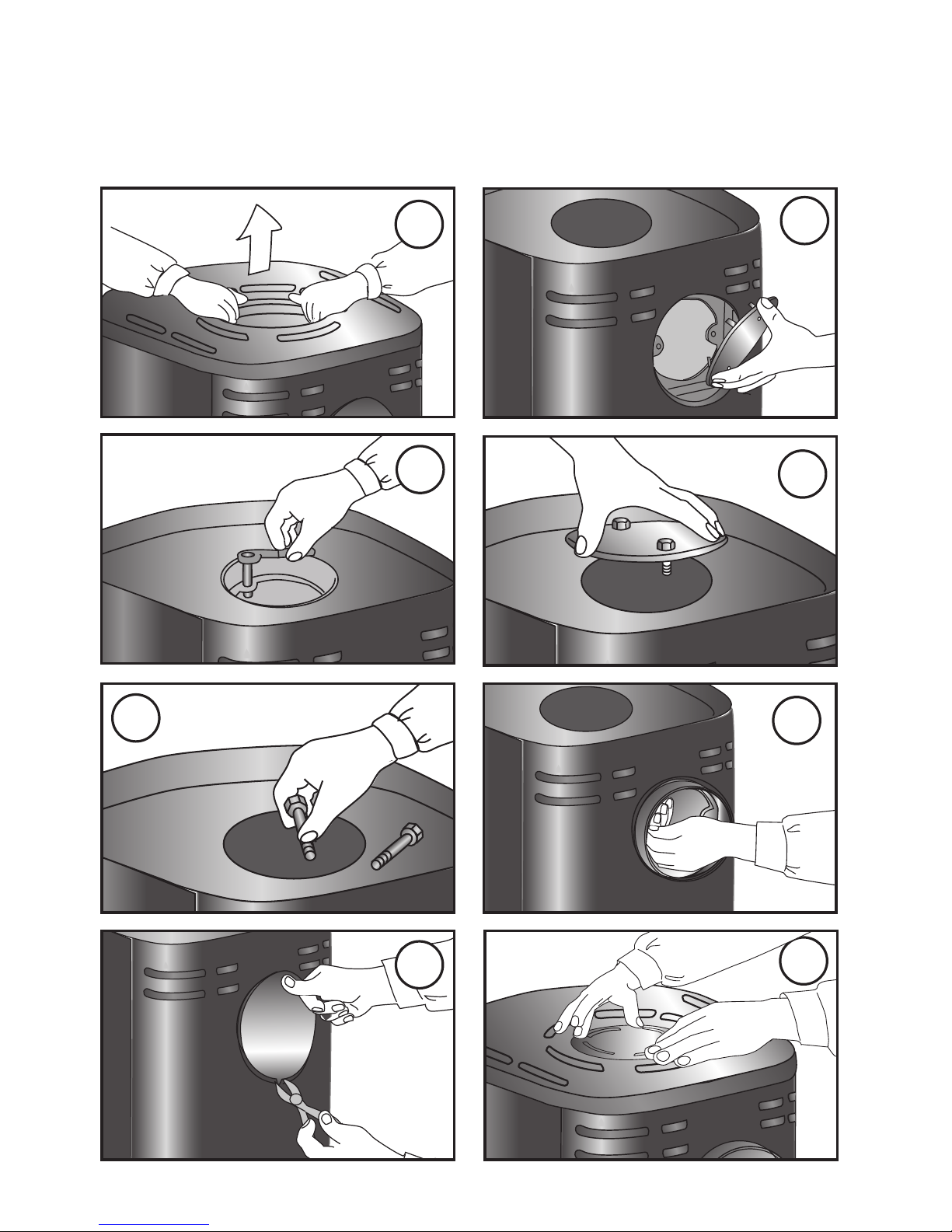

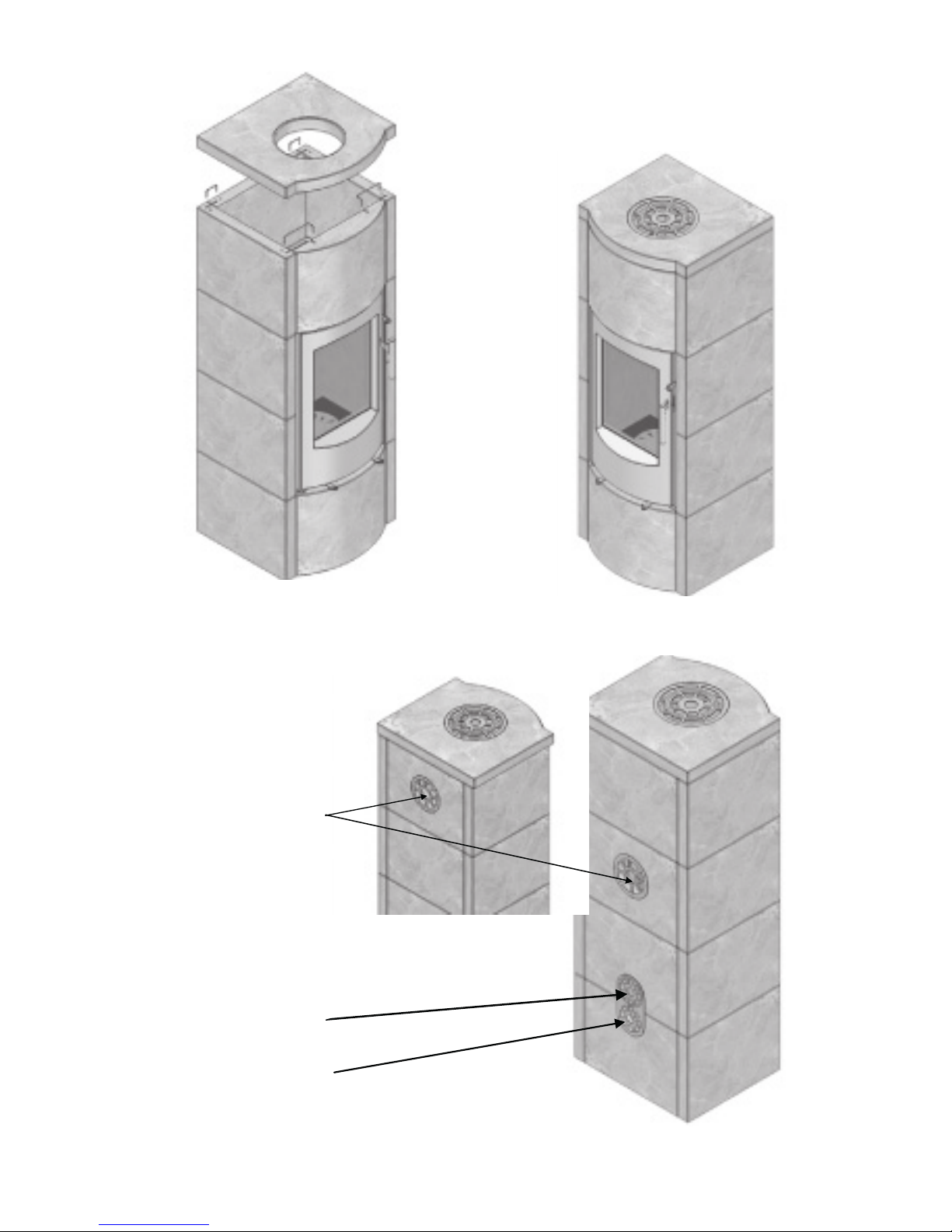

smoke outlet from top-mounted to rearmounted (see fig. 12-19 on page 12).
For connections to chimneys that are
run through ceilings, all national and
local regulations regarding distance to
flammable material must be followed.
It is important that the chimney is fitted
with roof support so that the top panel
of the stove is not required to bear the
entire weight of the chimney (excessive
weight may damage the stove).
Draft conditions
Poor draft may result in smoke being
emitted from the stove when the door is
opened. The minimum chimney draft to
ensure satisfactory combustion in stoves
of this kind is 12 PA. However, there
will still be a risk of smoke emission if
the firing door is opened during power-
ful firing. The flue gas temperature at
nominal output is 237°C when expelled
to an exterior temperature of 23°C. The
flue gas mass flow is 3.2 g/sec. The chimney
draft is generated by the difference
between the high temperature of the
chimney and the low temperature of the
fresh air. The length and insulation of
the chimney, wind and weather conditions also have an effect on the ability
of the chimney to generate appropriate
under-pressure.
If the stove has not been used in a while,
check that the chimney and stove are
not blocked with soot, bird nests, etc.,
before using it.
Reduced draft can occur when:
- The difference in temperature is too
small – due to insufficient chimney
insulation, for example.
- The outdoor temperature is too high
– in summer, for example.
- No wind is blowing.
- The chimney is too low and sheltered.
- The chimney contains false air.
- The chimney and flue gas pipe are
blocked.
- The house is too airtight (i.e. when
there is an insufficient supply of
fresh air).
- Poor smoke extraction (poor draft
conditions) due to a cold chimney or
bad weather conditions can be compensated for by increasing the airflow
into the stove.
Good draft occurs when:
- The difference in temperature between
the chimney and outdoor air is high.
- The weather is fine.
- The wind is blowing strongly.
- The chimney is of the correct height: at
least 4.00 m above the stove and free
of the roof ridge.
Page 4
4
Examples of recommended
woods types
and their typical specific gravity per
cubic meter stated as 100% wood with a
moisture content of 18%
Wood kg/m3Wood kg/m
3
Beech 710 Alder 540
Ash 700 Scotch
pine
520
Elm 690 Larch 520
Maple 660 Lime 510
Birch 620 Spruce 450
Mountain
pine
600 Poplar 450
Willow 560
It is advised not to use very oil-containing woods like teak tree and mahogany, as this can cause damage to the
glass.
Heating value in wood
You have to use about 2.4 kg normal
wood to replace one litre of heating oil.
All woods have almost the same heating
value per kg, which is about 5.27 kW/
hour for absolute dry wood. Wood with
a moistness of 18% has a efficiency of
about 4.18 kW/hour per kg, and one
litre heating oil contains about 10 kW/
hour.
CO2 release
At combustion 1000 litres of heating oil
forms 3.171 tons CO
2
. As wood is a CO2
neutral heat/ energy source, you save
the environment about 1.3 kg CO
2
every
time you have used 1 kg normal wood.
Chimney res
In the event of a chimney fire – which
often results from incorrect operation
or protracted firing with moist wood –
INSTRUCTIONS FOR USE
First ring
The stove has been treated with a heatresistant coating which hardens at a
temperature of approximately 250 ºC.
This hardening process causes the
production of smoke and malodorous
fumes, so the room must be very well
ventilated.
During the first firing, which should be
carried out using approximatly 1 kg.
of wood, the stoking door must be left
slightly open and must not be closed
until the stove is cold. This is to prevent
the sealing rope sticking to the stove.
Fuel
Your new stove is EN approved for firing
with wood fuel. You must therefore only
burn clean, dry wood in your stove. Never
use your stove to burn drifwood, as this
may contain a lot of salt which can
damage both the stove and the
chimney.
Similarly, you must not fire your
stove
with refuse, painted wood, pressureimpregnated wood or chipboard, as
these materials can emit poisonous
fumes and smoke. Correct firing using
well seasoned wood provides optimal
heat output and maximum economy. At
the same time, correct firing prevents
environmen-tal damage in the form of
smoke and emmissions and also reduces
the risk of chimney fires. If the wood is
wet and inadequately seasoned, a large
proportion of the energy in the fuel will
be used to vaporise the water, and this
will all disappear up the chimney. Thus
it is important to use dry, well seasoned
wood, i.e. wood with a moisture content
of no more than 20%. This is achieved
by storing the wood for 1–2 years before
use. Pieces of firewood with a diameter of more than 10 cm should be split
before storing. The pieces of firewood
should be of an appropriate length
(approx. 18 cm) so that they can lie flat
on the bed of embers. If you store your
wood outdoors, it is best to cover it.
Page 5
5
close the door and shut off the secondary/start-up air supply to smother the fire.
Call the fire department.
Lighting and combustion
Lighting
To ignite the fuel, use fire lighters, small
paraffin ignition bags or small pieces of
wood placed on the bottom grate. Place
larger pieces of wood on top of this kindling material, at right angles to the firing,
doors. Completely open the start-up and
secondary air supply and leave the firing
door ajar – i.e. approx. 1 cm open. Once
the fire has taken a good hold of the fuel
and the chimney has heated up (after
about 10 min) close the firing door. We
recommend that you burn the entire first
firing with the secondary air supply fully
open to make sure that the chimney is
thoroughly heated.
Rering
You should normally refire the stove
while there is still a good layer of embers
.
Distribute the embers across the bottom grate, place pieces of fuel (max
0.7 kg) on the embers in a single layer
perpendicular to the firing opening.
Close the firing door and fully open the
start-up mechanism. The wood will then
ignite very quickly – i.e. in 30 seconds
or 1 minute. When the wood is burning
with a steady flame, close the start-up
mechanism. Then adjust the secondary
airflow to
the level required. For no-
minal operation
(4 kW), the secondary
air supply should be 50% open. When
firing, take care not to place the pieces
of fuel too close-ly together, as this will
result in poor combustion and insufficient exploitation of the fuel. Please
note that the start-up
mechanism must not remain open during
normal operation of the stove,
as this
may lead to overheating. It must only be
used until the fuel is burning with a
steady
flame.
Reduced burning
The stove is well-suited to intermittent
use. If you wish to operate the stove
with reduced out-put, simply insert smaller volumes of wood at each firing, and
apply a lower airflow. However, remember that the secondary combustion air
supply must never be shut off completely during firing. It is important to keep
a good bed of embers. Gentle heat is
released when the fire settles - i.e. when
the wood no longer generates flames
and has been converted to glowing
embers.
Optimal ring
To achieve optimal firing and the highest possible effect, it is important to
make sure that the air supply is used correctly. As a general rule, the secondary
air is to be used to control the fire to ignite the flue gases. This produces a high
effect and keeps the glass panel com-
Handle for secondary air.
Closed position: handle to
the left.
Handle for airflow while
firing.
Closed position: handle to
the left.
Page 6
6
Stove data table in accordance with EN 13240 testing.
Stove
type
Scan-Line
series
Nominal
uegas
temperature c°
Smoke
stub
mm
Fuel
volume
kg
Draught
min
mbar
Nominal
output
tested
kW
Heat
output
kW
Distance to ammable
materials in mm
behind at the
the stove sides
Distance to
furnitures from
the stove in
mm
Stove
weight
kg
70 237
ø150
1
0,12
4 83,1 160 190 800
450
The nominal output is the output to which the stove has been tested.
The test was carried out with the secondary air 100% open.
pletely clear of soot as the secondary
air “washes” down over it. Please note
that the stove will, naturally, produce
soot if both the start-up mechanism and
secondary air intakes are closed completely. This will prevent oxygen from being
drawn into the stove, and the viewing
window and other parts will become
covered with soot. If this situation is
combined with firing with wet wood,
the build-up of soot can become so thick
and sticky that the sealing rope can, for
example, become detached when the
door is opened the next day.
Risk of explosion
After you add new fuel, it is
very important that you do not
leave the stove unattended
until the wood is burning con stantly. This will
normally occur
within 30 to 60 seconds.
A risk of explosion can possibly arise if
too much wood is placed in the stove.
This may result in the production of
large volumes of gas, and this gas can
explode if the intake of primary and
secondary air is insufficient.
It is an advantage always to leave some
ash lying in the bottom of the combstion chamber.
Take care when emptying the ash pan,
as cinders can continue to burn in the
ash for long periods of time.
OPERATIONAL PROBLEMS
The chimney must be swept at least
once a year, we recommend the use of
a NACS (national assoc
iation of chimney
sweeps) registered chimney sweep. In
the event of smoke or malodorou
s fumes
being produced, you must first check to
see whether the chimney is blocked. The
chimney must, of course, always provide the minimum draught necessary to
ensure that it is possible to regulate the
fire. Please note, however, that chimney draft is dependent on the weather
conditions. In high winds, the draft
can become so powerful that it may be
necessary to fit a damper in the flue
gas pipe to regulate the draft. When
cleaning the chimney, soot and other
deposits may come to fall on the smoke
turning plate. In cases where the wood
burns too quickly, this may be due to
excessive chimney draught. You should
also check to make sure that the door
seal is intact and correctly fitting.
If the stove it generating too little heat,
Page 7
7
this may be because you are firing with
wet wood. In this case, much of the
heating energy is used to dry the wood,
resulting in poor heating economics and
an increased risk of soot deposits in the
chimney.
Check whether the air holes in the stones are blocked with for example ashes
etc. Below the casted shaking grate is it
possible to clean the air channel for the
start-up airflow.
The surface of the stove has been treated with heat-resistant paint.
The stove should be cleaned with a
damp cloth. Any damage to the surface
in the form of chips or scratches can be
repaired using touch-up paint, which is
available in spray cans.

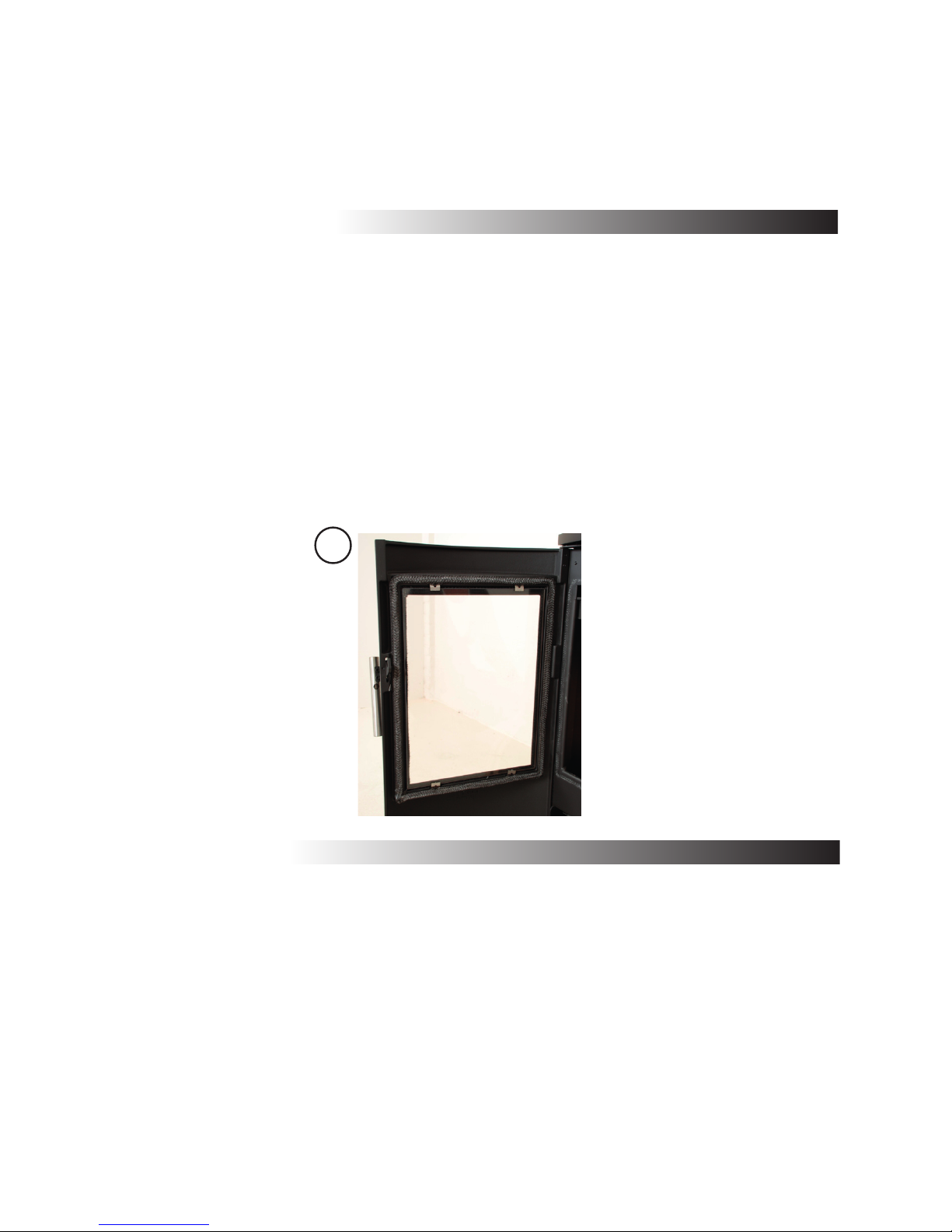

Cleaning the glass
MAINTENANCE
Incorrect firing, for example using wet
wood, can result in the viewing window
becoming covered in soot. This soot can
be easily and effectively removed by
using proprietary stove glass cleaner.
Door sealing
It is recommened at least once a year to
check the sealing of the door to see if it
is intact and correctly fitting. (See figure
2)
The model Scan-Line 70 stoves are
subjected to stringent quality control
procedures both throughout the production process and immediately before
delivery to the dealer. Therefore, the
stoves are guaranteed against defects in
manufacturing
FOR FIVE YEARS.
This guarantee does not cover: Wearing
parts/fragile parts such as:
• The re-proof bricks in the combustion
chamber.
GUARANTEE
• The smoke bafe • The glass
• The sealing rope • The grate frame.
Damage resulting from incorrect use
Transport costs in connection with repairs
carried out under guarantee Installation/
disassembly in connection with repairs
carried out under guarantee. Should you
have cause to make a complaint, please
quote our invoice no.
2
Page 8
8

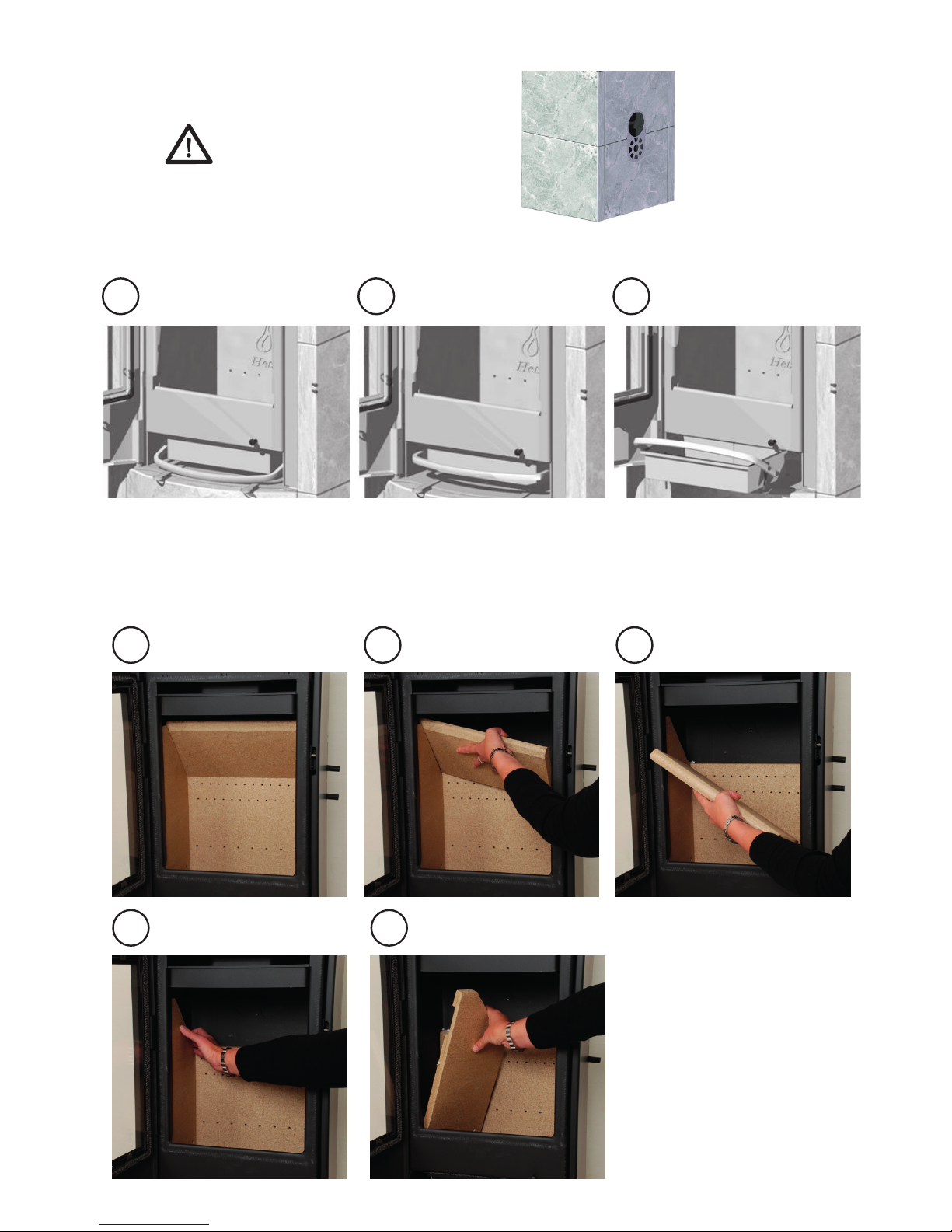

Cleaning after sweeping the chimney and
replacing the stones. Fig 6-10
Emptying the ash pan, g. 3-5
The stove is
prepared for
a fresh air
intake.
Warning
Any unauthorised
modification of the
stove and any use of
non-original spares will
void the guarantee.
3 4 5
6
109
87
Page 9
9
12-04-2010 0037-1305
Changing to back smoke outlet Fig. 11-18
12
13
15
16
17
18
11
14
Page 10
10
Installation instruktions SCAN-LINE 70
Please read carefully before installing the
stove.

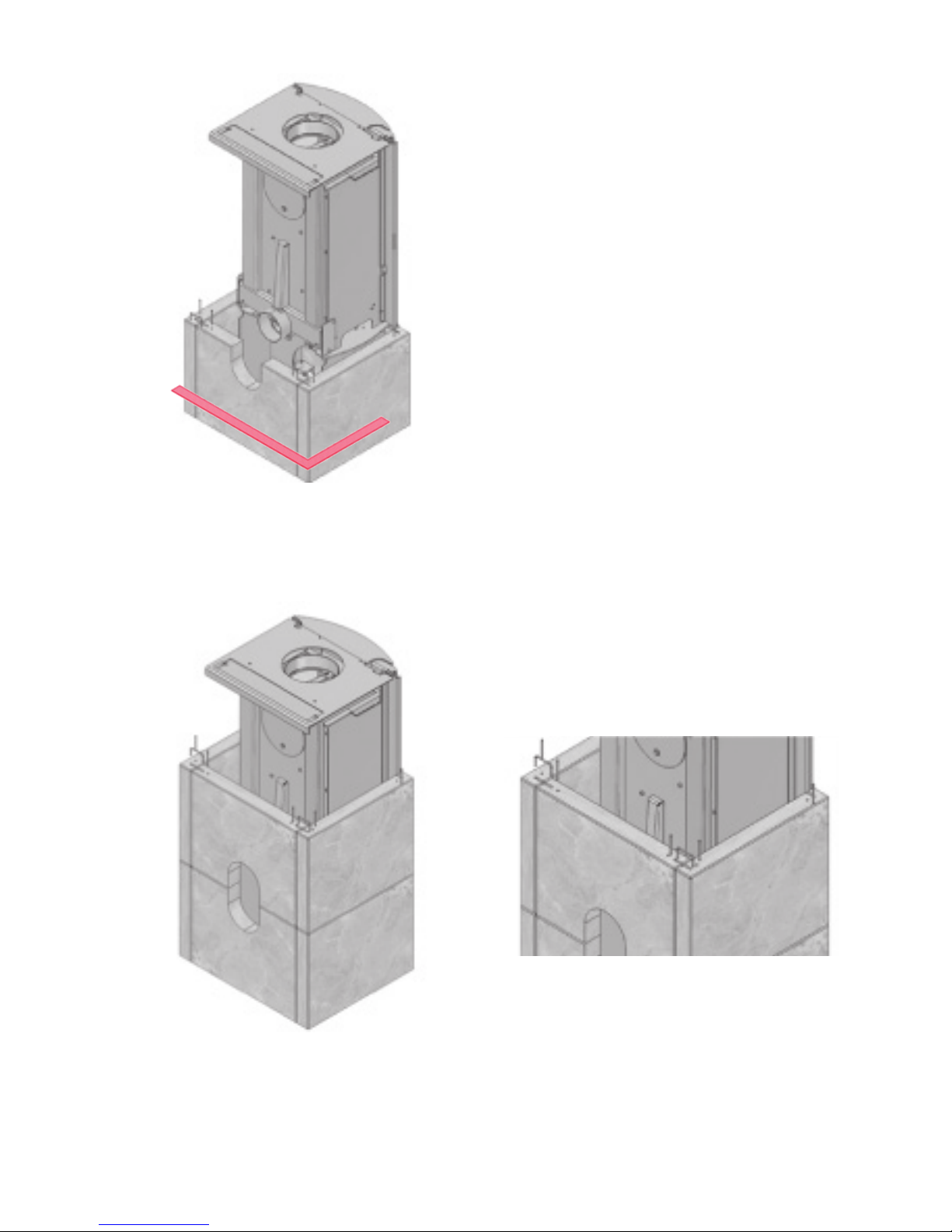

NB! Before assembling the soapstones,
ensure that the underlay/oor is level and
that the distance from the oor to the top
plate is 1035 mm. The stove must be level.
To adjust, turn the adjusting screws on the
base up/down.
We recommend installation of the
soapstones is carried out by two people.
A standard set of brackets and pins are
provided for installation of the soapstones.
Refer to the overview on the next page to
see how many brackets/pins are required
If required, lubricate the pin holes with a
small amount of silicon. Can also be applied between the stones

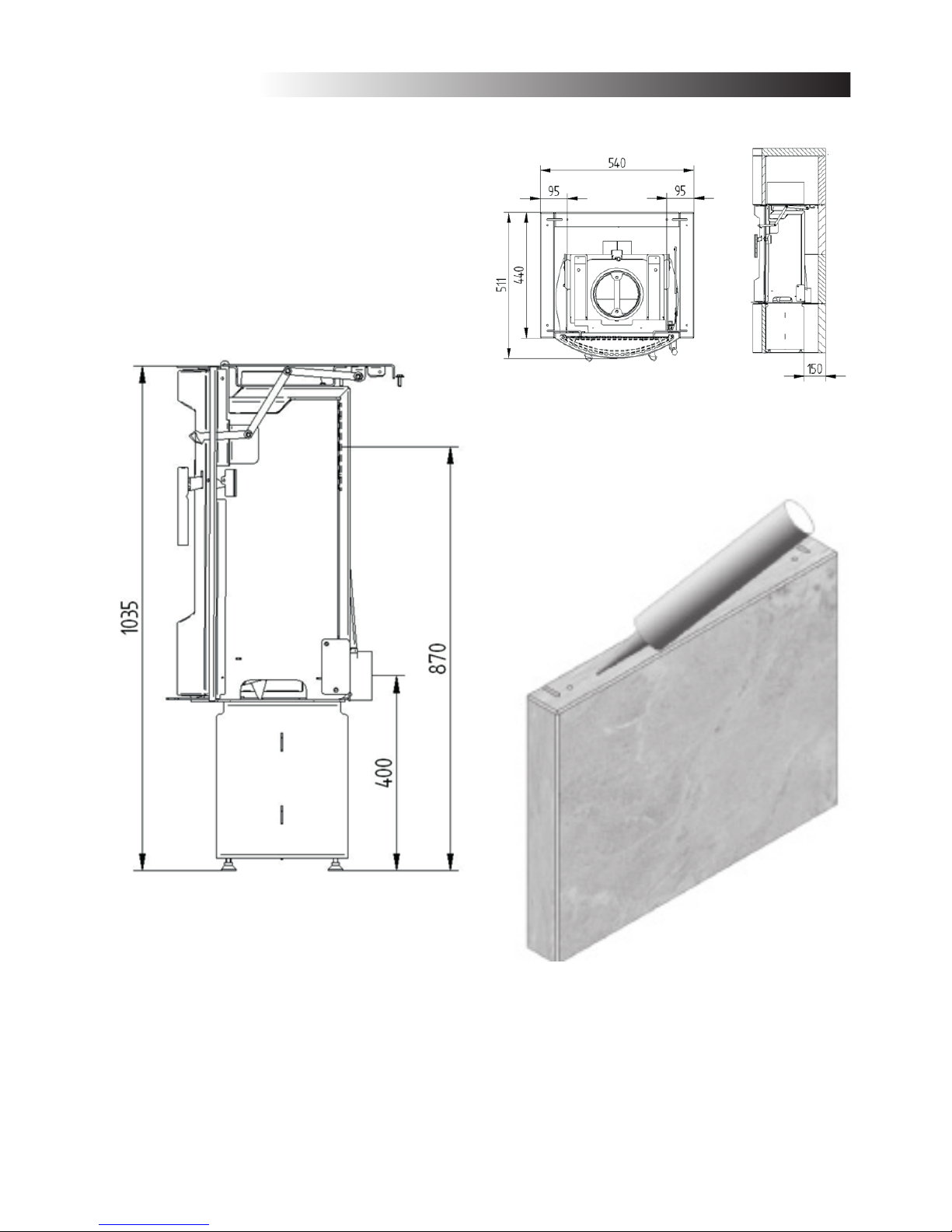

Stove top view
Stove side view
Page 11
11

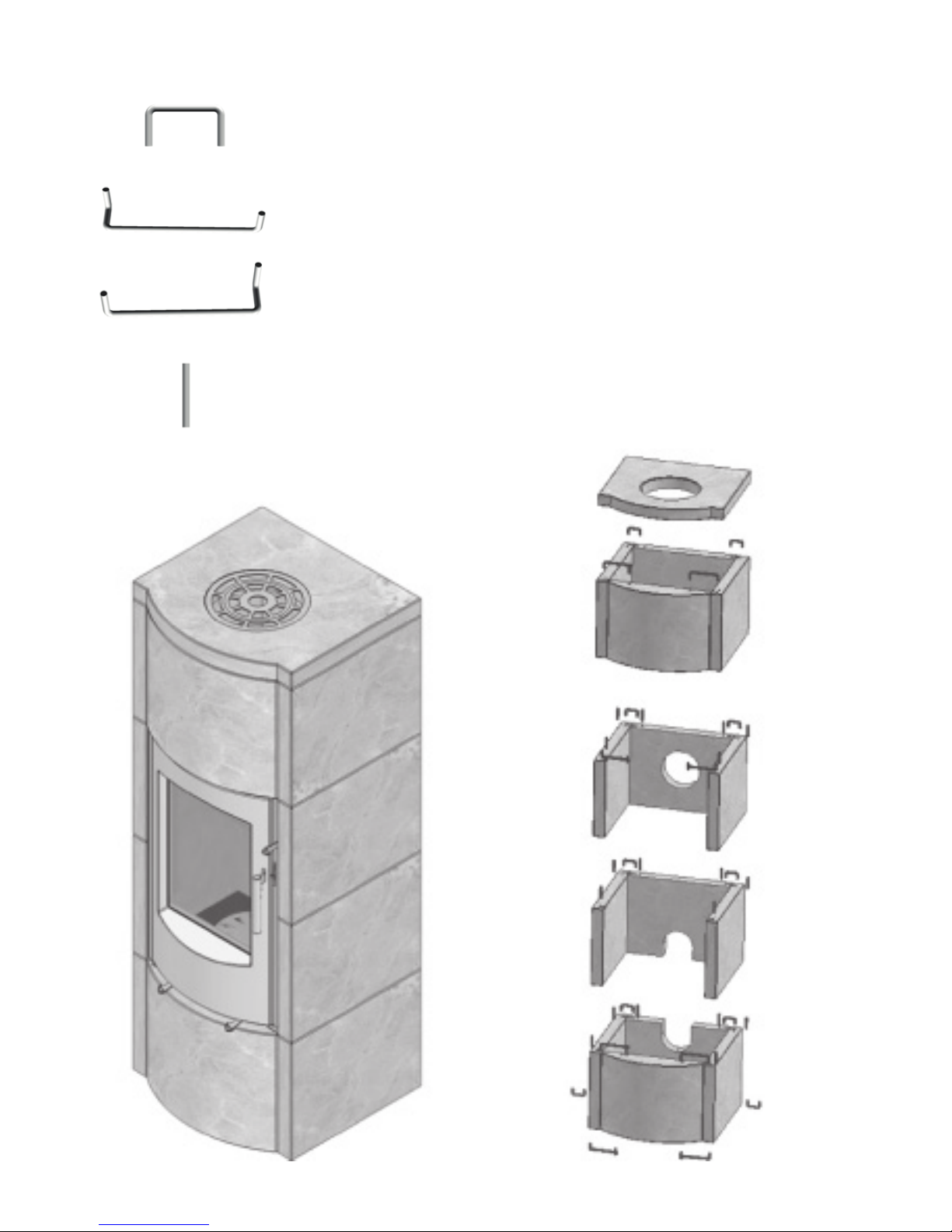

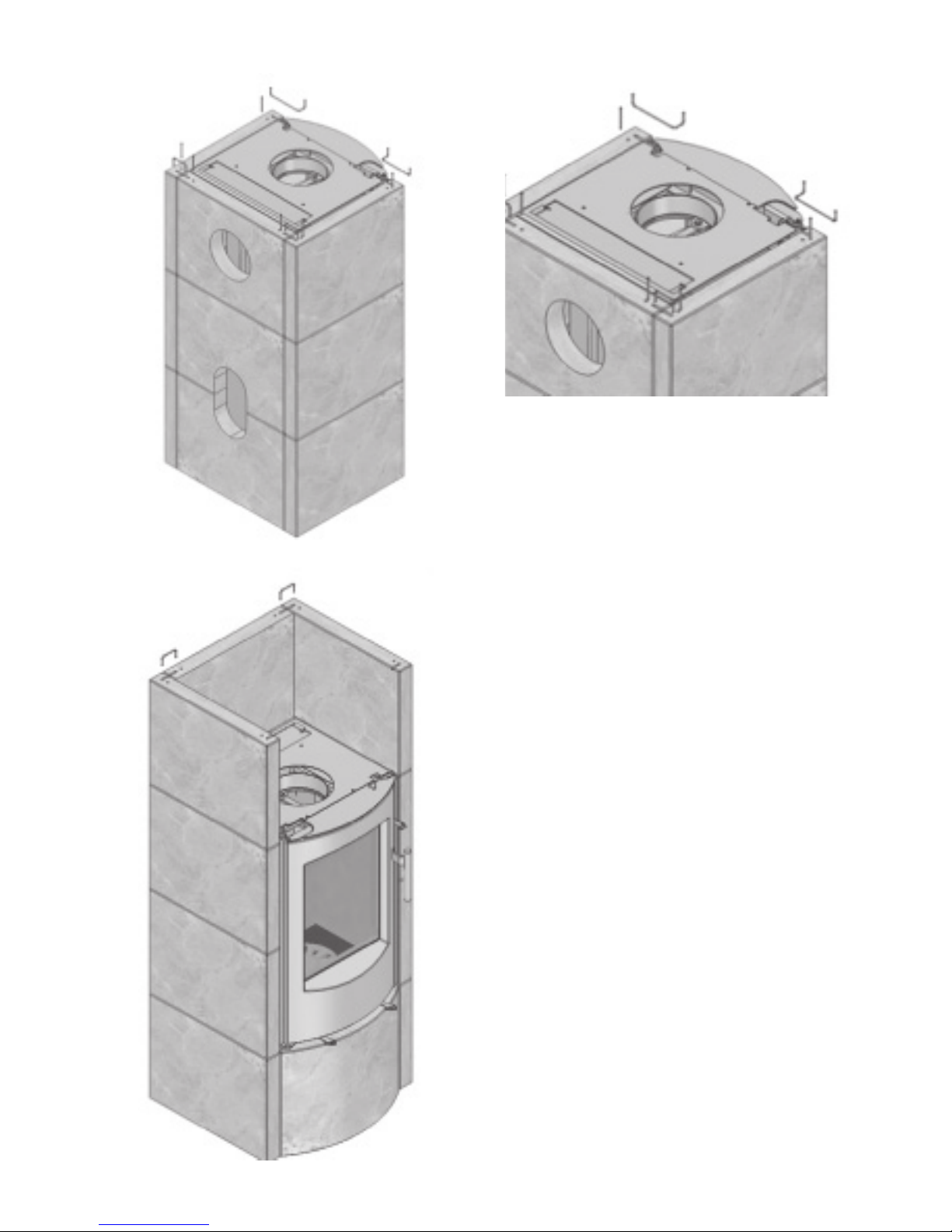

10 x standard brackets.
4 x left brackets
4 x right brackets
18 x pins
Page 12
12
Accumulating stones
Optional accumulating stones are also
available for Scan-Line 70.
Up to two accumulating stones can be
installed in this stove.
The accumulating stones must be laid
after the soapstones have been laid and
the stove/rebox has been adjusted.
Page 13
13

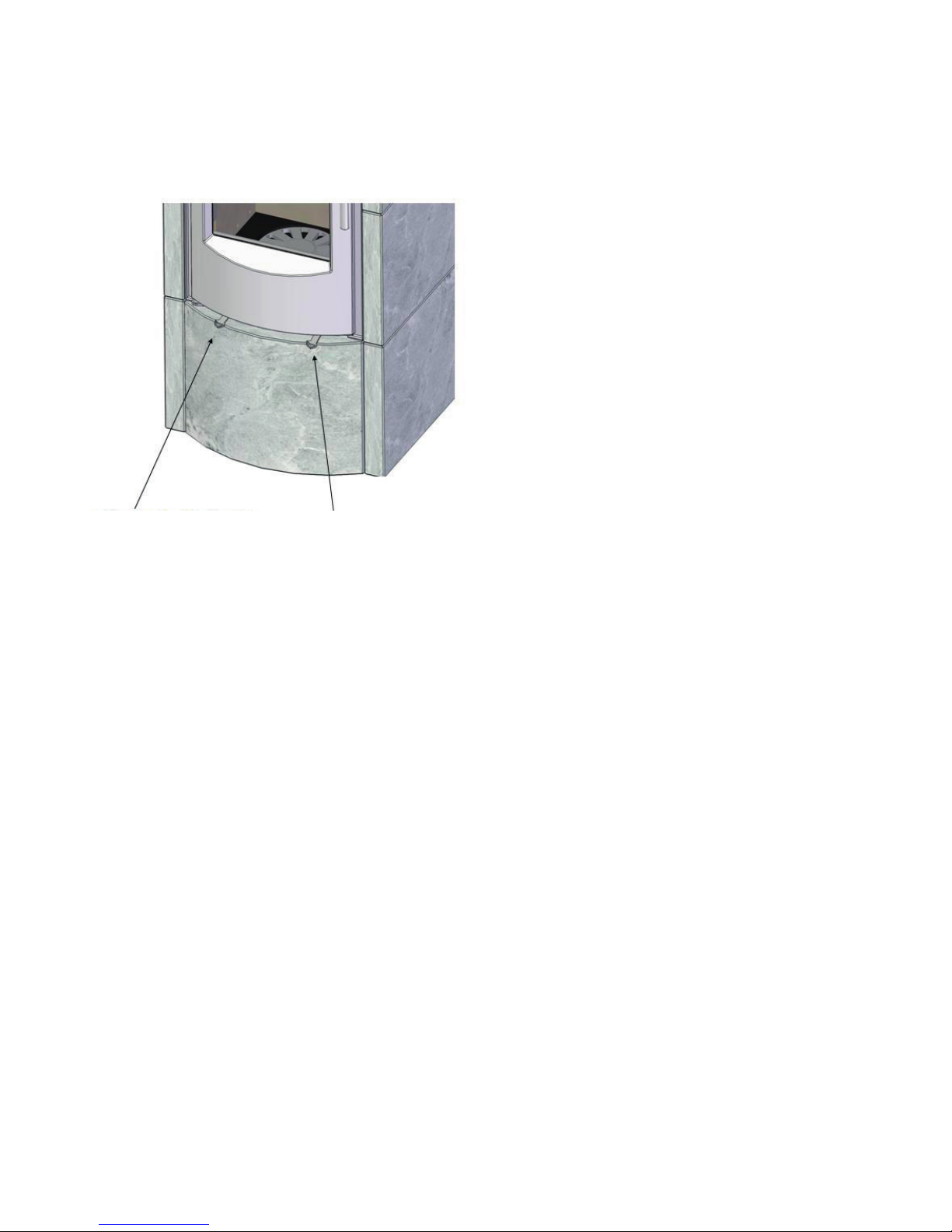

When the stove is positioned precisely,
position the lower front stone up against
the stove base leg and secure with 1 x
right and 1 x left bracket.

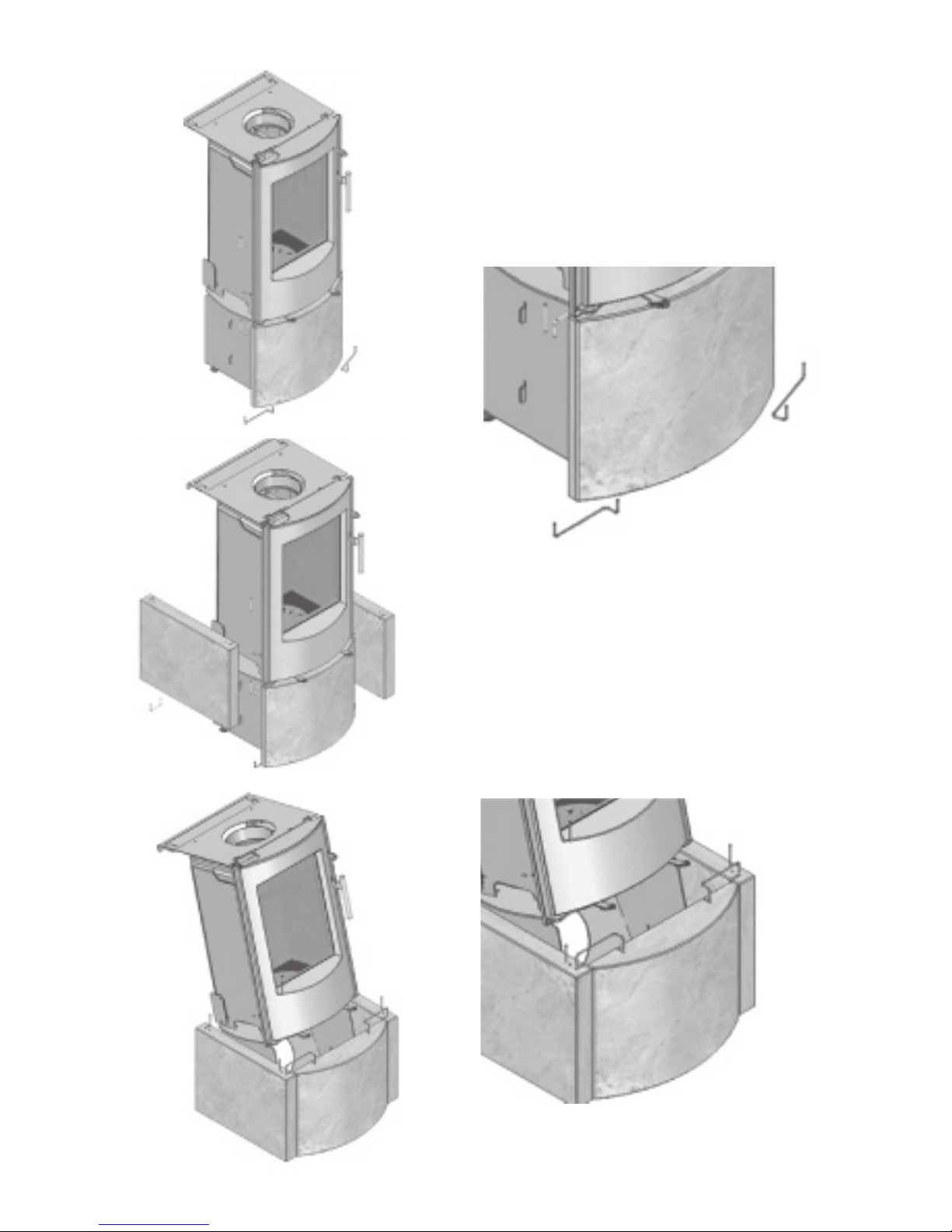

Fit both side stones, positioning the rear
brackets under the soapstones. When
tting the right and left brackets onto the
front and side soapstones, tip the stove
backwards.
right
Left
Page 14
14
Then t the rear stones and check that the
soapstones are at right angles. Fit the next
rear stone and both side stones. Position
the brackets and pins in the holes in the
soapstones
Continue tting the next rear stone and
both side stones. Position the brackets
and pins into the holes.
Page 15
15
To continue, t the next rear stone and
both side stones. Position the brackets
and pins into the holes.
Position the right and left bracket on the
side stones and over the top plate on the
stove.

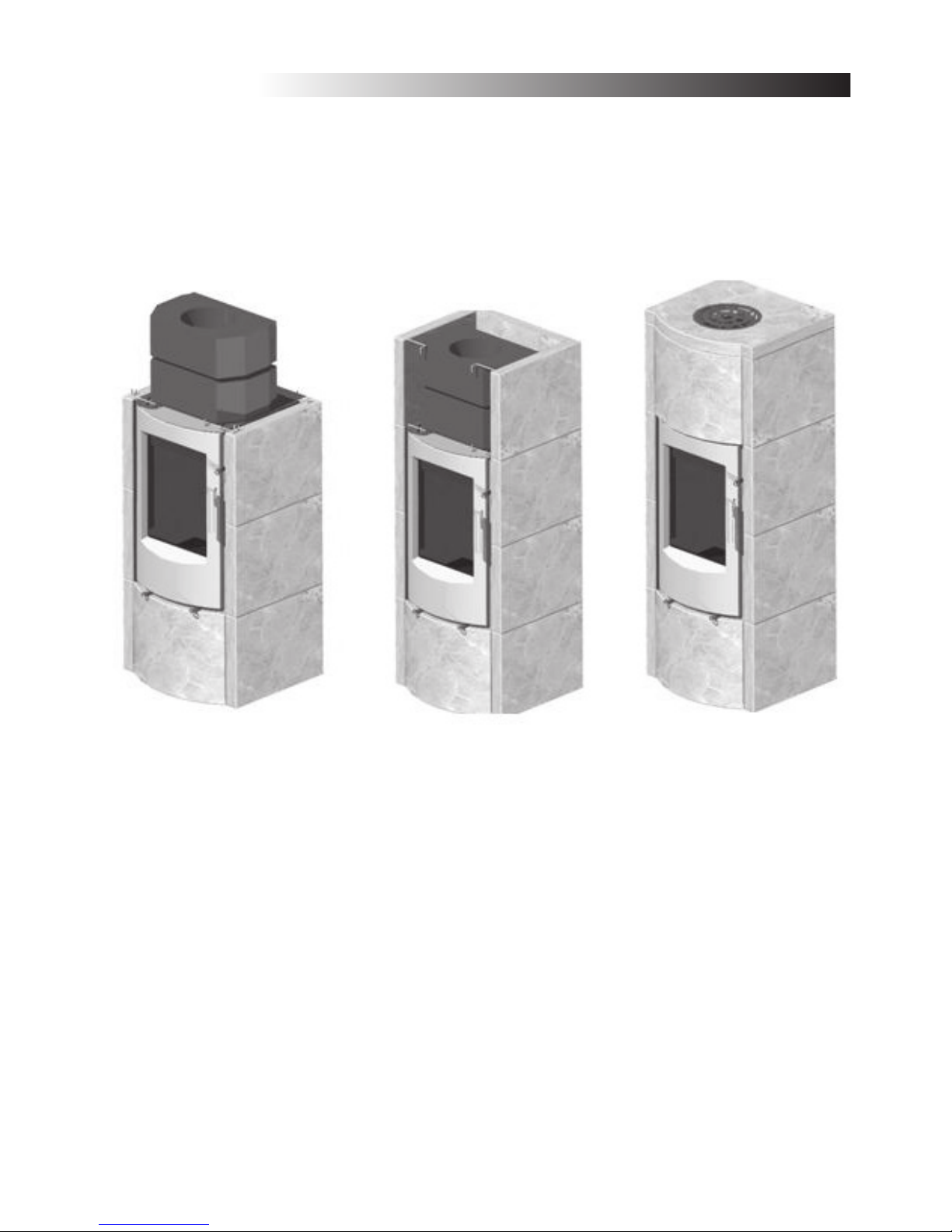

Fit the side and rear stones before tting
the front stone.
Page 16
16
When tting outside air ue, remove the
inner plate from the grille.
Air intake – convection
Position the standard, right and left
brackets and t the top plate
Rear ue can be positioned
as shown.
Page 17
17

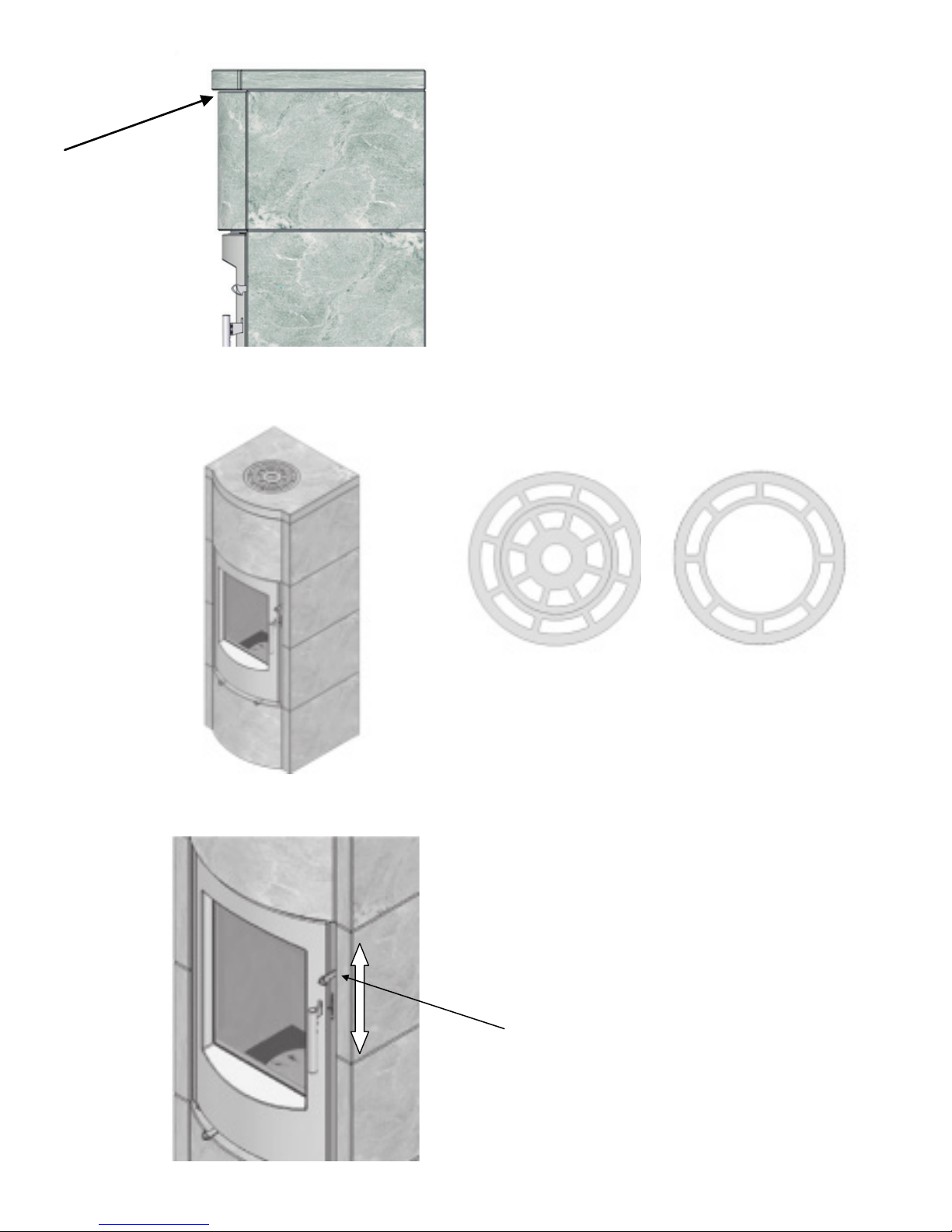

Regulate the convection air ow by turning
the handle on the side of the stove.
Convection open: Handle up.
Convection closed: Handle down.
If the stove has a top ue, break off the
inner ring
NB!
There is a 3 mm gap between the front
and top stones to allow for stove/rebox
expansion during use
Page 18
18
Loading...
