Congratulations on your new stove.
We are sure that you will be happy
with your investment, especially if you
follow the advice and instructions we
have put together in these operating
instructions.
The Scan-Line 15, Scan-Line 16 and
Scan-Line 16XL has been approved according to the EN 13240/A2: 2004 and
15a B-VG.
Approval means that consumers can
be sure, that the stove meets a range
INSTALLATION INSTRUCTIONS
IMPORTANT
1. Make sure there is adequate provision to sweep the chimney.
2. Make sure there is adequate ventilation to the room.
3. Please note that any extraction fans
operating in the same room as the
wood-burning stove can reduce the
chimney draft – which may have an
adverse effect on stove combustion
properties. In addition, this may
cause smoke to be emitted from
the stove when the firing door is
opened.
4. It must not be possible to cover any
air vents.
The floor
It is essential to ensure that the floor
surface can actually bear the weight
of the stove and a top-mounted steel
chimney, if applicable. The stove must
stand on a nonflammable surface such
as a steel floor plate or a brick or tile
floor. The size of the nonflammable
surface used to cover the floor area
must match national and local regulations.
The chimney connection
The chimney opening must follow national and local regulations. However,
the area of the opening should never
be less than 175 cm
2
, which corre-
of specifications and requirements
intended to ensure that the materials used are of good quality, that the
stove does not adversely affect the environment, and hat it is economical to
use.
With your new stove you should have
received the following:
a. Operating instructions
b. Guarantee slip
c. A stove glove
Safety clearances
Stoves must always be installed in line
with national and, if applicable, local
regulations. It is important to abide
by local regulations regarding setting
up chimneys and connection to same.
Therefore, always consult your local
chimney sweep before installation, as
you are personally responsible for ensuring that the applicable regulations
have been met.
Distance regulations
A difference applies to installation
next to flammable and non-flammable walls.
If the wall is made of non-flammable
material the stove can, in principle, be
placed flush against it. However, we
recommend leaving a gap of at least
5 cm to facilitate cleaning behind the
stove.
The minimum distances to flammable
material are stated on the boiler plate
and are listed in the table on page 6.
Warning
A stove gets hot. (In excess
of 90 degrees) Take care to
ensure that children and
elderly or infirm people can not come
into contact with it.
Do not store any flammable materials
in the room below the ashpan.
Page 3
3
sponds to a diameter of 150 mm. If a
damper is fitted in the flue gas pipe,
there must always be at least 20 cm
2
of free passage, even when the damper is in its “closed” position. If local
regulations permit, two contained fireplaces can be connected to the same
chimney. However, you must abide
by local regulations regarding the distance between the two connections.
Wood-burning stoves must never be
connected to chimneys that are also
linked to a gasfired heater. An effi-
cient stove makes high demand on
chimney properties – so always have
your local chimney sweep evaluate
your chimney.
Connection to a brick chimney
Brick a thimble into the chimney and
seat the flue gas pipe in this. The
thimble and flue gas pipe must not
penetrate the chimney opening itself, but must be flush with the inside
of the chimney duct. Joins between
brickwork, the thimble and flue gas
pipe must be sealed with fireproof
material and/or beading
Connection to a steel chimney
When fitting a connection from a top
output stove directly to a steel chimney, we recommend fitting the chimney tube inside the flue gas spigot so
that any soot and condensation drops
into the stove itself rather than collecting on the exterior surface of the
stove.

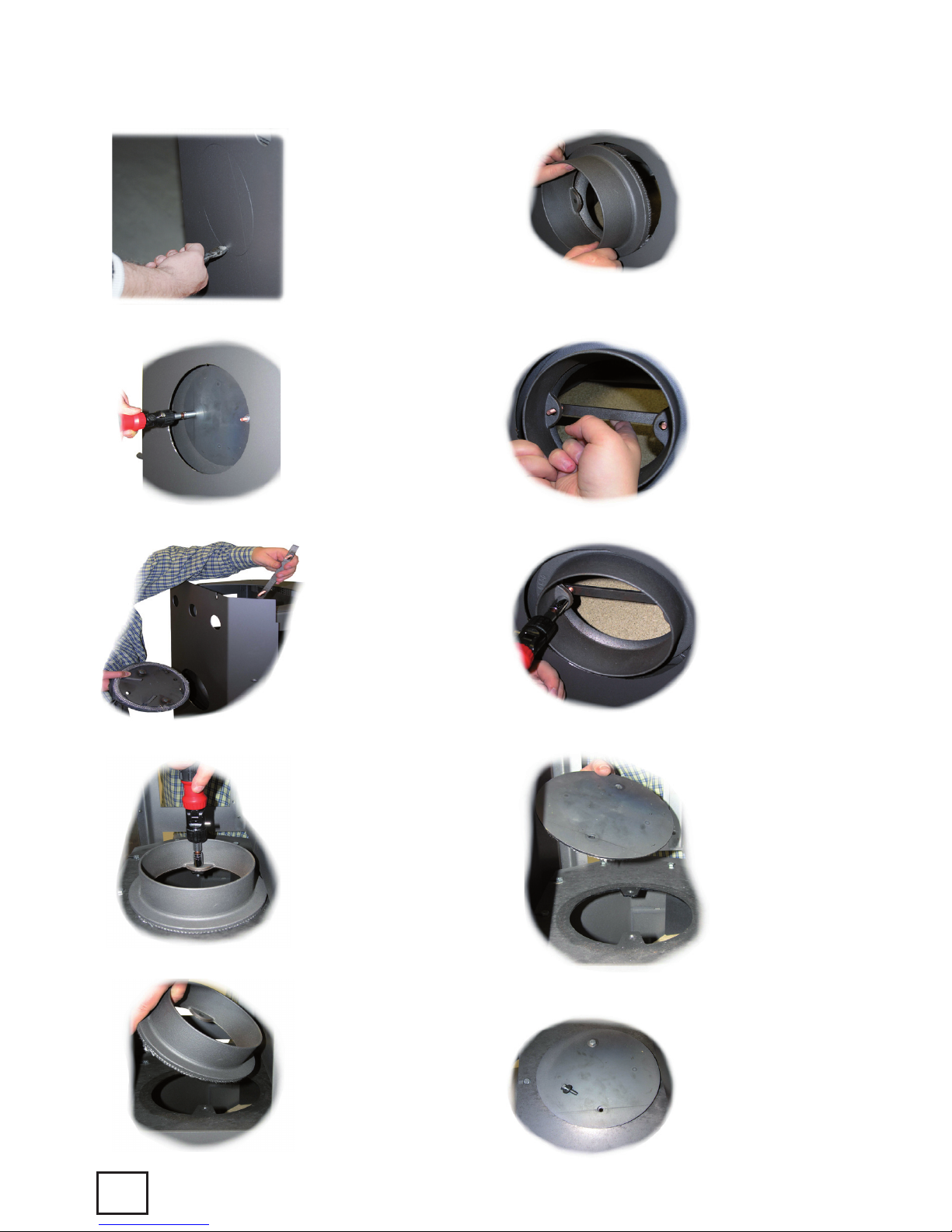

Changing from top to back outlet - see
figure 2-11 on page XX.
For connections to chimneys that are
run through ceilings, all national and
local regulations regarding distance
to flammable material must be followed. It is important that the chimney
is fitted with roof support so that the
top panel of the stove is not required
to bear the entire weight of the chimney (excessive weight may damage
the stove).
Draft conditions
Poor draft may result in smoke being
emitted from the stove when the door
is opened. The minimum chimney
draft - see table on page 9. The flue
gas temperature at nominal output
is 257°C when expelled to an exterior
temperature of 20°C and the flue gas
mass flow - see table on page 9.
However, there will still be a risk of
smoke emission if the firing door is
opened during powerful firing. The
chimney draft is generated by the difference between the high temperature of the chimney and the low temperature of the fresh air. The length
and insulation of the chimney, wind
and weather conditions also have an
effect on the ability of the chimney to
generate appropriate under-pressure.
If the stove has not been used in a
while, check that the chimney and
stove are not blocked with soot, bird
nests, etc., before using it.
Reduced draft can occur when:
- The difference in temperature is too
small – due to insufficient chimney insulation, for example.
- The outdoor temperature is too
high – in summer, for example.
- No wind is blowing. - The chimney
is too low and sheltered. - The chimney contains false air.
- The chimney and flue gas pipe are
blocked.
- The house is too airtight (i.e. when
there is an insufficient supply of fresh
air).
- Poor smoke extraction (poor draft
conditions) due to a cold chimney or
bad weather conditions can be compensated for by increasing the airflow into the stove.
Good draft occurs when:
- The difference in temperature bet-
ween the chimney and outdoor air
is high.
Page 4
4
- The weather is fine. - The wind is blowing strongly.
- The chimney is of the correct height:
Primary
airflow
control

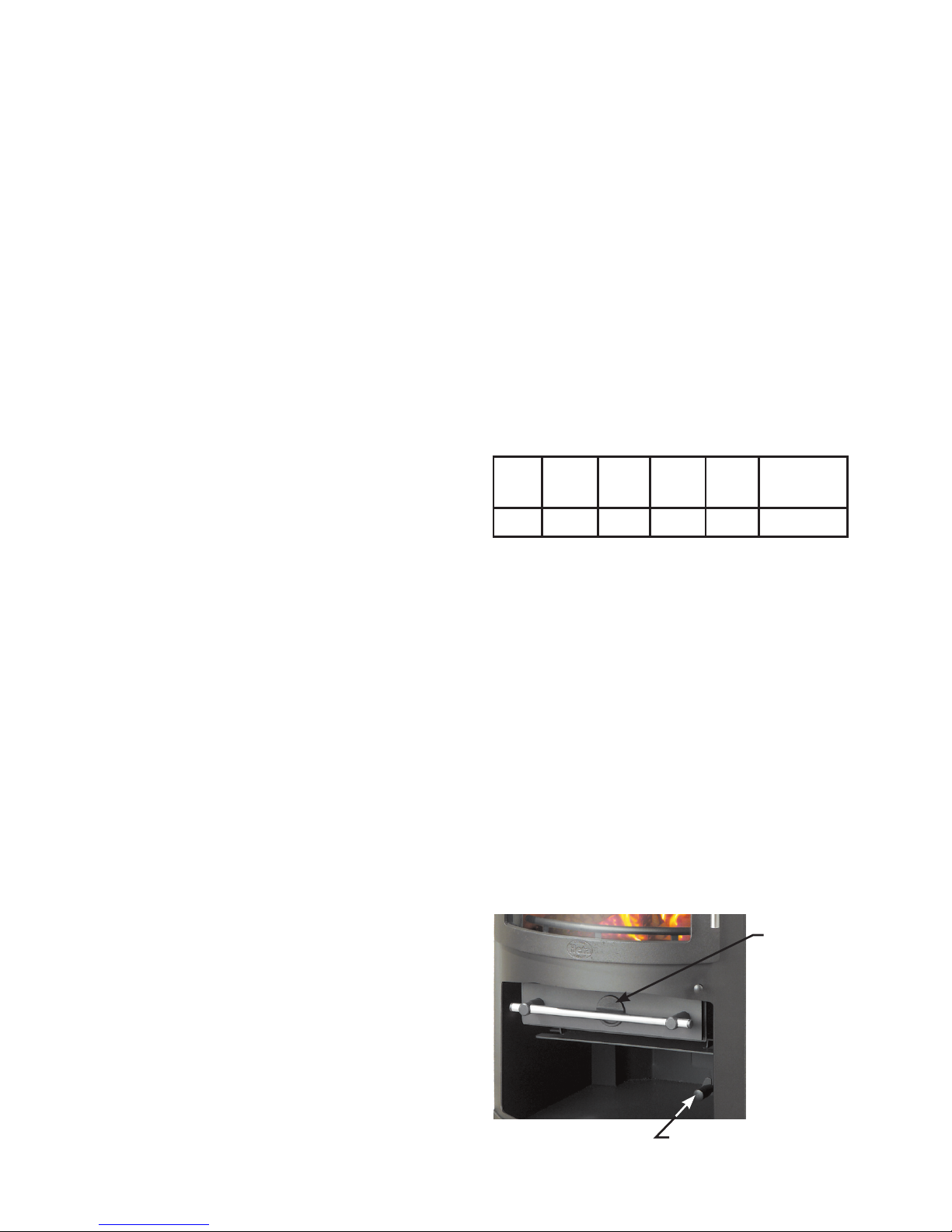

Figure 1
Out = Open
In = Closed
Secondary airflow handle
Instructions for use
at least 4.00 m above the stove and
free of the roof ridge.
First firing
The stove has been treated with a
heat-resistant coating which hardens
at a temperature of approximately
250 ºC. This hardening process causes
the production of smoke and malodorous fumes, so the room must be very
well ventilated.
During the first firing, which should
be carried out using approximatly 1,0
kg. of wood, the stoking door must
be left slightly open and must not be
closed until the stove is cold. This is to
prevent the sealing rope sticking to
the stove.
Fuel
Your new stove is EN approved for firing with wood fuel. You must therefore only burn clean, dry wood in your
stove. Never use your stove to
burn
driftwood, as this may contain a lot
of salt which can damage both the
stove and the chimney. Similarly, you
must not fire your stove with refuse,
painted wood, pressure-impregnated
wood or chipboard, as these materials
can emit poisonous fumes and smoke.
Correct firing using well seasoned wood
provides optimal heat output
and maximum economy. At the same time,
correct firing prevents environmental
damage in the form of smoke and emmissions and also reduces the risk of
chimney fires.
If the wood is wet and inadequately
seasoned, a large proportion of the
energy in the fuel will be used to vaporise the water, and this will all disappear up the chimney. Thus it is important to use dry, well seasoned wood,
i.e. wood with a moisture content of
no more than 18%. This is achieved by
storing the wood for 1–2 years before
use. Pieces of firewood with a diameter of more than 10 cm should be split
before storing. The pieces of firewood
should be of an appropriate length (approx. 25–30 cm) so that they can lie flat
on the bed of embers. If you store your
wood outdoors, it is best to cover it.
Examples of fuel values of different
woods
Fuel type / number of cubic metres per
1,000 litres of oil
Oak
Beech
Ash Birch Elm
Common
spruce
7,0 7,0 7,2 8,0 8,9 10,4
Chimney fires
In the event of a chimney fire – which
often results from incorrect operation
or protracted firing with moist wood
– close the door and shut off the secondary/start-up air supply to smother
the fire. Call the fire department.
Regulating the airflow
Primary airflow is added using the primary airflow control on the ashpan
and the secondary airflow using the
handle at the right below the ashpan.
Pulling the handle fully in or out closes
or opens the secondary airflow.
Page 5
5
Lighting
To ignite the fuel, use fire lighters,
small paraffin ignition bags or small
pieces of wood placed on the bottom
grate. Place larger pieces of wood on
top of this kindling material, at right
angles to the firing, doors. Completely open the secondary air supply and
leave the firing door ajar – i.e. approx.
1 cm open. Once the fire has taken a
good hold of the fuel and the chimney
has heated up (after about 10 min)
close the firing door. We recommend
that you burn the entire first firing
with the secondary air supply fully
open to make sure that the chimney is
thoroughly heated.
Refiring
You should normally refire the stove
while there is still a good layer of embers. Distribute the embers across the
bottom grate, place pieces of fuel
(max. 1,6 kg) on the embers in a single
layer perpendicular to the firing opening. Close the firing door and use primary air if needed. The wood will then
ignite very quickly (within 30 to 60
seconds). When the wood is burning
with a steady flame, close the primary airflow. Then adjust the secondary
airflow to the required amount. For
nominal operation, the secondary airflow should be fully open and the primary airflow closed. When firing, take
care not to pack the fuel too closely
together, as this will result in poor and
inefficient combustion. Please note
that the primary airflow must be closed during normal operation, otherwise the stove may overheat. It must
only be used until the fuel is burning
with a steady flame.
Reduced burning
The stove is well-suited to intermittent
use. If you wish to operate the stove
with reduced out-put, simply insert
smaller volumes of wood at each firing,
and apply a lower airflow. However,
remember that the secondary combustion air supply must never be shut off
completely during firing. It is important to keep a good bed of embers.
Gentle heat is released when the fire
settles - i.e. when the wood no longer
generates flames and has been converted to glowing embers.
Optimal firing
To achieve optimal firing and the highest possible effect, it is important to
make sure that the air supply is used
correctly. As a general rule, the secondary
air is to be used to control the fire
to ignite the flue gases. This produces a high effect and keeps the glass
panel completely clear of soot as the
secondary air “washes” down over it.
Please note that the stove will, naturally, produce soot if both the primaryand secondary air intakes are closed
completely. This will prevent oxygen
from being drawn into the stove, and
the viewing window and other parts
will become covered with soot. If this
situation is combined with firing with
wet wood, the build-up of soot can
become so thick and sticky that the
sealing rope can, for example, become
detached when the door is opened
the next day.
Risk of explosion
After you add new fuel, it is
very important that you do
not leave the stove unattended until the wood is burning constantly. This will normally occur within 30 to 60 seconds.
A risk of explosion can possibly arise if
too much wood is placed in the stove.
This may result in the production of
large volumes of gas, and this gas can
explode if the intake of primary and
secondary air is insufficient.
It is an advantage always to leave some
ash lying in the bottom of the combustion chamber.
Page 6
6
Stove data table in accordance with EN 13240 testing.
Stove
type
Scan-Line
Nominal
fluegas
temp.
c°
Smoke
stub
mm
Fuel
volume
kg
Draught
min
mbar
Nominal
output
tested
kW
Heat
output
kW
Distance to flammable
materials in mm
behind at the the
stove sides
Distance to
tfurnitures
from the
stove in mm
Stove
weight
kg
15
16
339 ø150 2.5 0.11 7 7 150 200 800 160
150
16XL 331 ø150 2.5 0.10 8 8 200 200 800 185
The nominal output is the output to which the stove has been tested.
Testing should be carried
out with the primary airflow closed and the secondary airflow fully open.
Take care when emptying the ash pan,
as cinders can continue to burn in the
ash for long periods of time.
OPERATIONAL PROBLEMS
The chimney must be swept at least
once a year, we recommend the use of
a NACS (national association of chimney sweeps) registered chimney sweep.
In the event of smoke or malodorous
fumes being produced, you must first
check to see whether the chimney is
blocked. The chimney must, of course,
always provide the minimum draught
necessary to ensure that it is possible to regulate the fire. Please note,
however, that chimney draft is dependent on the weather conditions.
In high winds, the draft can become
so powerful that it may be necessary
to fit a damper in the flue gas pipe to
regulate the draft. When cleaning the
chimney, soot and other deposits may
come to fall on the smoke plate. In ca-
ses where the wood burns too quickly,
this may be due to excessive chimney
draught. You should also check to
make sure that the door seal and ashpan seal is intact and correctly fitting.
If the stove it generating too little
heat, this may be because you are firing with wet wood. In this case, much
of the heating energy is used to dry
the wood, resulting in poor heating
economics and an increased risk of
soot deposits in the chimney.
MAINTENANCE
The surface of the stove has been treated with heat-resistant paint.
The stove should be cleaned with a
damp cloth. Any damage to the surface
in the form of chips or scratches
can be
repaired using touch-up paint, which is
available in spray cans. If the stove has
become grey in colour due to overheating, touch-up paint of this kind can
be used to repaint the stove entirely.
However, in this case, the stove should
be dismantled and the surface treatment should be performed outdoors
or in a purpose-built room.
Cleaning the glass
Incorrect firing, for example using wet
wood, can result in the viewing window becoming covered in soot. This
soot can be easily and effectively removed by using proprietary stove glass
cleaner.
Page 7
7
Warning
Any unauthorised modifica tion of the stove and any use
of non-original spares will
void the guarantee.
GUARANTEE
The model Scan-Line 6 stoves are subjected to stringent quality control procedures both throughout the production process and immediately before
delivery to the dealer.
Therefore, the stoves are guaranteed
against defects in manufacturing
FOR FIVE YEARS.
This guarantee does not cover:
Wearing parts/fragile parts such as:
• The fire-proof bricks in the
combustion chamber.
• The smoke baffle.
• The glass.
• The sealing rope.
• The grate frame.
Damage resulting from incorrect use
Transport costs in connection with
repairs carried out under guarantee
Installation/disassembly in connection
with repairs carried out under guarantee. Should you have cause to make a
complaint, please quote our invoice
no.
Page 8
8
Changing to back smoke outlet Fig. 2-11
Figure 2
Cut the little piece
of metal which connects the cover to
the back panel with
a side-cutting nippers. After that twist
off the cover.
Figure 4
Remove the cover
from the back outlet and remove the
holder through the
top outlet, (if the
stove has a holder).
Figure 3
Loosen the two
screws which
tighten the cover
towards the stove.
Figure 6
Lift the flue gas
spigot out about
of the stove
Figure 5
Loosen the bolts in
the flue gas spigot
out above.
Figure 10
Place the cover
from the back
outlet on top of
the stove.
Figure 9
Make sure that
the flue gas
spigot it placed
centred and after
that tighten the
bolts.
Figure 8
Tighten the flue
gas spigot on the
back of the stove
with the holder or
the bolts.
Figure 7
Place the flue gas
spigot through
the back panel
and towards the
burning chamber.
Figure 11
Tighten the cover
with the bolts
belonging to it.
Page 9
9

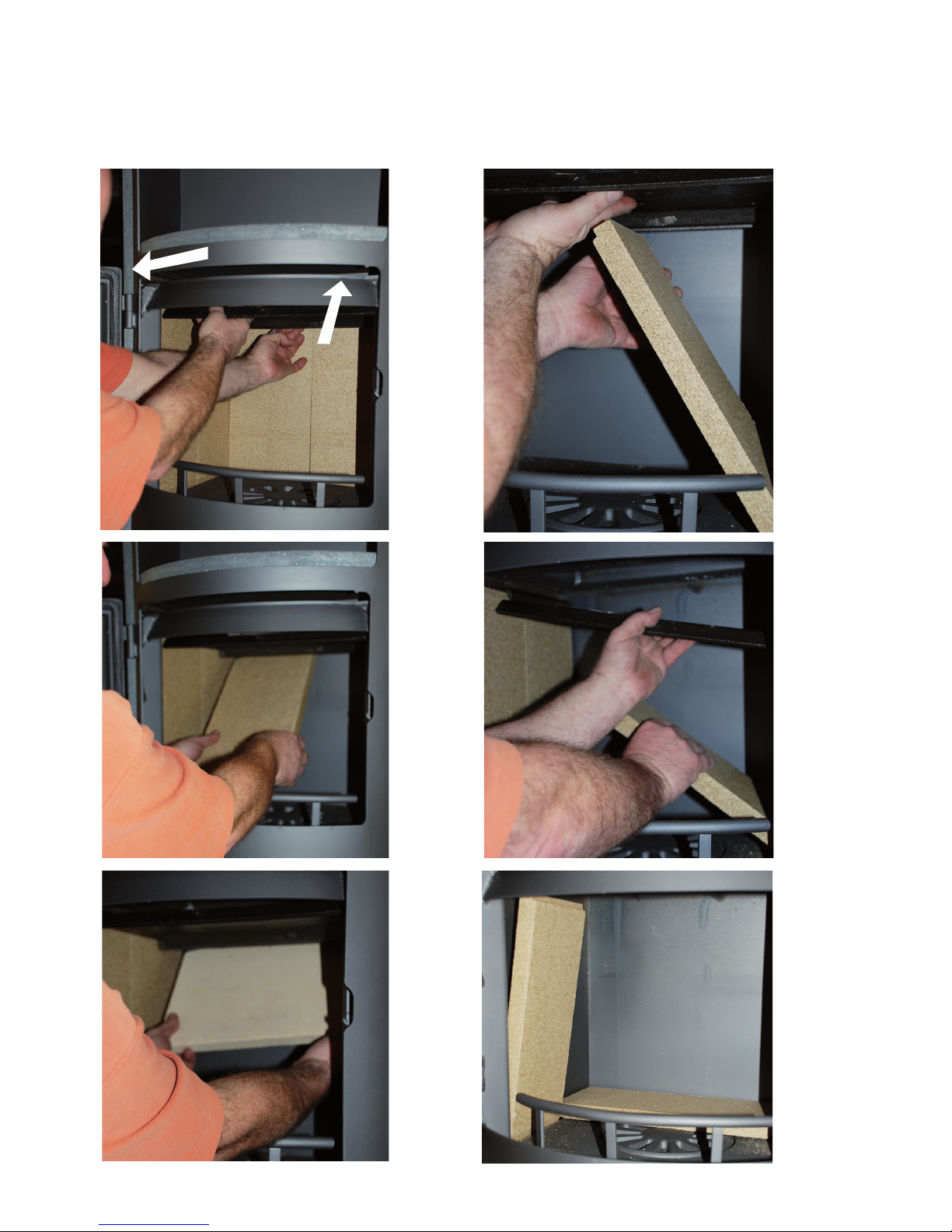

Cleaning after sweeping the chimney and
replacing the stones. Fig. 12-17
12
17
16
15
14
13
08-07-2009 0037-1136
Loading...
