Hestan KRPR36GR Dimensions

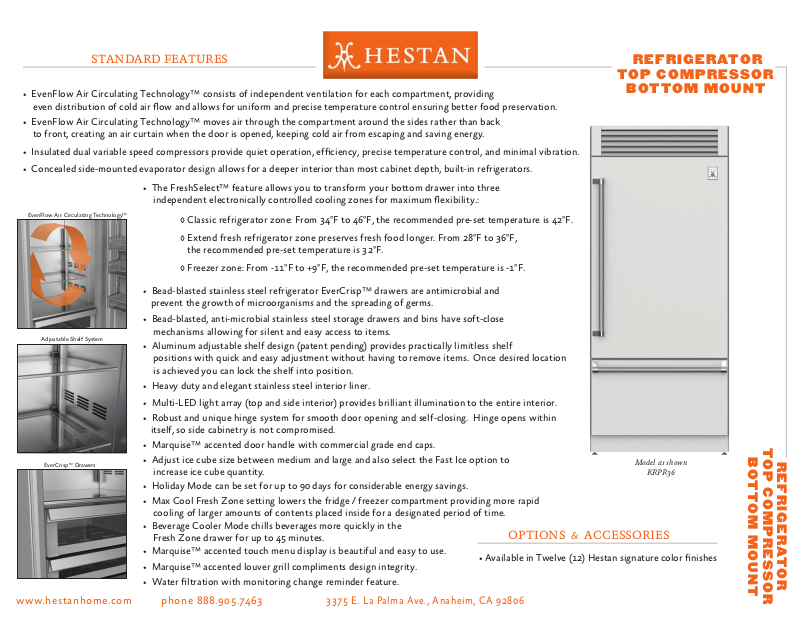

STANDARD FEATURES
• EvenFlow Air Circulating Technology
even distribution of cold air ow and allows for uniform and precise temperature control ensuring better food preservation.
• EvenFlow Air Circulating Technology
to front, creating an air curtain when the door is opened, keeping cold air from escaping and saving energy.
• Insulated dual variable speed compressors provide quiet operation, efciency, precise temperature control, and minimal vibration.
• Concealed side-mounted evaporator design allows for a deeper interior than most cabinet depth, built-in refrigerators.
• The FreshSelect
independent electronically controlled cooling zones for maximum exibility.:
EvenFlow Air Circulating Technology
TM
™
consists of independent ventilation for each compartment, providing
™
moves air through the compartment around the sides rather than back
™
feature allows you to transform your bottom drawer into three
◊ Classic refrigerator zone: From 34°F to 46°F, the recommended pre-set temperature is 42°F.
◊ Extend fresh refrigerator zone preserves fresh food longer. From 28°F to 36°F,
the recommended pre-set temperature is 32°F.
◊ Freezer zone: From -11°F to +9°F, the recommended pre-set temperature is -1°F.
REFRIGERATOR
T
OP COMPRESSOR
BOTTOM MOUNT
Adjustable Shelf System
EverCrispTM Drawers
• Bead-blasted stainless steel refrigerator EverCrisp
™
drawers are antimicrobial and
prevent the growth of microorganisms and the spreading of germs.
• Bead-blasted, anti-microbial stainless steel storage drawers and bins have soft-close
mechanisms allowing for silent and easy access to items.
• Aluminum adjustable shelf design (patent pending) provides practically limitless shelf
positions with quick and easy adjustment without having to remove items. Once desired location
is achieved you can lock the shelf into position.
• Heavy duty and elegant stainless steel interior liner.
• Multi-LED light array (top and side interior) provides brilliant illumination to the entire interior.
• Robust and unique hinge system for smooth door opening and self-closing. Hinge opens within
itself, so side cabinetry is not compromised.
™
• Marquise
accented door handle with commercial grade end caps.
• Adjust ice cube size between medium and large and also select the Fast Ice option to
increase ice cube quantity.
• Holiday Mode can be set for up to 90 days for considerable energy savings.
• Max Cool Fresh Zone setting lowers the fridge / freezer compartment providing more rapid
cooling of larger amounts of contents placed inside for a designated period of time.
• Beverage Cooler Mode chills beverages more quickly in the
Fresh Zone drawer for up to 45 minutes.
• Marquise
™
accented touch menu display is beautiful and easy to use.
OPTIONS & ACCESSORIES
• Available in Twelve (12) Hestan signature color nishes
• Marquise™ accented louver grill compliments design integrity.
• Water ltration with monitoring change reminder feature.
Model as shown
KRPR36
TOP COMPRESSOR
BOTTOM MOUNT
REFRIGERATOR
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806
9” (230 mm)
INSTALLATION CUT-OUT FEATURES - KRP MODELS
3/8” (10 mm)
REFRIGERATOR
TOP COMPRESSOR
BOTTOM MOUNT
40” (1016 mm)
57-7/8” (1470 mm)
105°
83-1/2” (2120 mm) + 1” (25 mm)
24-1/8” (613 (24 mm) + 1” (25 mm)
22” (560 mm)
25” (635 mm)
3” (75 mm)
25” (635 mm)
35-3/8” (899 mm)
3/8” (8 mm)
7-5/8” (195 mm)
50” (1296 mm)
3/8” (8 mm)
A Area to be left clear for the anti-tip brackets
5-1/2” (140 mm) 5-1/2” (140 mm)
2-1/4” (58 mm)
A A
4” (100 mm)
35-1/2” (900 mm)
min 84” (2134 mm)
Quick Product Dimension Reference
4” (100 mm)
ELECTRICAL REQUIREMENTS
110V, 60Hz, 15 amps
Door Opening Angle 105°
Width 35-5/8” (899 mm)
Height 83-1/2” (2120 mm) + 1” (25 mm)
Door Swing Clearance 57-7/8” (1470 mm)
:
22” (560 mm)
27-1/4” (693 mm)
Models
KRPR36 36” Bottom Mount Refrigerator, Top Compressor, Pro, Right Hinged
KRPL36 36” Bottom Mount Refrigerator, Top Compressor, Pro, Left Hinged
Description
20-3/8” (516 mm)
3-7/8” (97 mm)
www.hestanhome.com phone 888.905.7463
Cutout Dimensions
W (in.) D (in.) H (in.)
35
35
⁄”
⁄”
25”
(with door)
(with door)
84” 518
84”25”
3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
Hestan Indoor products are approved for indoor
use only. Hestan Commercial Corporation reserves the
right to change materials and specications without
notice.
Approx
SHP WT (lbs)
518
021894 REV C
