Hestan KRBR36, KRCL24, KRCL30, KRCR24, KGC30 Specsheet
...

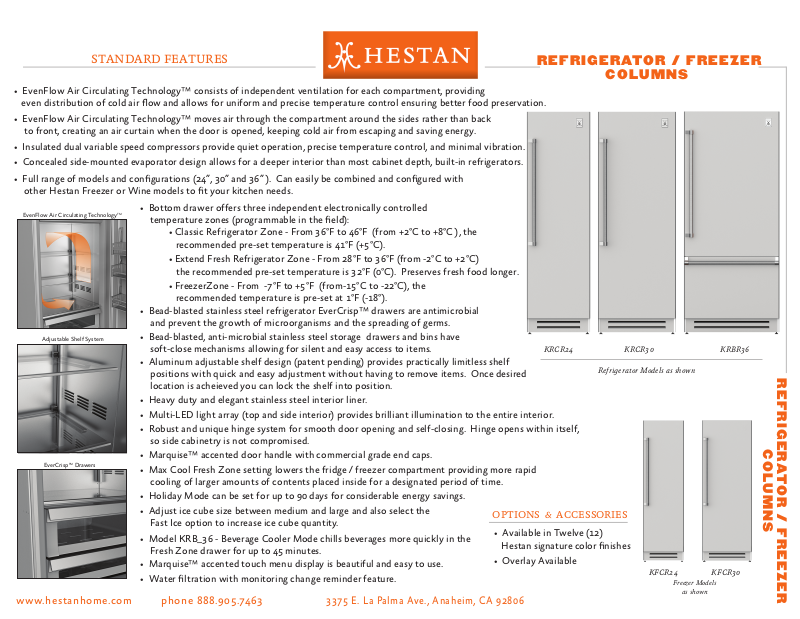

STANDARD FEATURES
• EvenFlow Air Circulating Technology
™
consists of independent ventilation for each compartment, providing
REFRIGERATOR / FREEZER
even distribution of cold air ow and allows for uniform and precise temperature control ensuring better food preservation.
™
• EvenFlow Air Circulating Technology
moves air through the compartment around the sides rather than back
to front, creating an air curtain when the door is opened, keeping cold air from escaping and saving energy.
• Insulated dual variable speed compressors provide quiet operation, precise temperature control, and minimal vibration.
• Concealed side-mounted evaporator design allows for a deeper interior than most cabinet depth, built-in refrigerators.
• Full range of models and congurations (24”, 30” and 36” ). Can easily be combined and congured with
other Hestan Freezer or Wine models to t your kitchen needs.
• Bottom drawer offers three independent electronically controlled
EvenFlow Air Circulating Technology
TM
temperature zones (programmable in the eld):
• Classic Refrigerator Zone - From 36°F to 46°F (from +2°C to +8°C ), the
recommended pre-set temperature is 41°F (+5°C).
• Extend Fresh Refrigerator Zone - From 28°F to 36°F (from -2°C to +2°C)
the recommended pre-set temperature is 32°F (0°C). Preserves fresh food longer.
• FreezerZone - From -7°F to +5°F (from-15°C to -22°C), the
recommended temperature is pre-set at 1°F (-18°).
• Bead-blasted stainless steel refrigerator EverCrisp
™
drawers are antimicrobial
and prevent the growth of microorganisms and the spreading of germs.
Adjustable Shelf System
• Bead-blasted, anti-microbial stainless steel storage drawers and bins have
soft-close mechanisms allowing for silent and easy access to items.
• Aluminum adjustable shelf design (patent pending) provides practically limitless shelf
positions with quick and easy adjustment without having to remove items. Once desired
location is acheieved you can lock the shelf into position.
• Heavy duty and elegant stainless steel interior liner.
• Multi-LED light array (top and side interior) provides brilliant illumination to the entire interior.
• Robust and unique hinge system for smooth door opening and self-closing. Hinge opens within itself,
so side cabinetry is not compromised.
™
EverCrispTM Drawers
• Marquise
• Max Cool Fresh Zone setting lowers the fridge / freezer compartment providing more rapid
accented door handle with commercial grade end caps.
cooling of larger amounts of contents placed inside for a designated period of time.
• Holiday Mode can be set for up to 90 days for considerable energy savings.
• Adjust ice cube size between medium and large and also select the
Fast Ice option to increase ice cube quantity.
• Model KRB_36 - Beverage Cooler Mode chills beverages more quickly in the
Fresh Zone drawer for up to 45 minutes.
• Marquise
™
accented touch menu display is beautiful and easy to use.
OPTIONS & ACCESSORIES
• Available in Twelve (12)
Hestan signature color nishes
• Overlay Available
• Water ltration with monitoring change reminder feature.
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806
COLUMNS
Refrigerator Models as shown
KFCR24 KFCR30
Freezer Models
as shown
KRBR36 KRCR24 KRCR30
REFRIGERATOR / FREEZER
COLUMNS
5-1/2” (140 mm) 5-1/2” (140 mm)
A A
A Area to be left clear
for the anti-tip brackets
4” (100 mm)
min 84” (2134 mm)
35-1/2” (900 mm)
4” (100 mm)
25” (635 mm)
22” (560 mm)
INSTALLATION CUT-OUT FEATURES
KRB MODELS
Quick Product Dimension Reference
Door Opening Angle 105°
Width 35-5/8” (899 mm)
Height 83-1/2” (2120 mm) + 1” (25 mm)
Door Swing Clearance 57-7/8” (1470 mm)
9” (230 mm)
INSTALLATION CUT-OUT FEATURES - KRC MODELS
24” AND 30” COLUMN REFRIGERATORS AND FREEZERS
24” WINE COLUMN AND 24” REFRIGERATOR WITH WINE
5-1/2” (140 mm)
A A
A Area to be left clear
4” (100 mm)
30”: 29-5/8” (750 mm)
min 84” (2134 mm)
24”: 23-3/4” (600 mm)
5-1/2” (140 mm)
for the anti-tip brackets
25-1/4” (640 mm)
22-1/4” (565 mm)
4” (100 mm)
REFRIGERATOR / FREEZER
COLUMNS
Quick Product Dimension Reference
Door Opening Angle 105°
Width
30”: 29 1/2” (749 mm)
24”: 23 5/8” (599 mm)
Height 83-1/2” (2120 mm) + 1” (25 mm)
Door Swing Clearance
30”: 52 1/8” (1325 mm)
24”: 46 1/4” (1175 mm)
30”: 2-1/8” (53 mm)
24”: 1-1/16” (27 mm)
83-1/2” (2120 mm) + 1” (25 mm)
28-7/8” (732 mm) + 1” (25 mm)
27-1/4” (693 mm)
_ = Specify Left(L) or Right(R) Hinged
Models Description
KRB_36
KRC_24
KRC_30
KFC_24
KFC_30
36” Bottom Mount Refrigerator Column,
Bottom Compressor
24” Refrigerator Column
30” Refrigerator Column
24” Freezer Column
30” Freezer Column
54-1/4” (1378 mm)
3/8” (9 mm)
23-1/8” (587 mm)
5-3/4” (146 mm)
+ 1” (25 mm)
40” (1016 mm)
57-7/8” (1470 mm)
105°
22” (560 mm)
25” (635 mm)
35-3/8” (899 mm)
3” (75 mm)
3/8” (10 mm)
58 (2 ¼”)
Cutout Dimensions
W (in.) H (in.) D (in.)
⁄”
⁄”
⁄”
⁄”
⁄”
84”
84”
84”
84”
84”
83-1/2” (2120 mm) + 1” (25 mm)
25”35
25”35
25”35
25”35
25”
27-1/2” (698 mm)
Approx
SHP WT (lbs)
529
364
474
364
47435
77-3/4” (1974 mm)
5-3/4” (146 mm)
+ 1” (25 mm)
105°
30”: 52-1/8” (1325 mm)
24”: 46-1/4” (1175 mm)
24-1/4” (615 mm)
22-1/4” (560 mm)
30”: 30” (761 mm)
24”: 24” (609 mm)
ELECTRICAL REQUIREMENTS
110V, 60Hz, 15 amps
Hestan Indoor products are approved for indoor
use only. Hestan Commercial Corporation reserves the
right to change materials and specications without
notice.
3/8” (10 mm)
:
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
021895 REV A
