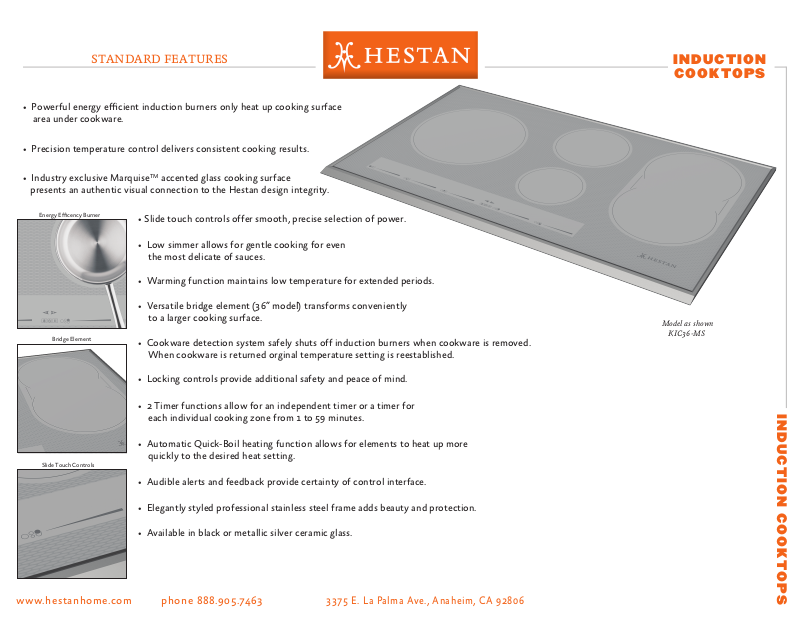

Hestan KIC36MS Specifications
STANDARD FEATURES
• Powerful energy efcient induction burners only heat up cooking surface
area under cookware.
• Precision temperature control delivers consistent cooking results.
• Industry exclusive MarquiseTM accented glass cooking surface
presents an authentic visual connection to the Hestan design integrity.
INDUCTION
COOKTOPS
Energy Efcency Burner
Bridge Element
Slide Touch Controls
• Slide touch controls offer smooth, precise selection of power.
• Low simmer allows for gentle cooking for even
the most delicate of sauces.
• Warming function maintains low temperature for extended periods.
• Versatile bridge element (36” model) transforms conveniently
to a larger cooking surface.
• Cookware detection system safely shuts off induction burners when cookware is removed.
When cookware is returned orginal temperature setting is reestablished.
• Locking controls provide additional safety and peace of mind.
• 2 Timer functions allow for an independent timer or a timer for
each individual cooking zone from 1 to 59 minutes.
• Automatic Quick-Boil heating function allows for elements to heat up more
quickly to the desired heat setting.
• Audible alerts and feedback provide certainty of control interface.
Model as shown
KIC36-MS
INDUCTION COOKTOPS
• Elegantly styled professional stainless steel frame adds beauty and protection.
• Available in black or metallic silver ceramic glass.
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806
CUTOUT REQUIREMENTS
INDUCTION
COOKTOPS
1-1/2” [3.8cm]
MIN CLEARANCE
30” 3/8
[771 mm]
LENGTH OF CUT
A
30” COOKTOP DIMENSIONS
36” COOKTOP DIMENSIONS
36” 3/16
[919 mm]
CUTOUT DIMENSIONS
1/4”
[6mm]
2” 5/8
[66 mm]
1/4”
[6mm]
2” 5/8
[66 mm]
21” 3/16
[538 mm]
21” 3/16
[538 mm]
LENGTH OF CUT
B
FROM EDGE OF CUTOUT
TO FRONT EDGE OF
COUNTE RTOP
1” 1/16
[27 mm]
1” 1/16
[27 mm]
2-1/2” [6.5 cm]
G
WALL COVERING CABINETS,
AND COUNTERTOP MUST
WITHSTAND HEAT UP TO 200° F [93° C]
C
E
F
Cutout width A B C
30”
[76.2cm]
36”
[91.4cm]
Cutout width D E F G
30”
[76.2cm]
36”
[91.4cm]
28-3/4” +/- 1/16”
[73.0 cm +/- 0.1cm]
34-5/8” +/- 1/16”
[87.9 cm +/- 0.1cm]
18” [45.7 cm] min
Height from countertop to nearest cabinet
on either side of unit
30” [76.2 cm] min.
[see note*] Clearance
from countertop to
unprotected
overhead surface
NOTICE
Under the cooktop it is necessary to install a
partition, as shown.
D
19-7/16” +/- 1/16”
[49.4 cm +/- 1mm]
19-7/16” +/- 1/16”
[49.4 cm +/- 1mm]
2” [5 cm] min Clearance
from cutout to side wall
on the left and right of
the unit
NOTE: 24” [61 cm] min. clearance if bottom of wood or
metal cabinets is protected by not less than 1/4” [0.6 cm]
ame retardant millboard covered with no less than No. 28
MSG sheet steel 0.015” [0.04 cm] stainless steel, or 0.024”
[0.06 cm] aluminum or 0.020” [0.05 cm] copper. 30” [76.2
cm] min. clearance between top of cooking platform and
bottom of unprotected wood or metal cabinet.
30”
[76.2 cm] min
36”
[91.4 cm] min
13” [33 cm] Depth
of unprotected
overhead cabinets
VERTICAL CLEARANCES
* The ventilation opening is to extend the full length of the cooktop cutout.
*1/4”
[6 mm]
min
1/4”
[6 mm]
min
1 1/2
[38 mm]
min
2 1/2”
[65 mm]
Partitian
4 3/4
[120 mm]
”
”
25” [635 mm]
2 1/2”
[64mm]
”
19 7/16 [494 mm]
15 3/4”
[400 mm]
24” [610 mm]
min
min
min
3
”
[76 mm]
[101 mm]
min
ELECTRICAL REQUIREMENTS
208/240V, 60Hz, 40 or 50 amps
4”
1 5/8”
[40 mm]
max
:
5”
[127 mm]
min
36”
[915 mm]
Built - In
Models
Description
KIC30-__ 30” Induction Cooktop
KIC36-__ 36” Induction Cooktop
_= BK (black glass nish) _=MS (metallic silver nish)
Cutout Dimensions
A (in.) B (in.)
19
28
34
-⁄
-⁄
-⁄
-⁄
Circuit Breaker
Required
40 Amp
50 Amp19
www.hestanhome.com phone 888.905.7463
Hestan Indoor products are approved for indoor
use only. Hestan Commercial Corporation reserves the
right to change materials and specications without notice.
Approx
SHP WT (lbs)
59
74
3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
021886 REV A
