Hestan KEC36BK Specifications

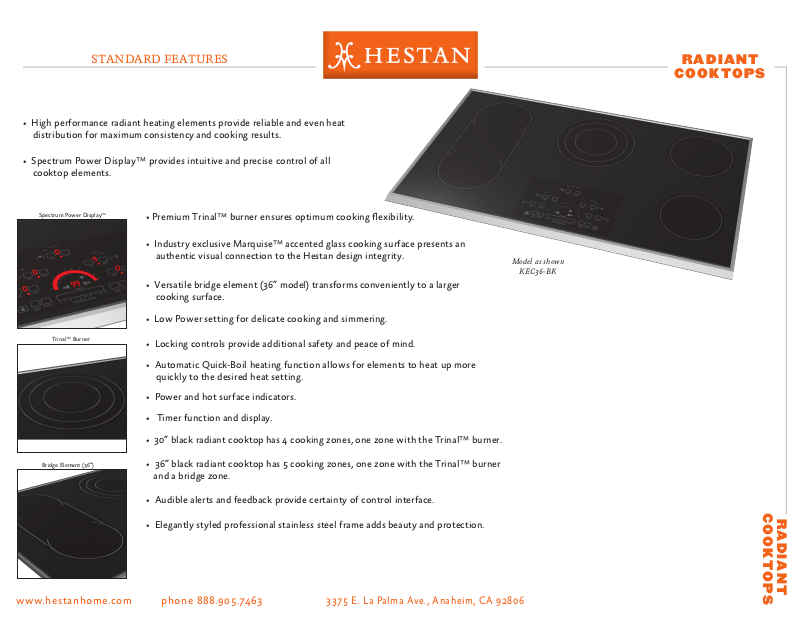

STANDARD FEATURES

• High performance radiant heating elements provide reliable and even heat
distribution for maximum consistency and cooking results.

• Spectrum Power Display™ provides intuitive and precise control of all
cooktop elements.

RADIANT

COOKTOPS

Spectrum Power Display

TrinalTM Burner

Bridge Element (36”)

TM

• Premium Trinal

• Industry exclusive Marquise
authentic visual connection to the Hestan design integrity.

™

burner ensures optimum cooking exibility.

™

accented glass cooking surface presents an

Model as shown

KEC36-BK

• Versatile bridge element (36” model) transforms conveniently to a larger
cooking surface.

• Low Power setting for delicate cooking and simmering.

• Locking controls provide additional safety and peace of mind.

• Automatic Quick-Boil heating function allows for elements to heat up more
quickly to the desired heat setting.

• Power and hot surface indicators.

• Timer function and display.

• 30” black radiant cooktop has 4 cooking zones, one zone with the Trinal

• 36” black radiant cooktop has 5 cooking zones, one zone with the Trinal

™

burner.

™

burner

and a bridge zone.

• Audible alerts and feedback provide certainty of control interface.

COOKTOPS

RADIANT

• Elegantly styled professional stainless steel frame adds beauty and protection.

www.hestanhome.com phone [phone]

3375 E. La Palma Ave., Anaheim, CA 92806

CUTOUT DIMENSIONS

LENGTH OF CUT

A

SEE NOTE

1-1/2” [3.8CM]

MIN CLEARANCE

R

SLOT FOR
CABLE
ROUTING
3-1/2” [9 cm]
2-1/2” [6.5 cm]

LENGTH OF CUT

B

FROM EDGE OF CUTOUT
AND FRONT EDGE OF
COUNTERTOP
2-1/2” [6.5 cm]

RADIANT

COOKTOPS

CUTOUT REQUIREMENTS

G

C

30” Cooktop

36” Cooktop

Built - In

Models

30” 3/8

[77.1 cm]

36” 3/16

[91.9 cm]

Description

KEC30-BK 30” Radiant Electric Cooktop

KEC36-BK 36” Radiant Electric Cooktop

Hestan Indoor products are approved for indoor
use only. Hestan Commercial Corporation reserves the
right to change materials and specications without
notice.

1-1/4” [3.2 cm] Canadian
2-1/4” [5.7cm] US

21” 3/16

[53.8 cm]

3” 1/8

[7.9 cm]

21” 3/16

[53.8 cm]

Circut Breaker

Required

Approx

SHP WT (lbs)

40 Amp 58

50 Amp

ELECTRICAL REQUIREMENTS

V, 60Hz, 40 or 50 amps

208/240

65

3” 1/8

[7.9 cm]

F

Cutout dimensions and requirements

CUTOUT

WIDTH

30”
[76.2cm]

36”
[91.4 cm]

IMPORTANT
Under the cooktop it is necessary to install a partition
as shown ****

:

A B C D E F G

28-11/16”
[72.9 cm]
28 15/16”
[73.5 cm]

34-1/16”
[86.5 cm]
34-5/16”
[87.2 cm]

19-1/4”
[49.0 cm]
19-5/8”
[49.8 cm]

19-1/4”
[49.0 cm]
19-5/8”
[49.8 cm]

E

D

30”
[76.2 cm] min

36”
[91.4 cm] min

WALL COVERING CABINETS,
AND COUNTERTOP MUST
WITHSTAND HEAT UP TO 200°F [93°C]

This cooktop has been designed with wide
tolerances of cut-out for when another brand is
being replaced with a Hestan unit. For new
installations, we recommend holding to the
minimum cutout dimensions.

Dim . Inches cm

• 30”

• 36”

18” [45.7 cm]
min
Height from
countertop
to nearest
cabinet on
either side of
unit

* NOTE

24” [61 cm] min. clearance if bottom of wood or metal
cabinets is protected by not less than 1/4” [0.6 cm] ame
retardant millboard covered with no less than No. 28 MSG
sheet steel 0.015” [0.04 cm] stainless steel, or 0.024” [0.06
cm] aluminum or 0.020” [0.05 cm] copper.
30”[76.2 cm] min. clearance between top of cooking platform
and bottom of unprotected wood or metal cabinet

28-15/16” x 19-9/16” 73.5 x 49.7

34-5/16” x 19-9/16” 87.2 x 49.7

30” [76.2 cm]
min.
[see note*]
Clearance
from
countertop to
unprotected
overhead
surface

2” [5 cm] min
Clearance
from cutout to
side wall on
the left and
right of the
unit

13” [33 cm]
Depth of
unprotected
overhead
cabinets

www.hestanhome.com phone [phone]

3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:

021887 REV A
