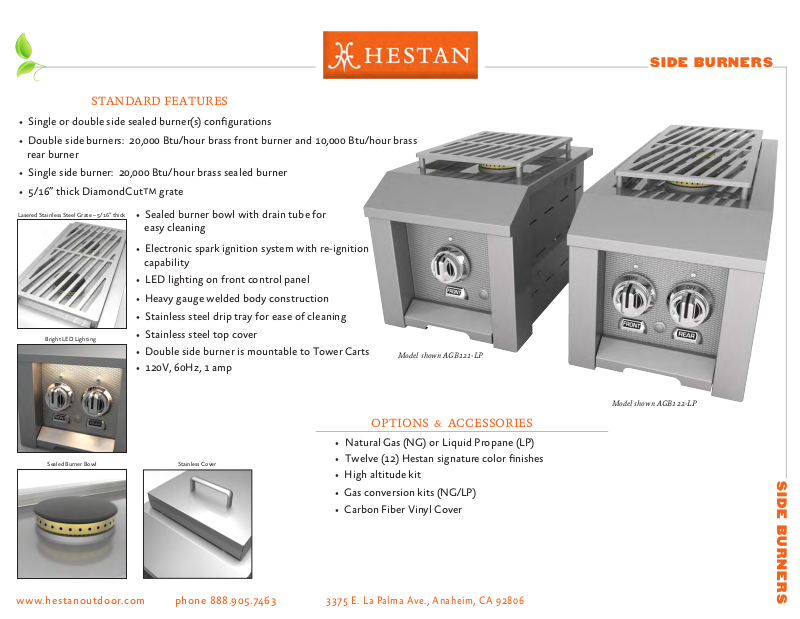

Hestan AGB122X, AGB121NGDG Specsheet

STANDARD FEATURES

• Single or double side sealed burner(s) congurations

• Double side burners: 20,000 Btu/hour brass front burner and 10,000 Btu/hour brass
rear burner

• Single side burner: 20,000 Btu/hour brass sealed burner

• 5/16” thick DiamondCut™ grate

Lasered Stainless Steel Grate – 5/16” thick

• Sealed burner bowl with drain tube for
easy cleaning

• Electronic spark ignition system with re-ignition
capability

• LED lighting on front control panel

• Heavy gauge welded body construction

• Stainless steel drip tray for ease of cleaning

SIDE BURNERS

Bright LED Lighting

• Stainless steel top cover

• Double side burner is mountable to Tower Carts

• 120V, 60Hz, 1 amp

Sealed Burner Bowl

Stainless Cover
