IOT Lock
User Manual
Shenzhen Hesibond IOT Technology Corp., Ltd.
1
Lockstitch IoT Lock Instructions
Manual
V2.0.0
Honor produced: Shenzhen Rock Foster Information
Technology Co., Ltd.
Production address: 4th floor, Shenyi Industrial Building,
Nanshan Avenue, Shenzhen
Service Phone: 400-016-1008
1
I. Introduction to IoT Lock Parameters…………2
a) Introduction to parameters on the three-type door…2
b) Introduction of parameters on the five-type door…4
c) Introduction to gateway parameters……………………6
II. Quick Guide to IoT Locks……………………8
2
Three-type Lockstitch IoT lock appearance
Figure 1.0 Three-type (HB-WLK-01) IoT lock appearance.
Note: When the door lock has no power, you can use the
external USB emergency power supply interface to unlock.
Table 1.0 Type III (HB-WLK-01) IoT Lock Parameters
Three-
type
door
lock
Features
Technical Parameters
1. Standard: password + IC card + mechanical key + ID
card + WeChat scan code to open the door + mobile
phone remote open
Product color: rose gold, red bronze,
black titanium stainless steel, etc.
2. Anti-smash alarm + key unlock alarm + password trial
open alarm + false lock alarm
Working voltage: DC 6V (four AA
alkaline batteries, recommended Nanfu
battery)
3. Mobile phone remote disable / open door lock
settings, a variety of door opening mode settings, 1 +1
dual mode verification to open the door
100 key capacity, 100 IC card capacity,
100 ID card capacity
4. High-definition voice, full navigation operation
Standard mechanical key 2, 3 RFID cards
5. Stainless steel lock body, standard 24*240MM
(non-standard can be customized)
Working temperature: -25 ° C to 65 °
C
6. Stainless steel panel, no fear of corrosion, acid and
alkali, oxidation, not easy to be affected by sweat and
years
Operating humidity: 5% to 95% (no
condensation)
Storage temperature: -40 ° C to 80 ° C
7. Free the handle for one second or so to exchange
worry-free, lift the anti-lock, press down to open the
door,It can be equipped with 95% standard door on the
market, which is easy to install.
Number of open doors: Open the door
20,000 times (Nanfu battery)
Battery life: battery life 2 years
8. Long life, ultra low power consumption, super C-class
Safety alarm: anti-smash alarm, key
3
4
anti-theft lock core, effectively prevent illegal molecular
shackles
unlock alarm, password input 5 times
error alarm, false lock alarm
9. Sensor anti-destructive ability: 4H pencil 20 cm
continuous impact 1000 times without damage
Outdoor panel size: L: 363 x W: 83 x H:
32 (mm)
10. Tesla black box impact without damage. Tesla hit
100 times and the door lock is still in normal use.
Indoor panel size: L: 363 x W: 83 x H: 32
(mm) Net weight: 6.75kg
5
Five-type Lockstitch IoT lock appearance
Table 1.1 Type 5 (HB-WLK-02) Internet of Things Lock Parameters
Type
five
Door
lock
Features
Technical Parameters
1. Standard: password + proximity card + mechanical
key + ID card + WeChat scan code to open the door +
fingerprint + mobile phone remote open
Product color: rose gold, red bronze, black
titanium, optional other colors (must be
100)
2. Anti-smash alarm + key unlock alarm + password
trial open alarm + false lock alarm
Working voltage: DC 6V (four AA alkaline
batteries, recommended Nanfu battery)
3. Mobile phone remote disable / open door lock
settings, a variety of door opening mode settings, 1 +1
dual mode verification to open the door
Working voltage: DC 6V (four AA alkaline
batteries, recommended Nanfu battery) key
capacity 100, IC card capacity 100, ID card
capacity 100, fingerprint capacity 50
4. High-definition voice, full navigation operation
Standard mechanical key 2, 3 RFID cards
5. Stainless steel lock body, standard 24*240MM
(non-standard can be customized)
Working temperature: -25 ° C to 65 ° C
6. Zinc alloy panel, no fear of corrosion, acid and alkali,
oxidation, not easy to be affected by sweat and years
Operating humidity: 5% to 95% (no
condensation)
Storage temperature: -40 ° C to 80 ° C
7. Free handle for one second or so to exchange
worry-free, lift anti-lock, press down to open the door,
can be equipped with 95% standard door on the
market, easy to install
Number of open doors: Open the door
20,000 times (Nanfu battery)
Battery life: 2 years battery life (except
special environment)
5
6
8. Long life, ultra low power consumption, super
C-class lock core anti-theft lock core, effectively
prevent illegal molecular shackles
Safety alarm: anti-smash alarm, key unlock
alarm, password input 5 times error alarm,
false lock alarm
9. Sensor anti-destructive ability: 4H pencil 20 cm
continuous impact 1000 times without damage
Outdoor panel size: L: 363 x W: 83 x H: 32
(mm)
10. Tesla black box impact without damage. Tesla hit
100 times and the door lock is still in normal use.
Indoor panel size: L: 363 x W: 83 x H: 32
(mm)
Net weight: 6.75kg
7
LockstitchIoT lock gateway appearance

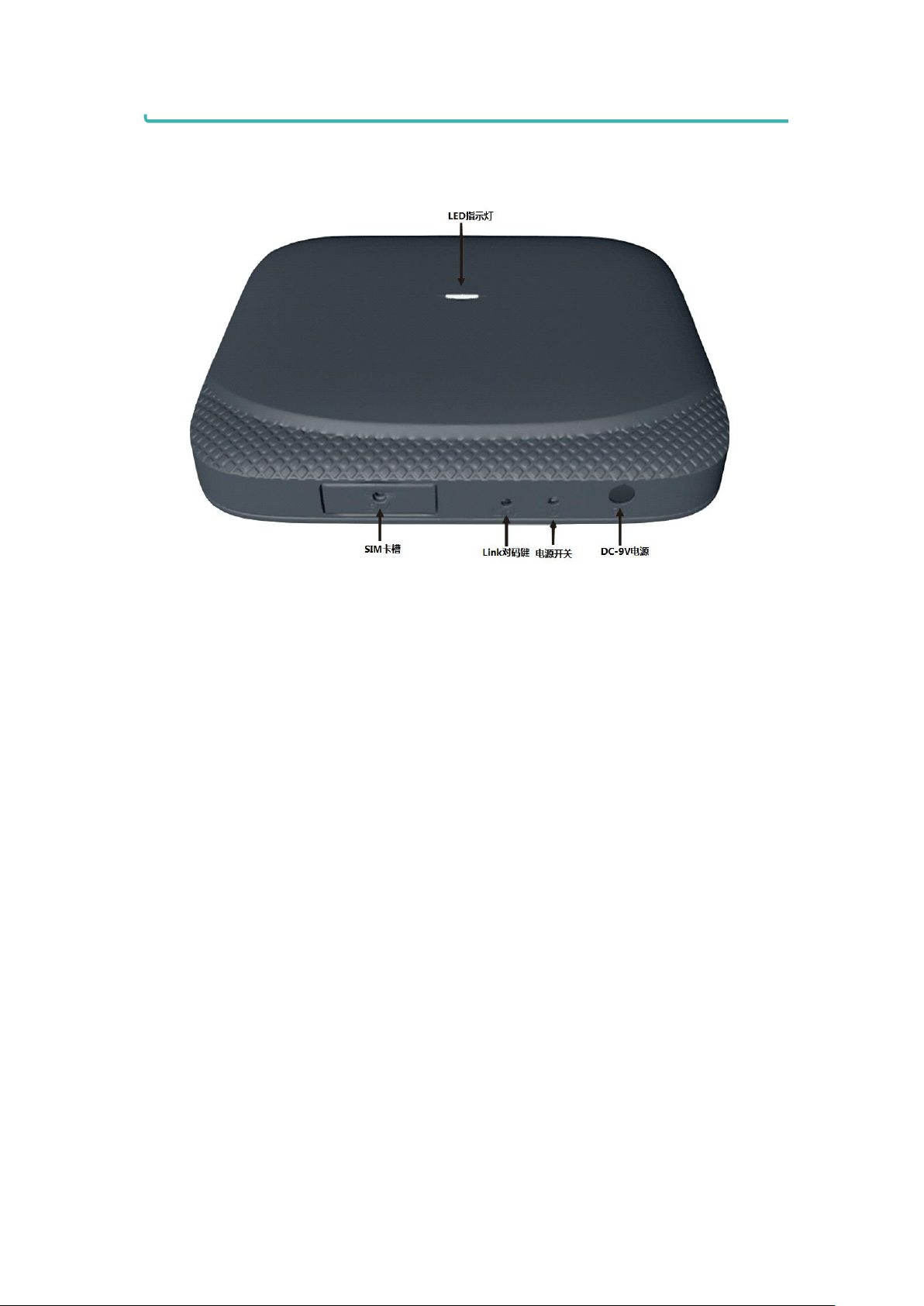

Figure 2.0 TD-LTE wireless data terminal
appearance
TD-LTE wireless data terminal function: Insert a SIM
flow card on the TD-LTE wireless data terminal, and the
terminal receives the information link data packet
information of the Internet of Things to send the
information to the server. When the terminal receives
an instruction from the server, the terminal is
responsible for delivering the information to the door
lock, and the door lock performs the door opening action.
The gateway terminal assumes the role of the
information transfer station.
The TD-LTE wireless data terminal has a 4G
8
communication module inside, and the TD-LTE gateway is
connected to the platform through the SIM flow card,
and the gateway opening command and the door lock state
information report uploading require the gateway as an
intermediate information converter. To achieve
communication between the Internet of Things door lock
and the platform. When the gateway is abnormal, the
platform will not be able to download the command and
will not receive the data packet uploaded by the door
lock. At this point
A communication exception has occurred.
The information packets of the IoT door lock are
encrypted by AES to ensure the integrity and importance
of the data.
Gateway and door lock pairing process: Open the
gateway power switch, wait 3-5 seconds, the LED red
indicator flashes once every 5 seconds, use the small
screwdriver inside the accessory kit to press the Link
button (3-5 seconds), then when the LED When the red
indicator light flashes rapidly, the door lock battery
will be powered on again. When the voice “network is
connected” is heard, the connection between the door
9
Internet of
Things
Lock
Gateway
TD-LTE
Serial number
Features
Technical Parameters
1
Executive
standard
YD/T 2575-2013、YD/T 2576.2-2013
2
Modulation
QPSK 、16QAM
3
Frequency
Range
Upstream: 2570 MHz – 2620 MHz
Downstream: 2570 MHz – 2620 MHz
4
Transmit
power
≤23dBm
5
DC power
adapter
accessories
Input: 100-240VAC, 50-60HZ, 0.5A
Output: DC9.0V, 2.0A
6
Power outage
Lithium battery: 1800mAh 3.7V (rechargeable backup
lithium battery to ensure normal standby after 24 hours of
AC power failure)
lock and the gateway is successful.
Table 2.0 Internet of Things Lock Gateway
Parameters
10
I．IoT Lock Quick Start Guide
Step 1:The first step: for the code network, plug
the power adapter on the gateway below, turn on
the power switch, and connect the door lock to
the gateway code according to the code process.
Gateway and door lock pairing process: Open the
gateway power switch, wait 3-5 seconds, the LED red
indicator flashes once every 5 seconds, use the small
screwdriver inside the accessory kit to press the Link
button (3-5 seconds), then when the LED When the red
indicator light flashes rapidly, the door lock battery
will be powered on again. When the voice “network is
connected” is heard, the connection between the door
lock and the gateway is successful.
11
Step 2: Bind the door lock, pay attention to the
'Rock Foster' WeChat public account, open the
'User Center' -> 'Bound Door Lock' menu scan code
door lock QR code, fill in the door lock name,
detailed address Bind the door lock.
12
Step 3: When the mobile phone opens, open the
public number ‘phone unlocking’ menu to verify
whether the remote opening and scanning code
opening is successful.
13
Step 4: Set the password, IC card number,
fingerprint, ID card, open the ‘Service
Butler’-> ‘Unlock Settings’ menu, set the
password, card number, etc.
Note: The quick-use guide makes
it easy for users to quickly familiarize themselves with the
operation of the public number and the operation of the door
lock. For more functions and operations, please refer to the
detailed description of the WeChat client at the back of the
manual to help the user understand the door lock function and
its features in more detail.
