HES 660 Series Cabinet Lock
Dimensions Specifications
Certifications
Cabinet Locks
3/16"
[.5 mm]
1"
[25 mm]
1-11/16"
[43.1mm]
1-11/16"
[43.1mm]
15/ 16"
[23 .3 mm]
• RoHS compliant
Electrical
• 12 or 24 VDC ± 10%
— 240 mA at 12 VDC / 120 mA at 24 VDC
(continuous duty)
700 mA at 12 VDC / 350 mA at 24 VDC
(preload option)
— Monitored contact rating 25V / 1A
Holding Force
• Static strength 1,000 lbs
• Dynamic strength over 100 ft-lbs
Environmental
• Indoor use
1/8 "
[3. 8mm]
1"
[25 mm]
1-7/8"
[46 .9m m]
3/16"
[.5 mm]
How to Order
Series Voltage Option (s)
2-11/16"
[68.5mm]
3-3/8"
[58 .4 mm]
1-5/8 "
[40 .6m m]
2-5/16"
[58 .4 mm]
660 – 12V – LBSM – Preload
12V 12 Volt (blank) No preload, no monitoring
24V 24 Volt Preload Up to 15 lbs
US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com
Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
LBSM Locked state monitoring
LBSM–Preload Locked state monitoring with preload
Copyr ight © 2019, Hanche tt Entr y Systems , Inc., an A SSA ABLOY Group c ompany. All r ights re served . Reproduc tion
in whol e or in part w ithout the e xpress w ritten p ermissio n of Hanchet t Entry Sy stems, Inc . is prohibi ted.
Updated 6/7/19 Patent pending and/or patent www.assaabloydss.com/patents

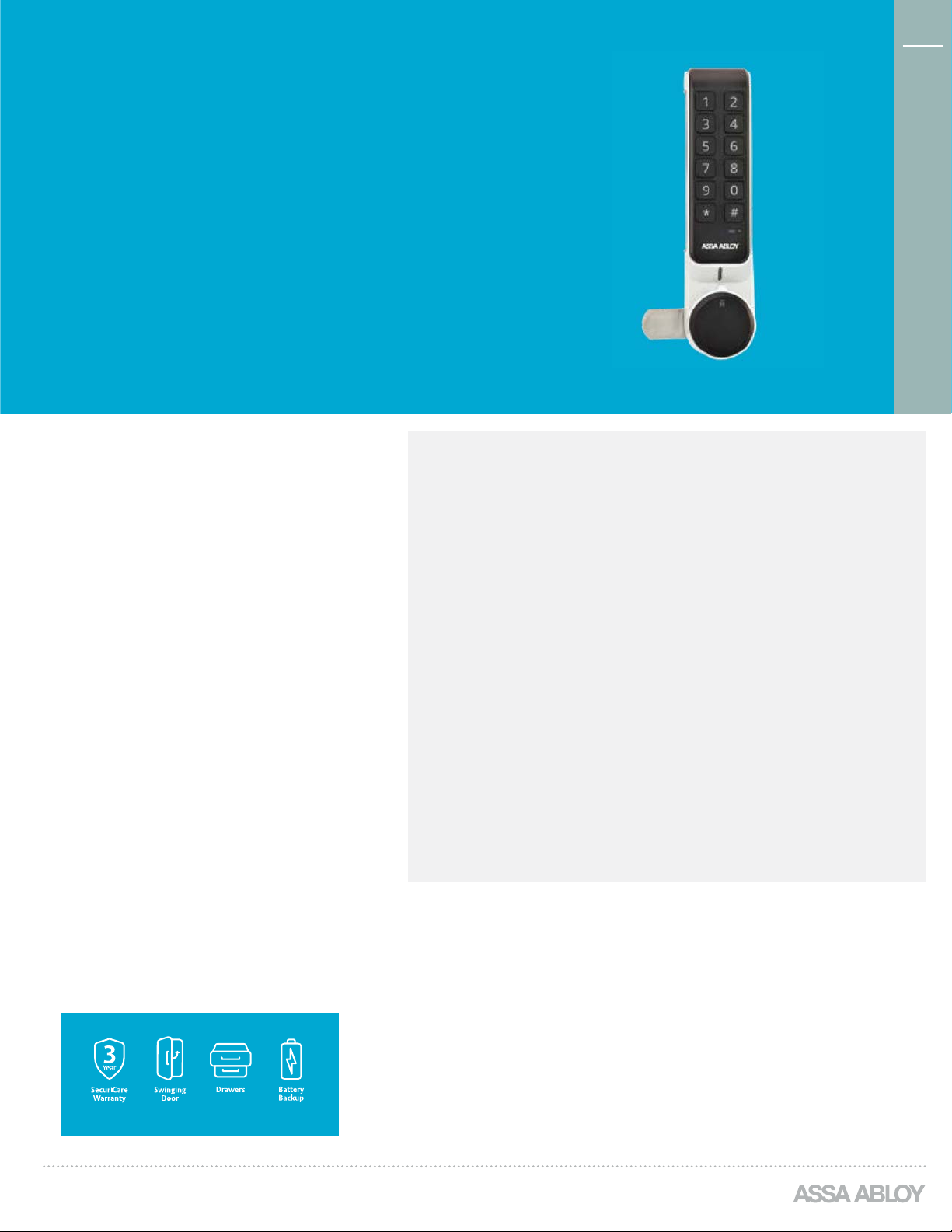

HES® KP20
Cabinet Lock
Stand-Alone Keypad
Cabinet Lock
12 7
Cabinet Locks
The cost effective
solution for
stand-alone keypad
access control to
secure drawers
or doors.
The battery operated HES KP20 Cabinet
Lock is the flexible, low cost cabinet locking
solution for low to medium security
applications with 75 lbs of holding force.
Features
Standard Features
• Stand-alone access control
• No audit trail
• Public (one-time) or
Private (continuous) mode
configuration options
• 12 b ut ton keypad
• LEDs indicate valid/invalid access
• Suppor ts one (4 – 12 digit) master code
• Suppor ts one (4 – 12 digit) user co de
• Aluminum die-cast construction
• Non-handed
• Installs on wood or metal
cabinet drawers or doors
1/16" to 7/8" [1.5 – 22.2 mm] thick
• Micro USB for emergency
override upon loss of power
• SecuriCare three-year, no-fault,
no questions asked warranty
Optional Features
• Supports 3rd part y locking
cams (i.e. hook)
