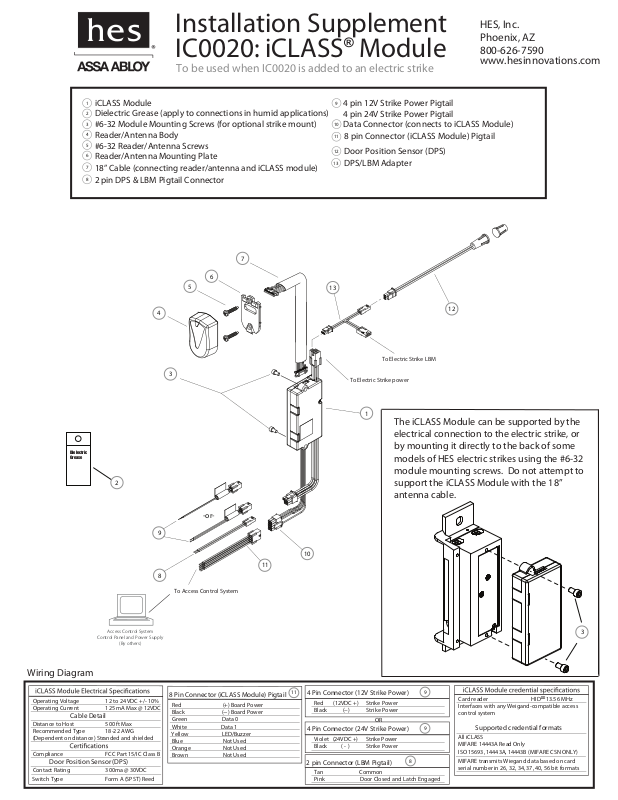

HES iCLASS User Manual

Installation Supplement IC0020: iCLASS® Module

To be used when IC0020 is added to an electric strike

HES, Inc. Phoenix, AZ 800-626-7590

www.hesinnovations.com

iCLASS Module

Dielectric Grease (apply to connections in humid applications)

#6-32 Module Mounting Screws (for optional strike mount)

Reader/Antenna Body

#6-32 Reader/Antenna Screws

Reader/Antenna Mounting Plate

18” Cable (connecting reader/antenna and iCLASS module)

2 pin DPS & LBM Pigtail Connector

4 pin 12V Strike Power Pigtail 4 pin 24V Strike Power Pigtail

Data Connector (connects to iCLASS Module)

8 pin Connector (iCLASS Module) Pigtail

Door Position Sensor (DPS)

DPS/LBM Adapter

To Electric Strike LBM

To Electric Strike power

Dielectric Grease

Access Control System

Control Panel and Power Supply

(By others)

Wiring Diagram

Operating Voltage 12 to 24 VDC +/- 10% Operating Current 125 mA Max @ 12VDC

Distance to Host 500 ft Max Recommended Type 18-22 AWG (Dependent on distance) Stranded and shielded

Compliance FCC Part 15/IC Class B

Contact Rating 300ma @ 30VDC

Switch Type Form A (SPST) Reed

Cable Detail

Door Position Sensor (DPS)

-or-

To Access Control System

8 Pin Connector (iCLASS Module) Pigtail

Red (+) Board Power Black ( ) Board Power Green Data 0 White Data 1 Yellow LED/Buzzer Blue Not Used Orange Not Used Brown Not Used

The iCLASS Module can be supported by the electrical connection to the electric strike, or by mounting it directly to the back of some models of HES electric strikes using the #6-32 module mounting screws. Do not attempt to support the iCLASS Module with the 18” antenna cable.

4 Pin Connector (12V Strike Power)

Red (12VDC +) Strike Power Black (−) Strike Power

4 Pin Connector (24V Strike Power)

Violet (24VDC +) Strike Power Black ( - ) Strike Power

2 pin Connector (LBM Pigtail)

Tan Common Pink Door Closed and Latch Engaged

Card reader HID13.56 MHz Interfaces with any Weigand-compatible access control system

Supported credential formats

All iCLASS MIFARE 14443A Read Only ISO 15693, 14443A, 14443B (MIFARE CSN ONLY)

MIFARE transmits Wiegand data based on card serial number in 26, 32, 34, 37, 40, 56 bit formats

Installation Directions

IC0020: iCLASS® Module

Prepare Frame and Strike

1. Prepare door jamb per the Installation Instructions provided with the electric strike.

2. On the outside side of the frame drill a 3/4” diameter hole for reader/antenna install per the image below. The reader/ antenna may be positioned as desired, within the limits of the 18” cable connected to the iCLASS Module.

Non-surface mount for

electric strike installation

1-5/16” [33]

5/8” [16]

DPS: 3/8” [10]

3/4” [19]

3. Drill a 3/8” hole for the door position switch (DPS) as required. Note that the DPS may be positioned as desired, within the limits of its 10” cable. If necessary (e.g. wood frames), drill a channel from the DPS to the electric strike to accommodate the 10” cable. Next drill a matching 3/8” hole in the door and install the press-t magnet so it will make contact with the DPS.

Wire Gauge Diagram

Distance In ft, Round Trip

100’ or less

100’ to 200’

200’ to 300’

300’ to 400’

400’ to 500’

Cut

between

holes to

make this

slot

for these wire hole locations

12VDC

24 Gauge

22 Gauge

20 Gauge

Surface mount

electric strike installation

See 9400,9500/9600

installation instructions

24VDC

24 Gauge

22 Gauge

Connect Components and Wiring

5. Select the appropriate 4-pin strike power pigtail tha matches system power. For 12V AC/DC or 16V AC, the pigtail marked “12 VDC” should be used. For 24V AC/DC, the pigtail marked “24 VDC should be used.

6. Verify that the wires running from the control panel are of adequate wire gauge (see Wire Gauge Diagram below). Connect the wire leads of the three pigtails provided (items 8, 9, & 11) to the control panel wiring based on the wiring diagram on page 1 and the appropriate termination at the control panel.

7. Mount the door position switch (DPS) into the frame. Route the cable back to the electric strike and connect it to the 2 pin connector of item 13, adapter cable. Connect the 3 pin connector from the strike to the 3 pin connector of item 13. Connect the remaining 2 pin connector of item 13 to the 2 pin connector of the iCLASS. The LBM & DPS are wired in series--a ‘closed’ electrical circuit depicts a closed door and extended latchbolt into the integrated electric strike.

8. Secure the reader/antenna mounting plate to the frame using the #6 sheet metal screws provided. Connect the 18” cable to the reader/ antenna, snap the reader/antenna to the reader/antenna mounting plate and pull the 18” cable through to the iCLASS Module.

9. Attach all the 8, 4 and 2 pin connectors to the equivalent pigtail connectors routed from the control panel. Dielectric grease can be applied to the pigtail electrical terminals if used in a humid environment.

10. Slide the iCLASS module through either the access slot or the electric strike cutout depicted in the illustrations to the left.

11. Install the electric strike unit in the frame as specied in the specic strike installation instructions.

Testing and Operation

12. When power is supplied, the LED will turn red, while the beeper beeps 3 times. This sequence indicates the micro-controller is operating properly.

13. Present a iCLASS ID card to the reader/antenna. The LED will turn green, while the beeper beeps once. This indicates that the card was read successfully. Simultaneously, the keeper will click open. This indicates that communication between the control panel and the electric strike is operational.

Warning: Changes or modication to this device not expressly approved by HES®, Inc., could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply within the limits for a class [B] digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on. The user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help

This class [B] digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’inerférencé canadienne causant des réglements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence quipeut causer ’opération peu désirée.

3078006.003 rev A
