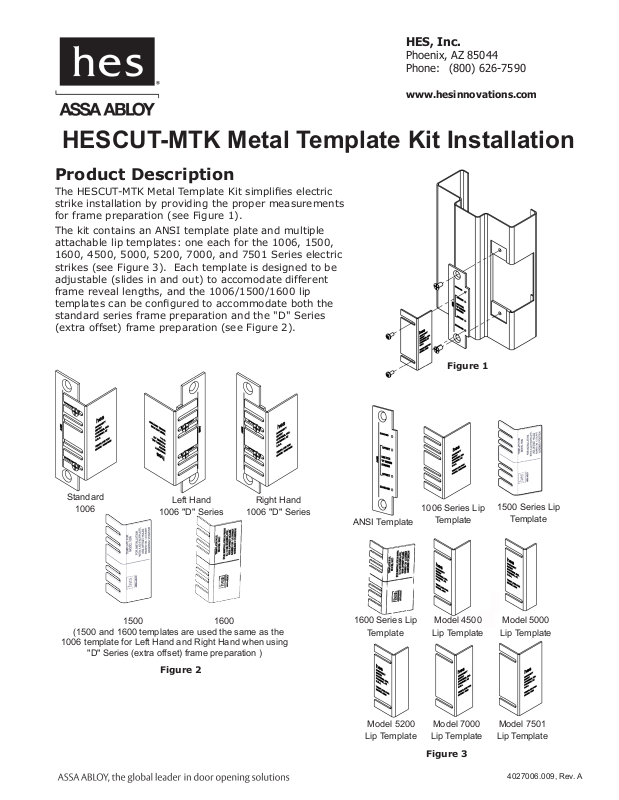

HESCUT-MTK Metal Template Kit Installation

Product Description

The HESCUT-MTK Metal Template Kit simplies electric
strike installation by providing the proper measurements
for frame preparation (see Figure 1).

The kit contains an ANSI template plate and multiple
attachable lip templates: one each for the 1006, 1500,
1600, 4500, 5000, 5200, 7000, and 7501 Series electric
strikes (see Figure 3). Each template is designed to be
adjustable (slides in and out) to accomodate different
frame reveal lengths, and the 1006/1500/1600 lip
templates can be congured to accommodate both the
standard series frame preparation and the "D" Series
(extra offset) frame preparation (see Figure 2).

Standard

1006

1500 1600

(1500 and 1600 templates are used the same as the

1006 template for Left Hand and Right Hand when using

"D" Series (extra offset) frame preparation )

Left Hand

1006 "D" Series

Figure 2

Right Hand

1006 "D" Series

ANSI Template

1600 Series Lip

Template

Figure 1

1006 Series Lip

Template

Model 4500

Lip Template

1500 Series Lip

Template

Model 5000

Lip Template

Model 5200

Lip Template

Model 7000

Lip Template

Figure 3

Model 7501

Lip Template

4027006.009, Rev. A

NOTE: Installation should be performed by
a qualied service person, who
complies with all local codes.

Assembling to a Wood or

3. SCRIBE around template lip.

4. LOCATE and MARK the mounting hole
positions.

Metal Frame Without a
Precut Strike Pocket

1. ADJUST the "L" piece slide for the
applicable length of the different frame
reveals (see Figure 4 (for 1006, 1500,
and 1600), and Figure 5 (for 4500, 5000,
5200, 7000, and 7501).

2. CENTER template on latchbolt centerline
(see Figure 6).

NOTE: The following are the electric strike
scribe mark measurements required
for cutout:

5000 9/16" [14.29 mm]
5200 3/4" [19.05 mm]
4500 7/8" [22.23 mm]
7000 1-1/16" [26.99 mm]
7501 1-3/8" [34.93 mm]
1006 1-9/16" [39.69 mm]
1500 1-1/8" [28.58 mm]
1600 1-3/8" [34.93 mm]

5. CUT the door frame inside of scribed lines.

6. INSTALL hardware in accordance with
product installation instructions.

Figure 4

(Shows "L" piece slide for Models 1006, 1500, and 1600)

Figure 5

(Shows "L" piece slide example for Models 4500,

5000, 5200, 7000, and 7501)

Copyright © 2016, Hanchett Entry Systems, Inc., an ASSA
ABLOY Group company. All rights reserved. Reproduction in
whole or in part without the express written permission of
Hanchett Entry Systems, Inc. is prohibited.

2

Figure 6

(Applies to all "L" piece slides)

4027006.009, Rev. A
