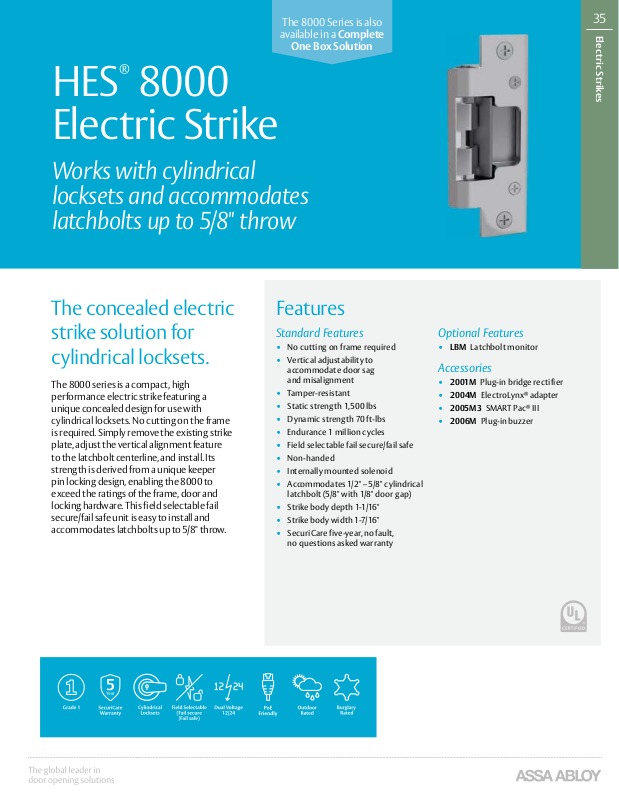

The 8000 Series is also

available in a Complete

One Box Solution

HES® 8000
Electric Strike

Works with cylindrical
locksets and accommodates
latchbolts up to 5/8" throw

35

Electric Strikes

The concealed electric
strike solution for
cylindrical locksets.

The 8000 series is a compact, high
performance electric strike featuring a
unique concealed design for use with
cylindrical locksets. No cutting on the frame
is required. Simply remove the existing strike
plate, adjust the vertical alignment feature
to the latchbolt centerline, and install. Its
strength is derived from a unique keeper
pin locking design, enabling the 8000 to
exceed the ratings of the frame, door and
locking hardware. This field selectable fail
secure/fail safe unit is easy to install and
accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• No cutting on frame required

• Vertical adjustability to

accommodate door sag
and misalignment

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8" cylindrical

latchbolt (5/8" with 1/8" door gap)

• Strike body depth 1-1/16"

• Strike body width 1-7/16"

• SecuriCare five-year, no fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx

• 2005M3 SMART Pac

• 2006M Plug-in buzzer

®

adapter

®

III

36

Dimensions

Electric Strikes36Electric Strikes

[104. 8]

4-1/8 "

[123.4]

4-7/8 "

[2 7.3]

1-1/16"

[85. 5]
3-3/8"

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 (6th Edition) listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

How to Order

Series Model Finish* Option (s)

8000 – – 630 – LBM

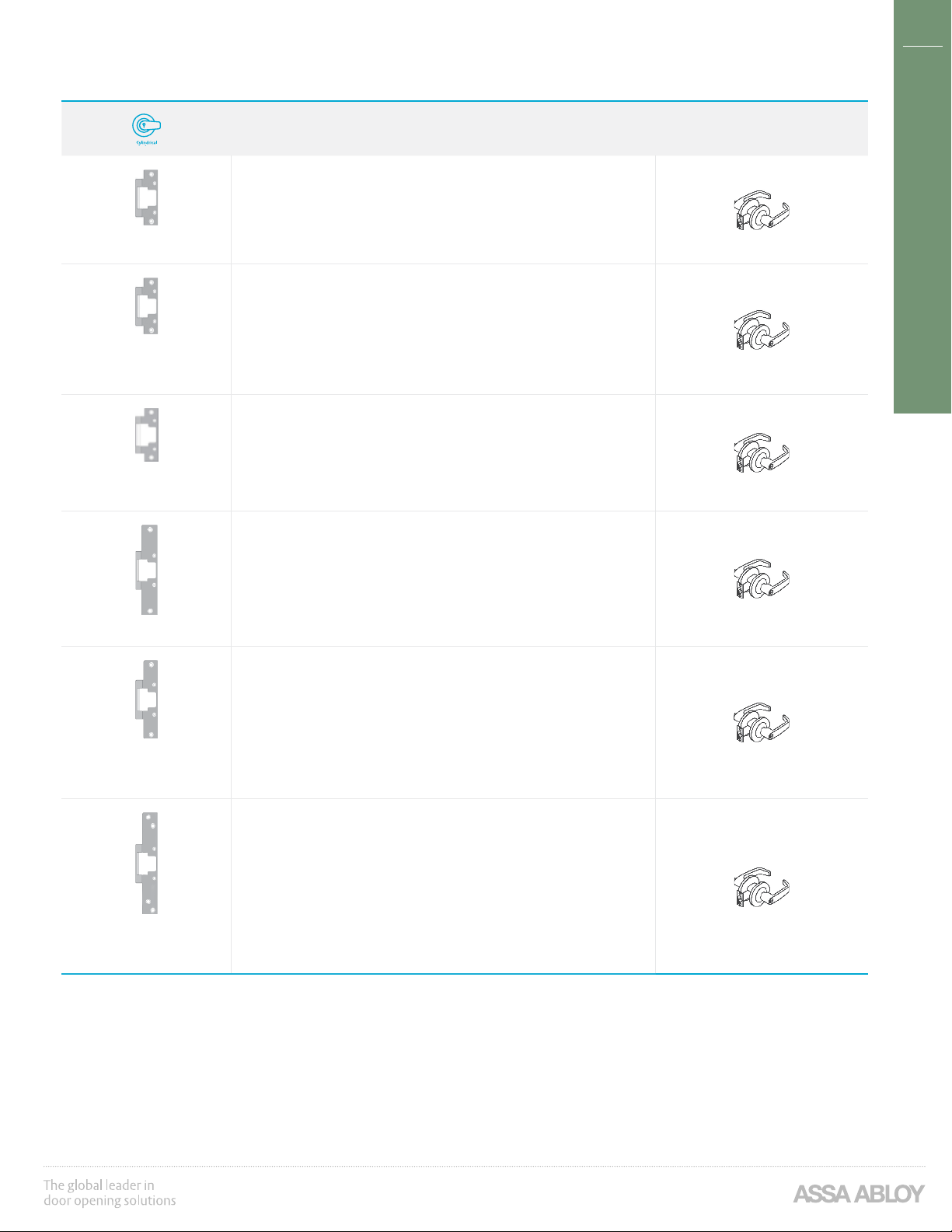

8000 Universal Electric Strike;

Faceplates ordered separately

[36.5]

1-7/16"

Diagram shown with 801 Option

C* Complete Electric Strike; Includes

the 801 and 5801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

assaabloyesh.com | 800.626.7590

10027 S. 51st Street Phoenix, AZ 85044 USA

Patent pending and/or patent

assaabloydss.com/patents

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish
