HES 7501-605, 7501-605-LBM, 7501-606, 7501-606-LBM, 7501-612 Installation Instructions

4

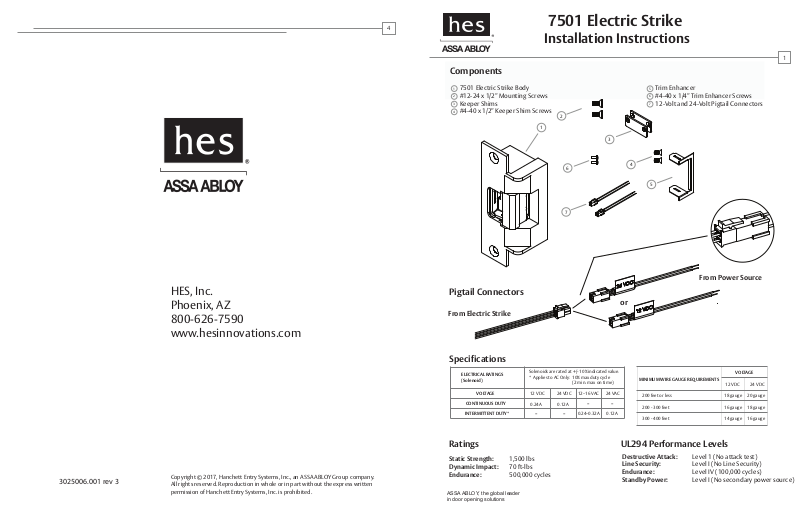

7501 Electric Strike

Installation Instructions

1

Components

Product Components

1

7501 Electric Strike Body

2

#12-24 x 1/2” Mounting Screws

3

Keeper Shims

4

#4-40 x 1/2” Keeper Shim Screws

2

1

3

5

Trim Enhancer

6

#4-40 x 1/4” Trim Enhancer Screws

7

12-Volt and 24-Volt Pigtail Connectors

HES, Inc.
Phoenix, AZ
800-626-7590
www.hesinnovations.com

Pigtail Connectors

From Electric Strike

6

7

4

5

From Power Source

or

3025006.001 rev 3

Copyright © 2017, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Hanchett Entry Systems, Inc. is prohibited.

Specifications

ELECTRICAL RATINGS
(Solenoid)

VOLTAGE

CONTINUOUS DUTY

INTERMITTENT DUTY*

Solenoids are rated at +/- 10% indicated value.
* Applies to AC Only: 10% max duty cycle
(2 min. max on time)

12 VDC 24 VAC

0.24A

- -

Ratings

Static Strength: 1,500 lbs
Dynamic Impact: 70 ft-lbs
Endurance: 500,000 cycles

ASSA ABLOY, the global leader
in door opening solutions

24 VDC

0.12A

12–16 VAC

- -

0.24–0.32A

VOLTAGE

0.12A

MINIMUM WIRE GAUGE REQUIREMENTS

200 feet or less

200 - 300 feet

300 - 400 feet

12 VDC 24 VDC

18 gauge

16 gauge

14 gauge

20 gauge

18 gauge

16 gauge

UL294 Performance Levels

Destructive Attack: Level 1 (No attack test)
Line Security: Level I (No Line Security)
Endurance: Level IV (100,000 cycles)
Standby Power: Level I (No secondary power source)

Installation

2

3

NOTE 1: Before electrically connecting the device, the input voltage must be verified using a multimeter. Many power
supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10%
of the electrical specification (See Page 1) may cause severe damage to the unit and will void the warranty.

NOTE 2: Installation wiring for the product and wiring methods shall be in accordance with the National Electrical Code,
ANSI/NFPA 70.

Preparing the Frame

1. PREPARE door jamb per the appropriate template detail on Page 3.

2. IF using the Latchbolt Monitor (LBM),
THEN SEE “LBM Wiring” on Page 2.

Installation

NOTE: For 12 VDC, the Plug In Connector (pigtail) marked “12 VDC” should be used; for 24 VDC, the pigtail marked

“24 VDC” should be used.

1. CONNECT pigtail connector to the electric strike and to power source (See Page 1).

2. IF Operation Mode must be changed,
GOTO and PERFORM steps in “Converting the Operation Mode” section.

3. INSTALL the electric strike in the jamb cutout using the #12-24 x 1/2” mounting screws.

4. INSTALL keeper shims as shown on Page 3, if necessary.

5. INSTALL the trim enhancer as shown on Page 3, if necessary.

7501 Template & Dimensions

1-1/4”

[31.75]

5/8”

[15.88]

4-1/8"

[104.78]

CL

3-3/8"

[85.72]

4-7/8"

[123.83]

4-7/8”

[123.83]

[104.78]

1-1/4”

[31.75]

1-9/32”
[32.54]

4-1/8”

[15.88]

5/8”

1-27/32”

[46.74]

3-3/8”

[85.72]

1-11/16”

[42.86]

1/8”

[3.05]

1-1/2"

[38.10]

Converting the Operation Mode

NOTE: The suitability of the locks in the FAIL SECURE

OPERATION mode is up to the local Authority
Having Jurisdiction (AHJ) and emergency exit
hardware may be required in such
installations.

1. Because the electric strike ships in fail secure mode,
COMPLETE the following steps to convert to fail safe mode.

2. REMOVE the cotter pin from the solenoid
linkage.

3. REMOVE the solenoid mounting screw and
washers.

4. REMOVE the solenoid from the keeper module.

5. TURN the solenoid upside down, and RE-INSERT
it into the keeper module.

6. RE-INSTALL the mounting screw and washers at
the opposite end of the keeper module, and
ENSURE the “D” washer is positioned firmly
into the solenoid slot.

7. REPLACE the cotter pin to secure the solenoid
linkage.

“D” Washer

Solenoid Slot

White (Common)
Orange (Normally Open)
Green (Normally Closed)

Fail Secure Mode

Cotter Pin

“D” Washer

LBM Wiring

Fail Safe Mode

Solenoid Slot

1-1/2"

[38.10]

Installing the Keeper Shims

Strike Body

Keeper Shims

#4-40 x 1/4”

screws

UNLOCK the electric strike, ALIGN the keeper shims
as shown, and FASTEN to the keeper using the
provided #4-40 x 1/4” screws.

Installing the Trim Enhancer

4-40 x 1/4” Screw

Strike Body

Trim Enhancer

4-40 x 1/4” Screw

LINE UP Trim Enhancer
with strike body as
illustrated above.

FASTEN the Trim Enhancer
to the strike at the screw
location illustrated above.

NOTE: It may be necessary to enlarge the
cutout to accommodate the added thickness
of the Trim Enhancer & screws.

Screw Location

Screw Location
