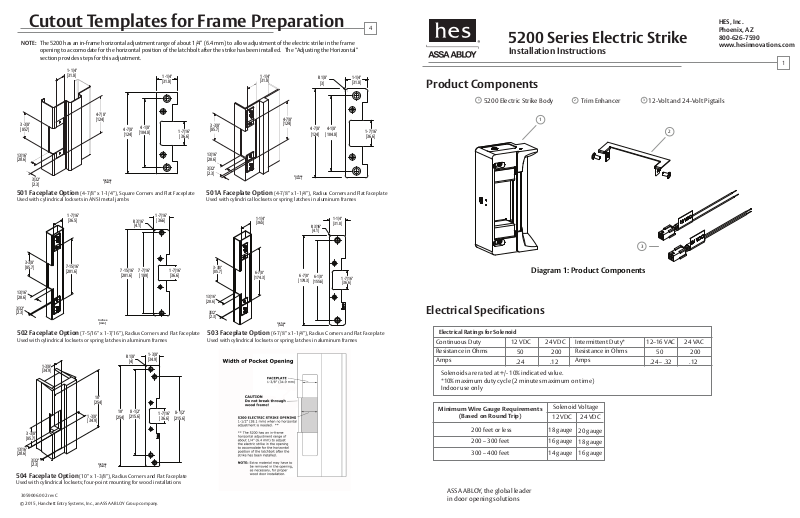

HES 5200-630, 5200-LBM, 5200-LBSM, 5200C-630, 5200C-LBM Installation Instructions
...
Cutout Templates for Frame Preparation
NOTE: The 5200 has an in-frame horizontal adjustment range of about 1/4” (6.4 mm) to allow adjustment of the electric strike in the frame
opening to accomodate for the horizontal position of the latchbolt after the strike has been installed. The “Adjusting the Horizontal”
section provides steps for this adjustment.
1 -1/4"
[31.8]
1 -1/4"
[31.8]
1 -1/4"
[31.8]
R 1/8"
[3]
1 -1/4"
[31.8]
4
5200 Series Electric Strike
Phoenix, AZ
800-626-7590
www.hesinnovations.com
Installation Instructions
HES, Inc.
1
Product Components
4 -7/8"
3 -3/8"
[85.7]
13/16"
[20.6]
3/32"
[2.3]
[124]
Inches
[mm]
4 -7/8"
[124]
4 -1/8"
[104.8]
1 -7/16"
[36.6]
501 Faceplate Option (4-7/8” x 1-1/4”), Square Corners and Flat Faceplate
Used with cylindrical locksets in ANSI metal jambs
13/16"
[20.6]
3/32"
[2.3]
3-3/8"
[85.7]
1 -7/16"
[36.5]
7-15/16"
[201.6]
Inches
[mm]
R 3/16"
7 -15/16"
[201.6]
[4.1]
7 -7/16"
[189]
1 -7/16"
[36.6]
1 -7/16"
[36.6]
502 Faceplate Option (7-5/16” x 1-7/16”), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
[4]
8 -1/2"
[215.6]
1 -3/8"
[34.9]
1 -7/16"
[36.6]
8 -1/2"
[215.6]
13/16"
[20.6]
3 -3/8"
[85.7]
3/32"
[2.3]
1 -3/8"
[34.9]
[254]
1 -3/8"
[34.9]
10"
Inches
[mm]
10"
[254]
R 1/8"
504 Faceplate Option (10” x 1-3/8”), Radius Corners and Flat Faceplate
Used with cylindrical locksets; four-point mounting for wood installations
3059006.002 rev C
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
4 -7/8"
3 -3/8"
[85.7]
13/16"
[20.6]
3/32"
[2.3]
[124]
Inches
[mm]
4 -7/8"
[124]
4 -1/8"
[104.8]
1 -7/16"
[36.6]
501A Faceplate Option (4-7/8” x 1-1/4”), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
6 -1/8"
1 -1/4"
[31.8]
1 -7/16"
[36.6]
3 -3/8"
[85.7]
13/16"
[20.6]
3/32"
[2.3]
1 -1/4"
[36.5]
6 -7/8"
[174.3]
Inches
[mm]
6 -7/8"
[174.3]
R 3/16"
[4.1]
[155.6]
503 Faceplate Option (6-7/8” x 1-1/4”), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
1
5200 Electric Strike Body Trim Enhancer 12-Volt and 24-Volt Pigtails
1
Diagram 1: Product Components
Electrical Specifications
Electrical Ratings for Solenoid
Continuous Duty
Resistance in Ohms
Amps
12 VDC
50
.24
Solenoids are rated at +/- 10% indicated value.
*10% maximum duty cycle (2 minutes maximum on time)
Indoor use only
Minimum Wire Gauge Requirements
(Based on Round Trip)
200 feet or less
200 – 300 feet
300 – 400 feet
ASSA ABLOY, the global leader
in door opening solutions
24 VDC
200
.12
Solenoid Voltage
12 VDC 24 VDC
18 gauge
16 gauge
14 gauge
2
Intermittent Duty*
Resistance in Ohms
Amps
20 gauge
18 gauge
16 gauge
3
2
3
12–16 VAC
50
.24 – .32
24 VAC
200
.12
Installation
CAUTION!
Before connecting any device at the installation site, verify input voltage using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding
10% of the solenoid rating may cause severe damage to the unit and will void the warranty.
Preparing the Strike
Note: For 12 VDC, the Plug In Connector (pigtail)
marked “12 VDC” should be used; for 24 VDC,
the pigtail marked “24 VDC should be used.
1. SELECT the appropriate pigtail that matches system
power and electrically CONNECT as illustrated in
Diagram 2.
2. If no connector is present, CONFIGURE the wires as
illustrated in Diagram 2.
3. If using the Latchbolt Monitor (LBM) or Latchbolt
Strike Monitor (LBSM), REFER to Diagrams 3 and 4
on Page 3 to complete wiring.
Note: The 5200 ships in FAIL SECURE OPERATION
mode.
4. USE Diagrams 5 and 6 on Page 3 as a guide to
convert 5200 to FAIL SAFE OPERATION, if needed.
5. ATTACH the appropriate faceplate.
Preparing the Frame
6. PREPARE the frame using the appropriate template
for the faceplate (see Page 4).
Finishing the Installation
7. Electrically CONNECT the wires from the power
source to the 5200.
8. INSTALL the 5200 in the jamb cutout.
9. IF horizontal adjustment is needed,
THEN GO TO the “Adjusting the Horizontal”
section (see Page 3).
2
Installation (continued)
LBM Wiring
White
Orange
Green
Common
Normally Open
Normally Closed
White
Orange
Green
Diagram 3: Latchbolt Monitor
Brown
Blue Normally Open
Yellow
Yellow
Diagram 4: Latchbolt Strike Monitor
LBSM Wiring
Common
Normally Open
Normally Closed
Normally Closed
Brown
Blue
Yellow
3
DIAGRAM 5: CYLINDRICAL LOCKSETS
Converting the Operation Mode
Note 1: The 5200 series Electric Strikes are
pre-set for FAIL SECURE OPERATION.
Note 2: There are two #2-56 screws located
on the back of the strike for coverting
the operation mode.
10. To convert from FAIL SECURE OPERATION
to FAIL SAFE OPERATION, LOOSEN the two
#2-56 screws located on the back of the
strike, but DO NOT REMOVE them.
Diagram 5: FAIL SAFE OPERATION Mode Setting
11. MOVE the Selector Stop Pins to the FAIL
SAFE OPERATION position as pictured in
Diagram 5.
or
IF CONNECTOR IS MISSING
CONNECT
RED
VIOLET
Strike
Electric
BLACK
RED/GREEN
TOGETHER
(+ 12 VDC)
(-NEG)
CONNECT
TOGETHER
Electric
Diagram 2: 12V to 24V Conversion
RED
VIOLET
Strike
BLACK
RED/GREEN
(+ 24 VDC)
CONNECT
TOGETHER
(-NEG)
12. TIGHTEN the two #2-56 screws to secure
the strike in FAIL SAFE OPERATION.
Verifying the Operation Mode
13. VERIFY the 5200 is now in FAIL SAFE
OPERATION.
14. IF the 5200 still operates as FAIL SECURE,
THEN ENSURE the #2-56 screws are fully
seated and tightened.
Adjusting the Horizontal
15. TURN the horizontal adjustment screws slowly to
adjust the strike in-frame, as shown in Diagram 6.
16. DO NOT REMOVE the screws or ROTATE them more
than 3 full turns.
17. TIGHTEN the screws securely once the strike has
been adjusted to allow the K-Nut teeth to dig into
the strike housing and prevent slippage during use.
Horizontal
Adjustment
Screws
K-NUT
Diagram 6: Horizontal Adjustment
