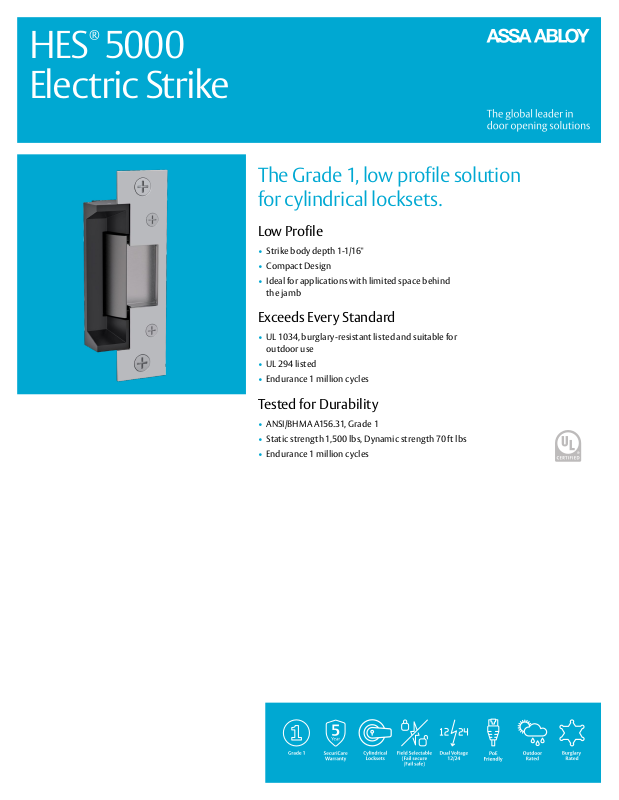

HES 5000-LBM, 5000C-LBM, 5000C Specsheet

HES® 5000
Electric Strike

The Grade 1, low profile solution
for cylindrical locksets.

Low Profile

• Strike body depth 1-1/16"

• Compact Design

• Ideal for applications with limited space behind

the jamb

Exceeds Every Standard

• UL 1034, burglary-resistant listed and suitable for

outdoor use

• UL 294 listed

• Endurance 1 million cycles

Tested for Durability

• ANSI/BHMA A156.31, Grade 1

• Static strength 1,500 lbs, Dynamic strength 70 ft lbs

• Endurance 1 million cycles

Low Profile | Economical | Latchbolts

Dimensions

4-1/8 "

[104. 8mm]

1-1/32 "

[26mm]

4-7/8 "

[123.4mm]

3-3/8"

[85. 5mm]

11/16"

[17.1mm]

1-3/4"

[44.5 mm]

Diagram shown with 501 Option

1-3/8"

[34.9mm]

3-3/8"

[85. 5mm]

1-1/16"

[2 7.3 mm]

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 294 listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Features

Standard Features

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail secure/fail safe

• In-frame horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8"

latchbol t (5/8" with 1/8" door gap)

• Strike body depth 1-3/16"

• Plug-in connector

• Trim enhancer included

• SecuriCare five-year, no-fault,

no questions asked warranty

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike

monitor

Accessories

• 5200-500 Filler block for

retro-fit applications

• 150 Strike latch guard

• HESCUT- MTK Metal

template kit

• 2001M Plug-in bridge

rectifier

• 2004M ElectroLynx

adapter

• 2005M3 SMART Pac

• 2006M Plug-in buzzer

• 5204 -1/2 1/2" stackable

lip extension

• 5204-1 1" stackable

lip extension

• 5204-1-1/4 1-1/4"

stackable lip extension

®

®

III

How to Order

Series Model Finish* Opt ion (s)

5000 – – 630 – LBM

5000 Universal Electric Strike;

Faceplates ordered separately

*Complete Pacs are only available in the 630 finish

 800.626.7590 |  assaabloyesh.com |  [e-mail]

C* Complete Electric Strike; Includes

the 501 and 501A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black
