HES 4500 User Manual
Installation Instructions
4500 Series Electric Strike

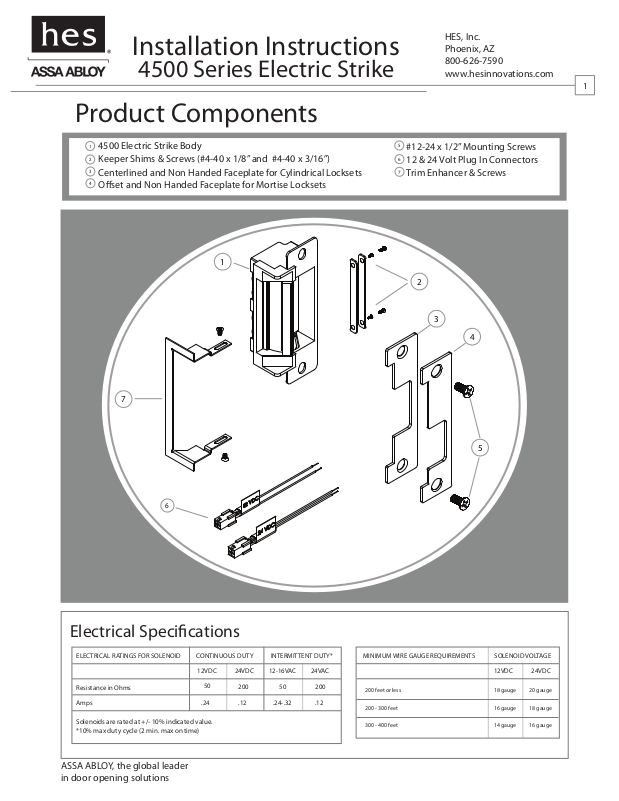

Product Components
1
4500 Electric Strike Body
2
Keeper Shims & Screws (#4-40 x 1/8” and #4-40 x 3/16”)
3
Centerlined and Non Handed Faceplate for Cylindrical Locksets
4
Oset and Non Handed Faceplate for Mortise Locksets
1
HES, Inc.
Phoenix, AZ
800-626-7590
www.hesinnovations.com
5
#12-24 x 1/2” Mounting Screws
6
12 & 24 Volt Plug In Connectors
7
Trim Enhancer & Screws
2
3
1
4
7
5
6
Electrical Specications
ELECTRICAL RATINGS FOR SOLENOID
Resistance in Ohms
Amps
Solenoids are rated at +/- 10% indicated value.
*10% max duty cycle (2 min. max on time)
ASSA ABLOY, the global leader
in door opening solutions
CONTINUOUS DUTY
12VDC
50
.24
INTERMITTENT DUTY*
24VDC
12-16VAC 24VAC
200 50 200
.12 .24-.32 .12
MINIMUM WIRE GAUGE REQUIREMENTS SOLENOID VOLTAGE
200 feet or less
200 - 300 feet
300 - 400 feet
12VDC
18 gauge
16 gauge
14 gauge
24VDC
20 gauge
18 gauge
16 gauge
Installation Directions
CAUTION! Before connecting any device at the installation site, verify input voltage using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding
10% of the solenoid rating may cause severe damage to the unit and will void the warranty.
2
Prepare Strike
1. Select the appropriate Plug In Connector that matches
system power and electrically connect as illustrated in
Diagram 1. For 12V AC/DC or 16V AC, the pigtail marked
“12 VDC” should be used. For 24V AC/DC, the pigtail
marked “24 VDC” should be used.
2. If using Latchbolt Monitor (LBM) or Latchbolt Strike
Monitor (LBSM), see Diagram 2 & 3 on page 3 to complete wiring. State of switch is listed for an unpowered
strike and LBM in unactuated (door open) position.
3. Verify that the strike is in the correct mode of
operation. This unit ships in Fail Secure mode. If you
need to convert to Fail Safe see Diagram 4 on page 3.
NOTE: FAIL SAFE CONVERSION NEGATES FIRE RATING.
Prepare Frame
4. Prepare frame using appropriate template for your
lockset on page 4. Schlage L9000 & Yale 8700 locksets
must use the template labeled “Schlage L9000 & Yale
8700 Locks Only.” All other locksets should use the
template labeled “CYLINDRICAL LOCKSET” or “MORTISE
LOCKSET.”
Finish Installing
5. Choose the appropriate faceplate for the strike as
illustrated in Diagram 5 on page 3.
6. Connect wires from the power source to the strike.
7. Install the electric strike unit in jamb cutout, using
#12-24 x 1/2” Mounting Screws provided.
8. If horizontal adjustment is needed, see Diagram 6
on page 3.
DIAGRAM 1: 12V to 24V CONVERSION
IF CONNECTOR IS MISSING
CONNECT
TOGETHER
(+ 12 VDC)
(-NEG)
CONNECT
TOGETHER
STRIKE
ELECTRIC
RED
VIOLET
BLACK
RED/GREEN
STRIKE
ELECTRIC
RED
VIOLET
BLACK
RED/GREEN
(+ 24 VDC)
CONNECT
TOGETHER
(-NEG)
