Page 1
The 1600 Series is also
available in a Complete
One Box Solution

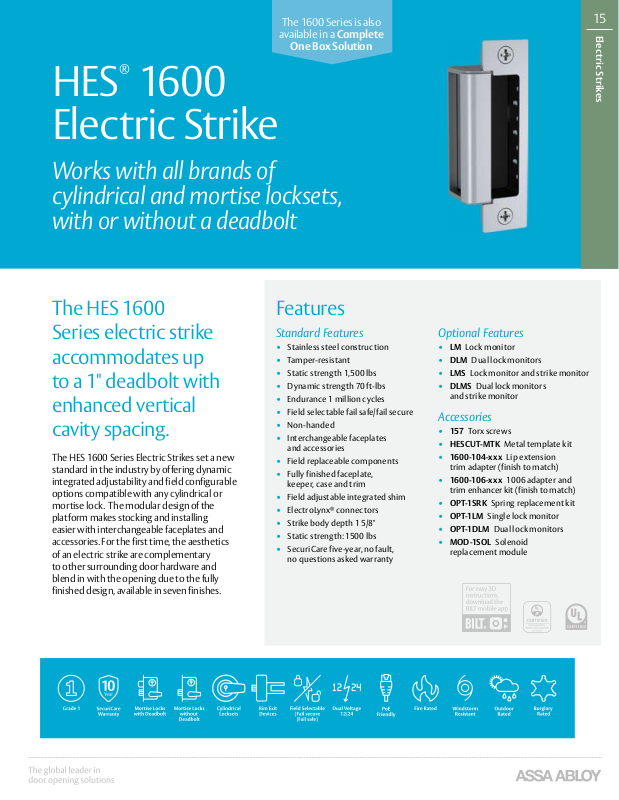

HES® 1600
Electric Strike
Works with all brands of
cylindrical and mortise locksets,
with or without a deadbolt
15
Electric Strikes
The HES 1600
Series electric strike
accommodates up
to a 1" deadbolt with
enhanced vertical
cavity spacing.
The HES 1600 Series Electric Strikes set a new
standard in the industry by offering dynamic
integrated adjustability and field configurable
options compatible with any cylindrical or
mortise lock. The modular design of the
platform makes stocking and installing
easier with interchangeable faceplates and
accessories. For the first time, the aesthetics
of an electric strike are complementary
to other surrounding door hardware and
blend in with the opening due to the fully
finished design, available in seven finishes.
Features
Standard Features
• Stainless steel construction
• Tamper-resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail safe/fail secure
• Non-handed
• Interchangeable faceplates
and accessories
• Field replaceable components
• Fully finished faceplate,
keeper, case and trim
• Field adjustable integrated shim
• ElectroLynx
• Strike body depth 1 5/8"
• Static strength: 1500 lbs
• SecuriCare five-year, no fault,
no questions asked warranty
®
connectors
Optional Features
• LM Lock monitor
• DLM Dual lock monitors
• LMS Lock monitor and strike monitor
• DLMS Dual lock monitors
and strike monitor
Accessories
• 157 Torx screws
• HESCUT-MTK Metal template kit
• 1600-104-xxx Lip extension
trim adapter (finish to match)
• 1600-106-xxx 1006 adapter and
trim enhancer kit (finish to match)
• OPT-1SRK Spring replacement kit
• OP T-1LM Single lock monitor
• OP T-1DL M Dual lock monitors
• MOD-1SOL Solenoid
replacement module
Page 2
16
Dimensions
Electric Strikes16Electric Strikes
[105]
4-1/8 "
[32]
1-1/4 "
[82]
3-1/ 4"
[124]
4-7/8 "
[35]
1-3/8"
1-5/8"
[41]
[95]
3-3/8"
Specifications
Certifications
• ANSI/BHMA A156.31, Grade 1
• UL 1034 burglary-resistant listed
and suitable for outdoor use
• UL 294 (6th Edition) listed
• RoHS compliant
• Static strength: 1500 lbs
• UL 10C fire-rated, 3 hour single
door (fail secure only)
• UL 10C fire-rated, 1-1/2 hour double
door (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant
• ASTM-E152 fire door compliant
• California Fire Marshal listed
• ANSI/SDI A250.13 windstorm resistant
• Florida Building Code approved TAS 201, 202, 203
• ANSI-ASTM E330
Frame Application
• Metal
• Wood
[44]
1-3/4"
How to Order
Series Model Finish* Option (s)
1600 – CS – 630 – LM
1600 Universal Electric
Strike; Faceplate
option kits ordered
separately
[38]
1-1/2"
CS Complete Electric Strike;
Includes 1LB faceplate kit for
latchbolts and 1DB faceplate
kit for deadbolts
CLB Complete Electric Strike for
Latchbolt Locks; Includes
1LB faceplate kit for
latchbolts
Electrical (DC Continous Duty)
• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
[41]
1-5/8"
605 Bright Brass LM Lock Monitor
606 Satin Brass DLM Dual Lock Monitor
612 Satin Bronze LMS Lock Monitor and Strike Monitor*
613 Bronze Toned DLMS Dual Lock Monitors and Strike Monitor*
613E Dark Oxidized Satin Bronze OP T-1LM Single Lock Monitor
629 Bright Stainless Steel OP T-1DL M Dual Lock Monitors
• PoE friendly
CDB Complete Electric Strike for
assaabloyesh.com | 800.626.7590
10027 S. 51st Street Phoenix, AZ 85044 USA
Deadbolt Locks; Includes
1DB faceplate kit for
deadbolts
Patent pending and/or patent
assaabloydss.com/patents
630 Satin Stainless Steel
BSP Black Suede Powder
*Complete Pacs are only available in the 630 finish
Copyr ight © 2018, Hanchett En try System s, Inc., an ASSA ABLOY Gr oup company.
All righ ts reser ved. Reprodu ction in whole or in par t without th e express wr itten
permi ssion of Hanche tt Entry Sys tems, Inc. is pro hibited.
Page 3

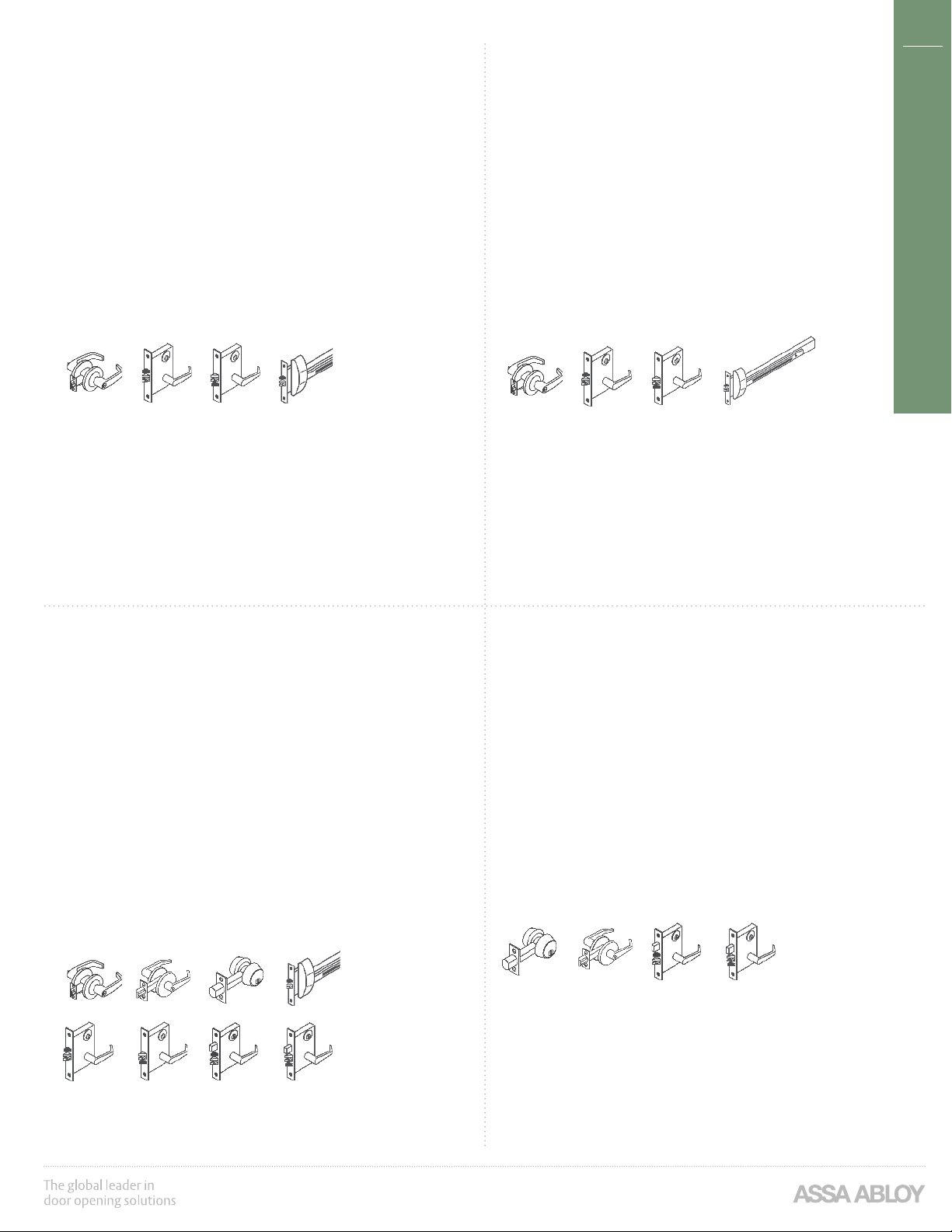

HES 1500C Complete
17
Electric Strikes
HES 1600CLB Complete
Electric Strike
For all cylindrical and mortise
locksets with 3/4" latchbolt
The 1500C includes a 1500 electric strike body
and the 1LB faceplate kit for latchbolts.:
1J Option
1K Option
Compatible Locksets
1KM Option
1KD Option
for Latchbolt Locks
The Complete One Box Solution for all
cylindrical and mortise locksets
The 1600CLB includes a 1600 electric strike body
and the 1LB faceplate kit for latchbolts.
1J Option
1K Option
Compatible Locksets
1KM Option
1KD Option
HES 1600CS Complete
Electric Strike
The Complete One Box Solution for all cylindrical
and mortise locksets, with or without a 1" deadbolt
The 1600CS includes a 1600 electric strike body, the 1LB faceplate
kit for latchbolts and the 1DB faceplate kit for deadbolts.
1J Option
1K Option
1KM Option
Compatible Locksets
1KD Option
1N Option
1NM Option
1ND Option
1NTD Option
HES 1006CDB Complete
for Deadbolt Locks
The Complete One Box Solution for
all locksets with a 1" deadbolt.
The 1600CDB includes a 1600 electric strike body
and the 1DB faceplate kit for deadbolts.
1N Option
1NM Option
Compatible Locksets
1ND Option
1NTD Option
Page 4
18

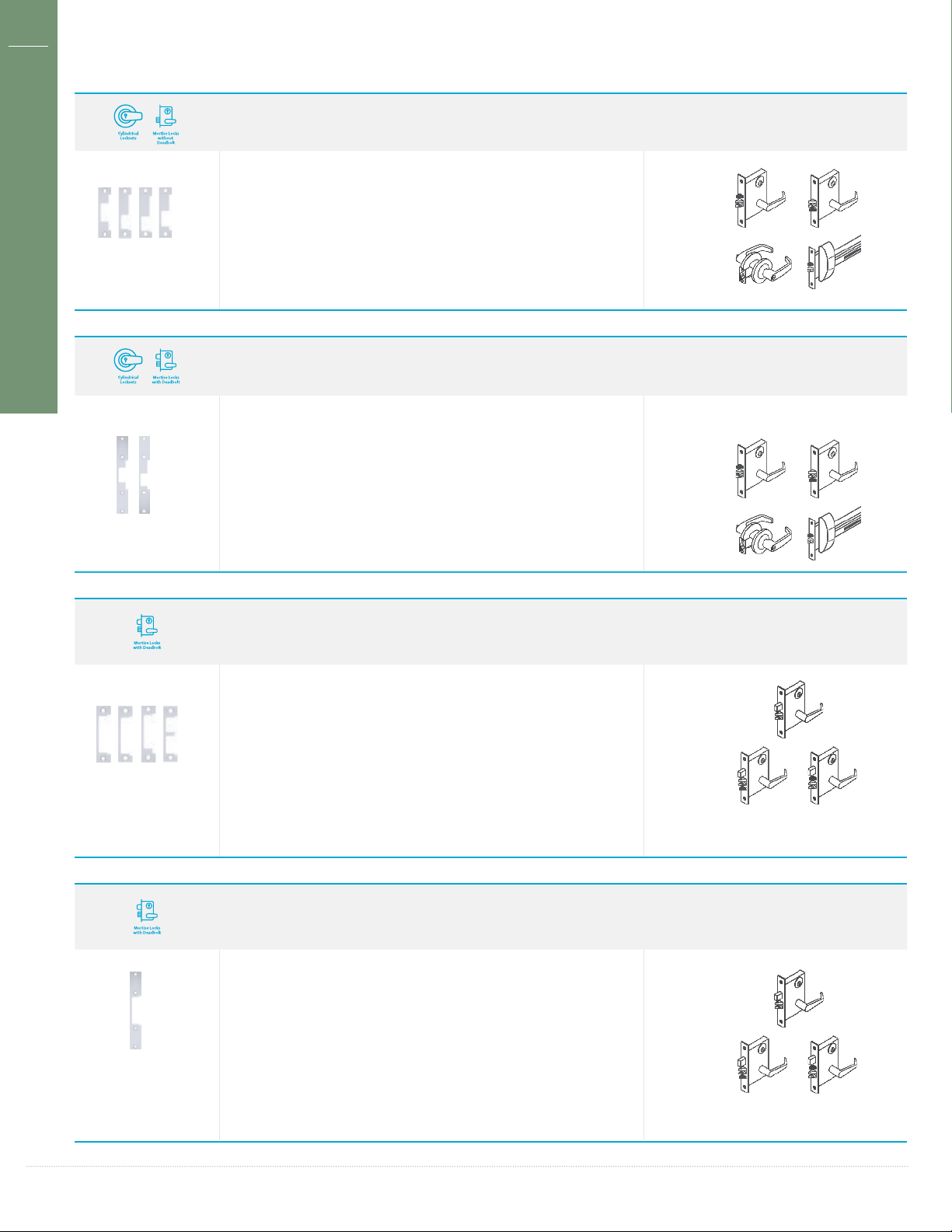

HES 1500 & 1600 Series Faceplate Options
Operation: After releasing the latchbolt, the keeper returns to the locked position
Electric Strikes18Electric Strikes
4- 7/8" × 1 -1/4"
9" × 1-3/8 "
1LB Option
The Latchbolt Solution: Includes the hardware to accommodate
every cylindrical and mor tise lock up to a 3/4" latchbolt. For metal
frame applications.
Operation: After releasing the latchbolt, the keeper returns to the locked position
1LB -2 Option
The Deadbolt Solution: Includes the hardware to
accommodate every cylindrical and mortise lock up
to a 3/4" latchbolt. For wood frame applications.
4-7/8" × 1-1/4"
9" x 1-3/8"
Operation: This deadbolt solution offers two modes of functionality; night latch, lockout,
and normally extended deadbolt. (Functional operation modes described below.)
The Deadbolt Solution: Includes all hardware to retain,
and release all mor tise locks, and tubular deadbolts up
to a 1" latchbolt. For metal frame applications.
Operation: This deadbolt solution offers two modes of functionality; night latch, lockout,
and normally extended deadbolt. (Functional operation modes described below.)
The Deadbolt Solution: Includes all hardware to retain,
and release all mor tise locks, and tubular deadbolts up
to a 1" latchbolt. For wood frame applications.
assaabloyesh.com | 800.626.7590
10027 S. 51st Street Phoenix, AZ 85044 USA
Patent pending and/or patent
assaabloydss.com/patents
Copyr ight © 2018, Hanchett En try System s, Inc., an ASSA ABLOY Gr oup company.
All righ ts reser ved. Reprodu ction in whole or in par t without th e express wr itten
permi ssion of Hanche tt Entry Sys tems, Inc. is pro hibited.
Page 5

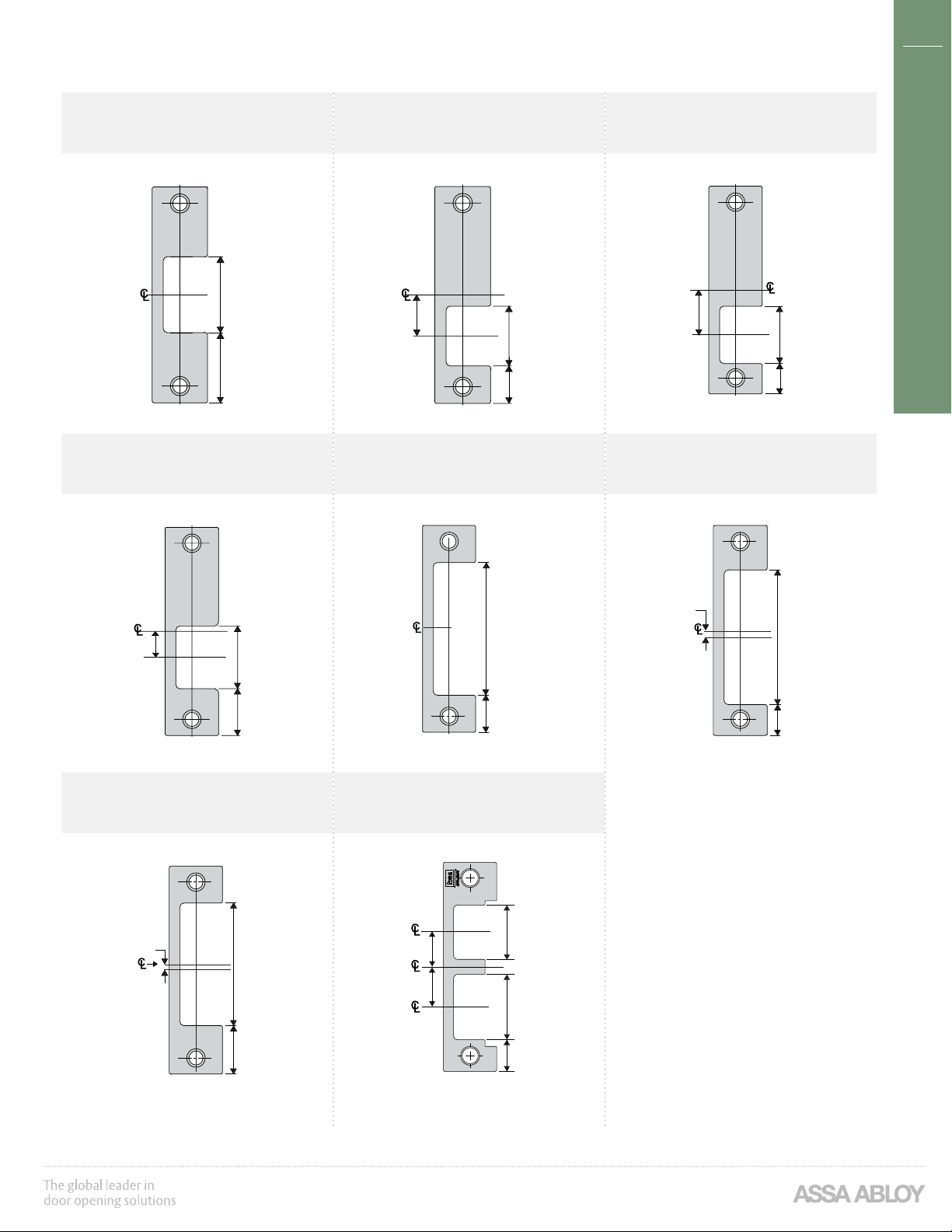

HES 1500 & 1600 Series Faceplate Dimensions
]
15/16
[23.8
13/16
[20.5
19
Electric Strikes
1J
Faceplate Option
1-23/32”
[43.64]
1-37/64”
[40.08]
1KM
Faceplate Option
1K
Faceplate Option
29/32”
[23.39]
1N
Faceplate Option
1-11/32”
[34.11]
27/32”
[21.46]
1KD
Faceplate Option
1-1/16”
[26.72]
1ND
Faceplate Option
1-11/32”
[34.11]
23/32”
[18.22]
19/32”
[15.46]
1NM
Faceplate Option
1/8”
[3.17]
1-15/32”
[37.29]
1-3/32”
[27.81]
2-7/8”
[73.02]
1-9/64”
[28.83]
3-1/8”
[79.37]
7/8”
[22.23]
1NTD
Faceplate Option
1-1/4"
"
]
"
]
[32.0]
1-1/2"
[38.1]
23/32"
[18.22
5/32
[3.97]
“
3-1/8”
[79.37]
23/32”
[18.26]
“For use w ith” inform ation is off ered as a recomme ndation onl y. Reference sho uld be made to th e lockset
manufacturer for proper installation instructions necessary to meet compatibility requirements.
Page 6
20
HES 1500 & 1600 Series Faceplate Dimensions
1J-2
Faceplate Option
1KM-2
Faceplate Option
Electric Strikes20Electric Strikes
1.72"
[43.63]
1-15/32"
[37.29]
.86"
[21.81]
3.63"
[92.22]
19/32"
[15.46]
3-1/8"
[80]
1N-2
Faceplate Option
3-1/8"
[79.37]
2-25/32"
[71]
assaabloyesh.com | 800.626.7590
10027 S. 51st Street Phoenix, AZ 8504 4 USA
Patent pending and/or patent
assaabloydss.com/patents
Copyr ight © 2018, Hanch ett Ent ry Syst ems, Inc. , an ASSA ABLOY G roup compa ny.
All rig hts res erved. R eproduc tion in wh ole or in par t withou t the expr ess writ ten
permission of Hanchett Entry Systems, Inc. is prohibited.
