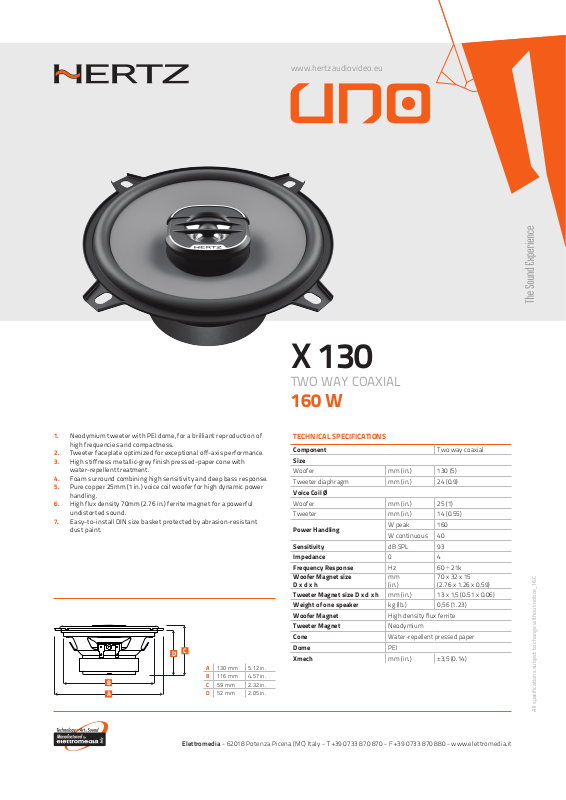

Hertz Uno X 130 TECHNICAL SPECIFICATIONS

www.hertzaudiovideo.euwww.hertzaudiovideo.eu

1. Neodymium tweeter with PEI dome, for a brilliant reproduction of

high frequencies and compactness.

2. Tweeter faceplate optimized for exceptional of f-axis performance.

3. High stiffness metallic-grey finish pressed-paper cone with

water-repellent treatment.

4. Foam surround combining high sensitivity and deep bass response.

5. Pure copper 25mm (1 in.) voice coil woofer for high dynamic power

handling.

6. High flux density 70mm (2.76 in.) ferrite magnet for a powerful

undistorted sound.

7. Easy-to-install DIN size basket protected by abrasion-resistant

dust paint.

C

D

A 130 mm 5.12 in.

B

A

B 116 mm 4.57 in.
C 59 mm 2.32 in.
D 52 mm 2.05 in.

X 130

TWO WAY COAXIAL

160 W

TECHNICAL SPECIFICATIONS

Component Two way coaxial
Size

Woofer mm (in.) 130 (5)

Tweeter diaphragm mm (in.) 24 (0.9)

Voice Coil Ø

Woofer mm (in.) 25 (1)

Tweeter mm (in.) 14 (0.55)

Power Handling

Sensitivity dB SPL 93
Impedance Ω 4
Frequency Response Hz 60 ÷ 21k

Woofer Magnet size
D x d x h

Tweeter Magnet size D x d x h mm (in.) 13 x 1,5 (0.51 x 0.06)
Weight of one speaker kg (lb.) 0,56 (1.23)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone
Dome PEI
Xmech mm (in.) ±3,5 (0.14)

W peak 160

W continuous 40

mm
(in.)

Water-repellent pressed paper

70 x 32 x 15
(2.76 x 1.26 x 0.59)

All specifications subject to change without notice_16.C
