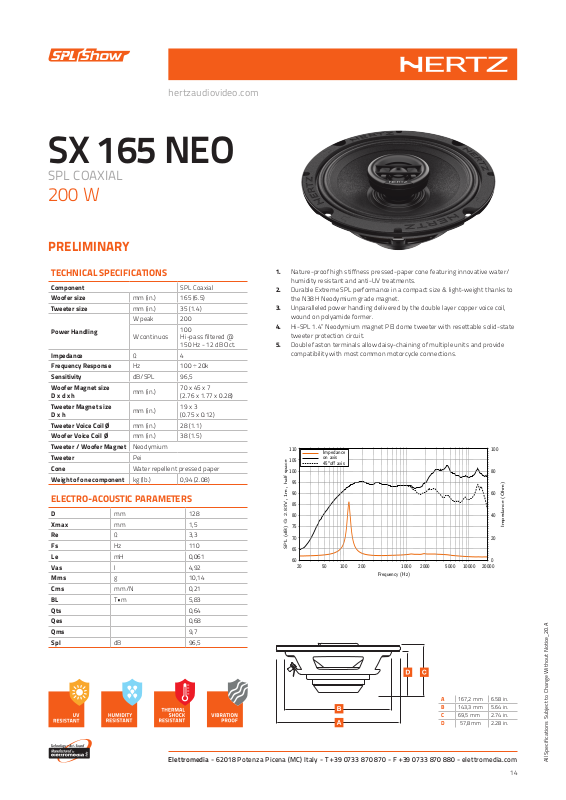

Hertz SX165NEO Technical Sheet
hertzaudiovideo.com
0
20
40
60
80
100
Impedance (Ohm)
20 50 100 200 1000 2000 5000 10000 20000
60
65
70
75
80
85
90
95
100
105
110
Frequency (Hz)
SPL (dB) @ 2.83V, 1m, half space
Impedance
on axis
45°off axis
SX 165 NEO
SPL COAXIAL
200 W
PRELIMINARY
TECHNICAL SPECIFICATIONS
Component SPL Coaxial
Woofer size mm (in.) 165 (6.5)
Tweeter size mm (in.) 35 (1.4)
W peak 200
Power Handling
Impedance Ω 4
Frequency Response Hz 100 ÷ 20k
Sensitivity dB/SPL 96,5
Woofer Magnet size
D x d x h
Tweeter Magnet size
D x h
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter / Woofer Magnet Neodymium
Tweeter Pei
Cone Water repellent pressed paper
Weight of one component kg (lb.) 0,94 (2.08)
W continuos
mm (in.)
mm (in.)
100
Hi-pass filtered @
150 Hz - 12 dB Oct.
70 x 45 x 7
(2.76 x 1.77 x 0.28)
19 x 3
(0.75 x 0.12)
ELECTRO-ACOUSTIC PARAMETERS
D mm 128
Xmax mm 1,5
Re Ω 3,3
Fs Hz 110
Le mH 0,061
Vas I 4,92
Mms g 10,14
Cms mm/N 0,21
BL
Qts 0,64
Qes 0,68
Qms 9,7
Spl dB 96,5
T•m
5,83
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/
humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to
the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil,
wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state
tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide
compatibility with most common motorcycle connections.
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - elettromedia.com
A 167,2 mm 6.58 in.
B 143,3 mm 5.64 in.
C 69,5 mm 2.74 in.
D 57,8 mm 2.28 in.
All Specifications Subject to Change Without Notice_20.A
