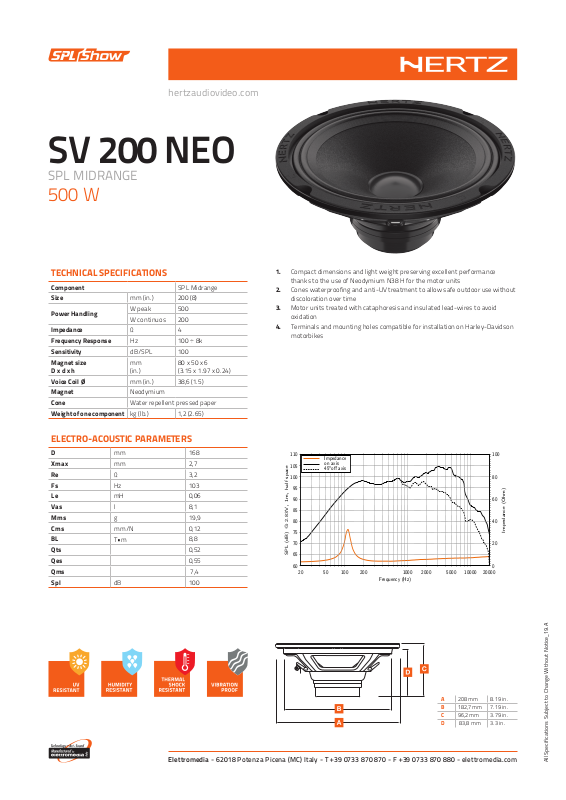

Hertz SV200NEO Specification Sheet
hertzaudiovideo.com
0
20
40
60
80
100
Impedance (Ohm)
20 50 100 200 1000 2000 5000 10000 20000
60
65
70
75
80
85
90
95
100
105
110
Frequency (Hz)
SPL (dB) @ 2.83V, 1m, half space
Impedance
on axis
45°off axis
SV 200 NEO
SPL MIDRANGE
500 W
TECHNICAL SPECIFICATIONS
Component SPL Midrange
Size mm (in.) 200 (8)
Power Handling
Impedance Ω 4
Frequency Response Hz 100 ÷ 8k
Sensitivity dB/SPL 100
Magnet size
D x d x h
Voice Coil Ø mm (in.) 38,6 (1.5)
Magnet Neodymium
Cone Water repellent pressed paper
Weight of one component kg (lb.) 1,2 (2.65)
W peak 500
W continuos 200
mm
(in.)
80 x 50 x 6
(3.15 x 1.97 x 0.24)
ELECTRO-ACOUSTIC PARAMETERS
D mm 168
Xmax mm 2,7
Re Ω 3,2
Fs Hz 103
Le mH 0,06
Vas I 8,1
Mms g 19,9
Cms mm/N 0,12
BL
Qts 0,52
Qes 0,55
Qms 7,4
Spl dB 100
T•m
8,8
1. Compact dimensions and light weight preserving excellent performance
thanks to the use of Neodymium N38 H for the motor units
2. Cones waterproofing and anti-UV treatment to allow safe outdoor use without
discoloration over time
3. Motor units treated with cataphoresis and insulated lead-wires to avoid
oxidation
4. Terminals and mounting holes compatible for installation on Harley-Davidson
motorbikes
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - elettromedia.com
A 208 mm 8.19 in.
B 182,7 mm 7.19 in.
C 96,2 mm 3.79 in.
D 83,8 mm 3.3 in.
All Specifications Subject to Change Without Notice_19.A
