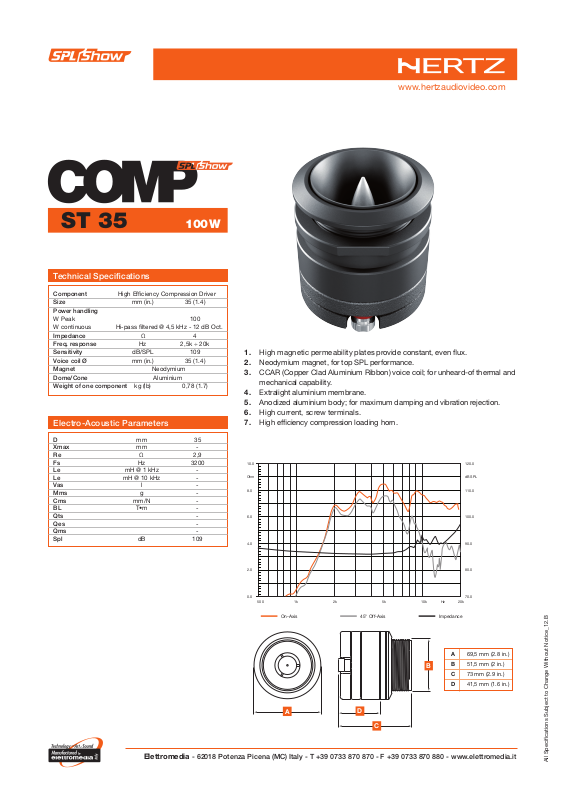

Hertz ST35 Specifications
www.hertzaudiovideo.com
ST 25 100 W AFR 25
AFR 35
500 1k 2k 10k5k 20k
A
D
B
C
70.0
80.0
90.0
100.0
110.0
120.0
dB SPL
10.0 0
Ohm
8.00
6.00
4.00
2.00
0.00
AFR 25
A
D
B
E
C
A 42,6 mm (1.7 in.)
B 67 mm (2.6 in.)
C 76 mm (3 in.)
D 3 mm (0.1 in.)
E 5,5 mm (0.2 in.)
HOW TO MOUNT AFR
ST 25
ST 35
On-Axis 45° Off-Axis Impedance
A 57,5 mm (2.3 in.)
B 43,5 mm (1.7 in.)
C 63 mm (2.5 in.)
D 37 mm (1.4 in.)
AFR 35
A
D
B
EC
A 51 mm (2 in.)
B 78,5 mm (3.1 in.)
C 88 mm (3.4 in.)
D 3 mm (0.1 in.)
E 5,5 mm (0.2 in.)
HOW TO MOUNT AFR
ST 35 100 W
Technical Specifications
Component High Efciency Compression Driver
Size mm (in.) 35 (1.4)
Power handling
W Peak 100
W continuous Hi-pass ltered @ 4,5 kHz - 12 dB Oct.
Impedance Ω 4
Freq. response Hz 2,5k ÷ 20k
Sensitivity dB/SPL 109
Voice coil Ø mm (in.) 35 (1.4)
Magnet Neodymium
Dome/Cone Aluminium
Weight of one component kg (lb) 0,78 (1.7)
Electro-Acoustic Parameters
D mm 35
Xmax mm Re Ω 2,9
Fs Hz 3200
Le mH @ 1 kHz Le mH @ 10 kHz Vas l Mms g Cms mm/N BL T•m -
Qts Qes Qms Spl dB 109
1. High magnetic permeability plates provide constant, even ux.
2. Neodymium magnet, for top SPL performance.
3. CCAR (Copper Clad Aluminium Ribbon) voice coil; for unheard-of thermal and
mechanical capability.
4. Extralight aluminium membrane.
5. Anodized aluminium body; for maximum damping and vibration rejection.
6. High current, screw terminals.
7. High efciency compression loading horn.
10.0
Ohm
8.0
6.0
4.0
120.0
dB SPL
110.0
100.0
90.0
2.0
0.0
500 1k 2k Hz5k 10k 20k
On-Axis 45° Off-Axis Impedance
A
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it
D
C
A 69,5 mm (2.8 in.)
B 51,5 mm (2 in.)
B
C 73 mm (2.9 in.)
D 41,5 mm (1.6 in.)
80.0
70.0
All Specications Subject to Change Without Notice_12.B
