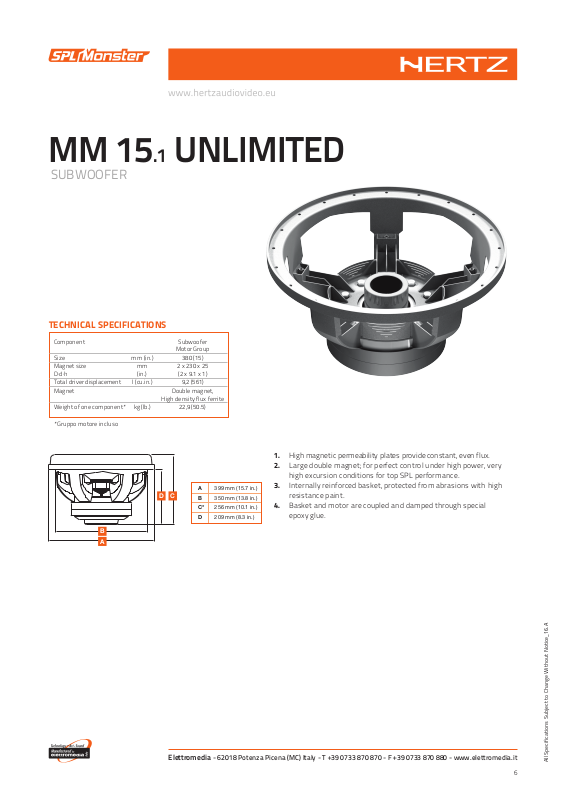

Hertz MM 15.1 Unlimited TECHNICAL SPECIFICATIONS

MM 15.1 UNLIMITED

MM 15.1 UNLIMITED

SUBWOOFER

TECHNICAL SPECIFICATIONS

Component Subwoofer
Motor Group
Size mm (in.) 380 (15)
Magnet size mm 2 x 230 x 25
D·d·h (in.) (2 x 9.1 x 1)
Total driver displacement l (cu.in.) 9,2 (561)
Magnet Double magnet,
High density flux ferrite
Weight of one component* kg (lb.) 22,9 (50.5)

*Gruppo motore incluso

1. High magnetic permeability plates provide constant, even flux.

2. Large double magnet; for perfect control under high power, very

high excursion conditions for top SPL performance.

DAC

B

A 399 mm (15.7 in.)

B 350 mm (13.8 in.)

C* 256 mm (10.1 in.)

D 209 mm (8.3 in.)

3. Internally reinforced basket, protected from abrasions with high
resistance paint.

4. Basket and motor are coupled and damped through special
epoxy glue.

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it

All Specifications Subject to Change Without Notice_16.A
