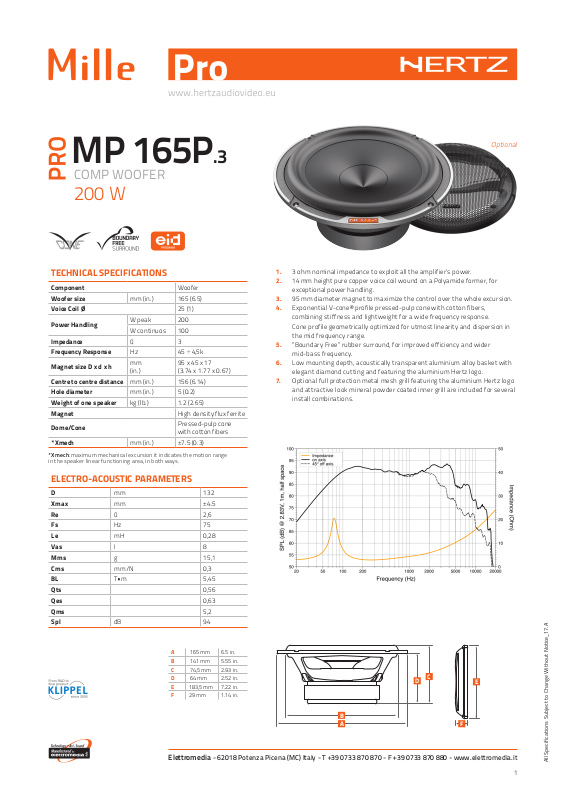

Hertz Mille MP 165P.3 PRO TECHNICAL SPECIFICATIONS
MP 165P.3
COMP WOOFER
200 W
Optional
TECHNICAL SPECIFICATIONS
Component Woofer
Woofer size mm (in.) 165 (6.5)
Voice Coil Ø 25 (1)
Power Handling
Impedance Ω 3
Frequency Response Hz 45 ÷ 4,5k
Magnet size D x d x h
Centre to centre distance mm (in.) 156 (6.14)
Hole diameter mm (in.) 5 (0.2)
Weight of one speaker kg (lb.) 1.2 (2.65)
Magnet High density flux ferrite
Dome/Cone
*Xmech mm (in.) ±7.5 (0.3)
*Xmech : maximum mechani cal excursion i t indicates the motion range
in the speaker linea r functioning area, in both ways.
W peak 200
W continuos 100
mm
(in.)
95 x 45 x 17
(3.74 x 1.77 x 0.67)
Pressed-pulp cone
with cotton fibers
ELECTRO-ACOUSTIC PARAMETERS
D mm 132
Xmax mm ±4.5
Re Ω 2,6
Fs Hz 75
Le mH 0,28
Vas I 8
Mms g 15,1
Cms mm/N 0,3
BL
Qts 0,56
Qes 0,63
Qms 5,2
Spl dB 94
T•m
5,45
1. 3 ohm nominal impedance to exploit all the amplifier’s power.
2. 14 mm height pure copper voice coil wound on a Polyamide former, for
exceptional power handling.
3. 95 mm diameter magnet to maximize the control over the whole excursion.
4. Exponential V-cone® profile pressed-pulp cone with cot ton fibers,
combining stiffness and lightweight for a wide frequency response.
Cone profile geometrically optimized for utmost linearit y and dispersion in
the mid frequency range.
5. “Boundary Free” rubber surround, for improved efficiency and wider
mid-bass frequency.
6. Low mounting depth, acoustically transparent aluminium alloy ba sket with
elegant diamond cutting and featuring the aluminium Hertz logo.
7. Optional full protection metal mesh grill featuring the aluminium Hert z logo
and attractive look mineral powder coated inner grill are included for several
install combinations.
A 165 mm 6.5 in.
B 141 mm 5.55 in.
C 74,5 mm 2.93 in.
D 64 mm 2.52 in.
E 183,5 mm 7.22 in.
F 29 mm 1.14 in.
B
A
C
D
E
F
Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it
All Specifications Subject to Change Without Notice_17.A
